Marantz SR-19EX User manual
Service
Manual
Please use this service manual with referring to the user guide (D.F.U) without fail.
334J855010 AO
First Issue:2001.01
SR19A/K1G, /S1G, /C1G, /U1G, /U1B
AV Surround Receiver
SR-19EX
Printed in Japan
TABLE OF CONTENTS
1. TECHNICAL SPECIFICATION ...............................................................................1
2. WIRING DIAGRAM.................................................................................................3

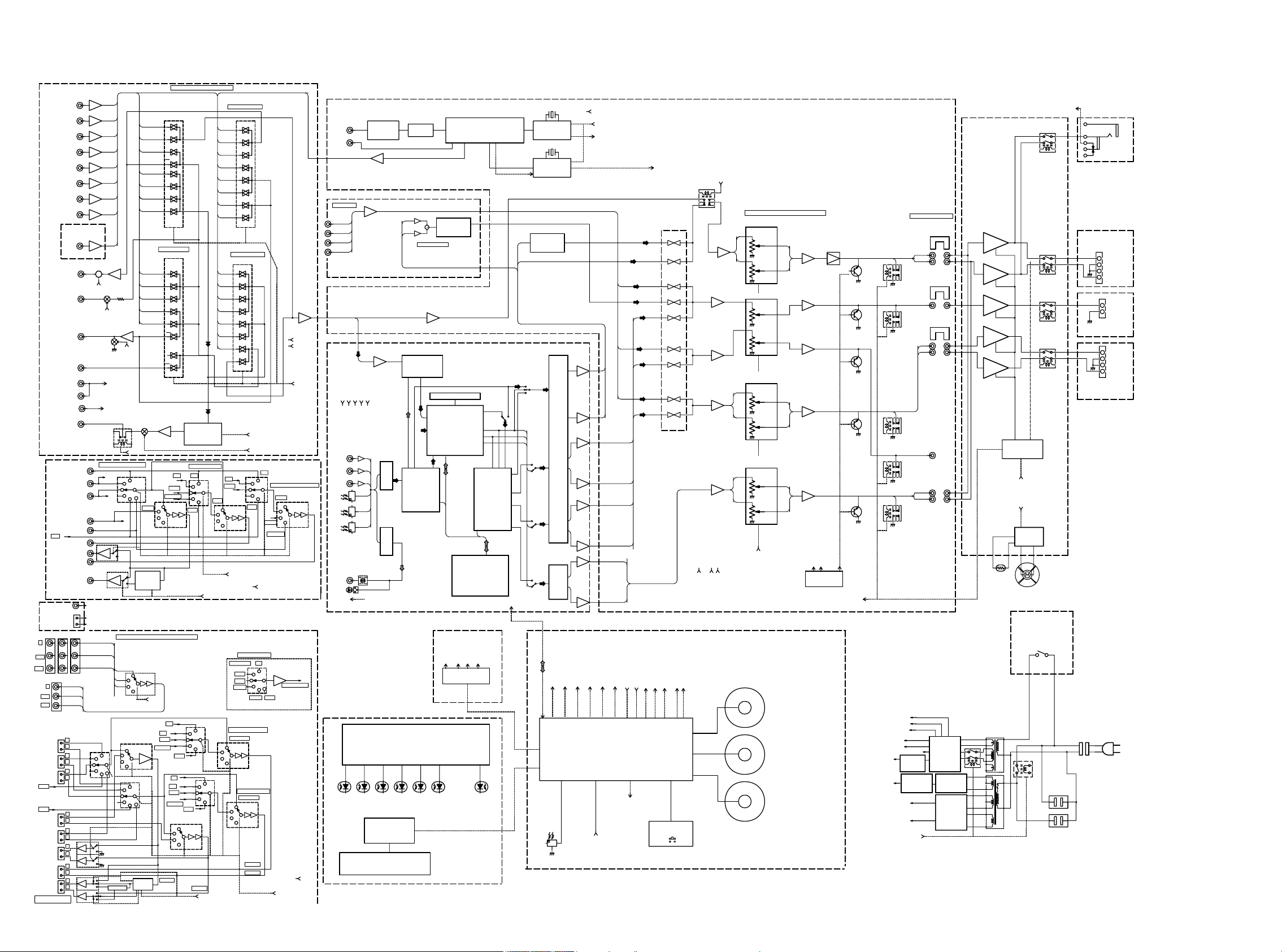

3. BLOCK DIAGRAM ..................................................................................................5

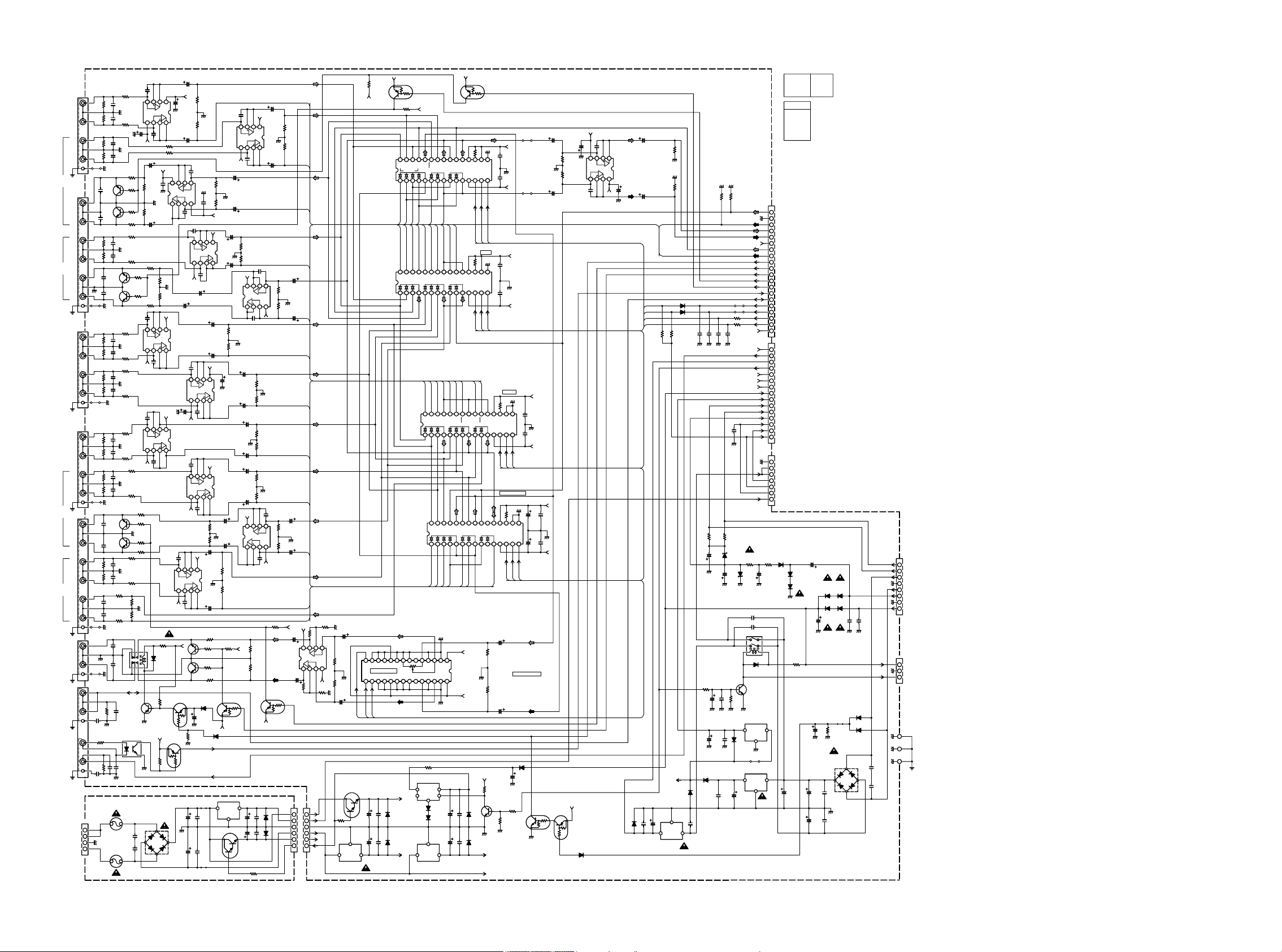

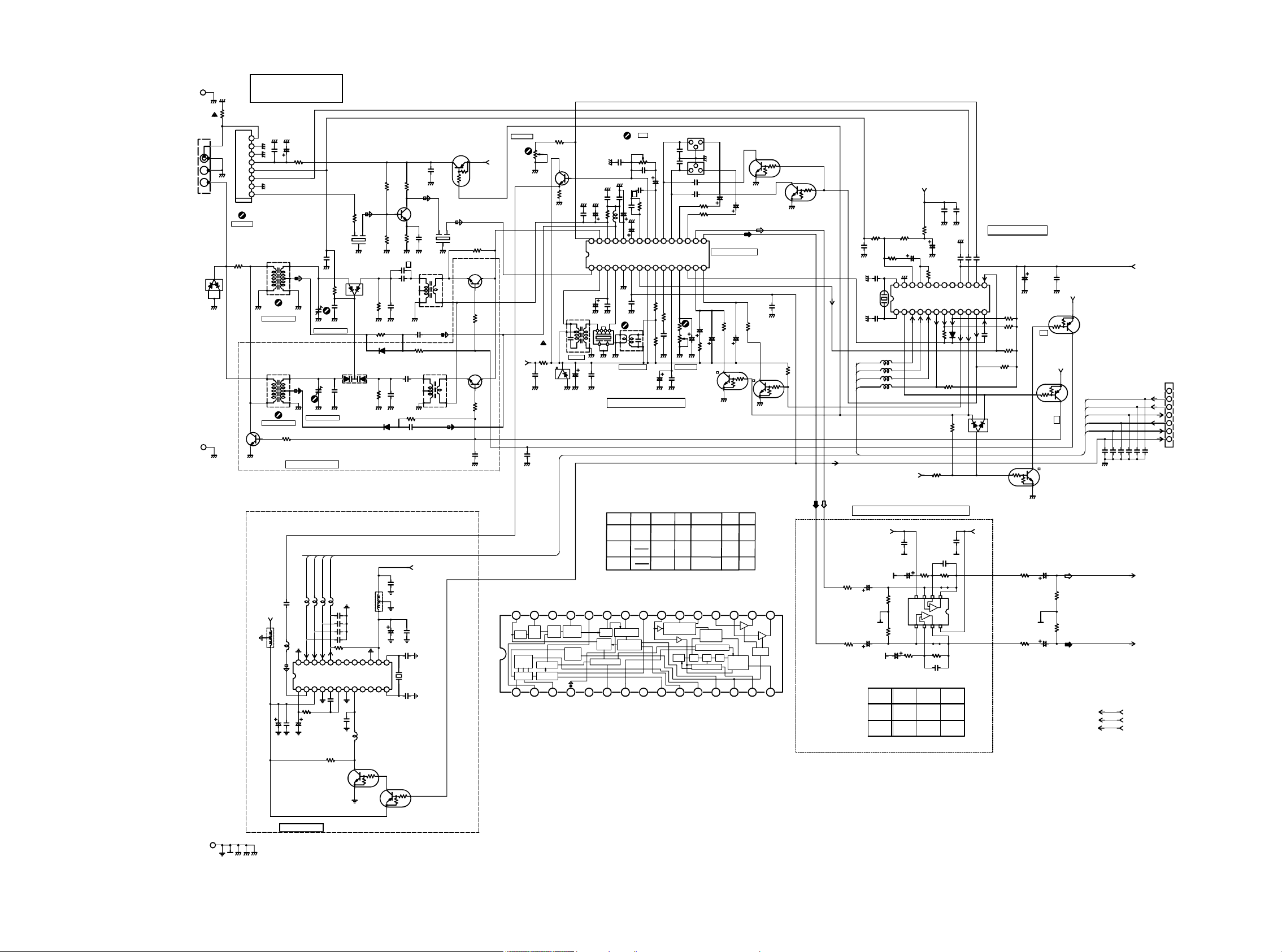

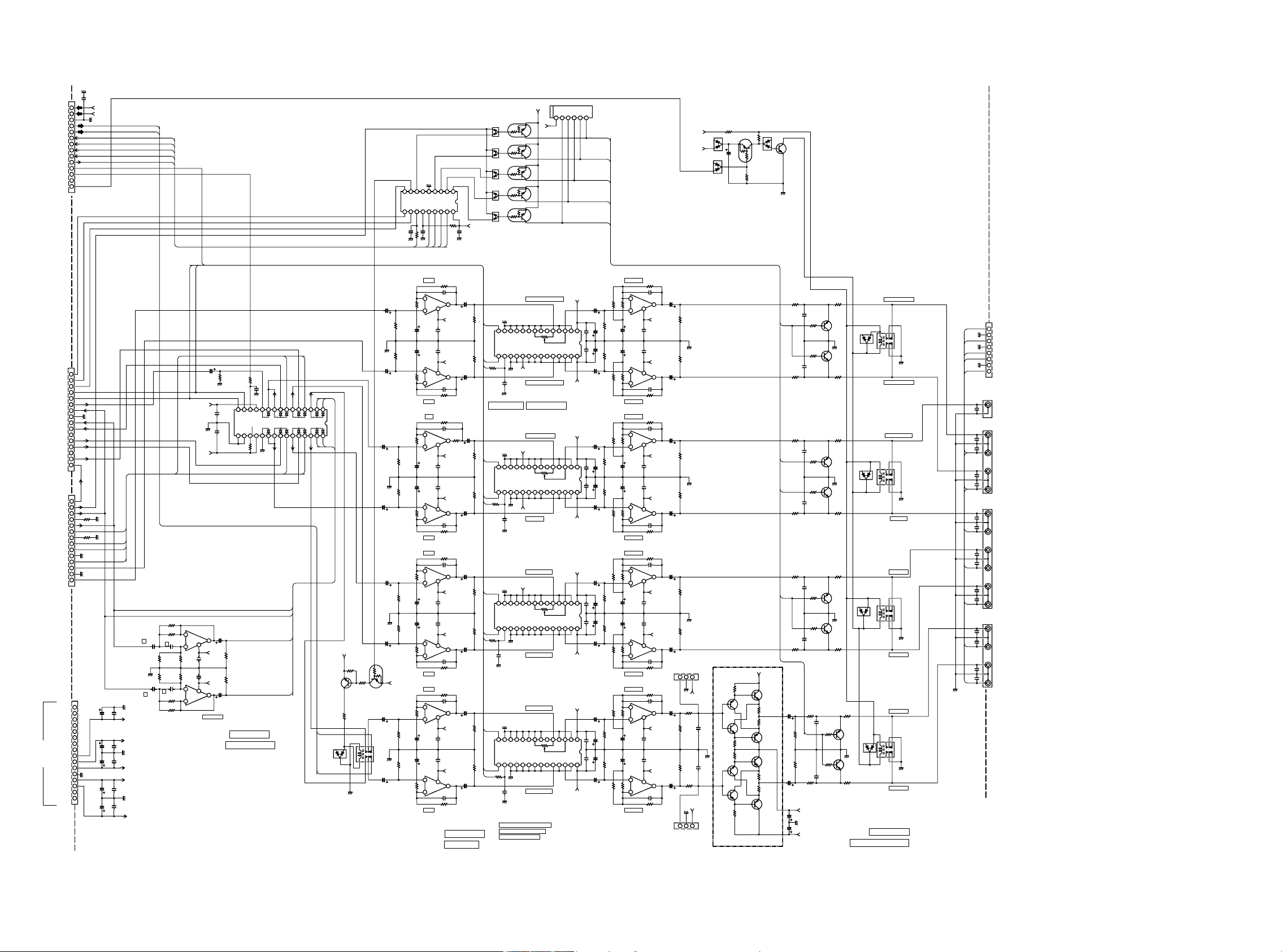

4. SCHEMATIC DIAGRAM .........................................................................................7

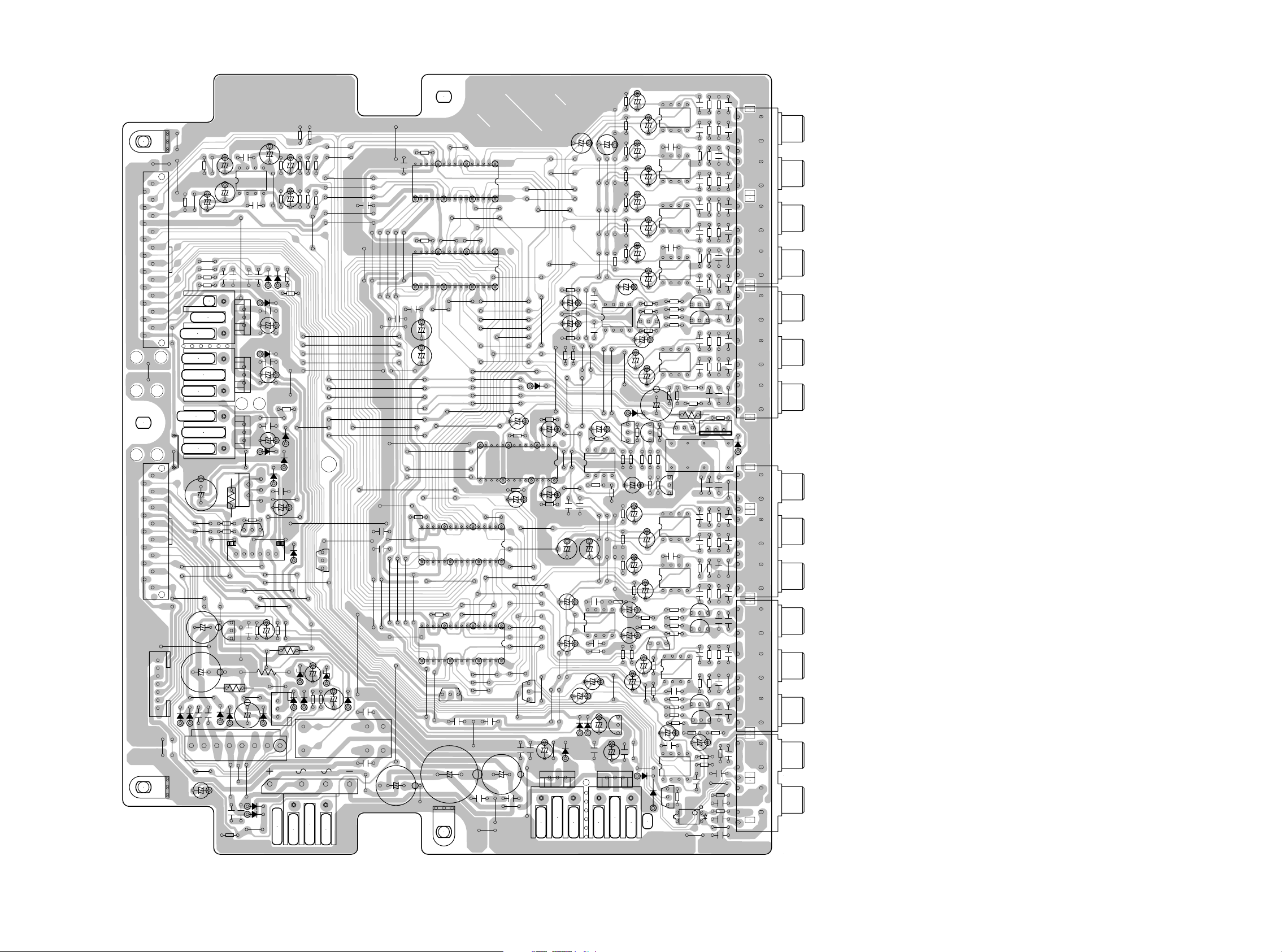

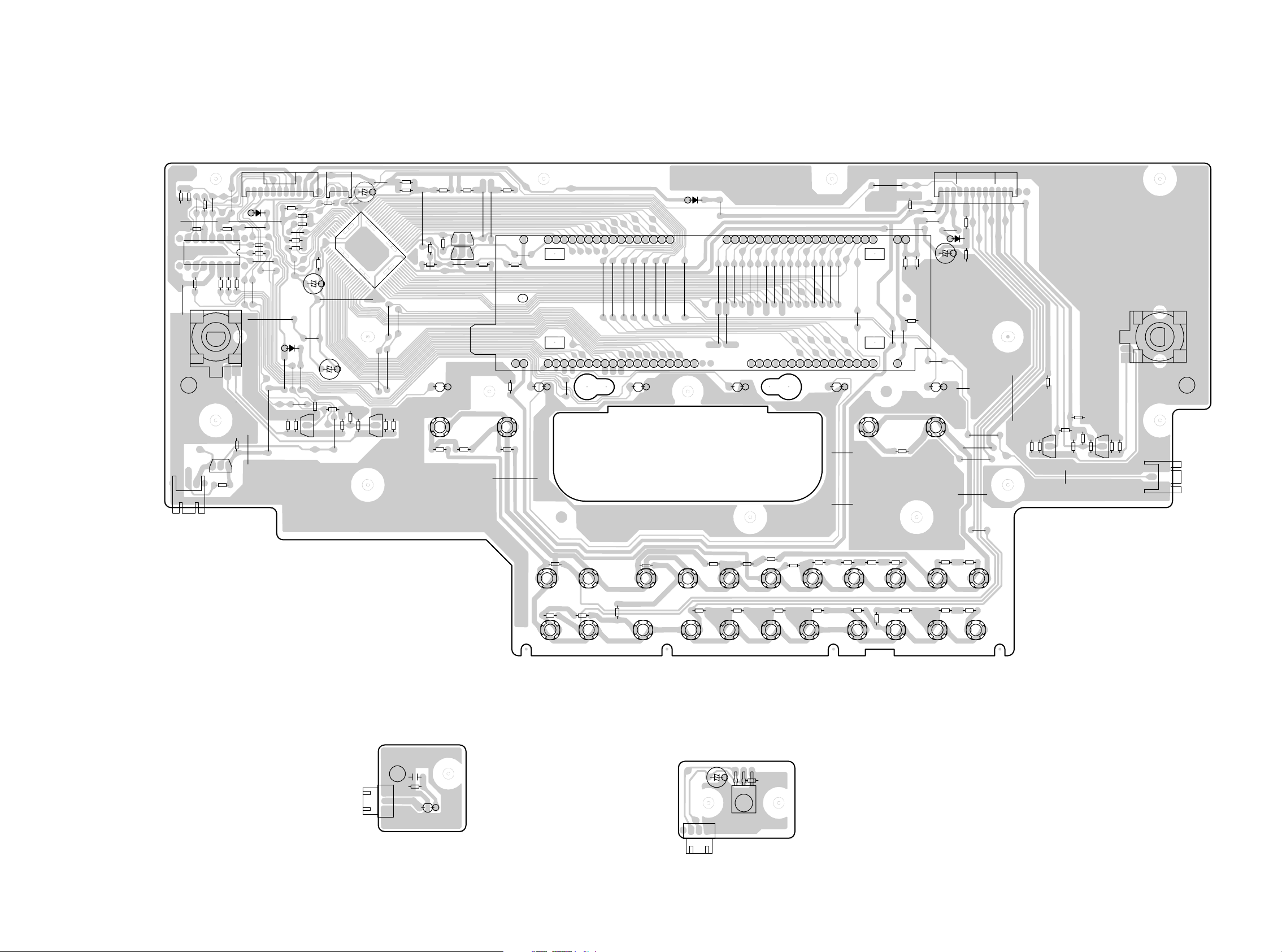

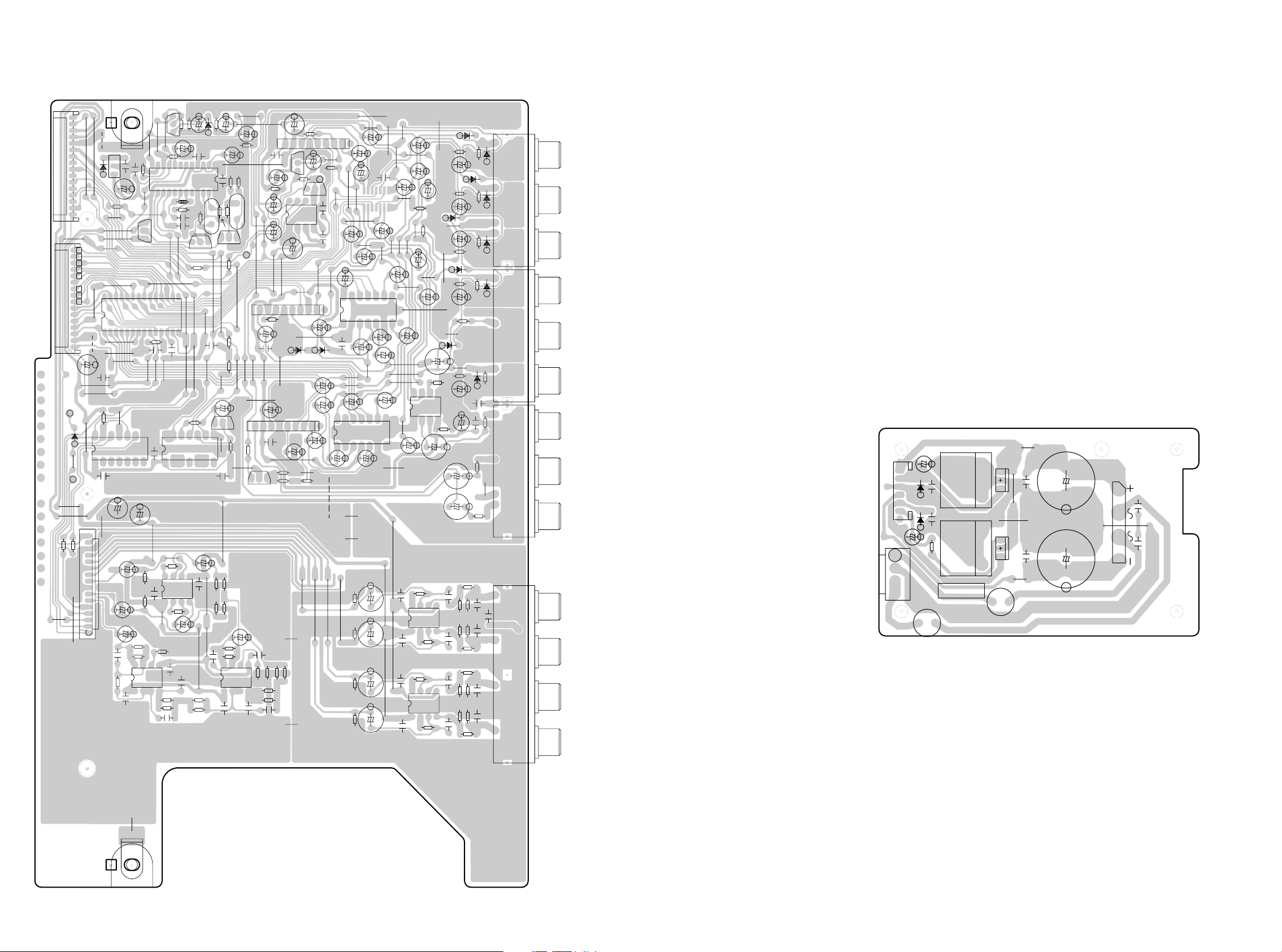

5. PARTS LOCATION (Pattern Side) ........................................................................27
6. IC DATA ................................................................................................................47
7. EXPLODED VIEW AND PARTS LIST...................................................................57
8. SERVICE PROGRAM...........................................................................................60
9. ELECTRICALADJUSTMENTS.............................................................................62
10. ADJUSTMENT PROCEDURE ..............................................................................64
11. TROUBLE SHOOTING.........................................................................................66
12. TECHNICAL DESCRIPTION FOR DECODER.....................................................69
13. ELECTRICAL PARTS LIST...................................................................................71
SR-19EX
MARANTZ DESIGN AND SERVICE
Using superior design and selected high grade components, MARANTZ company has created the ultimate in stereo sound.
Only original MARANTZ parts can insure that your MARANTZ product will continue to perform to the specifications for which
it is famous.
Parts for your MARANTZ equipment are generally available to our National Marantz Subsidiary or Agent.
ORDERING PARTS :
Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specified.
The following information must be supplied to eliminate delays in processing your order :
1. Complete address
2. Complete part numbers and quantities required
3. Description of parts
4. Model number for which part is required
5. Way of shipment
6. Signature : any order form or Fax. must be signed, otherwise such part order will be considered as null and void.
SHOCK, FIRE HAZARD SERVICE TEST :
CAUTION : After servicing this appliance and prior to returning to customer, measure the resistance between either primary AC
cord connector pins ( with unit NOT connected toAC mains and its Power switch ON ), and the face or Front Panel of product and
controls and chassis bottom.
Any resistance measurement less than 1 Megohms should cause unit to be repaired or corrected before AC power is applied, and
verified before it is return to the user/customer.
Ref. UL Standard No. 1492.
In case of difficulties, do not hesitate to contact the Technical
Department at above mentioned address.
001120 A.O
USA
MARANTZ AMERICA, INCMARANTZ AMERICA, INC.
440 MEDINAH ROAD
ROSELLE, ILLINOIS 60172
USA
PHONE : 630 - 307 - 3100
FAX : 630 - 307 - 2687
BRAZIL
PHILIPS DA AMAZONIA IND. ELET. ITDA
CENTRO DE INFORMACOES AO
CEP 04698-970
SAO PAULO, SP, BRAZIL
PHONE : 0800 - 123123(Discagem Direta Gratuita)
FAX : +55 11 534. 8988
JAPAN
Technical
MARANTZ JAPAN, INC.
35- 1, 7- CHOME, SAGAMIONO
SAGAMIHARA - SHI, KANAGAWA
JAPAN 228-8505
PHONE : +81 42 748 1013
FAX : +81 42 741 9190
EUROPE / TRADING
MARANTZ EUROPE B.V.
P.O.BOX 80002, BUILDING SFF2
5600 JB EINDHOVEN
THE NETHERLANDS
PHONE : +31 - 40 - 2732241
FAX : +31 - 40 - 2735578
TECHNICAL AUDIO GROUP PTY, LTD
558 DARLING STREET,
BALMAIN, NSW 2041,
AUSTRALIA
PHONE : 61 - 2 - 9810 - 5300
FAX : 61 - 2 - 9810 - 5355
CANADA
LENBROOK INDUSTRIES LIMITED
633 GRANITE COURT,
PICKERING, ONTARIO L1W 3K1
CANADA
PHONE : 905 - 831 - 6333
FAX : 905 - 831 - 6936
AUSTRALIA
QualiFi Pty Ltd,
24 LIONEL ROAD,
MT. WAVERLEY VIC 3149
AUSTRALIA
PHONE : +61 - (0)3 - 9543 - 1522
FAX : +61 - (0)3 - 9543 - 3677
NEW ZEALAND
WILDASH AUDIO SYSTEMS NZ
14 MALVERN ROAD MT ALBERT
AUCKLAND NEW ZEALAND
PHONE : +64 - 9 - 8451958
FAX : +64 - 9 - 8463554
THAILAND
MRZ STANDARD CO.,LTD
746 - 754 MAHACHAI ROAD.,
WANGBURAPAPIROM, PHRANAKORN,
BANGKOK, 10200 THAILAND
PHONE : +66 - 2 - 222 9181
FAX : +66 - 2 - 224 6795
TAIWAN
PAI- YUING CO., LTD.
6 TH FL NO, 148 SUNG KIANG ROAD,
TAIPEI, 10429, TAIWAN R.O.C.
PHONE : +886 - 2 - 25221304
FAX : +886 - 2 - 25630415
MALAYSIA
WO KEE HONG ELECTRONICS SDN. BHD.
SUITE 8.1, LEVEL 8, MENARA GENESIS,
NO. 33, JALAN SULTAN ISMAIL,
50250 KUALA LUMPUR, MALAYSIA
PHONE : +60 3 - 2457677
FAX : +60 3 - 2458180
AMERICAS
SUPERSCOPE TECHNOLOGIES, INC.
MARANTZ PROFESSIONAL PRODUCTS
2640 WHITE OAK CIRCLE, SUITE A
AURORA, ILLINOIS 60504 USA
PHONE : 630 - 820 - 4800
FAX : 630 - 820 - 8103
AUSTRALIA
KOREA
MK ENTERPRISES LTD.
ROOM 604/605, ELECTRO-OFFICETEL, 16-58,
3GA, HANGANG-RO, YONGSAN-KU, SEOUL
KOREA
PHONE : +822 - 3232 - 155
FAX : +822 - 3232 - 154
SINGAPORE
WO KEE HONG DISTRIBUTION PTE LTD
130 JOO SENG ROAD
#03-02 OLIVINE BUILDING
SINGAPORE 368357
PHONE : +65 858 5535 / +65 381 8621
FAX : +65 858 6078
1
1.TECHNICAL SPECIFICATIONS
FM TUNER SECTION
Frequency Range ......... 87.5 - 108.0 MHz (C, K, S, U version)
Usable Sensitivity ................................... IHF 1.8 V / 16.4 dBf
Signal to Noise Ratio ......................... Mono / Stereo 76 / 72 dB
Distortion ............................................Mono / Stereo 0.2 / 0.3 %
Stereo Separation................................................... 1 kHz 45 dB
Alternate Channel Selectivity ....... 400 kHz 60 dB (U version)
300 kHz 60 dB (C, K, S version)
Image Rejection ................................................... 98 MHz 70 dB
Tuner Output Level .......1 kHz, 75 kHz Dev 800 mV (U version)
1 kHz, 40 kHz Dev 800 mV (C, K, S version)
AM TUNER SECTION
Frequency Range ................... AM: 520 - 1710 kHz (U version)
531 - 1602 or 520 - 1710 kHz (K version)
531 - 1602 kHz (C, S version)
Signal to Noise Ratio ......................................................... 50 dB
Usable Sensitivity ...................................................Loop 400 V
Distortion ............................................
......................................... 400 Hz, 30 % Mod. 0.5 %
Selectivity 20 kHz 70 dB (U version)
18 kHz 70 dB (C, K, S version)
AUDIO SECTION
Rated Power
FRONT (20 Hz - 20 kHz) .......................... 8 ohms 130W / Ch
Center (20 Hz - 20 kHz)............................ 8 ohms 130W / Ch
Surround (20 Hz - 20 kHz) ....................... 8 ohms 130W / Ch
THD Front (20 Hz - 20 kHz)................................ 8 ohms 0.05%
Input Sensitivity / Impedance
Linear .......................................................350 mV / 47 kohms
Signal to Noise Rate ( IHF A )
Linear ............................................................................ 106 dB
Frequency Response
(Analog Input / Source Direct).............. 8 Hz - 80 kHz ( 3 dB)
(Digital Input / 96 kHz PCM)................. 8 Hz - 45 kHz ( 3 dB)
VIDEO
Television Format .......................................... NTSC (U version)
PAL/NTSC (C, K, S version)
Input Level / Impedance ................................ 1 Vp-p / 75 ohms
Output Level / Impedance ............................. 1 Vp-p / 75 ohms
Video Frequency Response .................. 5 Hz to 8 MHz ( - 1 dB)
S/N ..................................................................................... 60 dB
GENERAL
Power Requirement ........................ AC 120V 60 Hz (U version)
AC 220V 50 / 60 Hz (K version)
AC 230V 50 Hz (S version)
AC 220V 60 Hz (C version)
Power Consumption .......................................................... 530W
Dimension ( MAX )
Width ........................................................ 18 inches (458 mm)
Height ................................................ 7 - 1/2 inches (190 mm)
Depth ........................................................
19 - 1/2 inches (496 mm)
Weight 55.8 lds. (25.3 kg)
ACCESSORIES
Remote Control Unit
................................................................................1
RC-18SR
Dolby Digital(AC-3) SECTION
Output Level ( Master Volume is set 0dB )
Front L / R, CENTER, SURROUND L/R
1 kHz, -20 dB FS INPUT................................................. 0.24V
SUBWOOFER
40 Hz, 0 dB FS INPUT ..................................................... 7.5V
Frequency Response
Front L / R, CENTER, SURROUND L / R ( LARGE )
20 Hz - 20 kHz .............................................................-0.5 dB
Total Harmonic Distortion
Front L / R, CENTER, SURROUND L / R and
SBL / SB (1 kHz ).................................................. 0.01% or less
SUBWOOFER ( 40 Hz) ........................................ 0.07% or less
Signal to Noise Ratio ( IHF-A ).......................................... 80 dB
Channel Separation ( 1 kHz ) ........................................... 95 dB
Specifications subject to change without prior notice.
2
Remark : Bass signal output from SubWoofer terminal for SR-19EX.
Sub woofer output is not active while all surround modes. Please refer to the following table.
SPK SETUP for SR-19EX
SPK setup ZR38601 SubWoofer Output by Surround mode
Sub Surr. Surr.B Bass CFG AUTO (PCM,Ana)
Woofer Front Center L/R (L/R) # THX Surr EX Stereo AUTO(AC-3,DTS) (AC-3:2ch,karaoke) NOTES No.
ON Large Large Large Large 1 LFE LFE none L+R LFE L+R 1
Small 14 LFE+Sb LFE
Small Large 3 LFE+SL+SR LFE+SL+SR none L+R LFE+SL+SR L+R 2
Small 16 LFE+SL+SR+Sb LFE+SL+SR
None (prohibit) 1 LFE LFE none L+R LFE L+R 3
Small Large Large 5 LFE+C LFE+C C L+R LFE+C L+R 4
Small 18 LFE+C+Sb LFE+C
Small Large 8 LFE+C+SL+SR LFE+C+SL+SR C L+R LFE+C+SL+SR L+R 5
Small 21 LFE+C+SL+SR+Sb LFE+C+SL+SR
None (prohibit) 5 LFE+C LFE+C C L+R LFE+C L+R 6
None Large Large 1 LFE LFE none L+R LFE L+R 7
Small 14 LFE+Sb LFE
Small Large 3 LFE+SL+SR LFE+SL+SR none L+R LFE+SL+SR L+R 8
Small 16 LFE+SL+SR+Sb LFE+SL+SR
None (prohibit) 1 LFE LFE none L+R LFE L+R 9
Small Large Large Large 12 LFE+L+R LFE+L+R L+R L+R LFE+L+R L+R 10
Small 25 LFE+L+R+Sb LFE+L+R
Small Large 11 LFE+L+R+SL+SR LFE+L+R+SL+SR L+R L+R LFE+L+R+SL+SR L+R 11
Small 24 LFE+L+R+SL+SR+Sb LFE+L+R+SL+SR
None (prohibit) 12 LFE+L+R LFE+L+R L+R L+R LFE+L+R L+R 12
Small Large Large 10 LFE+L+R+C LFE+L+R+C L+R+C L+R LFE+L+R+C L+R 13
Small 23 LFE+L+R+C+Sb
Small Large 0 LFE+L+R+C+SL+SR LFE+L+R+C+SL+SR L+R+C L+R LFE+L+R+C+SL+SR L+R 14
Small 13 LFE+L+R+C+SL+SR+Sb
None (prohibit) 10 LFE+L+R+C LFE+L+R+C L+R+C L+R LFE+L+R+C L+R 15
None Large Large 12 LFE+L+R LFE+L+R L+R L+R LFE+L+R L+R 16
Small 25 LFE+L+R+Sb
Small Large 11 LFE+SL+SR LFE+SL+SR L+R L+R LFE+SL+SR L+R 17
Small 24 LFE+SL+SR+Sb
None (prohibit) 12 LFE+L+R LFE+L+R L+R L+R LFE+L+R L+R 18
OFF No output to subW
THX5.1, Dolby-D,
DTS THX4.0, Pro
Logic
3 4

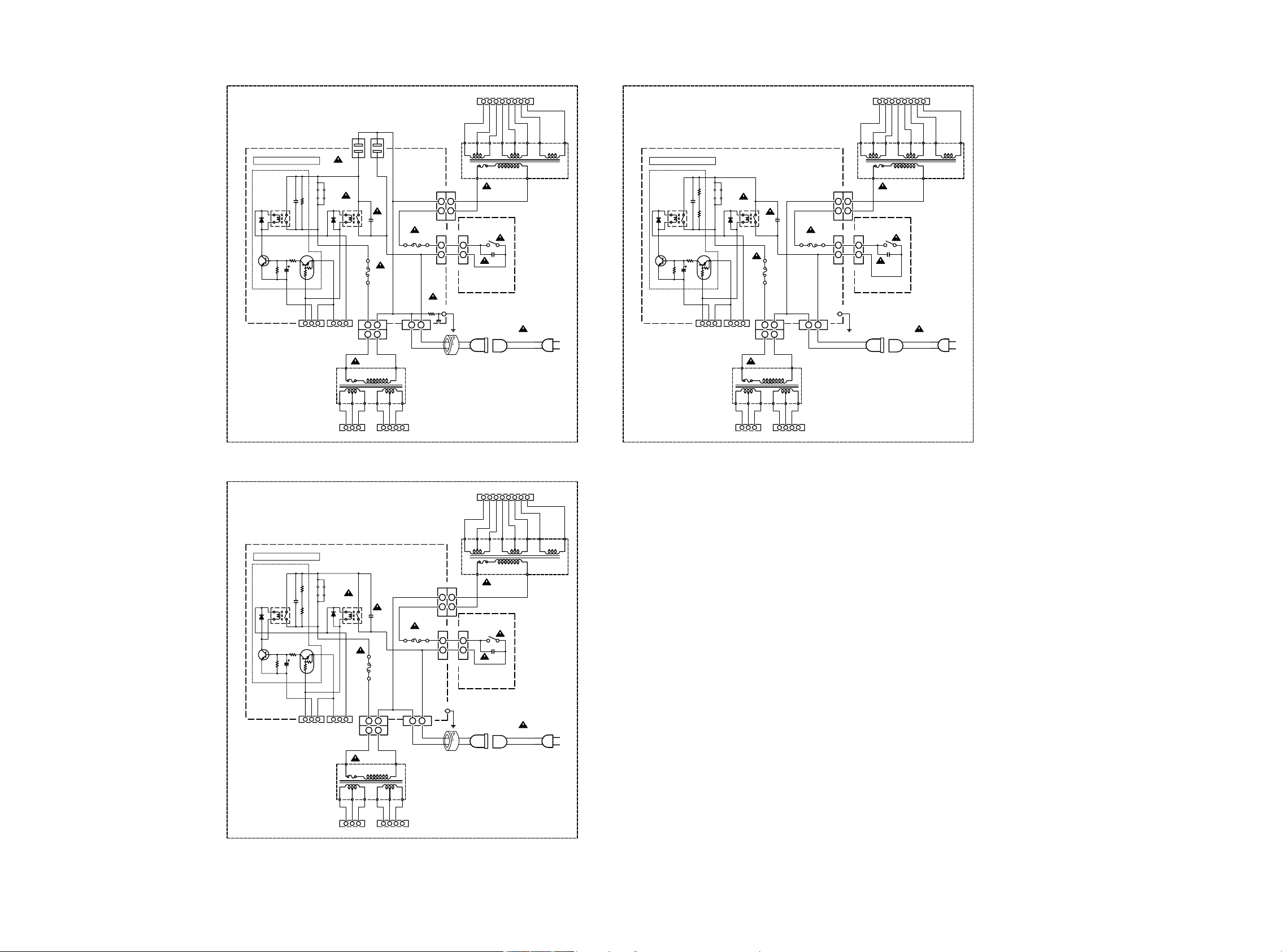

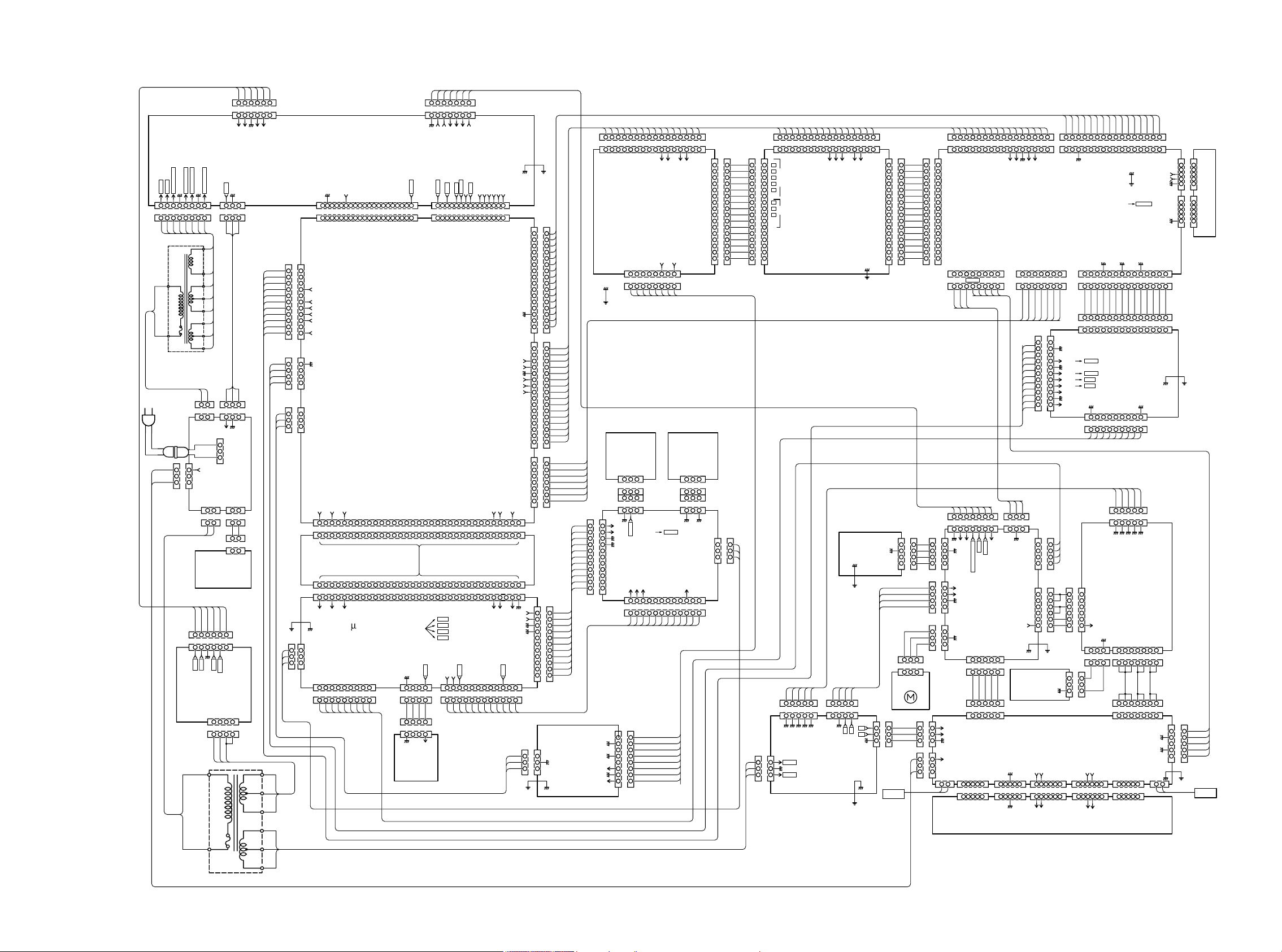

2.WIRING DIAGRAM
333231302928272625242322212019181716151413121110
987654321
333231302928272625242322212019181716151413121110
987654321
333231302928272625242322212019181716151413121110
987654321
333231302928272625242322212019181716151413121110
987654321
JY07
JU05
J717
J716
JN56
JN72
JN52
JC71
J105
J601
JC02
JN53
JN51
JU04
JU71
JM04
JC03
JY64 JY65
JS10
JS09
JB12
J706
J782J784
J708
J781
J783
J785
J705
J707
J709
JM22JM21
JC08JC07
JB05 JB09
JB04JB08
MN51
JY53
JY01
JY51
JY61
J801
J803
J802
J715
JN09
J871
JN05
JN03
JN04
JN08
JN02
J691
JY04
JU01
J806
J804
J805
JY02
JY70
JY03
JU02
JU03
JU81
JY05
JL77
JY69
JY68
J602
JY67
JB71
JL10
JY62
JY63
JU91
JC01
JC04
JZ08
JZ06
JZ07
JL09
JL76
J851
J853
JW02
J852
JP01
J701
J703
J854
J704
J702
JB06/JB56
/JB62
/JB55 /JB59
/JB54/JB58
12V FAN
PH 3P
PH 3P
WY06
FLRST
FLCLK
FLDATA
3
2
1
FLRST
FLCLK
FLDATA
3
2
1
WB03
3
2
1
WN51
W702
S702
TEMP.SENS
W703
S701
TEMP.SENS
1212
C
C
WT51
3
3
2
2
1
1
WY63
WL03
WL01
W601
W751
W754
WT01
W752
WT02
PT84
W755
W701
W851
WZ01
WB01
WY02 WU91
WY03
WY01
WY05
WY51
WY61
WL02 WY62
WL71
W753
WY04
WB02
W756
W801
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
1413121110
987654321
1413121110
987654321
PH 14P
PH 14PPH 8P
PH 16P
PH 16P
16151413121110
987654321
6CH_IN
87654321
M06-CONNECT
GND
SL6
SR6
FR
FL
VCLK
VDATA
CLK0
DATA0
OSD-OUT
16
15
14
SWA
C6
SW6
KILLCON
GND
13
12
11
10
9
8
7
M02-6CH IN
6
5
4
3
1
2
TO JL07 (PL04)
GND
+5VD
+5VA
+15VA
-15VA
GNDA
GNDA
GNDD
+5VAD
+5VAD
+5AD
+5VAD
+5VAD
+B
+B
-B
PO-DWN
AC62V
AC62V +24V
+B
-B -B
+B
NC
POSIST
C.DET
L.OUT
3MIX
-B
-B
+B
+B
6
61234561234512345 12345 12345
12345123451234565432154321
+24V
+24V
MULTI-RC-OUT
CDR/MD-MUTE
VCR1-MUTE
RELAY-MUTE(M-RL)
VCR1-MUTE
AC20V(24V)
AC20V(24V)
AC9.7V(5V)
AC9.7V(5V)
FL(F)
FL(F)
FL
FL
FL
FL
FL
FL
FL(F)
FL(F)
FL(F)
FL(F)
RELAY
+B
+3.3V
+5VV
+5A.D(+5VD1)
+12V
+8V
+8V
STOP
DC-IN
-B
+B
AUTO MODE
R
L
-15VA
+15VA
-15VD
+15VD
-5VD
+3.3V
FL OUT
FR IN
FR OUT
FL IN
NC
NC
-15VA
+15VA
+15VAM+15VA
TUNER GND ONLY
SW
ERMUTE
RS
LS
FR
FL
C
N.C
TU-CE
TU-CLK
TU-DI
RDS-DO
PLL-DO
TU-SD
-24V(NC)
+15VA
-15VA
+5VL
+5VV
-24V(NC)
+5VV
+5VL
-15VA
+15VA
GND(NC)
-24V
+5VV
+5VL
-15VA
+15VA
GND(NC)
GND(NC)
-15VA
+15VA
GND(NC)
GND(NC)
GND(NC)
+5VIR+5VL
+5VC
+5VA
+5VB
+5VD
+5VL
+15VA
-24V
+12V
GND(NC)
+5VIR
+5VL
VKK
+5VB
+5VD
+5VD
+5VD +5VD
PH 4P
GND(NC)
GND(NC)
DSP-DI
DSP-DO
DSP-MUT
DSP-ACK
DSP-CLK
DSP-RST
DSP-REQ
IR
+5VL
VKK
+15VA
+24V
-15VA
+15VA
+5VV
+5VL
CE3(TONE)
R OUT
L OUT
N.C
N.C
LRG/SML
CE0(ANA.SW)
TAPE-MUTE
MULTI-MUTE
TUNER-R
TUNER-L
GND(NC)
GND(NC)
GND(NC)
GND(NC)
GND(NC)
ORG
BLK
RED
GRN
GRY
YEL
TEMP OUT
WHT/BLU
RED/BRN
RED/BRN
WHT/BLU
+24V
WHT/BLU
RED/BRN
+24V
+5A.D(+5VD1)
WHT/BLU
RED/BRN ORG
GRY
ORG
YEL
BLK
YEL
BLU
BLU
+24V
+15VD
+15VA
VKK
+3.3V
+5VV
+24V
-15VA
+5VL
-5VD
-15VD
5
4
3
2
1
5
4
3
2
1
5P5P
3
2
1
3
2
1
LED-CONT
RCIR
33P
33P
VH 4P
EH 6P
EH 6P
HEAD_PHONE
987654321
123456789
987654321
20P
987654321
987654321
15P
20
20
19
19
18
18
17
1716
16
15
15
15
15
14
14
14
14
13
13
13
13
12
12
12
12
11
11
11
11
10
10
10
10
TU-DI
PY54
AUX-R
AUX-L
H.P.SW
+24V
MULTI-RC
+15VA
H.P.SW
RELAY CTRL
CE3(TONE)
CE0(ANA.SW)
CE6(P.EXP)
RDS-DI
TU-DO
VKK
CE7(P.EXP)
CE2(OSD)
CE1(OSD)
LRG/SML
+5VL
POWER
P-DOWN
TU-CE
TU-CLK
SYNC DET2
SYNC DET1
OSD-2
OSD-1
DATA0
CLK0
RC-5
TU-SD
P-DOWN
POWER
MULTI-RC-OUT
CE3
CE0
CLK0
DATA0
RC-5
MULTI-RC
TAPE-MUTE
MULTI-MUTE
RELAY-MUTE
TUNER-R
TUNER-L
-24V
R OUT
L OUT
AUX-R
AUX-L
P804
PU74
L002
L001
PW04
XH 3P
XH 3PXH 3P
XH 3P
+15VA
-24V
8
7
6
5
4
3
2
1
HDAM
SUPPLY
PRIMARY
LED
STANDBY
321
3
2
1
CENTER_SPK
FL/RS/C_POWER_AMP
FR/LS_POWER_AMP
1
3
2
1
3
2
1
3
2
1
3
2
4
3
2
1
1
4
3
2
1
3
2
3
2
1
PH 3P
PH 3P
321
PH 3P
C
RS
FL
6
5
4
3
2
1
6
5
4
3
2
1
LS
FR
654321
4(B) 5 3 2 1
AUX-CVBS
DSS:L/DVD:H
COPY INP.SEL
(B) (A) C B A
VIDEO MUTE
PAL
AUX-CVBS
Y
C
FR
LS
4
3
2
1
DN
UP
RIGHT
LEFT
+5VB
KEY4
KEY3
KEY2
KEY1
DI-FL
STB
11
10
9
8
7
6
5
4
3
2
1
7654321
7654321
987654321
12
11
10
98
765
4
3
21
1211
10
9
87
65
4
3
2
1
MUTE- RELAY
RELAY CTRL
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
1
11
10
9
8
7
6
5
4
3
2
1
11
10
9
8
7
6
5
4
3
2
4
3
2
1
7
6
5
4
3
2
1
-5VD
-15VD
+3.3V
+15VD
L OUT(LT)
R OUT(RT)
11
10
9
8
7
6
5
4
3
2
1
VKK
+5VL
CLR
CE5
CLK0
DATA0
VOL_DN
VOL_UP
3
2
1
654321
4
3
2
1
EH 3P
PH 11P
PH 11P
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
CDR/MD-MUTE
CE6(P.EXP)
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
CE7(P.EXP)
CE2(OSD)
CE1(OSD)
OSD-INT
-24V
OSD-2
OSD-1
SYNC DET2
SYNC DET1
DATA0
CLK0
4321
REF
+12V
7654321
+5VV
+8V
+8V
+12V
+3.3V
RELAY
PH 16PPH 16P
PH 7P
VH 5P
VH 7P
VH 7P
PH 5P
VH 3P
VH 5P VH 4P
VH 3P
VH 3P
EH 5P
B3P VH
VH 6P
B3P VH
EH 5P
EH 4P
EH 4PVH 4P
VH 6P PH 4P
PH 3P
EH 7P
PH 16P PH 16P
PH 7PPH 8P
PH 16P PH 16P
PH 16P
PH 16P
EH 7P
VH 8P EH 3P
PH 11P
EH 3PB3P VH
B3P VH
B3P VH
B3P VH
EH 3P PH 4P
PH 4P
PH 8P
EH 3P
PH 9P
PH 9P
3
2
1
PH 12P
PH 12P
PU84
IR_SENSOR
PY04
7
7
PH 11P
PB74
PY64
321
MAIN-TRANS
SUB-TRANS
3
2
1
P854
POWER-AMP-SUPPLY
P774
P704
P754 PT14
4321
321
8
7
6
5
4
3
2
1
654321
54321
321
54321
4
3
2
1
5
4
3
2
1
654321
54321
4321
54321
21
2121
21
1615141312111016151413121110
987654321987654321
151413121110
98
7654321
87654321
16151413121110
987654321
32187654321
P604
DSP
PL74
AUX_INPUT
ENCODER
GYRO
PB14/
PB64
POWER_SW
PW04
SPK_TERMINAL
PROTECTOR
3CH_POWER_TR
PU04
-COM
FRONT_DISPLAY
PU94
CONNECT
P104
ELE_VR
TUNER
PL04 PZ04
COMPONENT_VIDEO
S-VIDEO_FUNCTION CVBS_FUNCTION
PS04
SUPPLY
AUDIO_FUNCTION
1
2
1
1
1
1
1
1
2
1
1
5
1
2
1
1
1
21
D-C
D-SW
D-SL
D-SR
D-SBL
D-SBR
D-L
D-R
D-C
D-SL/SR
D-SW
D-SW
6CH-SW
6CH-C
6CH-SL/SR
L
R
SL
SR
SBL
SBR
L
R
SL
SR
SBL
SBR
CD
TAPE
CDR
TV
LD
DVD
VCR1
DSS
TUNER
CDR
CD
TU
TV
LD
DVD
DSS
AUX
TU
CD
TAPE
TU
CD
TAPE
CDR
AUX
TV
LD
DVD
AUX
VCR1
DSS
AUX
CDR
TV
DSS
DVD
VCR1
Y_X3
B-Y_X3
R-Y_X3
Y
B-Y
R-Y
FM
AM
HEADPHONE
PROTECROR
DRIVE
MAIN
AMP
FM FRONT
END IF AMP FM/AM IF & MPX
POWER
SUPPLY
POWER
SUPPLY
TRANSF.
TRANSF.MAIN AMP
CENTER
SURROUND
FRONT
L
G
G
R
G
L
G
G
R
RDS DECODE
FM DET.
KEY MATRIX
FL
SURR.AMP
U-COM(+6V)
MUTE DRIVE
TV
MONITOR OUT
VIDEO SELECTOR
OSD
MUTE CONTROL
OSD CONTROL
STAND-BY CONTROL
POWER
24V,-33V
STEREO CONTROL
ROTARY ENCODER
VOL CONTROL
RC-5 IN
RC-5 OUT
SUB WOOFER
FRONT
CENTER
COAX
OPT
FRONT
SUB CPU I/F
+15V
-15V
+5V
+5V
+5V
+15V
POWER-SW
30
(1)
29
(2)
27
(4)
25
(6)
(7)
22
(9)
21
(10)
24
26
(5)
(8)
(11)
20
23
QS02
QS13
PS04
CD
QS01
13
(5) (7)
INPUT SEL.
FUNCTION
CONTROL
ELE. VOL
AUX
TV
PL94
22
21
(10)
(9)
QS51
QS52
QS53
20
(11)
QS91
28
(3)
MULTI MUTE
-5V
+5V
+15V
-15V
MAIN
AMP
MAIN
AMP
MAIN
AMP
MAIN
AMP
PL04
VIDEO
P104 TUNER
P604 DSP
PU04
FRONT
FUNCTION
CONTROL
PU94
MAIN AMP PW04
DVD
LC78211
INPUT SEL./MULTI SEL.
DVD
DVD
TV
MONITOR
OSD
TV
DVD
COMPOSITE
COMPOSITE
CONTROL
LA1837
MULT
I
ROOM SELECTOR
COPY SWITCH
DVD
COPY SWITCH
TV
AUX
FUNCTION
CONTROL
ROTARY ENCODER
FUNCTION
PREOUT/MAININ
SELECT
MULTI VOL. CONTROL
MUTE
MUTE
CONTROL
OSD CONTROL
MONITOR OUT
MUTE CONTROL
(S2)
(S3)
(S1)
SUB
PL94
RC-5 IN/OUT
FOR FEATURES
PORT EXPANDER
PORT EXPANDER CONTROL
FOR LED DRIVE
PLL/RDS CONTROL
RDS DATA
CLOCK
KILLER
Baf
Y
B-Y
R-Y
Y
B-Y
R-Y
MULTI OUT
1
2
3
10
9
7
6
5
(30)
(29)
(28)
(26)
(25)
(24)
(22)
(21) 11
8
4(27)
(23)
(20)
PAL/NTSC
DSS/DVD
EXPANDER
BA7613N
75OHM
+6dB
AUX
75OHM
+6dB
OFF
SRC
BA7613N
BA7649A BA7649A
DVD
6dB 75OHM
+6dB
BA7613N
BA7649A
+6dB
OUT
OUT
AUX
AUX
TV
AUX
DVD
+6dB
SOURCE
SOURCE
Y-OUT
C-OUT
Y-OUT
C-OUT
EXPANDER
FUNCT.CTL
FOR VIDEO
AUX
AUX
COMPOSITE
S-VIDEO
S-VIDEO BLOCK
COPY SWITCH
COPY SWITCH
20BIT PORT
BA7649A
6dB
75OHM
P104
COAX
OPT (BASS MANAGE)
(SPK CONFIG)
(DELAY)
FOR
VIDEO MUTE
L/R
C/SW
PSEDOU
SURROUND
PRO LOGIC
FS=48K
CNT
SWF
SL
SR
DIRECT IN
SPEAKER RELAY
IR SENSOR
VCR1
OUT
OFF
VCR1
VCR1 OUT
VCR1
VCR1
TV
Baf
VT
VT
VT
VT
VT
MULTI ROOM
(16LINES)
GYRO CONTROL
LC78212
(S4)
HDAM
TV
DSS
DVD
VCR2 AUX
VCR1
COMPARATER
CROMA-IN
CROMA-OUT
S2 DETECTOR
POWER
SUPPLY
P854
+-15V(ANALOG)
QS12 QS13
QS14
QS15
TC9459N
LC78211
LC78212
12BIT PORT
TP
TV
DS
DV
V1
V1
V2
V2
AT
CONTROL
MUTE
RELAY
+12V(FAN CONTROL)
FAN CONTROL
THERMOSENSOR
COOLING FAN
DIR
48K,96K
32K,44.1K
FOR DOLBY DIGITAL
DTS
(PEAK LIMIT)
DAC
24BIT
96K
24BIT 96K
+12V
LC74781
Y
C
Y-C SEP
LC74781
DSS/VCR2
LD
DSS/VCR2 OUT
LD
DSS/VCR2
DSS/VCR2
LD
DSS/V2
LD
DSS/V2
BA7612N
BA7612N
VT
LD
MUTE
CONTROL
16BIT U-COM
PS04
TMP93CW40DF
MLT-RC-MUT
(2LINES)
NUM2263D
NUM2263D
Y
Y
C
C
Y
Y
C
C
NJU2244D
NJU2244D
IN
MM1140XF
MM1140XF
NJM2903D
COMPONENT VIDEO SELECTOR
S
AUX IN
NJM2244D
NJM2244D
MM1140XF
DSS/V2
LD LD
DSS/V2
75OHM
+6dB
+29.0dB
(30)
(29)
(28)
(26)
(25)
(24)
1
2
3
5
6
7
8
4
(27)
(23)
30
29
28
27
25
24
22
21
20
23
26
(2)
(1)
(3)
(4)
(6)
(7)
(9)
(11)
(8)
(5)
(10)
5
(24)
5
(3)
7
(1)
QG01
QG02
BA7612N
74HC4051
BA7612N
QZ01
QZ02
QZ03
QZ04
QZ05
QZ05
QZ06
QZ07
QZ19
QZ20
QZ10
QZ09
QZ11
QZ22
QZ23
QL09
QL08
QL14
QL01
QL02
QL03
QL05
QL06
QL04
Q201
P804
POWER
SUPPLY
PS04
POWER
SUPPLY
+5V(VIDEO)
+3.3V
+5V(DIGITAL)
+-8V
-5V
QK01
+15V
-15V
+3.3V
QD01
Q691
Q601
Q651
A101
MULTI RELAY
FL DISPLAY
QY01
MAINS
MAINS INLET
MAINS OUTLET
MASTER VOLUME
STEREO CONTROL
(FROM H.P.JACK)
PU04
MAIN U-COM
PL04
OSD CONTROL
MULTI RC-IN
RC-5 IN/OUT
SPK RELAY CONTROL
FUNCTION CONTROL
OSD CONTROL
PLL/RDS CONTROL
VOL CONTROL
VCR1 IN
Y
Y
Y
C
C
C
QR01
VU01
(KS ONLY)
TUNING CONTROL
P754
6CH DIRECT CONTROL
Q351
PT14
PT14
PT84
P704/P754
Analog Lt/Rt
LC89055 ZR38601
THX EX
FOR DSP CONTROL
COAX
OPT
DIG.OUT
SL/SR
SBL/SBR
L
R
C
SW
SL
SR
SBR
SBL
LT/RT
OPT
74HC15174HC151
COAX
1M-SRAM
80HZ-LPF
4TH-ORDER
80HZ-HPF
2ND-ORDER
A-SW
HPF-ON
HPF-OFF
TC9459
TC9459
TC9459
TC9459
SURR. L/R
SURR. BACK
L/R
L/R
DIG/ANA
DIG/ANA
L/R
C/SW
SURR. L/R
SURR. BACK L/R
INDIVIDUAL & MASTER VOLUME
RELAY CONTROL
VCR1 IN
DSS/VCR2 IN
CDR
VCR1 OUT
CDR OUT
CDR IN
TAPE IN
TAPE OUT
MULTI ROOM
RC-IN
DSS/VCR2
MULTI ROOM
OUT
OUT
LC78213
YSS912C
16BIT U-COM
TMP93CW44ADF
BA7613N_X3
PL04
PZ04
8BIT NJU3711L
TV LD DVD VCR1 DSS AUX STANDBY
ML9205
FL DRIVER
LC72130
PLL
LC72722
6ch
AK4356
CODEC1/2
AK4528
AK4528
CODEC2/2
QK01
L/R
5 6
3. BLOCK DIAGRAM
7 8
4. SCHEMATIC DIAGRAM
1
23456789
10
11
R.C
VOL-UP
VOL-DOWN
DATA0
CLK0
CE5
CLR
GND
GND
+5.6VL
VKK
1
23456789
10
11
12
KEY0
KEY1
KEY2
KEY3
+5VB
INP-LT
INP-RT
FIL-A
FIL-B
STB(FL)
+5.6VD
DO
80
1
24
25
40
41
64
65
AD1
AD2
AD3
AD4
SEG1
SEG2
SEG3
SEG4
SEG5
SEG6
SEG7
SEG8
SEG9
SEG10
SEG11
SEG12
SEG13
SEG14
SEG15
SEG16
SEG17
SEG18
SEG19
SEG20
SEG21
SEG22
SEG23
SEG24
SEG25
SEG26
SEG27
SEG28
SEG29
SEG30
SEG31
SEG32
SEG33
SEG34
SEG35
VDISP1
COM1
COM2
COM3
COM4
COM5
COM6
COM7
COM8
COM9
COM10
COM11
COM12
COM13
COM14
COM15
COM16
COM17
COM18
COM19
COM20
COM21
COM22
COM23
COM24
VFL1
GND
OSC0
OSC1
RESET
CS
CP
DA
VDD
P1
P2
P3
P4
VFL2
NC
VDISP2
HC10039260
256789
10
11
1213141516171819
20
272829
30
31
3233343536373839
40
41
42434849
51
55 56 57 58 59
60
61
62 63 64 65 66 67 68 69 76 77 78 79
80
81
82 83 84 85 86 87 88 89
90
91
92 93 94 97 98
4445
54
1
2
3
4
5
6
78
9
10
11
12
13
14
P3
P4
P5
P6
VSS
P7
P8 DATA
CLK
STB
CLR
P1
P2
VDD
1
2
3
1
2
3
1
23
FLDATA
FLCLK
RST FL
1
2
3
4
RU01
RU02 RU03 RU04 RU05 RU06 RU07 RU08 RU09
RU11
RU12 RU13 RU14 RU15 RU16 RU17 RU18 RU19
RU21
RU22 RU23 RU24 RU25 RU26 RU27 RU28 RU29
RU31
SU33
QU06
RU62
QU05
QU03
QU04
RU55RU56
SU32
JU01
RU61
CU07
CU08
CU05
CU06
QU07
QU81
CU82
CU81
JU81
JU03
RU48
QU02
RU59
RU60
RU53
RU54
RU43
RU44
CU11
CU71
CU02
CU15
CU16
QU08
CU18
QU09
CU19
CU01
CU21
CU22
CU23
CU24
CU26
CU28
CU29
CU03
JU05
RU58
RU57
RU52
RU51
DU08
DU07
DU21
RU42
RU41
RU40
CU14
JU02
CU17
CU13
CU20
CU10
CU25
CU09
WU02
WU01
CU12
RU63
QU01
VU01
DU01
DU05 DU03 DU02 DU04 DU06
DU71
SU01
SU02 SU03 SU04 SU05 SU06 SU07 SU08
SU09
SU10
SU11
SU12 SU13 SU14 SU15 SU16
SU17 SU18 SU19
SU20
SU21
SU22 SU23 SU24
SU25 SU26
DU20
CU04
RU32 RU33 RU34 RU35 RU36 RU37
CU27
CU30
CU33
CU32
CU31
RU71
RL88
RL78
RL77
CL81
CL82
JL77
RL86
RL85
RL75
RL76
RL83
RL84
RL79
RL81
RL80
RL82
RL90
RL91
RL92
RL93
JL76
RL94
CL84
CL88
CL91
CL92
CL93
CL94
CL95
CL96
CL97
CL98
WL75
CL75
CL76
CL77
CL78
JL75
CL79
CL80
CL83
CL89
CL90
QL75
RU91
RU92
RU93
QU91
CU91
JU91
CU93 CU94
WU03
RU38
RU39
6.8K
470
3.3K
330
2.2K
1.5K
1K
820 680
6.8K
470
3.3K
330
2.2K
1.5K
1K
820 680
6.8K
470
3.3K
330
2.2K
1.5K
1K
820 680
680
INPUT SELECTOR
2SC536
SP/ETC
10K
2SC536
SP/ETC
2SC536
SP/ETC
2SC536
SP/ETC
10K10K
MASTER VOLUME
+5.6VL
VKK
+5VD
10K
100P
100P
100P
100P
DTA114TS/ETC
HW10005020
220/6.3V
22000PF
100
NJU3711
DUMMY
DUMMY
DUMMY
DUMMY
10K
100K
0.1/50V
0.1/50V
0.1/50V
0.1/50V
0.1/50V
2SC536
SP/ETC
100P
2SC536
SP/ETC
100P
0.1/50V
0.1/50V
0.1/50V
0.1/50V
0.1/50V
0.1/50V
DUMMY
DUMMY
0.1/50V
10K
10K
10K
10K
*
*
*
3.3K
100
1K
0.1/50V
1000P
1000P
47P
0.1/50V
0.1/50V
0.1/50V
0.1/50V
100
ML9205-01GA
LT3K44B/GRN LT3K44B/GRN LT3K44B/GRN LT3K44B/GRN LT3K44B/GRN LT3K44B/GRN
HLMF-K2
RED
******
**
***
*****
********
**
*
100/6.3V
180 180 180 180 180 180
0.01
100/6.3V
DUMMY
0.01
10/50V
680
75
47K
47K
10/50V
10/50V
*
75
75
1K
1K
47K
47K
0
0
0
0
DUMMY
DUMMY
DUMMY
DUMMY
DUMMY
0
1/4W
0
1/4W
0
1/4W
0
1/4W
0
1/4W
0
1/4W
0
1/4W
0
1/4W
0
1/4W
0
1/4W
YB00152110
470P
50V
470P
50V
47P
47P
10/50V
10/50V
10UF/16V
0.1U
16V
0.1U
16V
NJM4558M
330
DUMMY
DUMMY
GP1A06
0.1
DUMMY DUMMY
1P
WIRE
10K
10K
VKK
+5VD
+5VD
VKK
+5VD
+5.6VL
+5.6VL
+5.6VL
+5.6VL
+15VA
-15VA
-15VA
+15VA
G24
G23
G22
G17
G18
G19
G20
G21
G16
G15
G14
G13
G12
G11
G10
G9
G8
G7
G6
G5
G4
G3
G2
G1
G24
G23
G22
G21
G20
G19
G18
G17
G16
G15
G14
G13
G12
G11
G10
G9
G8
G7
S21
S22
S23
S24
S25
S26
S27
S28
S29
S30
S31
S32
S33
S34
S35
S1
S2
S3
S4
S5
S6
S7
S8
S9
S10
S11
S12
S13
S14
S15
S16
S17
S18
S1
S2
S3
S4
S5
S6
S7
S8
S9
S11
S12
S13
S14
S15
S16
S17
S18
S10
S21
S22
S23
S24
S25
S26
S27
S28
S29
S30
S31
S32
S33
S34
S35
S19
S20
S36
KEY0
KEY1
KEY2
KEY3
KEY3
KEY2
KEY1
KEY0
G3
G4
G5
G6
G1
G2
LEFT
RIGHT
RIGHT
LEFT
DOWN
UP
DOWN
UP
CLR
CE5
CLK0
DATA0
CLR
CE5
CLK0
DATA0
S19
S20
S36
TV
DVD
AUX
STBY
INPUT SELECTOR
VCR1LD
DSS/V2
(RLE)
RIGHT
LEFT
PU84
D0WN
UP
MASTER VOLUME
PU04
Front
P.C Board
PU74
HQ32401410
HC10128090
AUTO TUN
PRESETCLEARMEMO
FM MODE
BAND
AUTO DOLBY THX EX DTS
SURR.
5CH ST STEREO
TREB+ BASS+
A/D ATT COPY
DIG
COPY VCR1 COPY TAPE
S-DIR
TREB- BASS-
MULTI
DISP-OFF
AUX IN
PL74
CL77,CL78
CL75,CL76
1
2
3
4
5
6
7
8
1
2
3
TO JZ08 (PZ04)
(RLD)
(M07)
-
-
+
+
GND
C
Y
GND
AUX-CVBS
-15VA
GND
+15VA
AUX-R
GND
AUX-L
AUX INPUT
C
Y
VIDEO
L
R
S-VIDEO
N,S ONLY
TO JY69 (PY64)
M06 CONNECT PCB
M02 S-VIDEO
GYRO ENCODER
UP
DN
GND
(RLF)
PU94
+5VD
(M05)
TO JY05 (PY04)
M07 MAIN U-CON PCB
IR SENSOR
STANDBY
1
2
3
JU04
1
2
3
910
151413121110
987654321
9
8
7
6
5
4
3
2
1
333231302928272625242322212019181716151413121110
987654321
333231302928272625242322212019181716151413121110
987654321
333231302928272625242322212019181716151413121110
987654321
333231302928272625242322212019181716151413121110
987654321
2019181716151413121110
987654321
3
2
1
GND
VDD
OUTNC
NC
7
6
5
4
3
2
1
16 15 14 13 12 11 10
987654321
16 15 14 13 12 11 10
987654321
4
3
2
1
VKK
+5.6VL
GND
GND
CLR
CE5
CLK0
DATA0
VOL-DOWN
VOL-UP
R.C
11
10
9
8
7
6
5
4
3
2
1
DO
+5.6VD
STB(FL)
FIL-B
FIL-A
INP-RT
INP-LT
+5VB
KEY3
KEY2
KEY1
KEY0
12
11
10
9
8
7
6
5
4
3
2
1
DATA-FL
CLK-FL
RST-FL
VREFH
KEY4
KEY3
KEY2
KEY1
KEY0
ABNORMAAL
POW-DET
S-STREG
VSS
SW4
SW3
SW2
SW1
SW0
NC
NC
NC
NC
NC
NC
CE-OSD2
CE-OSD
CE-FL
CE-LED
CE-MUTE
CE-VOL
CE-VIDEO
CE-AUDIO
NC
NC
GYRO-B
GYRO-A
VOL.ENC.B
VOL.ENC-A
FUNC-ENC-B
FUC-ENC-A
VCC
VSS
NC
NC
NC
NC
NC
NC
NC
NC
RDS-DI
TUNE-SD
TUNE-DI
TUNE-DO
TUNE-CLK
TUNE-CE
VCC
N.C.(ALE)
_SURR-REQ
_SURR-RESET
SMUTE
_LARGE/SMALL
MULTI-OUT
CLR-LED
OSD-ON1
OSD-ON0
TEST2
TEST1
N.C.(P97)
N.C.(P96)
RESET
N.C.(EA)
X2
X1
VSS
VCC
N.C.(CLK)
N.C.(AM8)
CLK-1
DI-1
DO-1
CLK-0
DI-0
DO-0
P-DOWN
MULRTI-IN
SYNC1
SURR-ACK
N.C.(P83)
HEADPHONE
SYNC0
RC-5IN
SPKOFF
RC-5OUT
KILL-IR
POWER-OFF
NMI
AVCC
AVSS
VREFL
90
80
70
60
40
30
2010
76
75
26
25
1
100
51
50
JY04
JY03
JY07
QY01
RY23
RY21
RY19
RY17
RY15
RY18
RY22
RY20
RY16
RY14
CY69
RY56
RY55
RY54
RY53
RY52
RY51
RY50
RY49
RY48
RY47
RY46
RY37
RY36
RY34
RY33
RY32
RY69
DY04
QY15
CY28
CY27
CY24
CY23
CY22
CY21
CY20
CY18
CY17
CY16
CY15
CY14
CY29
CY03
CY61
JY61
JY51
JY01
JY53
CY12
CY11
RY60
RY06
CY13
CY26
CY25
CY19
CY62
RY61
XY01
CY30
QY61
DY61
RY12
CY07
RY59
RY25
DY02
RY68
RY58
RY67
QY14
QY13
RY45
RY44
RY66
RY43
RY42
RY41
RY40
RY39
RY38
RY35
RY65
RY64
RY57
RY24
QY08
JY06
RY63
LY61
RY62
QY12
QY11
JY67
DY03
DY01
RY31
RY30
RY29
RY28
RY27
RY13
RY11RY10
RY09
RY08
RY07
RY05
RY04
RY03
RY02
RY01
CY10
CY09
CY08
CY04
CY01
QY09
QY10
JY70
JY69
JY68
JY65
JY64
JY63 JY62
JY05
JY02
QY07
QY06
QY05
QY04
QY03
QY02 CY02
TMP93CW40DF
0.1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
DUMMY
ISS300
S-80730SN
DUMMY
DUMMY
DUMMY
DUMMY
DUMMY
DUMMY
DUMMY
DUMMY
DUMMY
DUMMY
DUMMY
DUMMY
DUMMY
DUMMY
0.01
16V0.1U
16V
0.1U
10K
10K
16V
0.1U
16V0.1U 50V1000P
16V0.1U
10/50V
1/4W100
10V
1U
8MHZ
5.5V
1F
*
1D3
2SC3419
1M
68K
4.7K
ISS300
27K
10K
10K
/ETC
DTA114ES
/ETC
DTC114ES
220
220
220
220
220
220
220
220
220
220
220
27K
47K
4.7K
/ETC
DTA114ES
10K
24V
10K
SP/ETC
2SC536
SP/ETC
2SC536
ISS301
ISS300
4.7K
4.7K
4.7K
4.7K
4.7K
10K
10K10K
10K
10K
10K
47K
47K
47K
18K
47
50V
0.01U
50V0.01U
50V0.01U
50V
0.01U
16V
0.1U
/ETC
DTC114ES
/ETC
DTA114ES
/ETC
DTC114ES
/ETC
DTA114ES
/ETC
DTA114ES
/ETC
DTC144ES
/ETC
DTA114ES
SP/ETC
2SC536 47/10V
+5VD
FL-A
FL-B
VKK
FL-B
FL-A
VKK
+5VC
+15VD
+15VD
+15VA
+15VA
+15VA
-15VA
-15VA
+5VL
+5VL
+5VL
-5VD
-5VD
-15VD
-15VD
+5VAD
+5VAD
+5VV
+5VV
+3.3V
+3.3V
+5VD
+5VC
5VC
+5VA
+5VA
+5VD
+5VA
+5VL
+5VC
+5VA
+5VC
+5VC
+5VB +5VL
+5VA
+5VA
+5VA
+5VB
+5VA
+5VA
+5VL
+5VC
+5VB
+5VA
DATA
CLK
RST
DATA
CLK
RST
CLR
GYRO-DN
GYRO-UP
GYRO-DN
GYRO-UP
VOL-DN
VOL-UP
VOL-DN
VOL-UP
INP-RT
INP-LT
INP-RT
INP-LT
CE1
CE2
LRG/SML
TU-CE
TU-DI
TU-DI
+15VA
+15VA
H.P.SW
H.P.SW
TU-SD
+24V
KEY3
KEY2
KEY1
DSP-DO
DSP-DI
RDS-DI
+24V
KEY4
TU-DO
POWER
P-DOWN
DATA0
S-DET2
S-DET1
OSD-2
OSD-1
TU-CE
RELAY
TU-CLK
CLK0
CE2
CE1
TU-SD
CE7
CE6
CE3
CE0
CE7
CE6
CE3
DI-FL
DI-FL
CE5
STB
POWER
RELAY
S-DET2
S-DET1
P-DOWN
DATA0
CLK0
CLK0
DATA0
STB
CLR
CE5
DSP-ACK
DSP-CLK
DSP-DI
DSP-DO
DSP-MUT
DSP-MUT
DSP-RST
DSP-REQ
KEY3
KEY1
KEY2
KEY4
DSP-REQ
DSP-ACK
DSP-CLK
DSP-RST
CE0
RDS-DI
TU-DO
TU-CLK
LRG/SML
OSD-2
OSD-1
TO JU05 (PU04)
M05 FRONT
RST-FL
CLK-FL
DATA-FL
TO JU01 (PU04)
M05 FRONTM05 FRONT
TO JU02 (PU04)
Y=47K OHM
Y=O OHM
RY18,20=N RY19,21=Y
M05 GYRO ENCODER
TO JU91 (PU94)
M07 AUX INPUT
TO JL77 (PL74)
N
N
N
Y
Y
Y
NC
Y
N
Y
N
N
Y
S
Connect P.C.Board
16BIT -COM
TO JZ06 (PZ04) M02-S-VIDEO
TO JL10 (PL04) M02-VIDEO
TO JC04 (P104) M03-TONE
YYY Y
NNNN
RY23
RY22
NYY YNN
MAIN -COM
M03-TUNER
TO J105 (P104)TO J602 (P604)
M08-DSP
GND
AUX-R
AUX-L
N
NN
N
NYY
YY
Y
RY17
RY16
RY15
RY14 UKF
5.2
4.8
5.0
5.6
0
0
5.0
5.0
0
00
5.0
0
0
5.0
TU-DI
NC
TU-DO
RDS-DI
TU-DI
N.C
-15VA
+15VA
M08-DSP
TO J691 (P604)
+5VD
DN
UP
GND
(M07)
GNDD
MULTI-RC-OUT
MULTI-RC-OUT
-5VD
+24V
FL
FL
FL
FL
MULTI-RC
MULTI-RC
+15VA
+15VA
-15VA
-15VD
-15VD
+3.3V
+15VD
+15VD
GNDA
GNDA
TO JS10 (PS04)
H.P.SW
H.P.SW
RELAY CTRL
TAPE-MUTE
MULTI-MUTE
VCR-MUTE
4
M01-AMP
TO JN03 (P754)
GND
MUTE- RELAY
CE3(TONE)
CE3(TONE)
CE3(TONE)
CE0(ANA.SW)
CE0(ANA.SW)
M03-TONE
TO JC01 (P104)
CE6(P.EXP)
R OUT
L OUT
R OUT
L OUT
L OUT(LT)
R OUT(RT)
CDR/MD-MUTE
CDR/MD-MUTE
GND
M04-AUDIO
TO JS09 (PS04)
CE7(P.EXP)
CE2(OSD)
CE1(OSD)
(M06)
(M03 OR M05)
COMMON BUS
M04-AUDIO
P-DOWN
+5VD
+5VA
+5VA.D
+5VV
+5VV
GND
1
2
3
GND
-24V
3
2
1
N.C
N.C
-24V
LRG/SML
(RLC)
(RCO)
11
10
9
8
7
6
5
4
3
2
1
(RCO)
DSP-DI
DSP-DO
RDS-DI
+24V
+5VL
+3.3V
PY64
PY04
TU-DO
GND
DSP-MUT
MUTE-RELAY
+5VL
VKK
VKK
CE7(P.EXP)
CE2(OSD)
CE1(OSD)
TU-SD
LRG/SML
+5VL
RC-5
POWER
-5VD
AUX-R
AUX-L
DATA0
CLK0
TUNER-R
TUNER-L
PCB
PY54
TU-CE
TU-CLK
GND
DSP-ACK
DSP-CLK
DSP-RST
DSP-REQ
POWER
P-DOWN
GND
TU-CE
TU-CLK
SYNC DET2
SYNC DET1
OSD-2
OSD-1
OSD-2
OSD-1
SYNC DET2
SYNC DET1
MUTE-RELAY
RELAY CTRL
CE0(ANA.SW)
VCR-MUTE
TAPE-MUTE
MULTI-MUTE
TUNER-R
TUNER-L
CE6(P.EXP)
DATA0
CLK0
DATA0
CLK0
RC-5
TU-SD
P.C Board
11 12
-
+
-
+
1
234
5678
VCC
VSS
Q202
LA02
CA01
LA01
C223
CA02
Q201
LA06
R207
C318
X501
C215
C306
Q501
RA06
CA08
LA03 DA03
CA13
CA06
RA03
L359
X351
R352
C354
C351
C353
C315
R217
C219
C207
FA01
CA18
C211
C303
C304
C503
C361
C362
C363
C364
C360
C316
RA04
R101
R317
R318
C319
C320
LA04
D202
R353
DA05
J101
RA13
L355
L354
L353
L352
L356
C214
L301
L302
RA10
R301
R302
R304
R303
C317
Q301
Q353
Q352
QA05
QA04
QA06
D504
J105
DA04
DA02
RA12
R205
R203
CA05
CA03
RA01
RA02
C201
R204
R202
CA12
CA11
RA08 RA07
CA14
CA07
RA09
CA09
C218
C216
C202
C233
C203
C206
R220
R213
R208
C208
C236
RA11
C210
C222
C220
Q203
C507
R506
R510
R504
C508
C217
R215
CA04
QA03
C235
C234
C226
R214
Q204
C501
C502
R502
C225
R509
R515
R507
C504
C511
R505
C510
R511
R513
C358
C352
C355C359
C305 R309
R310
C311
R307
R308
C312
C370
C371
C372
C368
C367
R201
RA14
C212
R210
C213
R323
R209
A101
C227
C204
C205
R206
C237
R316
R315
C209
Q205
L501
L502
L503
L504
L351
C505
L350
LA05
L201
J106
J102
J104
R355
F202
R508
F201
R211
R212
RA59
C509
Q302
Q303
C302
C301
Q351
C356
R357
C357
R321
R322
R216
C309
C310
C369
C373
C512
C513
D502
DA01
Q354
QA01
QA02
R319
R320
R516
2SC1809S
P
MW-OSC
20P
MW-ANT
0.047
LA1837
450KHZ
180
1/4W
100p
7.2MHz
0.047
4.7/50V
LC72130
100K
20P
LW-ANT
VCD
0.01
10K
4.322MHz
100k
560p
0.01
330p
0.01
180
1/4W
10/50V
100/10V
SFZ450JL3
4.7/50V
2.2/50V
10/50V
10/50V
100/10V
100p
100p
100p
100p
1000p
0.01
150K
10k
1/2W
U ONLY
47k
47k
4.7/50V
4.7/50V
LW-OSC
9.1V
47k
MA716
TKD31-6215A
0
0
0
0
0
47/25V
LPF-V10-A1
LPF-V10-A1
10K
F.N(LW)ONLY
47
47
10k
10k
100p
NJM4558M
DTC114ES
/UN4211
/KRC102M
DTA114ES
/UN4111
/KRA102M
DTA114ES
/UN4111/KRA102M
N(LW)ONLY
DTA114ES
/UN4111/KRA102M
N(LW)ONLY
DTC114ES/UN4211
/KRC102M
N(LW)ONLY
RB425D
12MQ-ST-L
TO JY02(PY04)
1SS356
1SS356
0.01
0.01
0
0
330
2.2K
47P
CH
15P
CH
10K
100K
0.01
470
390
150P
CH
68
CH
150K
10K
0.01 0.01
2.2K
15P
CH
0.01
100/16V
0.01
0.01
0.047
10/50V
100
47
2.7K
0.047
0.01
10K
0.01
1000P
B
2200P
DTA114ES
/ETC
0.01
1K
4.7K 4.7K
100/16V
0.027
27K
390P/100V
2SD2144
S/U/V
0.01
4.7/50V
0.01
47K
DTC144ES
47P
CH
47P
CH
2.2K
0.01
22K
10K
68K
0.01
0.01
1K
100P
CH
8.2K
10K
10/50V
10/50V
0.01
10/50V
4.7/50V
47K
47K
4.7/50V
220
220
4.7/50V
100P
CH
100P
CH
100P
CH
100P
CH
100P
CH
0
0
1/50V
3.3K
0.47/50V
4.7K
4.7K
2200P
0.047
3.3/50V
6.8K
0.01
2.7K
2.7K
10/50V
DTC144ES
0
0
0
0
2.2/50V
39MH
10k
FM CF
47k
FM CF
10k
10k
1K
0.01
DAMMY
DAMMY
0.033
0.033
LC72722
22p CH
10k
27p CH
JUMPER
JUMPER
1k
DAMMY
DAMMY
DAMMY
DAMMY
DAMMY
DAMMY
DAP202K
N(LW)ONLY
SVC342-L
2SC536
SP/ETC
2SC536
SP/ETC
2SC536
SP/ETC
15k
15k
DAMMY
F ONLY
+15VT
15V-4
+15VT
15V-4
+15VT
15V-4
+15VT
15V-4
-15VT
-15V-5 +15VT
15V-4
+15VT
15V-4
-15VT
-15V-5
+5VT
5V-6
+5VT
5V-6
+5VT
5V-6
+15VT
15V-4
+5VT
5V-6
+15VT
15V-4
-15VA
-15V-5
TUN-L
TUN-R
+15VA
15V-4
+5VT
5V-6
TU-CE
TU-CLK
TU-CLK
TU-CE
TU-DO
TU-DO
RDS-DI
TU-DO
TU-CLK
RDS-DI
TU-CE
TU-DI
TU-DI
FM
75ohm
GND
AM
1
23456789
10
11
12
13141516171819
20
21
222324
1
23456789
10
11
12 13 14 15
16171819
20
21
2223242526272829
30
ANT
TERMINAL
MONO/ST
AM STOP
SEP
FM MUTE
(0.0)
?0?
MONO DIST
AM IF
FM/AM IF MPX
PLL-BLOCK
FM AM IF/MPX
3.9V
3.1V
12.0V
(0V)
(0V)
(0V)
(3.9)
14.9
?14.9?
14.9
(14.9)
P104-1/2
TU-SD
F201
(0V)
0V
(0V)
0V
[4.3V]
[3.6V]
0
(0)
0
0
(3.6V)
?0V?
0
(4.3V)
131415
16
1718
19
20
21
2223
24
1
23456789
10
11
12
(CH)
(CH)
RDS BLOCK
OSC-KIL
LW
MW
LW TRACKING LW TRACKING
?0?
0
(15.0)
0
(0)
?15.0?
[0V]
MW TRACKING
MW TRACKING
170kHz
260kHZ
U
TU-CLK
TU-CE
0
5.1
TU-DO
TU-DI
DO
CLK
DI
CE
STRQ
MUTE
VDD
VSS
ST-IND
RDS-DI
AM(LW)BLOCK
STRQ/MUTE
VREF
VDDA
VSSA
MPXIN
CIN
T1
T2
T3
T4
T5
XOUT
XIN
VDDD
VSSD
T6
T7
SYNC
DO
CL
DI
CE
SYR
RDS-DI
FL-OUT
1400/1404kHz
600/603kHz
FM
108MHz
AM
87.5MHz
2.1V
7.2V
1.1V
7.6V
520/531kKHz
1710/1602kHz
TUNER-L
TUNER-R
+15VT
-15VT
+5VT
A4
A4
A4
A4
A4
A4
A4 A4 A4 A4 A4
A4
A4
A4
A4
A4
A4
A4
A4
A4
A4 A4
A4
A4 A4 A4
A4 A4 A4 A4 A4
A4 A4 A4 A4 A4 A4
A4 A4
A4 A4
A4 A4
A4
A4
A4 A4 A4 A4
A4 A4
A4 A4
A4 A4A4
A4
A4
A4
A4
A4
A4
A3 A3
A3
A4
A3
A3
A3
(RTR)
FM
FRONT-END
ANT
VT
IF OUT
A3
M
M
C,K,S:FF11070620
U :FF11070610
S ONLY
A4
U,K,S ONLY
K,S
PRE AMP C,K,S ONLY
1
2
3
4
5
6
7
8
VOLTAGE BY MODE
* :FM
(*):AM(MW)
[*]
:AM(LW)
Tuner P.C.Board
A4
GND A4
VCC
OSC-O
A4
GND
GND A4
FMIN
AMMO
MPXF
AMIFIN
GND
TU
ST
VCC
FMD
AMCF
FMS
AMSD
IFO
PCF
PD
LO
RO
_LI
_RI
MPXOL
MPXOR
MPXI
OSC
REG
AFC
AGC
AMDO
FMO
OSCB
RFI
_LW
M/_S
_FM
NC
1
2
3
4
5
6
7
A4 A7 A9
A4
A4
A8
U,K,S ONLY
_ON/OFF
A4
A4
U
C,K,S
R301
R302
R321
R322
C305
C306
0
47
JUMPER
OPEN
4.7/50
JUMPER
ONLY
U,K,S
ST DIST
TUNING VOLTAGE A101 4pin
C227
C217 R215 C301/302
R201
R211
2200P
0.027
27k
0.047 0 10k
0.015
68k
0.033
100
22k
C
0.015
68k
0.047
100
22k
1 2 3 4 5 6 7 8 9 101112131415
161718192021222324252627282930
VCCGND
FM IF
REG
AM
OSC AM
MIX AM
RF AMP AGC
AM/FM
BUFF
IF/DET
AM
COMP
BUFF DECORDER
MUTE
STEREO
SW
PILOT
DET
FF FF FF
VCO
V-SM
AM
S-METER STEREO DRV.
PHASE DET
SD
TUNING DRIVE
FM DET
S-CURVE
FM
S-METER
LR
LR
Q201 LA1837
13 14
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
1
2
3
4
5
6
NC
IN
OUT
ST
GND
1
23456789
10
11
121314
15 16 17 18 19
20
21
22 23 24 25 26 27 28
NCOUTNC
IN
NC
NCCS2
CS1
NCNC
NCNC
1
234
5678
1
234
5678
1
234
5678
1
234
5678
1
234
5678
1
234
5678
1
234
5678
1
234
5678
1
234
5678
1
234
5678
1
234
5678
1
234
5678
1
2
3
1
2
3
4
5
6
7
2
3
4
5
6
7
8
1
1
234
5678
RS01
RS04
LG01
RS15
RS16
RS29
RS30
RS31
RS32
RS52
RS59
RS60
RS61
RS62
CS41
CS42
RS05
RS19
RS20
RS33
RS34
RS07
RS08
RS22
RS35
RS36
RS09
RS10
RS23
RS24
RS37
RS38
RS13
RS14
RS27
RS28 RS42
RS41
CS53
CS54
RG13
RG14
CG07
RG12
QG07
RG03
RG04
RS68
RS67
RS69
RS70
CS84
CS85
RG01
RG02
QS15
RS54
RS53
CS21
CS22
RS47
RS48
CS19
CS20
RS75
CS88
CS97
CS98
RS65
RS66
RS63
RS64
QS16
RS81
RS82
RS77
RS78 RS86
RS85
RS79
RS80
CS95
CS96
QS14
C827
R809 R808
L801
C804
C808
C823
C801
C802
CS71
CS72
RS39
RS40
RS55
RS56
RS87
RS88
RS89
RS90
RS91
RS92
D801
RS83
RS84
QS22
RS93
RS94
JS06
JS03
JS09
JS10
RS03
RS02
RS17
RS18
CS63
RS21
RS72
RS74
RS73
RS71
RG11
QS12
QS13
RS58
RS57
CS64
RG10
RG09
C826
C844C845
C828
D819
D818
D811
D812
RG20
C841
D815
C824
RS06
C843
RS49
RS50
RG05
C803
C807
C805 C806
C819
C820
C812 C815 C816
Q803 Q805
Q807
D804 D806
D816
D817
D820
CS99
CS29
CS30
CS89
CS90
CS33
CS34
QG05
QG06
QS24
QS23
QS18
QS17
RS25
RS95
JS01
QS21
QS19
QS20
RG17
RG18
C811
C825
C830
J806
R806
C833
QS26
QS27
CQ08
RS76
C809
C810
D803
C813 C814
D805
C817 C818
D807
D821
D822
D823
C847 C848
J801
C835
C836
RQ27
RQ28
JS04
C834
C842
CG01
CG02
CG03
CG04
CG05
CG06
CS11
CS12
CS15
CS16
CS23
CS24
CS31
CS32
CS35
CS36
CS57
CS58
CS86
CS87
D802
D808
DG01
DG02
DG03
J803
J802
J804
J805
J807
J808
JS01
Q804
Q806
Q802
Q810
QS01
QS02
QS03
QS04
QS05
QS06
QS07
QS08
QS09
QG02
QS10
QS11
QS25
R804
R810
RS96
RS97
QG04
RQ29
RQ30
C832
D824
R816
C849
R814
R815
QG03
R817
D825
R811
D828
D829
R819
C852
C840
C851
RG15
CS81
CS83
CQ01
CS82
CQ02
CQ03
CG09
RG06
RS98
RS99
CQ07
CQ06
DS01
DS02
RQ25 RQ26
D830
C821
Q809
QG01
CS74
JS04
R801
R802
JS07
RS26
RG19
R818
RG16
CG08
R813
R812
D826
CS59
D827
D810
Q813
Q812
Q808
Q801
CS37
CS38
CS39
CS40
CS91
CS92
CS43
CS44
CS45
CS46
CS47
CS48
CS51
CS52
CS49
CS50
CQ13
CS77
CS78
CQ14
CQ04 CQ05
CQ12
CQ11
C850
J809
CS13
CS14
CS17
CS18
CS25
CS26
CS27
CS28
CS01
CS02
CS03
CS04
CS60
CS61
CS62
CS94
CS93
CQ09
CQ10
CS65
CS67
CS68
CS66
CS69
CS70
CS73
CS75
CS76
CS79
CS80
CS05
CS06
CS07
CS08
CS09
CS10
RS51
CS56
CS55
RS44
RS43
D814
D813
R807
Q811
CQ15
F801
F802
47K
47K
1K
1K
47K
47K 47K
47K
100K
47K
47K
1K
1K
220P
220P
47K
1K
1K
47K
47K
47K
47K
1K
47K
47K
47K
47K
1K
1K
47K
47K
47K
47K
1K
1K
47K
47K
220P
220P
47K
47K
100P
10K
DTA114ES
/ETC
100K
100K
47K
47K
47K
47K
0.1
0.1
47K
47K
LC78211
100K
100K
0.01
0.01
100K
100K
0.01
0.01
47
0.1
0.01
0.01
10K
10K
47K
47K
DTA114ES
/ETC
1K
1K
47K
47K 47K
47K
47K
47K
220P
220P
LC78212
0.01
100 100
0.01
0.01
2200/16V
0.01
0.01
220P
220P
47K
47K
47K
47K
1K
1K
1K
1K
47K
47K
D3SB20
HE20020290
1K
1K
DTA114ES
/ETC
10K
10K
47K
47K
1K
1K
0.01
1K
1K
10K
10K
1K
10K
LC78211
LC78212
47K
47K
0.01
1K
1K
0.01
0.010.01
0.01
1D3
1D3
1D3
1D3
1.5K
0.01
1D3
0.01
47K
100/50V
47K
47K
22K
4700/25V
4700/25V
10/50V
0.01
0.01
0.01
0.01
10/50V
0.01
NJM7915FA NJM7915FA
NJM7905FA
1D3 1D3
1D3
1D3
1D3
0.1
4.7/50V
4.7/50V
4.7/50V
4.7/50V
4.7/50V
4.7/50V
2SC2878
A/B
2SC2878
A/B
2SC2878
A/B
2SC2878
A/B
2SC2878
A/B
2SC2878
A/B
1M
1M
1/2
DTA114ES
/ETC
2SC2878
A/B
2SC2878
A/B
6.8K
6.8K
10/50V
10/50V
10/50V
47k
10/50V
PC817
DTA114ES
/ETC
0.1
47
10/50V
0.01
1D3
10/50V
0.01
1D3
0.01
1D3
1D3
1D3
1D3
0.01 0.01
0.01
0.01
270
10K
2/2
47/35V
470/35V
4.7/50V
4.7/50V
4.7/50V
4.7/50V
4.7/50V
4.7/50V
47/16V
47/16V
100/16V
100/16V
47/16V
47/16V
47/16V
47/16V
100/16V
100/16V
100/16V
100/16V
1D3
D5SB20
HE20016292
1D3
*
*
*
*
*
*
*
*
2/2
2SD1415
2SD1415
780S15
2SC536
SP/ETC
NJM4558DD
NJM4558DD
NJM4558DD
NJM4558DD
NJM4558DD
NJM4558DD
NJM4558DD
NJM4558DD
NJM4558DD
NJM4558DD
NJM4558DD
NJM4558DD
NJM4558DD
1
1/4W
10k
*
*
47K
47K
470/63V
1D3
4.7k
2200/16V
10k
10k
2SA1837
100
1/4W
1D3
47 1/4W
1D3
1D3
10k
2.2/50V
220/35V
10
1/4W
47K
100
100
1000P
1000P
*
*
10K 10K
*
13000/16V
10/50V
10/50V
470/16V
*
*
*
10/50V
10/50V
*
*
*
*
DTA114ES
/ETC
2SC3419
TC9459N
47P
1/2
*
*
1M
1.5K
*
1M
100P
100
100
1GWJ43
47P
CH
*
1D3
DTC114ES
/ETC
DTA114ES
/ETC
+6V
NJM7806FA
+12V
NJM7812FA
470P
470P
470P
470P
470P
470P
470P
470P
470P
470P
470P
470P
470P
470P
470P
470P
DUMMY
DUMMY
DUMMY
DUMMY
DUMMYDUMMY
DUMMYDUMMY
DUMMY
DUMMY
47P CH
47P
CH
47P CH
47P CH
47P CH
47P
CH
47P CH
47P
CH
47P
CH
47P CH
47P CH
47P
CH
47P
CH
47P
CH
47P
CH
47P CH
47P
CH
47P CH
100K
47P CH
47P
CH
*
*
6.8V
36V
2.2k
1W
S-806C
DAMMY
250V
T2A
250V
T2A
+5VL +5VL
+5VL
+5VL
+5VL
+5VL
-24V
+5VL
+5VL
-15VD
+15VD
-15VA
+15VA
-24V
+15VD
-15VD -15VA
+15VA
-24V
+5VL
+15VA
-15VA
+15VA
-15VA
+15VA
-15VA
-15VA
+15VA
+15VA
-15VA
+15VA
-15VA
+15VA
-15VA
+15VA
-15VA
+15VA
-15VA
+15VA
-15VA
+15VA
-15VA +15VA
-15VA
+15VA
-15VA
+15VA
-15VA
+15VA
-15VA
-15VA
+15VA
+15VA
-15VA
-15VA
+15VA
-15VA
+15VA
-15VA
-15VA
DATA0
CLK0
CE3
MD-O
MD-O
MD-O
TV
TV
TVTV
LD
LDLD
LD
DVD
DVD
DVD
DVD
V1
V1
V1
V1-O
V1-O
V2
V2
V2
V2-O
CD
CD
CD TAPE
TAPE
TAPE-O
TAPE-O
TAPE-O
MD
MDMD
MD
CE0
DATA0
CLK0
CE0
DATA0
CLK0
CE0
DATA0
CLK0
V2-O
CE0
DATA0
CLK0
V2
DATA0
CLK0
CE0
AUX
AUX
TUNER
TUNER
TUNER
CE3
AUX
V1-O
MD-O
L
R
L
R
L
R
IN
OUT
L
R
R
L
VEE
CE
DI
CL
VSS
S
RES
VDD
1
23456789
10
11
12 13 14 15
16171819
20
21
2223242526272829
30
VDD
RES
S
VSS
VEE
CE
DI
CL
16171819
20
21
2223242526272829
30
1
23456789
10
11
12 13 14 15
TVTV
MULTI-OUT
TV
CD
L
R
L
R
L
R
VEE
CE
DI
CL
VSS
S
RES
VDD
TUNER
CD
1
23456789
10
11
12 13 14 15
16171819
20
21
2223242526272829
30
IN
OUT
16171819
20
21
2223242526272829
30
1
23456789
10
11
12 13 14 15
CD
VEE
CE
DI
CL
S
VSS
RES
VDD
PS04
(RRJ)
L
R
Audio
Function
P.C.Board
IN
TAPE
TAPE
MULTI
TUNER
CD
TV
DVD
AUX
COPY
OUT
IN
AUX
DVD
DVD
DVD
INPUT
[L]
[L]
[L]
[R]
[R]
[R]
MULTIROOM
SELECTOR
MULTI ROOM
TAPE
IN
OUT
REMOTE CONT.
VCR1
IN
OUT
L
R
L
R
TUN
VCR1
OUT
IN
VCR1
MULTI ROOM
MULTI-REMOTE
IN
INP
IN
L
R
L
R
IN
OUT
MDMD
OUT
AUX
-15V
-15V
[L]
[R]
CDR/MD
LD
DSS/VCR2
LD
DSS/V2
LD
CDR
DS/V2
LD
DS/V2
AUX-L
AUX-R
GND
TUNER-L
TUNER-R
RELAY-MUTE
VCR1-MUTE
MULTI-MUTE
CDR/MD-MUTE
TAPE-MUTE
MULTI-RC
RC-5
CE0
DATA0
CLK0
CE3
POWER
+5VL
P-DOWN
+3.3V
-5V
GND
GND
GND
RELAY
+3.3V
+12V
+8V
-15V
P804
(RPS)
(RRM)
OUT
GND
+8V
-24V
MULTI-RC-OUT
1
2
3
4
+5VV
+5VV
TO JY65 (PY64)
M06-CONNECT
TO J871 (P754)
M01-AMP
(M04)
M06-CONNECT
TO JY64 (PY64)
+15VD
-15VD
-15VA
+15VA
L OUT
R OUT
+24V
+24V
TO JB04 (PB04)-U.F
M04-PRIMARY BLOCK
-5VD
FROM SUB TRANSF.
FROM MAIN TRANSF.
(M05)
0
-0.6
8.3
5.7
-13.8
19.8
-20.2
16.4
16.3
1.3
22.4
16.4
0
0.6
5.7
8.9
6.0
10.1
-15.4
0.7
0
5.7
0
5.7
5.7
0
-13.8
0
0
-13.8
-13.8
-13.8 -13.8
5.7
5.7
5.7
5.7
NC
MULTI.VOL.
L001
L002
0
0
0
5.0
5.7
AUDIO-INPUT SELECTOR
CS65-CS80
CS37-CS56
CS59-CS62
CG07,CG08
CQ09,CQ10
+5AD
FL(F)
FL(F)
+5VAD
FL(F)
FL(F)
AC9.7V(5V)
AC9.7V(5V)
AC20V(24V)
AC20V(24V)
+24V
+12V
GND
-24V
+15V
REF
VKK(-33V)
-15.8
RESET IC
AC 5.4
AC 5.4
AC11.7
AC11.6
AC21.9
AC 22.7
-5.0
AC16.4
AC16.4
TO JB54 (PB54)-K.S
CS01-CS10
CS13.CS14
CS17.CS18
CS25-CS28
47/16V
47/16V
22/16V
47/16V
S ONLY
CS91-CS96
15 16
VDD1 VSS1
RST
CNT3
CNT2
XIN
XOUT
CNT1
BRK
SEPIN
SEP-O
OSC-I
OSC-O
SEPC
S-IN
CHARA
CS
SCLK
DATA
VDD2CV-O
N.C
CVIN
VDD1
1
2
3
4
5
6
7
8
9
10
11
1213
14
15
16
17
18
19
20
21
22
23
24
VDD1 VSS1
RST
CNT3
CNT2
XIN
XOUT
CNT1
BRK
SEPIN
SEP-O
OSC-I
OSC-O
SEPC
S-IN
CHARA
CS
SCLK
DATA
VDD2CV-O
N.C
CVIN
VDD1
1
2
3
4
5
6
7
8
9
10
11
1213
14
15
16
17
18
19
20
21
22
23
24
4
6
COM
7
5
INH
VEE
GND C
B
A
3
0
1
2
VCC
1
2
3
4
5
6
7
89
10
11
12
13
14
15
16
GND
VCC
GND
VCC
GND
VCC
GND
VCC
JL01
RL10
RL02
RL04
JL02
CL34 CL39
CL40
CL36
CL42
QL03
QL04
QL06
JZ01
JZ05
RZ16
RZ17
CZ01
CZ67
CZ71
CZ72
CZ73
CZ75
QZ05
QZ06
QZ07
XZ02
CZ77
RZ30
RZ31
RZ32
QZ16
CL30
JZ04
JZ06
JZ07
JL09
JZ08
QZ01
QZ03
XL02
QZ23
CZ46
CZ48
CX01 RX01
RX02
RX03
RX09
QX01
QX04
RX10
QX03
DZ02
DZ01
QL09
LL01
QZ11
CL50
CL53
LZ01
RZ20
QZ08
QZ04
RX08
CL20
RL08
CL60
CL62
RL13
RL15
RZ34
RZ18
RZ19
RZ42
RZ43
CZ07
CZ08
CZ69
CZ70
CZ74
CZ76
CZ87
CZ92
CZ94
CZ98
RL12
JZ10
RL20
CL75
QZ09
CX98
CL16
QL08
RZ51
QZ20
QZ19
QZ10
QL14
CL69
CL68
RZ67
CZ80
CZ81
CL15
RZ27
RZ07
RZ09
RZ13
RZ15
RL05
RL09
RL07
CL41
CZ93
CZ95
CZ42
CZ85
CZ34
CZ61
CL59
RZ50
RX06
RX04
RX11
RL26
CX97
RX07
RX05
QX02
CL64
QL16
RL23
RL22
QZ25
RZ57
RZ56
DX01
CX07
CZ62
CZ63
JL03
JL10
QZ24
QZ17
QL02
QL17
RX24
RX25
CZ82
RX19
RX20
RX22
RX28 CX24
RX16
CX15
RX15
CX14
RX14
CX13
RX13
CX11
RX12
CX17
RL42
RL41
RL28
RL29
CL86
CL82
QL18
CL80
CX20
CL77
RL39
CL76
RL40
CL54
CL35
CZ78
CZ51
CZ68
CZ66
QL19
RL25
QZ28 QZ29
QX07
QZ27
CL02
CL03
CL05
CL07
CL12
CL13
CL14
CL19
CL21
CL23
CL25
CL26
CL29
CL31
CL33
CL37
CL43
CL52
CL55
CL57
CL58
CL61
CL63
CL65
CL70
CL79
CL83
DL07
RL21
RL24
RL31
RL32
RL43
CX06
CX10
CX12
CX25
CZ02
CZ03
CZ04
CZ05
CZ16
CZ19
CZ20
CZ21
CZ22
CZ23
CZ29
CZ32
CZ33
CZ40
CZ41
CZ49
CZ52
CZ59
CZ60
CZ55
CZ56
CZ57
CZ58
CZ83
CZ84
CZ88
CZ86
QZ22
CX19
CL81
RL30
JL13
RZ60
RL18
CL28
CL27
CL08
CL09
CL01RL01
RL06
RL03
RL11
RL14
CL24
CL18
QL01
CL17
LL02
CL44
RL19
CL56
QL05
RZ24
RZ29
RZ26
RZ25
RZ28
LZ03
RZ53
RZ01
RZ06
CZ06
RZ02
RZ08
RZ11
RZ03
RZ10
CZ15
CZ14
CZ11
CZ12
CZ13
CZ30
CZ31
CX09
CZ35
CZ36
CZ37
CZ39
CZ38
CZ17
CZ18
CZ09
RZ12
RZ04
CZ24
CZ65
RZ54
RX29
CZ89
CZ90
CZ10
RZ05
RZ14
QZ28-2
QZ28-1
CX18
RZ59
CZ26
RZ58
DZ05
CZ50
RZ35
QZ26
CX05CX04
LX01
CX02
CX22
QZ29-1
QZ29-2
QZ29-3
RX26
CX21
RX27
QZ29-4
JZ02
JZ02
CZ47
CZ27
CZ28
CZ91
CZ25
RZ46
RZ45
DZ19
CZ97
RZ48
DZ03
RZ44
RZ47
CX16
QZ02
LZ02
QL07
JZ03
JZ03
CX08
RX21
RX18
RX17
QZ18
CL51
CL78
QL18-1
QL18-2
DL01
DL02
DL03
DL04
DL05
DL06
RZ73
RZ74 RZ72RZ75RZ76
CL85
RZ52
CX99
QL15
QZ21
CL22
CX03
QX05
CZ43
QZ12
CZ45
QZ13
QZ14
QL10
QL12
QL11
CL47
CL46
XZ01
XL01
RX31
RX32
RX33
CX31
CX32
CX33
CL45
CL98
JC51
CC95
JC71
U116
CL49
CL38
CX92
U296
RC55
RC51
RC52
RC61
RC62
CC56
CC55
CC62
CC61
CC53
CC54
CC59
CC60
CC71
CC72
CC73
CC74
CC75
CC76
CC88
CC87
CC82
CC81
CC77
RC82
RL54
QL21
CC63
CC64
CC65
CC79
CC80
CC86
QC51
QC52
QC95
RC53
RC54
RC56
RC57
RC58
RC59
RC60
RC63
RC65
RC68
RC67
RC69
RC70
RC71
RC72
RC73
RC74
RC75
RC76
RC78
RC77 RC79
RC80
RC81
CC78
RC83
RC84
RC87
RC92
RC95
RC96
RC97
CL71
CL11
CL32
CL72
CL74
CL73
CX41
CX42
CX43
CX44
CX46
CX45
CX47
CX48
CX49
RC85
RC86
RC90
RC89
RC88
CC83
CC84
U137
A2
B2
B1
A1
CC85
CL48
CZ44
QC73
QC72
QC71
RL52
CL04
CL10
CL66
CL67
CL99
CX93
CX94
RZ61
RZ62
RZ63
RZ65
DL21
DL22
DZ21
DZ22
JL14
JZ09
RC64
RC66
RC91
RC94
RC93
RL51
RL53
CC51
CC52
CC57
CC58
CC67
CC68
CC70
CC69
10
10
10
+5VV
+5VV
0.01 0.01 0.01
0.01
0.01
BA7649A
BA7613N
BA7613N
39
39
0.01
0.01 0.01
0.01
0.01
BA7649A
BA7613N
BA7649A
0.01
39
39
39
BA7613N
MM1140XF
MM1140XF
NJM2903D
24P
CH
1200P
10K
10K
470
1.5K
2SC536
SP/ETC
2SC536
SP/ETC
1.5K
2SC536 SP/ETC
*
*
LC74781
33UH
LC74781
0.1
33UH
220
BA7612N
BA7612N
12K
10/50V
10
0.01
68
220
68
68
68
10K
10K
10UF/16V
10UF/16V
0.01
0.01
0.01
0.01
10/50V
0.01
0.01
0.01
68
1M
10/50V
NJM2244D
10/50V
10/50V
NJM2244D
10K
NJM2263D
NJM2244D
NJM2263D
NJM2244D
10/50V
1/50V
47K
10/50V 10/50V
10/50V
75
75
75
75
75
75
75
75
100/10V
100/10V
100/10V
10/50V
470/6V
470/6V
470/6V
470/6V
10K
680
680
180
1/4W
100K
1/50V
10K
1.5K
2SC536
SP/ETC
220/6.3V
2SC536
SP/ETC
10K
10K
DTA114ES
/ETC
10K
10K
10.0V
470/6V
470/6V
DTA114ES
/ETC
BA7613N
BA7612N
DTC114ES
/ETC
10K
4.7K
470/6V
100K
100K
100K
100K
100K
10/50V
100K
10/50V
100K
10/50V
100K
10/50V
100K
0.01
10K
100
10K
10K
10/50V
10/50V
0.01
1/50V
1000P
100
1000P
100
220/6.3V
220/6.3V
6.3V
220/6.3V
220/6.3V
220/6.3V
220/6.3V
DTC114ES
/ETC
4.7K
74HC32
74HC132
DTC114ES
/ETC
DTC114ES
/ETC
10/50V
10/50V
10/50V
10/50V
10/50V
10/50V
10/50V
10/50V
10/50V
10/50V
10/50V
10/50V
10/50V
10/50V
470/6V
100/10V
220/6.3V
1/50V
1/50V
10/50V
10/50V
100/10V
0.01
0.1
1/50V
10/50V
*
100K
220
100K
100K
100K
100/10V
10/50V
220/6.3V
220/6.3V
10/50V
10/50V
10/50V
10/50V
10/50V
10/50V
10/50V
10/50V 10/50V
10/50V
10/50V
10/50V
10/50V
10/50V
10/50V
1/50V
1/50V
10/50V
10/50V
10/50V
10/50V
10/50V
10/50V
10/50V
10/50V
10/50V
74HC4051
0.01
10/50V
100K
*
4.7K
10/50V
22P/50V
10/50V
0.01
10/50V
10/50V
1/50V
10/50V
10UF/16V
14.31818MHZ
14.31818MHZ
1K
10/50V
10/50V
10/50V
10/50V
10/50V
75
10
75
39
39
470/6V
10/50V
MM1140XF
10/50V
0.022
0.1
10K
10/50V
BA7649A
75
75
75
75
75
+5VV
0.022
10K
10
75
10UF/16V
10
75
75
10
75
10/50V
10/50V
10/50V
10/50V
10/50V 10/50V
10/50V 10/50V
10/50V
10/50V
10/50V
10/50V
10/50V
10/50V
10/50V
10UF/16V
75
10
10/50V
0.01
1M
100
0.01
0.01
10UF/16V
10
75
74HC32
74HC32
0.01
100K
10UF/16V
220
*
0.1
68
2SC536
SP/ETC
0.01
47/10V
22UH
68P CH
0.01
74HC132 74HC132
74HC132
10K
4700P
100
74HC132
2/2
1/3
22P/50V
10/50V
10/50V
0.01
10/50V
10K
3.3K
*
100/10V
220
*
10K
15K
0.01
BA7612N
0.022
NJU3718L
1/2
2/2
22P/50V
F,U ONLY
100K
100K
100K
BA7613N
1200P
4700P
74HC132
74HC132
DUMMY
DUMMY
DUMMY
DUMMY
DUMMY
DUMMY
DUMMY
DUMMY DUMMYDUMMYDUMMY
DUMMY
DUMMY
22P/50V
F,U ONLY
DTC144VSA
DTC144VSA
10/50V
22P
CH
C,K,S ONLY
DTA114TS/ETC
C,K,S ONLY
22P/50V
C,K,S ONLY
DTA114ES
/ETC
C,K,S ONLY
15PF/50V
C,K,S ONLY
DTC114TS
C,K,S ONLY
DTC114TS
K,N,S ONLY
DTA114ES
/ETC
C,K,S ONLY
DTC114TS
C,K,S ONLY
DTC114TS
C,K,S ONLY
15PF/50V
C,K,S ONLY
22P/50V
C,K,S ONLY
17.31818MHZ
K,N,S ONLY
17.31818MHZ
C,K,S ONLY
75
75
75
10/50V
10/50V
10/50V
100/10V
10/50V
0.01
F,U ONLY
24P CH
0.01
1000P
F,U ONLY
DAMMY
47K
47K
47K
47K
0.01
0.01
0.01
0.01
10/50V
10/50V
10/50V
10/50V
47/16V
47/16V
22/25V
22/25V
0.01
0.01
0.01
0.01
0.01
0.01
DAMMY
DAMMY
220
DAMMY
100/25V
100/25V
0.15
0.12
22/25V
NJM4580
NJM4580
74HC08
1K
1K
DAMMY
100
100
47K
47K
1K
DAMMY
100
100
47K
47K
100K
100K
100
100
47K
47K
10K
10K 10K
DAMMY
18K
DAMMY
18K
100
100
10K
0.1/50V
10/50V
470/6V
0.1/50V
0.1/50V
0.1/50V
0.1/50V
0.1/50V
0.1/50V
0.1/50V
0.1/50V
0.1/50V
0.1/50V
0.1/50V
0.1/50V
DAMMY
18K
DAM.
18K
DAM.
0.18
0.039
22P/50V
U:27P
OTHER:22P
U:27P
OTHER:22P
NJM4580
NJM4580
NJM4580
2.2K
DAMMY
DAMMY
DAMMY
22P/50V
F,U ONLY
0.01
DAMMY
DAMMY
*
*
*
*
DAMMY
DAMMY
33K
56K
12K
18K
15K
2.2K
U.K:220P
S.N:470P
U.K:220P
S.N:470P
U.K:220P
S.N:470P
U.K:220P
S.N:470P
47P
S.N.ONLY
47P
S.N ONLY
47P
S.N ONLY
47P
S.N ONLY
+5VV
+5VV
+5VV
+5VV
+5VL
+5VL
+5VV
+5VV
+5VL
+5VV +5VV
+5VV
+5VL
+5VV
+5VV
+5VV
+5VL
+5VV
+5VV
+5VV
+5VV
+5VV
+5VV
+5VV
+5VV
+5VV
+5VV
+5VL
+5VV
+5VL
+15V
+5VV
+5VV
+5VL
+5VL
+5VV
+5VV
+15V
+5VL
+5VL
+5VL
+5VV
+5VV
+5VL
+5VL
+5VV
+5VL
+5VL
+5VL
+15VA
-15VA
+5VV
+5VL
+5VV
+5VV
+5VV
-15V
+15VA
+5VL
+5VL
-15VA
+15VA
+15VA
-15VA
+15VA
-15VA
-15VA
+15VA
+15VA
-15VA
-15VA
+15VA
+5VL
+5VL
+15VA
-15VA
+15VA
-15VA
+5VL
CE2
CE2
CE1
CLK0
DATA0
CLK0
DATA0
CLK0
DATA0
DATA0
CLK0
CE7
PAL
PAL
IN5
IN5
IN1
IN2
IN3
IN5
IN4
C-C
C-B
C-A
C(B)
C(A)
C(A)C(A)
C(B)
C(B)
C-A
C-B
C-C C-C
C-B
C-A
IN1
IN2
IN3
IN4
IN5
IN1
IN2
IN3
IN4
IN5
IN1
IN5
IN3
S2LD
S2DSS
S2TV
S2VCR1
S2DVD
S2DSS
S2VCR1
IN2
S2DVD
S2LD
S2TV
IN1
IN2
IN3
IN4
IN5
IN1
IN2
IN3
IN4
IN5
IN1
IN2
IN3
IN4
IN5
IN5
C-A
C-B
C-C
C-C
C-B
C-A
C-A
C-B
C-C
C(A)
C(B)
C(B)
C(B)
C(A)
M-A
M-B
M-C
M(A)
M(B)
M-A
M-B
M-C
M(A)
M(B)
COMP
COMP
COMP
COMP
C-M
C-M
C-M
C-M
C-M
C-M
DATA0
CLK0
C(A)
TV-MONI
IN
OUT
TV
CVBS-INPUT
2
3
7
1
45
6
8
23 7
1
456 8
D
1
2
3
4
5
DVD
MUTE
CTA CTB G
VCC
BAF
MULTI-OUT
Y
Y
(COMPONENT)(COMPONENT)
Y
1
234567
89
10
11
12 13 14
CTL
1
234567
89
10
11
12 13 14
BA7649A
CTL
1
234567
89
10
11
12 13 14
BA7649A
BA7613N
23 7
1
456 8
MUTE
CTA CTB G
VCC
BA7613N
P9
P10
P11
P12P13P14
VSS
P15P16P17P18P19
P20
P8P7P6P5P4P3P2
P1
VSS
CLR
STB
CLK
DATA
SO
VDD
CTL
1
234567
89
10
11
12 13 14
BA7649A 23 7
1
456 8
MUTE
CTA CTB G
VCC
BA7613N
CTL
1
234567
89
10
11
12 13 14
BA7649A
23 7
1
456 8
MUTE
CTA CTB G
VCC
23 7
1
456 8
MUTE
CTA CTB G
VCC
2
3
7
1
45
6
8
BAF
2
3
7
1
45
6
8
23 7
1
456 8
MUTE
CTA CTB G
VCC
A
B
C
(A)
(B)
INP.SEL
COPY
A
B
C
(A)
(B)
INP.SEL
COPY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
COPY
INPUT
INPUT
MULTI
COPY
23 7
1
456 8
MUTE
CTA CTB G
VCC
BA7613N
23 7
1
456 8
MUTE
CTA CTB G
VCC
DVD
INP
B
L
H
INPUT
TV
DVD
AUX
STANDBY
LLL L
LL
L
L
L
L
L
HHH
INPUT
TV
DVD
A B C
(A)(B)
BA7649
LLLL
LLL
L
L
L
L
L
L
L
L
H
H
H
HH
H
H
HH
HH
HHH
INPUT
TV
DVD
AUX
A B C
(A)(B)
BA7649
LLLL
LLL
L
L
L
L
H
H
H
H
HH
H
H
H
HH
AUX
SOURCE
MULTI-OFF
15
6
PORT EXPANDER
C
Y
COMMON BUS
L
L
HL
MUTE(A)
OSD SWITCH
GND
GND
GND
16
7
8
9
10
11
12
13
14
15
16
1
2
3
4
5
OTHERS
6
AUX-CVBS
OSD-1
OSD-2
7
8
L
L
L
L
MM1140XD
VCR1
SOURCE(VCR1)
H
L
HL L
LH H
VCR1
HH
L
L
L
L
L
LLLLL L HHH
1
2
3
5
VCR1
IN
OUT
MM1140XF
23
7
1
4
56 8
BAF
1
234567
89
10
11
12 13 14
1
234567
89
10
11
12 13 14
MM1140XF
1
2
3
5
2
3
7
1
45
6
8
BAF
2
3
7
1
45
6
8
BAF
1
2 3 4 5
L
LLLL
(B)
(B)
(B)
H
H
H
H
H
HL
H
LH
H
L
1
234
5678
MULTI ROOM SELECTOR
INPUT SELECTOR
COPY SWITCH COMPONENT VIDEO SWITCH
INPUT SELECTOR AND COPY SWITCH
:SAME DATA BETWEEN CVBS VIDEO AND S-VIDEO.
Y-C SEPARATE
BAF
BA7612N
BA7612N
LD
DSS/VCR2
LD
DSS/VCR2
DSS/VCR2
LDLD
DSS/V2
OTHERS:TV/VCR1/LD/AUX
DSS/V2
4
4
CB
CR
CB
CR
CB
CR
PL04
INT
EXT
TURU
INT
EXT
THRU
23 7
1
456 8
MUTE
CTA CTB G
VCC
23 7
1
456 8
MUTE
CTA CTB G
VCC
S-VIDEO SELECTOR
(RVS)
(RVC)
LH
761376137613
:SAME DATA BETWEEN BA7612N AND BA7613N
BA7612N/BA7613N
1
2
3
4
5
6
7
8
9
10
(RRP)
OSD-INT
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
1/4
2/4
INT:L
EXT:H(INPUT) L(NO INPUT)
INT:L
OSD-OFF:L
OTHRS:H
OSDOFF:H
EXT:H(INPUT),L(NO INPUT)
BA7612N
BA7613N
BA7613N
BA7612N
74HC132
THRU
OSD(INT)
OSD(EXT)
24
L
HL
L
H
1
2
3
45
6
1
2
34
56
13
12
11
9
1
2
34
56
COMMON BUS
(M02)
PZ04
(M02)
TO JL76 (PL74)
M07-AUX
TO JL09 (PL04)
M02-VIDEO
TO JZ07 (PZ04)
M02-S-VIDEO
0
0
2.0
1.4
5.6
0
OSD SWITCH
H/L
(NJM2244D&NJM2263D)
5.0V
5.0V
NO PICTURE
5.0V
5.0V
NO PICTURE
COMP.V MUTE
PAL
DVD/_DSS
AUX-CVBS
CLK0
DATA0
+5VL
SYNC DET1
SYNC DET2
+5VV
-24V
CE7(P.EXP)
+15VA
-15VA
CE1(OSD)
CE2(OSD)
GND(NC)
GND(NC)
CLK0
DATA0
SYNC DET1
SYNC DET2
OSD-1
OSD-2
+5VV
OSD-INT
+5VL
-24V
CE7P.EXP)
+15VA
-15VA
GND(NC)
CE1(OSD)
CE2(OSD)
COMP.V MUTE
PAL
AUX-CVBS
GND(NC)
GND(NC)
GND(NC)
GND(NC)
DSS IN
DVD IN
COMPONENT
VIDEO OUT
MM1140XF
TV IN
C
Y
LD IN
C
Y
DVD IN
C
Y
VCR1 IN
C
Y
DSS/VCR2 IN
C
Y
VCR1 OUT
C
Y
DSS/VCR2 OUT
C
Y
TV-MONI.OUT
C
Y
Y
Y
Y
CC
Y
CC
C
C
Y
C
Y
Y
10
11
121314
15 16 17 18 19
20
21
22 23 24 25 26 27 28
1
23456789
TO JC03 (P104)
DSS:L/DVD:H
+15VA
-15VA
TO JY62 (PY64) M06-CONNECT
TO JC04 (P104) M03-TONE
TO JZ06 (PZ04) M02-S-VIDEO
TO JY62 (PY64) M06-CONNECT
TO JC04 (P104) M03-TONE
TO JL10 (PL04) M02-VIDEO
TO JC04 (P104) M03-TONE
TO JY62 (PY64) M06-CONNECT
TO JL10 (PL04) M02-VIDEO
TO JZ06 (PZ04) M02-S-VIDEO
10
DZ06-DZ17 DUMMY
6CH-IN
6CH SURR. L
6CH SURR. R
6CH SUB W
6CH CENTER
1
234
5678
1
234
5678
11
12
13
VDATA
VCLK
_KILL_CON
1
234
5678
1
234
5678
1
234
5678
TV
LD
DVD
AUX
14
15
16
OSD-OUT
DATA0
CLK0
SWA
FL
FR
SW6
C6
SR6
SL6
(COMPONENT)
VCR1 IN
Y
CB
CR
JZ05(2/2)
(1/2)
8
CVBS VIDEO SELECTOR
17 18
VDD
NC
NC
NC
CS1
NC
NC
GND
CK
VSS
NC
NC
LD1
LD2
NC
CS2
NC
NC
STB
DATA
VDD
NC
NC
NC
CS1
NC
NC
GND
CK
VSS
NC
NC
LD1
LD2
NC
CS2
NC
NC
STB
DATA
VDD
NC
NC
NC
CS1
NC
NC
GND
CK
VSS
NC
NC
LD1
LD2
NC
CS2
NC
NC
STB
DATA
VDD
NC
NC
NC
CS1
NC
NC
GND
CK
VSS
NC
NC
LD1
LD2
NC
CS2
NC
NC
STB
DATA
VEE VDD
VSS
CE
DI
CL
S
RES
-
+
+
-
-
+
VCC
VSS
+
-
-
+
VCC
VSS
+
-
-
+
VCC
VSS
+
-
-
+
VCC
VSS
+
-
-
+
VCC
VSS
+
-
-
+
VCC
VSS
+
-
-
+
VCC
VSS
+
-
-
+
VCC
VSS
+
-
STB
DATA
CK
VDD
VSS
P5
P6
P7
P8
P9
P10
P11
P12
P1
P2
P3
P4
CLR
QV19
QV20
QV14
QV13
LM03
LM04
JC04
JM04
RC36
CV32
QC07
RM54
JC01
QC03-2
JM02
LM02
LM01
QV09-2
QV05-2
QV10-2
QV06-2
QV11-2
QV07-2
QV17
QV18
QV16
QV15
QM17
RM51
JC02
JC03
JM01
QV01
QV02
QV03
QC01
CV07
CV47
CV48
CV77
CV78
RC01
RC05 RC06
RC02
CV08
CC29
CC30
CC32
CC31
CC37 CC36 CC34
RC03
RC07 RC08
RC04
CC01
CC03
CC02
CC33
CC08
CC07
RC10
RC09
CC06
CC05
CC04
CC35
CC25
CC26
RC33
RC40
RC32
CC27
RM55
RM46
CM10
CM09
CM11
RC35
RC34
QC08
QM13
QM12
QM11
QM10
QM09
RV05
RV03 RV04
RV06
RV45
RV43 RV44
RV46
RV75
RV73
RV76
CV01
CV02
CV41
CV42
CV71
CV03 CV04
CV43 CV44 CV73 CV74
CV76
CV75
CV46
CV45
CV06
CV05
RV07 RV08
RV47 RV48 RV77 RV78
RV90
RV60
RV21
CV23
CV63
CV93
CV19
CV20
CV22
CV31
CV11
CV12 CV51
CV52
CV81
CV17
CV18
CV57
CV58
CV87
CV88
CV21
CV92
CV91
CV62
CV61
CV59
CV60
CV89
CV90
RV15
RV16
RV55
RV56
RV85
RV13
RV11
RV14
RV12
RV53
RV51
RV54
RV52
RV83
RV81
CV86
CV85
CV56
CV55
CV16
CV15
CV13 CV14
CV53 CV54 CV83 CV84
RV18RV17
RV57 RV58 RV87 RV88
RV31
RV32
RV33
RV34
RV36
RV37
RV38
RV35
RV19
RV20
CV27 CV28
RM01
RM02
RM11
RM12
RM21
RM22
RM31
RM32
RV26
RV25
RM05
RM06
RM15
RM16
RM25
RM26
RM35
RM36
CM02
CM01
CM03 CM04 CM05 CM06 CM07 CM08
RM34
RM33
RM24
RM23
RM14
RM13
RM04
RM03
CM29
CM21
CM30
CM22
CM31
CM23
CM32
CM24
CM33
CM25
RM52
RM53
CM12
CC40
CV96
CV95
CV26
CV25
LC01
RV86
RV84
QM01
QM02
QM03
QM04
QM05
QM06
QM07
QM08
CG76
CG75
RG54
RG53
RG56
CG56
CG52
CG51
QG52-2 CG58
CG54
RG58
CG53
CG55
CG57
RG55
RG57
RG70
QG51
CG73
CG70
CG69
CG72
CG71
RG62
RG64
RG66
CG66
QG53-2
CG62
CG61
RG61
RG63
CG63
CG65 RG65
CG67
CG64
CG68
RG68RG67
JM03
JM05
CM26
CM27
CM28
RV74
CV72
QM16
QM15
CC41
RV24
RV23
RV09
RV10
RV64
RV63
RV49
RV50
RV93 RV94
RV80
RV79
RG60
RG59
RG73 RG74
CV09
CV10
CV49
CV50
CV79
CV80
CG59
CG60
CM34
CM35
CC28
CV29
EA2230
CV65
CV66
CV82
DC01 DM01
DM02
DM03
DM04
DM05
DM06
DM07
DM08
DM09
DM10
DM11
DM12
JV01
JV02
QC03-1
QG52-1 QG53-1
QV05-1
QV06-1
QV07-1
QV09-1
QV10-1
QV11-1
RC11
RC12
RV82
RV89
2SA970
2SA970
2SA970
2SA970
MR82
MR82
100
1/2W
22/10V
2SC2120
MR82
MR82
2SC2240
2SC2240
2SC2240
2SC2240
NJU3713D
100
1/2W
TC9459N
TC9459N
TC9459N
LC78213
FUNC.
22/25V
22/25V
22/25V
22/25V
22/25V
12K
27K 27K
12K
22/25V
100/10V
100/10V
100/25V
100/25V
0.1
25V
0.1
25V
0.1
25V
DAMMY
DAMMY DAMMY
DAMMY
0.1
0.1
0.1
0.1
25V
10/50V
10/50V
100K100K
0.01
0.01
0.1
0.1
25V
0.01
0.01
100K
47K
100
100P
CH
100
1K
0.1
25V
100P
CH
0.1
25V
10K
10K
DTA114ES
/UN4111
/KRA102M
DTA114ES
/UN4111
/KRA102M
DTA114ES
/UN4111
/KRA102M
DTA114ES
/UN4111
/KRA102M
DTA114ES
/UN4111
/KRA102M
DTA114ES
/UN4111
/KRA102M
10k
10k 10k
10k
10k
10k 10k
10k
10k
10k
0
10/50V 10/50V 10/50V 10/50V 10/50V
0.01 0.01 0.01 0.01 0.01 0.01
100p
CH
100p
CH
100p
CH
100p
CH
100p
CH
100p
CH
47k 47k 47k 47k 47k 47k
100
100
100
100p
CH
100p
CH
100p
CH
0.1
25V
0.1
25V
47/25V
22/50V
10/50V 10/50V 10/50V 10/50V 10/50V
47/16V
47/16V
47/16V
47/16V
47/16V
47/16V
47/25V 47/25V
47/25V47/25V47/25V
0.1
25V
0.1
25V
0.1
25V
0.1
25V
8.2k
8.2k
8.2k
8.2k
8.2k
4.7k
5.6k
4.7k
5.6k
4.7k
5.6k
4.7k
5.6k
4.7k
5.6k
100p
CH
100p
CH
100p
CH
100p
CH
100p
CH
100p
CH
0.01 0.01 0.01 0.01 0.01 0.01
47k47k 47k 47k 47k 47k
10k
10k
10k
10k
22
22
22
22
470
470
100p
CH
100p
CH
330
330
330
330
330
330
330
330
100k
100k
150
150
150
150
150
150
150
150
470P
CH
470P
CH
470P
CH
470P
CH
470P
CH
470P
CH
470P
CH
470P
CH
4.7K
4.7K
4.7K
4.7K
4.7K
4.7K
4.7K
4.7K
470P
CH
220P
CH
470P
CH
220P
CH
470P
CH
220P
CH
470P
CH
220P
CH
470P
CH
220P
CH
10K
22K
470/16V
22/16V
22/25V
22/25V
22/25V
22/25V
ED2-24
10k
1.8k
2SC3326
(A,B)
2SC3326
(A,B)
2SC3326
(A,B)
2SC3326
(A,B)
2SC3326
(A,B)
2SC3326
(A,B)
2SC3326
(A,B)
2SC3326
(A,B)
22/25V
22/25V
10K
10K
10K
100P
CH
10/50V
10/50V
22/25V
0.01
47K
0.01
100P
CH
22/25V
10K
47K
100
TC9459N
100P
CH
0.1
25V
0.1
25V
47/25V
47/25V
5.6K
4.7K
8.2K
100P
CH
10/50V10/50V
5.6K
4.7K
0.01
100P
CH
8.2K
47/16V
0.01
47/16V
47K47K
220P
CH
220P
CH
220P
CH
DAMMY
DAmmY
DTA114EKA
2SA1837
DAMMY
47k
47k
47k 47k
47k
47k
47k 47k
47k 47k
47k47k 47K
47K
47K 47K
22/16V
22/16V
22/16V
22/16V
22/16V
22/16V
22/16V
22/16V
470P
CH
470P
CH
DAMMY
22/25V
22/25V
10/25V
10/25V
47/50V
RB425D
1SS356
1SS356
1SS356
1SS356
1SS200
1SS200
1SS200
1SS200
1SS200
RB425D
RB425D
RB425D
DAMMY
DAMMY
NJN4558DD
NJN2114 NJM2114
NJM2114
NJM2114
NJM2114
NJM2114
NJM2114
NJM2114
DAMMY
DAMMY
1.5k
100
-24V
+5VV
+5VL
-15VA
+15VA
+5VL
-24V
+5VL
-24V
+15VA
-15VA
-15VA
+15VA
-15VA
+15VA
+15VA
-15VA
-15VA
+15VA
-15VA
+15VA
+15VA
-15VA
-15VA
+15VA
-15VA
+15VA
+15VA
-15VA
-15VA
+15VA
+15VA
+15VA
+15VA
+15VA
-15VA
+15VA
+15VA
+15VA
-15VA
+5VL
-15VA
+5VL
-15VA
+15VA
-15VA
+15VA
-24V-2
5V-3
5V-4
-15V-5
15V-6
5V-4
-24V-2
5V-4
-24V-2
15V-6
-15V-5
-15V-5
15V-6
-15V-5
15V-6
15V-6
-15V-5
-15V-5
15V-6
-15V-5
15V-6
15V-6
-15V-5
-15V-5
15V-6
-15V-5
15V-6
15V-6
-15V-5
-15V-5
15V-6
15V-6
15V-6
15V-6
15V-6
-15V-5
15V-6
15V-6
15V-6
-15V-5
5V-4
-15V-5
5V-4
-15V-5
15V-6
-15V-5
15V-6
-15VA
-15V-5
+15VA
15V-6
TUN-R
TUN-L
CEX
CEX
CEX
CEX
VCLK
VCLK
VCLK
VDATA
VDATA
VDATA
F MUTE
S MUTE
C MUTE
SW MUTE
SB MUTE
LT
RT
L-S
R-S
CE6
T-M
V-M
M-M
FL
CNT
SR
SR
SL
CNT
FR
FL
CEX
L-L
R-L
VDATA
VCLK
VDATA
VCLK
SRD
CD
SWD
SLD
S MUTE
F MUTE
C MUTE
SW MUTE
SB MUTE
MD-M
CD
SWD
SLD
SRD
LT
RT
CE6
MD-M
M-M
V-M
T-M
L-L
L-S
R-L
R-S
FL
FRFR
FL
SL
FR
1
23456789
10
11
121314
15 16 17 18 19
20
21
22 23 24
FRONT RCH
A7
A7
1
2
34
5
6
7
8
FRONT LCH
25 26 27
A7
1
2
34
5
6
7
8
A7
1
23456789
10
11
121314
15 16 17 18 19
20
21
22 23 24
A7
A7
1
2
34
5
6
7
8
25 26 27 A7
1
2
34
5
6
7
8
1
23456789
10
11
121314
15 16 17 18 19
20
21
22 23 24
A7
A7
1
2
34
5
6
7
8
25 26 27 A7
1
2
34
5
6
7
8
1
23456789
10
11
121314
15 16 17 18 19
20
21
22 23 24
A7
A7
1
2
34
5
6
7
8
25 26 27 A7
1
2
34
5
6
7
8
SURR. LCH
SURR. RCH
CENTER
SUB WOOFER
SURR.BACK LCH
SURR.BACK RCH
0DB
0.6
0
00
-0.6
0
0
0
0.6
-0.6
HDAM BLOCK
CENTER
SW
PRE-OUT
FL
FR
SL
SR
SBL
SBR
FRONT L
FRONT R
-13.7
-13.7
0
0
SURR. L
SURR. R
CENTER
SUB WOOFER
SURR.BACK L
SURR.BACK R
MAIN-IN
A7
15 14 13 12
11
10
98765432
1
16 17 18 19
20
21
22 23 24 25 26 27 28 29
30
FR IN
FL IN
FR OUT
GND
GND
GND
ERMUTE
2
1
3
4
5
6
7
8
9
10
M08-DSP
TO J601 (P604)
11
12
13
GND
DIG
6CH
DIG
6CH
DIG
6CH
DIG
6CH
SR OUT
ANA
A7
14
CE6(P.EXP)
TUNER-L
TUNER-R
L(OUT)
R(OUT)
MULTI-MUTE
TAPE-MUTE
VCR-MUTE
CE0(ANA.SW)
MUTE-RELAY
CDR/MD-MUT
GND
M06-CONNECT
CE3(TONE)
P104
TUNER-BLOCK
10
12
13
14
11
5
6
7
8
9
1
2
3
4
1
23456789
10
11
12 13 14 15 16 17 18
COMMON BUS
CLK0
DATA0
SYNC DET1
SYNC DET2
OSD-1
OSD-2
+5VV
OSD-INT
-24V
+5VL
GND
CE1(OSD)
CE2(OSD)
CE7(P.EXP)
+15VA
-15VA
10
12
13
14
15
16
11
1
2
3
4
5
6
7
8
9
80HZ HPF
SW OUT
FL OUT
SL OUT
C OUT
FL
FR
SL
SRCENTER
SW
CEX(LRG/SML)
GND
2
1
3
4
5
6
A7
A7
GND
GND
GND
1
2
3
4
5
FL
CNT
FR
TO J701 (P704)
M01-AMP
TO JP01 (P754)
M01-AMP
SL
SR
A7
A7
A7
A7
A7
A7
A7
A7
A7
6
7
8
A7 A7 A7
A7
A7
A7
A7
A7A7
L LARGE
R LARGE
R SMALL
L SMALL
A8
M02-6CH IN
A9
A9
A9
A9
A9
A7
A7
A7
A7
A7
A7 A7 A7
RVR-XVXX
RMT-XMXX
RCR-XCXX
RVR-XGXX
ELE.VOL
ELE.VOL
CROSS OVER
MUTE CONTROL
XV0X-XV3X:LorR
XV4X-XV6X:SLorSR
XV7X-XV9X:SBLorSBR
MM
MM
ELE.VOL/MUTE CIRCUIT BLOCK
A7
A7
A7
A7
7
8
9
10
11
12
13
GND
SW6
C6
SWA
FL-D
FR-D
C-D
SW-D
SL-D
SR-D
SBL-D
SBR-D
28
28
28
28
14
15
16
OSD-OUT
OSD-OUT
DATA0
CLK0
VDATA
VCLK
FL
FR
SR6
SL6
GND
A7
A7
1
23
1
23
1
4
3
2
8
7
5
6
PRE-OUT
MAIN-IN
PRE-OUT
MAIN-IN
PRE-OUT
MAIN-IN
PRE-OUT
MAIN-IN
+6DB
+6DB
+6DB
+6DB
+6DB
+6DB
+6DB
+12.4DB
+12.4DB
+12.4DB
+12.4DB
+12.4DB
+12.4DB
+12.4DB
A7
PRE-OUT
MAIN-IN
PRE-OUT
MAIN-IN
_KILLCON
_KILLCON
ANA/_DIG
TO JC71 (PL04)
010K (HDAM CASE)
+22.4DB
P104-2/2
19 20
J701
J702
JP01
J703
J704
R737
R705
R703
R701
C701 Q701
R713
R721
L701
D881
C881
C882 D882
C862
Q861
C861
D861
C872
Q871
C871
D871
J871
C707
R743
R711
C717
C713
C711
R723
R739
R747
R755
R767
R773
R775 R779
Q703
Q705
Q707
Q709
Q711
Q713
Q717
Q721
Q723
D703
D701
D713
D715
R787
R781
C702
R702
R706
R704
Q702
R714
Q706
Q704
R712
D702
D704
R722
R724
Q708
Q710
Q712
C714
R740
R738
C708
C718
Q714
C712
R744
D716
D714
R748
Q718
Q722
Q724
R776
R780
R774
R782
CT01
RT01
RT03
RT05
QT01
QT03
RT13
QT05
RT11
DT01
DT03
RT21
RT23
QT07
QT09
CT13
QT11
RT37
CT07
RT39
CT17
QT13
CT11
RT43
RT47
RT55
QT17
DT13
DT15
QT21
RT67
QT23
RT75
RT73
RT79
RT81
R788
L702
LT01
R785
R786
RT85
QT27
QT15
QT25 Q728
Q716
Q726 Q725
Q715
Q727
RT87
R789
R790
RT89
Q881
RP89
RP90
CP01
RP01
RP05
RP03
QP01
QP03
RP11
QP05
RP13
DP01
DP03
RP21
RP23
QP07
QP09
CP13
QP11
RP39
RP37
CP17
CP07
QP13
CP11
RP43
RP47
QP17
DP13
DP15
RP55 QP23
RP67
RP73
RP75 RP79
RP81
QP25
QP15
QP27
LP01
RP85
LP02
RP86
RP02
CP02
RP04
RP06
RP12
QP02
QP04
QP06
RP14
DP02
DP04
RP22
RP24
QP08
QP10
QP12
CP14
RP38
CP08
RP40
CP18
QP14
CP12
RP44
RP48
QP18
DP14
DP16
R756
RP56
QP22
RP68
QP24
RP76
RP74
RP80
RP82
QP26
QP16
QP28
LN51
LN52
LN53
JN71
JW01
QN01
CN09
CN02
CN01
RN07
RN06
RN09
CN07
RN05
CN03
CN08
CN04
QN06
RN18RN17
JN52
J853
RN10
D853
D854
LN01
RN19
QN08 QN09
RN23
RN22 RN37
RN24
RN25
CN12
RN21
RN20
CN11
JN09
RN36
RN16
JN51
JN05
JN53
JN72
JN56
RN26
RN29
DN05
RN30
RN32
DN07
QN13
DN04
DN03
JN55
JN54
CN51
CN53
CN58
CN56
WW01
RN01
J851
DN52
QN05
QN03
JN03
JW02
JN08
J852
JN02
R851
R852
R853
RN03
RN02
RN11
RN44
J854
JN04
QN14
QN02
C703
C704
CT03
CP03
CP04
CP06
CP05
CT05
C706
C705
R727
R731
R725 R729
R728 R732
R726
R730
RT27
RT31
RT25 RT29
RP27
RP31
RP25 RP29
RP28 RP32
RP26
RP30
RP54
RP53
RT53
R754
R753
D721
D722
DT21
DP21
DP22
QP30
QP29 QT29
Q730
Q729
R881
RN35RN34
RN46
RN45
RN08
RN04
DN09
D799
RN49RN38
RN41
RN43
RN40
R854
RP83
RP84
CP23
CP25
CP24
CP26
RT83
CT23
CT25
R784
C724
C726
R783
C723
C725
R761
R762
RT61
RP61
RP62
D717
D719
D718
D720
DT17
DT19
DP17
DP19
DP18
DP20
R777R778RT77RP77RP78
C721
C722
CT21CP21
CP22
RN15
QN04
J713
J709
J785
J708
J784
J707
J706
J783
J782
J705
J781
JP03
JP04
C727
C728
C729
Q720
C730
CT27
QT19
CT29
CP27
QP19
CP29
CP28
QP20
CP30
J715
J716
J717
JN10
CN17
CN14
CN15
DN53
DN51
CN57
CN55
CN52
CN54
C852
C851
C719
C720
CP19
CP20
R763
R765
R764
R766
RT63
RT65
RP63
RP65
RP64
RP66
R749
R751
R750
R752
RT49
RT51
RP49
RP51
RP50
RP52
RP34
RP36
RP33
RP35
RT33
RT35
R734
R736
R733
R735
R745
R746
RT45
C715
RP45
RP46
R707 R709
R708
R710
RT07 RT09
RP07 RP09
RP08
RP10
R715
R716
RT15
RP15
RP16
R741
R742
RT41
RP41
CP15
RP42
CP16
CW03
JT13
S701
S702
R717
R719
R718
R720
RT17
RT19
RP17
RP19
RP18
RP20
C854
J710
J711
QN07
J712
J714
Q719
R768
RN13
CN10
RN14
RN12
DN10
RN48
CN06
MN51
QN11
QN12
RN33
DN06
RN31
CN13
RN28
RN27
CN16
RN42
QN10
CN05
DN01
DN02
QP21
J855
JP05
C857
C853
D851
CN71
C716
CT15
CT19
RP72
RP70
RP71
RP69
RT71
RT69 R772
R770
R771
R769
CW04
CW02
CW01
C851
0.01
1.2k
1k
33k
220k
47/10V 2SA970
270
56k
-B
+B
-B
+B
-B
+B
-B
+B
-B
1D3
100/16V
3.9V
0.01
5VREG
100/16V
1D3
0.01
5VREG
100/16V
1D3
470/6V
220
10p/250V
220/100V
220/100V
56k
33k
100
0.10 X2
5W
1k
22k
2SA970
2SA1145
O/Y
2SC2705
O/Y
2SC2705
O/Y
2SA1360
2SC3423
2SC4793
2SA1837
*
*
HSS81
HSS81
56k
22k
+B
-B
+B
-B
47/10V
220k
1k
33k
2SA970
270
2SA1145
O/Y
2SA970
220
*
*
56k
56k
2SC2705
O/Y
2SC2705
O/Y
2SA1360
220/100V
33k
1.2k
470/6V
10p/250V
2SC3423
220/100V
HSS81
HSS81
2SC4793
2SA1837
1k
22k
0.10 X2
5W
22k
47/10V
220K
33K
1K
2SA970
2SA970
270
2SA1145
O/Y
220
*
*
56K
56K
2SC2705
O/Y
2SC2705
O/Y
220/100V
2SA1360
1.2K
470/6V
33K
10p/250V
2SC3423
220/100V
100
HSS81
HSS81
2SC4793
2SA1837
1K
0.10 X2
5W
22K
22K
56k
10
1W
10
1W
10
1W
2SA1216
2SC3419Y
2SC2922
2SA1216
2SC3419Y
2SC2922 2SC2922
2SC3419Y
2SA1216
56K
10
10
10
+B
-B
+B
-B
+B
-B
+B
-B
-B
+B
2SC4793
12V
10
10
47/10V
220K
1K
33K
2SA970
2SA970
220
2SA1145
O/Y
270
*
*
56K
56K
2SC2705
O/Y
2SC2705
O/Y
220/100V
2SA1360
33K
1.2K
10P/250V
470/6V
2SC3423
220/100V
HSS81
HSS81
100
2SA1837
0.10 X2
5W
1K
22K
22K
2SC2922
2SC3419Y
2SA1216
10
1W
10
1W
220K
47/10V
33K
1K
220
2SA970
2SA970
2SA1145
O/Y
270
*
*
56K
56K
2SC2705
O/Y
2SC2705
O/Y
2SA1360
220/100V
1.2K
470/6V
33K
10P/250V
2SC3423
220/100V
HSS81
HSS81
100
100
2SC4793
2SA1837
1K
0.10 X2
5W
22K
22K
2SC2922
2SC3419Y
2SA1216
18V
18V
18V
TA7317P
0.1
47K
47K
33K
0.1
0.1
2SC1627
O/Y
10K10K
47K
1D3
1D3
MR62-12USR
47K
2SC536
SP/ETC 2SC536
SP/ETC
47K
1K
100
10K
2.2K
47K
1K
100
10
33K
2.2K
*
10K 10K
*
2SC536
SP/ETC
1D3
1D3
0.01
0.01
0.01
0.01
2.2K
1D3
DTC144ES
2SA970
4.7k
4.7k
10k
56K
56K
2.2K
220
1W
2SA608
SP/ETC
DTC144ES
470P
470P
470p
470p
470p
560 560
560 560
560 560
560 560
560 560
560 560
560 560
560 560
560 560
560 560
100
100
100
100
100
HSS81
HSS81
HSS81
HSS81
HSS81
2SC2240 2SC2240 2SC2240 2SC2240 2SC2240
100
1/4W
22K22K
330
1W
330
1W
33K
1/4W
15K
1/2W
PTH9M04BE222TS
PTH9M04BE222TS
2.2K10K
220K
22K
2.2K
150k
220 1/4W
220 1/4W
0.1
0.1
0.1
0.1
220 1/4W
0.1
0.1
220 1/4W
0.1
0.1
220 1/4W
0.1
0.1
1k
1/6W
1k
1/6W
1K
1/6W
1K
1/6W
1K
1/6W
5.1V
5.1V
5.1V
5.1V
5.1V
5.1V
5.1V
5.1V
5.1V
5.1V
2.2k2.2k2.2K2.2K2.2K
0.010.010.010.010.01
47K
2SD1508
+B
+B
120p
120p
120p
120p
120p
120p
120P
120P
120P
120P
100/16V
0.1
1D3
1D3
0.01
0.01
0.01
0.01
0.01
500V
500V
4.7/100V
4.7/100V
4.7/100V
4.7/100V
22
22
22
22
22
22
22
22
22
22
10
1/4W
10
1/4W
10
1/4W
10
1/4W
10
1/4W
10
1/4W
10
1/4W
10
1/4W
10
1/4W
10
1/4W
56
56
56
56
56
56
56
56
56
56
2.2k
2.2k
2.2K
‚PƒÊ‚e
100V
2.2K
2.2K
1.5k 1.5k
1.5k 1.5k
1.5K 1.5K
1.5K 1.5K
1.5K 1.5K
12k
12k
12K
12K
1UF
100V
12K
1UF
100V
0.1
TEMP-SW
120B
TEMP-SW
120B
4.7k
4.7k
4.7k
4.7k
4.7K
4.7K
4.7K
4.7K
4.7K
4.7K
470P
470P
100/6.3V
47/16V
47/16V
1/50V
100/10V
10/50V
47/16V
47/16V
470P
470P
470P
*
*
*
*
*
*
*
*
*
*
2SC2705
O/Y
2SC2705
O/Y
2SA1145
O/Y
2SC2705
O/Y
2SC2705
O/Y
2SA1145
O/Y
2SA1145
O/Y
2SC2705
O/Y
2SA1145
O/Y
100K
100K
2.2K
2.2K
47K
47K
220
1/2W
120K
100K
100K
2.2K
2.2K
47K
47K
220
1/2W
220
1/2W
100K
2.2K
47K
220
1/2W
0.01
500V
REG
12V/7.5V
*
2SA1145
O/Y
220
1/2W
6.8K
22/50V
47K
47K
HSS81
47K
100/16V
12V FAN
2SC2240
SP/ETC
2SC2240
SP/ETC
47K
*
4.7K
100/16V
120
3.9K
470/6V
22K
2SC536
SP/ETC
100/16V
*
*
2SC4793
2.2/50V
56000
71V
D25XB60
0.01
S ONLY
‚PƒÊ‚e
100V
1UF
100V
4.7/100V
2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2
0.1
0.01
0.01
C854
0.01
C855
0.22
(C854, C855 : F, K, U only)
+12V +12V
+12V
+12V
+B
-B -B
-B
C.DET
+B
C.DET
MAIN-IN
FL
GND
GND
CNT
MAIN-IN
GND
P704
1
2
3
4
5
6
1
2
3
1
2
3
4
5
1
2
3
L
SR
SL
P774
1
2
3
4
5
6
7
1
2
3
4
5
1
2
3
4
5
6
(RSP)
CENTER
GND
GND
GND
GND
GND
1
2
3
4
PW04
(RHP)
1
23456789
RELAY DRIVER
MUTE-RLY
CURNT-DET
RELAY+B(+62V)
1W<:L
1W>:H
TEMP.
POW.
FAN
HI
LO STOP
FAN CONDITIONS
HI
LO FAST
SLOW
HI
TEMP-H:L
TEMP-L:H
H.P.SW
MUTE-RLY
FROM MAIN TRANSF.
4
5
1
2
3
4
1
2
3
34
1
2
PT14
P854
(RPB)
(RMB)
P754
(RMC)
1
2
3
STOP
GND
DC-IN
STOP:0V
POSISTOR
COOLING FAN CONTROL
1
2
3
4
3
1
2
3
4
1
2
4
3
+B
-B
GND
55
66
TO J853(P854)
L
R
GND
+B
RELAY
1
2
3
1
2
3
1
23
1
23
1
2
3
4
5
1
2
3
STEREO(2-CH)
HI:>35W X 2
HI:>5.5W X 5
5-CH DRIVE
SLOW:7.5V
FAST:11.5V
*FAN VOLTAGE
*POW.RATE
POW-H:H
POW-L:L
POW-H:H
POW-L:L
H/P-OFF:L
PT84
FR
1
2
34
H/P-ON :H
BIAS
1
234
1
234
BIAS
1
234
BIAS
11
55
55
11
1
6
1
6
11
66
11
55
1
234
BIAS
1
234
BIAS
7
1
2
3
1
2
3
1
2
3
1
234
NC
1
234
7
FL-CH
FR-CH
1
245
ON 3CH
ON 2CH
W702
M04-AUDIO
GND
+12V
+3.3V
+5VV
+5VA.D
+8V
+8V
(M01)
RELAY CTRL
TO JY68 (PY64)
M06-CONNECT
RS
TO JL08 (PL04)
(M02-PRI OUT)
(RMA)
(M01)
LS
TO JL11 (PL04)
TO JB12 (PB04)-U.F
M04-PRIMARY
TEMP OUT
N.C
+24V
TO J806 (PS04)
TO J854(P854)
M06-SUPPLY
TO J703(P704)
M01-AMP
(M01)
(M06)
(M07)
+B
-B
FR FR
LSLS
FL
RS
FL
RS
C C
TO JN52 (PT04)
M06-SPK
M06-SUPPLY
LS-CH
RS-CH
C-G
SL-G
RS-G
FR-G
FL-G
W703
64.0
-64.1
-0.6
FAN
FAN SPEED
TEMP.2CH
TEMP.3CH
LOCK
11.9
0
12.1
12.1
-0.6
10
0
0.6
0
0
12.1
0.4
2.8 3.3
3.9
4.1
8.9
0
64.0 -0.6
64.0
-0.6
0
-0.7
0.7
0
1.3
3.0
0
0
12.1
0
M02-PRE OUT
0
0.6
-62.4
62.6
63.4
-62.4
62.9
-1.6
-1.0
-0.4
00
63.8
0
0.4
63.9
-1.6
0
-64.1
-64.1
(AC)
11.0
3.5
5.0
5.0
0
1.5
63.5
1.0
1.6
63.9
1.0
0.4
1.0
-1.6
-63.6
-62.8
62.9
62.9
63.0
0
0
0
0.6
0.1
CN51-CN58
22
33
44
44
33
22
22
33
44
55
55
44
33
22
22
33
44
1
2
3
1
2
3
HEATSINK
HEATSINK
11.0
11.0
1.6
-1.0
-0.5
4.1
LO/HI
N,S ONLY
TO JB62 (PB54)-K.N,S
S ONLY
EH 4P
L
GND
R
CW01-CW03
L
R
ON
OFF
H.P SW (H)
H.P SW
21 22
JB07
JB01
JB03
JB04
JB05 JB06
JB08
RB01
CB01
JB09
Z007
JB02
JB10JB11
SB71
CB71
JB71
JB12
FB01
FB02
CB71
JB71 SB71
J001
J051
JB56
JB57
JB55
JB62
JB54
JB59
JB58
CB51
JB51
JB52
Z007
CB51
JB57
JB56
Z007
JB55
JB51
JB58
JB59
CB71
JB71
JB52
JB54 JB62
SB71
J051
FB51
DB51 LB52
FB52
FB51
FB52
L002 L052
L052
DB01 LB02
UB09
UB08
CB52
RB53
QB51
RB54
DB52 LB53
CB53
QB52
RB52 RB55
RB04
CB02
RB03
QB01
QB02
DB02 LB03
CB03
UB59
UB58
UB58
UB59
LB53
DB52
QB52
RB54
QB51
RB53
CB52 CB53
RB52 RB55
DB51 LB52
L001 L051
L051
RB05
JB60
JB61
JB60
JB61
*
2.2M
1/2W
0.01
*
**
0.01
12A 250V
630MA 250V
0.01
0.01
0.01
0.01
T6.3A 250V
1D3VS24MB-NR
T200MA 250V
T6.3A 250V
T200MA 250V
TS16404120
SUB-TRANSF. TS17205090
SUB-TRANSF.
TS17205100
SUB-TRANSF.
1D3VS24MB-NR
*
*
*
*
*
*
1D3VS24MB-NR
TS61421030 TS61421010
TS61421020
1
SWITCHED UNSWITCHED
123
12 12
12
12
(RBU)
AC120V 60HZ
FERITE CORE
U version P.C.Board
PRIMARY BLOCK
12
12
21345
12
12
PRIMARY
AC.OUTLETS
L003
678
123
PB74
(RSW)
3123
RELAY
GND
+24V
+24V
N.C
TEMP OUT
TO J804 (PS04)
M04-AUDIO TO J715 (P704)
M01-AMP
TO J805 (PS04)
M04-AUDIO
TO J851 (P854)
M06-SUPPLY TO J801(P804)
M05-SUPPLY2
4
REDBLK ORG YEL GRYGRN N.C
RED
WHITE
RED
WHITE
RED
WHITE
RED
ORG
BLUE
BLUE
YELLOW
YELLOW
BLACK
ORANGE
ORANGE
GRAY
(M05)
AC5.1V
AC9.7V AC9.7VAC20V AC20V
AC62V AC62V AC20V AC20V
123
12 12
12
12
FERITE CORE
P.C.Board
PRIMARY BLOCK
12
12
21345
12
12
PRIMARY
678
123
PB74
(RSW)
3123
RELAY
GND
+24V
+24V
N.C
TEMP OUT
TO J804 (PS04)
M04-AUDIO TO J715 (P704)
M01-AMP
TO J805 (PS04)
M04-AUDIO
TO J851 (P854)
M06-SUPPLY TO J801(P804)
M05-SUPPLY2
4
REDBLK ORG YEL GRYGRN N.C
BLUE
BLUE
YELLOW
YELLOW
BLACK
ORANGE
ORANGE
GRAY
(M05)
AC5.1V
AC9.7V AC9.7V
AC20V AC20V
AC62V AC62V AC20V AC20V
L053
123
12 12
12
12
P.C.Board
PRIMARY BLOCK
12
12
21345
12
12
PRIMARY
678
123
PB74
(RSW)
3123
RELAY
GND
+24V
+24V
N.C
TEMP OUT
TO J804 (PS04)
M04-AUDIO TO J715 (P704)
M01-AMP
TO J805 (PS04)
M04-AUDIO
TO J851 (P854)
M06-SUPPLY TO J801(P804)
M05-SUPPLY2
4
REDBLK ORG YEL GRYGRN N.C
BLUE
BLUE
YELLOW
YELLOW
BLACK
ORANGE
ORANGE
GRAY
(M05)
AC5.1V
AC9.7V AC9.7VAC20V AC20V
AC62V AC62V AC20V AC20V
BLU
BRN
BLU
BRN
BRN
BRN
BRN
BLU
BLU
BRN
BRN
BLU
BRN
BRN
BRN
BLU
S version
AC230V 50HZ
AC220V 50/60HZ
DUMMY DUMMY
DUMMY
C,K version
PB64(M09)
(RBV)
PB64(M09)
(RBV)
(M09)
PB14
23 24
30
31
50
5180
81
100
1
VDD1
RAMCEN
RAMA16
RAMA15
SDIB0
SDIB1
SDIB2
XI
XO
VSS
AVDD
TEST
TEST
OVFB
CPO
AVSS
VDD2
SDOA2
SDOA1
SDOA0
RAMA14
RAMA13
RAMA12
RAMA11
RAMA10
VSS
VDD1
OPORT0
OPORT1
OPORT2
OPORT3
OPORT4
OPORT5
OPORT6
OPORT7
VSS
VDD2
RAMA9
RAMA8
RAMA7
SDOB2
SDOB1
SDOB0
SDBCK1
SDWCK1
VSS
VDD2
NONPCM
CRC
MUTE
KARAOKE
SURENC
RAMA6
RAMA5
VSS
RAMA4
IC
TEST
RAMA3
CSB
CS
SO
SI
SCK
RAMA2
VDD1
RAMD0
RAMD1
RAMD2
RAMD3
RAMD4
RAMD5
RAMD6
RAMD7
VSS
VDD2
SDWCK0
SDBCK0
SDIA0
SDIA1
RAMA1
RAMA0
RAMWEN
RAMOEN
VSS
VDD2
IPORT7
IPORT6
IPORT5
IPORT4
IPORT3
IPORT2
IPORT1
IPORT0
VSS
YSS912
SDBCK0
DTSDATA
AC3DATA
SDOB3
SDIB3
AC-3,DTS,PRO-LOGIC
DECODER
30
31
50
5180
81
100
1
A0
GND
SS
TMS
INT
VCC
D14
GND
A1
A2
A3
VCC
D13
GPIO5
D12
A4
VCC
GPIO4
GND
A5
A6
D11
GPIO3
A7
A8
D10
A9
A10
GND
VCC
A11
D9
D8
SO
VCC
GND
GND
A12
TDO
A13
D7
D6
A14
GND
VCC
A15
D5
D4
A16
RD
WR
CS
GND
SDD
VCC
GPIO2
GPIO1
GPIO0
VCC
GND
SPFRX
PM
XTO
XT1
GND
SCKIN
VCC
GNDA
FLTCAP
VCCA
GND
CLKOUT
D19
D18
A17
A18
A19
GND
SDC
SDB
VCC
RESET
SDA
VCC
SDE
TCK
SCK
TDI
SI
GND
SCKA
WSA
VCC
SDF
WSB
D17
SCKB
D16
SPFTX
D15
THX PROCESSING
RE-EQ,TIMBRE-MATCH,DE-CORRELATION
BASS-MANAGEMENT,SPK-DISTANCE-SYNCRONAZATION
BASS-PEAK-LIMITER
80
1 24
25
40
4164
65
112
13
24
25 36
37
48
D3
D2
D1
D0
Y
W
ST
GND
VCC
D4
D5
D6
D7
A
B
C
D3
D2
D1
D0
Y
W
ST
GND
VCC
D4
D5
D6
D7
A
B
C
NC
IN
GND
VCC
OUT
GND
VCC
G
A1
Y2
A2
Y1
G
SEL1
1A
1B
1Y
2A
2B
2Y
GND 3Y
3B
3A
4Y
4B
4A
ST
VCC
GND
VCC G
A1
Y2
A2
Y1
G
NC
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
DQ1
DQ2
DQ3
GND DQ4
DQ5
DQ6
DQ7
DQ8
S1
A14
OE
A15
A16
A0
A1
W
S2
A2
VCC
OUT
VDD
GND
2
3
2
3
2
3
2
3
CR01
CR03
CR05
RR08
RR01
RR02
RR07
CR13
CR14
CR18
X601
C614
J691
CR23 CR25
C610
C613
C615
C618
C621
RR27
JR01
JR05
RR09
RR03
RR04
RR05
RR06
QR04-1
R602
R652
R651
R654
C668
C654 C655
C656
C658
C659
R601
C624
RR21
RR22
RR23
RR24
LR01
Q601
Q693
Q652
QR04-3
QR04-2
QR04-4
QR07-5
QR07-1
QR07-2
JR04
JR03
JR02
CR11
CR12
CR08
CR30
CR10
CR07
C696
C609C608
Q651
L691
L692
L693
L694
L695
L696
L697
CR02
CR04
CR06
CR15
CR28
CR27
CR26
C601
C604
C603
C606
C651
C652
C653
C622
C611
C657
JR06
R662
Q602
JE01
C616
C669
J654
C617
QR07-3
QR07-4 QR02
QR03
C602
C605
C670
C661
C660
C667
C666
C664
C662
C663
C612
C620
C623
C607
C693
C692
Q604
C625
RR15
RR14
JR07
CR31 CR32 RR28
RR29
CR16
R681
R687
R688
R682
R683
R684
R685
R686
R689
R692
R691
R606
R661
C697
C691
C694
RR16
QR01
CR33
CR22
Q653
RR30
RR31
RR32
QR07-6
RR26
RR13
CR21
CR29
RR10
CR19
C665
R680
R679
R678
R677
R675
Q691
RR25
R664
RR33
R690
R653
Q694-1
Q694-2
QR04 QR07
R660
R693
C690
CR35
Q694
CR09
RR12
RR11
RE02 CR34
CR17
CR20
Q694-3
Q603
C699
C698
QR10
LR02
L651
L601
L602
D692
D693
DR03
DR01 DR02
QR06-1
QR06-2
QR06-3
QR06-4
QR06-5
QR06-6
QR06
X691
R676
0.1U
16V
0.1U
16V
0.1U
16V
33
75
75
33
0.1U
16V
0.1U
16V
0.1U
16V
12.288MHz
ODP
16V
0.1U
16V 0.1U
16V
ODP
16V
ODP
16V
ODP
16V
ODP
16V
ODP 16V
75
100K
100K
4.7K
4.7K
10k
10k
10k
4.7k
ODP
16V
ODP
16V ODP
16V
ODP
16V
ODP
16V
ODP
16V
1M
ODP
16V
10K
10K
1K
1K
S-807
4.5V
TC7SH04F
0.1U
50V
0.1U
50V
0.1U
16V
1000P
50V
470P
50V
0.1U
50V
ODOP
50V
22p
50V
22p
50V
BLm11
BLm11
BLm11
BLm11
BLm11
BLm11
BLm11
100/10V
100/10V
100/10V
100/10V
100/10V
100/10V
100/10V
100/10V
100/10V
100/10V
47k
TC7WT241FU
ODOP
50V
DAMMY
100/10V
100/10V
SRAM(1M)
ODP
16V
0
0
0.1U
16V 100/10V 10K
10K
0.1U
16V
10k
10k
10k
10k
10k
10k
10k
10k
47k
DUMMY
DUMMY
100k
100k
ODOP
50V
ODOP
50V
100/10V
0
LC89055
0.1U
16V
0.1U
16V
TC7WT241FU
1K
100K
4.7K
10K
0.1U
16V
10k
47k
47K
47k
DUMMY
10k
0
ODP
16V
0.01U
50V
0.01U
0.01U
0.1U
16V
0.1U
16V
0.1U
16V
0.047U
25V
0.1U
16V
0.1U
16V
0.1U
16V
0.1U
16V
0.1U
16V
0.1U
16V
0.01U
0.01U
0.01U
0.01U
0.1U
16V
470P
50V
0.01U
50V
0.1U
16V
0.1U
16V
47/16V
0.01U
50V 0.1U
50V
0.01U
0.01U
TC74HC151AF
TC74HC151AF
74HC00F 74HCU04F
10K
10K
10K
10K
8.2K
75
6.8K
10K
DUMMY
3K
5.1K
75 0.1U
50V
0.1U
16V
0.01U 50V
TC74HCT157AF
BP SW
0.022
0.022
0.022
0.022
ISS300
ISS301
ISS302
ISS302 ISS302
74HCT7007
74HCT7007
74HCT7007
74HCT7007
74HCT7007
74HCT7007
74HCT7007
DSPMUTE
SMUTE
FS96
CWDA
ERMUTE
ADDATA
_RSTDA1
_RSTDA2
33T
0V-5
5DP
0V-3
33D
0V-4
5DP
0V-3
33D
0V-4
+5VD
0V-8
3.3V
3.3V
5DP
0V-3
5DP
0V-3
3.3V
3.3V 33T
0V-5
5DR
0V-7 +5VD
0V-8
5DR
0V-7
+5VD
0V-8
5DP
0V-3
+5VD
0V-8
+5VD
0V-8
+5VD
0V-8
+5VD
0V-8
+5VD
0V-8
5DP
0V-3
33D
0V-4
33D
0V-4
5DP
0V-3
33D
0V-4
33D
0V-4
5DP
0V-3
33D
0V-4
33T
0V-5
33T
0V-5
33T
0V-5
33T
0V-5
33T
0V-5
33T
0V-5
33T
0V-5
33T
0V-5
33T
0V-5
33T
0V-5
33T 0V-5 33T
0V-5
33T
0V-5
33T
0V-5
+5VD
0V-8
+5VD
0V-8
+5VD
0V-8
+5VD
0V-8
+5VD
0V-8
+5VD
0V-8
+5VD
0V-8
+5VD
0V-8
5DR
0V-7
5DR
0V-7
5DR
0V-7
5DR
0V-7
+5VD
0V-8
5DR
0V-7
5DP
0V-3
+5VD
0V-8
+5VD
0V-8
MCLK2
BCLK2
WCLK2
_KILLCON
_ATT
5DP
0V-3
+5VD
0V-8
LRDA
SLRDA
SBDA
+5VD
0V-8
+5VD
0V-8
+5VD
0V-8
33T
0V-5
5DR
0V-7
+5VD
0V-8
+5VD
0V-8
_ADRST
1
4
4
76
1
1
1
1
12
4
ISEL1
ISEL2
RA0
RA1
RA7
RA8
RA9
RA10
RA11
RA12
RA13
RA14
RA15
RA16
RWEN
ROEN
SDIDR
FS96
SMUTE
RA0
RA1
RA2RA3
RA4
RA5
RA6
RA7
RA8
RA9
RA10
RA11
RA12
RA13
RA14
RA15
RA16
RWEN
ROEN
RD0
RD1
RD2
RD3
RD4
RD5
RD6
ADDATA
SDIDR
ADDATA
D_A
_UMUTE
RD7
OVFB
RD0
RD1
RD2
RD3
RD4
RD5
RD6
RD7
RA2
RA3
RA4
RA5
RA6
_RSTDA1
_RSTDA2
_IC
_SS
_RSTD2
_XMODE
ISEL3
CSFLAG
XSTATE
_RESETC
IFDI
IFDO
IFSCK
_IFACK
_IFACK
_IFREQ
IFDO
IFDI
IFSCK
ERF
_IC
FS96
D_A
_UMUTE
_CEDIR
_XMODE
CSFLAG
_RSTAD
XSTATE
ERF
KILLC
CSEL3
CSEL2
CSEL1
ISEL1
ISEL2
ISEL3
SCLK1
DI1
DO1
DO1
DI1
BCLK2
WCLK2
MCLK2
WCLK1
BCLK1
BCLK1
WCLK1
WCLK1
BCLK1
ZFD
ZSD
ZCWD
_ATT
YFD
ZFD YSBD
ZSBD
YFD
YSD
YCWD
YSBD
YSD
YCWD
_IC
_RSTD2
_RSTD2
YFD
SDIDR
DO0
SCLK0
_IFREQ
SCLK0
DO0
DI00
DI00
_SS
_CSD
_CSBD
_CSD
_CSBD
BPS1
BPS1
DI0
SMUTE
_ATT
OVFB
_RESETC
YCWD
YSD
ZCWD
ZSD
DO0
SCLK0
SCLK1
_CEDIR
_RSTDA1
_RSTDA2
ZSBD
FS96
_BPS2
_BPS2
ERF
KILLC
CSEL3
CSEL2
CSEL1
SDIDR
WCLK2
BCLK2
MCLK2
_RSTAD
DI00
DI0
_ADRST
_ADRST
OPT
GND
VCC
OPT
GND
VCC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
1
2
3
4
5
6
7
8
9
DSPMUTE
1
1
1
DIGITAL-OUT
OPT
DIGITAL-OUT
COAX
COAX
D
1
2
3
4
5
6
7
8
9
10
1234
10
11
12
13
FOR SPI
DIGITAL
DIGITAL
DIGITAL
DIGITAL
INPUT-4
INPUT-2
INPUT-1
RDR
GND
P604(M08)
DSP-CLK
DSP-DO
DSP-DI
DSP-REQ
DSP-ACK
DSP-RST
DSP-MUT
TO JY02 (PY04)
M07-SUB-CPU
TO ADC&DAC BLOCK
TO ADC&DAC BLOCK
DIG INPUT SEL
DIG OUT SEL
1
MODE2
MODE1
MODE0
KEY4
KEY3
KEY2
KEY1
KEY0
VCC
GND
SW0
SW1
SW2
NMI
DO0
DI0
SCLK0
DO1
DI1
SCLK1
T0
T1
VSS
T2
T3
T4
T5
T6
T7
CLK
AM8/16
X1
X2
EA
REESET
_ATT
TEST1
TEST2
VCC
VSS
ALE
ISEL1
ISEL2
ISEL3
CSEL1
CSEL2
CSEL3
KILLC
ATR F
_RSTRF
D_A
DEMP
_UMUTE
FS96
BYPASS1
BYPASS2
_CSDSP1
_CSBDSP1
_SSDSP2
_CEDIR
_RSTDSP2
_RSTDAC1
_RSTDAC2
_IC
_XMODE
VCC
_RSTAD
_IFACK
IFSCK
IFDO
IFDI
CSFLAG
CAL
XSTATE
OVFB
_IFREQ
ERF
_RFNODET
VREFH
VREFL
AVS S
AVC C
KEY0
KEY1
KEY2
KEY3
KEY4
DISEL
DOUT
DIN0
DIN1
DIN2
DGND
DVDD
R
VIN
LPF
AVDD
AGND
CKOUT
BCK
LRCK
DATAO
XSTATE
DGND
XMCK
XOUT
XIN
DVDD
EMPH
AUDIO
CSFLAG
F0/P0/C0
F1/P1/C1
F2/P2/C2
VF/P3/C3
DVDD
DGND
AUTO
BPSYNC
ERROR
DO
DI
CE
CL
XSEL
MOD0
MOD1
DGND
DVDD
DOSEL0
DOSEL1
CKSEL0
CKSEL1
XMOD
GND
VCC
SMUTE
56
98
ZR38601
INPUT-3
INPUT-5
DIGITAL
OPT
COAX
NC
NC
NC
DIGITAL
COAX
INPUT-6
NC
NC
NC
NC
NC
NC
NC
5
4
61
2312
13 11
5
3
910
8
12
56
34
98
11 10
12 13
1
7
6
2
25 26
111
12
22
23
33
34
44
+
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
+
-
+
-
+
-
+
-
+
-
+
-
J601
J602
Q605
CD96
CD97
CD98
C680
AD
R699
QH01-2
RH10
RH02
RH06
CH06 CH18
CH91
CH92
CH94
LH92
LH91
RH31
RH32
RH33
RH34
CH32
CH31
RH41
RH39
CH35
CH37
CH33
QH31-1
QH32-1
RH37
RH35
RH38
CH34
RH36
CH36
RH40
CH38
CH47
CH48
QH31-2
RH42
RH43
RH44
RH49 RH51
RH45
RH46
CH40
CH39
RH47
CH42
CH41
CH43
CH44
CH50
CH49
RH53
RH54
CH45
CH46
RH55
RH56
QH32-2
RH61
RH62
RH63
RH64
RH65
RH66
RH67
RH68
RH69
RH70
RH71
RH72
RH73
RH74
RH75
RH76
RH77
RH78
RH79
RH80
RH81
RH82
RH83
RH84
RH85
RH86
CH61
CH62
CH63
CH64
CH65
CH66
CH67
CH68
CH69
CH70
CH71
CH72
CH73
CH74
CH75
CH76
CH77
CH78
CH79
CH80
RJ03
RJ01
CJ01
RJ11
RJ09
RJ05
CJ07
CJ05
QJ01-1
CJ03
RJ07
RJ19 RJ21
RJ13
CJ09
RJ15
CJ13
QJ02-1
CJ11
RJ17
RJ23
CJ15
RJ25
RJ04
CJ02
RJ02
RJ06
CJ06
RJ10
CJ08
RJ12
CJ04
RJ08
QJ01-2
CJ17
CJ18
RJ14
RJ20
RJ22
CJ14
CJ10
RJ16
RJ18
CJ12
CJ19
CJ20
RJ24
CJ16
RJ26
QK01
QK02-1
QK02-2
QK05
QK06
QK07
CK01
CK02
CK03
CK04
CK05
CK06
CK07
CK08
CK09
CK10
CK11
CK12
CK13
CK14
CK15
CK16
CK17
CK18
CK19
CK20
CK21
CK22
CK33
CK34
RK01
RK02
RK03
RK04
RK05
RK06
RK07
RK08
RK09
RK10
RK11
RK12
RK13
RK14
RK15
RK16
RK17
RK18
RK19
RK20
RK21
RK22
RK23
RK24
RK25RK26
QD01
QH62-2
QH62-1
QH61-1
QH61-2
CD51
CD52
CD53
CD54
CD55
CD56
CD57
CD58 CD59
LD51
LD52
RD51
CD02
CD03
CD04
CD05
CD01
RD01
RD02
LD01
LD02
CH93
QJ02-2
DK01
DK02
DK05
RH48
RH50
RH52
QK03-1
QK04-2
QK04-1
QK03-2
TC7W32FU
220/10V
100/25V
100/25V
10k
0.1U
16V
NJM2068M
180
4.7K
4.7K
470P 0.1U
16V
100/25V
100/25V
0.1U
16V
*
*
4.7K
4.7K
4.7K
4.7K
3300P
3300P
180
180
470P
DUMMY
470P
NJM2068M
NJM2068M
4.7K
4.7K
4.7K
470P
4.7K
470P
180
DUMMY
0.1U
16V
0.1U
16V
NJM2068M
180
2.2K
2.2K
22K 5.6K
2.2K
2.2K
DUMMY
4.7K
22P
50V
22P
50V
10/16V
10/16V
0.1U
16V
0.1U
16V
100
100
22/25V
22/25V
100K
100K
NJM2068M
4.7K
4.7K
4.7K
4.7K
4.7K
4.7K
4.7K
4.7K
180
180
180
180
2.2K
2.2K
2.2K
2.2K
4.7K
4.7K
22K
22K
5.6K
5.6K
100
100
100K
100K
3300P
3300P
470P
470P
470P
470P
DUMMY
DUMMY
DUMMY
22P
50V
22P
50V
10/16V
10/16V
22/25V
22/25V
0.1U
16V
0.1U
16V
0.1U
16V
0.1U
16V
4.7K
4.7K
3300P
180
180
4.7K
DUMMY
470P
NJM2068M
470P
4.7K
22K 5.6K
2.2K
DUMMY
2.2K
10/16V
NJM2068M
22P
50V
4.7K
100
22/25V
100K
4.7K
3300P
4.7K
4.7K
470P
180
DUMMY
180
470P
4.7K
NJM2068M
0.1U
16V
0.1U
16V
2.2K
22K
5.6K
10/16V
2.2K
4.7K
22P
50V
0.1U16V
0.1U
16V
100
22/25V
100K
AK4528
NJM2068M
NJM2068M
2SC4213
2SC4213
47/16V
47/16V
22P
50V
22P
50V
10/16V
10/16V
470P
50V
470P
50V
470P
50V
470P
50V
0.1U
16V
0.1U
16V
0.1U
16V
0.1U
16V
0.01U
50V
0.01U
50V
0.01U
50V
0.01U
50V
10/16V
10/16V
1500P
1500P
0.1U
16V
0.1U
16V
10K
10K
8.2K
8.2K
3K
3K
2.2K
2.2K
56 4.7K
4.7K
4.7K
4.7K
4.7K
4.7K
4.7K
4.7K
39
39
39
39
470K
10K
10K10K
AK4356
NJM2068M
NJM2068M
NJM2068M
NJM2068M
0.1U
16V
10/16V
10/16V
0.1U
16V
100
6.3V
1000P
50V
0.1U
16V
0.1U
16V
100
6.3V
10K
0.1U
16V
100
6.3V
100
6.3V
0.1U
16V
1000P
50V
10K
0
0.1U 16V
NJM2068M
12K
2.2K
DUMMY
NJM2115M
NJM2115M
NJM2115M
NJM2115M
3.3V
DSPMUTE
SMUTE
ERMUTE
FS96
ADDATA
CWDA
_RSTDA2
_RSTDA1
5VD
0V-8
+5VA
0V-13
+15VA
0V-9
-15VA
0V-10
-15VAB
0V-24
+15VAB
0V-23
-15VAB
0V-24
+15VA
0V-9
-15VA
0V-10
+5VD
0V-8
+5VD
0V-8
+5VAA
0V-15
-5VAA
0V-16
-5VAA
0V-16
+5VAA
0V-15
+5VAA
0V-15
-5VAA
0V-16
+5VAA
0V-15
-5VAA
0V-16
WCLK2
BCLK2
MCLK2
SLRDA
LRDA
SBDA
_KILLCON
_ATT
+5VAA
0V-15
+15VAB
-15VAB
+15VAB
-15VAB
0V-23
0V-24
0V-23
0V-24
+15VAB
-15VAB
+15VAB
-15VAB
0V-23
0V-24
0V-23
0V-24
+15VAB
-15VAB
+15VAB
-15VAB
0V-23
0V-24
0V-23
0V-24
+5VA
0V-13
+5VD
0V-8
+5VD
0V-8
+5VA
0V-13
_ADRST
1
1
5
3
1
SFMT
FS96
LRDA
CWDA
ADDATA
_RSTDA1
_RSTDA2
MCLK2
WCLK2
BCLK2
SLRDA
SBDA
BCLK2
MCLK2
WCLK2
LRDA
CWDA
SLRDA
MCLK2
WCLK2
BCLK2
ADDATA
SBDA
FS96
FS96
_RSTDA1
SFMT
_ADRST
_RSTDA2
_ADRST
6
1
2
3
4
5
6
7
8
9
10
ERMUTE
C
SW
GNDA
GNDA
GNDA
A1
A1
A1
A1
A1
A6 A6
A6
A6
A6
A6
A6
A6
A6
A6
A6
A6
A6
A6
7
4
5
4
8
1
8
2
34
6
57
1
8
4
3
2
7
6
5
A6
12345 7891011
GND
VCC
A
FL
FR
TOJC02(P104)
FROM DSP BLOCK FROM SURR CPU
M03-VOLUME
TODSPBLOCK
AWCLK=48K
ABCLK=3.07M
AMCLK=12.288M
GNDA
SBL
SBR
SL
SR
11
12
13
14
A
A
A6
A6
_KILLCON
A1
A1
A1
A1
A1
A1
A1
A1
A2 A2
A2
1
2
3
87
4
5
68
4
-
+
1
2
3
A1
A1
A1
A1
A1
A1
A1
A1
A1
A2 A2
A2
1
2
3
87
4
5
68
4
-
+
1
2
3
A1
A1
A1
A1
A1
A1
A1
A1
A1
A1
A2 A2
A2
8
4
2
3
8
41
-
+
A1 A1
A6
1
2
3
7
6
5
A6
VCOM
AINR+
AINR-
AINL+
AINL-
VREF
AGND
VA
P/S
MCLK
LRCLK
BICK
SDTO
SDTI CKS0
CKS1
DIF
DFS
PDN
DEM0
DEM1
VT
VD
DGND
AOUTL-
AOUTL+
AOUTR-
AOUTR+
A6
A6
LOUT1-
LOUT1+
DZFL2
DZFR1
DZFL1
CAD0
CAD1
PDN
BICK
MCLK
DVDD
DVSS
SDTI1
SDTI2
SDTI3
LRCK
SMUTE
CCLK
CDTI
CSN
DFS0
CKS0
CKS1
CKS2
DIF0
DIF1
DIF2
DZFE
DZFR3
DZFL3
DZFR2
VREFH
AVDD
AVSS
ROUT3-
ROUT3+
LOUT3-
LOUT3+
ROUT2-
ROUT2+
LOUT2-
LOUT2+
ROUT1-
ROUT1+
7
6
5
7
6
5
7
6
5
1
2
3
7
6
5
CK35
CK36
CK37
CK38
LK01
LK02
100/25V
100/25V
0.1U
16V
0.1U
16V
*
+5VA 0V-13
-5VD 0V-2
+5VAA
0V-15
-5VAA
0V-16
CD85CD86 0.01U0.01U
GNDA
GNDA
+5VD
+5VA
TOJY67(PY64)
M06-CONNECT
+15VD
LOUT(LT)
ROUT(R T)
+3.3V
-15VD
-5VD
GNDD
CD84
0.01U
LD84
0.022
LD85
0.022
LD86
0.022
CD90
0.01U
CD91
CD92 0.01U
0.01U
A1A2A3A4A5
CD81CD82
CD83 0.01U0.01U
0.01U
LD83
0.022
LD82
0.022
LD81
0.022
CD88
CD89 0.01U
0.01U CD87
0.01U
CD93
CD94
CD95 220/10V
220/10V
220/10V
P604
(M08)
3.3V
-5VD
0V-2
5VD
0V-8
DD
RDD
DACBLOCK
RH03 RH1
RH07
CH03
4.7K 180
4.7K
QH01-1
RH01 RH09
RH05
RH13
CH01
CH05
CH07
CH09
RH15
NJM2068M
4.7K 180
4.7K
2.2K
3300P
470P
470P
DUMMY
DUMMY
2.2K
A1
A1
QH02-1
RH21
CH1
CH13
RH17
RH19
NJM2068M
5.6K
22P
50V
10/16V
4.7K
22K
RH08
RH12
CH02
RH04
CH04
CH08
CH12
CH14
CH16
CH17
CH19
RH14
RH18
RH20
RH22
4.7K
180
3300P
4.7K
470P
DUMMY
22P
50V
10/16V
22/25V
0.1U
16V
0.1U16V
2.2K
4.7K
22K
5.6K
+15VAB
0V-23
+15VAB
0V-23
A2 A2
2
2
3
3
1
8
6
687
4
1
CH15
RH23
22/25V
100 RH25
100K
CH10 CH20
RH16
RH26
QH02-2
0.1U
16V
2.2K
100
100K
NJM2068M
-15VAB
0V-24
A2
+
A1
5
27 28
5. PARTS LOCATION (Pattern Side)
SU32
SU33
JU02
DU06 DU04 DU02 DU05DU03
DU01
CU08
RU60
QU06
RU62
QU05
RU59
CU07
RU31
RU17RU18
RU56
QU03
QU07
RU13 RU12
RU11
RU22
RU21
RU01
RU02RU03
RU04
RU05RU06RU07RU08
RU24
RU14
RU15
RU23
RU09
RU29
RU19
RU25
QU04
JU03
CU06
RU54
RU48
JU04
SU01
SU02SU03SU04SU05SU06SU07SU08
SU09
SU10
SU11
SU12
SU13SU14
SU15 SU16 SU17SU18SU19
SU20
SU21
SU22SU23 SU24
SU26SU25
CU05
RU53
RU55
RU61
CU21
DU07
CU23
RU26
RU16
RU27
RU28
RU43
QU09
QU08
CU15
CU16
JU01
CU29
CU10
CU28
CU26
CU09
RU41
CU17
CU24
DU21
DU08
CU22
CU12
RU44
CU11
RU63
QU02
CU02
CU01
RU40
CU14
JU05
RU42
CU20
U101
U102
U103
U104
U105
U106
U107
U108
U109
U110
U111
U112
U113
U114
U115
U117
U118
U119
U120
U121
U151
U152
U153
U154
U155
U156
U157
U158
U159
U160
U201
U202
U203
U204
U205
U206
U207
U208
U209
U210
U212
U211
U251
U252
U253
U254
U255
U256
U257
U258
U259
U260
U261
U262
U263
U264
U265
U266
U267
U268
U269
U270
U301
U302
U303
U304
U305
U351
U352
U354
U355
U356
U357
U358
U359
U360
U353
U361
U401
CU25
U551
RU32
RU33
RU34
RU35
RU36
RU37
U116
DU20
U122
U123
U124
CU27
CU30
CU31
CU04
CU33
CU32
CU03
CU13
CU18
CU19
RU38RU39
RU51
RU52
RU57
RU58
DO
CLK0
STB
LEFT
GND
CLR
CE5
VOL-DW
VOL-UP
5
10
30
35
40
15
45
ATT
AUTODOLBY
BAND
THX
FM-MODE
BASS_-
TREBLE_-
DISP-OFF
MULTI
PRESET
A-TUNING
AUX
DVD
TV
MEMOCLD-COPYT-COPY
STEREO
V-COPY
S-DIRECT
BASS_+
TREBLE_+
PU04
LDVCR1
DSS/V2
1
3
1
3
12.RIGHT
20
50
55
60
65
70
75
80
85
90
9598
WA326J501-0
K-3
K-2
K-1
K-0
FIL-B
1.FIL-A
+5.6VD
+5.6VL
DATA0
11.VKK
WU02
WU01
QU01
ML9205-01GA
1.RST FL
CLK FL
VU01
EXDTS
SURR.
5 STEREO
GND
+5VB
1.R.C
3.DATA FL
NJU3711
A/D
PU04 QU01
QU02
RU71
DU71
JU71
CU71
PU74
1
3
WA326J503-0
PU74
QU81
CU82
CU81
JU81
+
PU84
1
3
WA326J502-0
PU84 QU81
29 30
QY61
PY64
1
71 161111161
1
D+15V
GND
RY-CMT
HP-SW
M-RY
S-DT2
S-DT1
+5VA
+5VD
-24V
-24V
MLT-RC-OUT
OSD-INT
MLT-RC-OUT
LRG/SML
DSP-15V
AUX-R
AUX-L
+
PY64
WA300J6010
GND
CE7
CE2
CE1
OSD-2
OSD-1
+5VL
+5VV
-15V
+15V
DATA0
CLK0
TU-L
TU-R
GND
L
R
T-M
V-M
M-M
C-M
M-RC
CE6
CE0
CE3
M-RL
RC5
24V
15V
VKK
24V
AUX-L
GND
AUX-R
L-OUT
R-OUT
TU-L
TU-R
R-M
V1-M
M-M
CDR-M
T-M
M-RC
RC-5
DATA0
CLK0
CE0
CE3
POWER
-5V
+5VL
-15
+15
P-DOWN
F
F
VKK
+3.3V
+5VA
+5VB
LT
GA
RT
-15
GA
+15
-5
G
3.3
RDS-D0
S-DET1
H.P
GND
+5VL
TU-DO
MULTI
TU-CLK
RELAY TU-CE
POWER
OSD2
S-DET2
OSD1
CLK0
DATA0
P-DOWN
RC-5
LRG/SML
CE2
TU-DI
CE1
TU-SD
CE6
CE3
CE7
FL
CE0
FL
R-DO
P-DO
CE
CLK
DI
SIG
SD
UY21
UY85
UY86
UY27
UY05
UY82
UY79
UY80
UY18
UY93
UY12
UY04
JY68
UY99
UY98
UY97
UY96
UY95
UY94
UY92
UY91
UY90
UY89
UY88
UY84
UY83 UY81 UY78
UY77
UY76
UY75
UY74
UY73
UY72
UY71
UY70
UY69
UY68
UY67
UY66
UY65
UY64
UY63
UY62
UY61
UY60
UY59
UY58
UY57
UY56
UY55
UY54
UY53
UY52
UY51
UY50
UY49
UY48
UY47
UY46
UY45
UY44
UY43
UY41
UY40
UY39
UY38
UY37
UY36
UY35
UY34
UY33
UY32
UY31
UY30
UY29
UY28
UY26
UY25
UY24
UY23
UY22
UY17
UY16
UY15
UY14
UY13
UY11
UY10
UY09
UY08
UY07
UY06
UY03
UY02
UY01
RY62
DY61
RY61
JY65
JY69
LY61
RY63
CY62
CY61 QY61
JY61
JY63
JY64
JY67
JY70 JY62
JU91
QU91
CU92
RU91
RU93
RU92
CU93
CU94
CU91
UP
DOWN
+5VD
GND
1
4
1
2
3
4
5
6
PU94
WA326J507-0
PU94 QU91
31 32
QS04
QS05
QS06
QS07
QS15
QS14
QS20
QS08 QS21 QS19
QS09
QG04 QG03
QG07 QG06
QG01 QG02
QG05
QS01
QS02
QS13
QS18
QS17
QS03
QS16
QS12
QS10
Q812 QS22 QS24
QS23
QS11
QS25
Q807 Q808
QS27
QS26
QS11
Q803
Q805
Q804
Q802
Q810
Q813
Q809
PS04
24V
24V(VKK)
F
F
5V
GND
5V
GND
+
+
81
+
+
+
/GND
+15VD
+15VREF
+
+
+
+5VD2
+5VD1
-24V
RCMIN
RCMOUT
+5VL
-5V
-15VA
-15VD
1
1.+24V
+15VA
+15VREF
-24V
GND
+12V
+
+
++
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
++
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
GND
+24V
RELAY
VKK/-24
JS04
JS03 JS01
JS07
L801
1
JS06
LG01
NJM4558DD
NJM4558DD
NJM4558DD
NJM4558DD
NJM4558DD
NJM4558DD
NJM4558DD
NJM4558DD
NJM4558DD
NJM4558DD
NJM4558DD
NJM4558DD
NJM4558DD
-15VA
+15VA
+15VD
-15VD
+8V
7
REMOTE
RC
MULTI
QS25
+8V
WA300J401-0
+24V
20 115 1
1
+5VD2
+5VD1
PS04
+
CDR/MD
RC
GND
+3.3V
+12V
TU-R
TU-L
T-M
M-M
V1-M
R-M
CDR-M
CE3
CLK0
DATA0
CE0
RC-5
AUX-R
AUX-L
R-OUT
L-OUT
GND
P-DOWN
-5V
POWER
+5VL
F
F
+3.3V
+
QS15
LC78212
QS14
QG01
QS13
LC78212
QS12
TC9459N QG02
QS11
QS10
QS03
QS02
QS01
QS09
QS08
QS07
QS06
QS05
QS04
L
L
L
L
L
L
L
L
L
L
L
L
L
R
R
R
R
R
R
R
R
R
R
R
R
R
TV
LC78211
LC78211
OUT
OUT
IN
IN
TAPE
CD
MULTI
OUT
IN
DSS/VCR2
IN
OUT
VCR1
DVD
LD
CG09
RS99
RS98
RG15
R818
R811
Q809
D827
CS83 CS82
CS81 CQ03 CQ02 CQ01
C852
C851
QS20
QS19
R819
D828
D829
UQ99
UQ98
UQ02
QS25
UQ93 Q812
D826
UQ94
R817
D825
Q813
UQ95
CQ12
CQ11
CQ13
CQ14
UQ96
D814
US25
C850
C832
C823
J804
DS02
DS01
D824
Q811
UQ92
UQ91
UQ90
UQ89
UQ88
UQ87
UQ86
UQ85
UQ84
UQ83
UQ82
UQ81
UQ80
UQ79
UQ78
UQ77
UQ76
UQ75
UQ74
UQ73
UQ72
UQ71
UQ70
UQ69
UQ68
UQ67
UQ66 UQ65
UQ64
UQ63
UQ62
UQ61
UQ60
UQ59
UQ58
UQ57
UQ56
UQ55
UQ54
UQ53
UQ52
UQ51
UQ50
UQ49
UQ48
UQ47
UQ46
UQ45
UQ44
UQ43
UQ42
UQ41
UQ40 UQ39
UQ38
UQ37
UQ36
UQ35
UQ34
UQ33
UQ32
UQ31
UQ30
UQ29
UQ28
UQ27
UQ26
UQ25
UQ24
UQ23
UQ22
UQ21
UQ20
UQ19
UQ18
UQ17 UQ16
UQ15
UQ14
UQ13
UQ12
UQ11
UQ10
UQ09
UQ08
UQ07
UQ06
UQ05
UQ04
UQ03
UQ01
US99
US98
US97
US96
US95
US94 US93
US92
US91
US90
US89
US88 US87
US86
US85
US84
US83
US82
US81 US80
US79
US78
US77
US76
US75
US74
US73
US72
US71
US70
US69
US68
US67
US66
US65
US64
US63
US62
US61
US60
US59
US58
US57
US56
US55
US54
US53
US52
US51
US50
US49
US48
US47
US46
US45
US44 US43
US42
US41
US40
US39
US38
US37
US36
US35
US34
US33
US32
US31
US30
US29
US28
US27
US26
US24
US23
US22
US21
US20
US19
US18
US17
US16
US15
US14
US13
US12
US11 US10
US09 US08
US07
US06
US05
US04
US03
US02
US01
RS97
RS96
C849
R816
R815
R814
R812
RQ30
RQ29
QG03
Q808Q807
D808
Q802
Q804 Q805 Q803
QS24
QS23
QS17 QS18
QG06
QG05
J803
CS99
CS90
CS89
CS88
CS87
CS86
CS85
CS84
CS58 CS57
CS36
CS35
CS34
CS33
CS32
CS31
CS30
CS29
CS28
CS27
CS25
CS26
CS24
CS23
CS17
CS18
CS16
CS15
CS14
CS13
CS12
CS11
CS10
CS09
CS08
CS07 CS06
CS05
CS04
CS03
CS02
CS01
CQ08
CG06
CG05
CG04
CG03
CG02
CG01
C843
C842 C840
C834
C833
C830
C825
C815
C813
C811
C809
C819
C820
JS04
JS07
J805
C821
J806
C812
J809
J808
J807
CS98
CS97
D817
R804
D820
D816
C828
C827
D810
D823
C847
C848
D806
C816
D804
R810
D822
D821
C810
D803
D805
C814
Q810
RS12 RS11
RG05
DG03
DG02
RG06
QG04
RG16
RS95
QS21
RS26 RS25
CQ10
CQ09
QS27
QS26
RQ28
RQ27
RS76
RS75
RS50
RS49
C824
D819
D818
R806
C826
C845
C844
C841
RQ26
RQ25
RG20
RG19
RG18
RG17
D812
D811
D815
CQ07
CQ06
CQ05
CQ04
CS91
CS92 CS39
CS40
CS37 CS38
CG07
CG08
CS71
CS72
CS49 CS50 CS51
CS52
CS47 CS48 CS45
CS46
CS43 CS44
L801
R809
R808
R807
D813
C836
C835
QG07
QG02
QG01
RG14
RG13
RG12
RG11
RG10
RG09
RG02
RG01
RG04
RG03
QS16
DG01
LG01
JS10 JS09
JS06 JS03 JS01
QS22
QS15
QS14
QS13
QS12
QS11
QS10
QS09
QS08
QS07
QS06
QS05
QS04
QS03
QS02
QS01
CS96
CS95
CS94
CS93
CS78
CS77
CS80
CS79
CS76CS75
CS74
CS73 CS70
CS69
CS68
CS67 CS66
CS65
CS64
CS63
CS62
CS61
CS60
CS59 CS56
CS55
CS54
CS53
CS42
CS41
CS22
CS21
CS20 CS19
RS94
RS93
RS86
RS85
RS92
RS91
RS88
RS87
RS90
RS89
RS84
RS83
RS56
RS55
RS82
RS81
RS80
RS79
RS78
RS77
RS74
RS73
RS72
RS71
RS70
RS69
RS68
RS67
RS66
RS65
RS64
RS63
RS62
RS61
RS60
RS59
RS58
RS57
RS40RS39
RS54
RS53
RS52
RS51
RS48 RS47
RS46 RS45
RS44 RS43
RS42
RS41
RS38
RS37 RS36
RS35 RS34
RS33
RS32
RS31
RS30
RS29
RS28
RS14
RS27 RS24
RS23
RS22
RS21 RS20
RS19
RS18
RS04
RS17 RS16RS15
RS13 RS10
RS09
RS08
RS07 RS06
RS05
RS03 RS02
RS01
33 34
C801
C802
C803
C804
C806
C807
C808
D801
Q801
Q806
F801
F802
U801
U802
D802
D807
C817
C818
C805
J801
J802
R801
R802
R813
U803
E
B
C
IN
OUT
P804
+12V
+20V
GND
-20V
+15V
REF
+
+
+
+
+
+
1
6
1
4
2A 250V
WA326J506-0
P804 Q801
Q806
JL01
DL11
DL10
RL07
RL12
JL02
JL03
CL64
JL14
JL10
JL09
JC71
CL15
CL20
CL14
CL12
RL25
CL02
CL07
CL08
CL09
RL02
DL01
DL02
DL03
CL34
CL11
CL25
CL30 CL03
CL13
RL06
CL05
CL60
CL26
RL09
RL10
CL58
RL05
DL04
CL28
CL56
CL18
CL27
CL32
RL11
RL08
DL05
DL12
CL62
CL06
CL38 CL23
CL17
CL57
CL29
CL39
DL06
DL13
CL31
CL40
CL41
CL16
RL21
RL26
CL43
CL42
CL75
RL19
CL36
CL69
QL17
CL70
QL15
CL48
QL12
QL10
QL11
CL50
LL01
XL02
CL67
RL20
XL01
CL51
CL55
CL52
RL15
RL24
RL23
JL13
CL63
CL68
DL07
RL22
QL16
CL76
RL18
CL33
CL59
CL61
RL13
RL14
CL37
CL21
CL24
CL01
CL77
LL02
RL29
CL79
CL80
CL82
RL31 CL81
RL30
RL32
RL39
RL40
CL83
CL47
CL46
CL85
RL42
RL41
RL28
QL19
RL43
CL86
CL54
CL49
CL44
CL53
CL35
CL65
CL78
CC51
RC51
RC53
RC55
RC57
CC55
CC53
RC59
CC52
RC52
RC54
RC56
RC58
CC54
RC60
CC56
CC57
RC61
RC63
RC65
RC67
CC59
RC69
CC61
CC62
CC58
RC62
RC64
RC66
RC68
CC60
RC70
CC65
CC64
CC72
RC72
RC74
CC74
RC76
RC78
RC71
RC73
CC73
RC75
RC77
CC76
CC75
RC79
RC80
CC77
CC78
RC82
RC81
RC83
RC84
RC85
RC86
CC79
CC81
CC82
RC87
RC88
RC89
RC90
CC84
CC83
RC92
RC93
RC94
CC86
CC87
CC88
CC95
RC97
RC95
RC96
RL53
QL21
RL54
CL99 RL52
RL51
CL98
CL45
DL21
U101
U102
U103
U104
U105
U107
U108
U109
U110
U111
U112
U113
U114
U115
U116
U119
U120
U121
U125
U126
U129
U130
U131
U141
U142
U143
U144
U145
U146
U147
U151
U157
U159
U160
U161
U162
U171
U172
U173
U174
U175
U176
U177
U178
U179
U182
U183
U184
U185
U186
U187
U188
U190
U192
U193
U194
U195
U196
U197
U201
U202
U203
U204
U205
U206
U207
U208
U209
U210
U211
U221
U222
U223
U224
U225
U226
U231
U232
U233
U234
U235
U236
U237
U238
U241
U242
U243
U246U247
U248
U134
U245
U244
U106
U158
U128
CC63
CC71
U132
RC91
CC85
JC51
U133
CC80
U117
U135
CL71
U189
CL72
CL73
U136
CL19
CL74
CL22
RL01
DL08
DL09
RL03
RL04
U122
U123
U124
U155
U154
U153
U152
U148
U149
U150
U127
U191
U156
U118
U180
U181
QC51
QC52
QC71
QC95
QL18
QL04
QL03
QL14
QL05
QL06
QL07
QL08
QL09
QL02
U137
DL22
U138
U139
U227
U140
U249
TV
LD
DVD
IN
OUT
VCR1
IN
OUT
DSS
MON
OUT
MLT
OUT
1
2
3
4
5
A
B
B
C
A
B
DVD
PAL
CE1
CE2
CE7
-15
S-D1
S-D2
OSD-1
OSD-2
5VL
5VV
GND
AUX
PL04
CVBS
OSD
-24V
+
16
1
C
SW
S-L
S-R
DAO
+15
CL0
V-MUT
DATA0
CLK0
OSD-OUT
VDATA
VCLK
SWA
FL
GND
FR
SW6
GND
C6
SR6
GND
SL6
_KILL
COPY
MULTI
MULTI
COPY
+
NJU3718L
LC74781
BA7649A
BA7613N
BA7613N
BA7649A
BA7613N
NJM2244
17.7MHZ
14.3MHZ
+
+
+
+
+
+
+
+
+
+
+
+
+
++
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
++
+
+
+
NJM2244
74HC132
QL18
+
+
+
++
+
+
QL09
+
+
+
+
+
+
+
+
++
+
+
+
+
+
+
+
+
GND
NJM2114
NJM2114
QC72QC73
B1
B2
A2
A1
NJM4580
NJM4580 NJM4580
WA326J201-2
QV52
QL19 QL04 QL03
QL14
QC95 QL18
QL07 QL06 QL05
QL11 QL12
QL10
QL08
QL09 QL15 QL17
QL02
QL16
PL04
QL21
QC71
QC73 QC72
QV51
This manual suits for next models
5
Table of contents
Other Marantz Stereo Receiver manuals
Marantz
Marantz NR1403 User manual
Marantz
Marantz NR1403 User manual
Marantz
Marantz NR1711 User manual
Marantz
Marantz SR6011 User manual
Marantz
Marantz NR1603 User manual
Marantz
Marantz SR5005 User manual
Marantz
Marantz SR6004 User manual
Marantz
Marantz 2235 User manual
Marantz
Marantz SR5200 K2G User manual
Marantz
Marantz 2252 User manual
Marantz
Marantz 2226B User manual
Marantz
Marantz NR1609 User manual
Marantz
Marantz NR1710 User manual
Marantz
Marantz 2275 User manual
Marantz
Marantz SR7002 Quick start guide
Marantz
Marantz SR7200 User manual
Marantz
Marantz SR5013 User manual
Marantz
Marantz SR6015 User manual
Marantz
Marantz NR1510 User manual
Marantz
Marantz 2285B User manual
