Sea Marshall AU9 User Manual
(General Purpose, WF, ATEX, HT, Dive)
790000029_Sea Marshall AU9 UserManual Version: 2.8_20162107 July 2016 En
Manufacturer and
distributor of global leading
Man Overboard Solutions from

Table of Contents
Sea Marshall AU9 User Manual v2.8
MRT Ltd. © 2014
2
I Introduction 3
II Glossary of Terms & Acronyms 4
III Warnings & Safety Information 5
IV Sea Marshall AU9 Overview 7
1Sea Marshall AU9 Features 10
2Sea Marshall AU9 Range Comparison 12
V Sea Marshall AU9 Operation 14
1Testing the Sea Marshall AU9 23
VI Recertification and Servicing 25
VII Declaration of Conformity 27
VIII AU9-X SIRA Certificate 28
IX AU9-D Pressure Test Certificate 30
X Warranty 31
XI Terms & Conditions of Sale 33
XII Disclaimer 38
XIII Trademark Notice 39
XIV Technical Specifications 40

Sea Marshall AU9 User Manual v2.8
MRT Ltd. © 2014
3
I •Introduction
The following symbols and conventions are used to indicate important
information. Always observe these instructions.
WARNINGS: Instructions that, if ignored, could result in death or
serious personal injury caused by incorrect operation of the
equipment. These must be observed for safe operation.
CAUTIONS: Instructions that, if ignored, could result in personal
injury or material damage caused by incorrect operation of the
equipment. These must be observed for safe operation.
IMPORTANT NOTE: Important instructions that should be
adhered to during system operation.
Typographic Conventions
1. Hardware features are displayed in bold uppercase letters,
e.g. ARMING SWITCH.
2. Operation states are displayed in bold uppercase letters
surrounded by square brackets, e.g. [OFF].
Using your Sea Marshall AU9 for the first time
Carefully read the Warnings and Safety Information section in this manual
prior to using the Sea Marshall AU9 for the first time. To operate correctly, the
Sea Marshall AU9 should be professionally fitted to an MRT approved SOLAS
rated PFD by a service centre authorised by MRT. Visit the MRT website
www.mrtsos.com for specific instructions on accessing the Sea Marshall AU9.
Prior to first use perform a full system test to confirm the device is
operating correctly.

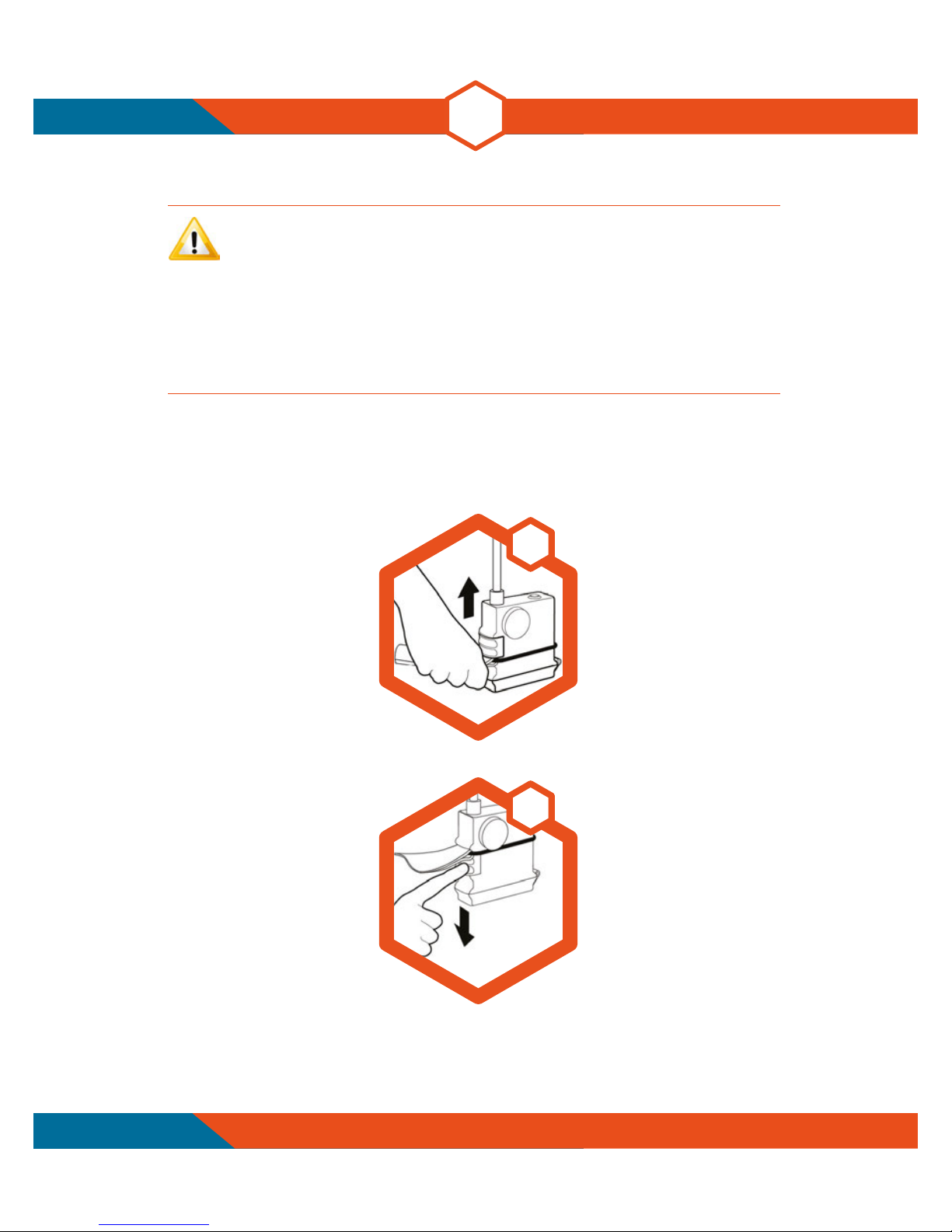

WARNING: When the Sea Marshall AU9 is fitted inside a PFD
instead of a purpose-built sMRT pouch, DO NOT unzip the main
PFD zip. Use the Sea Marshall AU9 access point zip in the life
jacket to prepare the device for use.

Sea Marshall AU9 User Manual v2.8
MRT Ltd. © 2014
4
II •Glossary of Terms & Acronyms
AIS Automatic Identification System: Automatic tracking system
used on ships and by vessel traffic services for identifying
and locating vessels by electronically exchanging data with
other nearby ships, AIS base stations, and satellites.
AMSA Australian Maritime Safety Authority
DSC Digital Selective Calling – technology used to automate
calling on terrestrial marine radio systems.
ECDIS Electronic Chart Display and Information System
EPIRB Emergency Position Indicating Radio Beacon.
FCC US Federal Communications Commission
MAYDAY Voice distress priority message
MMSI Maritime Mobile Service Identity (DSC identity number)
MRT Marine Rescue Technologies
MSLD Maritime Survivor Locating Device
MSLS Maritime Survivor Locating System
PFD Personal Flotation Device
PLD Personal Locating Device
RDF Radio Direction Finding
RTCM Radio Technical Commission for Maritime Services
SAR Search and Rescue
SOLAS International Convention for the Safety of Life At Sea
USCG US Coast Guard
VHF Very High Frequency radio band – 30 to 300 MHz.

Sea Marshall AU9 User Manual v2.8
MRT Ltd. © 2014
5
III •Warnings & Safety Information
WARNINGS:
• The Sea Marshall AU9 is not an EPIRB and its emergency
transmissions are not detected by orbiting satellites. The
device is a short range Personal Locating Device (PLD), which
uses 121.5MHz Radio Direction Finding (RDF) techniques.
• Perform a full system test before use.
• The Sea Marshall AU9 should ONLY be used in an emergency.
DELIBERATE MISUSE MAY INCUR A SEVERE PENALTY.
• DO NOT store or transport the unit in a wet or high moisture
environment to avoid accidental activation.
• Do not dismantle the Sea Marshall AU9 as it contains no
user serviceable parts. MRT Ltd. and authorised service
agents offer a full and comprehensive service and repair
facility for recertification of units and battery replacement.
• DO NOT tamper with the AUTO ACTIVATION WATER
SENSOR on the top and bottom of the unit
• The Sea Marshall AU9 emits radio frequency radiation when in
use. Avoid handling the antenna unnecessarily when activated.
LIFE JACKET & PERSONAL PROTECTIVE EQUIPMENT (PPE)
USAGE WARNINGS:
• The Sea Marshall AU9 must only be fitted/attached to life
jackets approved by MRT Ltd.
• Only MRT approved attachment kits/pouches are to be used
to attach the unit to the life jacket.
• The Sea Marshall AU9 must be fitted strictly in accordance with
the life jacket manufacturer & MRT's instructions as supplied.
• The Sea Marshall AU9 must only be fitted by an approved
service centre authorised by MRT and/or the life jacket
manufacturer.
• The life jacket is to be serviced according to the
manufacturer's specifications.
• It is the user's responsibility to ensure that any ancillary
equipment, such as survival suits/harnesses, PPE, clothing etc.,
does not interfere with the operation of the Sea Marshall AU9.

Sea Marshall AU9 User Manual v2.8
MRT Ltd. © 2014
6
CAUTION:
• Do not paint the Sea Marshall AU9 or clean it with aggressive
detergents or solvents. Some cleaning materials may damage
the seals and affect the integrity of the device.
• To ensure the Sea Marshall AU9 operates as intended in an
emergency:
o Avoid dropping the unit.
o Avoid leaving the unit unnecessarily in full sun where it may
be exposed to excessively high temperatures.
o Inspect the device periodically for signs of wear and tear,
visible cracks or other damage.
The Sea Marshall AU9 could save your life, treat it with respect at all
times.

Sea Marshall AU9 User Manual v2.8
MRT Ltd. © 2014
7
IV •Sea Marshall AU9 Overview
This user manual provides all the information required to operate and
test the Sea Marshall AU9 PLD. The Sea Marshall AU9 transmits on the
121.5MHz search and rescue (SAR) frequency and can be used to locate
a man overboard using a 121.5MHz receiver such as the MRT
Crewguard MKII or MRT SARfinder MKIII receiver.
Sea Marshall AU9 Activation
When armed, the Sea Marshall AU9 is designed to automatically
activate in an emergency when immersed in water. There is an
AUTO ACTIVATION WATER SENSOR on the top and
bottom of the unit. If the unit is continuously immersed in salt or
fresh water it will 'awaken' and auto-activate. A predetermined 2
second delay period prevents device activation caused by spray,
rain and splashing.
The Sea Marshall AU9 can also be manually activated by pressing
the round rubber ACTIVATION BUTTON on the front of the
device when armed. The design of the ARMING SWITCH, in
conjunction with the unit's RUBBER O-RING, prevents the device
from being accidentally activated while being carried or in transit.
The Sea Marshall AU9-D dive version does not have a round
rubber ACTIVATION BUTTON and the ARMING SWITCH is
used to manually arm and activate the device.
Crewguard MKII Base Unit MSLS Receiver SARfinder MK III Base Unit MSLS Receiver

Sea Marshall AU9 User Manual v2.8
MRT Ltd. © 2014
8
Sea Marshall AU9 Product Range
There are five versions of the Sea Marshall AU9 available for different marine
operating environments. This manual is applicable to all these versions.
AU9: General Purpose
• 2 second auto-activation
(upon continuous immersion)
• Manual activation
• LED strobe on antenna
• Automatic low battery warning indicator
• 100mW power output
• Test unit also available using 121.65MHz
AU9-WF: Wind Farm/Renewable Energy
• 2 second auto-activation
(upon continuous immersion)
• 40 second fail safe auto-override
• Manual activation
• LED strobe on antenna
• Automatic low battery warning indicator
• 500mW power output
• Test unit also available using 121.65MHz
AU9-X: Zone2 Oil/Gas
• 2 second auto-activation
(upon continuous immersion)
• 40 second fail safe auto-override
• Manual activation
• LED strobe on antenna
• Automatic low battery warning indicator
• 100mW power output
• SIRA ATEX Approved
• Test unit also available using 121.65MHz

Sea Marshall AU9 User Manual v2.8
MRT Ltd. © 2014
9
AU9-HT: Helicopter Transit
• 2 second auto-activation
(upon continuous immersion)
• 40 second fail safe auto-override
• Manual activation
• LED strobe on antenna
• Automatic low battery warning indicator
• 100mW power output
• Test unit also available using 121.65MHz
AU9-D: Diving
• Manual activation only
• LED strobe on antenna
• Depth rating 50m
• Automatic low battery warning indicator
• 500mW power output

Sea Marshall AU9 User Manual v2.8
MRT Ltd. © 2014
10
IV.1 •Sea Marshall AU9 Features

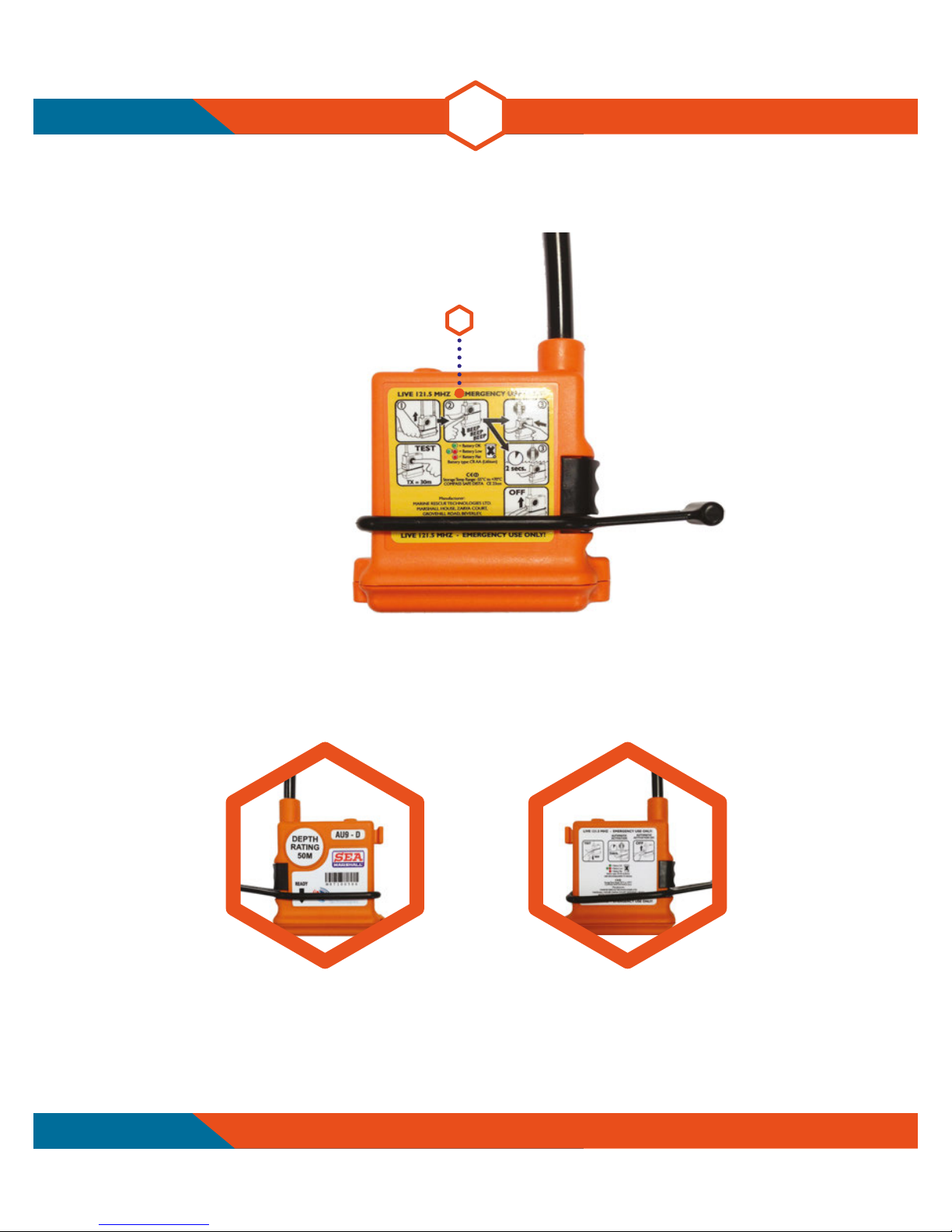

1ANTENNA.
2AUTO ACTIVATION WATER SENSOR.
3Product name.
4ACTIVATION BUTTON GUARD.
5SWITCH RESTRAINER.
6Front label.
7BASE CAP (hinged, not separate).
8AUTO ACTIVATION WATER SENSOR.
9ARMING SWITCH.
10 Round rubber ACTIVATION BUTTON (for activation and function testing).
11 BASE CAP SCREWS
Sea Marshall AU9 Front
1
3
4
6
5
7
81111
9
10
2

Sea Marshall AU9 User Manual v2.8
MRT Ltd. © 2014
11
12 Operation instructions (rear label)
Note: The Sea Marshall AU9-D dive version PLD has no round rubber
ACTIVATION BUTTON and the rear label instructions are different.
Sea Marshall AU9 Rear
12
AU9-D Front AU9-D Rear

Sea Marshall AU9 User Manual v2.8
MRT Ltd. © 2014
12
The Sea Marshall AU9, AU9-X and AU9-HT transmit 100mW 121.5MHz
signals. The Sea Marshall AU9-WF and AU9-D transmit 500mW signals.
The 100mW version has approximately half the tracking range of the
500mW version.

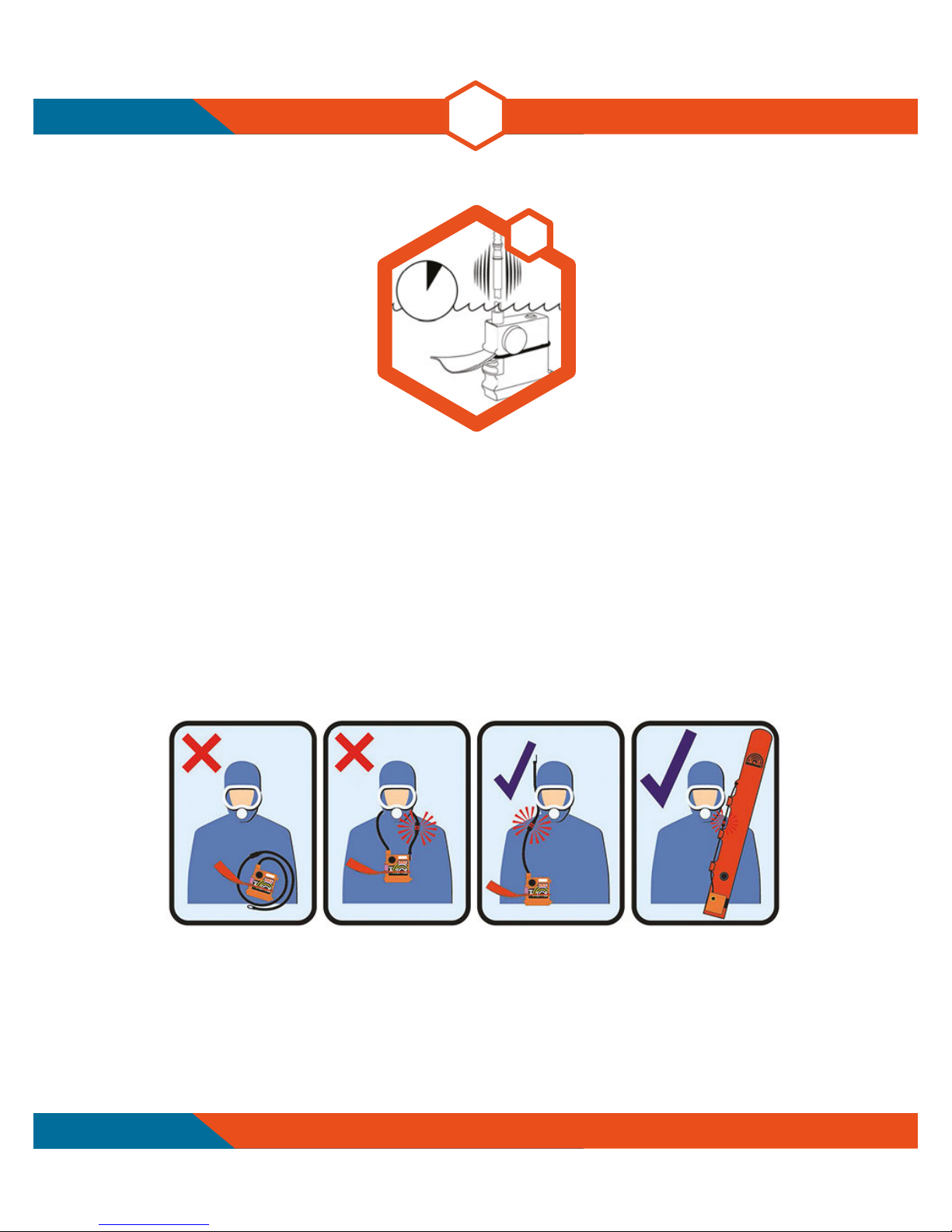

IV.2 •Sea Marshall AU9 Range Comparison
Sea Marshall AU9 500mW Version
Sea Marshall AU9 500mW Version

Sea Marshall AU9 User Manual v2.8
MRT Ltd. © 2014
13
WARNING: The tracking ranges displayed are the results from
tests were the receiver antenna was correctly installed at the
recommended height and the Sea Marshall AU9 was correctly
fitted into a PFD. Wearing the device in any other manner will
reduce the tracking/alerting ranges to below those displayed.

Sea Marshall AU9 User Manual v2.8
MRT Ltd. © 2014
14
V •Sea Marshall AU9 Operation
WARNING: When the Sea Marshall AU9 is fitted inside a PFD
instead of a purpose-built sMRT pouch, DO NOT unzip the main
PFD zip. Use the Sea Marshall AU9 access point zip in the life
jacket to prepare the device for use. The Sea Marshall AU9 should
only be used in an emergency. DELIBERATE MISUSE MAY INCUR
A SEVERE PENALTY.
The Sea Marshall AU9 must be professionally fitted to an MRT approved
SOLAS rated PFD to operate correctly. This ensures the device is in the
most effective position for water activation and emergency
transmissions, while the PFD assists the casualty to remain afloat and
face-up when in the water.
The Sea Marshall AU9 is normally inserted into a purpose-built pouch
for stability. The device is [OFF] when shipped and needs to be
configured in the [READY] state prior to use.
WARNING: See the MRT website www.mrtsos.com for specific
instructions on accessing the Sea Marshall AU9 inside the
sMRT PFD.
Arming the Sea Marshall AU9, AU9-X, AU9-WF
and AU9-HT
This procedure arms the device for both manual and auto-activation.
1
Remove the Sea Marshall AU9 from its pouch.

Sea Marshall AU9 User Manual v2.8
MRT Ltd. © 2014
15
2
Lift the RUBBER O-RING up and over the ARMING SWITCH.
3
Push the ARMING SWITCH down to the [READY] position until it clicks
into place and ensure the RUBBER O-RING is positioned in the gap
above the ARMING SWITCH.
Note: After arming the unit it will beep 3 times to confirm it has been
armed and a GREEN LED will flash every 60 seconds thereafter.

Sea Marshall AU9 User Manual v2.8
MRT Ltd. © 2014
16
WARNING: After arming the unit it can remain in the life jacket for
12 months until the jacket and beacon require servicing and
recertification. Before returning the unit for servicing and
recertification it must be made safe:
1. Slide the ARMING SWITCH up to the [OFF] position and
then lift and pull the RUBBER O-RING down and over the
ARMING SWITCH.
2. Ensure the RUBBER O-RING is positioned in the gap below
the ARMING SWITCH.
4
Reinsert the unit in the pouch. The Sea Marshall AU9 is now ready for use.

Sea Marshall AU9 User Manual v2.8
MRT Ltd. © 2014
17
Activating the Sea Marshall AU9, AU9-X,
AU9-WF and AU9-HT
Activation commences transmissions on the 121.5MHz search and
rescue (SAR) frequency. Sea Marshall AU9 transmissions continue
after activation until the device is disarmed/switched [OFF]. When the
unit is armed there are two methods of activation.
Audio SOS BEEPs can be heard approximately every 30 seconds and
flashing RED LEDs are visible when the unit is transmitting on full power.
This pattern cycles continuously until the unit is disarmed/switched [OFF].
IMPORTANT NOTE: The unit has two AUTO ACTIVATION
WATER SENSORS (a metal screw on top of the unit and within
the base cap). Both these sensors have to be continuously
immersed for a period of not less than 2 seconds to allow the
unit to wake up and autoactivate, this prevents inadvertent
activation by spray, rain or splashes.
Press the round rubber ACTIVATION BUTTON.
The Sea Marshall AU9 also activates automatically after 2 seconds of
continuous immersion in water.

Sea Marshall AU9 User Manual v2.8
MRT Ltd. © 2014
18
Arming and Activating the Sea Marshall AU9-D
The Sea Marshall AU9-D dive version PLD does not have a round
rubber ACTIVATION BUTTON.
CAUTION: AU9-X, AU9-HT and AU9-WF units are fitted with a 40
second failsafe/override function. These units will also automatically
activate after 40 seconds of constant immersion in water if the unit
is accidentally disarmed/switched [OFF] but is in a man overboard
emergency situation.
DO NOT store or transport the unit in a wet or high moisture
environment to avoid accidental activation.
1
2
Lift the RUBBER O-RING up and over the ARMING SWITCH.
Slide the ARMING SWITCH down to [READY] to arm and activate the
Sea Marshall AU9-D.

Sea Marshall AU9 User Manual v2.8
MRT Ltd. © 2014
19
When the unit is immersed in water the WATER SENSORS will
automatically activate the device.
Note: After arming the unit it will beep 2 times to confirm it has been armed
and a GREEN LED will flash every 3-5 seconds until is starts transmitting. A
RED LED is displayed and short BEEPS are audible when transmitting.
Wearing the Sea Marshall AU9-D around the neck will reduce the
tracking/alerting ranges to below those specified. MRT recommends
fitting the device in a harness or attaching it to a dive belt with the
antenna positioned vertically. It may also be fitted to an inflatable
surface marker buoy.
3

Sea Marshall AU9 User Manual v2.8
MRT Ltd. © 2014
20
1
Lift and pull the RUBBER O-RING down and over the ARMING SWITCH.
2
Slide the ARMING SWITCH up to the [OFF] position
3
Ensure the RUBBER O-RING is positioned in the gap below the
ARMING SWITCH.
Disarming/Deactivation of all Sea Marshall AU9 PLDs
