SAFETY WARNINGS
•The wiring of your electrical installation is live (230 V)
and extremely dangerous. Never connect the module
when plugged into the mains. Always turn off the
main switch before starting the installation.
•This product is for professional use and should be
installed by a certified installer."
•To prevent short circuits, this product should only be
used inside and only in dry spaces. Do not expose the
components to rain or moisture. Do not use the
product close to a bath, swimming pool etc.
•Do not expose the components of your systems to
extremely high temperatures or bright light sources.
•In case of improper usage or if you have altered and
repaired the product yourself, all guarantees expire.
Marmitek does not accept responsibility in the case of
improper usage of the product or when the product is
used for purposes other than specified. Marmitek
does not accept responsibility for additional damage
other than covered by the legal product
responsibility.
•This product is not a toy. Keep out of reach of
children.
•Do not open the product: the device may contain live
parts. The product should only be repaired or serviced
by a qualified expert.
•Automatic switching devices provide comfort, but can
also be dangerous. They can surprise people or can
ignite clothing hanging over an electric heat source.
Please be careful and take appropriate measures to
avoid accidents.

© MARMITEK
4
HOW DOES MARMITEK X-10 WORK?
Marmitek X-10 components use the existing mains wiring
to communicate (using Marmitek X-10 signals). You can
build a complete system using the three different kind of
components of the Marmitek X-10 System:
1. Modules: These components will receive Marmitek X-10
signals and will switch or dim the attached lamp or
appliance. Examples of these modules are lamp modules
and appliance modules. These are available as build-in,
micro, DIN rail and plug-in modules.
2. Controllers: These components will transmit Marmitek
X-10 signals and thus will control the Modules.
3. Transmitters:Wireless components like remotes. The
signals of these components will be received by a
controller with transceiver functionality (IRRF 7243, TM13,
CM15Pro…..). The Transceiver will translate the signals into
Marmitek X-10 signals on the power line.
ADRESSES
Up to a maximum of 256 different addresses can be preset.
These are subdivided into a so-called HouseCode (A to P
incl.) and a UnitCode (1 to 16 incl.). The HouseCode can
also be set on the controllers, so that the controllers and
modules become part of the same system. The address can
be set either using code dials or by pressing buttons,
depending on the type of module.
The Marmitek X-10 System uses standard commands,
which control all units with the same HouseCode at the
same time (e.g. all lights on, all units off, etc.).

AMM31 5
SIGNAL RANGE
Range of Marmitek X-10 signals over the Power Line
and how to increase the range.
The Marmitek X-10 System is based on power line
communication. The range of the Marmitek X-10 signals
very much depends on the local circumstances. On average
the range is a cable length of 80 meters.
If you have difficulties with the range of your
Marmitek X-10 signals, please pay attention to the
following facts:
1. When more than one phase is used for your electrical
system, it is necessary to couple these phases for the
Marmitek X-10 signals. For coupling you can use FD10
Phase Couplers/Filters. You only need to install a Phase
Coupler/Filter when your wall outlets and light switches
are divided over more than one phase (more than one
group is no problem). For bigger buildings or longer
distances we advice you to use an active repeater instead
of passive FD10’s.
2. It is possible that Marmitek X-10 signals are attenuated
by devices and lights which are connected to the power
line. In a normal home situation this effect is negligible
(the Marmitek X-10 system is using active gain control to
eliminate the effects). However, it is possible that a
particular device in your house is attenuating the signals so
much that the range of Marmitek X-10 signals is decreased
significantly. When you have range problems, it is wise to
try to locate the device which is attenuating the signals
simply by unplugging devices from the power line, and
testing the differences in range for your Marmitek system.
When e.g. your conclusion is that e.g. your computer
monitor is attenuating the signal, you can use a FM10

© MARMITEK
6
Plug-in Filter between the power line and the monitor to
eliminate the effects.
Known devices which can cause attenuation are:
PC Monitors
PCs with heavy internal power supplies
Old Televisions
Copiers
Fluorescent Lights
Gas Discharge Lamps (Energy Saving Lamps)
3. Some (old) devices are able to disturb the signal by
transmitting noise on the power line. Because the
Marmitek X-10 signals are transmitted on 120 kHz, only
noise on or near this frequency will have influence on the
range. When you use a FM10 Filter to connect this device
to the power line, the noise will be filtered.
4. The Marmitek X-10 protocol has several mechanism to
avoid modules to be switched on or off by other sources
than your Marmitek X-10 Controllers. However, it is
possible that the Marmitek X-10 signals are disturbed by
e.g. baby phones which are in TALK mode (continuous
transmission). When these kind of signals are present on
the power line it is possible that the Marmitek X-10 signals
will not come through.
5. The mains do not stop at the front door of your home.
Everything that is attached to mains nearby your home can
have influence on Marmitek X-10 signals (e.g. heavy
machinery). If you think that your system is influenced by
devices out of your house, it is advisable to install FD10
Phase Coupler/Filter on each phase entering the house.
These filters will block signals coming into or going out of
your house, but will also match the impedance for the
mains. Hereby make your house Marmitek X-10 compatible
for these units. The FD10’s will not only filter but will also
couple the phases (please see 1).

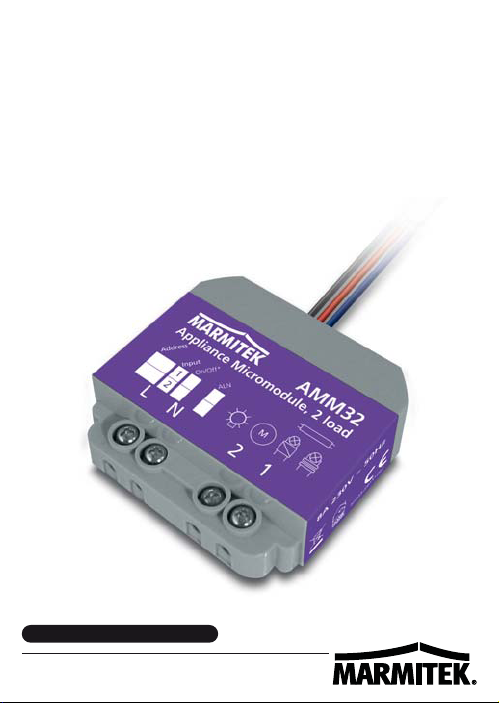

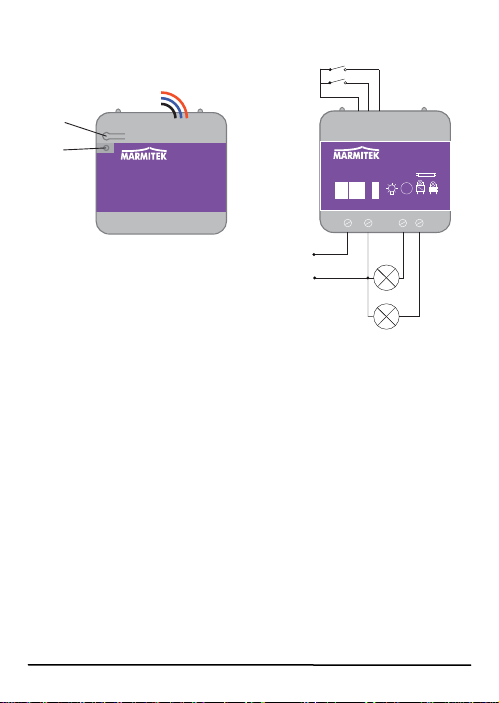

TWO-LOAD APPLIANCE MICRO MODULE
2
M
Appliance Micromodule, 2 load
AMM32
1
Inptu
Ad r ssd e
On/ ffO *
LNA
LN 12
2
PHASE
NEUTRAL
Appliance Micromodule, 2 load
AMM32
1800W/230V for resistive (ohm) load
300W/230V for inductive/capacitive load
1100W/230V for light bulbs and
halogen lighting
Program
Button
Light
Indicator
RED
BLUE
BLACK
RED
BLUE
BLACK
FUNCTIONS
•Switch module to turn 230V appliances, halogen and
tube lights, etc. on or off.
•Can be used in combination with ‘designer’ switching
material.
•Operation of the unit with Marmitek X-10 Commands
takes place via the mains wires, which means no extra
wiring is necessary.
•Controllable from a distance with the Marmitek X-10
commands On/Off.
•Makes your X-10 system invisible
•The module responds to the Marmitek X-10
Commands ‘On’, ‘Off’ and ‘All off’.
•Phase and Neutral have to be available before the
module can be installed.
AMM31 7

© MARMITEK
8
•Transforms your existing switch into a X-10
controllable switch
•The MicroModule is an extremely small Marmitek X-
10 appliance module which can be fitted behind any
installed switch or outlet. The lights and appliances
connected to the MicroModule can be controlled by
the Marmitek X-10 system. You will be able to use
your switch in the normal way. The MicroModule uses
one-way X-10 communication.
•Remote and local control On and Off
•Can also be used with low-energy lamps.
•Quick and easy to install and program.
•Switches loads up to 1800W
INSTALLATION
•Switch off appropriate mains fuse and master switch!
•Take the wall switch out of the wall box.
•Disconnect all wires from the switch.
•Pull an additional Neutral wire if it is missing.
•Connect the phase, neutral and load wires to the “L”,
“N” , “1” and “2” terminals of the micromodule
•Connect the thin Black, Blue and Red wires of the
built-in module to the wall switch.
•Position the MicroModule against the back wall of
the wall outlet behind all the wires.
•• You are now able to program the MicroModule.
•For more information see chapter “Programming”.
•Install the wall switch at its original place after the
MicroModule is programmed.
•Please note: due to heat generation, apply no more
than one module per flush socket / central socket!

AMM31 9
PROGRAMMING.
WARNING: DO NOT FORGET TO TURN ON THE MAIN
MASTER SWITCH PRIOR TO PROGRAMMING.
Programming the address and the optional function All
Lights On: The factory setting for the AMM31 is to address
A1 and no response to the optional function All Lights On.
Unlike most Marmitek X-10 Modules the AMM31 does not
have code wheels.
To change the address and the optional setting for the All
Lights On function, the module needs to be set to the
program mode.
Press and hold the “Program” button for 5 seconds,
indicator light turns ON, means entering “Program mode”.
(If your load is a lamp, use your controller to transmit the
“All Lights On” command, the Micro Module will then
respond to “All lights On”, while if the load is an
appliance, you should transmit the “All Units Off”
command, the Micro Module will then not respond to “All
lights On” commands.) Transmit the address command for
the first address of the module, followed by the address
command for the second address, at this time the indicator
light goes OFF.
Warning! The MicroModule will leave the setup mode if it
doesn’t receive any commands within 8 seconds.

© MARMITEK
10
FREQENTLY ASKED QUESTIONS
What is the reason for modules to switch on/off
spontaneously?
It is possible that a Marmitek X-10 System is installed at
one of your neighbours using the same House Code. To
solve this problem try to change the House Code of your
system, or have FD10 Phase Coupler/Filter installed at your
incoming mains.
My modules will not respond to my controller.
Make sure that the House Code on all Modules and
Controllers are set to the same House Code (A .. P).
My modules will not react to my remote / sensor.
When you use a remote or sensor, you should have at least
one Transceiver, CM15Pro or Marmitek X-10 Security
Console installed in your house. These components will
translate the radio signals to the Marmitek X-10 signal on
the power line. Using several remotes and sensors, you
only need one central transceiver.
Am I able to increase the range of my remotes by
using more Transceivers?
Yes, you can use more than one Transceiver in your home
when the range of your remotes is not sufficient. The
transceiver is using
so called collision detection to prevent signals to be
disturbed when more than one transceiver is transmitting.
The Transceivers will wait for a quite power line before
transmitting their data. To prevent your Marmitek X-10
System to become slow or to prevent dimming from
becoming less smooth, make sure that the transceiver units
are placed as far away from each other as possible.

AMM31 11
TECHNICAL DATA
Supply voltage: 230VAC +10% -10% 50 Hz
Power Consumption < 1W
Making capacity: 1800W for resistive (ohm) load
300W for inductive/capacitive load
1100W for light bulbs and halogen
lighting
Control Load QTY: Two
Dimmable: No
Signal sensitivity: better than 25 mVpp at 120 kHz
X-10 Key codes to respond to: All units Off, All Lights On, On, Off
X-10 All Lights ON by set Yes
Input switch: Double 1- way standard rocker
switch
Silent relais Yes
Use in 3 phase installation: FD10 (3x) or FKX40 necessary
Connections: Wire for a double standard rocker
switch and connecting clamps for
phase, neutral and switched phase.
control lines not more than 1 meter between the
micro module and the switch
Ambient temperature: -10°C tot +50°C (Operation)
Dimensions: 51 x 49 x 20 mm
Specifications may be modified without prior notice.

Environmental Information for Customers
in the European Union
European Directive 2002/96/EC requires that the
equipment bearing this symbol on the product
and/or its packaging must not be disposed of
with unsorted municipal waste. The symbol indicates that
this product should be disposed of separately from regular
household waste streams. It is your responsibility to
dispose of this and other electric and electronic equipment
via designated collection facilities appointed by the
government or local authorities. Correct disposal and
recycling will help prevent potential negative
consequences to the environment and human health. For
more detailed information about the disposal of your old
equipment, please contact your local authorities, waste
disposal service, or the shop where you purchased the
product.
© MARMITEK
12

DECLARATION OF CONFORMITY
Hereby, Marmitek BV, declares that this AMM32 is in
compliance with the essential requirements and other
relevant provisions of the following Directives:
Directive 2004/108/ec of the european parliament and of
the council of 15 December 2004 on the approximation of
the laws of the Member States relating to electromagnetic
compatibility
Directive 2006/95/EC of the European Parliament and of
the Council of 12 December 2006 on the harmonisation of
the laws of Member States relating to electrical equipment
designed for use within certain voltage limits
Directive 2002/95/EC of the European Parliament and of
the Council of 27 January 2003 on the restriction of the use
of certain hazardous substances in electrical and electronic
equipment
MARMITEK BV – P.O. BOX 4257 - 5604 EG EINDHOVEN –
THE NETHERLANDS
AMM31 13

© MARMITEK
14
COPYRIGHTS
Marmitek is a trademark of Pattitude B.V. ׀AMM32™ is a
trademark of Marmitek B.V. All rights reserved.
Copyright and all other proprietary rights in the content
(including but not limited to model numbers, software,
audio, video, text and photographs) rests with Marmitek
B.V. Any use of the Content, but without limitation,
distribution, reproduction, modification, display or
transmission without the prior written consent of
Marmitek is strictly prohibited. All copyright and other
proprietary notices shall be retained on all reproductions.

AMM31 15

© MARMITEK
16

AMM31 17

© MARMITEK
18
