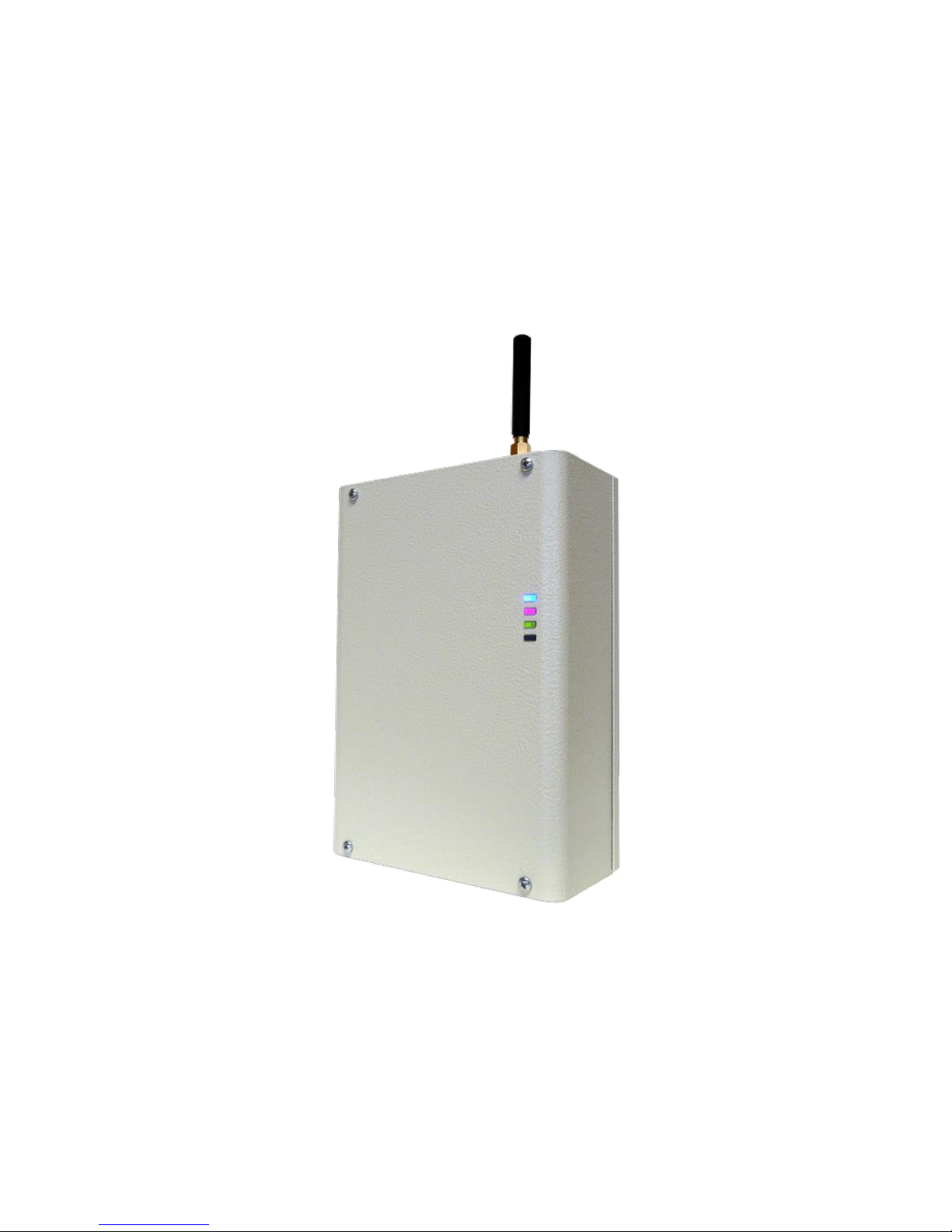

MARS COMMERCE ZEUS4-VD User manual

ZEUS4-VD
VOICE & SMS GSM ALARM COMMUNICATOR
INSTALLATION MANUAL
Version Rev.12+: ZEUS4-VD_Manual_2_4_03082015.doc

ZEUS4-VD
INSTALLATION MANUAL
Contents
1FOR YOUR SAFETY................................................................................................................1
2INTRODUCTION......................................................................................................................2
3FEATURES AND APPLICATIONS .......................................................................................3
4START UP..................................................................................................................................4
5LEDS...........................................................................................................................................5
6CLEAR ALL PROGRAMMED DATA FROM SIM.............................................................6
7CONNECTING DIAGRAM.....................................................................................................7
8DESCRIPTION OF TERMINAL BLOCKS...........................................................................8
9PROGRAMMING OPTIONS..................................................................................................9
10 VOICE MESSAGES –RECORD & PLAY..........................................................................10
10.1 RECORDING / LISTENING OF VOICE ALARM MESSAGES .................................................................10
11 ZEUS4-VD PARAMETERS...................................................................................................11
11.1 SECURITY LEVEL........................................................................................................................................11
11.2 ALARM SUPPORT........................................................................................................................................12
11.3 ADVANCED CLIP FUNCTION....................................................................................................................23
11.4 CLIP FUNCTION...........................................................................................................................................24
11.5 PREPAID CARD CREDIT AND VALIDITY INFORMATION ..................................................................26
11.6 SET-UP PARAMETERS................................................................................................................................28
11.7 CONTACT ID EVENT REPORTING ...........................................................................................................33
11.8 EVENT LOG PARAMETERS .......................................................................................................................34
12 PRINT-OUT OF THE PARAMETERS................................................................................35
12.1 RECEIVE ALL PARAMETERS (PALL) ......................................................................................................35
12.2 RECEIVE TELEPHONE NUMBERS (PTN).................................................................................................35
12.3 RECEIVE LINKS (PLN)................................................................................................................................35
12.4 RECEIVE INPUT PARAMETERS (PIN)......................................................................................................35
12.5 RECEIVE INPUT FILTER VALUE (PID) ....................................................................................................35
12.6 RECEIVE DELAY BEFORE DIAL VALUE (PDD).....................................................................................35
12.7 RECEIVE INPUT FILTER PARAMETERS (PIF)........................................................................................35
12.8 RECEIVE CREDIT CHECK NUMBERS (PCN)...........................................................................................35
12.9 RECEIVE CREDIT CHECK PARSE STRING PARAM. (PCREF)..............................................................36
12.10 RECEIVE CREDIT STATUS FOR CC1 (PCC1) ..........................................................................................36
12.11 RECEIVE CREDIT STATUS FOR CC2 (PCC2) ..........................................................................................36
12.12 RECEIVE CREDIT STATUS FOR CC3 (PCC3) ..........................................................................................36
12.13 RECEIVE CLIP IDENTIFICATION FUNCTIONS (PTC) ...........................................................................36
12.14 RECEIVE ACCESS TELEPHONE NUMBERS (PSL) .................................................................................36
12.15 RECEIVE OUTPUT PARAMETERS (POS).................................................................................................36

ZEUS4-VD
INSTALLATION MANUAL
12.16 RECEIVE LINK FOR LOCAL ALARM OUTPUT (POD)...........................................................................36
12.17 RECEIVE ALL PROGRAMMED SMS MESSAGES (P#) ...........................................................................36
12.18 RECEIVE THE POWER LEVEL ON THE UNIT (PPWR) ..........................................................................37
12.19 RECEIVE SET-UP PARAMETERS VALUE (PPA).....................................................................................37
12.20 STATE OF THE CREDIT FOR THE PREPAID CARD...............................................................................37
12.21 RECEIVE CID PARAMETERS (PCID)........................................................................................................37
12.22 RECEIVE SIMPLE CLIP PARAMETERS (PCLP).......................................................................................37
12.23 RECEIVE LOG PARAMETERS AND EVENTS (PLOG)............................................................................37
12.24 STATE OF THE OUTPUTS (PORC).............................................................................................................37
12.25 STATE OF THE INPUTS (INS).....................................................................................................................37
12.26 RECEIVE SYSTEM STATUS (PSYS)..........................................................................................................37
13 SYSTEM COMMANDS..........................................................................................................38
13.1 FACTORY DEFAULT COMMAND (SDCLR) ............................................................................................38
13.2 GSM MODULE RESTART (MRES).............................................................................................................38
13.3 SYSTEM RESTART (SSRES).......................................................................................................................38
13.4 LOG MEMORY CLEAR (LCLR)..................................................................................................................38
13.5 REMOVE ALL CLP USER (CLPCL)............................................................................................................38
14 CHECKING AND CHANGING SYSTEM STATUS (ON/OFF) .......................................39
14.1 CHECKING SYSTEM STATUS BY SMS COMMAND..............................................................................39
14.2 CHANGING SYSTEM STATUS TO ON (SYSTEM ON)............................................................................39
14.3 CHANGING SYSTEM STATUS TO OFF (SYSTEM OFF).........................................................................39
15 CHECKING THE INPUT STATUS......................................................................................40
15.1 CHECKING INPUT STATUS BY SMS COMMAND..................................................................................40
16 CHECKING AND CHANGING OUTPUT STATUS..........................................................41
16.1 CHECKING OUTPUT STATUS BY SMS COMMAND..............................................................................41
16.2 ORC PARAMETER .......................................................................................................................................41
16.3 OUTPUT REMOTE CONTROL BY SMS COMMAND ..............................................................................41
17 CHANGING PARAMETERS USING THE SMS COMMAND.........................................42
18 CONFIGURATION EXAMPLES .........................................................................................43
18.1 ALARM CONFIGURATION.........................................................................................................................43
18.2 CID EVENT REPORTING ............................................................................................................................43
19 TECHNICAL SPECIFICATIONS ........................................................................................44
20 DEFAULT SETTINGS ON ZEUS4-VD................................................................................45
21 CONTACTS .............................................................................................................................48

ZEUS4-VD
INSTALLATION MANUAL
Tables
Table 1: SL parameter........................................................................................................................11
Table 2: SL parameters example........................................................................................................11
Table 3: IN parameters.......................................................................................................................12
Table 4: IN parameters example........................................................................................................13
Table 5: ID parameters.......................................................................................................................13
Table 6: ID parameters example........................................................................................................13
Table 7: DD parameters.....................................................................................................................14
Table 8: DD parameters example.......................................................................................................14
Table 9: TN parameters......................................................................................................................15
Table 10: TN parameters example.....................................................................................................15
Table 11: LN parameters....................................................................................................................16
Table 12: LN parameters example.....................................................................................................16
Table 13: MAIN, BATT parameters..................................................................................................17
Table 14: MAIN, BATT parameters example...................................................................................17
Table 15: OS parameters....................................................................................................................18
Table 16: OS parameters example.....................................................................................................18
Table 17: OD parameters...................................................................................................................19
Table 18: OD parameters example.....................................................................................................19
Table 19: IT, AR and IB parameters..................................................................................................20
Table 20: IT, AR and IB parameters example...................................................................................20
Table 21: Alarm SMS formatting ......................................................................................................21
Table 22: ZEUS4-VD DTMF commands..........................................................................................22
Table 23: TC parameters....................................................................................................................23
Table 24: TC parameters example.....................................................................................................23
Table 25: CLIP parameters................................................................................................................25
Table 26: CLIP parameters example..................................................................................................25
Table 27: Credit checking parameters ...............................................................................................27
Table 28: Credit checking parameters example.................................................................................27
Table 29: Set-up parameters ..............................................................................................................31
Table 30: Set-up parameters example................................................................................................32
Table 31: CID parameters..................................................................................................................33
Table 32: CID parameters example ...................................................................................................33
Table 33: LOG parameters.................................................................................................................34
Table 34: LOG parameters example..................................................................................................34
Table 35: ORC parameters.................................................................................................................41
Table 36: ORC parameters example..................................................................................................41
Table 37: ZEUS4-VD - Technical specifications..............................................................................44
Table 38: ZEUS4-VD - Default settings............................................................................................47
Figures

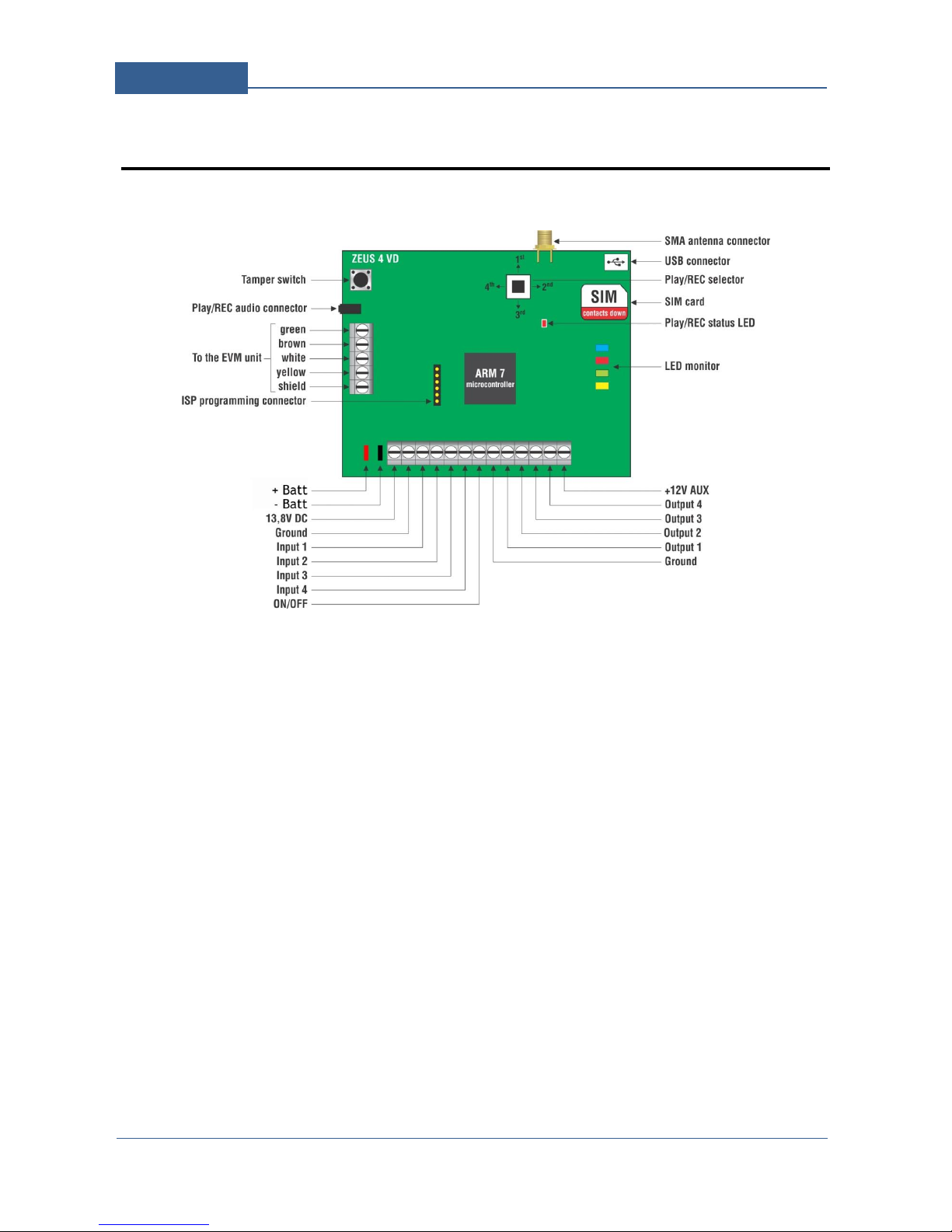

Figure 1: Connection diagram..............................................................................................................7
Figure 2: Recording / Listening of alarm messages...........................................................................10
Figure 3: Input Connection diagram..................................................................................................12

ZEUS4-VD
INSTALLATION MANUAL
1
1FOR YOUR SAFETY
Read these simple guidelines. Not following them may be dangerous or illegal. Read the complete
user guide for further information.
SWITCH ON SAFELY
Do not switch the unit on when use of wireless phone is prohibited or when it may cause
interference or danger.
INTERFERENCE
All wireless phones and units may be susceptible to interference, which could affect performance.
SWITCH OFF IN HOSPITALS
Follow any restrictions. Switch the unit off near medical equipment.
SWITCH OFF IN AIRCRAFT
Follow any restrictions. Wireless devices can cause interference in aircraft.
SWITCH OFF WHEN REFUELING
Do not use the unit at a refueling point. Do not use near fuel or chemicals.
SWITCH OFF NEAR BLASTING
Follow any restrictions. Do not use the unit where blasting is in progress.
USE SENSIBLY
Use only in the normal position as explained in the product documentation. Do not touch the
antenna unnecessarily.

ZEUS4-VD
INSTALLATION MANUAL
2
2INTRODUCTION
ZEUS4-VD communicator is a new mobile voice and SMS autodialing system. It is mostly used to
provide wide range of alarm information and very useful remote controls. ZEUS4-VD can pass on
messages about intrusion alarms, technical alarms, etc. by voice call or SMS to the end-user or directly
by sending the Contact ID built-in to the Central Monitoring Station (CMS).
ZEUS4-VD can be used in connection with different applications such as:
Security alarm systems
Home care and Emergency alarm
Fire systems
Car and boat alarm transmitter
Door entry
Remote access control

ZEUS4-VD
INSTALLATION MANUAL
3
3FEATURES AND APPLICATIONS
Features:
Built-in 4 band GSM module
Contact ID protocol built-in
4 alarm inputs
System ON/OFF input
4 remotely/locally controlled trouble status output
4 prerecorded alarm messages –1 for each alarm input
SMS alarm and service messages
LEDs for easy monitoring
10 telephone numbers for alarm reporting
PC programming by USB port
Download programming by SMS
50 Caller ID remote & access control users
System activating and deactivating by SMS, CLIP and DTMF command
Output remotely controlled by SMS, CLIP and DTMF command
Up to 1000 event log buffer
Prepaid cards credit and value checking
Security protected for incoming calls
Main and Battery power control
Applications:
Security alarm systems
Home care and Emergency alarm
Fire systems
Car and boat alarm transmitter
Door entry
Remote access control
Temperature regulations
Vending Machines
Other remote controls

ZEUS4-VD
INSTALLATION MANUAL
4
4START UP
VERY
IMPORTANT
USE A MICRO SIM CARD (micro-SIM, see the picture)
WITH MEMORY FOR UP TO 250 CONTACTS!
Insert SIM card to be used for ZEUS4-VD in your personal mobile phone.
IMPORTANT
ERASE THE PIN CODE!
Insert SIM card into SIM holder on the ZEUS4-VD device. The unit must be switched OFF
when you insert the SIM!
Connect the antenna to antenna connector.
Connect alarm inputs and outputs to ZEUS4-VD.Connect device to source power supply
voltage.
Wait until LED3 display is turned ON (green) and LED1 (blue) starts flashing. This is set in
around 1 minute.
ZEUS4-VD unit is now ready to operate.
IMPORTANT
Before sending any SMS commands to ZEUS4-VD device, ZEUS4-VD
must be in normal operation!
IMPORTANT
When the backup battery 12V/1,2Ah is connected to the unit the main
power supply must be from 13,8V to 14,5V DC!

ZEUS4-VD
INSTALLATION MANUAL
5
5LEDs
Blue LED (LED1)
–Indicates the level of the GSM signal from 1 to 5 LED flashes (1 is weak signal, 5 is
excellent signal)
Red LED (LED2)
-When LED 2 is ON the unit has a problem with a GSM network connection or the GSM
part of the unit is out of order. In this case immediately call the service!
Red LED (LED2) –alarm state
-During an alarm event the red LED indicates on which input alarm has been triggered. For
example if alarm was triggered on the first input there is 1 LED flash, on second input 2
LED flashes, etc.
Green LED (LED3)
-When the alarm inputs on the unit are in active state (SYS=1) then the green LED is ON.
With alarm inputs disabled the green LED goes OFF (SYS=0).
Yellow LED (LED4)
-Short flashing indicates that the GSM module is ON, but it is not yet connected on the GSM
network. After connection, yellow led is flashing with short pulse ON and a long pulse OFF.

ZEUS4-VD
INSTALLATION MANUAL
6
6CLEAR ALL PROGRAMMED DATA FROM SIM
This is highly recommended when a SIM card you are going to use for the ZEUS4-VD is not new
and it already has some data stored in the phone book memory.
By sending this SMS to ZEUS4-VD all programmed parameters and numbers are cleared:
;SDCLR;
After sending SMS you should wait at least 60 second for the command to be executed!
NOTE
By sending this command to the ZEUS4-VD all programmed data is erased from the
SIM card, including SMS messages!

ZEUS4-VD
INSTALLATION MANUAL
7
7CONNECTING DIAGRAM
Figure 1: Connection diagram

ZEUS4-VD
INSTALLATION MANUAL
8
8DESCRIPTION OF TERMINAL BLOCKS
+BATT/Ground –Battery backup connector. In the original metal box it is possible to place a
1,2Ah/12V battery. Red fasten connector is for positive and black fasten connector is for negative
voltage battery supply.
+13,8V/Ground –Power Supply connector - On the left side is positive voltage (+ 12 VDC to
+15VDC) and the right site is GND voltage.
Input 1 –Alarm input 1 - It can be N.O. (normal open) to GND or +12V DC, N.C. (normal close)
to GND or +12V DC.
Input 2 –Alarm input 2 - It can be N.O. (normal open) to GND or +12V DC, N.C. (normal close)
to GND or +12V DC.
Input 3 –Alarm input 3 - It can be N.O. (normal open) to GND or +12V DC, N.C. (normal close)
to GND or +12V DC.
Input 4 –Alarm input 4 - It can be N.O. (normal open) to GND or +12V DC, N.C. (normal close)
to GND or +12V DC.
ON/OFF –System arm/disarm - It can be N.O. (normal open) to GND or +12V DC, N.C. (normal
close) to GND or +12V DC.
NOTE
For the arm/disarm function the ION parameter must be 4, 5 or 6!
Output 1 –First diagnostic, remote control or alarm output. It is Open Collector output with
maximum loading current of 500mA.
Output 2 –Second diagnostic, remote control or alarm output. It is Open Collector output with
maximum loading current of 500mA.
Output 3 –Third diagnostic, remote control or alarm output. It is Open Collector output with
maximum loading current of 500mA.
Output 4 –Fourth diagnostic, remote control or alarm output. It is Open Collector output with
maximum loading current of 500mA.

ZEUS4-VD
INSTALLATION MANUAL
9
9PROGRAMMING OPTIONS
ZEUS4-VD device supports different types of programming:
To program ZEUS4-VD parameters put the SIM card into your personal GSM phone. Add
programming parameters in SIM Card “Phone Book”.
You can program ZEUS4-VD remotely by SMS command.
You can program ZEUS4-VD with USB key and SIM manager.
You can program ZEUS4-VD directly via USB interface.

ZEUS4-VD
INSTALLATION MANUAL
10
10 VOICE MESSAGES –RECORD & PLAY
The memory of each alarm input enables us to record our own voice message in the total length of
10 seconds (4 x 10 seconds). The device is namely equipped with a PLAY/REC audio connector.
For recording and listening recorded messages a headset is necessary. Headset is very common and
it is use with many mobile phones but should be supplied also by your distributor.
10.1 RECORDING / LISTENING OF VOICE ALARM MESSAGES
For recording and playing alarm messages ZEUS4-VD has a joystick switch which you can use in 4
different directions:
Message 1 –UP
Message 2 –RIGHT
Message 3 –DOWN
Message 4 –LEFT
message 1
message 4
message 3
message 2
Figure 2: Recording / Listening of alarm messages
10.1.1 RECORDING OF VOICE ALARM MESSAGES:
1. ZEUS4-VD must be in normal operating mode –registered to the GSM network, to avoid
disturbances when logging on to the GSM network.
2. Insert the handset into the PLAY/REC audio connector on PCB.
3. RECORDING: Press and hold the joystick up for recording the 1st message (no beep).
4. The RED LED left of the joystick permanently lit when recording.
5. When release the joystick the RED LED goes OFF.
Follow the same procedure for all four alarm messages.
10.1.2 PLAYBACK OF VOICE ALARM MESSAGES:
1. Shortly press the joystick up for listening the 1st message.
2. You can hear the 1st message.
3. The RED LED left of the joystick blinks when the message is ended.
4. Playback stops automatically after the end of the message.
Follow the same procedure for all four alarm messages.

ZEUS4-VD
INSTALLATION MANUAL
11
11 ZEUS4-VD PARAMETERS
To support versatile functionality of ZEUS4-VD different parameters are used. The parameters are
divided in logical sections and are described in the following chapters.
11.1 SECURITY LEVEL
SL parameter from 0 to 10 defines which telephone number stored into the phone book from TN1 –
TN0 can enter into programming and remote control unit of the ZEUS4-VD.
NOTE
When the SL level is 0, an access to the ZEUS4-VD is possible from any phone!
IMPORTANT
Before any SL number is programmed the ZEUS4-VD can accept ALL
CALLS. Remote SMS programming and remote controlling is possible from
any phone!
Table of parameters:
Name / value
Comment
SL = 0
All calls and SMS are accepted
SL = 1
Only number stored under parameter TN1 has access to unit
SL = 2
Numbers stored under parameters TN1 to TN2 have access to unit
SL = 3
Numbers stored under parameters TN1 to TN3 have access to unit
SL = 4
Numbers stored under parameters TN1 to TN4 have access to unit
SL = 5
Numbers stored under parameters TN1 to TN5 have access to unit
SL = 6
Numbers stored under parameters TN1 to TN6 have access to unit
SL = 7
Numbers stored under parameters TN1 to TN7 have access to unit
SL = 8
Numbers stored under parameters TN1 to TN8 have access to unit
SL = 9
Numbers stored under parameters TN1 to TN9 have access to unit
SL = 10
Numbers stored under parameters TN1 to TN0 have access to unit
Table 1: SL parameter
Example:
Direct programming on the SIM card
ZEUS4-VD PROGRAMMING TABLE
SIM CARD PHONE BOOK
Name
Number
Description
SL
5
Numbers stored under parameters TN1 to TN5 have access to
unit
Table 2: SL parameters example
Remote programming by SMS
;SL=5;

ZEUS4-VD
INSTALLATION MANUAL
12
11.2 ALARM SUPPORT
Alarm reporting is supported by group of different parameters. First section is used to define the
relations needed for alarm to be trigged. The second section is used to report alarm.
11.2.1 IN Parameters
Alarm and reset input can be triggered in 4 different ways. The status of the input can either be
normal closed (N.C) or normal open (N.O.) with positive (+ 12V) or negative (GND) voltage.
When you need the input feedback information it is possible to receive SMS when input returns
from alarm to normal position. To receive return SMS use IN=4, 5 or 6.
IN = 0 –Normal Open –triggered with negative voltage (GND)
IN = 1 –Normal Close –breaking negative or positive voltage loop
IN = 2 –Normal Open –triggered with positive voltage (+ 12VCC)
IN = 3 –Input disable
IN = 4 = IN = 0 + input reset SMS
IN = 5 = IN = 1 + input reset SMS
IN = 6 = IN = 2 + input reset SMS
INPUT 1-4
N.O.
Contact
GND
INPUT 1-4
N.O.
Contact
+12V DC
INPUT 1-4
N.C.
Contact
INPUT 1-4
N.O.
Contact
+12V DC
Figure 3: Input Connection diagram
Table of parameters:
Name
Comment
ION
System arm/disarm control
IN1
Input 1 control
IN2
Input 2 control
IN3
Input 3 control
IN4
Input 4 control
Table 3: IN parameters
N.C.
Contact

ZEUS4-VD
INSTALLATION MANUAL
13
Example:
Direct programming on the SIM card
ZEUS4-VD PROGRAMMING TABLE
SIM CARD PHONE BOOK
Name
Number
Description
ION
4
OFF –connecting GND on ON/OFF input
IN1
0
Alarm activated by connecting to GND
IN2
1
Alarm activated by disconnecting GND or +12V
IN3
2
Alarm activated by connecting +12V
IN4
4
Alarm activated by connecting to GND + RST SMS
Table 4: IN parameters example
Remote programming by SMS
;ION=0;IN1=0;IN2=1;IN3=2;IN4=4;
11.2.2 ID parameters
ID parameter determines time period of the pulse length to trigger the Input. The pulse time can be
from 0.5 seconds to 9999 seconds. Minimum time is 0.5 seconds when the parameter value is 0.
Table of parameters:
Name
Comment
DON
Default ID filter is 0.5 seconds –ON/OFF input
ID1
Default ID filter is 0.5 seconds –input 1
ID2
Default ID filter is 0.5 seconds –input 2
ID3
Default ID filter is 0.5 seconds –input 3
ID4
Default ID filter is 0.5 seconds –input 4
Table 5: ID parameters
Example:
Direct programming on the SIM card
ZEUS4-VD PROGRAMMING TABLE
SIM CARD PHONE BOOK
Name
Number
Description
DON
0
Default ID filter is 0.5 seconds –ON/OFF input
ID1
5
ID filter is 5 seconds for input 1
ID2
30
ID filter is 30 seconds for input 2
ID3
2
ID filter is 2 seconds for input 3
ID4
0
ID filter is 0.5 seconds for input 4
Table 6: ID parameters example
Remote programming by SMS
;DON=0;ID1=5;ID2=30;ID3=2;ID4=0;

ZEUS4-VD
INSTALLATION MANUAL
14
11.2.3 DD parameters
If you would like to have a delay before unit starts dialing procedure use DD –delay before dialing
parameter.
Table of parameters:
Name
Comment
DDN
ON/OFF input delay
DD1
Delay before dialing for Input 1
DD2
Delay before dialing for Input 2
DD3
Delay before dialing for Input 3
DD4
Delay before dialing for Input 4
Table 7: DD parameters
Example:
Direct programming on the SIM card
ZEUS4-VD PROGRAMMING TABLE
SIM CARD PHONE BOOK
Name
Number
Description
DD1
1
Delay before dialing is 1 seconds for input 1
DD2
2
Delay before dialing is 2 seconds for input 2
Table 8: DD parameters example
Remote programming by SMS
;DD1=1;DD2=2;

ZEUS4-VD
INSTALLATION MANUAL
15
11.2.4 TN parameters
Telephone numbers for remote alarm reporting are listed as TN parameters. Remote alarm reporting
on ZEUS4-VD is done via SMS messages or VOICE call.
ZEUS4-VD makes a voice call, send alarm notification SMS message or both. If the corresponding
name ends with the letter “V” only VOICE call is made and if the name ends with the letter “M”
only SMS message is sent.
Table of parameters:
Name
Comment
TN1
1st telephone number
TN2
2nd telephone number
TN3
3rd telephone number
TN4
4th telephone number
TN5
5th telephone number
TN6
6th telephone number
TN7
7th telephone number
TN8
8th telephone number
TN9
9th telephone number
TN0
10th telephone number
Table 9: TN parameters
NOTE
By pressing * on your phone you switch OFF the redial call for calling number. The
remaining numbers are called as usual. By pressing # you switch off all remaining
calls.
NOTE
When VOICE is used for alarm reporting, the user has the possibility to control the
ZEUS4-VD activity with the various DTMF commands.
Example:
Direct programming on the SIM card
ZEUS4-VD PROGRAMMING TABLE
SIM CARD PHONE BOOK
Name
Number
Description
TN1
042376678
1st telephone number (VOICE alarm & SMS message)
TN2V
040719479
2nd telephone number (VOICE alarm only)
TN3M
040308350
3rd telephone number (SMS message only)
Table 10: TN parameters example
Remote programming by SMS
;TN1=042376678;TN2V=040719479;TN3M=040308350;

ZEUS4-VD
INSTALLATION MANUAL
16
11.2.5 LN Parameters
These parameters are used to link alarm event from inputs or any other source to the telephone
numbers on TN list.
Table of parameters:
Name
Comment
LN1
Input & telephone No. linking for 1st alarm input (TN1 –TN0)
LN2
Input & telephone No. linking for 2st alarm input (TN1 –TN0)
LN3
Input & telephone No. linking for 3st alarm input (TN1 –TN0)
LN4
Input & telephone No. linking for 4st alarm input (TN1 –TN0)
LN5
Power down, telephone No. linking (TN1 –TN0)
LN6
Low Battery, telephone No. Linking (TN1 –TN0)
LN7
Periodic test SMS, telephone No. linking (TN1 –TN0)
LN8
SIM card refill, telephone No. linking (TN1 –TN0)
LN9
Tamper switch, telephone No. linking (TN1 –TN0)
LN10
Unauthorized call or SMS, telephone No. linking (TN1 –TN0)
LN11
Log status, telephone No. linking (TN1 –TN0)
Table 11: LN parameters
Example:
Direct programming on the SIM card
ZEUS4-VD PROGRAMMING TABLE
SIM CARD PHONE BOOK
Name
Number
Description
LN8
12
Refill SIM –SMS is sent to TN1 & TN2
LN1
13
Input1 is called/sent SMS to TN1 & TN3
LN2
123
Input2 is called/sent SMS to TN1, TN2 & TN3
LN3
5
Input3 is called/sent SMS to TN5
LN4
45
Input4 is called/sent SMS to send to TN4 & TN5
LN7
12
Periodic Test SMS is sent to TN1 & TN2
Table 12: LN parameters example
Remote programming by SMS
;LN8=12;LN1=13;LN2=123;LN3=5;LN4=45;LN7=12;
