Martin System MPS DOG 2 User manual

MPS
DOG2
USER GUIDE EN

CONTENTS
MPS Mobile App Description 3
Receiver Description 5
Switching Transmitter On and Off 6
Switching Receiver On and Off 8
Saving a POI 10
Adding a Transmitter 11
Retrieving the Number of a Transmitter 12
Locating an Animal or a POI Using the Receiver 13
Locating an Animal Using a Tablet or a Smartphone 14
Improving Transmission Performances 15
Charging your Devices 17
Maintaining your Devices 19
Technical Specifications 20
Recycling 21
Warranty 22
Conformity 23

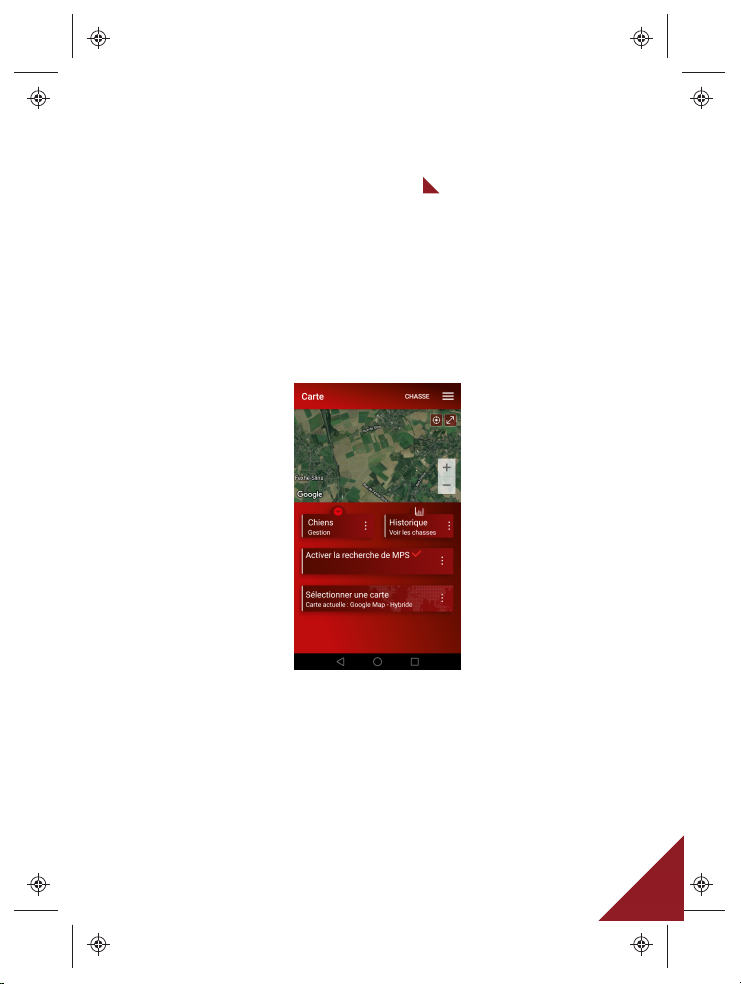

MPS MOBILE APP DESCRIPTION
The Martin System MPS application, available free for Android, enables
you to locate in real time all your transmitters (MPS Dog, MPS Dog 2 and
MPS Falcon).
▪Download the MPS application for free from Google Play.
▪Create a user account
▪Download Google maps on your device for off-line use (without requir-
ing any mobile connection nor communication).
MPS DOG 2 User Guide|3

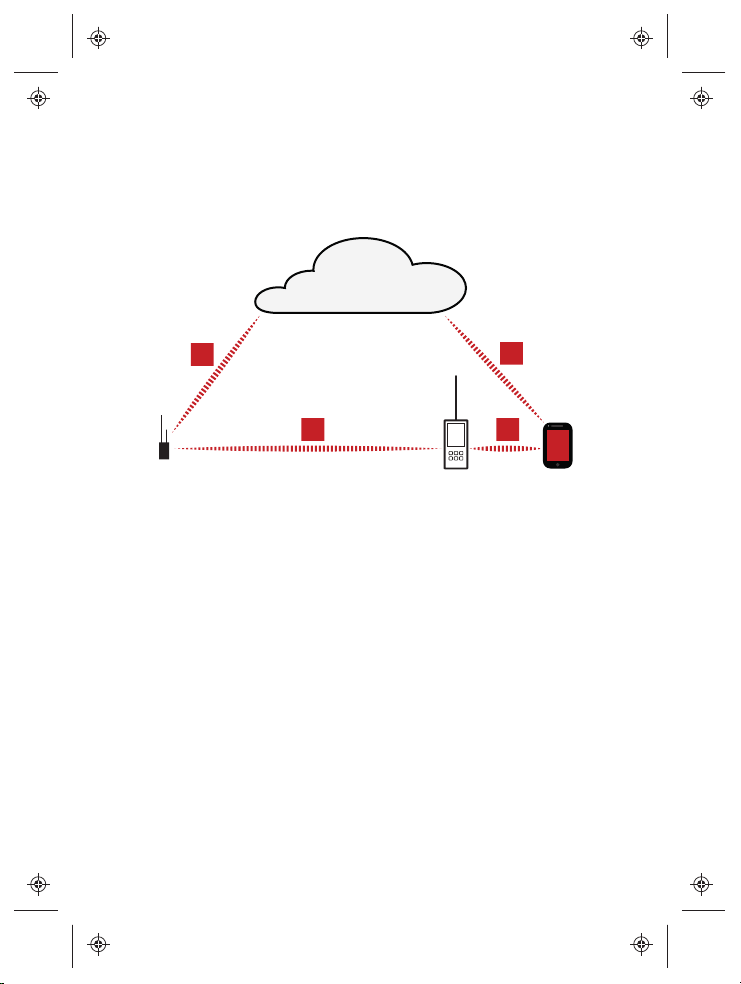

COMMUNICATION BETWEEN DEVICES
1 3
24
1. The transmitter sends information to the receiver by radio every 8
seconds in medium range and every minute in long range.
2. The transmitter also sends informations to the cloud every 10 minutes
using the Sigfox link.
3. The tablet or the smartphone communicate with the receiver using
the Bluetooth link.
4. The tablet or the smartphone communicate with the cloud using Inter-
net.

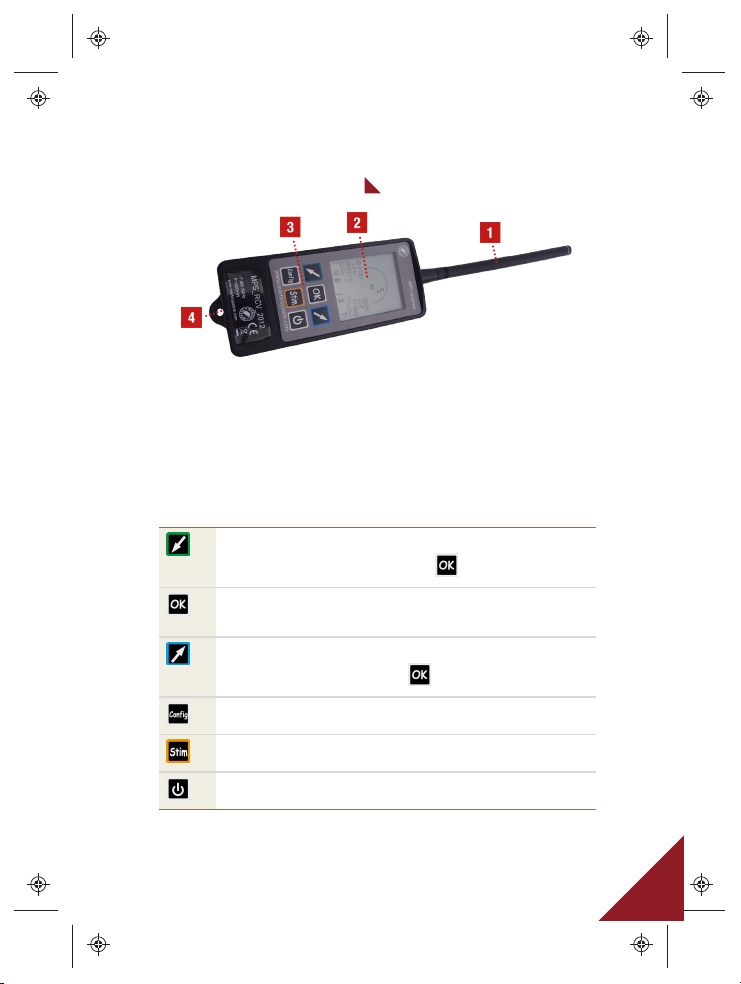

RECEIVER DESCRIPTION
1. UHF antenna
2. Screen
3. Keypad
4. Charge connector
FUNCTION OF KEYPAD KEYS
Change transmitter or POI
Reduce the stimulation signal (with the key )
Validate your choice or change the stimulation
Switch backlighting briefly on
Change transmitter or POI
Increase the stimulation (with the key )
Configure the receiver
Send a stimulation signal
Switch receiver on or off
MPS DOG 2 User Guide|5

SWITCHING TRANSMITTER ON AND OFF
▪The transmitter is controlled using a magnet provided in the case.
▪Slide the magnet next to the transmitter mark to switch it on or off.
▪When starting up, the transmitters flashes orange for about 30
seconds until it finds a GPS signal. If the GPS reception is hard (build-
ings in the vicinity, very cloudy sky...) it may takes more time.
▪Once the transmitter has found a GPS signal, it flashes slowly green.
▪Some of the information transmitted to the receiver (such as battery
state) depend on the distance with the transmitter. If the animal is too
far away, the receiver will not receive its position any more. Battery
state is not displayed any more.
▪Do not release the animal before checking the pairing of the trans-
mitter with the receiver.

MEDIUM RANGE RADIO TRANSMISSION
▪Range up to 5-6 km (depending on environment conditions).
▪Transmission of all information: position and battery state.
▪The transmitter transmits in medium range every 8 seconds.
LONG RANGE RADIO TRANSMISSION
▪Range up to 50 km.
▪Transmission of the position only.
▪The transmitter transmits in long range about every minute.
SIGFOX TRANSMISSION
▪Wherever the Sigfox coverage is available.
▪Transmission of all information: position and battery state.
▪The transmitter transmits every 10 minutes.
MPS DOG 2 User Guide|7

SWITCHING RECEIVER ON AND OFF
▪Switch on and off your receiver by pressing the key.
▪The icon flashes while the receiver searches for GPS satellites.
▪Once the satellites are found, the GPS position of the receiver is dis-
played as latitude and longitude.
1. Selected transmitter
▫0: receiver
▫1-32: transmitters
▫90-99: POI
▫_ _: search of a transmitter number

2. Receiver
▫fixed: GPS signal received
▫: battery charge level
3. GPS position (latitude and longitude)
4. Selected transmitter
▫: battery charge level
▫: UHF signal level
5. Distance from the animal or POI.
6. Direction of the animal or POI.
7. Elapsed time since last reception of data from the transmitter.
8. Level of the stimulation
Note: Some of the information transmitted to the receiver (such as battery
state) depend on the distance with the transmitter. If the animal is too far
away, the receiver will not receive its position any more. Battery state is not
displayed any more.
MPS DOG 2 User Guide|9

SAVING A POI
With your MPS Dog 2 you can save up to 10 POIs (points of interest), such
as, for example, the location of your car when you leave it.
Once you arrive at a selected place:
▪Use and keys to select the number to assign to the selected
POI (between 90 and 99).
▪Press the key to record your position.
▪The position is displayed and the POI is saved.
▪From now on, when you select this POI, your receiver will indicate its
distance and direction.
If a position was previously saved in the selected POI, it is erased and
replaced by the new position.
DELETE A POI
▪Use and keys to select the POI number to delete (between 90
and 99).
▪Keep the pressed during several seconds.

ADDING A TRANSMITTER
ADDING A TRANSMITTER USING THE MOBILE APP
▪On your tablet or smartphone, start the MPS application.
▪Connect to your account.
▪Add each transmitter by entering directly its serial number.
ADDING A TRANSMITTER USING THE RECEIVER
To connect a new transmitter to your receiver:
▪Use and keys to select the number to assign to the selected
transmitter (between 1 and 32).
▪Keep the magnet on the control mark of the transmitter until the
green LED flashes quickly.
▪Press the key and keep it pressed until all direction arrows of the
transmitter flash.
▪During the connection, the receiver screen flashes and displays all the
direction arrows simultaneously.
▪Once the position is displayed, the transmitter is connected to the
receiver.
▪Do not release the animal before checking the pairing of the trans-
mitter with the receiver.
If the transmitter was already saved with another number, this pairing is
erased and the previous number is freed.
MPS DOG 2 User Guide|11

RETRIEVING THE NUMBER OF A TRANSMITTER
To retrieve the number of a transmitter already linked to your receiver:
▪Use and keys to select number symbolized by _ _ (between 99
and 0).
▪The screen flashes and the number displayed is replaced by two hori-
zontal lines.
▪Switch the transmitter whose number you are looking for off and then
on again. It flashes orange quickly.
▪After a few seconds, the screen stops flashing and automatically com-
mutes to the detected number. The transmitter slowly flashes orange.

LOCATING AN ANIMAL OR A POI
USING THE RECEIVER
Using the and keys, search for the corresponding transmitter:
▪Your animal (between 1 and 32).
▪A saved POI (between 90 and 99).
The screen displays the following information issued by the transmitter:
1. Distance from the animal or POI.
2. Direction of the animal or POI.
3. Elapsed time since last reception of data from the transmitter.
4. Battery status and UHF signal level.
Note: Some of the information transmitted to the receiver (such as battery
state) depend on the distance with the transmitter. If the animal is too far
away, the receiver will not receive its position any more. Battery state is not
displayed any more.
MPS DOG 2 User Guide|13

LOCATING AN ANIMAL
USING A TABLET OR A SMARTPHONE
▪On your tablet or smartphone, start the MPS application.
▪If you have your MPS receiver: Activate the Bluetooth to pair your
tablet or smartphone to your receiver.
▪If you do not have your MPS receiver but have access to the
Internet: Connect to your account. The application will retrieve inform-
ation from the cloud. Nevertheless the information updates are less
frequent and the animal location is thus less accurate.
▪Follow on the map location and route of all your transmitters.
▪Follow each transmitter individually (distance, direction, battery
state...).

IMPROVING TRANSMISSION PERFORMANCES
IN ALL CASES
To get the maximal operating distance between receiver and transmitter,
you should optimize the radio transmissions.
Take the following precautions, especially for long distance transmissions.
▪During use, try to hold the remote control casing as much as possible
by its lower part.
▪Stay on as high as possible ground (for example on a hilltop) as large
obstacles reduce signal quality.
▪Direct the remote control toward the sky and, if possible, extend your
arm.
▪Keep your devices properly charged.

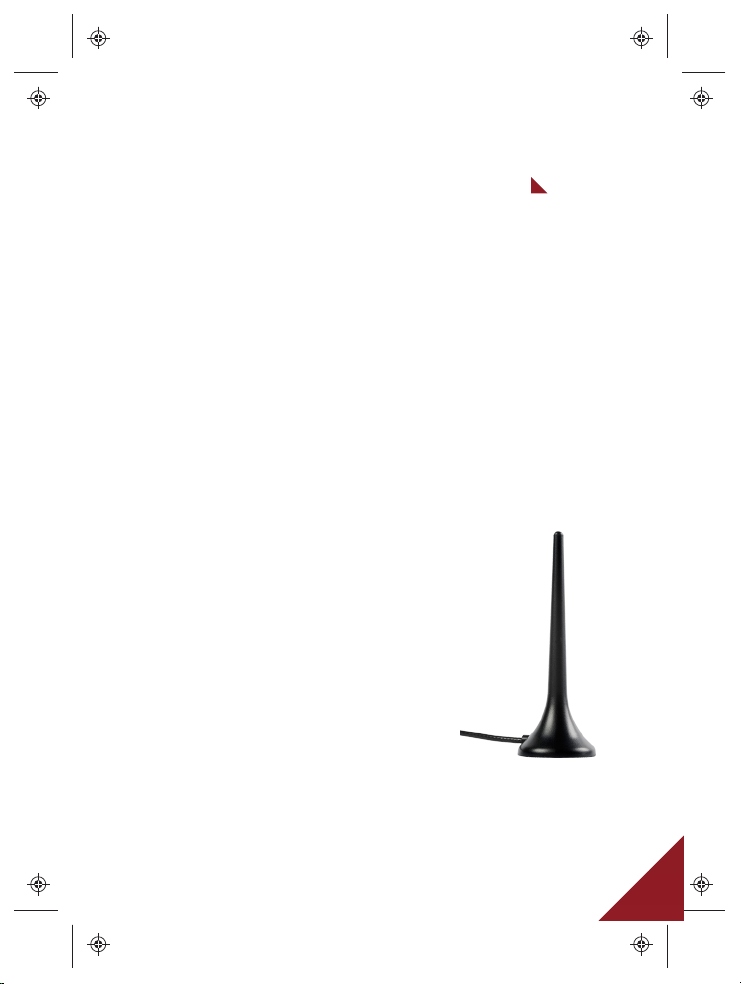

ADDITIONAL CAR ANTENNA
Thanks to its 1.8 m cable and magnetic base,
this antenna can easily be attached to a metal
piece positioned in height such as a car roof.
▪Unscrew the receiver antenna.
▪Screw the additional antenna cable on
the receiver.
▪Position the additional antenna on the
car roof, as high as possible.
Accessory sold separately.
MPS DOG 2 User Guide|15

YAGI ANTENNA
To connect the additional directional 869.5 MHzYagi antenna to the
receiver:
▪Unscrew the receiver antenna.
▪Slide the Yagi antenna at right angle in the provided space on the
handle.
▪Place the receiver on the handle.
▪Screw the Yagi antenna cable on the receiver.
Direct the Yagi antenna in the transmitter estimated direction.
Accessory sold separately.

CHARGING YOUR DEVICES
THE RECEIVER
▪To charge your receiver, connect it to the mains using the provided 5
V adapter.
▪The powering connector is a standard USB connector.
▪When the receiver is on and charging, the charge icon flashes on the
screen.When the battery is fully charged, the icon is solid .
▪A fully charged receiver has an autonomy of about 48 hours.
MPS DOG 2 User Guide|17

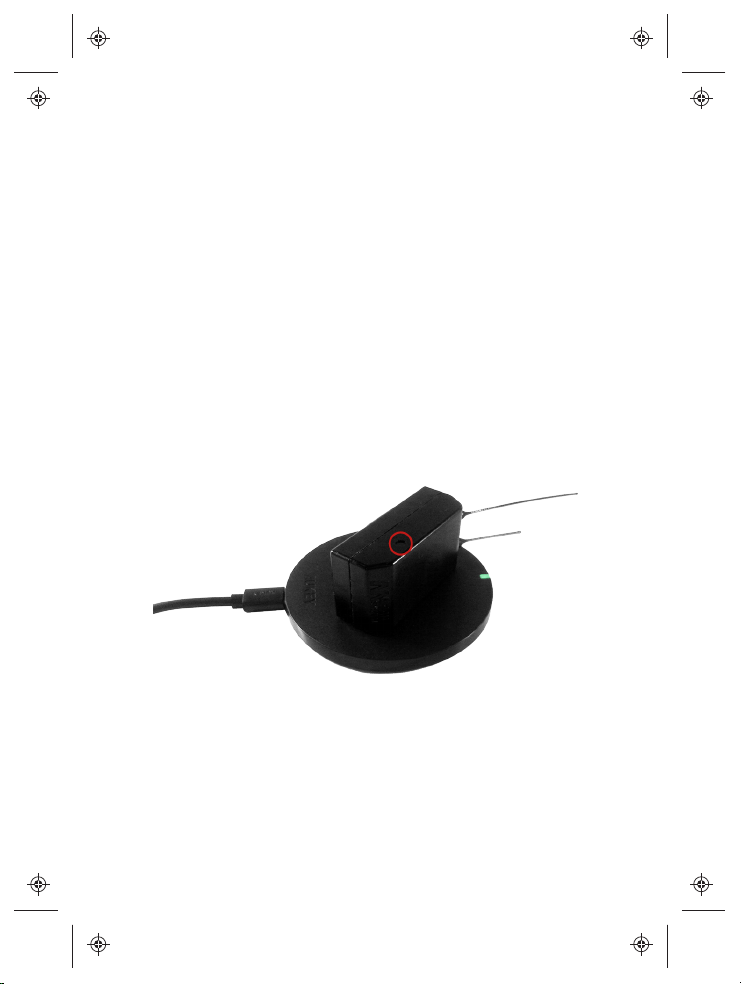

THE TRANSMITTER
▪To charge your transmitter, use the charger provided or any other Qi
compatible wireless charger.
▪Place the transmitter on the charger with the mark on the top as illus-
trated.
▪If the transmitter is on, a red LED flashes during the charge. A green
LED lights continuously once the transmitter is fully charged.
▪The provided charger LED flashes green during charge and lights con-
tinuously once the transmitter is fully charged.
▪A fully charged single battery transmitter has an autonomy of about
36 hours.
▪A fully charged double battery transmitter has an autonomy of about
72 hours.

MAINTAINING YOUR DEVICES
CLEANING
▪After use, clean your devices with a dry cloth to keep them in good con-
dition.
▪If the devices are too dirty, clean the casing and the screen with a
slightly damp cloth or a very mild cleaning product.
▪Avoid wetting the power and antenna connecting cables.
▪Never soak the receiver in water. The transmitters are waterproof.
RECHARGEABLE BATTERIES
▪To increase the batteries lifetime, always charge your batteries
before storing them.
▪If devices using rechargeable batteries are not used for a long period,
fully charge them regularly, at least every 3 months.
MPS DOG 2 User Guide|19

TECHNICAL SPECIFICATIONS
Receiver Transmitter
Dimensions without antenna (mm) 55 x 33 x 131 60 x 30 x 15
(single battery)
60 x 30 x 22
(double battery)
Antenna (mm) 85 80
Weight (g) 178 35
(single battery)
54
(double battery)
Bluetooth frequency
Bluetooth power
2.4GHz
< 10mW
Not applicable
UHF frequency
UHF power
869.5MHz
< 500mW
869.5MHz
< 500mW
Batteries 2 x
1400 mAh 3.7 V
1 or 2 x
500mAh 3.7V
Charger power supply 5 Vdc – 1 A Qi wireless,
5 Vdc – 2A
