Martin System Micro B User manual

MICRO B
COLLAR RECEIVER
USER GUIDE EN

Table of Content
Description 3
Transmitter Magnet Location and Range 7
Switching the Collar Receiver On and Off 8
Fitting the Collar on the Dog 9
Checking the Collar Contact 10
Pairing the Collar Receiver with a Transmitter 11
Unpairing the Collar Receiver 12
Pairing the Collar Receiver via Bluetooth 13
Charging the Collar Receiver 14
Precautions for Use 16
Troubleshooting 17
Checking the Stimulation Operation 18
Recycling 19
Warranty 20
Conformity 21
2|Micro B Collar Receiver - User Manual - EN - 1.0

Table of Content
Description 3
Transmitter Magnet Location and Range 7
Switching the Collar Receiver On and Off 8
Fitting the Collar on the Dog 9
Checking the Collar Contact 10
Pairing the Collar Receiver with a Transmitter 11
Unpairing the Collar Receiver 12
Pairing the Collar Receiver via Bluetooth 13
Charging the Collar Receiver 14
Precautions for Use 16
Troubleshooting 17
Checking the Stimulation Operation 18
Recycling 19
Warranty 20
Conformity 21
2|Micro B Collar Receiver - User Manual - EN - 1.0
Description
Characteristics
□
□
The Micro B collar receiver is waterproof.
□
□
It has a discharged battery indicator.
□
□
The contact points are made of high quality stainless steel.
□
□
It is compatible with all transmitters from Martin System®.
□
□
It is easy to switch on and off.

Specifications
□
□
Dimensions:
□
□
Weight:
□
□
Power supply:
□
□
Frequency:
□
□
Antenna:
□
□
Operating temperature:
35 x 55 x 22 mm
34 g
3.7 V - 200 mAh Lithium Polymer
869.5 MHz
Integral
-20°C to +40°C
Micro B Collar Receiver - User Manual - EN - 1.0|3

Operating modes
Depending on your transmitter model and configuration, the Micro B collar
receiver is able to stimulate the dog in different ways and with different
levels.
•For more detailed information, please check the user guide of your
transmitter.
□
□
The Micro B collar receiver is equipped with:
•A buzzer.
•A vibrator.
•A stimulation system.
□
□
The Micro B collar receiver operates in 4 different default modes:
•Clicker (level 0).
•Stimulation (flash/nick, continuous and rising).
•Tone with vibration and stimulation (flash/nick, continuous and
rising).
•Warning tone and vibration followed by tone, vibration and
continuous stimulation.
4|Micro B Collar Receiver - User Manual - EN - 1.0

Operating modes
Depending on your transmitter model and configuration, the Micro B collar
receiver is able to stimulate the dog in different ways and with different
levels.
•For more detailed information, please check the user guide of your
transmitter.
□□The Micro B collar receiver is equipped with:
•A buzzer.
•A vibrator.
•A stimulation system.
□□The Micro B collar receiver operates in 4 different default modes:
•Clicker (level 0).
•Stimulation (flash/nick, continuous and rising).
•Tone with vibration and stimulation (flash/nick, continuous and
rising).
•Warning tone and vibration followed by tone, vibration and
continuous stimulation.
4|Micro B Collar Receiver - User Manual - EN - 1.0
Main benefits
Your Micro B collar receiver uses the best technologies in the electronic
collar industry and most of them are patented by Martin System®:
•The New High Tension Transformer - NHT (patented).
•The consistent reliable stimulation - S.S.C. ("Stimulation à Sensation
Constante") (patented).
•The Contact Measurement System - CMS (patented).
•The best quality contact points (made of marine grade stainless steel)
that greatly reduces the risk of chemical necrosis .

The smallest receiver with the longest battery life
□
□
The Martin System® patented NHT Transformer is about 1/8th the size
of a standard transformer, with the same capacity of stimulation and
consistent reliable stimulation.
□
□
The main benefits of using a NHT Transformer are:
•The smallest receiver with the longest battery life in standby.
•A stable stimulation even at high level when the battery is low.
Micro B Collar Receiver - User Manual - EN - 1.0|5

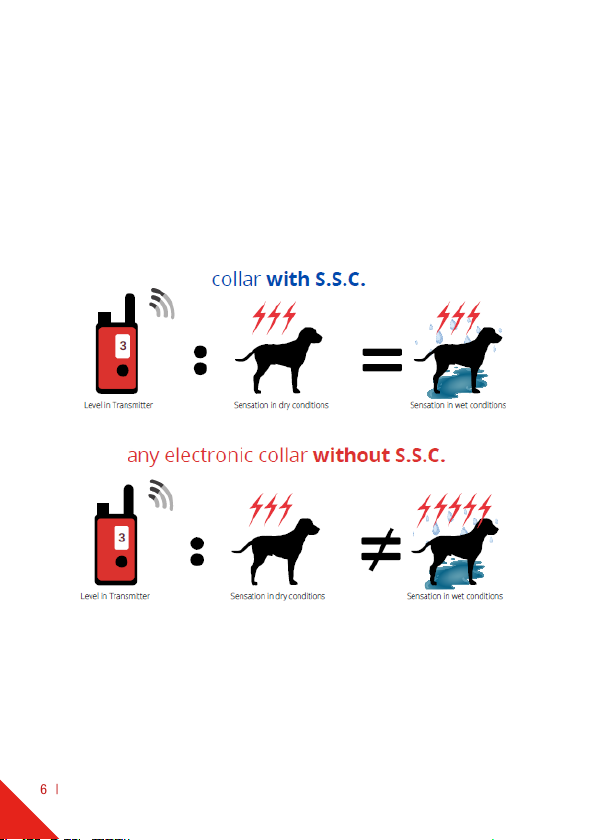

Safe and fair stimulation
The Micro B collar receiver is equipped with the patented S.S.C.
stimulation:
□
□
It measures the conditions of the dog's skin 20times per second .
□
□
It adapts the output stimulation level to ensure a constant and reliable
sensation felt by the dog.
□
□
This avoids the risk of accidental overstimulation of the dog due to
constantly changing environmental factors.

6|Micro B Collar Receiver - User Manual - EN - 1.0

Safe and fair stimulation
The Micro B collar receiver is equipped with the patented S.S.C.
stimulation:
□□It measures the conditions of the dog's skin 20times per second .
□□It adapts the output stimulation level to ensure a constant and reliable
sensation felt by the dog.
□□This avoids the risk of accidental overstimulation of the dog due to
constantly changing environmental factors.

6|Micro B Collar Receiver - User Manual - EN - 1.0
Transmitter Magnet Location and Range
The pictures below show, for different transmitters:
□
□
The location of the magnet.
□
□
The range of the collar receiver.
•The given range is valid in optimal conditions.
•For more detailed information, please check the user guide of your
transmitter.
Micro B Collar Receiver - User Manual - EN - 1.0|7

Switching the Collar Receiver On and Off
Switching the collar receiver ON
1. Slide the magnet (standalone or in the transmitter) next to the ON/
OFF/ synchronizing point of the receiver.
►
►
You hear an ascending tone.
►
►
The contact measurement starts if it is enabled in the application
(default setting).
►
►
The collar is ON and ready for use.
WARNING
If the tone does not start with the flashing of the LEDs, this means
that the battery is low and you should recharge it as soon as
possible.
TIP
Do not leave the magnet too long next to the ON/ OFF/
synchronizing point or the pairing process starts.
Switching the collar receiver OFF
1. Slide the magnet (standalone or in the transmitter) next to the ON/
OFF/ synchronizing point of the receiver.
►
►
You hear a descending tone.
►
►
The LEDs stop flashing.
►
►
The collar is OFF.
8|Micro B Collar Receiver - User Manual - EN - 1.0

Switching the Collar Receiver On and Off
Switching the collar receiver ON
1. Slide the magnet (standalone or in the transmitter) next to the ON/
OFF/ synchronizing point of the receiver.
►►You hear an ascending tone.
►►The contact measurement starts if it is enabled in the application
(default setting).
►►The collar is ON and ready for use.
WARNING
If the tone does not start with the flashing of the LEDs, this means
that the battery is low and you should recharge it as soon as
possible.
TIP
Do not leave the magnet too long next to the ON/ OFF/
synchronizing point or the pairing process starts.
Switching the collar receiver OFF
1. Slide the magnet (standalone or in the transmitter) next to the ON/
OFF/ synchronizing point of the receiver.
►►You hear a descending tone.
►►The LEDs stop flashing.
►►The collar is OFF.
8|Micro B Collar Receiver - User Manual - EN - 1.0
Fitting the Collar on the Dog
1. Clean and brush the fur. Remove any remaining underfur.
2. Position the Micro B collar receiver under the dog's neck.
3. Adjust the strap properly.
•If the strap is too loose, the contact points will not be in contact with
the dog’s skin and the dog will not feel the stimulations.
•If the strap is too tight, the dog will have difficulty breathing.
4. Use the CMS (Contact Measurement System) to fit the collar as loosely
as possible while ensuring a good contact with the skin.

Micro B Collar Receiver - User Manual - EN - 1.0|9

Checking the Collar Contact
The Micro B collar receiver uses the patented Contact Measurement
System (CMS).
□
□
A LED on the collar indicates if there is a contact with the dog's skin for
a safe and effective training.
□
□
The CMS makes it possible to avoid any accidental overstimulation
when there is no direct contact (due to bridging electricity).
□
□
While the CMS is checking for contact, the LED lights flash quickly and
alternatively.
□
□
The CMS is active for 2 minutes after switching the collar on.
□
□
When there is correct contact, one LED blinks twice every 3seconds.
□
□
Press on any button on the transmitter or on the FingerKick to stop the
CMS.
10|Micro B Collar Receiver - User Manual - EN - 1.0

Checking the Collar Contact
The Micro B collar receiver uses the patented Contact Measurement
System (CMS).
□□A LED on the collar indicates if there is a contact with the dog's skin for
a safe and effective training.
□□The CMS makes it possible to avoid any accidental overstimulation
when there is no direct contact (due to bridging electricity).
□□While the CMS is checking for contact, the LED lights flash quickly and
alternatively.
□□The CMS is active for 2 minutes after switching the collar on.
□□When there is correct contact, one LED blinks twice every 3seconds.
□□Press on any button on the transmitter or on the FingerKick to stop the
CMS.
10|Micro B Collar Receiver - User Manual - EN - 1.0
Pairing the Collar Receiver with a Transmitter
1. Position and hold the magnet (standalone or in the transmitter) next to
the ON/ OFF/ synchronizing point of the receiver.
2. Wait until the LEDs blink quickly and simultaneously.
3. Move the magnet and the transmitter at least 1meter away.
4. Within 10seconds, press the simulation button on your remote or on the
connected fingerkick.
5. Press the button again to make sure the pairing is done.
6. Press the stimulation button and check that the collar reacts.

Micro B Collar Receiver - User Manual - EN - 1.0|11

Unpairing the Collar Receiver
Micro B collar receiver with 1 ID code
1. Pair your collar to another transmitter.
►
►
It is automatically unpaired from the previous transmitter.
Micro B collar receiver with 4 ID codes
1. Position and hold the magnet (standalone or in the transmitter) next to
the ON/ OFF/ synchronizing point of the receiver.
2. Wait until the LEDs blink quickly and simultaneously.
3. Move the magnet at least 1meter away for about 3seconds.
4. Slide again the magnet (standalone or in the transmitter) next to the
ON/ OFF/ synchronizing point of the receiver
►
►
The LEDs stop flashing quickly and simultaneously.
►
►
The corresponding pairing is erased.
You can pair the Micro B collar receiver with up to 4 transmitters / ID codes
(that is both sides of 2PT3000 devices):
□
□
The transmitters are paired in the order 1, 2, 3, and 4.
□
□
If you pair an additional transmitter, it replaces the 4th one.
□
□
To erase the transmitters / ID codes 1, 2, 3 and 4 unpair all transmitters.

12|Micro B Collar Receiver - User Manual - EN - 1.0

Unpairing the Collar Receiver
Micro B collar receiver with 1 ID code
1. Pair your collar to another transmitter.
►►It is automatically unpaired from the previous transmitter.
Micro B collar receiver with 4 ID codes
1. Position and hold the magnet (standalone or in the transmitter) next to
the ON/ OFF/ synchronizing point of the receiver.
2. Wait until the LEDs blink quickly and simultaneously.
3. Move the magnet at least 1meter away for about 3seconds.
4. Slide again the magnet (standalone or in the transmitter) next to the
ON/ OFF/ synchronizing point of the receiver
►►The LEDs stop flashing quickly and simultaneously.
►►The corresponding pairing is erased.
You can pair the Micro B collar receiver with up to 4 transmitters / ID codes
(that is both sides of 2PT3000 devices):
□□The transmitters are paired in the order 1, 2, 3, and 4.
□□If you pair an additional transmitter, it replaces the 4th one.
□□To erase the transmitters / ID codes 1, 2, 3 and 4 unpair all transmitters.

12|Micro B Collar Receiver - User Manual - EN - 1.0
Pairing the Collar Receiver via Bluetooth
Installing the application
□
□
Search and install the application Doggify on your smartphone.
□
□
Or scan the QR code:

◄ Android

iOS ►
First pairing:
1. Switch the collar receiver on.
2. Make sure that the Bluetooth is activated on your smartphone.
3. Start the Doggify application.
4. Add a new collar receiver when requested or press the (+) sign in the
upper right corner of the application screen.
5. Tap on the Micro B device.
►
►
The device connects to your collar receiver.
6. Accept the pairing.
►
►
The LEDS flash quickly on the collar receiver to confirm the pairing.
7. In the next 30 seconds and to ensure the pairing with the proper collar
receiver, slide again the magnet next to the ON/ OFF/ synchronizing
point of the receiver.
►
►
A green check sign is displayed on the application screen.
►
►
The collar receiver is paired with your smartphone.
Micro B Collar Receiver - User Manual - EN - 1.0|13

Charging the Collar Receiver
1. Connect the power supply to the charger module.
2. Connect the power supply to a power source (mains, 12V cigarette
lighter socket, USB port of a computer...).
►
►
A LED on the charger module lights continuously.
3. Switch the Micro B collar receiver OFF.
4. Plug the collar receiver on the charger module aligning the red dot on
the collar receiver with the red dot on the charger module..
►
►
If the receiver is correctly placed, the battery automatically charges.
14|Micro B Collar Receiver - User Manual - EN - 1.0

Charging the Collar Receiver
1. Connect the power supply to the charger module.
2. Connect the power supply to a power source (mains, 12V cigarette
lighter socket, USB port of a computer...).
►►A LED on the charger module lights continuously.
3. Switch the Micro B collar receiver OFF.
4. Plug the collar receiver on the charger module aligning the red dot on
the collar receiver with the red dot on the charger module..
►►If the receiver is correctly placed, the battery automatically charges.
14|Micro B Collar Receiver - User Manual - EN - 1.0
WARNING
If you hear an ascending tone, the collar receiver is inserted the
wrong way in the charging module or the charging module is not
powered.
5. Check the LED on the collar receiver:
•Flashing: the battery is charging.
•Continuous: the battery is charged.
Micro B Collar Receiver - User Manual - EN - 1.0|15

Precautions for Use
Martin System® follows ECMA rules.
□
□
Do not leave the collar around the dog's neck for long periods.
•Never longer than 8 consecutive hours.
•The pressure and the friction of the contact points may irritate the
skin.
□
□
Every day, check the dog for roughness, irritated skin or cuts in
the area in contact with the contact points.
If this is the case:
•Remove the collar immediately.
•Administer the appropriate care.
•Wait until the dog has healed completely before using a collar.
•If the skin condition does not improve, consult a veterinarian.
□
□
Every week, disinfect the dog’s neck and the contact points.
•Use a sponge or a towel soaked with a disinfecting solution.
□
□
If the dog is in poor health, consult a veterinarian before using a
training collar.
□
□
To properly use this product, you need a minimum of basic
training (such as sit, lie down and some knowledge of recall).
□
□
Regularly check that the contact points are securely attached and
locked in place.
□
□
Never leave the collar receiver close to a transmitter or a magnet
that may pair or unpair the collar unexpectedly.
16|Micro B Collar Receiver - User Manual - EN - 1.0

Precautions for Use
Martin System® follows ECMA rules.
□□Do not leave the collar around the dog's neck for long periods.
•Never longer than 8 consecutive hours.
•The pressure and the friction of the contact points may irritate the
skin.
□□Every day, check the dog for roughness, irritated skin or cuts in
the area in contact with the contact points.
If this is the case:
•Remove the collar immediately.
•Administer the appropriate care.
•Wait until the dog has healed completely before using a collar.
•If the skin condition does not improve, consult a veterinarian.
□□Every week, disinfect the dog’s neck and the contact points.
•Use a sponge or a towel soaked with a disinfecting solution.
□□If the dog is in poor health, consult a veterinarian before using a
training collar.
□□To properly use this product, you need a minimum of basic
training (such as sit, lie down and some knowledge of recall).
□□Regularly check that the contact points are securely attached and
locked in place.
□□Never leave the collar receiver close to a transmitter or a magnet
that may pair or unpair the collar unexpectedly.
16|Micro B Collar Receiver - User Manual - EN - 1.0
Troubleshooting
You hear an ascending tone when you switch on the collar receiver
connected to the charging module
□
□
The collar may be reversed on the charging module.
•Remove and insert it again in the correct position.
□
□
The charging module may be not powered.
•Power the charging module with a USB cable.
You cannot switch on the collar receiver
□
□
The battery of the collar receiver may be fully discharged.
•Recharge the collar receiver on the charging module.
•If it is fully discharged, charge it for about one hour before trying to
switch it on.
The collar receiver does not respond when you press a button
□
□
The devices may be unpaired.
•Pair again the devices.
□
□
Check the operation at various distances.
•If it is a range problem, replace your transmitter battery.
If you encounter any other problem
□
□
Check the FAQ on our website.
□
□
Contact our service centre.
Micro B Collar Receiver - User Manual - EN - 1.0|17

Checking the Stimulation Operation
To check the correct operation of the collar receiver, you need the
indicator lamp.
1. Attach the alligator clips to the contact points.
2. Send one or more stimulations with your remote control.
►
►
If the receiver is working correctly, the indicator lamp illuminates with
each impulse (the higher the level, the brighter the illumination).
►
►
If the indicator lamp does not light for levels higher than1, contact your
retailer.

18|Micro B Collar Receiver - User Manual - EN - 1.0

Checking the Stimulation Operation
To check the correct operation of the collar receiver, you need the
indicator lamp.
1. Attach the alligator clips to the contact points.
2. Send one or more stimulations with your remote control.
►►If the receiver is working correctly, the indicator lamp illuminates with
each impulse (the higher the level, the brighter the illumination).
►►If the indicator lamp does not light for levels higher than1, contact your
retailer.

18|Micro B Collar Receiver - User Manual - EN - 1.0
Recycling
Standards require that electrical parts and electronic devices
are recycled and not thrown in the waste bin.
If you are no longer using this material or if it cannot be
repaired, do not throw it away in the usual household rubbish.
Return it to the vendor or contact Martin System® customer
service for further information.
Micro B Collar Receiver - User Manual - EN - 1.0|19

Warranty
Martin System® guarantees its equipment against manufacturing defects
for 2years, covering parts and labour.
This warranty covers all faults that occur under normal operating
conditions.
Faults arising from accidents and/or improper use are not covered.
The warranty does not cover any of the following:
•The replacement of batteries.
•The replacement of the strap.
•The transport risks involved in returning the product to Martin
System®.
•The damage to the product as a result of negligence or an error on
the part of the user.
•The damage to the product as a result of repairs made by non-
authorised persons.
•The liability for damage caused by the improper use of the product or
a breakdown.
In the case of a defect, the device will, at Martin System® discretion, be
repaired or exchanged.

To benefit from this warranty, you must send to Martin System®, within
ten days, the warranty certificate that accompanies the device . The
warranty does not cover devices for which the warranty certificate has not
been filled in an returned to Martin System®.
20|Micro B Collar Receiver - User Manual - EN - 1.0
