Martin Yale 400 User manual

8704798Q ev.2 4/5/12
HJOG 100
Paper Jogger

INTRODUCTION:
Thank you for selecting the Martin Yale Model 400 Jogger. The Model 400
Jogger has been developed for ease of operation and maintenance, howev-
er, we recommend that you familiarize yourself with the machine by carefully
reading these instructions.
WARNING: THIS MACHINE CONTAINS MOVING PARTS THAT CAN
CATCH HAIR OR LOOSE CLOTHING AND PINCH FINGERS. DUR-
ING OPERATION AND MAINTENANCE, KEEP HANDS, HAIR, AND
LOOSE CLOTHING CLEAR OF MOVING PARTS. SERVICE OR DIS-
ASSEMBLY SHOULD BE DONE WITH POWER CORD DISCON-
NECTED.
WARNING: THE UNIT SHALL BE CONNECTED TO SUITABLE
EARTHED MAINS SOCKET-OUTLET.
WARNING: NO USER REPLACEABLE PART INSIDE.
WARNING: THE PLUG SHALL BE USED TO DISCONNECT MAINS
POWER.
WARNING: THE SOCKET-OUTLET IS REQUIRED TO BE EASILY
ACCESSIBLE.
INSTALLATION:
emove jogger from carton. emove 2 bolts at bottom which secure packing
material to jogger.
Plug unit into an appropriate outlet.
OPERATION:
Load paper. Turn Jogger ‘ON’ by depressing the ’I’ side of the switch.
When jogging is complete, turn Jogger ‘off’. When Jogger has stopped,
remove paper.
MAINTENANCE:
No user maintenance required.

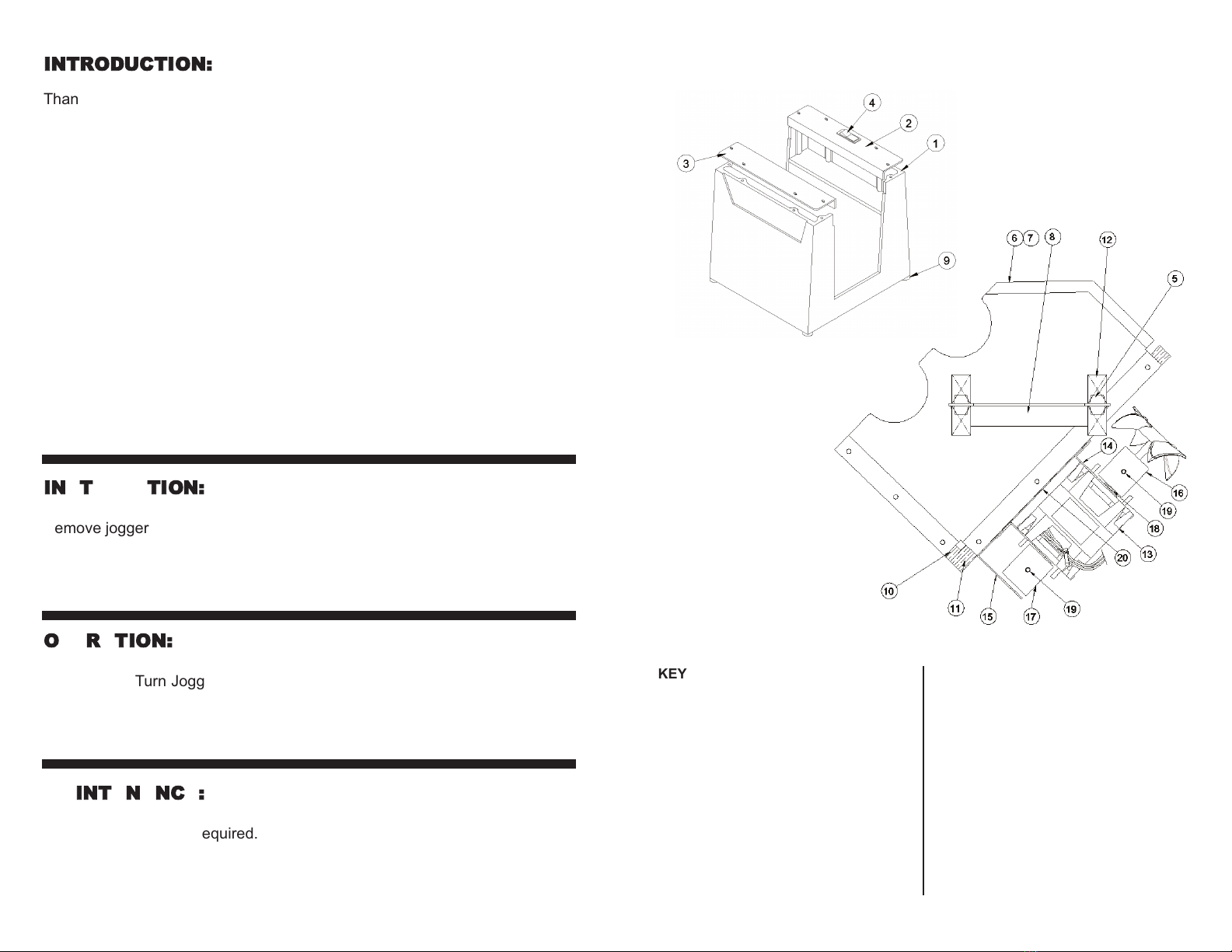

KEY DESCRIPTION PART NO. QTY
1 Base M-O400001 1
2 Top Cover- .H. W-O400002 1
3 Top Cover-L.H. W-O400003 1
4 Switch M-S033053 1
5 Bumpers M-S030045 12
6 Side Panel- .H. W-O400008 1
7 Side Panel-L.H. W-O400009 1
8 Side Bracket- .H. W-O400010 2
9W Bumper M-S030003 4
10 Wood Tray-Bottom W-O400006 1
11 Wood Tray-Back W-O400007 1
12 Springs M-S031074 8
13 Motor (110V) M-S021064 1
13 Motor (220VAC) M-S021065 1
KEY DESCRIPTION PART NO. QTY
14 Motor Brkt W-O400015 2
15 Motor Cover End W-O400028 1
16 Weight w/Fan W O400032 1
17 Weight W-O400032 1
18 Nylon Washer M-S019070 1
19 10-32 Set Screw M-S002007 2
20 Motor Heat Plate W-O400027 1
Not Shown
115V Line Cord M-S037020 1
Europ. Cord Set M-S037286 1
UK Cord Set M-S045177 1
Hasler HJOG 100 Paper Jogger
