MAC 2000
Performance
service manual

INTRODUCTION
SCOPE
This document describes replacement and adjustment procedures for the MAC 2000 Performance framing and
zoom/focus modules. The procedures in the MAC 2000 Wash service manual may be used to service the
CMYC module, yoke, and base.
COMMENTS
If you have suggestions for improving this document, please send them to [email protected]k.
PRECAUTIONS
RISK OF ELECTRICAL SHOCK
Warning! Always disconnect the fixture from AC power before and while servicing.
Removal of any cover exposes connectors that carry lethal electric currents. While working on a fixture under
power:
• Make sure the fixture is electrically grounded.
• Use a supply with ground-fault-interrupt protection.
• Never touch any connector that carries voltage.
• Be careful with tools that conduct electricity.
RISK OF UV RADIATION AND LAMP EXPLOSION
Discharge lamps emit harmful ultraviolet (UV) light that can cause eye and skin burns through direct exposure.
They also work under high pressure that occasionally causes them to explode. To eliminate the risk of injury
from the discharge lamp,
• Never operate the lamp with covers or lenses removed.
• Do not look directly into the light.
ELECTROSTATIC DISCHARGE
Printed circuit boards (PCBs), individual ICs, and Hall sensors can be damaged by electrostatic discharge
(ESD). To avoid damaging these ESD sensitive parts:
• Ensure that you and your tools have the same potential (ground) as the fixture before and when handling any of
the above components.
• Store PCBs in antistatic (electrically conducting) bags and store ICs in antistatic foam.
• Power off the fixture and allow capacitors do discharge before removing or inserting components on the PCB.
INDUCTIVE LOADS
Power off the MAC 2000 Performance before connecting or disconnecting step motors. Failure to do so can
damage the motor drivers.

Service notes 3
© 2000 Martin Professional A/S, Denmark
MAC 2000 Performance Service Manual
SERVICE NOTES
THREADLOCK
Threadlock is highly recommended on all machine screws except self-tapping (Taptite)
screws to prevent loosening. Threadlock should be reapplied if the screws are removed.
Two types of threadlock are available from Martin. For set screws, use Loctite 290, P/N
37020002. For all other screws, use Loctite 243, P/N 37021002. Both come in 10 ml tubes.
Be careful to avoid getting any material on shafts or axles. A needle and syringe makes an
idea application tool.
Long set screws: Start the screw and turn it until it contacts the shaft. Back the screw 2
turns, apply a small drop or 2 of Loctite 290 to the threads, and then tighten the screw as
you normally would.
Short set screws: Back the set screw out of the adaptor until 2 threads stick out of the
shaft. Apply a small drop or 2 of Loctite 290 to the threads, and then tighten the screw
within 60 minutes.
Other metric screws: Apply a drop of Loctite 243 (blue) to 3 or 4 threads, or spread a thin
stripe with a syringe, before starting the screw.
SELF-TAPPING SCREWS
The reuse of self-tapping “Taptite” screws is not recommended as these screws are
designed to cut threads and can strip existing threads when reinserted. Change to metric
hardware of the same size when reinstalling parts originally held with Taptites.
If installing a new part without threads, use new self-tapping screws. Do not use old
taptites to cut new threads!
LUBRICATION
Silicone grease, P/N 37302002, “Silicon grease, clear, 100g”, is used, for example, to
lubricate brass bushings inside of pulleys and between moving metal plates such as the
motor bracket for color wheel 1 on the MAC 2000 Wash.
Slides are generally lubricated with the high viscosity silicone oil, P/N 37302005, “High
viscosity silicone oil, 200 ml, in applicator bottle.”
Bearings are lubricated with P/N 37302004, “Silicone oil, 200 ml, in applicator bottle”.

Module removal 4
© 2000 Martin Professional A/S, Denmark
MAC 2000 Performance Service Manual

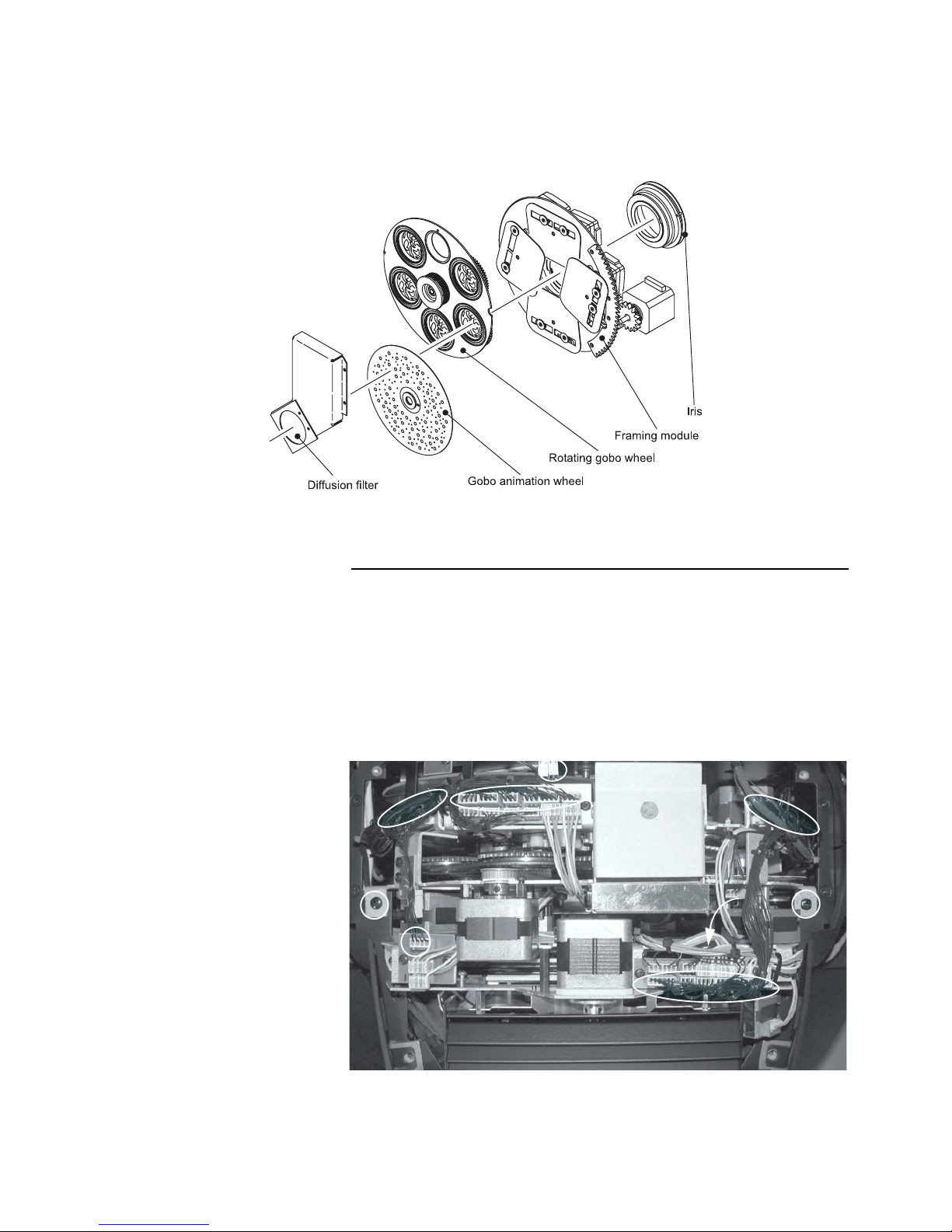

FRAMING / IRIS / GOBO MODULE
MODULE REMOVAL
REMOVE FRAMING/IRIS/GOBO MODULE
1 Remove top head shell and lock the head horizontally.
2 Remove fastening screws as shown on each side.
3 Unplug the fan wires, framing/iris/gobo wires, dimmer cable (16), CMYC wires, and the
CMYC thermosensor (T) as shown.
4 Carefully lift the module out by the bridges.
1
2
22
33
44
5
6
7
1. fan connectors
2. framing/iris/gobo connectors
3. module bridges
4. fastening screws
5. dimmer connector
6. CMYC connectors
7. CMYC thermosensor connector

Module disassembly 5
© 2000 Martin Professional A/S, Denmark
MAC 2000 Performance Service Manual

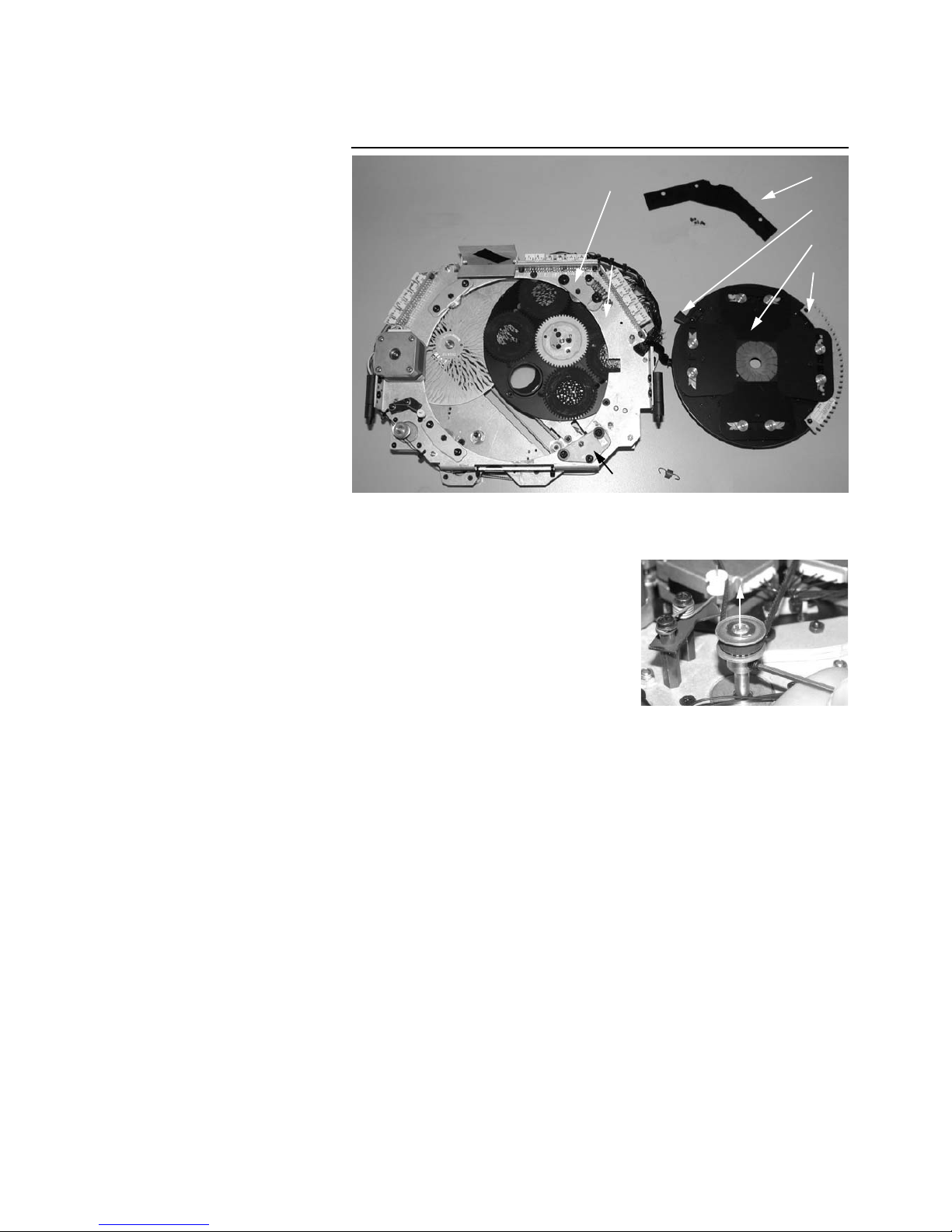

MODULE DISASSEMBLY
SEPARATE THE FRAMING/IRIS MODULE
1 To avoid damaging the iris belt when removing
and replacing, remove the iris motor gear from
the motor shaft.
2 Remove the cable guard.
3 Align the framing rotation stop with the access
hole in the framing plate.
4 Pull the springed guide wheel levers back to
release the module, you can remove springs to
make this easier, and lift out the rotating assembly.
5 Installation is the reverse. Important note:
Avoid twisting the cable bundle when
replacing the rotating assembly
.
1. cable guard
2. framing rotation stop
3. framing wheel and iris
4. framing wheel rack
5. guide-wheel levers
6. framing plate
7. gobo module
1
2
4
6
5
3
5

Module disassembly 6
© 2000 Martin Professional A/S, Denmark
MAC 2000 Performance Service Manual
SEPARATE GOBO MODULE FROM FRAMING/IRIS
MODULE
1 Remove 5 torx screws from the module spacers. Do not remove the torx screws that
fasten the gobo rotation sensor PCB.
2 Unplug the gobo wheel sensor (29) and the gobo rotation sensor (28). Unplug the
gobo motors (1 and 2) from the connection print. Cut the strip tie securing the gobo
animation wheel motor and sensor.
3 Unfold the module.
1.gobo module
2. framing/iris module
1 2

Framing shutters 7
© 2000 Martin Professional A/S, Denmark
MAC 2000 Performance Service Manual

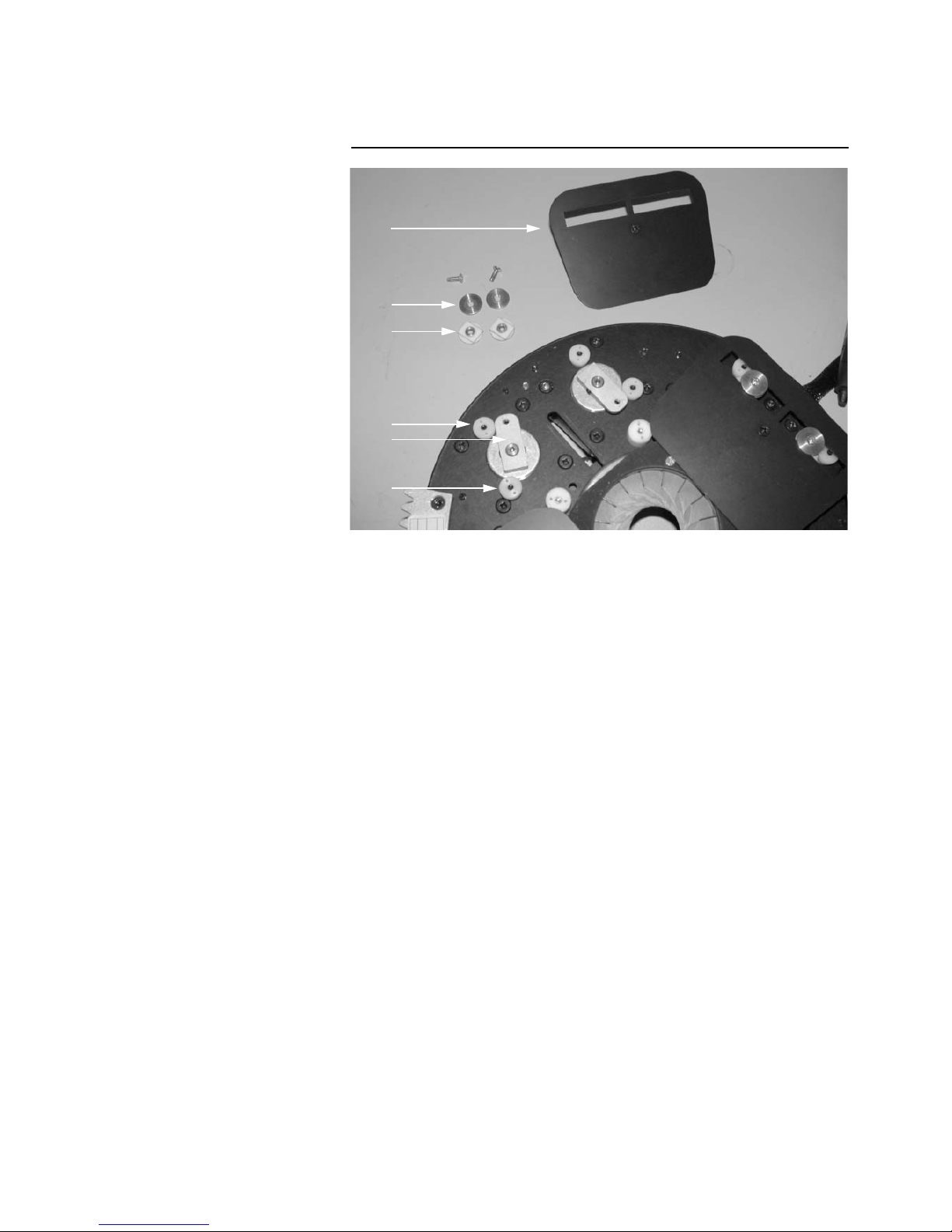

FRAMING SHUTTERS
REPLACE MOTOR
The Pozidrive motor screws are locked
with threadlock and can be difficult to
remove without stripping the head.Use
a PZ 0 screwdriver in excellent condi-
tion. Heating the screws well with a
soldering iron softens the threadlock
and makes removal easier.
1 Separate the framing/iris module.
2 Remove the brass discs and lift off the shutter blade. There is a small spring on the
back.
3 Remove the motor screws from the shutter side of the plate. Remove the motor.
4 Remove shutter arm from shaft.
5 Install the new motor and loosely place the shutter arm on the shaft, between the
stops.
1
2
3
4
5
6
1. shutter blade
2. brass discs
3. nylon slide assemblies
4. outside stop
5. shutter arm
6. inside stop

Framing shutters 8
© 2000 Martin Professional A/S, Denmark
MAC 2000 Performance Service Manual
ADJUST MOTOR
1 Set the shutter arm’s position along the shaft
to distance “A” (using a feeler gauge) or
distance “B” (using a calliper gauge) and
tighten one of the set screws just enough to
hold the adjustment.
2 Plug an extension cable between the
connection PCB and the head cable or PCB
output.
3 Apply power and cancel the pan/tilt reset by
pressing the “Menu” and “Enter” keys on the
control panel. Allow the reset to complete and
then navigate the control menu to UTIL / AdJ /
HEAd / bEAM / AdJ. Press the drive lever
against the inside stop and tighten the set
screws.
4 Check the adjustment with the “IN” and “OUT”
commands: when selected, the drive arm
should be about 0.5 mm (0.02 in.) from the
inside and outside stops, respectively. (If the motor turns backwards, the extension
cable is reversed at one end.)
Motor LA LB TA TB RA RB BA BB
Socket/Wire 345678910
Blade position upper lower upper lower
Distance “A” 1.2 mm 0.15 - 0.2 mm 1.2 mm 0.15 - 0.2 mm
Distance “B” 6.2 mm 5.15 - 5.2 mm 6.2 mm 5.15 - 5.2 mm
RBRA
BB
BA
LALB
TB
TA
AB

Framing shutters 9
© 2000 Martin Professional A/S, Denmark
MAC 2000 Performance Service Manual
REPLACE SHUTTER BLADE
1 Remove the rectangular guide from each
sliding nylon assembly. Place the sliding
assembly on the shutter arm.
2 Position the shutter blade over the sliding
assemblies.
3 Press the rectangular guides into the slots and
onto the brass sleeves.
4 Place the brass discs over the rectangular
slides with the countersink up.
5 Align everything and insert the screws.
Tighten securely.
6 Flip the wheel over and hook the spring onto
the shutter blade pin.

Framing rotation 10
© 2000 Martin Professional A/S, Denmark
MAC 2000 Performance Service Manual

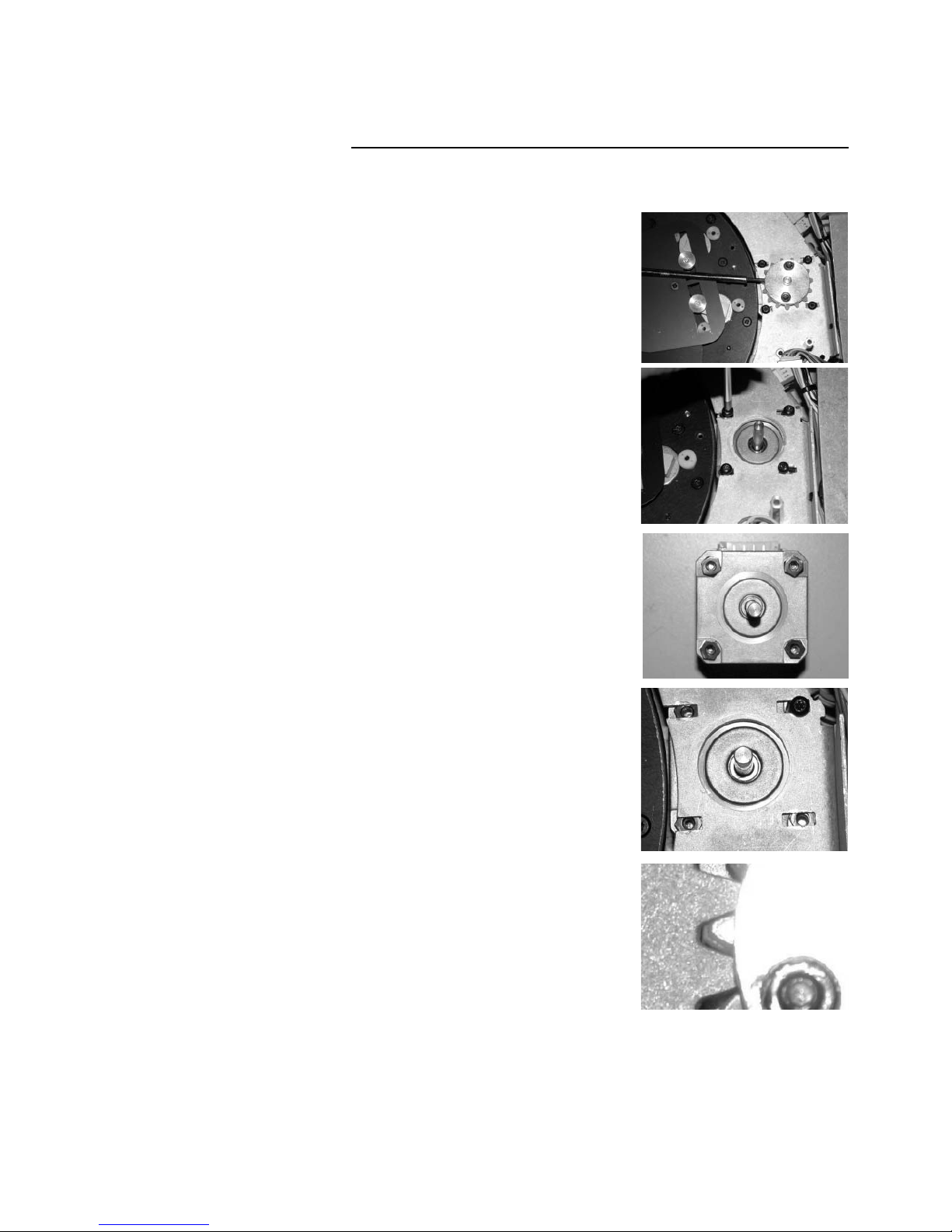

FRAMING ROTATION
REPLACE MOTOR OR GEAR
1 Separate the gobo module from the
framing/iris module.
2 Remove the rack from the framing wheel as
shown here or separate the framing/iris
module. Loosen 2 set screws and pull the gear
assembly off the motor shaft.
3 Remove and unplug the motor.
4 Arrange the nuts on the new motor and turn it
so the socket faces away from you. Note that
the nuts between the motor and the plate are
oversized and used as spacers only.
5 Place the module over the motor as shown and
replace the screws loosely.
6 Put the gear assembly on the motor shaft but
do not tighten. Put the framing wheel back in
the framing module, or, replace the rack using
new M3 x 12 CS Torx screws (P/N 08050801) to
replace the taptites.
7 Position the frame rotation motor so that there
is a paper-thin gap and the slightest amount of
play between the motor gear and the rack.
Tighten the motor screws and verify that the
framing wheel turns smoothly with even
resistance through its range.
8 Center the motor gear on the rack and tighten
both set screws.
9 Plug in the new motor and reassemble the
module.
ADJUSTMENT
Frame rotation is electrically indexed: no mechanical adjustment is required.

Iris 11
© 2000 Martin Professional A/S, Denmark
MAC 2000 Performance Service Manual

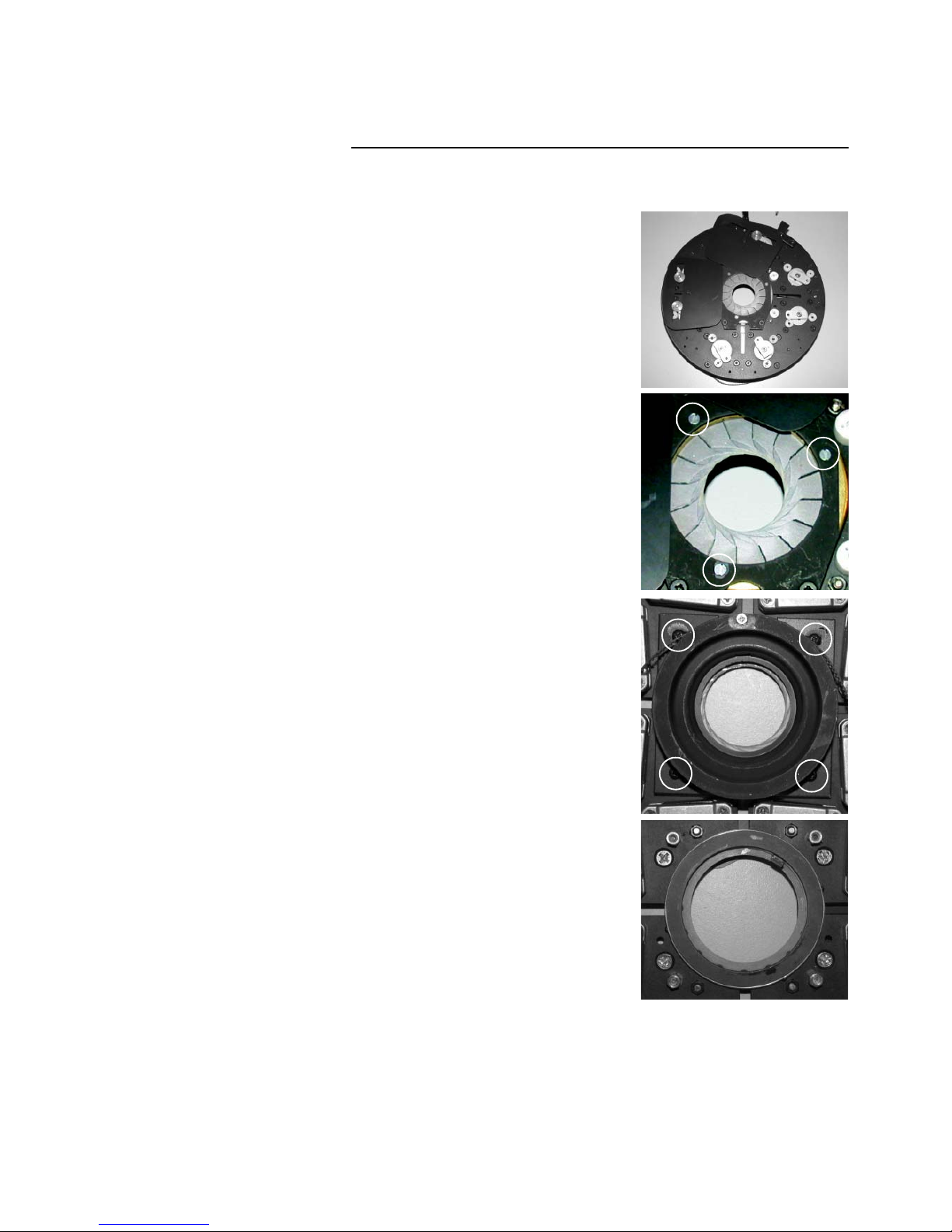

IRIS
REPLACE IRIS
1 Separate the framing/iris module and place
the wheel with the shutter blades up.
Remove the bottom and right shutter
blades and partially remove the top blade to
access the 3 iris screws.
2 Remove 3 screws from iris.
3 Turn the wheel over and remove 4 screws
from iris drive plate. Lift out the iris.
4 Insert the new iris with the drive lever at 1
o’clock as shown. Turn the module over,
align the holes, and fasten the iris with the 3
screws.

Iris 12
© 2000 Martin Professional A/S, Denmark
MAC 2000 Performance Service Manual

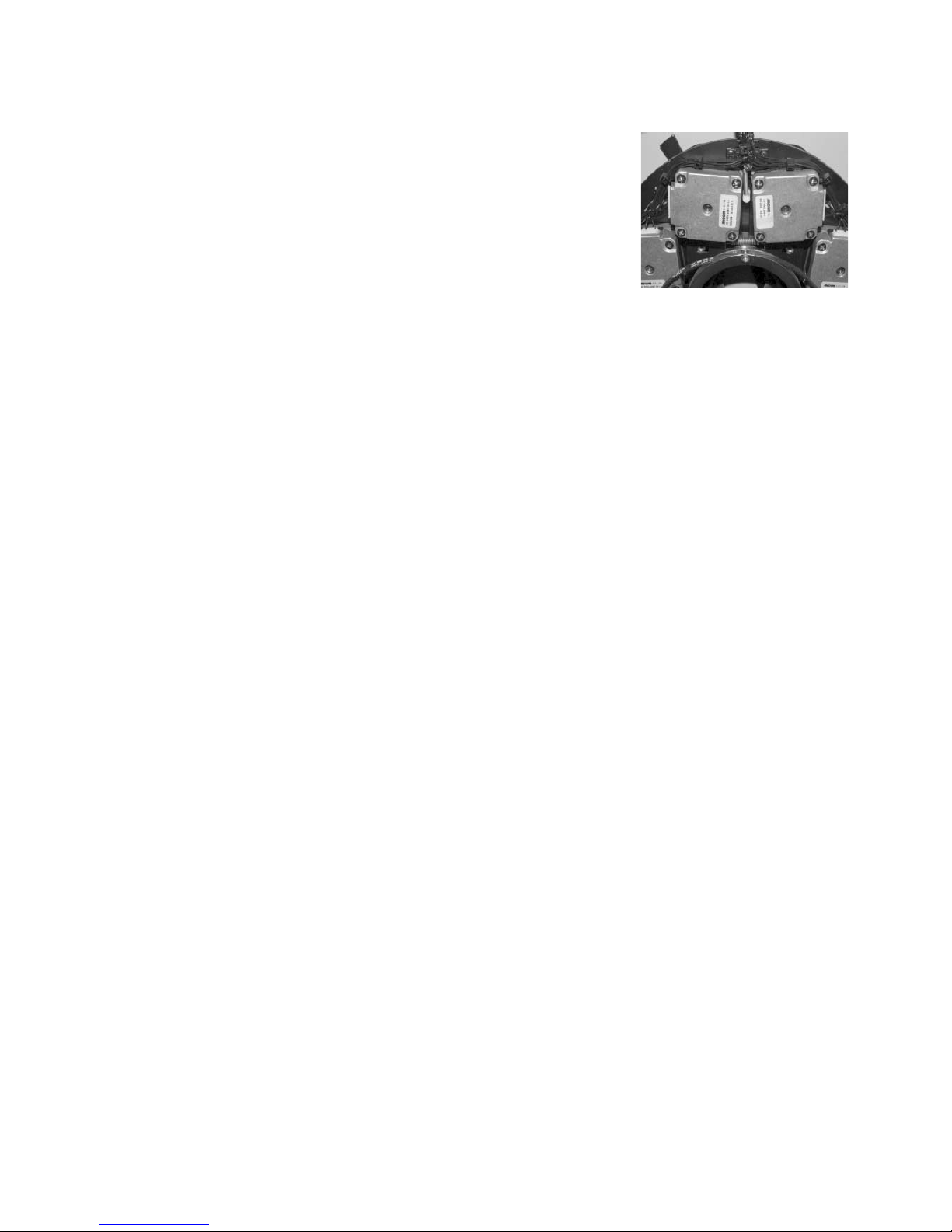

5 Turn the module back over to replace the
iris drive pulley. Orient the plate with the
spring end up, towards the wire bundle, and
turn the drive pulley to align the slot with
the iris lever. Align the plate over the spacer
nuts and fasten. Tighten the screws on the
side with the spring after tightening the
other 2 screws.
6 Replace the shutter blades.
REPLACE IRIS BELT
1 Work the iris belt off the drive motor.
2 Remove the belt retaining screw from the iris drive pulley and pull off the old belt.
3 Apply a few drops of
Loctite 408 to the drive pulley, under the retaining screw, place
the belt on the drive pulley, and replace the retaining screw.
4 Work the belt onto the motor gear and tensioner.
ADJUST IRIS
No mechanical adjustment of the iris is required. The iris can be calibrated with a software
offset value.

Gobo animation wheel 13
© 2000 Martin Professional A/S, Denmark
MAC 2000 Performance Service Manual
GOBO ANIMATION WHEEL
REPLACE POSITION BELT
1 Remove the gobo animation wheel.
2 Release belt tension and work the position
belt off the end pulley closest to the motor.
Remove the 2 guide rail retaining brackets.
Snap the guide rails out of the plastic clips.
3 Work the belts off the pulleys.
4 Remove the sliding assembly from the
guide rails and loosen the belt clamp.
Remove the old belt and install the new one
with the teeth facing the clamp. Tighten the
clamp.
5 Put the sliding assembly in its approximate
location to remove twist. Lead the belt
down through the motor hole and up over
the gear.
6 Snap the inside guide rail into the clip, then
work the belt over the tensioner and end
pulleys.
1. rotation belt
2. rotation belt tensioner
3. gobo animation wheel
4. sliding assembly
5. guide rail retaining bracket
6. inside guide rail
7. position belt tensioner
8. position motor
9. rotation motor
10. outside guide rail
11. position belt
1
2
4
5
6
3
7
8
9
10
11

Gobo animation wheel 14
© 2000 Martin Professional A/S, Denmark
MAC 2000 Performance Service Manual
7 Insert the outside guide rail into the sliding
assembly. Snap the outside rail into place.
8 Replace the guide rail retaining brackets.
9 Work the rotation belt over the rotation
motor and tensioner.
10 Replace the gobo animation wheel.
REPLACE POSITION
MOTOR
1 Separate the gobo module from the
framing/iris module to access the inside
motor screw. Unplug and remove motor.
2 Move motor gear to new motor. Install new
motor with plug socket towards the belt
tensioner.
3 Align the motor gear with the belt pulleys
and tighten the set screw.
ADJUSTMENT
The wheel position is electrically indexed: no mechanical adjustment is required.
REPLACE ROTATION BELT
1 Remove the gobo animation wheel.
2 Release tension from the belt and work it
off. This is easier if you separate the
framing/iris module, but it is not necessary
to do so.

Gobo animation wheel 15
© 2000 Martin Professional A/S, Denmark
MAC 2000 Performance Service Manual

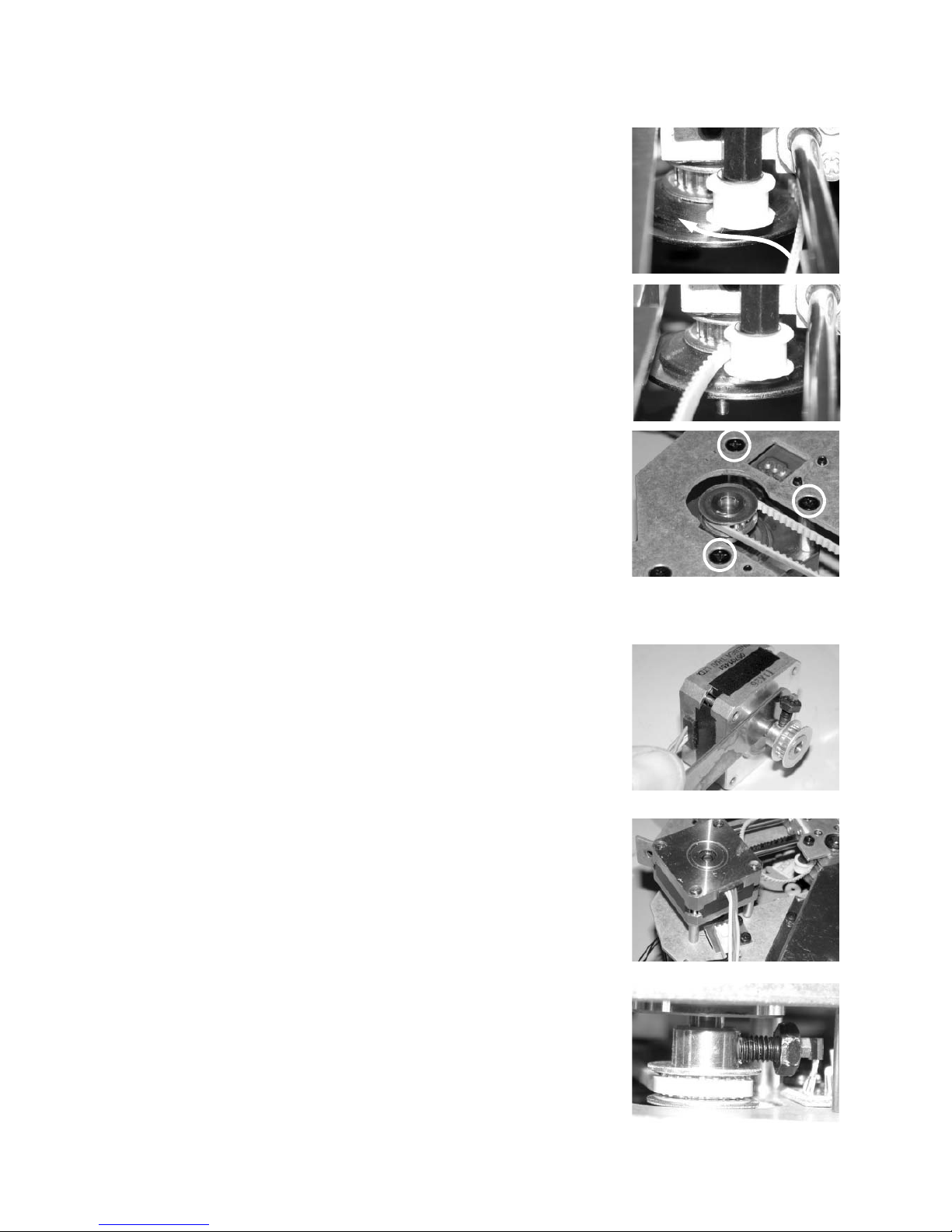

3 Lead the new belt around the drive gear and
under the guide rollers. Then lead the belt
around the motor gear and tensioner.
4 Replace the gobo animation wheel.

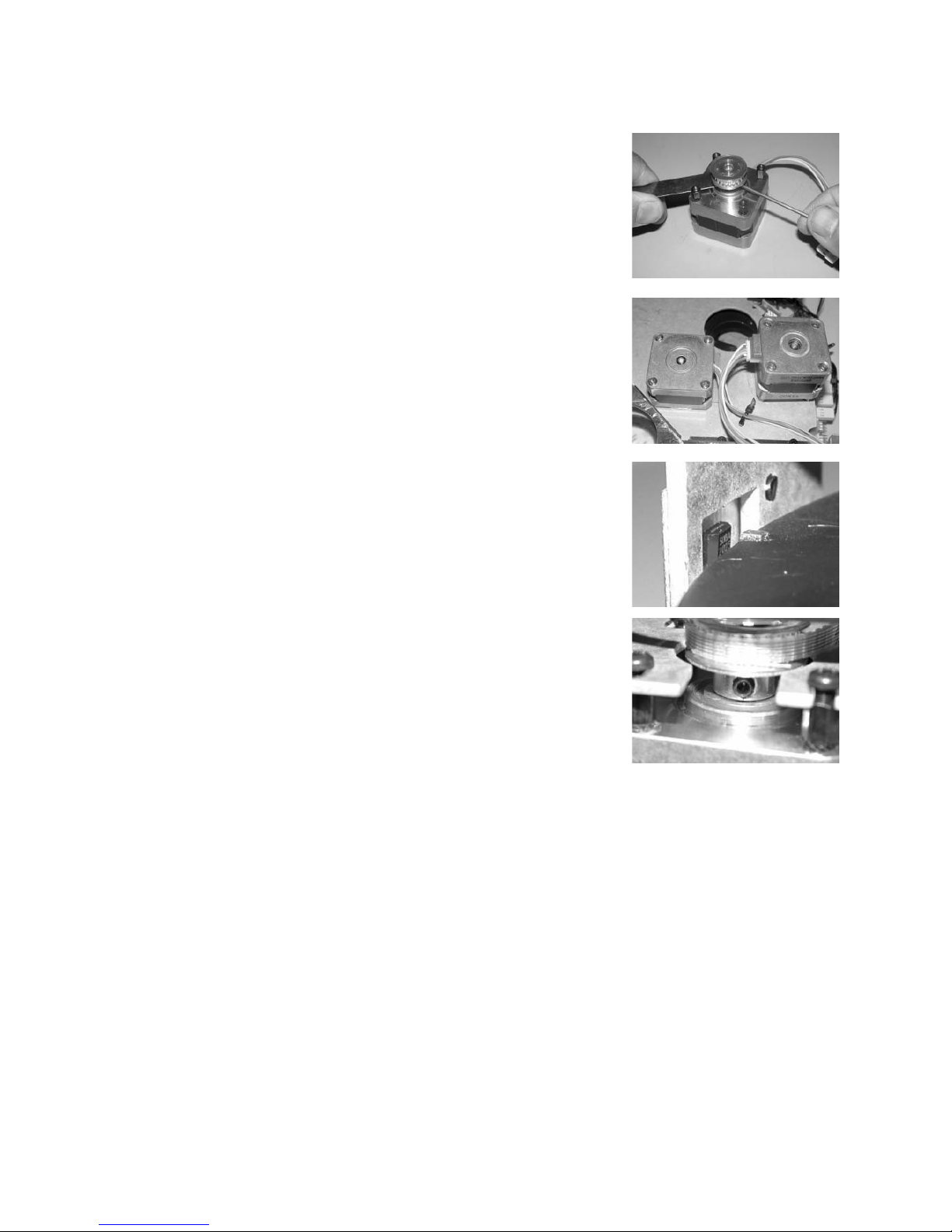

REPLACE ROTATION
MOTOR
1 Separate the gobo module from the
framing/iris module to access the motor
screws. Remove the gobo animation wheel.
2 Remove the 3 motor screws and remove the
motor.
3 Cut strip ties as required and unplug the
motor (13).
4 Move the gear to the new motor. Position it
with 1.5 - 1.6 mm (1/16 in.) between the face
of the motor and the bottom of the adapter.
Tighten the set screw.
If you don’t have 4 hands, hold 2 of the
screws in place with tape while you
start the third screw.
5 Place the new motor with the cable over the
sensor as shown and fasten with screws
and stand-offs.
6 Plug in the motor and arrange the belt.
7 Assemble the module, replace the gobo
animation wheel, and tie the cable with new
strip ties.
8 Verify that the sensor magnet aligns
vertically with the Hall sensor.
ADJUSTMENT
The rotation angle is magnetically indexed
using a routine that does not require
mechanical adjustment of the sensor magnet.

Gobo wheel 16
© 2000 Martin Professional A/S, Denmark
MAC 2000 Performance Service Manual

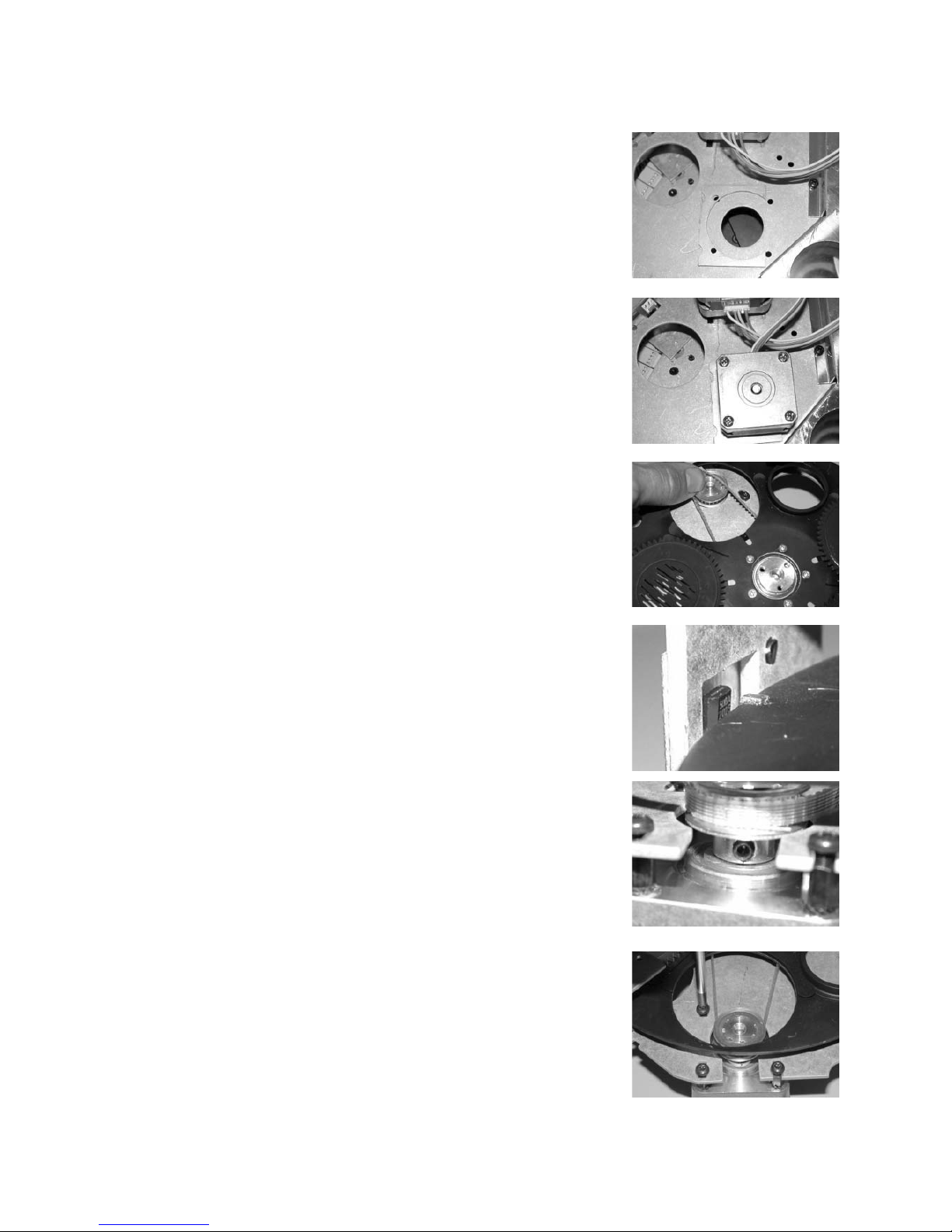

GOBO WHEEL
REPLACE ROTATION MOTOR, ROTATION GEAR,
AND BELT
1 Separate the gobo module from the
framing/iris module.
2 Unscrew and remove the silicone gear.
To access the inner screw, remove the
gobo holder from position 1, which is
between open and the magnet. To
access the outer screws, align the ser-
vice notch in the wheel with the screw.
3 Take the gobo holder out of position 1 and
remove tension from the belt by loosening
the motor screws.
4 Remove the snap ring from the bearing and
remove the gobo wheel. The belt can now
be replaced.
5 Remove the motor. When installing a new
motor, we recommend a new bearing (P/N
16900110, “Bearing/motor adaptor,
MAC2000” and shaft adaptor (P/N
16300220, “Gear wheel adaptor, MAC2000.”
If reusing the existing hardware, be careful
not to damage the bearing: it must fit
precisely inside the gobo wheel.
6 Place the bearing on the new motor. Apply
threadlock to the set screws and then press
the shaft adapter onto the motor shaft with
a 1.15 mm feeler gauge between the adapter
and the bearing. Tighten the set screws.

Gobo wheel 17
© 2000 Martin Professional A/S, Denmark
MAC 2000 Performance Service Manual
7 Arrange the motor spacer as shown.
8 Place the motor as shown and fasten.
9 Place the belt over the motor and then
press the gobo wheel onto the bearing.
Replace the snap ring. Work the belt over
the wheel rotation motor.
10 To make it easier to adjust later, align the
magnet on the gobo wheel with the sensor
and, while holding the gobo wheel, turn the
motor adaptor so the set screw points
outward. Pull back on the motor to tighten
the belt and then tighten the motor screws.
11 Replace the gobo holder.
12 Replace the silicone gobo rotation gear
with three new M3 x 4 mm countersunk
screws.
13 Reassemble and install the module.
REPLACE GOBO WHEEL
MOTOR
1 Separate the gobo module from the
framing/iris module.
2 Remove the 3 screws and remove the gobo
wheel motor.

Gobo wheel 18
© 2000 Martin Professional A/S, Denmark
MAC 2000 Performance Service Manual
3 Transfer the cable, stand-off nuts, and gear
to the new motor. Position the gear 0.8 mm
from the motor. Tighten the set screw.
4 Position the motor with its plug facing the
gobo rotation motor and fasten loosely.
5 Work the belt over the gear.
6 To make it easier to adjust the gobo wheel
later, turn the gobo wheel to align the
magnet with the sensor and turn the motor
adaptor so the set screw points outward.
7 Pull back on the motor to tighten the belt
and then tighten the motor screws.
8 Start a new strip tie for the motor cables
through the module plate before
reassembling the module.
ADJUSTMENT
1 Apply power to the fixture and wait until it
has finished resetting.
2 Via the menu, select motor adjustment
position UTIL/AdJ/HEAd/GObO/AdJ.
Press Enter.
3 Turn the gobo wheel until the magnet is centered over the magnetic sensor. Tighten
the set screw.
4 Reset the fixture and verify that it resets correctly. Re-select
UTIL/Adj/HEAd/GOb1/ADj and verify that the magnet is positioned right at the
sensor. Check the alignment optically and calibrate the gobo wheel position if
necessary.

Module removal and installation 19
© 2000 Martin Professional A/S, Denmark
MAC 2000 Performance Service Manual

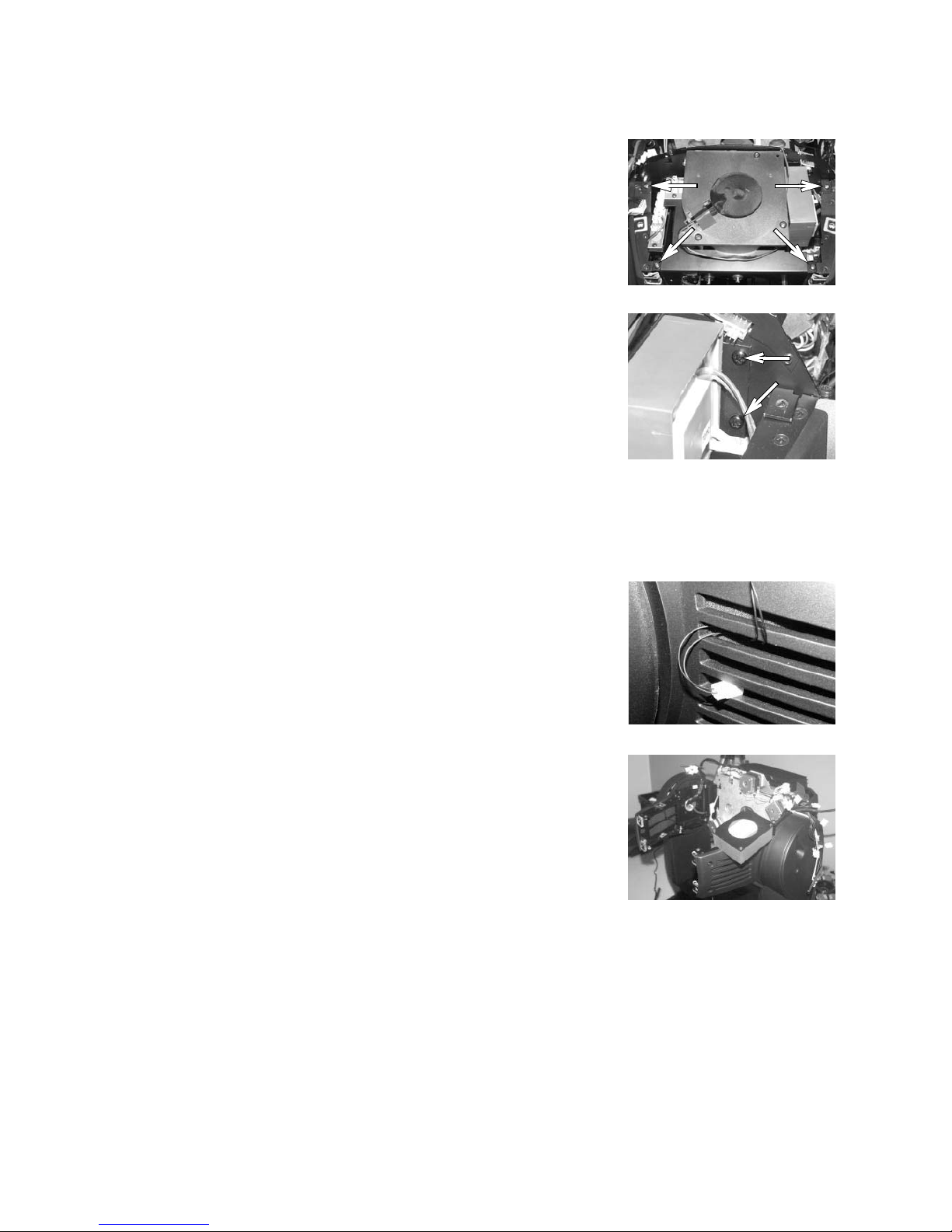

ZOOM / FOCUS MODULE
MODULE REMOVAL AND INSTALLATION
REMOVE ZOOM / FOCUS MODULE
1 Remove the following:
• top and bottom head covers
• front lens ring
• framing/iris/gobo module (p. 4)
2 Remove the front lens now if you are
going to replace a lens, belt, or motor.
3 At the bottom of the head, remove the
front screw from the module alignment
plates and push the plates to the side.
4 Disconnect the 2-pole cable labelled
“23” from the right side connection
block.

Module removal and installation 20
© 2000 Martin Professional A/S, Denmark
MAC 2000 Performance Service Manual
INSTALL ZOOM / FOCUS MODULE
5 Remove the 4 module fastening
screws.
6 Remove the screws that fasten the
starter to the module. You may need to
lift the module some to access the
bottom screw. Move the starter out of
the way.
7 Lift the module out of the head. Take
care not to damage the frost glass.
1 Find the 2-wire cable labelled “23” and
hold it outside the head.
2 Move the starter to the side and insert
the zoom/focus module into the head.
3 Fasten the starter to the module plate
with 2 M4 x 6 mm metric screws (Martin
P/N 08070401). You need a long
screwdriver to reach to bottom screw.
4 Fasten the zoom / focus module to the
chassis.
