Maruyama MX402 User manual

MAINTENANCE – MORE FREQUENT DAMAGES
842521 AN-8 NITRILE GASKET
842522 VALVE SPRING
842523 ELBOW
842524 MIXER VALVE
842525 1mm. DIAMETER NOZZLE
842526 CONIC NUT
842527 16x2 FLAT GASKET
842528 AN-5 NITRILE GASKET
842529 10mm DIAMETER CONE
842530 BLACK TUBE LANCE
842531 40mm X 1.50 m. STRAP
842532 HANDLE
842533 COVER SCREW
842534 CHAMBER COVER
842535 AN-30 NITRILE GASKET
842536 CHAMBER
842537 NECK SEAL
842538 VITON CHAMBER VALVE
842539 2-104 VITON GASKET
842540 NOZZLE NUT
842541 HOSE NUT
842542 HOSE BUSHING
842543 HANDLE BODY
842544 BUTTON
842545 BUTTON BOLT
842546 HANDLE CLIP
842547 HANDLE NUT
842548 HANDLE FILTER
842549 HANDLE SPRING
842550 SHUTTER
842551 2-121 NITRILE GASKET
842552 2-109 VITON GASKET
842553 2-107 VITON GASKET
842554 ELBOW WITH NOZZLE
842555 TUBE WITH NUTS
842556 COMPLETE CHAMBER
842557 SEALING VALVE
842558 COMPLETE HANDLE
842559 COMPLETE SHUTTER
842560 COMPLETE HOSE
842562 7 LITER TANK
842564 COMPLETE LANCE
842642 REPAIR KIT (842521, 842528,
842535,842537,842538,842552,
842553)
101N
105
120
121
122
127
131
136N
138
141
151
156
157
158
159N
160
164
165
168V
191
195
196
530
531
532
533
534
535
536
537
538
539
540
726
728
739
743
750
751
757
785
795
1415
MARUYAMA RESERVES THE RIGHT TO CHANGE PRODUCT SPECIFICATIONS WITHOUT NOTICE.
GENERAL PRECAUTIONS
Strictly follow recommendations and warnings on labels for products marked “dangerous” and
“poisonous. Comply with the application time and expiration date of each product. Avoid spraying in
extremely hot weather. Take precaution when spraying near electrical installations. Never use alkaline, acids,
flammable materials or those which may produce combustion processes. The sprayers are intended to be
used only with herbicides, insecticides and fungicides for plants. Do not expose them to the sunshine. These
sprayers must be safety tested at least annually by specialized personnel. At the time of manufacturing, the
manufacturer is aware of no harmful influences from the material of which the device is made. The sprayer
hose must be original equipment from the manufacturer. Do not substitute aftermarket components
START-UP
Place strap on both sides of the bottle and follow the drawing. Fit the hose
(757) to the bottom of the tank and to the lance handle (750) firmly
adjusting the nuts (195). Place one end of the tube (728) on the handle
assembly (750) and the other end on the elbow assembly (726). Once the
tank is filled, screw in the chamber assembly (739) to the tank using the
grip (156). Pressurize by pumping 25 to 30 times with the pump handle
(156). In case that the maximum pressure is exceeded, the sealing valve
will activate (743) releasing excess pressure. To work, pump the handle
(750) and adjust the nozzle (122) rotating to one side or another to
achieve the desired atomization. During usage, pressure will diminish and
additional pumping will be required.
Clean the equipment and its liquid circuits, including the filter at the completion
of each working day. Cleaning should be done with clean water or as small
amount of household detergent to the tank.
NEVER LEAVE THE EQUIPMENT PRESSURIZED OR WITH CHEMICAL
IN THE TANK.
Avoid gaskets drying out or add some drops of oil (non edible) in the parts
indicated in the drawing. If the nozzle is obstructed, (122) clean it with a stream
of water or non metallic instruments taking care that the outlet hole is not
SAFETY STANDARDS AND HANDLING OF CHEMICAL SPRAY PRODUCTS
Storage. Place the product in an exclusive, ventilated and locked storeroom with key box, out of the
reach of children and pets. Store the product in its original packing. Use the same room to store mixing,
preparation and application utensils.
Product Preparation. Verify that that the product and treatment equipment are not expired and are in good
condition. Read and follow the instructions provided in the products labels and manuals. Use proper utensils
for mixing and preparing and mark them correctly. After preparation, wash your hands and face. Dispose
properly of empty packages and leftover products.
Treatment Procedure.Use suitable protective equipment. Avoid contact with the skin and eyes and, do not
eat, drink or smoke. Do not apply under windy conditions or against the wind. Avoid any product drifting into
adjacent land and crops. Avoid any drift into neighboring springs, rivers, streams, lakes, etc.
Cleanup After Use. Destroy empty packaging and bottles by burning or burying 1 ft/ 30 cm deep, away from
water (streams, wells). Clean all spray equipment thoroughly. Wash yourself and your clothes.
Advice in case of poisoning. Go to the doctor with the product label, or take the affected person to the
nearest hospital. Avoid use of home medicines and, in all cases wash the affected skin areas with plenty of
fresh water.

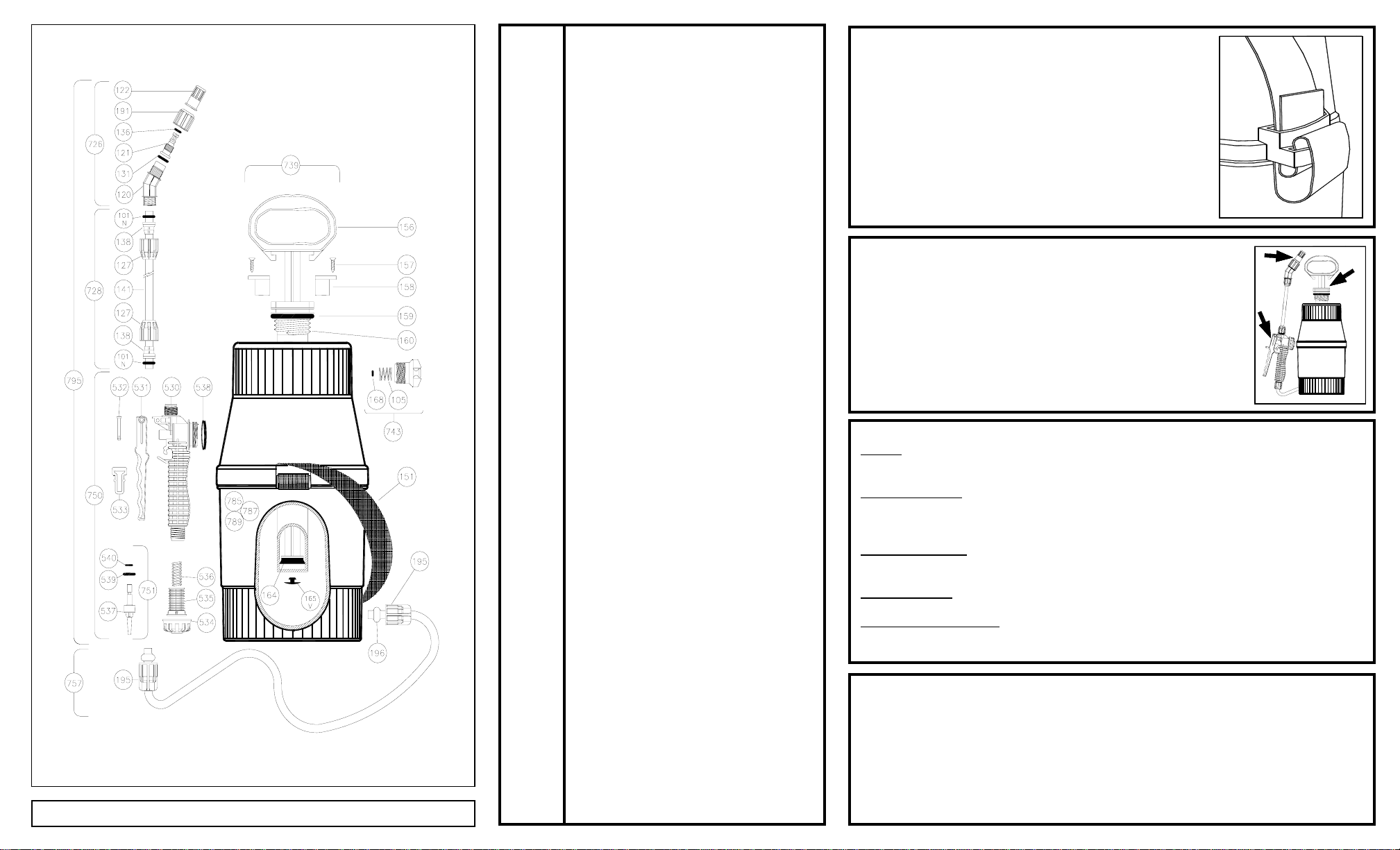

PARTS LIST

GUARANTEE
Our products are guaranteed for one year from date of purchase
against defects in material and workmanship. This guarantee is strictly
limited to the replacement free of charge of parts recognized as
defective by our Service Department. The guarantee shall not apply in
case of improper use of our materials, disassembling or modifications
of our equipments and for those pieces which may require
maintenance due to normal wear and tear. This guarantee shall not
apply in case of negligence, imprudence and, irrational use. A copy of
the original invoice or bill of sale may be required to establish
purchase date.
OTHER SPRAYER PRODUCTS
BACKPACK
SPRAYER
PRESSURIZED
SPRAY BOTTLE
ACCESSORIES
RECTANGULAR PROTECTOR BELL
WITH HERBICIDE NOZZLE
842268
20”
/
0.5 M EXTENSION
842622
40”
/
1.0 M EXTENSION
842621
60”
/
1.5 M EXTENSION
842620
DISTRIBUTED BY:
Maruyama U.S., Inc.
3570 Shelby Lane
Denton, Texas 76207
940-383-7400 940-383-7466 (Fax)
Website: www.maruyama-us.com
TELESCOPIC LANCE
842625 7 LITER / 1.8 GAL
QUADRUPLE FRONT NOZZLE
842618
DOUBLE FIXED NOZZLE
842623
DOUBLE FLEXIBLE NOZZLE
842633
DOUBLE EXTENDIBLE NOZZLE
842634
HERBICIDE ELBOW
642626
LIME PREPARATION NOZZLE
642627
READ INSTRUCTIONS THOROUGHLY BEFORE USING
