Important Information
Please read the user’s manual carefully before going on the first riding. This manual contains a large amount of
information of operation and cautions, which will help you to handle and control of the motorcycle. For your safety, please
pay a great importance to the cautions as follows:
Warning
——Any ignorance of the mentioned-below information may lead to safety problems.
Caution
——Any ignorance of the mentioned-below information may cause the damage of motorcycle parts,or it may compromise
the driving safety of the motocycle itself.
Please fill in the blank with the serial Nos. of the motorcycle,
Frame No.：
Engine No.：
Distributor：

ADVENTURE 400cc
-2-
INDEX
Ⅰ、SAFE DRIVE……………………………………………1
Operation Instruction …………………………………………1
Safety Attention ………………………………………………1
Preparation before Operation …………………………………1
Proper Dress……………………………………………………1
Modification of the vehicle ……………………………………2
Accessory………………………………………………………2
Loading of goods ………………………………………………2
Muffler …………………………………………………………2
Ⅱ、DRIVING OPERATING…………………………………3
Instructions for first-time operation ……………………………3
Checkout Proceedings before Starting …………………………3
Driving posture …………………………………………………4
Special notice …………………………………………………4
Operation turning………………………………………………4
Turning method………………………………………………4
Postulate of brake (friction) …………………………………4
Brake method…………………………………………………4
Driving at night………………………………………………4
Ⅲ、MAIN DATA……………………………………………5
Ⅳ、PARTS&SUBASSEMBLIES……………………………7
Ⅴ、PARTS FUNCTION AND OPERATION………………9
Meter…………………………………………………………9
The ignition switch ……………………………………………11
Fuel system ……………………………………………………11
Operation of the engine………………………………………12
Switches on handlebar ………………………………………13
Gear Shift ……………………………………………………15
The use of clutch ……………………………………………15
Brake…………………………………………………………15
Air filter installation……………………………………………15
Rearview mirror………………………………………………16
Oil cooler installation …………………………………………16
Ⅵ、Check-ups, Adjustments and Maintenance……………17
Fuel oil pipeline, oil and connecting parts inspection…………19
Adjustment of the throttle cables………………………………19
Carburetor ……………………………………………………19
Check-up, cleaning of Air Filter ………………………………20
Check-up of Spark Plug ………………………………………20
Examination and adjustment of the valve clearance…………21
Adjustment of the clutch………………………………………21
Machine Oil Checking ………………………………………22
Brake Checking………………………………………………22
Examination of chain tension …………………………………27
Shock absorber adjustment ……………………………………29
Tire……………………………………………………………31
Battery check…………………………………………………32
Fuse replace …………………………………………………33
Replace the bulb ………………………………………………33
Rubber part of the cable ………………………………………33
Ⅷ、Cleaning main points……………………………………36
Ⅸ、ELECTRICAL DIAGRAM……………………………38

ADVENTURE 400cc
-3-
I. SAFE DRIVE
Operation Instruction
This instruction book illustrates the notes for the standard
and safe operation method, and basic maintenance.
To ensure your comfortable and safe riding experience,
please read this instruction book carefully.
·The pictures and illustrations in this book may be
different from the actual vehicle, due to the difference of
model.
·The vehicle is specifically designed for two people
(Including the rider himself)
Caution
Do not use polluted fuel；
Using polluted fuel may possibly cause stain
inside the fuel tank, which in turn block the fuel
line, and occurs failure when the engine starts, or
even cause severe damage to the engine.
Do not use sub-standard or polluted engine oil
Always use decent engine oil, so the engine’s
performance and longevity can be ensured.
If any failure occurs under the inappropriate usage of
polluted oil or petrol, these failure can be worked out
through warranty.
Safety Attention
·Ride safely and dresses properly are important during
riding, please follow safety rules with patience.
· Many new riders pay special attention during riding their
new motorcycles, while they become arrogant when they
feel familiar with their motorcycle; and the arrogance often
bring dangers. To avoid it happen to you,
please always keep in mind the Safety Rules.
Always abbey what the Labels says on motorcycle about the
Safety attentions during riding .
Preparation before Operation
·read the operating instruction carefully
·maintaining & checking before operation.
·keep the engine switched off and away from fire.
There existharmful substance such as co in the waste gas,
please start engine at the draughty area
Proper Dress
·Always wear helmet , gloves and safety goggles
throughout
·Do not suggest wearing the uniform which can easily
affect operation, it’s very dangerous if uniform was
hitched by brake beam or driving chain.
·To avoid affecting brake or gearing , do not suggest to
wear the slipper during riding.
·Many automobile and motor accident happened is
because the drivers ignore riders.
Make yourself conspicuous to avoid accident which is
not caused by you.
·Dress flashy or reflective clothes.
·Do not ride at the other driver’s blindness area .
Caution
·Do not take on the helmet which is easily increase
hurt or death probability when accident.
·Make sure passenger always wear helmet to protect
eyes, and dress protecting clothes when driving.

ADVENTURE 400cc
-4-
Modification of the vehicle
Any unauthorized modification of the vehicle or
replacement of the original parts can not ensure driving
safety and is illicit. The user must observe the regulations
of the traffic control authorities. We are not responsible for
any vehicle unauthorized modification.
Accessory
·To avoid wearing out battery, do not attach any other
lighting equipment except shineray’s original accessory.
·Check the accessories carefully, insure they will not block
your sight , lower ground clearance and slant angle , limit
moving of suspension, diversion, or control function .
·Do not add electric equipment , in case that would exceed
capacity of vehicle electric system , lower light luminance
and engine power .
·The vehicle is designed without side-car or trailer ,
because it will affect loading capacity seriously .
Loading of goods
The design of the motorcycle requires distribution of the
carried goods in certain extent of equilibrium and improper
arrangement of goods will adversely affect the performance
and stability of the vehicle. The manufacturer shall not take
any responsibility due to the reason mentioned above.
Caution
· Goods should be loaded on the designed carrying
area , or tied up on the other area , in case cause the
vehicle damage.
· To keep goods intact , do not put them between
carriage body and engine .
· Do not hang big and heavy goods on the handgrip , in
case that may cause handgrip instability or ineffective
steering.
Muffler
·Passenger should especially pay attention to avoid
scalding by the muffler when driving
Caution
· To avoid scalding by muffler , do not park the vehicle
at the walkway .
· Passenger should attention that avoid scalded by the
muffler
· Hay or rattan plant will arouse fire if too closed to the
muffler.
II. DRIVING OPERATING
Instructions for first-time operation

ADVENTURE 400cc
-5-
1. Make sure the work for the “Pre-delivery Inspection”
was effected by your authorized Shineray distributors. The
Certificate of delivery service manual must be given when
you pick up the motorcycle.
2. Please read the “Instruction for operation”carefully
before your first ride
3、Familiarize yourself with each operating elements
4. Adjust the clutch lever, handbrake lever and footbrake
pedal to a right positions thatare suitable foryour operating.
5. Get familiar with your motorcycle in one open space
before starting a regular drive. Try to ride as slowly as
possible in order to enhance your feeling about your
motorcycle.
6. Do not ride along off- road tracks which goes beyond
your ability and experience.
7. Hold the handle bars with both hands and leave your feet
on the footrests
8. Remove your foot from the foot brake pedal when you
are not braking. If the brake pedal can not completely be
released, the braking system might be consequently
overheated.
9. Do not make any modifications to the motorcycle and
please always use Shineray original spare parts. Spare parts
provided by other manufacturers might compromise the
safety of the motorcycle.
10. Motorcycles are sensitive to any change of weight
distributing to the motorcycle. If you are taking anyluggage
with you, please evenly distribute the weight between the
front and rear wheel. Never exceed the maximum
permissible laden weight and axle weight.
Checkout Proceedings before Starting
For your safety, please check your motorcycle
comprehensively before each start-off.
1、Check the engine oil level: The insufficiency of engine
oil will result in premature wear-out, which leads to the
damage of engine.
2、Check the fuel level: Check whether or not there is
sufficient fuel in the tank; when closing the filler cap, make
sure that the tank vent pipe is free of kink
3、Check the chain:A loose chain may fall off the chain
wheels; an extremely worn chain may break down, and
insufficient lubrication can resultin unnecessary wear-out
to the chain and chain wheels; excessive tensioning of the
chain will put additional load on the components of the
secondary drive train, which leading to the premature
wear-out, breakdown of the chain or the countershaft of
transmission.
4、Check out whether or notthe tyres are worn out.Tyres
to be found scratched or dents should be replaced. The
tread depth must comply with the legal regulation.
Moreover, please check the tyre pressure. Insufficient
tread depth or improper tyre pressure both will ruin the
driving performance.
5、Check braking system: Please check whether or not
the braking system is normal, the braking fluid is
sufficient and brake pads is worn out. Please check the
brake fluid level when the engine is cold, and if the actual
level is lower than the minimum lever, it probably
indicates the leak of fluid in braking system or the wear-
out of brake pads. In order to avoid the failure of the
braking system, please ask the Shineray specialists for
help to check the braking system, mean while check the
state of brake vent pipe, brake disc, pads brake lever and
the traveling distance of footbrake pedal.
6. Cables: Please check out the correct setting and easy-
running of the cables.
7、Check the electrical system: When starting the engine,
please check whether or not the head light, tail light, brake
lights indicators, controlling lamps and horn function well.
8、If you take luggage, make sure all luggage are
packed well.。
Warning:
The vehicle occupants must wear protective device.
Under the influence of drugs and alcohol, driving is
very dangerous, even small amounts of alcohol can
also affect the driver's response, perception and
judgment.

ADVENTURE 400cc
-6-
Driving posture
Correct riding is the main ingredient of safe driving.
1. Eye: look straight ahead
2. Shoulder: relax
3. Arm: relax curved inwards to get retractable result.
4. Hand: hold the grip, using one finger to control switch.
5. Wrist: relax; don’t bring too much press to arm and
shoulder.
6. Knee: lean on the tank
7. Foot: foot towards ahead, footrest stay under the
center of foot.
Special notice
Keep safe distance
Don’t obstruct the traffic.
Don’t drive on footpath.
Overtake from the left side lane.
Make sure brake at anytime
Stop for while should in braking situation
Don’t drive too much long distance.
If find abnormal, should stop for checking
Wait 2 to 3 minutes after crash, and then restart the
motorcycle.
Turn on headlight when drive at night.
Warning:
Put side stander in original position, if not it will cause
accident.
Only drive on vehicle road, if drive on footpath will
lead accident.
Drive on uneven road in high speed, will lead rollover
and hurt.
Don’t drive on grit road, if grit enters in engine or tire,
will cause rollover and hurt.
If possible, don’t drive near seaside or Calcium
chloride road, muffler, some other outside parts, and
jointing position are easily rust.
Operation turning
Turning basic principle is combine the centrifugal force and
gravitation well to get balance result.
Turning method
①Turning throttle grip to original position, using front
and rear brakes.
②Lean towards the inner side, keep constant speed
driving.
③Speed up gradually.
Caution
Don’t drive at the inner side of huge vehicle turning
area.
Postulate of brake (friction)
Use the friction between tire and road surface.
Brake distance: Because of the friction reduce, at wet road
should increase 1.5 times, at ice road should increase 2
times.
Caution
After brake, motorcycle can’t stop as once due to the
inertia.
Brake method
Turning throttle grip to original position, use engine brake.
Let motorcycle vertical.
Use front and rear brake.
Driving at night
Driving at night than during the daybecause of dangerous
driving, so remember your essentials:
Because of poor night vision, please reduce the speed and
maintain a safe distance from the larger and other vehicles.
To adjust the rearview mirror position, reduce the impact
of the rear of the vehicle lights.
Keep cleanness of lamps and lanterns, so as not to affect
the line of sight.
Avoid looking directly into the vehicle headlamps,
otherwise it will lead to temporarily blind eyes, causing
the accident.
III、MAIN DATA

ADVENTURE 400cc
-7-
Item
Data
Dimensio
n &
Weight
Length
Width
Height
Wheelbase
Min. ground clearance
Complete vehicle weight
2205mm
810mm
1350mm
1460mm
310mm
Curb weight: 162kg,
Vehicle
body
Frame type
Rake angle
Front Tire size
Rear Tire size
Front wheel pressure
Rear wheel pressure
Fuel tank volume
Fuel grade
Cradle type
26.5°
central damping
90/90-21
130/80-18
Normally loaded: 280 kPa,
Normally loaded: 225kPa,
16L
93#
Engine
Mode
Cylinder bore × Stroke
Cylinder displacement
Compression ratio
Max. power
Max. torque
Valve clearance (cold)
Valve driving gear
Air filter
Crankshaft balance system
Lubrication method
Fuel pump type
Engine oil grade
Engine oil charge volume
Engine oil filter element
Electric motor starting
Idle speed
Single-cylinder water-cooling 4-valve top-mounted camshaft
type 4-stroke engine
85.0mm×70.0mm
397.2ml
8.8:1
19.5KW/7500r/min
22.0N.m/5500rpm
IN: 0.07-0.10，EX: 0.08-0.12
Chain drive
Oilpaper filter
Balance shaft
Pressure / Splash
Secondary cycloid
10W/40 (SEGrade)
2.2L
Oilpaper filter
Engine starting
1500±150r/min
Driving
system
Clutch
Clutch operating system
Variable speed gear
Primary reduction ratio
Transmission gear ratio
Final reduction ratio
Gear shifting mode
Wet clutch, coil clutch, paper friction wafer
Manual mechanical
5-speed constant mesh
2.667
Ⅰ2.615
Ⅱ1.789
Ⅲ1.350
Ⅳ1.120
V 0.892
2.667
Left foot operated to and back type

ADVENTURE 400cc
-8-
Sequence: I－N－Ⅱ－Ⅲ－Ⅳ-V
Electrical
system
Electric generator
Accumulator capacity
Power supply system
Fusible cutout
Spark plug
Spark plug gap
Ignition coil type
Fuel supply mode
Front lamp
Turn lamp
Stop / Rear-position lamp
permanent magnet AC magneto
12V 11.2A.h
DC power supply, and the electric generator is only used to
recharge the accumulator
15A
Chinese model DPR8Z
0.6-0.7mm
Open magnetic circuit
Electronically injection, CDI
2×12V35W/35W
Front: 12V0.5W Rear: 12V0.5W
Front: 12V4W Rear: 12V0.4W

ADVENTURE 400cc
-9-

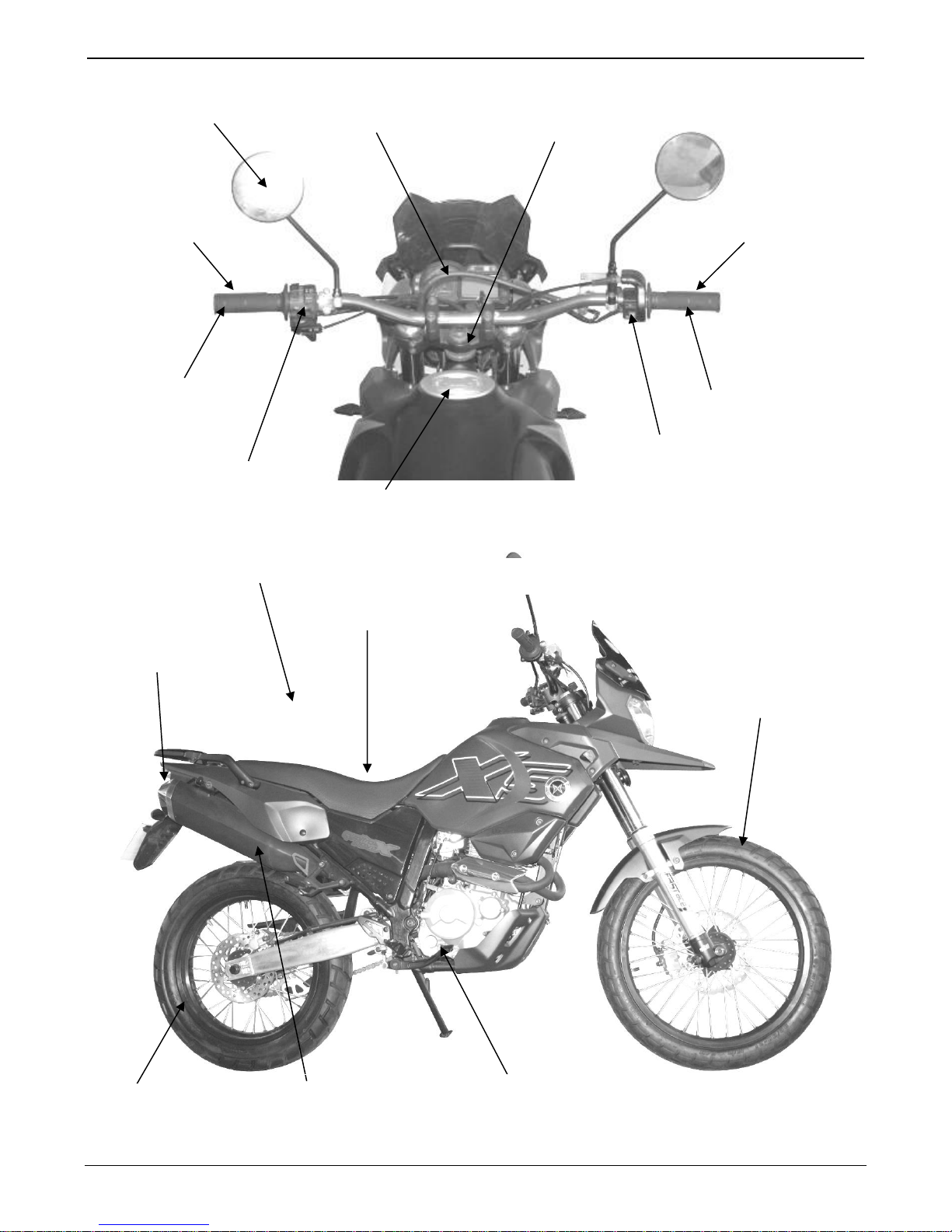

IV、PARTS&SUBASSEMBLIES
Rear view mirror
Meter
Ignition & Steer switch
lock
Clutch lever
Left handlebar
Horn switches
Fuel tank lock
Front brake lever
Throttle twist grip
Engine starter switches
Rear goods basket jonting assy
Seat assy
Front wheel
Rear wheel
Muffler
Pedal, rear brake
Fuel cock
Front turn light

ADVENTURE 400cc
-10-
Front
shockabsorber
Side stand
Real shockabsorber
Gearshift pedal
Rear turn light

ADVENTURE 400cc
-11-
V、PARTS FUNCTION AND OPERATION

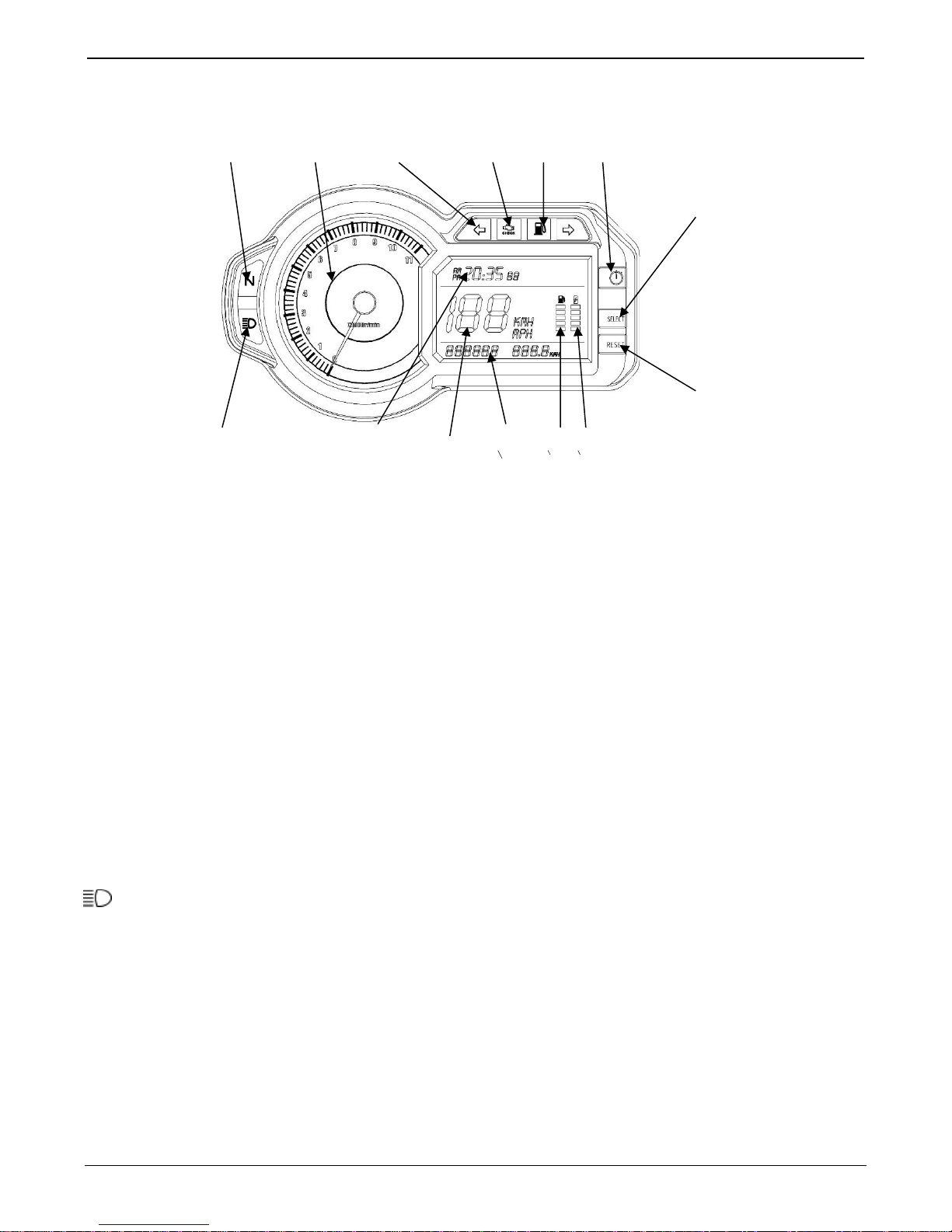

1、Meter
①Neutral indicator ②Tachometer ③Turn light indicator、④ Low oil alarm indication lamp
⑤"Clock" button ⑥High beam indicator ⑦The clock display: ⑧Speed display
⑨Single mileage and total mileage display ⑩Oil quantity display （11）、Voltage display
（12）“RESET”button （13）、“ SELECT”button （14）、 ECU
Neutral indicator
When the motorcycle is in the neutral light (green)
Tachometer
Display the engine speed
Direction Indicator
（R）right turn，twinkle when turn to right(Green).
（L）left turn，twinkle when turn to left(Green).
Low oil alarm indication lamp
The fuel tank is near empty, low fuel warning light lights up, at this time should be added the fuel as soon as
possible.
Far and near light lamp
light on when Far light is switched on.
speed display
The meter speed display with digital display, display range (0 - 199Km/h).When the speed is higher than 199Km/h,
speed display value is 199Km/h.
The average speed display
The average speed display instrument with digital display, display range (0 - 199Km/h).The average speed of
recording single segment values.
RPM indicator
The instrument RPM instructions with stepper motor indicator. The indicated span 0-11000RPM.
Oil quantity display
⑴
⑵
⑶
⑷
⑸
⑹
⑺
⑻
⑼
⑽
⑾
⑿
⒀
⒁

ADVENTURE 400cc
-12-
The instrument of oil quantity display using bar code display, the display range 1-5 lattice, change number transition
time of 8 seconds. Show low oil alarm firstlattice (low oil level indicator and the first oil quantityindicator is blinking),
in the 5 paragraph of article oil, oil and low oil content alarm lamp shines. When the oil gauge error 5 segment will
flicker (low oil quantity indicator lights)。
Voltage display
This instrument voltage display using bar code display, the display range 1-5 lattice, change number transition time
is 30 seconds. When the voltage is low 3 lattice when the alarm (battery symbol and the current display number with
flashing).
Single mileage and total mileage display
This instrument is single mileage and total mileage display with digital display. Single mileage range 0 - 999.9Km,
total mileage range 0 - 999.9Km 0—999999Km。When the mileage value exceeds the value, the amount will
automatically reset and save。Single mileage and the total mileage of precise 0.1Km。
"Clock" button
The meter clock shows the use of 12H system.Time display format: "AM 12:05 00"......"PM 1:56 00".....
Stopwatch.
The meter stopwatch with digital display, display the time format is: 00:00 00.The maximum time for 23:99 99.
Meter key functions are as follows：
"Clock" button （C）
In clock mode or stopwatch mode, short press C key to switch the two modes
In clock mode, long press C button 2 seconds to enter or exit the clock setting mode, short press S key to switch
setting mode.
Short press R Short press R Short press R
Short press S Short press S
Short press S
Note: when the clock setting mode if the keypad is no operation time more than 10 seconds will automatically exit to
clock mode
2．“ SELECT”button（S）
a. In clock mode, short press S key to realize single mileage display mode and a single average speed display mode
switching
b. In the stopwatch mode, short press S key to achieve a stopwatch to time and pause switch。
c. In clock mode, long press S button 2 seconds of metric-inch switching unit。
3．“ RESET”button（R）.
a. In the stopwatch mode, short press R key to realize stopwatch reset。
b. In clock mode, long press R key for 2 seconds to realize the following two functions：
HOUR flashes
MIM(10mim) flashes
MIM（1min）flashes
HOUR+1
MIM(10mim) +1
MIM（1min）+1

ADVENTURE 400cc
-13-
I，Single mileage display mode, single mileage reset。
II，The average speed of display mode, the average value of zero velocity。
Warning:
When driving motorcycles don't adjust the instrument, otherwise it will lead to out of control, resulting in personal
injury or cause of the accident.

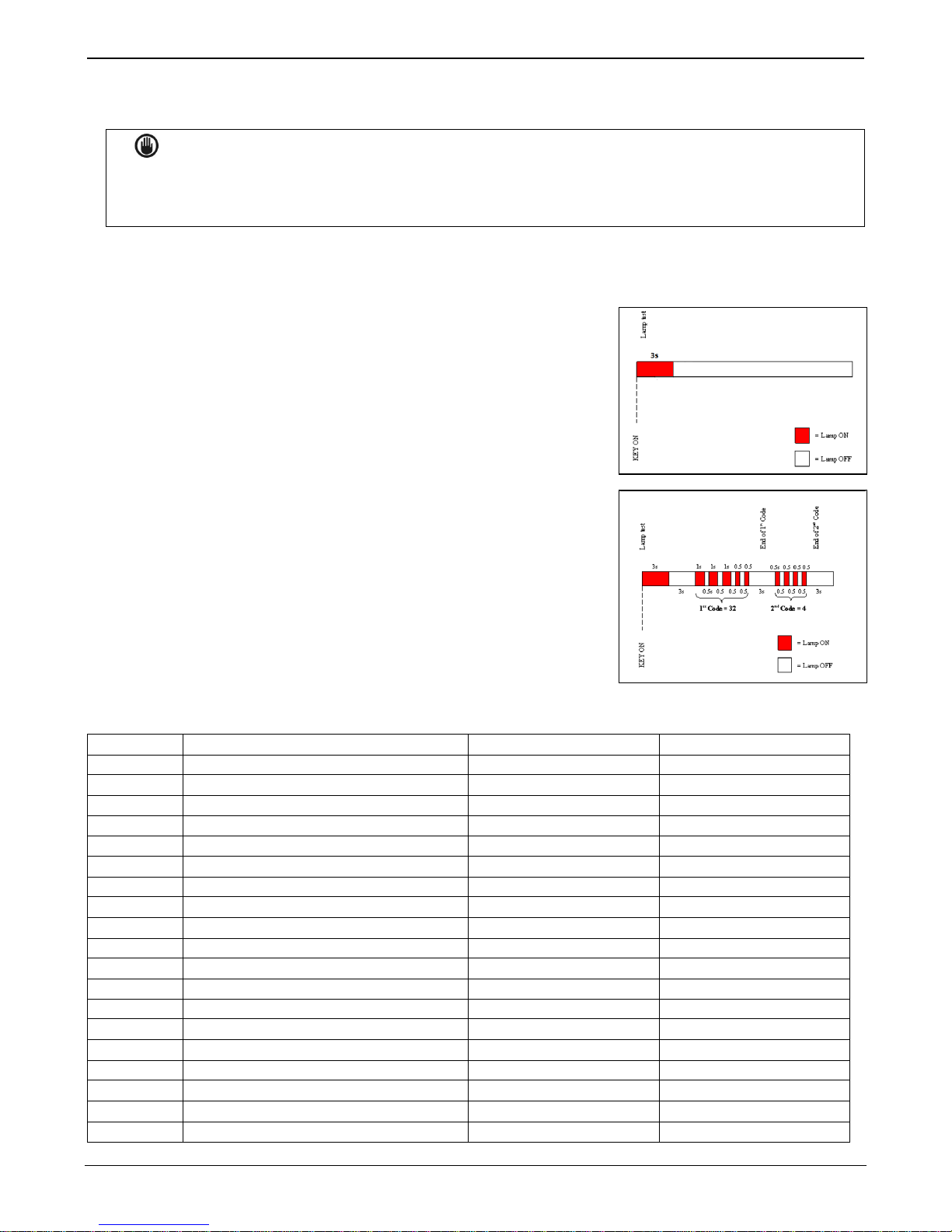

The Malfunction Indicator Lamp and Diagnostic Trouble Code(DTC)
1.If there are noDTC onECU, The Malfunction Indicator Lamp will be following
show when you start motor
2.If there are code 32 or 4 showing on the malfunction Indicator will be following
show when you start motor
Code will be flashed for four times, then DTC turn off.
Instruction table of FAI indicator’s information and trouble solutions
Code
Description
Diagnosis Name
Trouble shooting level
1
Engine over temperature diagnosis
TCO_OVER_TEMP
2
2
Crank wrong tooth number diagnosis
TOOTH_NR
1
3
Throttle position adaptation diagnosis
V_TPS_AD_BOL_1
1
4
Throttle position sensor 1 diagnosis
TPS_1
1
5
Throttle plausibility diagnosis
TPS_1_INTM
1
6
Battery voltage diagnosis
VBK
1
7
Intake air temperature sensor diagnosis
TIA
2
9
Idle Speed controller adaptation diagnosis
ISC_ISA_AD_MV
1
10
Injector valve diagnosis
VI
1
11
Ignition coil diagnosis
IGA
1
12
Electrical fuel pump diagnosis
EFP
1
13
Engine overspend diagnosis
N_64_MAX
2
16
Engine temperature diagnosis
TCO
1
18
MIL diagnosis
MIL
1
19
O2 sensor signal circuit diagnosis
VLS_UP_1
1
20
O2 Sensor Heater diagnosis
LSH_UP_1
1
21
MAP sensor diagnosis
MAP
1
23
Lambda control diagnosis
TI_LAM_COR
2
26
Second air valve diagnosis
SAV
2

ADVENTURE 400cc
-14-

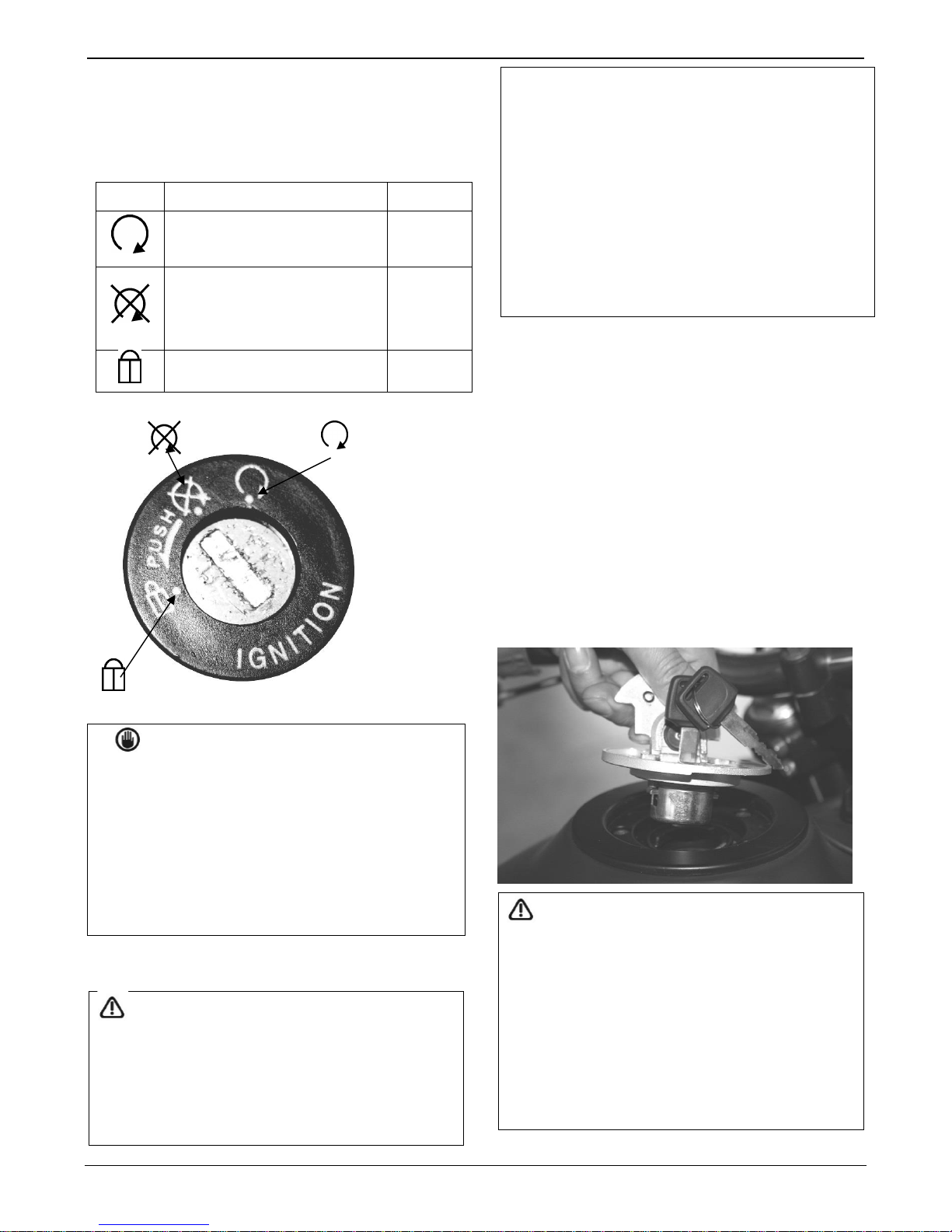

2、The ignition switch
Main Switch used to Start or switch off the Engine .
Positoin
Function
Remarks
To stop the vehide (swiching off
all circuits)
Can
For starting or driving the
vehicle(maiking all the main
circuits)
Can not
To lock the steering handle
Can not
Warning:
•Do not move the Key position when Riding, if the key
is on "off" or "lock" position during riding, all electric
system will out of Action; So during riding do not move
the main switch Key in case of accident. If it’s
necessary, rider should stop the motorcycle before taking
out the key.
Caution
Stop driving a motorcycle that has the lock and pull out
the key.
If the key is in the "on" position and the engine is not
running, the battery is no power supply.
Do not fasten together with many other key with metal
keys, keys and key buckle bruises or scratch motorcycle
surface. (recommended the use of cloth or leather
Keychain)
Do not throw the keys or articles with heavy.
Do not the keygrinding, drilling or otherwise change the
key to its original shape.
Please take the key stored in a place far away from the
magnetic field.
fuel filling
The capacity of the fuel tank is 16L .Leadless gasoline
of No.93or above or low –lead gasoline is required for the
motorcycle
1, insert the ignition key to rotate clockwise.
2, open the fuel tank cap.
3, do not excessive gas, the fuel tank opening can not have
fuel.
4, after refueling shut the tank cover, the tank cover into
the fuel tank opening until the locking.
5, pull out the key
Caution
Please check the fuel switch is in the S position
refueling.
It is forbidden to drive under the condition of low on
fuel, fuel depletion will lead to misfire, damage the
catalytic converter, when the fuel warning lights,
please immediately to fill fuel.Do not sprinkle on the
surface of vehicle fuel, fuel will damage the paint.

ADVENTURE 400cc
-15-
Warning:
Do not use mobile phone when refueling.
Do not excessive gas, gas after you confirm the tank cap
has cover.
Avoid repeated and long time contact or breathing gas.
Please keep the children not to place.
4、Operation of the engine
Preparing work before operating the engine:
A. Check the engine oil level with the ruler; If the oil level
is below the lowest scale, please refuel the engine oil.
(Please pay attention that the engine should in
horizontal position
B. Please do not increase the load when the engine is cold.
Preheat the engine for 1-3 minutes in advance to ensure
the grease is in position. (The rotate speed should not
exceed 4000r/min when preheating.)
C. Before operating, please check whether or not the oil cap
is in position “ON”to make sure the oil is floating to
engine normally.
D. Before operating, please check whether each electrical
route is normal and well connected.
Engine starting
＜Cold Engine（winter）＞
1．Check the steering stem lock is unlocked or not .
2．Ensure the ignition lock is on “ ”
3．Ensure the fuel lock is on .
4．Ensure the key is on “ ” .
5．Keep the gearshift pedal on gear N .
6．Open chock .
7．Turn throttle grip 1/8 , press electric starting switch .
8．When the engine is started , turn the throttle grip until
the engine is hot . Close the chock if too heat , and the
chock need time , do not close all the chock , keep the
engine working .
9．Check the side stand , start to drive the motorcycle .
＜Hot engine (summer)＞
1. Check the steering stem lock is unlocked or not .
2. Ensure the ignition lock is on “ ”
3. Ensure the fuel lock is on .
4. Ensure the key is on “ ” .
4. Keep the gearshift pedal on gear N.
5. Close the throttle grip and press electric starting
switch (if 1-2 times cannot be started ) check the fuel
lock is on " " or not .
6. Turn throttle grip 1/8 to 1/4，press electric starting
switch .
7. Check the side stand , start to drive the motorcycle .
Caution
The engine can only be started after the neutral
position is ascertained .Otherwise accident will
happen .
Unnecessary idle running (especially at a high
speed )is harmful to the engine.
Run-in of engine
Run-in of the engine is very important. Any operation
without run-in (or improper operation) will cause serious
damages or failures of function
A. Engine without run-in and the one has been run in have
big difference in their power and torque performance.
B. The well run-in engine: the initial wear-out of the parts
is well renewed, which eases the damage to the parts
in fierce movements, and extend the service life of the
engine.

ADVENTURE 400cc
-16-
C. Requirements
1). Never fully open the throttle when the new motorcycle
has not been ridden for more than 1000km.
2). When riding in each gear, the speed should less than 80%
of its allowed speed (the opening of the throttle should
be less than 80%), and shift the gear in time.
3). Do not let your engine bear too much load in the first
1000km.
If the start fails
If the engine can’t be started, or the motorcycle is not
moving, the points below should be checked：
·If there is fuel in the tank
·If the motorcycle is properly operated according to the
instruction book shows
·If the fuse is melted
·If the engine start button is working properly
·If the battery is finished with power which cause the engine
start button not working, please try the kick start.
Operation of E-start
It would be better to use the E-start when the gear is neutral,
of course, you can activate the E-start at any gear as well.
However, be sure that the clutch is disconnected (hold the
clutch lever tight), and be noted that the lasting operating
time of the E-start must not exceed 15 seconds.If the battery
is low (lower than 10.5 V), you just need to ride for a few
kilometers and charge the battery.
The correct operation of the gearshift mechanism:
The gear position of the engine is 1-0-2-3-4-5-6. The
gearshift type is international with 6 gears.The shift of gear
must be properly controlled in accordance with the road
conditions, loading status and the speed.
5、Switches on handlebar
Headlight、Position Indicator
Turn the main switch key to “ON” position，switch on the
headlight。
Position
Function
position indicator and taillight ON
●
Headlight switch off
·Position indicator shows its position to the nearbyVehicles;
and reminding other vehicles when wait at crossroad, to
avoid Confusion.
Headlight Switch
Far and Near Light Lamp Instruction
Sliding Switch upand down to use Far and near light lamp.
（ ）headlight on full beam
（ ）headlight on lower beam
Far and near light switch
Direction Indicator
Use indication switch when turning Left and right.
＜Usage＞
If put main Switch on position, the indicator will
wrinkle.
Slide Direction indicator can stop the turning signal
Operation.
（R）Turn Right
（L）Turn Left

ADVENTURE 400cc
-17-
Direction indicator
switch
Caution
·Using improper wattage bulb will cause the turning
indicator switch failure , please use the proper wattage
bulb for always .
·when finished turning , the direction indicator switch
will not be back to original position automatically ,
please switch it manually .
·Driving with light on will obstruct traffic.
Horn Button
When the main switch at “ ”, press horn button , it will
make a sound
horn button
Throttle button
By adjusting the door switch, open or close the choke.
Electric Start Button
Push this button, make the engine start.
Electric Start Button
Caution
·DO not use Electric Start continuously, because it
will waste a lot of Electric power and Run out of
Battery.
Emergency stop switch
When starting the engine ,set the emergency stop switch
in“”position to directly stop the engine by cutting off
the electric powe
Emergency stop switch
阻
Throttle
button

ADVENTURE 400cc
-18-
6、Gear Shift
Gear shift system is 5 international gear as the picture :
•Close the throttle grip , hold on the clutch grip and change
the gear .
•Use the foot touch to the gearshift pedal gently until hear
‘KATA’ , if touch the gearshift pedal hardly , the gearshift
system will be broken .
＜Gear down operation＞
If you want to speed up drastically, for example, when
passing another motorcycle, gearing down can provide
faster acceleration, but if the speed gets too high, damage
for the engine may be caused by over-speed.
7、The use of clutch
In the shift, hand pull the clutch handle，Then slowly
loosen. Driving the clutch handle must be released in full。
Should be smooth and consistent clutch noise at idle speed,
when gas or oil return, clutch a slight "GEGE" sound is a
normal phenomenon, when the speed is stable when the
sound disappears. Not to the clutch in the half clutch state
for a long time, it will cause the clutch wear sharp.
8、Brake
Don't put your foot on the brake pedal while driving or
braking handle, must be fully released, otherwise it will
cause the brake temperature rise to unusually high. Brake
shoe, brake disc excessive wear, and increases the braking
distance.
9、Air filter installation
Air filter installed in proper position. requirements for air
filter installation position as far as possible in the highest
position, at the same time, we must avoid in the dust
"vortex" centralized place. otherwise, the air filter inlet will
be adsorbed more dust, causing the engine abnormal wear.
Air filter cleaning and maintenance. the inlet of the joints
of any leakage is not allowed, if in the region with more
sand, every 1000 km cleaned once air filter. air filter
efficiency ≥98%.
10、Rearview mirror
Before driving, must adjust the rearview mirror angle.
11、Oil cooler installation
1、Oil pot total volume 2.0L, intermediate position oil
dipstick oil pot on the line for 1.7L。
2、Pot plus external pipe and radiator total volume
loading was 2.3 ± 0.05L。Filling volume for 2.2L。Oil
radiator shall be installed in the face of location of the
wind。
3、Oil pot and oil cooler mounted, shall not affect the
cooling engine cylinder head, cylinder, cylinder head of
orthographic projection position in front of the front
direction should be take。
5
4
3
2
N
1
Shifting forward
Shifting backward

XY400GY
-19-
VI、Check-ups, Adjustments and Maintenance
Follow the scheduled maintenance periods at a time before performing a self-test：
VEHICLE MAINTENANCE SCHEDULE
Frequency
Project
Odometer reading（Comment 1）
Note
X1000Km
1
4
8
12
16
Month
1
6
12
18
24

Oil circuit
I
I
I
I

Oil filter
R
R
R
R

Throttle operation
I
I
I
I
I

Carburetor choke
I
I
I
I
I
Air cleaner filter element
R
R
R
R
Comment
（2）
Spark plug
I
R
I
R

Valve clearance
I
I
I
I

Vaporizer
I
I
I
I
I

Oil
R
R
R
R
R

Oil filters
R
R
R
R
R
Transmission chain
Per 1000km：I and L

Brake fluid
I
I
I
I
R
Comment
（3）

Brake shoes/pads wear
I
I
I
I
I
Brake system
I
I
I
I
I

Brake block converters
I
I
I
I
I

Headlight adjustment
I
I
I
I
I
Suspension
I
I
I
I

Clutch
I
I
I
I
I

Side stand
I
I
I
I

bolts、nuts、fasteners
I
I
I
I
I

Rims/tires
I
I
I
I
I

Bearings of steering bar
I
I
I
I
I
I：Check and clean or, if necessary, adjustment, lubrication replacement。R：Replacement；L：Lubrication；C：
Clean.
If the maintenance must have the appropriate tools or materials, or vehicles cannot be maintained if you think, you can
contact the dealer or repair shop for repair
 To ensure safety, parts of the vehicle inspection and maintenance must be carried out by the dealer or service center。
Comments：（ 1）Higher odometer readings prescribed frequency interval to repeat.
（2）Driving in unusually humid and dusty places require more frequent maintenance.
