USER MANUAL
USER MANUAL

Congratulations!
You are the new owner of a MASH motorcycle which embodies a new spirit, a
new trend: a motorcycle with a cool new look and new design philosophy;
" intage", a new concept, synonymous with freedom.
Please read this manual thoroughly before using your MASH

Important Cautions
Running-in of your new motorcycle
The first 1000 km of use is very important in the service life of a motorcycle. The
correct running-in can guarantee both the longest service life and the best
performance of the vehicle. Running-in ensures machined surfaces are gently
smoothed to ensure correct engagement.
Careful and patient running-in will ensure the motorcycle gives its full
performance. It is important not to do anything that may cause overheating of
engine components.
For specific running-in method, please refer to "Running-in of a new
vehicle".
Please carefully read the manual and strictly observe all instructions.
Special attention should be paid to the contents emphasized with the
terms of "warning" "caution" and "note", etc.
Warning……Relates to personal safety. Ignoring it may result in an
accident.
Precaution……Refers to operational methods that must be followed or
measures that should be taken, so as to prevent damage.
Note……Refers to special explanations to make maintenance or important
descriptions more explicit.
The User manual is an important and permanent document of the motorcycle.
Please transfer the manual any new owner if you sell your vehicle to move up to
your next MASH motorcycle.

There are some differences among various models. For any unconformity
between your vehicle and the instruction manual, the real vehicle shall prevail.
Foreword
Thank you for your choosing a MASH motorcycle. In design, development
and manufacture of the motorcycle, our company applies the latest advanced
technology and equipment to provide you with a vehicle that is reliable, novel in
design and elegant in appearance. Motorcycle riding is one of the most exciting
activities. The motorcycle is an ideal means of transport but it can also give you
huge driving pleasure. Before driving your motorcycle for the first time, please
become familiar with all stipulations and requirements mentioned in this
instruction/User manual.
The instruction manual details the correct use and maintenance of the
motorcycle. Observing the details in this manual will ensure your motorcycle
will perform faultlessly for a long time. Your MASH dealer has skilled and well
trained technical professionals who will provide the best maintenance and
service to your motorcycle.

Table of Contents.

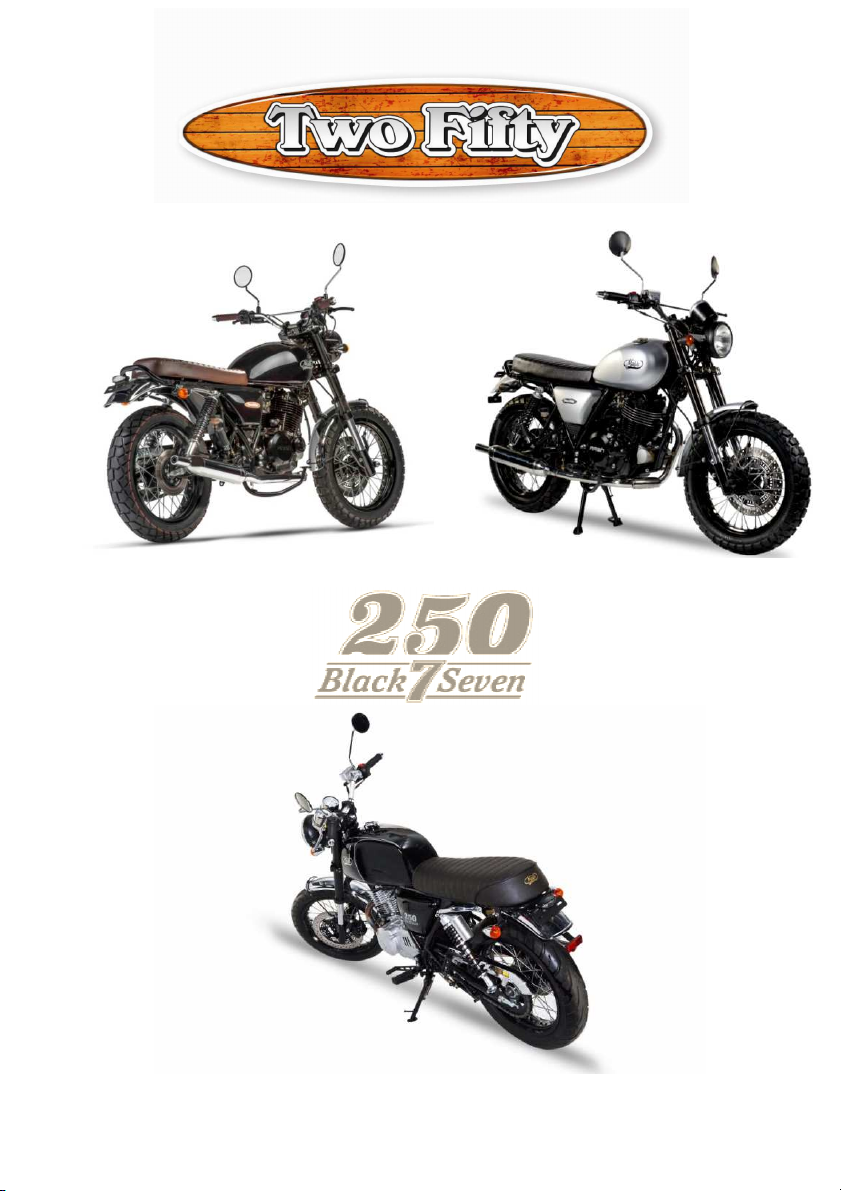

Specification
Two Fifty............................................................................................................ 8
Chapter 1
User Instructions.............................................................................................09
Chapter
Location of Controls........................................................................................11
Chapter 3
Controls and Instruments ...............................................................................12
Chapter 4
Recommendations on fuel and engine oil ......................................................22
Chapter 5
Running in of new motorcycle ........................................................................24
Chapter 6
Inspection before driving............................................................................... 26
Chapter 7
Essentials of driving........................................................................................ 27
Chapter 8
Inspection and maintenance...........................................................................31
Chapter 9
Measures to reduce pollution........................................................................ 54
Chapter 10
Troubleshooting............................................................................................. 55
Chapter 11
Storage and Cleaning ..................................................................................... 59

8
Mash 250 cc euro 4
Motor type Single cylinder 4T, Air cooling
Engine capacity 249cc
Compression ratio 9.2:1
Idle speed 1450±100RPM
Power max 20 cv à 7500 tr/min
Torque max. 20.30Nm/6000r/min
Ignition CDI
Speed max. ≥ 110 km/h
Spark plug DR8EA
Battery 12 8Ah
Front tire
Two Fifty 110/80-17 Black Seven 110/70/17
Rear tire Two Fifty Black Seven 130/70-17
Oil motor SAE10W-30
Oil engine quantity
1700 ml
Length /Width /Height
Two Fifty 2140x710x1050 mm Black seven1970x720x1115mm
Wheelbase 1370mm
Ground clearance 150mm
Weight Two Fifty 130kgs Black Seven 112 kgs
Weight max 300kg
Fuel tank capacity 14 liters
Fuel SP95 or SP98 (SP95 E10 not recommended
This list is only for information. Changes can be
made by the manufacturer without warning to customers.

9
Chapter 1
User Instructions
Instructions on safe riding of your motorcycle
Always observe the traffic and licensing laws in your country and follow the five
points below.
Wear safety helmet
A high-quality safety helmet is the most important item of personal
protection in motorcycle riding. Therefore, be sure to wear a safety helmet
whenever you drive your motorcycle. Also wear a pair of proper protective
glasses and good quality gloves.
Be familiar with the vehicle
Understanding how your vehicle is built, maintained and the correct
functioning of all the key controls is vital to enjoying safe motorcycling . Be sure
to keep in mind that skill comes from practice. Train and practice in a safe traffic
free environment.
Understand what is a safe speed
Drive at all times at a speed which is consistant with the prevailing weather
conditions, road conditions and your skill level. Keep within safe parameters
when judging your speed.
Please note that on rainy days, the braking distance is two times as much
as that in fine weather. Keep away from any manhole cover, paint mark or oil
spillage to prevent skidding and always keep a safe distance with any vehicle in
front.
Wear correct dress
As well as a crash helmet, your motorcycle attire is important in
providing you with the safest possible experience. Always wear clothing
designed for motorcycling ( your dealer can advise).
Do not wear loose or badly fitting clothing which could become
entangled with the moving parts.
Eye protection and gloves are both recommended.
Inspection before driving
Allways inspect your vehicle before setting off to make sure there are no
obvious faults
Please carefully read all instructions in "inspection before driving" of the
manual to guarantee the safety of you and passengers.

10
Position of serial numbers
Chassis number (code IN) Eng
ine number
Position of metal nameplate
The Chassis number (o
r IN code) and engine number are
registration of your motorcycle. The numbers are
also needed when
components or spare parts.
Write the numbers in the spaces below, for future reference.
Chassis number :
Engine number :
ine number
r IN code) and engine number are
necessary for
also needed when
ordering
Write the numbers in the spaces below, for future reference.

Chapter
Location of Controls
Handle bar instrument
Speedometer
Ignition
switch
Clutch lever
Right handlebar
switch
Left handlebar
switch
Rearview
mirror
Right side
Battery and
fuse box
Rear
footrests
Spark
plug
Front
Footrests
Brake
pedal
Left side
Drain
plug
Injector
Front wheel
Air filter
Gear level
11
Right handlebar
Front brake grip
Accelerator
Rear wheel

12
1
1
1
1
1
2
3
4
5
7
8
9
Chapter 3
Controls and instruments
Two keys are provided. Please use one key and put the other in a safe place
for future use.
Instrumental panel
Analogue counter
4
5
Digital counter
6
9
10
10
6

13
1. Reset counter
. Speedometer : Miles, km/h
3. General Odometer
Indicates the total distance traveled by the motorcycle since its first use.
4. Turn signal indicator
Lights up when turn signals are used.
5. Gearshift indicator
This indicator will show the current selected gear. There are 5 gears.
6. High beam indicator lamp
When the head light is in high beam, the indicator is lit.
7. Trip mileage recorder
Indicates the distance traveled on a day or a partial area.
8. Indicator neutral mode
Light is on when in neutral.
9. EFI indicator
Lights in the event of injection system failure.
10. Fuel level indicator
Lights up when the fuel level reaches the the reserve. Refill fuel as soon as
possible.

14
Ignition switch
FIG. 1
There are four positions as follows
OFF Position
All circuits are isolated and the key can be removed.
ON Position
All igniting circuits are ON and the engine can be started. The key cannot
be removed in this position.
Lock the handlebar Position
In order to lock the handlebar, turn the bar to the left, then insert the
key. Rotate it clockwise to full stop to lock the steering.
Night Parking position.
To park the motorcycle at night turn the key to “
” position. In this
position, the key can be removed a
nd the tail lamp and front side lamps
stay ON for parking on the roadside at night.
All igniting circuits are ON and the engine can be started. The key cannot
In order to lock the handlebar, turn the bar to the left, then insert the
” position. In this
nd the tail lamp and front side lamps

15
Left handlebar control system
1. Cluch lever
To start the engine or to shift gear, pull the lever to release the drive
system and cut off the clutch.
. Dimmer switch
When the dimmer switch is turned up to " " (high beam) position, the
head light is in high beam and the high beam indicator lamp on the
instrument panel is lit. Alternatively, when it is turned down to " " (low
beam) position, the low beam is lit.
3. Turn signal switch
When the switch is turned to left " " position, the left turning signal
lamp is lit and the indicator lamp on instrument panel flashes. When the
switch is turned to right " " position, the right turning signal lamp is lit
and the indicator lamp on instrument panel flashes.
Warning
Before turn the key to position, park the vehicle
with its side stand or central stand on firm ground.
Warning
Do not try to move the motorcycle when the steering is locked
4
3

16
3
3
4. Horn button
Push the button » to use horn.
Right handlebar control system
1. Engine shutdown switch
This switch is a rocker switch. When it is in the " " or
start pos
engine can be started.
If the switch is pressed in " " or off
position, the starting circuit is
completely cut off and the starter motor cannot be used
. Do
switch in this position during driving.
. Front brake lever
To apply
the front wheel brake, slowly apply the brake lever
handlebar.
When the brake lever is pulled, the rear
brake light will be lit
automatically.
3. Electric start button
Press " " button to operate the start
er motor. Always pull in the clutch
lever, and try if possible to use the starter motor only in Neutral gear.
Precaution
Remember to turn on the flashing light each time you change lanes or
directions. Switch it off immediately afterwards.
1
1
2
1
4
start pos
ition, the
position, the starting circuit is
. Do
not put the
the front wheel brake, slowly apply the brake lever
on the right
brake light will be lit
er motor. Always pull in the clutch
lever, and try if possible to use the starter motor only in Neutral gear.
Remember to turn on the flashing light each time you change lanes or
directions. Switch it off immediately afterwards.

17
4. Accelerator grip
The Accelerator grip is used to control the engine speed. To accelerate, turn
the grip towards yourself. To decelerate, turn the grip away from yourself.
Fuel tank cap
To open fuel tank cap, insert the key and turn it clockwise. The fuel tank
cap can be removed together with the key. To replace the cap, align the arrow
on the cap and press the cap, together with the key, into the fuel tank cap hole
until a click sound is heard. Then, remove the key.
Warning
The starter motor should not be operated for more than
5 seconds otherwise overheating of the starter motor and excessive
battery discharge may result. If starting fails after several attempts,
refer to "Troubleshooting").

18
(1) Fuel nevel
(2) Filler
Gear lever
The motorcycle is provided with a 5-speed gear transmission. The gear lever
connects to a ratchet mechanism in the transmission. After selecting a gear, the
gear lever returns to the at rest position so that the next gear can be selected.
The neutral gear is between the 1
st
gear and 2nd gear positions. From neutral
position, press down the gear lever to engage 1
st
gear. Raise the gear lever one
step to move up a gear. Owing to the ratchet mechanism you cannot move
more than one gear up or down in one operation. To shift from 2
nd
gear to low
gear, or from low gear to 2nd gear, the neutral position is passed without
engaging neutral. To engage neutral gear, very gently nudge the lever down ( if
in 2
nd
) or uo if in first gear.
Precaution
Do not fill the tank excessively. Never splash fuel onto a hot engine.
Overfilling the tank can result in fuel leaking from the filler cap if there is
expansion due to the machine being left in strong sunshine.
During refueling the engine must be turned off and the ignition
isolated. Smoking is strictly forbidden during fuel refilling.

19
Warning
When the transmission is in neutral position, the neutral indicator lamp is lit
on the instrument board. Despite the lamp is lit, be careful to release the clutch
grip slowly to make sure if the transmission is really in neutral position.
When engaging into a low gear during high speed driving, the engagement of
clutch may make a sudden increase in engine speed. Before engaging a low gear,
slow down the motorcycle to prevent unnecessary wear of components in
transmission system.
Rear brake pedal
Press down this pedal to apply rear wheel brake. When operating the rear
brake in this way, the rear brake indicator light is on.
Side stand
The vehicle is equipped with a side stand .

20
Rear shock damper
Spring adjustment
The shock damper springs of rear wheel can be adjusted according to the
payload, driving mode and road conditions. The adjust
ment can be one of
stages. Park
the vehicle on its central stand or side stand and turn the spring
tension ring to the required position. The first stage is the softest and the fifth
stage is the hardest. The second stage is as the factory setting.
Warning
If you park the vehicle on sloped ground, pl
ease point it uphill and
engage 1
st
gear.
Make sure that stand i
s up before setting off on your bike!
Warning
The springs of both sides must be at
the same stage. Otherwise, it
cause an instability and poor handling
The shock damper springs of rear wheel can be adjusted according to the
ment can be one of
five
the vehicle on its central stand or side stand and turn the spring
tension ring to the required position. The first stage is the softest and the fifth
stage is the hardest. The second stage is as the factory setting.
ease point it uphill and
s up before setting off on your bike!
the same stage. Otherwise, it
may
