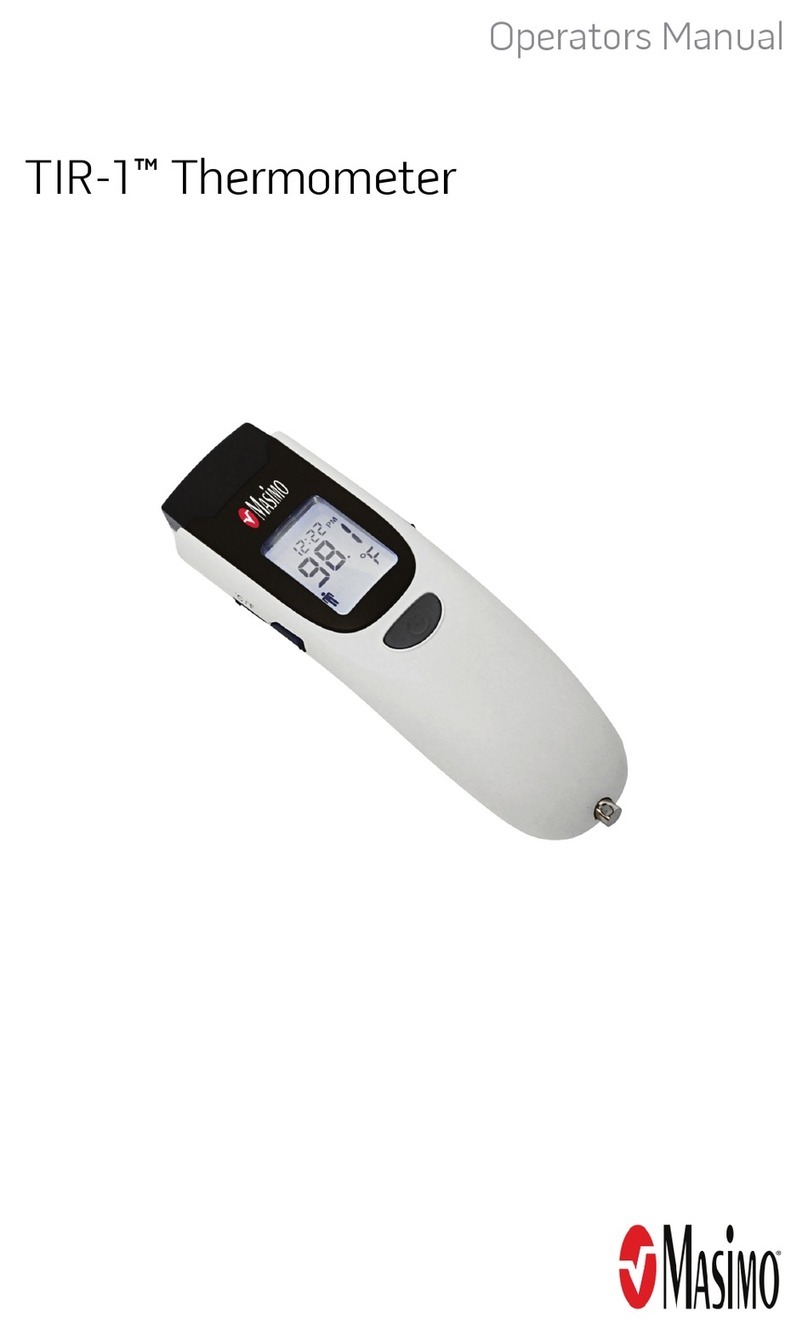

Masimo TIR-1 User manual

TIR-1™
Quick Reference Guide

Graphic, Caregiver, top view
GR-17863
Rev: A
CO-039684
12/17
Components and Features Setup
Press down on top section
of battery cover and slide
in the direction of the
arrow on the cover.
1
MODE
MEM
Graphic, Caregiver, sliding in battery door
GR-17864
Rev: A
CO-039684
12/17
Insert 2 AAAlkaline batteries
in the compartment and
wait for the beep and the
LCD to light up.
2
Slide battery cover back
over the compartment with
pressure on both top and
bottom of the battery cover.
3
Graphic, Caregiver, pressing down battery door
GR-17865
Rev: A
CO-039684
12/17
Bluetooth®Pairing Operation
Enable the Bluetooth option on the Masimo device
On the Bluetooth menu, select theThermometer option
Power on the TIR-1 unit and take a measurement
Hold close to the Masimo device and select the unit on
the device screen to pair
4
5
6
Graphic, Caregiver, Bluetooth pairing with Root
GR-17870
Rev: A
CO-039684
12/17
8
9
10
11
Graphic, Caregiver, removing cap
GR-17859
Rev: A
CO-039684
12/17
Remove protective cap
Clean the central area
of forehead
Aim at middle of forehead,
1/2 – 2 inches away from skin
Press and release the POWER button. Hold
thermometer in place until 2 beeps are heard
and temperature is displayed on LCD.
View the measurement on the Masimo device
screen as well as on the TIR-1 unit
MODE: BODY or
SURFACE or ROOM
MEM: Recall stored
temperature readings
POWER/
START Measurement
Change Scale °F/°C SET Date/Time
Bluetooth LED
Infrared
Sensor
7
Graphic, Caregiver, measuring site
GR-17860
Rev: A
CO-039684
12/17
Graphic, Caregiver, aiming at forehead
GR-17861
Rev: A
CO-039684
12/17
°C/°F
SET
12
Graphic, Caregiver, forcing battery door to close
GR-17866
Rev: A
CO-039684
12/17
NOTE: Do not place the battery cover over the
back compartment and press down with uneven
pressure as this can damage the battery door

39463/PLM-11099A-0618 © 2018 Masimo. All rights reserved.
Settings
Mode Change Scale Change Memory Setting Date/Time
Steps To Manage Settings
>Press and hold button for
5 sec for current mode
>Press button again to cycle
to next mode
>Press the button for
current scale
>Press button again to
change scale
>Press MEM button and
hold to view most recent
measurement (‘01’)
>Release button to view
measurement details
>Press and hold button again to
move to next measurement (‘02’)
To View:
>Press and hold SET button
for 5sec for current date and time
> Digits ash per section (Month,
Day, Year, Hours, Minutes)
>To change section press SET button
To Change:
>Press MODE button to increase
>Press °C/°F button to decrease
Available Measurement Modes:
>Body
>Surface
>Room
Available Options:
>Farenheit
>Celsius
Measurement Details Include:
>Time
>Temperature
>Mode
Graphic, Caregiver, left view
GR-17868
Rev: A
CO-039684
12/17
MODE
MEM
Graphic, Caregiver, left view
GR-17868
Rev: A
CO-039684
12/17
MODE
MEM
Graphic, Caregiver, right view
GR-17869
Rev: A
CO-039684
12/17
°C /°F
SET
Graphic, Caregiver, right view
GR-17869
Rev: A
CO-039684
12/17
°C /°F
SET
Mode Button Temperature Scale Button Memory Button Date/Time Button
Masimo International
Tel: [phone]
[e-mail]
Masimo U.S.
Tel: 1 877 4 Masimo
info-americ[email protected]
Not intended to replace
the Operator’s Manual.
