Masport P33R-NG1 Quick start guide

Model:
P33R-NG1
P33R-LPG1
Owners&
Installation
Manual
01/16/04
LISTINGSANDCODEAPPROVALS
These gas appliances have been
tested in accordance with AG 103,
NZS 5262 and have been certified
by the Australian Gas Association
for installation and operation as
described in these Installation and
Operating Instructions.
Your unit should be serviced
annually by an authorised
service person.
918-046d
P33 Gas Inbuilt
PLEASE KEEP THESE INSTRUCTIONS
FOR FUTURE REFERENCE
WARNING:
Improper installation, adjustment,
alteration, service or maintenance can
cause injury or property damage. Refer to
this manual. For assistance or additional
informationconsultanauthorisedinstaller,
service agency or the gas supplier.
FORYOURSAFETY
Do not store or use gasoline or other
flammablevapoursandliquidsinthevicinity
of this or any other appliance.
Installation and service must be performed
byanauthorisedinstaller,serviceagencyor
the gas supplier.
Head Office - New Zealand
1-37 Mt Wellington Hwy.Panmure,
P.O. Box 14349
Auckland 6.
FORYOURSAFETY
What to do if you smell gas:
Donottrytolightanyappli-
ance
Do not touch any electrical
switch: do not use any
phone in your building.
Immediately call your gas
supplierfromaneighbour's
phone. Follow the gas sup-
plier'sinstructions.
If you cannot reach your
gas supplier, call the fire
department.
Australia
P.O. Box 533
Braeside, Victoria, 3195
Roma

Masport P33R-1 Room Sealed Gas Fireplace
2
To the New Owner:
Congratulations!
Youarethe ownerofa state-of-the-artGasFireplace by MASPORTLTD. TheP33R-1 hasbeendesigned toprovide
you with all the warmth and charm of a wood fireplace at the flick of a switch. The model P33R-1 has been approved
by Warnock Hersey for both safety and efficiency. As it also bears our own mark, it promises to provide you with
economy, comfort and security for many trouble free years to follow. Please take a moment now to acquaint yourself
with these instructions and the many features of your Masport Fireplace.

Masport P33R-1 Room Sealed Gas Fireplace 3
TABLE OF CONTENTS
Operating Instructions
LightingPlateInstructions .........................................24
OperatingInstructions ...............................................25
LightingProcedure ....................................................25
ShutdownProcedure .................................................25
First Fire ...................................................................25
AerationAdjustment..................................................25
NormalOperatingSoundsof
GasAppliances ..................................................26
Maintenance
MaintenanceInstructions ..........................................26
GeneralFlueMaintenance ........................................26
LogReplacement ......................................................27
Glass Gasket............................................................27
Door Glass: Flush .....................................................27
RemovingValve .........................................................28
InstallingValve ..........................................................28
PartsList
Replacement/SparePartsList...................................29
Warranty
Warranty ...................................................................35
Safety Label
SafetyLabel............................................................... 4
Installation
ImportantMessage .................................................... 5
BeforeYouStart ........................................................ 5
GeneralSafetyInformation ......................................... 5
ManufacturedHomeAdditionalRequirements ............ 5
InstallationChecklist .................................................. 6
LocatingYourGasStove............................................ 6
Clearances................................................................. 6
CombustibleMantelClearances................................. 7
MantelLegClearances............................................... 7
FramingandFinishing................................................ 8
Unit Assembly Prior to Installation ............................. 9
ExteriorFlueTerminationLocations ..........................10
FlueingIntroduction ...................................................11
Flueing - Masport Direct Vent System
HorizontalTerminations ......................................11
Installation of Direct Vent System .............................12
DirectVent-HorizontalTerminations ........................13
FlueingArrangements-VerticalTerminations ...........14
Flueing-HorizontalInstallations................................15
Flueing- VerticalInstallations ...................................16
GasLineInstallation..................................................16
Pilot Adjustment .......................................................17
System Data.............................................................17
PressureTesting .......................................................17
S.I.T.ValveDescription .............................................17
ConversiontoLPG ....................................................18
Optional Brick Panels ...............................................19
LogSetInstallation ...................................................19
FlushDoor-Standard ...............................................21
OptionalFlushTrim...................................................21
Louvres-Flush..........................................................21
RemoteControl(optional)..........................................22
WallThermostat(optional) ........................................22
WiringDiagram .........................................................23

Masport P33R-1 Room Sealed Gas Fireplace
4
This is a copy of the label that accompanies
eachP33R-1ZeroClearanceRoomSealedGas
Fireplace. We have printed a copy of the con-
tents here for your review. The safety label is
located on the front inside base of the unit,
visible when the bottom louvre is open.
SAFETY LABEL
NOTE: Masport units are constantly being im-
proved. Check the label on the unit and if there
isadifference,thelabelontheunitisthecorrect
one.

Masport P33R-1 Room Sealed Gas Fireplace 5
INSTALLATION
IMPORTANT:
SAVE THESE
INSTRUCTIONS
The P33R-NG1 or P33R-LPG1 Room Sealed
Fireplace must be installed in accordance with
AG 601 or NZS 5621 and these instructions.
Carefullyread allthe instructionsinthismanual
first. Consult the "authority having jurisdiction"
to determine the need for a permit prior to
startingtheinstallation. Itis theresponsibilityof
the installer to ensure this fireplace is installed
in compliance with manufacturer's instructions
and all applicable codes.
BEFORE YOU START
NOTE:NOT INTENDEDAS AFIREPLACE IN-
SERT.
YOUNG CHILDREN SHOULD BE
CAREFULLY SUPERVISEDWHEN
THEYAREINTHESAMEROOMAS
THEAPPLIANCE.
CLOTHINGOR OTHER FLAMMA-
BLEMATERIALSHOULDNOTBE
PLACEDONORNEARTHEAPPLI-
ANCE.
INSTALLATION AND REPAIR
SHOULDBEDONEBYANAUTHOR-
IZEDSERVICEPERSON.THEAP-
PLIANCESHOULDBEINSPECTED
BEFOREUSEANDATLEASTAN-
NUALLY BY A PROFESSIONAL
SERVICE PERSON. MORE FRE-
QUENT CLEANING MAY BE RE-
QUIREDDUETOEXCESSIVELINT
FROMCARPETING,BEDDINGMA-
TERIAL, ETC. IT IS IMPERATIVE
THAT CONTROL COMPART-
MENTS,BURNERSANDCIRCULAT-
ING AIR PASSAGEWAYS OF THE
APPLIANCEBEKEPTCLEAN.
DUE TO HIGH TEMPERATURES,
THEAPPLIANCESHOULDBELO-
CATED OUT OF TRAFFIC AND
AWAY FROM FURNITURE AND
DRAPERIES.
WARNING:FAILURETOINSTALL
THIS APPLIANCE CORRECTLY
WILLVOIDYOURWARRANTYAND
MAY CAUSE A SERIOUS HOUSE
FIRE.
CHILDRENANDADULTSSHOULD
BE ALERTED TO THE HAZARDS
OF HIGH SURFACE TEMPERA-
TURES, ESPECIALLY THE FIRE-
PLACE GLASS, AND SHOULD
STAYAWAYTOAVOIDBURNSOR
CLOTHINGIGNITION.
GENERAL SAFETY
INFORMATION
1) The appliance installation must conform
with local codes or, in the absence of local
codes, with the current AG 601 and NZS
5261 Installation Codes.
2) The appliance when installed, must be
electrically grounded in accordance with
local codes, or in the absence of local
codes with the current National Electrical
Code,ANSI/NFPA70 orCSA C22.1Cana-
dian Electrical Code.
3) See general construction and assembly
instructions.Theappliance and flueshould
be enclosed.
4) This appliance must be connected to the
specified flue and termination cap to the
outsideofthebuildingenvelope.Neverflue
to another room or inside a building. Make
sure that the flue is fitted as per Flueing
instructions.
5) Inspect the flueing system annually for
blockage and any signs of deterioration.
6) Flueingterminalsshallnotberecessedinto
a wall or siding.
7) Any safety glass removed for servicing
must be replaced prior to operating the
appliance.
8) To prevent injury, do not allow anyone who
is unfamiliar with the operation to use the
fireplace.
9) Wear gloves and safety glasses for pro-
tection while doing required maintenance.
10)Be aware of electrical wiring locations in
walls and ceilings when cutting holes for
termination.
11)Under no circumstances should this appli-
ance be modified. Parts that have to be
removed for servicing should be replaced
prior to operating this appliance.
12)Installation and any repairs to this
applianceshouldbedonebyanau-
thorized service person. A profes-
sional service person should be
called to inspect this appliance an-
nually.Make itapracticetohaveall
ofyourgasappliancescheckedan-
nually.
13)Do not slam shut or strike the glass door.
14)Under no circumstances should any solid
fuels (wood, paper, cardboard, coal, etc.)
be used in this appliance.
15)Theapplianceareamustbekeptclearand
free of combustible materials, (gases and
other flammable vapours and liquids).
MANUFACTURED
MOBILE HOME
ADDITIONAL
REQUIREMENTS
1) Ensure that structural members are not cut
or weakened during installation.
2) Ensure proper grounding using the #8
ground lug provided. See page 23.

Masport P33R-1 Room Sealed Gas Fireplace
6
Clearances for Bay or Flush Front
INSTALLATION
CHECKLIST
1) Locate appliance
a) Room location, page 6
b) Clearances to Combustibles, page 6
c) Mantle Clearances, page 7
d) Framing&Finishing Requirements,
page 8
e) Flueing Requirements, pages 10 to 16.
2) Assemble Top Facing Support and Side
NailingStrips,page9.(NOTE:mustbedone
before installing unit into fireplace.)
3) Install flue, pages 10 to 16.
4) Make gas and electrical connections. Test
the pilot. Must be as per diagram. Page 17.
Convert to LPG if desired, page 18.
5) Install brick panels (optional), page 19.
6) Install log set, page 19.
7) Install Flush Door Front (Standard) and
optional Flush Gold Trim, page 20.
8) Install Louvres, page 21.
9) InstalloptionalRemoteControl,orWallTher-
mostat, page 22.
10)Final check.
Beforeleavingthisunitwiththecustom-
er, the installer must ensure that the
appliance is firing correctly and opera-
tionfullyexplainedtocustomer.
This includes:
1) Clocking the appliance to ensure the cor-
rect firing rate (rate noted on label) after
burning appliance for 15 minutes.
2) If required, adjusting the primary air to
ensurethattheflamedoesnotcarbon.First
allow the unit to burn for 15-20 min. to
stabilize.
CAUTION: Any alteration to the product
that causes sooting or carboning that
results in damage is not the responsibil-
ity of the manufacturer.
Diagram 1
INSTALLATION
LOCATING YOUR
GAS STOVE
1) When selecting a location for your stove,
ensure that the clearances outlined on this
page are met.
2) Provide adequate clearances for servicing.
3) The appliance must be installed on a flat,
solid, continuous surface (e.g. wood, met-
al, concrete). This may be the floor, or
raiseduponaplatformtoenhanceitsvisual
impact. If the appliance is going to be in-
stalled on carpeting, combustible linoleum
tileor othercombustible materialotherthan
wood flooring, the appliance must be in-
stalled on a metal or wood panel extending
the full width and depth of the appliance.
4) The P33R-1 Room Sealed Gas Fireplace
can be installed in a recessed position or
framedoutintotheroomasinA,B,C,D.See
Diagram1.
5) Thisappliance isListedfor bedroom instal-
lations when used with a Listed Millivolt
Thermostat. Some areas may have further
requirements, check local codes before
installation.
6) TheP33R-1 RoomSealed GasFireplace is
approved for alcove installations, which
meet the clearances listed on this page.
7) We recommend that you plan your installa-
tion on paper using exact measurements
for clearances and floor protection before
actually installing this appliance. Have an
authorized inspector, dealer, or installer
review your plans before installation.
Note: For flue terminations see page 10.
CLEARANCES
The clearances listed below are Minimum dis-
tances unless otherwise stated:
A major cause of chimney related fires is
failure to maintain required clearances
(air space) to combustible materials. It is
of the greatest importance that this fire-
place and flue system be installed only in
accordance with these instructions.
Clearance to Combustibles from:
Back 0" (0mm)
Side 0" (0mm)
Floor 0" (0mm)
NOTE: The minimum floor clearance must be
maintained from the top surface of the carpet-
ing, tile, etc.
Minimum Clearance from Top of Unit to:
Mantel* min.7" (177mm)
Ceiling 30" (762mm) from
top of unit.
Side Wall Clearance
Bay or Flush Front 7-1/2" (191mm)
Flue 1-1/2" (38mm)Flex
Alcove Clearances:
Max. Depth 36" (914mm)
Min. Width 48" (1219mm)
Min. Height 59" (1499mm)
* see mantle clearance instructions (page 7).
WARNING
Fire hazard is an extreme risk if
theseclearancesarenotadhered
to.
A) Flat on Wall
B) Flat on Wall Corner
C) Recessed into Wall/Alcove
D) Corner

Masport P33R-1 Room Sealed Gas Fireplace 7

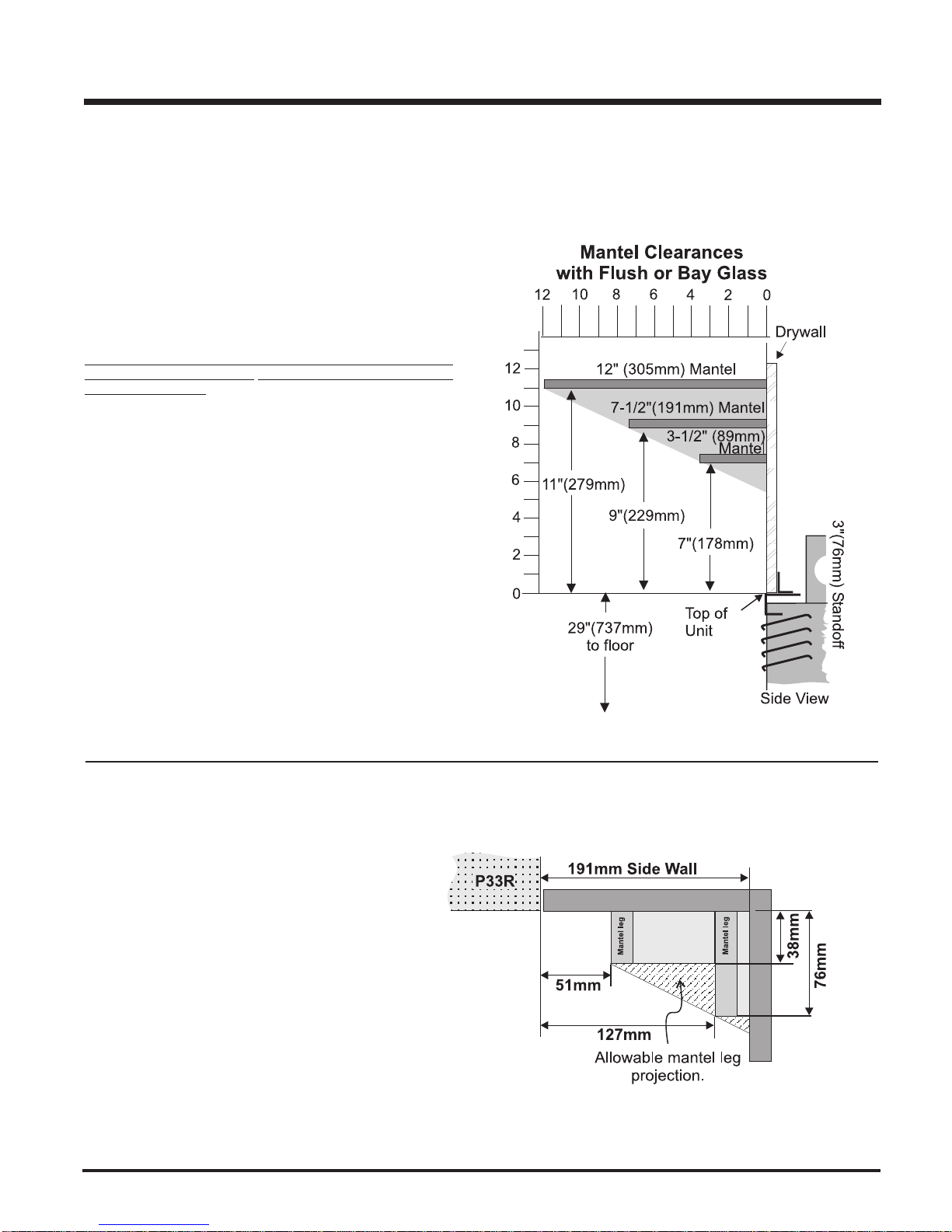

COMBUSTIBLE MANTELS
Because of the extreme heat this fireplace emits, the mantel clearances are critical. Combustible mantel clearances from top of unit
are shown in the diagram below.
INSTALLATION
This drawing is to scale at 1:6 (one inch = 6 inches). Mantel can be
installed anywhere in shaded area or higher using the above scale.
Note:
Ensure that both the material and finished surface (paint)
are heat resistant (min. 85oC) or material may distort and
paint may discolor.
MANTEL LEG CLEARANCES
Combustible mantel leg clearances as per diagram below:
Maximum
1-1/2" projection at 2"
minimumclearance.

Masport P33R-1 Room Sealed Gas Fireplace
8
INSTALLATION
InstallSide NailingStrips,and TopFacing
Support before unit is slipped into
position. See page 9 for assembly
details.
3) For exterior walls, insulate the enclosure to
the same degree as the rest of the house,
apply vapour barrier and drywall, as per
local installation codes. (Do not insulate
the fireplace itself.)
4) The top of the unit must not be closer than
30" (762mm) to the ceiling.
5) Combustiblematerialmay be broughtup to
thetop andsidesoftheunitandbe covered
with ceramic tiles, bricks, rock or other
suitable combustible finishing materials.
Note: The unit does not have to be com-
pletely enclosed in a chase. The
clearance on top of the unit is 0" to
the standoffs so combustible
building materials can be laid di-
rectly on top of the standoffs. You
must maintain 1-1/2" (38mm) clear-
ance from the vent to combustible
materials for flex.
1) Determine the total thickness of facing
material (e.g. drywall plus ceramic tiles) to
allow the finished surface to be flush with
the front of the unit. Total facing thickness
canvaryfrom1/2"(13mm)to1-1/4"(32mm)
thick.
6) Use steel studs for framing where the
1-1/2" (38mm) clearance from the vent to
combustibematerialcannot bemaintained.
NOTE
These are framing dimensions only,
NOT finished wall dimensions.
Gas is supplied from the right hand
side and the power from the left
hand side.
Ensure depth of register and outer
wall allow for minimum horizontal
flue length of 203mm.
2) Frame in the enclosure for the unit with
framing material.
Vertical Termination or
Vertical Rise with Horizontal
Termination
Rear Termination
FRAMING AND FINISHING
NOTE:Ifthisisanoutsidecorner,theminimum
distance between the vent and the outside
corner is 6" (15cm) with AstroCap termination
cap.
NOTE: If this is an outside corner, the minimum
distance between the vent and the outside
corner is 6" (15cm) with AstroCap termination
cap or 12" (30cm).

Masport P33R-1 Room Sealed Gas Fireplace 9
"C" Screw Position:
For a facing material depth of
1-1/4"(32mm), the top facing
support must be reversed.
TheTopFacingSupport,theSideNailingStrips
and the 2 Top Standoffs must be correctly
positioned and attached to the top before unit
is slipped into position.
TopStandoffAssembly
The top standoffs are shipped in a flat position
and must be pulled up and bent into the correct
shape. Setup each of the 2 Top Standoff by
bendingupatthebendlinesuntilthescrewhole
in the standoff and the pre-punched screw
holesonthe toplineup.Use threemorescrews
per standoff to attach securely to the top.
Top Facing Support &
Side Nailing Strips
Determine the total thickness of facing material
(e.g. drywall plus ceramic tiles) to allow the
finished surface to be flush with the front of the
unit. Total facing thickness can vary from 1/2"
(13mm) to 1-1/4" (32mm) thick.
The Top Facing Support & Side Nailing Strips
canbemountedin3differentpositionsdepend-
ing on the thickness of the facing material.
Screw FacingMaterial
Position Depth
A 1/2" /13mm
B 7/8" /22mm
C*1-1/4" /32mm
*For "C" screw position the top facing support
is reversed.
1) Mount Top Facing Support using the 3
suppliedscrews intothe threepre-punched
screw holes on the top front of the unit. Use
holepositionsA, B,or Cdependingon your
facing depth.
2) Use the same screw hole position for the
Side Nailing Strips as was used for the Top
Facing Support. Attach each side nailing
strip using 3 screws.
UNIT ASSEMBLY
PRIOR TO INSTALLATION
INSTALLATION

Masport P33R-1 Room Sealed Gas Fireplace
10
INSTALLATION

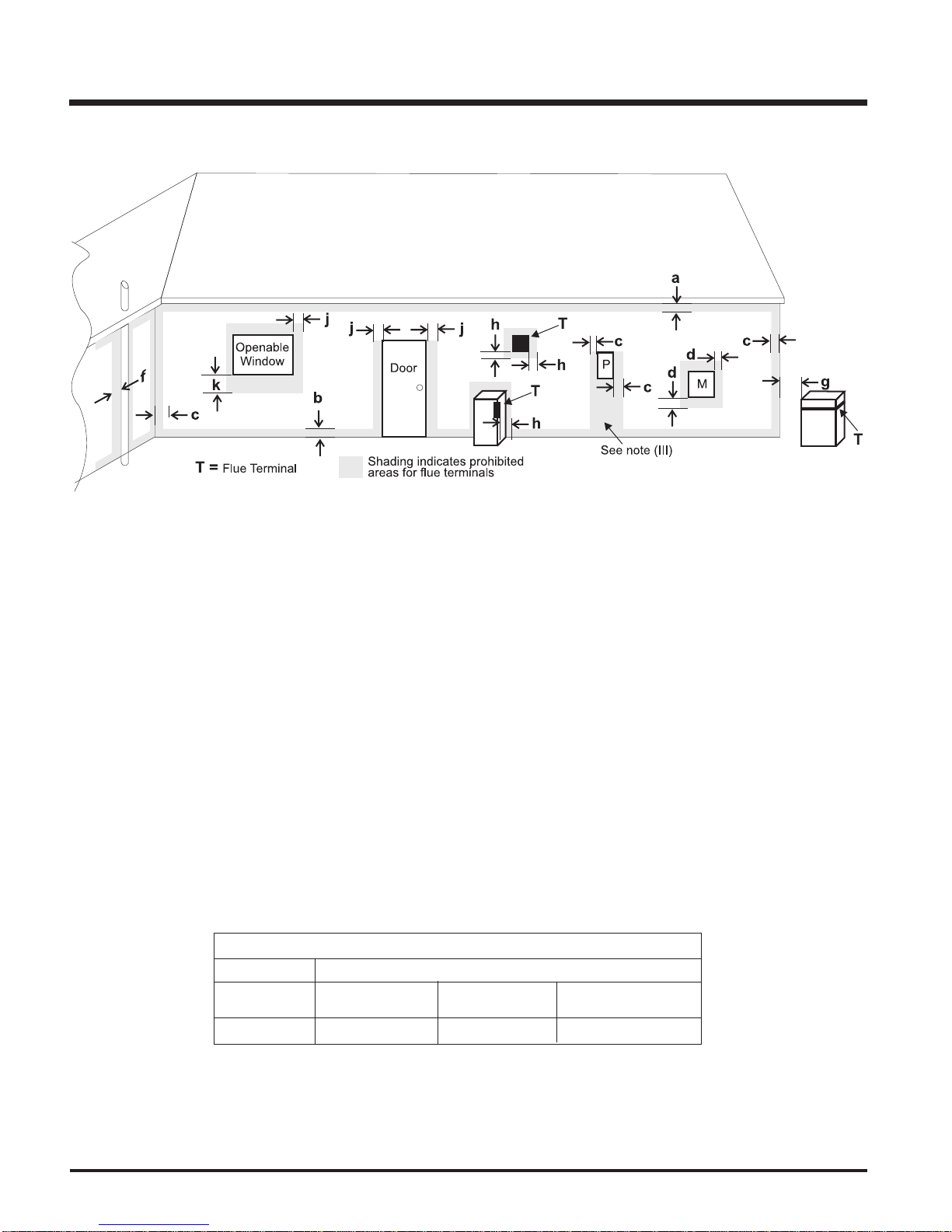

EXTERIOR FLUE TERMINATION LOCATIONS
Minimum clearances required for balanced flue terminals
or the flue terminals of outdoor appliances according
to AG 601 (AGA gas installation code) or NZS 5261 (New Zealand).
For vertical termination height refer to AG 601 or NZS 5261.
Minimum
Clearance (mm)
a Below eaves, balconies or other projections:
- Appliances up to 50 MJ/h input 300
- Appliances over 50 MJ/h input 500
b From the ground or above a balcony 300
c From a return wall or external corner 500
d From a gas meter (M) 1000
e From an electricity meter or fuse box (P) 500
f From a drain or soil pipe 150
g Horizontal from any building structure (unless appliance is approved
for closer installation) or obstruction facing a terminal 500
h From any other flue terminal, cowl or combustion air intake 500
j Horizontally from an openable window, door, or non-mechanical air inlet, or
any other opening into a building, with the exception of sub-floor ventilation
(see also Note (I)):
- Appliances up to 150 MJ/h input 500
- Appliances over 150 MJ/h input 1500
k Vertically below an openable window, door, or non-mechanical air inlet,
or any other opening into a building, with the exception of sub-floor ventilation
(see also Note (I)): see table below
Clearance 'k' in mm
Space Heaters All Other Appliances
Up to 50 MJ/h Up to 50 MJ/h input Over 50 MJ/h input Over 150 MJ/h input
input to 150 MJ/h input
150 500 1000 1500
NOTES:
(I) For mechanical air inlets, including spa blowers, the clearance 'j' and 'k' shall be 1500 mm in all cases.
(II) All distances shall be measured vertically or horizontally along the wall to a point in line with the nearest
par to of the terminal.
(III) Prohibited area below electricity meter or fuse box extends to ground level.
(IV)A flue terminal of this type shall not be located under a roofed area unless the roofed area is fully open on
at least two sides and a free flow of air at the appliance is achieved.

Masport P33R-1 Room Sealed Gas Fireplace 11
INSTALLATION
FLUEING INTRODUCTION
The P33R-1 uses the "balanced flue" technology Co Axial system. The inner liner flues products of combustion to the outside while the outer
linerdraws outsidecombustionairintothe combustionchamber therebyeliminating theneed touse heatedroomairforcombustionandlosingwarm
room air up the chimney.
NOTE: These flue pipes must not be connected to any other appliance.
The gas appliance and flue system must be flued directly to the outside of the building, and never be attached to a chimney serving a separate
solid fuel or gas burning appliance. Each Room Sealed gas appliance must use it's own separate flue system. Common flue systems are prohibited.
NOTE: Ensure compliance with the outside flue terminal location before cutting hole as both dimensions must be met.
MASPORT DIRECT VENT SYSTEM (FLEX)
HORIZONTAL TERMINATIONS
This flueing system, in combination with the P33R-1 Room Sealed Gas Fireplace, has been tested and listed as a Room Sealed heater system by
Warnock Hersey. The location of the termination cap must conform to the requirements in the Flue Terminal Locations diagram on page 10.
Masport Direct Vent (Flex) System Termination Kit (Part # 946-513) includes all the parts needed to install the P33R-1 with a
maximum run of 2 feet. If installing the P33 with a continuous flue length of more than 2 ft (.6m) to a maximum of 10 ft. (3.0m) use
Kit # 946-125 (4ft.) or Kit # 946-516 (10 ft).
1) 6-7/8" dia. flexible liner (2 ft. length)
2) 4" dia. flexible liner (2 ft. length)
3) spring spacers (3)
4) thimble (2)
5) AstroCap termination cap (1)
6) screws (12)
7) tube of Mill Pac (1)
8) plated screws (8)
9) screws #8 x 1-1/2" drill point, stainless steel (4)
Notes:
1) Liner sections should be continuous
without any joints or seams.
2) Only Flex pipe purchased from
Masport may be used for Flex instal-
lations.
Alternate
Horizontal
Termination
Cap
See also
Figure 1 below.
Part # 556310 Figure 1

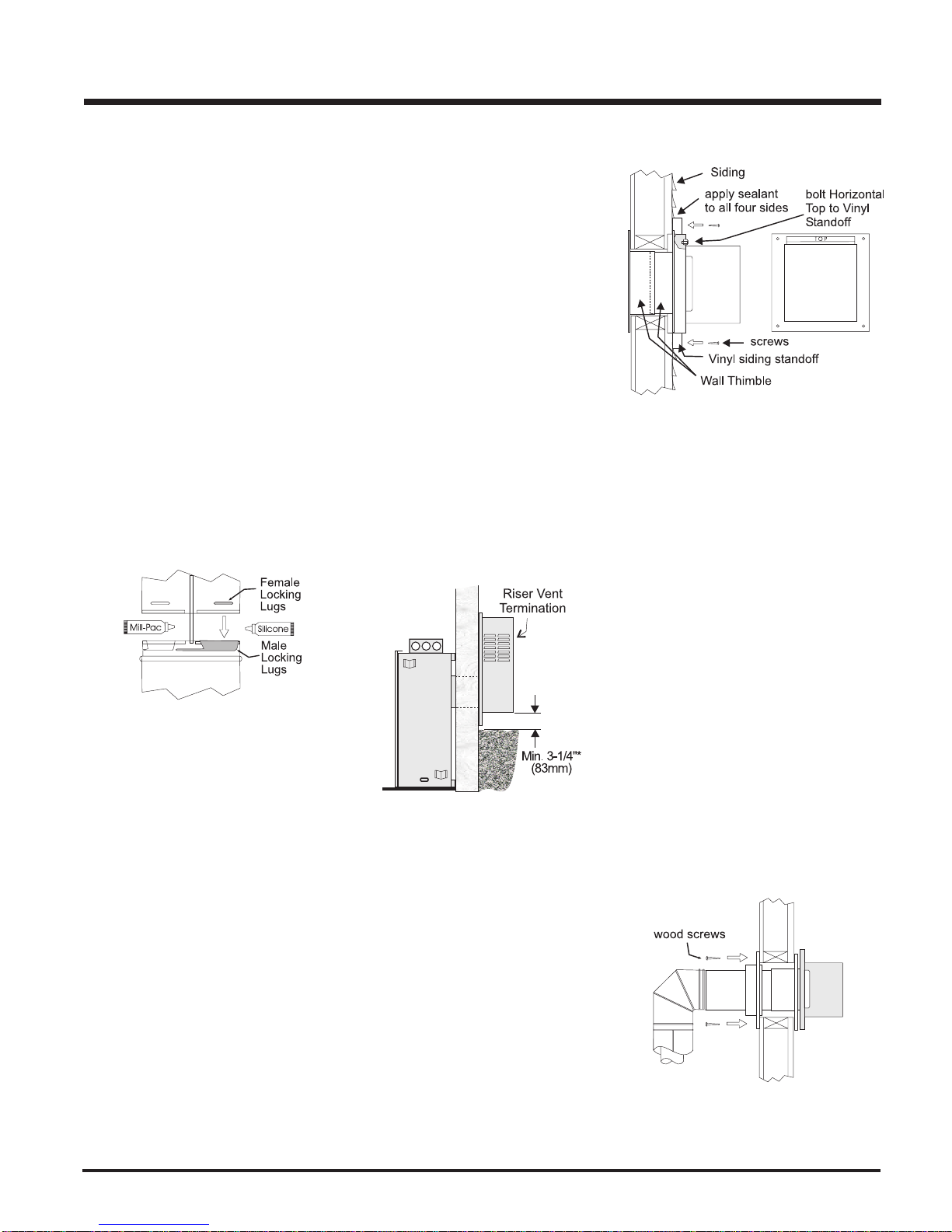

Wherever necessary due to
external location of cap, the
AstroCapcanbereplacedwith
the Riser Vent Termination
Cap.Seewarningonpage12.

Masport P33R-1 Room Sealed Gas Fireplace
12
INSTALLATION PROCEDURES
for Masport Direct Vent System (Flex)

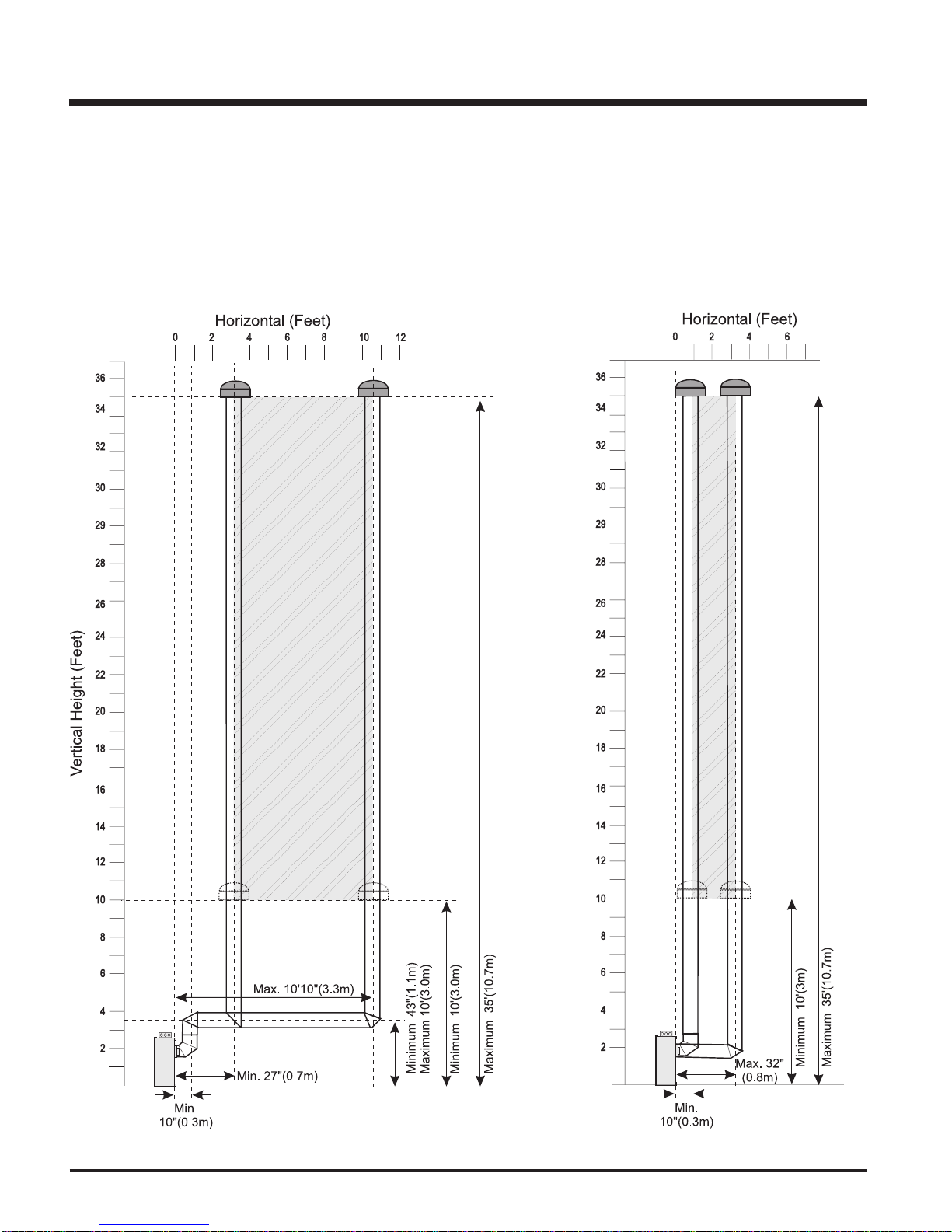

Minimum and Maximum Flue Clearances
INSTALLATION

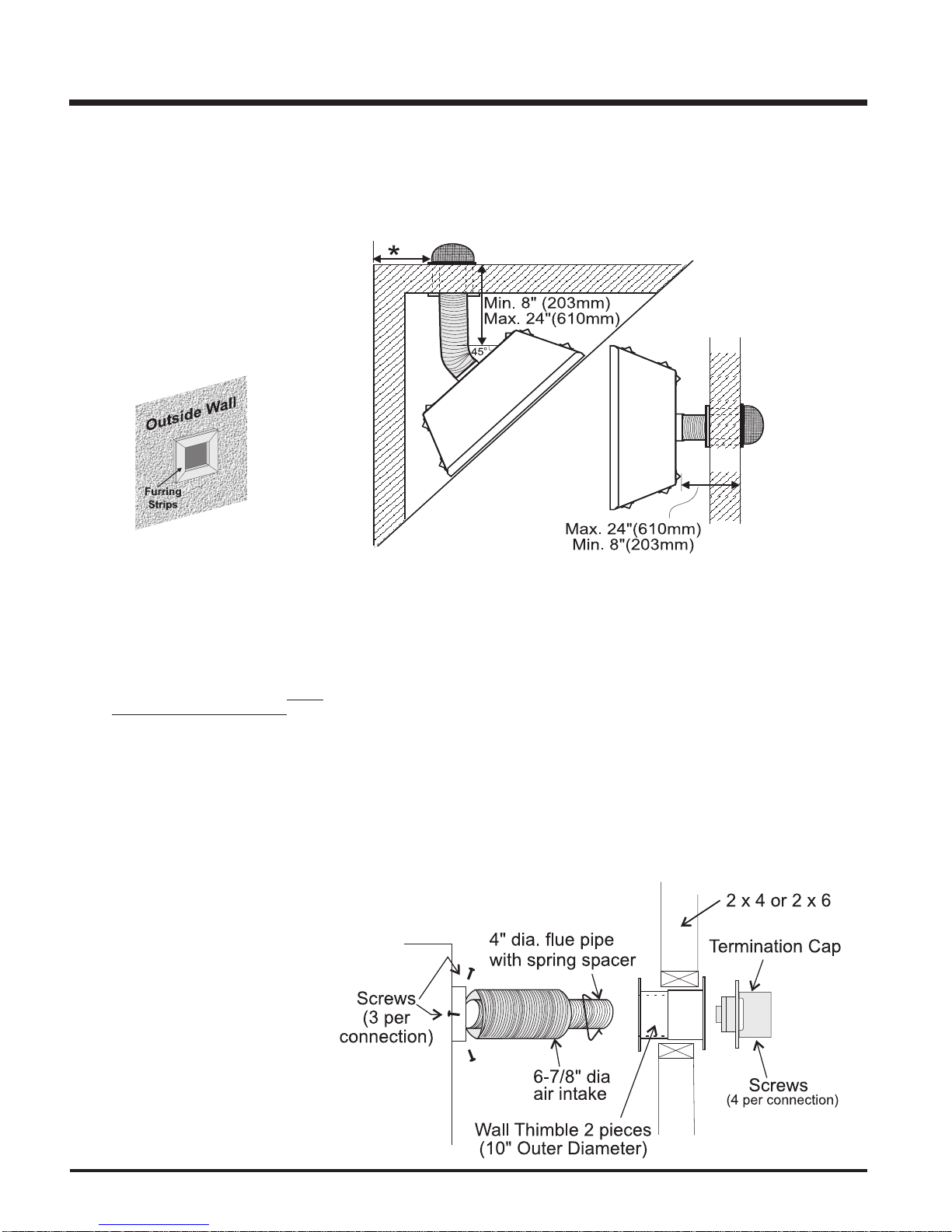

1) Locate the unit in the framing, rough in the
gas(preferably onthe rightside ofthe unit)
and the electrical (Junction block is on the
left side) on the left. Locate the centerline
oftheterminationandmarkwallaccording-
ly.Cuta10"(254mm)holeinthewall(inside
dimension).
Note: To make the installation more aes-
thetically pleasing, we recom-
mend framing out a square to
mount the terminal to.
*If this is an outside corner, the minimum distance between the flue and the
outside corner is 6" (15cm) with AstroCap termination cap. See "F" on the
diagram on page 10.
Note: A 1-1/2"(38mm) clearance around
the liner must be maintained ex-
cept that only a 1" (25mm) clear-
ance is needed at the termination
end. We recommend framing a
10"(254mm) x 10"(254mm) (inside
dimensions) hole to give structur-
al rigidity for mounting the termi-
nation.
Note: If installing termination on a siding
covered wall, furring strips must
be used to ensure that the termi-
nation is not recessed into the
siding.
2) Level the fireplace and fasten it to the
framing using nails or screws through the
nailing strips.
3) AssembletheflueassemblybyapplyingMill
Pac to the 4"(100mm) inner collar of the
terminationand slippingthe4"(100mm)liner
over it at least 1-3/8" (35mm). Fasten with
the 3 screws (drilling pilot holes will make
this easier). Apply Mill Pac or high temper-
ature silicone to the 6-7/8"(175mm) flex
pipe and slip it over the 6-7/8" outer collar
of the flue terminal at least 1-3/8"(35mm)
and fasten with the 3 screws.
4) Separate the 2 halves of the wall thimble
and securely fasten the one with the tabs
totheoutsidewallmakingsurethatthetabs
are on top and bottom. Fasten the other
thimble half to the inside wall. The thimble
halves slip inside each other and can be
adjusted for 2 x 4 or 2 x 6 walls. The liners
must slip over the collars a minimum
of 1-3/8".
5) Slip the assembled liner and termination
assembly through the thimble making sure
the termination cap faces up (there are
markings on the cap that show which way
is up). This will position the termination cap
with proper down slope for draining water.
Fasten the cap to the outer wall with the 4
supplied screws.
6) Pullthecentre 4"(100mm)linerand outer6-
7/8"(175mm)lineroutenoughtoslipoverthe
flue collars of the fireplace.
7) ApplyMillPac overthefireplace innercollar
and slip the 4"(100mm) liner down over it
and attach with 3 supplied screws.
8) Do the same with the 6-7/8"(175mm) liner.
9) Apply a bead of silicone between the thim-
ble and termination and around the outer
edge of the terminal at the wall in order to
keep the water out.
WARNING:
When installing in a high wind situ-
ation, common sense must prevail.
Chooseashelteredsideofthehouse.
A non combustible water ingress
shelf will need to be fitting 200mm
abovethe terminal topreventwater
ingress in extreme conditions or
wherenosofitshelterstheterminal.

Masport P33R-1 Room Sealed Gas Fireplace 13
INSTALLATION
FLUEING ARRANGEMENTS - HORIZONTAL TERMINATIONS
Masport Direct Vent for Horizontal Terminations (LPG & NG)
The diagram shows all allowable combinations of vertical runs with horizontal terminations, using two 90oelbows (two 45o elbows equal one 90o
elbow).
Masport DV Flex
A flue guard should be used whenever the termination is lower than the specified minimum or as per local codes.
• Maintain a 1-1/4" (40mm) clearance to combustibles.
• Horizontal flue must be supported every metre.
NOTE: Only the AstroCap (Part #: 946-578/P), and the Riser Flue
(Part #: 556310) are approved for Horizontal Termination installations.
Masport DV Flex
Riser Flue Termination

Masport P33R-1 Room Sealed Gas Fireplace
14
INSTALLATION
• Flue must be supported at offsets
• Maintain a 1-1/4" (40mm) clearance to combustibles
FLUEING ARRANGEMENTS
VERTICAL TERMINATIONS (LPG & NG)
The shaded area in the diagram shows all allowable combinations of straight vertical and offset to vertical terminations , using three 90oelbows
(two 45o elbows equal one 90oelbow).

Masport P33R-1 Room Sealed Gas Fireplace 15
INSTALLATION
Diagram 3
HORIZONTAL INSTALLATIONS
Diagram 1
Note:
a) Thehorizontalrunoffluemustbe
level, or have a 1/4 inch rise for
every 1 foot of run towards the
termination.Neverallowtheflue
to run downward. This could
cause high temperatures and
may present the possibility of a
fire.
b) The location of the horizontal flue ter-
mination on an exterior wall must meet
all local and national building codes,
andmust notbe blockedor obstructed.
For External Flue Terminal Locations,
see diagram on page 10.
c) Riser Flue Terminations:
Forinstallationsrequiringaverticalrise
ontheexteriorofthebuilding,50cm tall
Riser Flue as shown in Diagram 2 is
available. Follow the same installation
procedures as used for standard Hor-
izontalTermination.
NEVERinstallthesnorkelupsidedown.
Below Grade Riser Installation
If the Riser Termination must be in-
stalled below grade, i.e. basement ap-
plication, proper drainage must be pro-
vided to prevent water from entering
theRiserTermination. Donotattemptto
enclosethe Riserwithinthe wall,orany
other type of enclosure.
5) The arrow on the flue cap should be
pointing up. Insure that the 1-1/2" clear-
ances to combustible materials are main-
tained (Diagram 3). Install the termination
cap.
Diagram 2
Install the flue system according to the manu-
facturer's instructions included with the com-
ponents.
1) Set the unit in its desired location. Check to
determine if wall studs or roof rafters are in
the way when the flueing system is at-
tached. If this is the case, you may want to
adjust the location of the unit. Rough in the
gas preferably on the right side of the unit
andtheelectrical(junctionblockisontheleft
side) on the left.
2) Put a bead of silicone inside the outer
sectionoftheadapterandabeadofMill-Pac
ontheinner collar. Slipthe adapter overthe
existing inner and outer flue collar and
fasten to the outer collar only with the 3
supplied screws (drilling pilot holes will
make this easier). Level the fireplace and
fastenitto theframing usingnailsor screws
through the nailing strips.
3) Assemble the desired combination of pipe
and elbows to the appliance adaptor.
Note: Apply sealant "Mill-Pac" to inner
pipe and high temperature sili-
cone sealant to outer pipe on eve-
ry twist-lock joint.
a) Horizontal runs of flue must be sup-
portedevery threefeet.Wallstrapsare
available for this purpose.
4) Mark the wall for a 10" x 10" square hole.
Thecenterofthesquareholeshouldlineup
with the centerline of the horizontal pipe.
Cutandframethe10inchsquareholeinthe
exterior wall where the flue will be termi-
nated. If the wall being penetrated is con-
structed of non-combustible material, i.e.
masonry block or concrete, a 7"(178mm)
diameter (7-1/2"(191mm) dia. for flex) hole
is acceptable.
Diagram 4
pipe into the flue cap assembly. It is impor-
tant that the flue pipe extends into the flue
cap sufficient distance so as to result in a
minimum pipe overlap of 1-1/4 inches.
Secure the connection between the flue
pipeandthefluecap3sheetmetalscrews.
8) Install wall thimble in the center of the 10"
square and attach with wood screws
(Diagram 4).
The four wood screws provided should be
replaced with appropriate fasteners for
stucco, brick, concrete, or other types of
sidings.
Note: If installing termination on a siding
covered wall, a vinyl siding stand-
off or furring strips must be used
to ensure that the termination is
not recessed into the siding.
6) Before connecting the horizontal run of flue
pipe to the flue termination, slide the Wall
Thimble over the flue pipe.
7) Slide the appliance and flue assembly to-
wards the wall carefully inserting the flue
Part # 556310

Masport P33R-1 Room Sealed Gas Fireplace
16
INSTALLATION
GAS LINE
INSTALLATION
The gas valve is situated on the right hand side
of the unit and the gas inlet is on the right hand
side of the valve.
The gas line connection may be made of rigid
pipe, copper pipe or an approved flex connec-
tor. (If you are using rigid pipe, ensure that the
valve can be removed for servicing.) Since
somemunicipalitieshaveadditionallocalcodes
it is always best to consult with your local
authorities.
Follow the current AG 601 and NZS 5261
standards.
When using copper or flex connectors use only
approved fittings. Always provide a union so
that gas lines can be easily disconnected for
servicing. Flare nuts for copper lines and flex
connectors are usually considered to meet this
requirement.
Diagram 3: The upper half of the flashing is
installed under the roofing material and not
nailed down until the chimney is installed.
This allows for small adjustments.
VERTICAL
TERMINATION
1) Maintain the 1-1/2" clearances (air spaces)
tocombustibles whenpassing throughceil-
ings, walls, roofs, enclosures, attic rafter,
or other nearby combustible surfaces. Do
not pack air spaces with insulation. Check
pages 13-14 for the maximum vertical rise
of the flueing system and the maximum
horizontal offset limitations.
2) Setthegasapplianceinitsdesiredlocation.
Drop a plumb bob down from the ceiling to
the position of the appliance flue exit, and
mark the location where the flue will pene-
tratetheceiling.Drillasmallholeathispoint.
Next, drop a plumb bob from the roof to the
hole previously drilled in the ceiling, and
mark the spot where the flue will penetrate
the roof.
Note: Apply sealant "Mill-Pac" to inner
pipe and high temperature sili-
cone sealant to outer pipe on every
twist-lock joint.
3) Cut a hole in the roof centered on the small
drilled hole placed in the roof in Step 2. The
hole should be of sufficient size to meet the
minimumrequirementsforclearancetocom-
bustibles of 1-1/2". Slip the flashing under
the shingles (shingles should overlap half
the flashing) as per Diagram 3.
4) Continue to assemble pipe lengths.
Note: If an offset is necessary in the attic
to avoid obstructions, it is impor-
tant to support the flue pipe every
3 feet, to avoid excessive stress
on the elbows, and possible sep-
aration. Wall straps are available
for this purpose.
Galvanized pipe is desirable above the roof-
line due to its higher corrosion resistance.
Continue to add pipe sections through the
flashing until the height of the flue cap meets
theminimumheightrequirementsspecifiedin
Diagram 4 orlocalcodes. Note thatforsteep
roof pitches, the vertical height must be in-
creased. A poor draft, or down drafting can
result from high wind conditions near big
trees or adjoining roof lines, in these cases,
increasing the flue height may solve the
problem.
5) Ensure flue is vertical and secure the base
of the flashing to the roof with roofing rails,
slide storm collar over the pipe section and
seal with a mastic.
6) Where required always refer to either AG
601 or NZS 5261:2003
Note: Any closets or storage spaces, which
the flue passes through must be en-
closed.
Diagram 1
Important: Always check for gas leaks
with a soap and water solution or gas leak
detector. Do not use open flame for leak
testing.

Masport P33R-1 Room Sealed Gas Fireplace 17
P33R-1SystemData
For 0 to 4500 feet altitude
Burner Inlet Orifice Sizes:
NG LPG
Burner #45 #54
Max. Input Rating
- NG 22mj
-LPG 22 mj
Min. Input Rating
-NG 11mj
-LPG 11 mj
Output Capacity with blower Off
NG 16mj
LPG 17mj
Output Capacity with blower On
NG 17mj
LPG 17mj
Minimum Output with blower Off
NG 8mj
LPG 8mj
Supply Pressure
NG min. 1.2kPa
LPG min. 2.98kPa
Manifold Pressure (High)
NG 0.94 +/- 0.05 kPa
LPG 2.73 +/- 0.05 kPa
Electrical: 240 V A.C. System.
Circulation Fan: variable speed 130 CFM.
Log Set: Ceramic fibre, 5 per set.
Flue System: Masport Direct Flue System
(Flex)
PRESSURE TESTING
The manifold pressure is controlled by a reg-
ulator built into the gas control, and should be
checked at the pressure test point.
Note: To properly check gas pressure,
both inlet and manifold pressures
should be checked using the valve
pressure ports on the valve.
1) Makesurethevalveisinthe"OFF"position.
2) Loosen the "IN" and/or "OUT" pressure
tap(s), turning counterclockwise with a 1/
8" wide flat screwdriver.
3) Attach manometer to "IN" and/or "OUT"
pressure tap(s) using a 5/16" ID hose.
4) Light the pilot and turn the valve to "ON"
position.
5) The pressure check should be carried out
with the unit burning and the setting should
be within the limits specified on the safety
label.
6) Whenfinished readingmanometer,turnoff
the gas valve, disconnect the hose and
tighten the screw (clockwise) with a 1/8"
flat screwdriver. Note: Screw should be
snug, but do not over tighten.
INSTALLATION
PILOT ADJUSTMENT
Periodically check the pilot flames. Cor-
rect flame pattern has three strong blue
flames: 1 flowing around the thermopile,
1 around the thermocouple and 1 flowing
across the burner (it does not have to be
touching the burner).
Note: If you have an incorrect flame
pattern, contact your Masport dealer for
further instructions.
Incorrect flame pattern will have small,
probably yellow flames, not coming into
proper contact with the rear burner or
thermopile or thermocouple.
Note: Output capacity:
The efficiency rating of the appli-
ance is a product thermal efficien-
cy rating determined under con-
tinuous operating conditions and
was determined independently of
any installed system.
Flue height may change your
efficiency ratings.
S.I.T. VALVE DESCRIPTION
1) Gas cock knob
2) Manual high/low adjustment
3) PilotAdjustment
4) Thermocouple Connection - option
5) Outlet Pressure Tap
6) Inlet Pressure Tap
7) PilotOutlet
8) Main Gas Outlet
9) Alternative TC Connection Point

Masport P33R-1 Room Sealed Gas Fireplace
18
INSTALLATION
Conversion Kit from NG to LPG Model #431-969
for P33R-1 using SIT 820 NOVA Gas Valve
THIS CONVERSION MUST BE DONE BY AN AUTHORIZED GAS FITTER
IF IN DOUBT DO NOT DO THIS CONVERSION !!
Remove the 2 screws, push Burner Assem-
bly to the left and lift out.
6) Remove the 2 Air Deflectors (2 screws per
deflector) attached to the Rear Log Sup-
port. Discard the Air Deflectors, they are
only required when burning NG.
8) Unscrew the pilot orifice with the allen key
and replace with the LPG pilot orifice in the
kit and replace pilot cap.
Burner Orifice
Conversion Kit Contains:
Qty. Part # Description
1 910-018 SIT Conversion Kit-50%
Turndown LPG
1 910-037 LPG Injector (Pilot Orifice)
1 904-163 Burner Orifice #54
1 908-255 Decal "Converted to LPG"
1 908-528 Red"LPG"label
1 908-529 5/32" Allen Key
1 908-812 Instruction Sheet
1) Shut off the gas supply.
2) Remove the louvres (and bay door if it is
installed).
3) Open the flush door and remove the door.
4) Removethelogs, embers,and brick panels
(if used).
5) Remove the 2 screws holding the Burner
Assembly to the firebox base. Push the
Burner Assembly to the left and lift out.
7) Pull off the pilot cap to expose the pilot
orifice.
Air Deflector
Air Deflector screws
Rear Log Support
9) Remove burner orifice with a 1/2" spanner
and discard. Use another spanner to hold
on to the elbow behind the orifice.
10)Reinstall new burner orifice LPG stamped
#54 and tighten.
11)Remove and discard the 3 pressure regu-
lator mounting screws (A), pressure reg-
ulator tower (B) and diaphragm (C).
12)Insure thattherubber gasket(D)isproperly
positioned and install the new HI/LO pres-
sure regulator assembly to the valve using
the new screws (E) supplied with the kit.
Tighten screws securely.
13)Reverse steps 5) to 2).
14)Attach clear label "This unit has been
converted to LPG" near or on the data
badge. Attach white label "This valve has
been converted from NG to LPG using SIT
conversion Kit Code 0.907.202" onto the
valve.
15)Replace yellow "NG" label with red "LPG"
label
16)Check for gas leaks.
17)Check inlet and outlet pressures.
18)Check operation of flame control.
19)Check for proper flame appearance and
glow on logs.
IMPORTANT:Checkforgasleaks
prior to and during operation.

Masport P33R-1 Room Sealed Gas Fireplace 19
INSTALLATION

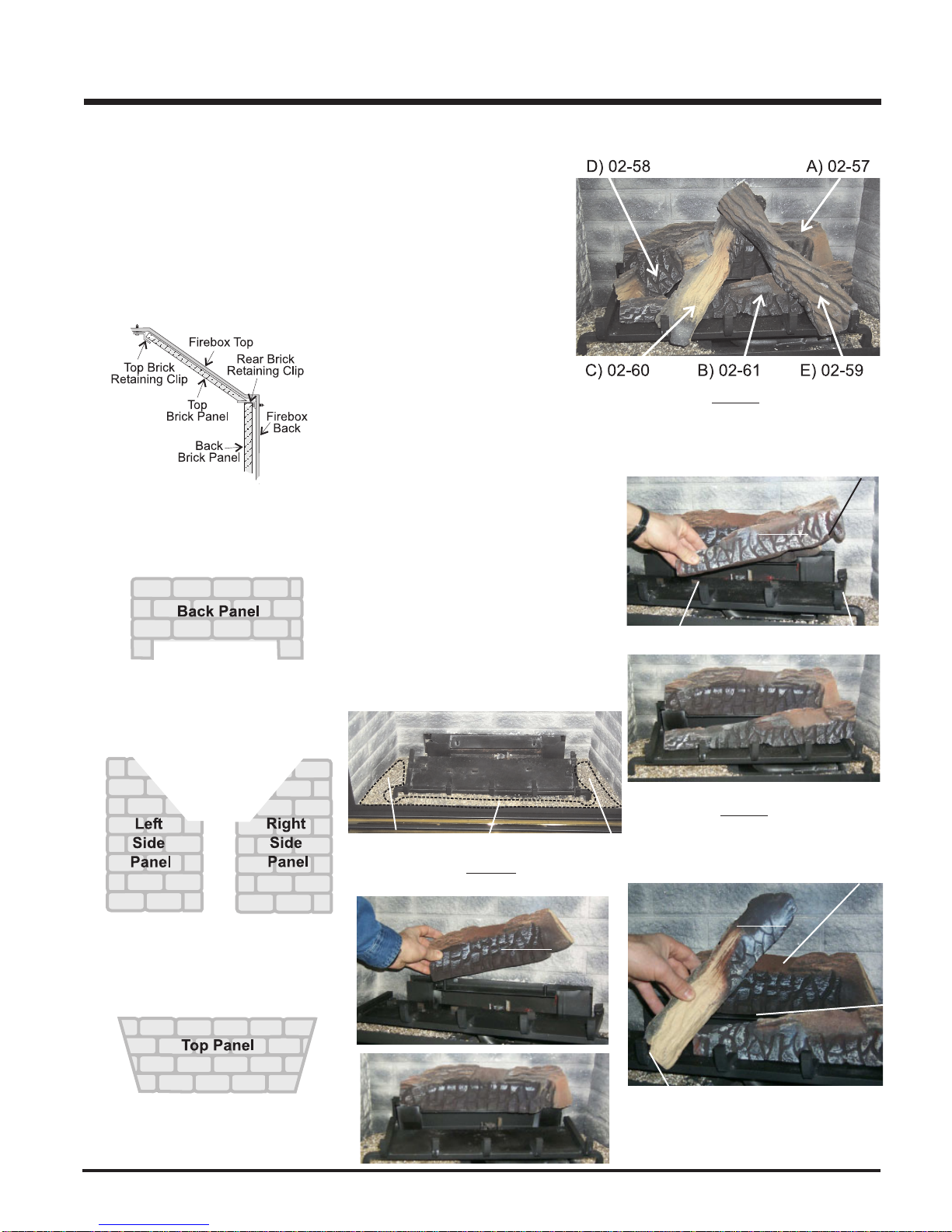

Note: The logs must not be in the unit.
3) Insert the back brick panel by carefully
slipping it between the back wall of the
firebox and the rear log bracket.
OPTIONAL BRICK
PANELS
1) Undo the bottom 2 door latches and open
and remove glass door. Remove logs.
2) Attach the 2 Rear Brick Retaining clips to
the rear wall. Loosen the screws in the top
and rear wall of the firebox and slide the
retaining clips into position (tight against
thefireboxtop)andthentightenthescrews.
4) Putthesidepanelsinnext.Slidetheminfrom
the front and push them flat up against the
wall. Be very careful not to scratch them on
the firebox hardware.
5) Slide the Top Brick Panel into position and
slide the Top Brick Retaining clips so that
they hold the Top Brick Panel in place and
tighten down the screws.
LOG SET INSTALLATION
NOTE: If you will be installing the optional
Brick Panels, install the Brick Pan-
els prior to installing the logs.
1) Carefully remove the logs from the box and
unwrap them. The logs are fragile, handle
with care - do not force into position.
2) Sprinkle the vermiculite around the firebox
base.
Notch
Bracket
Bracket
A) 02-57
B) 02-61
Vermiculite Vermiculite Vermiculite
A) 02-57
B) 02-61
The "02" refer numbers
(i.e. 02-57) are molded into
the rear of each log.
Read the instructions below
carefully and refer to the dia-
grams. If logs are broken do
not use the unit until they are
replaced. Broken logs can in-
terfere with the pilot operation.
The gas log kit (Part # 431-930) contains
the following pieces:
A) 02-57 Rear Log 902-250
B) 02-61 Middle Cross Log 902-254
C) 02-60 Front Left Cross Log 902-253
D) 02-58 Rear Left Log 902-251
E) 02-59 Front Right Cross Log 902-252
F) Embers 902-156
G) Vermiculite 902-179/21
3) Place the Log A) 02-57 on the rear log
support pins with the flat side to the back.
4) Place Log B) 02-61 on the front right side
of the burner. Push the back of the log
againstthe2bracketswiththenotchonthe
bottom right side of the log fitting into the
right side of the grate.
5) Position Log C) 02-60 across the cutouts in
Logs A) 02-57 and B) 02-61 with the notch
on the left side of the log fitting into the 2nd
grate tab. Cutouts
2nd Grate Tab
C) 02-60
A) 02-57
B) 02-61

Masport P33R-1 Room Sealed Gas Fireplace
20
INSTALLATION
5th Grate Tab
6) Place the bottom left front edge of Log
D)02-58against theleft edgeof the burner
tray and rest the log on the cutout on Log
C) 02-60.
7) PositionLogE) 02-59across thecutoutsin
Logs B) 02-61 and C) 02-60. The notch in
the bottom right end fitting against the 5th
grate tab.
8) Placetheembers on thefront of theburner
tray in the places shown on the photo.
Place embers in these 3 locations
on the burner tray.
D) 02-58
E) 02-59
A) 02-57
B) 02-61
C) 02-60
A) 02-57
B) 02-61
C)102-60
D) 02-58
C) 02-60
A) 02-57
B) 02-61
C) 02-60
B) 02-61
E) 02-59
Cutout
9) Test fire to ensure proper light off (make
sure flame flows smoothly from one end of
burner to the other). If there is any flame
hesitation, check that area for any block-
age of the burner ports.
10)Install flushglass andbayglass(ifused)as
per instructions in this manual.
D) 02-58
A) 02-57
C) 02-60
B) 02-61
E) 02-59
