Masport Ontario Quick start guide

Owners&
Installation
PLEASE KEEP THESE INSTRUCTIONS
FOR FUTURE REFERENCE
Ontario / Vancouver
Head Office - Australia
54 Boundary Rd. Braeside
P.O. Box 553
Mordialloc 3195
Ph. [phone]
Fax. [phone]
Manual
Head Office - New Zealand
1-37 Mt Wellington Hwy.Panmure,
P.O. Box 14349
Auckland 6.
Ph. (9) 570-9009
Fax. [phone]
Model: I2101 Model: I3101
In-built Fireplaces

Masport In-built Fireplaces
2
Thank-you for purchasing a
MASPORT FIREPLACE PRODUCT.
The pride of workmanship that goes into each of our products will give you years of trouble-free
enjoyment. Should you have any questions about your product that are not covered in this
manual, please contact the MASPORT DEALER in your area.
Keep those MASPORT FIRES burning.
SAFETYNOTE: Ifthisin-builtfireplaceisnotproperlyinstalled,ahousefiremayresult. Foryour
safety, follow the installation instructions, contact local building or fire officials about restrictions
and installation inspection requirements in your area.

Masport In-built Fireplaces 3
THE MASPORT IN-BUILT FIREPLACE
& HEARTH HEATER
TABLE OF CONTENTS
MAINTENANCE
Creosote.................................................16
Removal for Cleaning.......................16
Ways to Prevent and Keep Unit
Free of Creosote .............................16
Maintenance of Gold Plated Door ..........17
Door Gasket ...........................................17
Door Latch Adjustment...........................17
Glass Cleaning.......................................17
Glass Replacement................................17
Glass Removal.......................................17
PARTS
Parts List ................................................18
WARRANTY
Warranty.................................................23
Page Page
INSTALLATION
In-built fireplace Safety Labels
Ontario (I2101M) ................................4
Vancouver (I3101L)............................5
Before Installing Your Unit .......................6
Chimney Specifications......................6
Installation in "0" Clearance Factory
Built Fireplace .................................6
Fireplace Specifications .....................6
Masonry & Factory Built Clearances ..7
Installing your In-built fireplace.................8

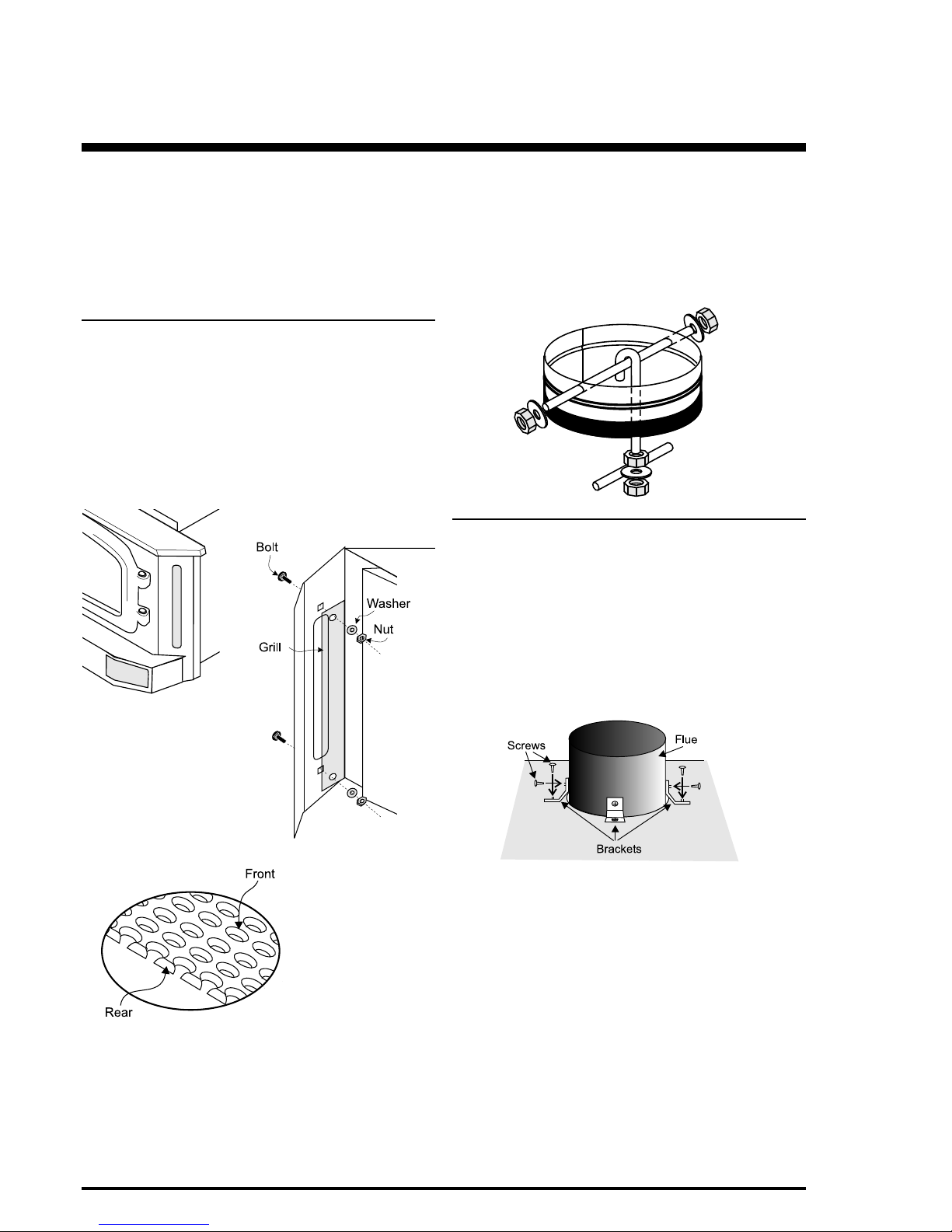

Convection Grill Installation................8
Optional Flue Connector Kit ...............8
Flue Connector Bracket .....................8
A) Into a Masonry Fireplace ..............9
B) Into a Factory Built Fireplace ........9
C) All Units - Faceplate & Trim........10
Floor Protection......................................10
Firebrick Assembly.................................10
Fan / Blower ...........................................11
Door Handle ...........................................11

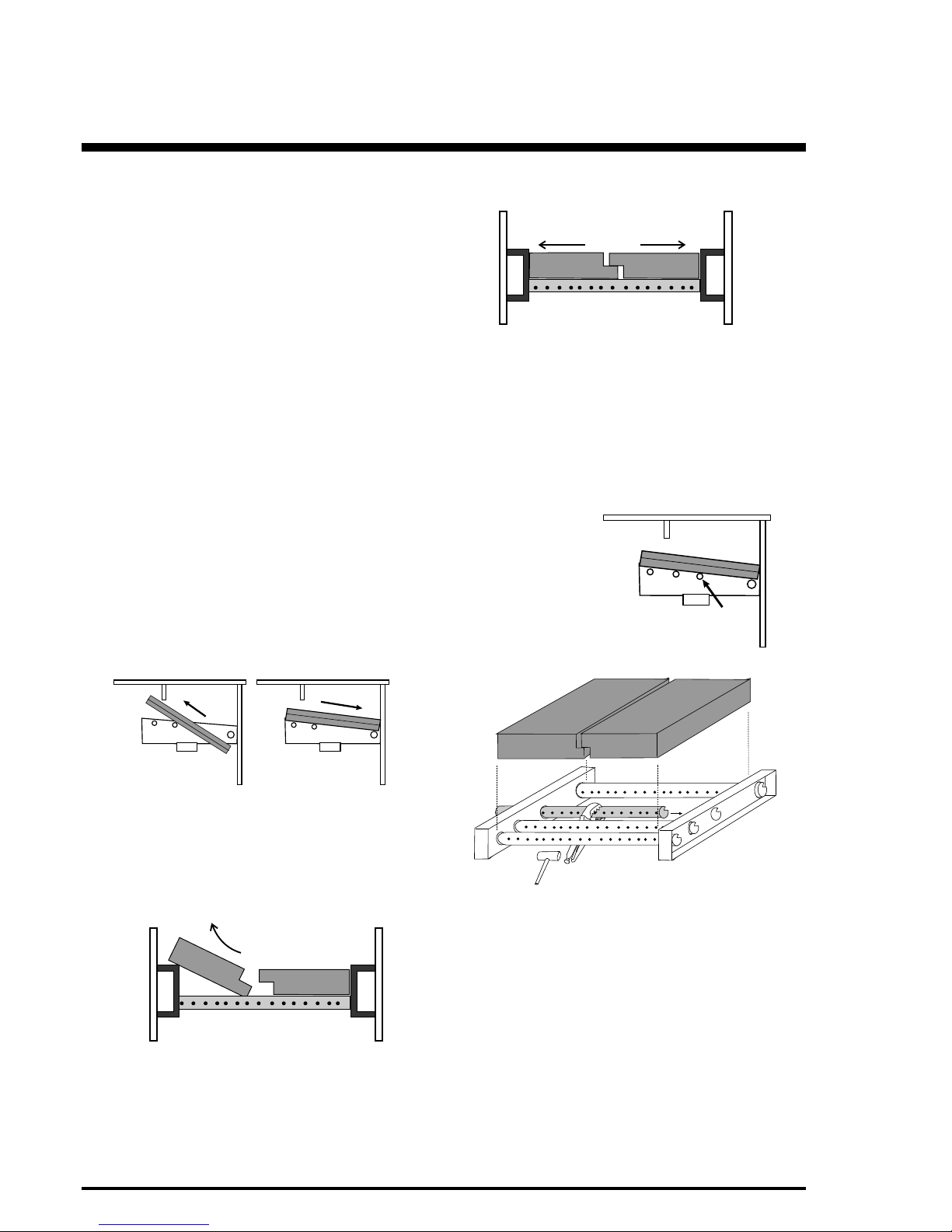

Brick Flue Baffle & Secondary Air Tube
Installation ..............................................12
Vancouver (I3101)............................12
Ontario (I2101) .................................13
OPERATING INSTRUCTIONS
Draft Control...........................................13
First Fire .................................................14
Fan / Blower Operation ..........................15
Ash Disposal ..........................................15
Safety Guidelines ...................................15

Masport In-built Fireplaces
4 INSTALLATION This is a copy of the label that accompanies each Ontario In-built Fireplace. We have printed a copy of the contents here for your review. NOTE: Masport units are constantly being improved. Check the label on the unit and if there is a difference, the label on the unit is the correct one.
UNITEDSTATESENVIRONMENTAL
PROTECTIONAGENCY
CERTIFIED TO COMPLY WITH
JULY 1990, PARTICULATE
EMISSION STANDARDS.
MANUFACTURED BY FPI LTD.
SIGNATURE
Jan Feb Mar Apr May June
July Aug Sept Oct Nov Dec
2001
2002
2003
DATE OF
MANUFACTURE
INSTALL AND USE ONLY IN ACCORDANCE WITH THE MANUFACTURER'S INSTALLATION AND OPERATING INSTRUCTIONS. INSTALL AND USE
ONLY IN MASONRY FIREPLACE OR FACTORY BUILT FIREPLACE. CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND
INSTALLATION INSPECTION IN YOUR AREA.
LISTED FACTORY BUILT FIREPLACE INSERT
CERTIFIED FOR USE IN CANADA AND U.S.A.
MODEL:I2100M
TESTED TO: ULC S628-M91 / UL 1482-1991
REPORTNO. 632-323500 (OCT.1993)
DO NOT REMOVE THIS LABEL
105
MINIMUMCLEARANCESTOCOMBUSTIBLEMATERIALS (MEASUREDFROMINSERTBODY)
A
G
F
D
BC
E
ADJACENT SIDEWALL
ADJACENT SIDEWALL A) 10 in / 255 mm
MANTLE B) 17 in / 510 mm
TOP FACING C 10.25 in / 260 mm
SIDE FACING D) 8 in / 205 mm
COMPONENTS REQUIRED FOR INSTALLATION: 6IN / 150MM STAINLESS STEEL LINER.
OPTIONAL COMPONENT: FAN, ELECTRICAL RATING: VOLTS 115, 60 HZ, 0.6 AMPS
DO NOT REMOVE BRICKS OR MORTAR IN MASONRY FIREPLACE. FOR USE WITH SOLID WOOD FUEL ONLY. DO NOT USE GRATE OR ELEVATE
FIRE. BUILDWOOD FIRE DIRECTLYON HEARTH. OPERATE WITHFEED DOOR CLOSED,OPEN TO FEEDFIRE ONLY. REPLACE GLASSONLY WITH
CERAMICGLASS(5MM). INSPECT ANDCLEANCHIMNEYFREQUENTLY. UNDER CERTAINCONDITIONSOFUSE CREOSOTEBUILDUPMAY OCCUR
RAPIDLY. DO NOT OVERFIRE, IF INSERT GLOWS YOU ARE OVER-FIRING.
CAUTION
HOT WHILE IN OPERATION
DO NOT TOUCH. KEEP CHILDREN,
CLOTHING AND FURNITURE AWAY.
CONTACT MAY CAUSE SKIN BURNS.
READ ABOVE INSTRUCTIONS.
INSTALL ONLY ON A NON-COMBUSTIBLE HEARTH RAISED (F) 1.5IN / 38MM
ABOVEANADJACENT COMBUSTIBLEFLOOR. COMBUSTIBLEFLOOR MUSTBE
PROTECTED BY NON-COMBUSTIBLE MATERIAL EXTENDING (E) 16 IN / 405 MM
TO FRONT AND (G) 8 IN / 205 MM TO SIDES FROM FUEL DOOR.
MADE IN CANADA 908-331 rev. 11/00
Date: Nov.1,2000
Filename: 908-331
Size: Above artwork is to be Printed at 80%.
Colour: Black on grey, except for what is highlighted in yellow
will be red on grey
November14,2001:Updated to new serial numbersystem.Otherwiseno other changes to artwork.
(DuplicateSerial #) 105
Manufactured By:
FIREPLACEPRODUCTSINTERNATIONALLTD.
6988 VENTURE ST., DELTA, BC V4G 1H4

Masport In-built Fireplaces 5
INSTALLATION

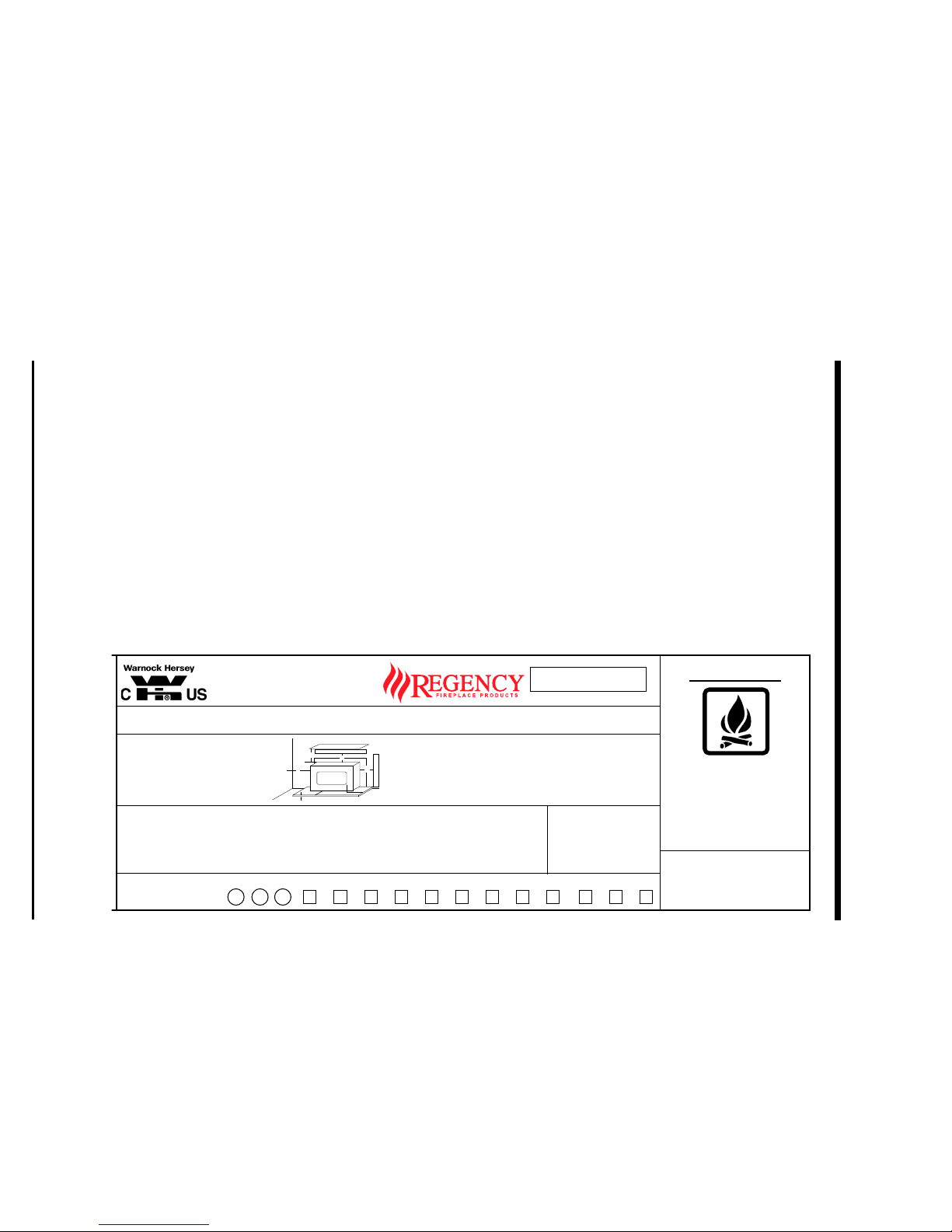

This is a copy of the label that accompanies eachVancouverIn-builtFireplace.Wehave printed a copy of the contents here for your review. NOTE: Masport units are constantly being improved. Check the label on the unit and if there is a difference, the label on the unit is the correct one.
LISTED FACTORY BUILT FIREPLACE INSERT
CERTIFIED FOR USE IN CANADA AND U.S.A.
MODEL: I3100L
TESTED TO: ULC S628-M91 / UL 1482-1991
REPORT NO. 632-323500 (MAR.1994)
DO NOT REMOVE THIS LABEL
106
COMPONENTS REQUIRED FOR INSTALLATION: 6" (150mm) STAINLESS STEEL LINER.
OPTIONAL COMPONENT: FAN, ELECTRICAL RATING: VOLTS 115, 60 HZ, 0.6 AMPS
DO NOT REMOVE BRICKS OR MORTAR IN MASONRY FIREPLACE. FOR USE WITH SOLID WOOD FUEL ONLY. DO
NOT USE GRATE OR ELEVATE FIRE. BUILD WOOD FIRE DIRECTLY ON HEARTH. OPERATE WITH FEED DOOR
CLOSED, OPEN TO FEED FIRE ONLY. REPLACE GLASS ONLY WITH CERAMIC GLASS (5mm). INSPECT AND
CLEAN CHIMNEY FREQUENTLY. UNDER CERTAIN CONDITIONS OF USE CREOSOTE BUILDUP MAY OCCUR
RAPIDLY. DO NOT OVERFIRE, IF INSERT GLOWS YOU ARE OVER-FIRING.
2003
DATE OF MANUFACTURE 20022001
CAUTION
908-343 rev. 05/00
HOT WHILE IN OPERATION
DO NOT TOUCH. KEEP
CHILDREN, CLOTHING
AND FURNITURE AWAY.
CONTACT MAY CAUSE
SKIN BURNS. READ ABOVE
INSTRUCTIONS.
Install and use only in accordance with the manufactuerer's installation and operating instructions. Install and use only in masonry
fireplace or factory built fireplace. Contact local building or fire officials about restrictions and installation inspection in your area.
MADE IN CANADA
Manufacturedby:
REGENCY INDUSTRIES LTD.
6988 Venture Street
Delta, BC
V4G 1H4
(Duplicate Serial #)
Minimum Clearances to Combustibles
(Measured from insert body)
ADJACENT SIDEWALL A) 13"(330mm)
MANTLE B) 19"(480 mm)
TOP FACING C) 18"(455 mm)
SIDE FACING D) 6.5"(165mm)
A
G
F
D
BC
E
ADJACENT SIDEWALL
INSTALL ONLY ON A NON-COMBUSTIBLE HEARTH RAISED (F) 1.5"
(38mm) ABOVE AN ADJACENT COMBUSTIBLE FLOOR. COMBUSTIBLE
FLOOR MUST BE PROTECTED BY NON-COMBUSTIBLE MATERIAL
EXTENDING (E) 16" (405mm) TO FRONT AND (G) 8" (205mm) TO SIDES
FROM FUEL DOOR.
UNITED STATES
ENVIRONMENTAL PROTECTION
AGENCY CERTIFIED TO COMPLY
WITH JULY 1990, PARTICULATE
EMISSION STANDARDS.
JAN FEB MAR APR MAY JUN JUL AUG SEPT OCT NOV DEC
Date: May16,2000
Size:Artworkmustbereducedto80%
Janaury16,2002:Nochangetoartwork.

Masport In-built Fireplaces
6
INSTALLATION
Chimney Specifications
Before installing, check and clean your chimney system
thoroughly. If in doubt about its condition, seek expert
advice. Your Masport In-built fireplace is designed for
installation into a masonry fireplace that is constructed
in accordance with the requirements of "The Standard
forChimneys,Fireplaces,Vents,andSolidFuelBurning
Appliance", N.F.P.A. 211, AS 4013 , and NZS 7402 or
the applicable local code requirements.
Masport In-built Fireplaces are designed with a 6"
(150mm) flue but a 7"(180mm) or 8"(200mm) flue liner
or flue connector may be used.
Installation in "0" Clearance Factory
Built Fireplace
The Ontario In-built Fireplace (I2101M) and Vancouver
In-built Fireplace (I3101L) have been tested and
approved to be vented into any approved "0" clearance
Factory Built Fireplace that will accommodate your
Masport unit.
IMPORTANT: If the Ontario or Vancouver unit is
being installed into a factory built fireplace, check
that factory variations of the "0" clearance fireplace
will allow the in-built fireplace to physically fit into
the firebox.
Ifthe factorybuilt fireplace heightis toolow for your
in-built fireplace, you may remove the smoke shelf,
baffle plate and damper plate from the factory built
fireplace as long as these items are saved and are
re-installed in the event that the in-built fireplace is
removed.
Fireplace Specifications
Your fireplace opening requires the following minimum
sizes: Height Width Depth
Ontario (I2101M) 546mm 635mm 432mm
Vancouver (I3101L) 635mm 711mm 432mm
Twofaceplatesareavailabletosealthefireplaceopening:
Ontario (I2101M) Standard: 1016mmW x 762mmH
Oversize:1219mmW x 838mmH
Vancouver (I3101L) Standard:1118mmW x 813mmH
Oversize:1270mmW x 876mmH
Masport In-built Fireplaces are constructed with the
highest quality materials and assembled under strict
quality control procedures that insure years of trouble
free and reliable performance.
It is important that you read this manual thoroughly and
fully understand the safe installation and operating
procedures. The more you understand the way your
MasportIn-builtFireplaceoperates,themoreenjoyment
you will experience from knowing that your unit is
operating at peak performance.
Before Installing Your
In-built Fireplace
1) Readallinstructionsbeforeinstallingandusingyour
in-builtfireplace. Install and useonly in accordance
with manufacturer’s installation and operating
instructions.
2) Checkyourlocalbuildingcodes-BuildingInspection
Department. You may require a permit before
installing your in-built fireplace. Be aware that local
codes and regulations may override some items in
the manual.
WARNING: Careless installation is the major
cause of safety hazard. Check all local building
and safety codes before installation of unit.
3) Notify your home insurance company that you plan
to install a in-built fireplace or hearth heater.
4) Your in-built fireplace is heavy and requires two or
more people to move it safely. The in-built fireplace
can be badly damaged by mishandling.
5) Ifyourexistingfireplacedamper controlwillbecome
inaccessible once you have installed your Masport
In-builtFireplace,youshouldeitherremoveorsecure
it in the open position.
6) Inspectyourfireplaceandchimneypriortoinstalling
yourin-built fireplace todeterminethatitis free from
cracks, loose mortar or other signs of damage. If
repairs are required, they should be completed
before installing your in-built fireplace. Do not
removebricksormortarfromyourmasonryfireplace.
7) Do not connect the in-built fireplace to a chimney
system servicing another appliance or an air
distribution duct.

Masport In-built Fireplaces 7
Clearance diagram for installations
INSTALLATION
Masonry and Factory Built Fireplace Clearances
The minimum required clearances to combustible materials when installed into a masonry or factory built fireplace
are listed below.
Adjacent Mantle Top Side Minimum Minimum Minimum
Unit Side Wall (to Top) Facing Facing Hearth Hearth Hearth Side
(to Side) (to Top) (to Side) Extension* Elevation* Extension
A B C D E F G
Ontario
In-built (I2101M) 10"/530mm 17"/430mm 10.25"/260mm 8"/203mm 16"/406mm 1.5"/38mm 8"/205mm
Vancouver
In-built (I3101L) 13"/330mm 19"/480mm 18"/455mm 6.5"/165mm 16"/406mm 1.5"/38mm 8"/205mm
Side and Top facing is a maximum of 1.5"(38mm) thick.
Floor protection must non-combustible, insulative material with an R value of 1.1 or greater.
*If the hearth extension is flush with the floor (F) it must extend 19.5"(495mm) in front of the body face (E).
Note: Hearth Extension Width (G) is measured from edge of fuel door to side of hearth.

Masport In-built Fireplaces
8
Installing Your In-built Fireplace
Your in-built fireplace is very heavy and will require two
or three people to move it into position. The in-built
fireplacecanbemadealittlelighterbyremovingthecast
irondoor by openingitandlifting it off itshinges.Besure
to protect your hearth extension with a heavy blanket or
carpet scrap during the installation.
Convection Grills
The convection grills are installed before the unit is
positioned inside the fireplace.
Position the grill on the inside bodyface side and fasten
using the bolts, washers and nuts provided (2 per side)
as shown in the diagrams.
INSTALLATION
View from Rear
of In-built
Fireplace
Optional Flue Connector Kit
TheoptionalFlueConnectorKit,Part#846-527,maybe
used to produce a secure connection between your flue
connector and the in-built fireplace collar. Detailed
installation instructions are included with the kit.
Note: The grill has a front and rear, the holes on the
front side have rounded edges and the rear
holes have flat edges.
Flue Connector Bracket
Package contains: 3 brackets and 6 screws.
These brackets are to be used to hold the flue liner
(not supplied) to the in-built fireplace and keep the
connection. The brackets are screwed into the top of
the in-built fireplace in the pre-punched holes and
then screwed into the flue liner.

Masport In-built Fireplaces 9
3) Full Flue Liner
(No Cleanout
Required)
1) Positive Flue
Connection
with Cleanout
2) Direct Flue
Connection
with Cleanout
INSTALLATION
B) Into a Factory Built Fireplace
1) When installed in a factory built fireplace, a full
stainlesssteelrigidorflexiblefluelinerismandatory,
for both safety and performance purposes. When
a flue or liner is in use, the in-built fireplace is able
to breathe better by allowing a greater draft to be
created. The greater draft can decrease problems
such as, difficult start-ups, smoking out the door,
and dirty glass.
2) In order to position the flue liner, the existing rain
capmust be removed from your chimney system. In
mostcasesthefluedampershouldalsoberemoved
to allow passage of the liner.
3) In most cases opening the existing spark screens
fullyshouldgiveenoughroomforthein-builtfireplace
installation. If it does not, remove and store.
4) If the floor of your fireplace is below the level of the
fireplace opening, adjust the in-built fireplace's
levellingboltstoaccommodatethedifference.When
additional shimming is required, use non-
combustible masonry or steel shims.
5) Measure approximately the alignment of the flue
linerwiththepositionofthesmokeoutletholeonthe
in-built fireplace to check for possible offset. If an
offset is required, use a proper stainless steel unit
available with the chimney liner.
6) Once the above items have been checked, slide
your in-built fireplace into position after first
positioning the flue liner and offset if required. (Re-
install raincap at completion of installation).
A) Into a Masonry Fireplace
The in-built fireplace must be installed as per the
requirements of your local inspection authority. Three
methods of flue connection are acceptable in most
areas, these include:
1) Positive flue connection, where a large blocking
plate and a short connector pipe is used.
2) Direct flue connection, where a smaller blocking
plate and a connector pipe to the first flue liner tile
is used.
3) Fullflue liner, where a stainless steel rigid or flexible
liner pipe is routed from the in-built fireplace outlet
collar to the top of the chimney.
Masport highly recommends the use of a full liner as the
safest installation and provides the most optimum
performance. Your retailer should be able to help you
decide which system would be the best for your
application.
Note: A clean-out door is sometimes required, by
your inspector, to be installed when either
the Positive flue connection or Direct flue
connection method is used.
The use of one of the connection methods listed on this
page not only increases the safety of your in-built
fireplace by directing the hot gases up the flue, but will
also help increase the unit's efficiency and decrease
creosote deposits in the chimney.
When a connected flue or liner is in use, the in-built
fireplace is able to “breathe” better by allowing a greater
draft to be created. The greater draft can decrease
problems such as, difficult start-ups, smoking out the
door, and dirty glass.

Masport In-built Fireplaces
10
Ontario
In-built Fireplace
(I2101M)
Vancouver
In-builtFireplace
(I3101L)
INSTALLATION
Diagram 1
C) ALL UNITS
Faceplate and Trim
Prior to sliding your insert into its final position and
attaching the connector or liner pipe, the faceplate must
be installed as follows:
1) Slide the spring nuts (supplied) over the slots in the
insert’sside convection panels (the spring nuts may
needtobesqueezedwithapairofpliersfirst,tohelp
them stay in position).
2) Screw the side faceplate panels, (item A in the
diagram) one to each side.
3) Using the top panel (item B in the diagram) as a
gauge, check that the side panels are within
approximately 1/4" of the overall width. If the
difference is greater than this, use the
supplied washers to attain the required
width.
4) The unit may now be slid into final position and
attached to the connection system.
5) Once connection is made, the insulation strips
should be installed between the insert faceplates
and the fireplace face.
6) The faceplate top may now be installed (with
insulation strip behind) by aligning its brackets with
the top flange on the side shields and the angle iron
bar on the insert top.
7) The faceplate trim may be installed to the edge of
thefaceplateat thistime.Topermanentlymountthe
trim, drill two 5/32" diameter holes through the trim
and side panels and screw the trim to the panels
using the gold plated screws provided.
Note:It may be easier to install the insulation,
faceplate top and faceplate trim with the unit pulled
slightly away from the fireplace face. If this is done,
be very careful not to disturb the connector when
shifting the unit to its final position.
8) Now that your insert is installed, check once more
thatalltheclearancesfromtheunittoanycombustible
materials are correct as listed earlier.
.
Floor Protection
Please check to ensure that your floor protection and
hearth will meet the standards for clearance to
combustibles. Your hearth extension must be made
from a non-combustible material.
Firebrick Assembly
Firebrick is included to extend the life of your in-built
fireplace and radiate heat more evenly.
Checktoseethatallfirebricksarein
their correct positions and have
not become misaligned
during shipping.

Masport In-built Fireplaces 11
Thermo Switch Sensor
INSTALLATION
Door Handle
Attach spring handle by rotating counter clockwise onto rod. Ensure that the rod
fits into the entire length of the spring handle.
Fan/Blower
CAUTION: Label all wires prior to disconnection
when servicing controls. Wiring errors can cause
improper and dangerous operation.
WARNING:
Electrical Grounding Instructions
Thisapplianceisequippedwithathreepronged(ground-
ing) plug for your protection against shock hazard and
should be plugged directly into a properly grounded
three-prongreceptacle.Donotcutorremovetheground-
ing prong from this plug.
3) Slidethe supports intotheclips.Thetension holding
the clips in place may be adjusted by increasing or
decreasing the offset spacing of the clips.
4) Ensurethatthe power cord is notin contact with any
hot stove surfaces.
5) PushtheMasport logo plate into the two holes in the
front bottom left corner of the fan.
Do not turn fan ON until your insert has reached
operating temperature or at least 30 minutes after
starting fire.
Blower/FanWiringDiagram
Yourfanshouldonlybeinstalledoncetheunitisinplace
in order to prevent any damage to the fan. To attach,
followthe instructions provided withthefan. Makesure
to install the rubber grommet to the fan housing before
it is installed on the insert.
1) Remove the protective covering from the brass
trim on the fan.
2) Align the fan support with the offset clip on the
bottom of the ashlip.
Caution: Ensure that the wires do not touch any hot
surfaces and are away from sharp edges.

Masport In-built Fireplaces
12
INSTALLATION
Diagram 6: Side View
Diagram 5: Side View
2) Tilt the left baffle brick up on top of the side channel
and it will leave enough room to position the right
baffle brick in the same manner as Step 1) above.
Then reposition the left baffle brick flat on the air
tubes. Diagram 7.
Diagram 8: Front View
Diagram 7: Front View
Brick Flue Baffle & Secondary Air
Tube Installation
The flue baffle system located in the upper area of the
firebox is removable to make cleaning your chimney
system easier. The brick baffles must be installed prior
to your first fire. Smoke spillage and draft problems
may occur if the baffles are improperly positioned.
Checkthe position of thebrick baffles on aregular basis
as they can be dislodged if too much fuel is forced into
the firebox.
The Vancouver units (F3100L) are shipped with one of
the secondary air tubes loose inside the firebox. This
needs to be installed after the brick baffle are installed.
Follow the directions below.
Vancouver In-built Fireplace I3101L
The unit arrives with the third air tube (from the front)
and the 2 baffle bricks on the floor of the firebox. The
baffle bricks are positioned first and then the air tube is
installed.
1) Slide the left baffle brick over the front two air tubes
andthenslideitbackovertherearairtube.Diagrams
5 and 6.
Diagram 10: Air Tube Installation
Note: Whencleaningthechimneyreversetheabove
procedures, removing the air tube and baffle
bricks and then replace them when cleaning
is completed.
Diagram 9:
Side View
3) Important: push both baffle bricks so they are
tight against the side walls. Diagram 8.
Install Air Tube
4) Install the third (from the front) air tube into the
holes on the side channels. The notch goes on the
right hand side with the air holes facing forward
toward the door opening. If the tube will not slide in
easily, simply use a pair of vise grips or pliers and
tap it into place with a hammer. A tighter fit will
ensure the tube will not move when the unit is
burning. Diagrams 9 and 10.

Masport In-built Fireplaces 13
INSTALLATION
Diagram 13: Front View
Diagram 14: Front View
Diagram 11: Side View Diagram 12: Side View Pull Open Push Closed
Draft Control
Beforeestablishingyour firstfire,itisimportantthatyour
fully understand the operation of you draft control. The
draft rod is on the left side of the In-built fireplaces and
it controls the intensity of the fire by increasing or
decreasingthe amountofairallowed intothefirebox.To
increase your draft - pull open, and to decrease - push
closed.
As well as a primary and glass wash air system, the unit
has a full secondary draft system that allows air to the
induction ports at the top of the firebox, just below the
flue baffle.
WARNING: Tobuildafireinignoranceortodisregard
the information contained in this section can cause
seriouspermanentdamagetotheunit and voidyour
warranty.
Ontario In-built Fireplace (I2101M)
Theunitarriveswiththe 2bafflebricksonthefloorofthe
firebox.
1) If all 3 air tubes are installed continue on to Step 2),
if not, follow the instructions below. Install the air
tube into the holes in the side channels. The notch
goes on the right hand side with the air holes facing
toward the door. Slide the tube into the left hand
side, as far as possible and then bring it back into
the hole on the right hand side until it locks into
position. Ifthetubewillnotslideineasily,simplyuse
a pair of vise grips or pliers vise grips and tap it into
placewithahammer.Atighterfitwillensurethetube
will not move when the unit is burning. See the
diagram for the Montreal air tube installation (page
15), though there are only three air tubes in the
Vancouver units.
2) Slide the left baffle brick over the air tubes from the
front, then push it to the back. Diagrams 11 and 12.
3) Tilt the left baffle brick up on top of the side channel
and it will leave enough room to position the right
baffle brick in the same manner as Step 1) above.
Then reposition the left baffle brick flat on the air
tubes. Diagram 13.
4) Important: push both baffle bricks so they are
tight against the side walls. Diagram 14.
Note: When getting the chimney cleaned, push the
brick baffles forward toward the front of the
stove, this should leave sufficient access to
the flue. If it is not enough space then
remove the middle air tube (reverse the
procedureinstep1)above),andbafflebricks
and then replace everything when cleaning
is completed.

Masport In-built Fireplaces
14
First Fire
When your installation is completed and inspected, you
are ready for your first fire.
1) Open draft control fully.
2) Openfirebox door andbuild asmall fire usingpaper
and dry kindling, wait a few minutes for a good
updraft in the flue to establish the fire. Leaving the
door slightly open will help your fire start more
rapidly.
CAUTION:Neverleave unitunattendedif dooris
left open. This procedure is for fire start-up
only,asunitmayover-heatifdoorisleftopenfor
too long.
3) With the draft still in the fully open position, add two
or three seasoned logs to your fire. Form a trench
in the ash bed to allow air to reach the rear of the
firebox prior to closing the door.
4) After about 15 to 20 minutes, when your wood has
begun to burn strongly, adjust your draft control
down to keep the fire at a moderate level.
WARNING: Never build a roaring fire in a cold
stove. Always warm your stove up slowly!
5) Oncea bed ofcoals has beenestablished, youmay
adjustthedraftcontroltoalowsettingtooperatethe
unit in its most efficient mode.
6) Duringthefirstcoupleofhours,keepthecombustion
rate at a moderate level and avoid a large fire until
the paint is cured. Only then can you operate the in-
built fireplace at its maximum setting, and only after
the metal has been warmed.
7) For the first few hours, the in-built fireplace will give
off an odor from the paint. This is to be expected as
the high temperature paint becomes seasoned.
Windowsand/ordoorsshouldbeleftopentoprovide
adequate ventilation while this temporary condition
exists. Burning the in-built fireplace at a very high
temperature the first few times may damage the
paint. Burn fires at a moderate level the first few
days.
8) Do not place anything on the in-built fireplace top
duringthecuringprocess.Thismayresultindamage
to your paint finish.
9) During the first few hours it may be more difficult to
start the fire. As you dry out your fire brick and your
masonry flue (if applicable), your draft will increase.
10) For those units installed at higher elevations or into
sub-standardmasonryfireplaces,draftingproblems
mayoccur.Consultanexperienceddealerormason
on methods of increasing your draft.
11) Some cracking and popping noises may be
experienced during the heating up process. These
noises will be minimal when your unit reaches
temperature.
12) Before opening your door to reload, open draft fully
for approximately 10 to 15 seconds until fire has
beenre-established.Thiswillminimizeanysmoking.
13) All fuel burning appliances consume oxygen during
operation. It is important that you supply a source
of fresh air to your unit while burning. A slightly
opened window is sufficient for this purpose.
CAUTION: If the body of your unit (or in the
H2100M flue baffle) starts to glow you are
overfiring. Stop loading fuel immediately and
close the draft control until the glow has
completely subsided.
14) Green or wet wood is not recommended for your
unit. Ifyoumustaddwetorgreenfuel,openthedraft
controlfully until allmoisture has beendispersed by
theintensefire. Onceallmoisturehasbeenremoved,
the draft control may be adjusted to maintain the
fire.
15) If you have been burning your in-built fireplace on a
low draft, use caution when opening the door. After
opening the damper, open the door a crack, and
allow the fire to adjust before fully opening the door.
16) The controls of your unit should not be altered to
increase firing for any reason.
OPERATING INSTRUCTIONS

Masport In-built Fireplaces 15
OPERATING INSTRUCTIONS
Fan Operation
The fan is to be operated only with the draft control rod
pulled out at least 1/2"(13mm) from the fully closed
position. The fan is not to be operated when the draft
controlrod is in theclosedposition(pushedin). The fully
closed position is the low burn setting.
The fan unit must not be turned on until a fire has been
burning for at least 30 minutes and the unit is hot
enough. As well, after each fuel loading the fan must be
shut off until 30 minutes has elapsed.
To operate fan automatically, push switch on side of fan
housing to "Auto" and second switch to either "High" or
"Low" for fan speed. The automatic temperature sensor
will engage the blower when the unit is at temperature
andwillshutoffthebloweroncethefirehasgoneoutand
the unit has cooled to below a useful heat output range.
To manually operate the fan system, push the first
switch to "Man" and second switch to either "high" or
"Low". Thiswill bypassthesensingdevice andallowfull
control of the fan. Switching from "Auto" to "Manual" or
"High" to "Low" may be done at any time.
Ash Disposal
During constant use, ashes should be removed every
fewdays.Pleasetakecaretopreventthebuild-upofash
aroundthestart-upairhousinglocatedinsidethefirebox,
under the loading door lip.
DO NOT ALLOW ASHES TO BUILD UP TO THE
LOADING DOORS.
Only remove ashes when the fire has died down. Even
then, expect to find a few hot embers. Always leave 1 to
2 inches of ash in the bottom of the firebox. This helps
in easier starting and a more uniform burn of your fire.
Ashes should be placed in a metal container with a tight
fitting lid. The closed container of ashes should be
placed on a noncombustible floor or on the ground, well
away from all combustible materials, pending final
disposal. If the ashes are disposed of by burial in soil or
otherwise locally dispersed, they should be retained in
the closed container until all cinders have thoroughly
cooled. Other waste should not be placed in the ash
container.
Some Safety Guidelines
1) Never use gasoline, gasoline type lantern fuels,
kerosene, charcoal lighter fuel, or similar liquids to
start or ‘freshen up’ a fire in your heater. Keep all
such liquids well away from the heater while it is in
use.
2) Keepthedoorclosedduring operationandmaintain
all seals in good condition.
3) Do not burn large quantities of paper in your in-built
fireplace.
4) Ifyouhavesmokedetectors,preventsmokespillage
as this may set off a false alarm.
5) Do not overfire your in-built fireplace. If the in-built
fireplace or its flue baffle begin to glow, you are
overfiring. Stop adding fuel and close the draft
control. Overfiring can cause extensive damage to
your stove including warpage and premature steel
corrosion. Overfiring will void your warranty.
6) Donotpermitcreosoteorsootbuildupinthechimney
system. Check and clean chimney at regular
intervals.
7) Your Masport In-built Fireplace can be very hot.
Youmaybeseriouslyburnedifyoutouchthein-built
fireplace while it is operating. Warn children of the
burn hazard.
8) The in-built fireplace consumes air while operating,
provide adequate ventilation with an air duct or
open a window while the in-built fireplace is in use.
9) Do not use grates, irons or other methods for
supporting fuel. Burn directly on the bricks.
10) Openthedraftcontrolfullyfor10to15secondsprior
to slowly opening the door when refuelling the fire.
11) Do not connect your unit to any air distribution duct.
12) Your in-built fireplace should burn dry, standard
firewoodonly. The use of “mill ends” is discouraged
asthisfuelcaneasilyoverheatyourin-builtfireplace.
Evidence of excessive overheating will void your
warranty. As well, a large portion of sawmill waste
is chemically treated lumber, which is illegal to burn
in many areas. Chemically treated fire logs also
must not be burned in your in-built fireplace.

Masport In-built Fireplaces
16
MAINTENANCE
13) Do not store any fuel closer than 2 feet from your
unit.
14) Donot burn salt driftwoodasitwill corrode your unit
and void the warranty.
15) Do not operate the unit if the glass is broken or
missing. Do not operate the unit if the gasketing is
worn out and not sealing the door or the glass.
It is very important to carefully maintain your in-built
fireplace, including burning seasoned wood and
maintaining a clean stove and chimney system. Have
the chimney cleaned before the burning season and as
necessaryduringtheseason,ascreosotedepositsmay
build up rapidly. Moving parts of your in-built fireplace
require no lubrication.
Creosote
When wood is burned slowly, it produces tar and other
organic vapors, which form creosote when combined
with moisture. The creosote vapors condense in the
relatively cool chimney flue of a slow-burning fire. As a
result, creosote residue accumulates on the flue lining.
When ignited, this creosote can make an extremely hot
fire.
Removal for Cleaning etc.
Removal of your in-built fireplace for cleaning purposes
is usually not required if a proper installation has been
done. In the event that removal is required, be sure not
to damage any parts needed for re-installation. In most
cases removal and replacement of the baffle system
should allow full access for cleaning.
WARNING: Things to remember in case
of chimney fire:
1) Close draft control
2) Call the Fire Department
Ways to Prevent and
Keep Unit Free of Creosote
1) Burn in-built fireplace with draft control wide open
for about 15 minutes every morning during burning
season. This helps to prevent creosote deposits
within the heating system.
2) Burn in-built fireplace with draft control wide open
for about 10 - 15 minutes every time you add fresh
wood. This allows the wood to achieve the charcoal
stage faster and burns up any wood vapors which
might otherwise be deposited within the system.
3) Only burn seasoned wood! Avoid burning wet or
green wood. Seasoned wood has been dried at
least one year.
4) A small hot fire is preferable to a large smouldering
one that can deposit creosote within the system.
5) Checkthechimneyatleasttwiceamonthduringthe
burning season for creosote build-up.
6) Havechimneysystem and unit cleaned bycompetent
chimney sweeps twice a year during the first year of

Masport In-built Fireplaces 17
MAINTENANCE
use and at least once a year thereafter or when
needed.
Maintenance of Gold-Plated Doors
The gold electroplated finish on the doors requires little
maintenance, and need only be cleaned with a damp
cloth. DO NOT use abrasive materials or chemical
cleaners, as they may harm the finish and void the
warranty.
Door Gasket
If the door gasket requires replacement, 7/8" diameter
material must be used. A proper high temperature
gasket adhesive is required. A gasket repair kit, Part #
846-570 is available from your local Masport dealer.
Door Latch Adjustment
The door latch may require adjustment as the door
gasket material compresses after a few fires. Removal
of the spacer washer, shown in the diagram below, will
allow the latch to be moved closer to the door frame,
causing a tighter seal. Remove and replace the nuts,
washer as shown.
Glass Cleaning
Only clean your glass window when it is cool. Your local
retailercan supply you withspecial glass cleanerif plain
water and a soft cloth does not remove all deposits.
Glass Replacement
Your Masport In-built Fireplace is supplied with 5 mm.
Neoceram ceramic glass that will withstand the highest
heat that your unit will produce. In the event that you
breakyourglassbyimpact-purchaseyourreplacement
from an authorized Masport dealer only, and follow our
step-by-step instructions.
Glass Removal
Allow the stove to cool before removing or replacing
glass. Remove the door from the in-built fireplace and
remove the glass retainer. Use caution when removing
broken glass to prevent injury.
When placing the replacement glass in the door, make
surethat the glass gasketing willproperly seal your unit.
Replace the retainer and tighten securely, but do not
spannerdownontheglassasthismaycausebreakage.
Do not substitute materials. If your glass door does
break, do not continue to use your unit until it has been
replaced.

Masport In-built Fireplaces
18
846-916 Large Door Assy - Black
846-910 Large Door Assy - Gold
2) 846-304 Glass - Large
4) 936-243 560087 7/8" Glass Gasket
5) 846-920 560202 Glass Retainer Clips (Set)
6) * Screw - 1/4 - 20 x 3/8"
7) 948-172/P Large Glass Retainer
9) 846-973 Door Handle Assembly
16) 846-570 560203 Door Gasket Kit
17) 846-918 560204 Hinge Cap - Gold (2/set)
19) 948-101 560208 Spring Handle - Large
20) 948-102 Spring Handle - Small
23 820-235 Flue Brackets
Ontario - Medium Inbuilt Fireplace I2101 - Main Assembly
Part # Part # Description Part # Part # Description
Australia New Zealand Australia New Zealand
REPLACEMENT / SPARE PARTS LIST
142-920 Complete Fan Assy
25) 910-714 560061 Power Cord (240 V)
26) 910-155/P 560023 Fan Motor (240 V)
27) 910-142 Fan Thermodisc
28) 910-140 560036 Fan High/Off/Low Switch (3-way)
29) 910-138 Fan Auto/Manual Switch
30) * Fan Housing
948-217 Logo - Masport
908-047 Manual
*Not available as a replacement part.
36) 033-953 Air Tube - 3/4" each (Qty. 3)
37) 033-955 Baffle (2/set)
42) 163-930 Convection Grill - Black
163-932 Convection Grill - Gold
43) * Hex Nut 10-24 Zinc Coated
44) * Washer #10 Flat
45) * Carriage Bolt #10-24 x 3/4"

Masport In-built Fireplaces 19
Bricks
70) 902-111 Brick: 32mm x 114mm x 229mm
76) 802-152 Brick: 32mm x 51mm x 229mm
78) 802-143 Brick: 32mm x 57mm x 57mm
140-911 Faceplate & Trim - Regular
285) 143-161 Trim - Right - Regular
286) 143-158 Trim - Top - Regular
287) 143-160 Trim - Left - Regular
288) * Faceplate - Side - Regular
289) * Faceplate - Top - Regular
140-913 Faceplate & Trim - Oversize
295) 143-164 Trim - Right - Oversize
296) 143-162 Trim - Top - Oversize
297) 143-163 Trim - Left - Oversize
298) * Faceplate - Side - Oversize
299) * Faceplate - Top - Oversize
Ontario - Medium Inbuilt Fireplace I2101 - Accessories
Part # Part # Description Part # Part # Description
Australia New Zealand Australia New Zealand
846-532 Trim Clips
836-300 Yellow Insulation 1219mm x 102mm
846-531 Faceplate Hardware Pkg.
*Not available as a replacement part.
REPLACEMENT / SPARE PARTS LIST

Masport In-built Fireplaces
20
Vancouver - Large Inbuilt Fireplace I3101 - Main Assembly
Part # Part # Description Part # Part # Description
Australia New Zealand Australia New Zealand
REPLACEMENT / SPARE PARTS LIST
1) 846-916 Large Door Assy - Black
846-910 Large Door Assy - Gold
3) 846-304 Glass - Large
4) 936-243 560087 7/8" Glass Gasket
5) 846-920 560202 Glass Retainer Clips (set)
6) * Screw - 1/4 - 20 x 3/8"
7) 948-172/P Large Glass Retainer
9) 846-973 Door Handle Assembly
16) 846-570 560203 Door Gasket Kit
17) 846-918 560204 Hinge Cap - Gold (2/set)
19) 948-101 560208 Spring Handle - Large
20) 948-102 Spring Handle - Small
23) 820-235 Flue Brackets
35) 063-954 Air Tube - 1" (Qty. 1)
36) 063-953 Air Tube - 3/4" (Qty. 3)
38) 063-955 Baffle
163-920 Complete Fan Assy
25) 910-714 560061 Power Cord (240 V)
26) 910-155/P 560023 Fan Motor (240 V)
27) 910-142 Fan Thermodisc
28) 910-140 560036 Fan High/Off/Low Switch (3-way)
29) 910-138 Fan Auto/Manual Switch
30) * Fan Housing
948-217 Logo - Masport
908-047 Manual
*Not available as a replacement part.
42) 163-930 Convection Grill - Black
163-932 Convection Grill - Gold
43) * Hex Nut 10-24 Zinc Coated
44) * Washer #10 Flat
45) * Carriage Bolt
#10-24 x 3/4"
