Masport New York Quick start guide

Model: I43-NG Natural Gas
I43-LP Propane
Vienns
Owners &
Installation
PLEASE KEEP THESE INSTRUCTIONS
FOR FUTURE REFERENCE
Manual
05/11/01
Head Office - Australia
54 Boundary Rd. Braeside
P.O. Box 553
Mordialloc 3195
Ph. [phone]
Fax. [phone]
Head Office - New Zealand
1-37 Mt Wellington Hwy.Panmure,
P.O. Box 14349
Auckland 6.
Ph. (9) 570-9009
Fax. [phone]
LISTINGS AND CODE
APPROVALS
Thesegasapplianceshavebeen
tested in accordance with AG
103, NZS 5262 and have been
certified by the Australian Gas
Association for installation and
operation as described in these
Installation and Operating
Instructions.
Your unit should be serviced
annually by an authorised
service person.
908-059
FOR YOUR SAFETY
What to do if you smell gas:
!!
!!
!Do not try to light any ap-
pliance
!!
!!
!Do not touch any electri-
cal switch: do not use any
phone in your building.
!!
!!
!Immediately call your gas
supplier from a neigh-
bour's phone. Follow the
gas supplier's instruc-
tions.
!!
!!
!If you cannot reach your
gas supplier, call the fire
department.
WARNING:
Improper installation, adjustment, altera-
tion, service or maintenance can cause
injury or property damage. Refer to this
manual. For assistance or additional infor-
mationconsultanauthorisedinstaller,serv-
ice agency or the gas supplier.
FOR YOUR SAFETY
Do not store or use gasoline or other flam-
mable vapours and liquids in the vicinity of
this or any other appliance.
Installation and service must be performed
byan authorisedinstaller, serviceagency or
the gas supplier.
NewYork/Ultimate
(Australia) (New Zealand)

2Masport I43 NEW YORK / ULTIMATE Gas Inbuilt Fireplace
Note: Oversize faceplate 1124mm x 791mm
Extra Oversize Faceplate 1276mm x 892mm
TO THE NEW OWNER
Congratulations! You are the owner of a state-of-the-art Gas Inbuilt Fireplace byCongratulations! You are the owner of a state-of-the-art Gas Inbuilt Fireplace by
Congratulations! You are the owner of a state-of-the-art Gas Inbuilt Fireplace byCongratulations! You are the owner of a state-of-the-art Gas Inbuilt Fireplace by
Congratulations! You are the owner of a state-of-the-art Gas Inbuilt Fireplace by
MASPORT. The Masport Gas Fireplace Series of hand crafted appliances has beenMASPORT. The Masport Gas Fireplace Series of hand crafted appliances has been
MASPORT. The Masport Gas Fireplace Series of hand crafted appliances has beenMASPORT. The Masport Gas Fireplace Series of hand crafted appliances has been
MASPORT. The Masport Gas Fireplace Series of hand crafted appliances has been
designed to provide you with all the warmth and charm of a fireplace, at the flick of adesigned to provide you with all the warmth and charm of a fireplace, at the flick of a
designed to provide you with all the warmth and charm of a fireplace, at the flick of adesigned to provide you with all the warmth and charm of a fireplace, at the flick of a
designed to provide you with all the warmth and charm of a fireplace, at the flick of a
switch. The models I43-NG and I43-LP of this series have been approved by Warnockswitch. The models I43-NG and I43-LP of this series have been approved by Warnock
switch. The models I43-NG and I43-LP of this series have been approved by Warnockswitch. The models I43-NG and I43-LP of this series have been approved by Warnock
switch. The models I43-NG and I43-LP of this series have been approved by Warnock
Hersey for both safety and efficiency. As it also bears our own mark, it promises toHersey for both safety and efficiency. As it also bears our own mark, it promises to
Hersey for both safety and efficiency. As it also bears our own mark, it promises toHersey for both safety and efficiency. As it also bears our own mark, it promises to
Hersey for both safety and efficiency. As it also bears our own mark, it promises to
provide you with economy, comfort, and security for many trouble free years to follow.provide you with economy, comfort, and security for many trouble free years to follow.
provide you with economy, comfort, and security for many trouble free years to follow.provide you with economy, comfort, and security for many trouble free years to follow.
provide you with economy, comfort, and security for many trouble free years to follow.
Please take a moment now to acquaint yourself with these instructions and the manyPlease take a moment now to acquaint yourself with these instructions and the many
Please take a moment now to acquaint yourself with these instructions and the manyPlease take a moment now to acquaint yourself with these instructions and the many
Please take a moment now to acquaint yourself with these instructions and the many
features of your Masport Fireplace.features of your Masport Fireplace.
features of your Masport Fireplace.features of your Masport Fireplace.
features of your Masport Fireplace.
MASPORT
GAS INBUILT FIREPLACE
gas inlet
pipe on the
appliance

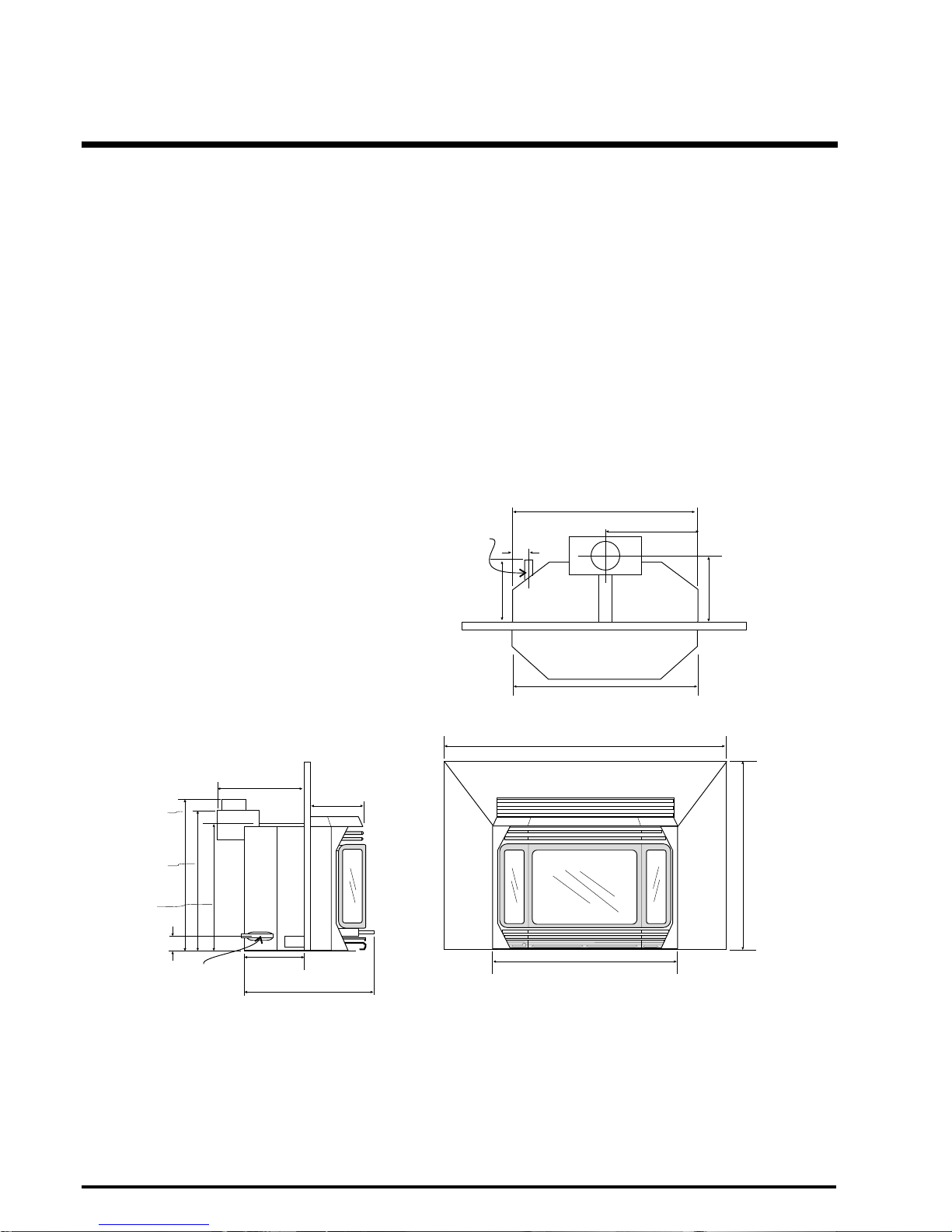

7-5/8"
(194mm)
13-1/8"
(333mm)
19-1/2"(495mm)
21-1/2"
(546mm)
22-1/2"
(572mm)
20"
(508mm)
1-7/8"
(48mm)
9-1/2"
(241mm)
29-1/4"(743mm)
44-3/8"(1127mm)
28-5/16"
(719mm)
29-1/4" (743mm)
13-1/4"(336mm)
26-1/2" (673mm)
3-1/4"
(83mm)
8-1/2"
(216mm)
10-1/2"
(267mm)
gas inlet
pipe on the
appliance

3
Masport I43 NEW YORK / ULTIMATE Gas Inbuilt Fireplace
TABLE OF CONTENTS
MASPORT GAS INBUILT FIREPLACE
SAFETY LABEL
Safety Labels .......................................... 4
INSTALLATION REQUIREMENTS
For your safety................................................ 5
Gas Pipe Testing ............................................ 5
Specifications.................................................. 5
Before You Start ............................................. 5
Installation Checklist ....................................... 6
Materials Required........................................... 6

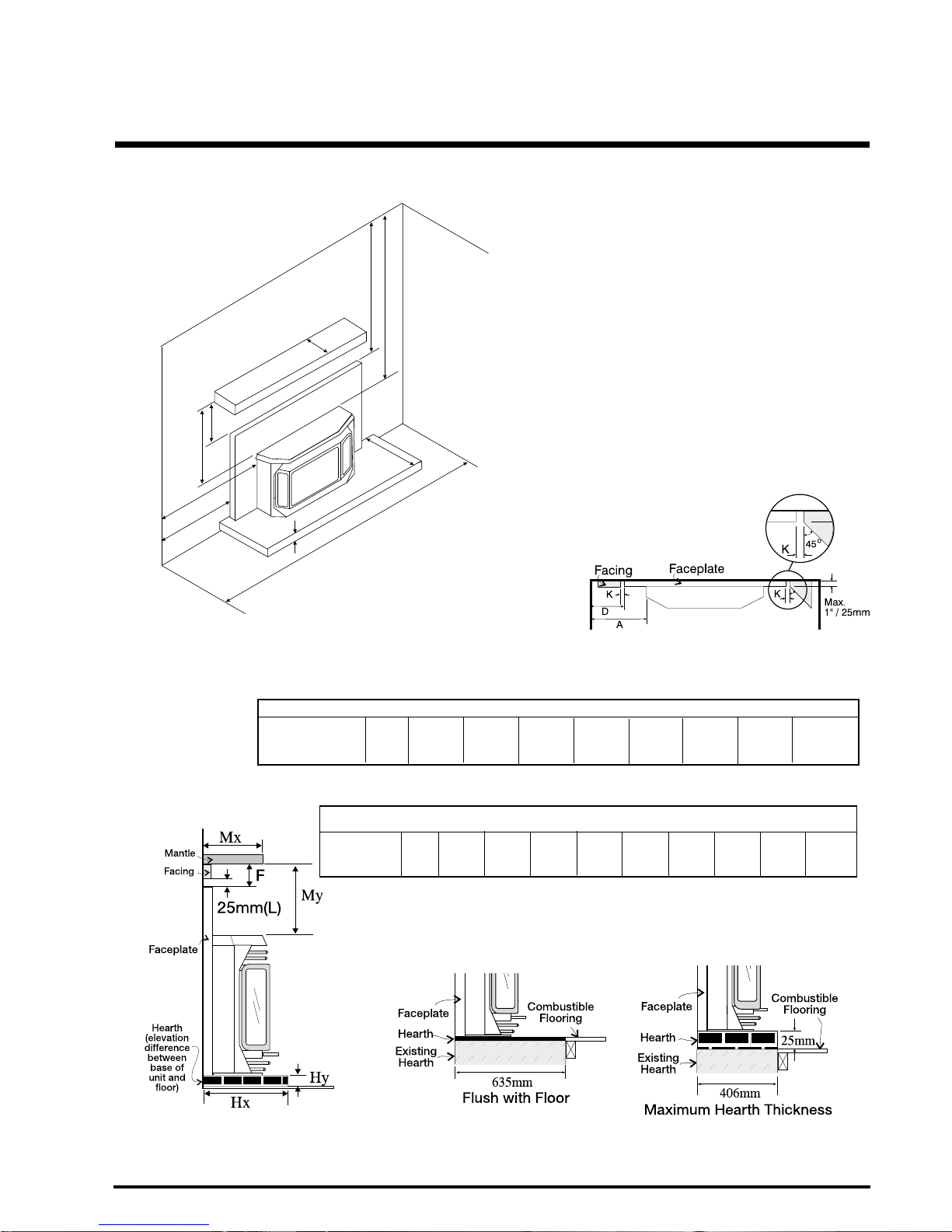

Clearances
-Minimum Fireplace Clearances ............... 6
-Clearances to Combustibles.................... 7
-Clearances to Combustible Mantels.......... 7
INSTALLATION INSTRUCTIONS
System Data Table ........................................... 8
Gas Connection .............................................. 8
Draft Diverter Connection ............................... 9
Flueing ................................................................
9
Combustion & Ventilation Air........................ 10
Gas Pressure Test.......................................... 10
Aeration System ............................................. 10
Test For Flue Spillage..................................... 11
Faceplate & Trim Installation .......................... 12
Brick Panels .................................................... 13
Log Installation................................................ 13
Door Installation & Door Latches.................... 14
Optional Wall Thermostat Installation ............ 14
Optional Remote Control Installation.............. 15
Final Check ..................................................... 15

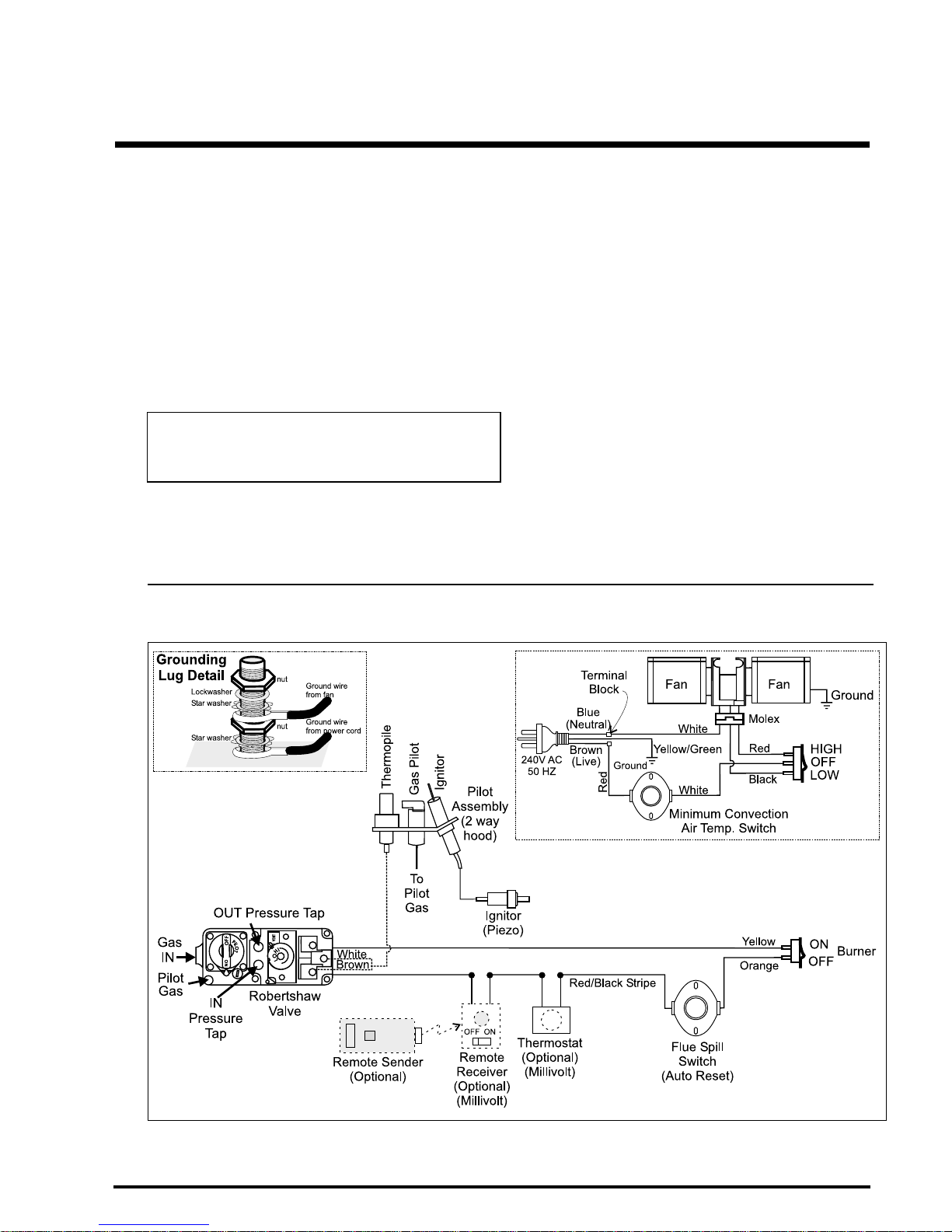

Wiring Diagram ............................................. 15
OPERATING INSTRUCTIONS
Operating Instructions..................................... 16
Lighting Procedure ......................................... 16
Shutdown Procedure ...................................... 16
Copy of Lighting Plate Instructions................. 17
First Fire .......................................................... 18
Automatic Convection Fan Operation ............ 18
Normal Operating Sounds of
Gas Appliances......................................... 18
MAINTENANCE
Maintenance ................................................... 19
Log Replacement............................................ 20
Gold Plated Doors .......................................... 20
Door Gasket and Glass Gasket...................... 20
Latch Adjustment ............................................ 20
Glass Replacement ........................................ 20
Fan Maintenance ............................................ 21
Troubleshooting Guide ................................... 22
Parts List ......................................................... 23
WARRANTY
Warranty ......................................................... 27
Page Page

4Masport I43 NEW YORK / ULTIMATE Gas Inbuilt Fireplace
DATA BADGE
(Australia Only)

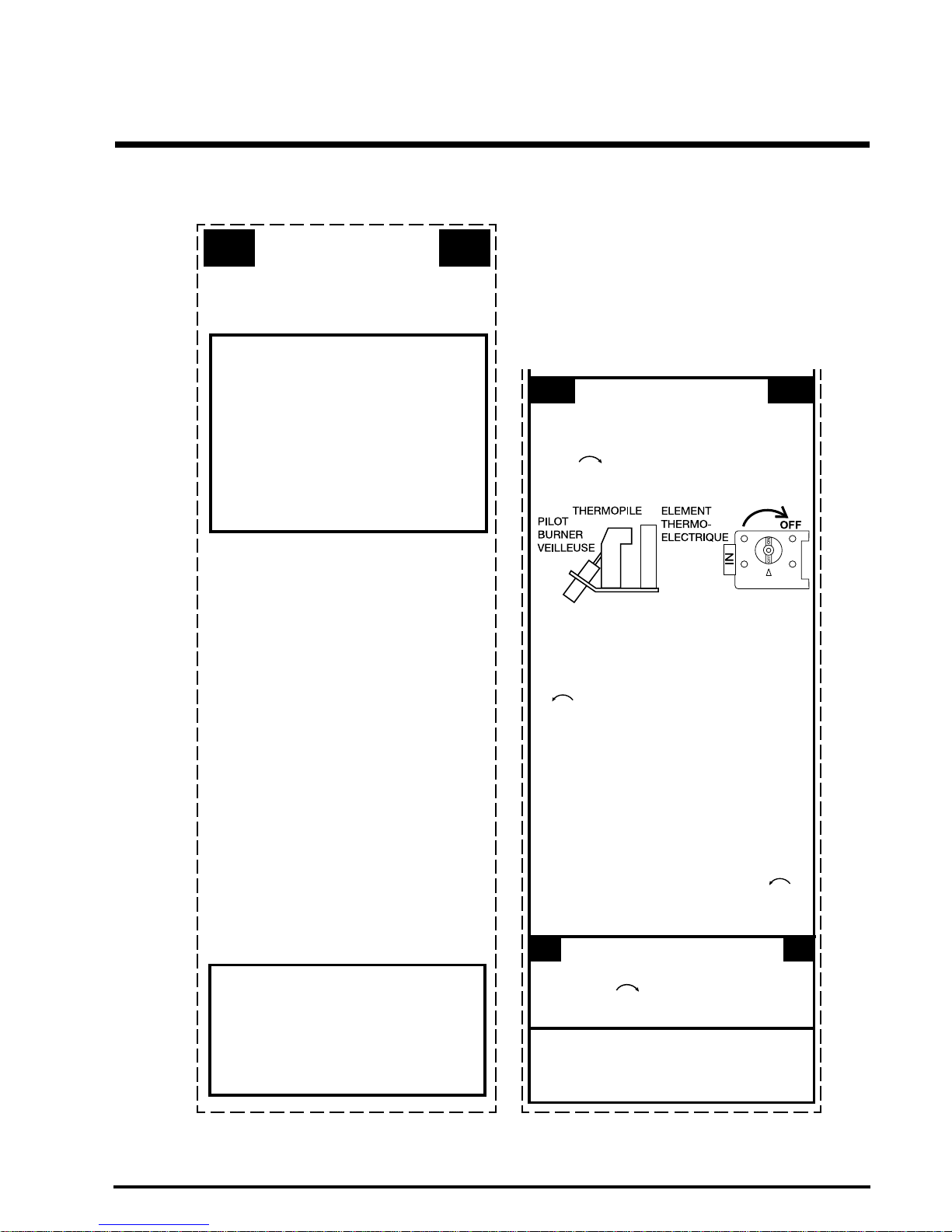

DATA BADGE NOTE: Masport units are constantly being
improved. Check the label on the unit and if there is a
difference, the label on the unit is the correct one.
This is a copy of the label that accompanies each Masport
Gas Inbuilt. We have printed a copy of the contents here for
your review. The safety label is located on the right side door
panel.

5
Masport I43 NEW YORK / ULTIMATE Gas Inbuilt Fireplace
INSTALLATION REQUIREMENTS
IMPORTANT:
SAVE THESE INSTRUCTIONS
The Masport I43 Gas Fireplace must be installed in
accordancewiththeseinstructions.Carefullyreadallthe
instructions in this manual first. Consult the "authority
having jurisdiction" to determine the need for a permit
prior to starting the installation.
Note: Failure to follow these instructions could cause
a malfunction of the heater which could result in death,
seriousbodilyinjury,and/or propertydamage.Failureto
follow these instructions may also void your fire insur-
ance and/or warranty.
FOR YOUR SAFETY
This appliance requires air for proper combustion. Al-
ways provide adequate combustion and ventilation air.
Follow instructions and information in the current AG
601 or local codes.
GAS PIPE TESTING
The appliance must be isolated from the gas supply
piping system by closing its individual manual shutoff
valve during any pressure testing of the gas supply
piping system at test pressures equal to or less than
1/2 psig. (3.45 kPa).
SPECIFICATIONS
Fuel: Natural Gas or Propane
Electrical: 240 volt. system
Fan: 2 speed, 75/125 CFM
Log Sets: Ceramic fibre, 3 per set
BEFORE YOU START
Installation is to be carried out ONLY by an authorised
person.
1) The appliance shall be installed in accordance with
themanufacturer'sinstallationinstructions,localgas
fitting regulations, municipal building codes, water
supplyregulations,electricalwiringregulations,with
AG601(AGAgasinstallationcode)NZS5261(New
Zealand)
2) Installation and repair should be done ONLY by
an authorised person.
3) The appliance should be inspected before use and
at least annually by an authorised service person.
More frequent cleaning may be required due to
excessive lint from carpeting, bedding material, etc.
It is imperative that control compartments, burners
andcirculating air passageways ofthe appliance by
kept clean and free from excessive lint from carpet-
ing.
4) See general construction and assembly instruc-
tions.Thisappliancemayonlybeinstalledinaflued
noncombustible fireplace. The appliance and flue
shouldbeenclosedwheninstalledorpassingthrough
a living area, where children may come in contact
with it.
5) Alwaysconnectthisfireplacetoa fluetotheoutside
of the building envelope. Never flue to another
room. Make sure that the flue is properly sized and
is of adequate height to provide the proper draft.
6) Inspect the flue system annually for blockage and
any signs of deterioration.
7) Any safety glass removed for servicing must be
replaced prior to operating the appliance.
8) To prevent injury, do not allow anyone who is
unfamiliar with the operation to use the fireplace.

6Masport I43 NEW YORK / ULTIMATE Gas Inbuilt Fireplace
INSTALLATION CHECKLIST
The Masport Gas Inbuilt is installed as listed below.
1) Unit Location - check Clearances to Combustibles on
page 7.
2) Make the gas connections and electrical connection for
fan and flue spill switch. See page 8.
3) Install the flue or liner to the sliding draft diverter. See
page 9.
4) InstallFlueing, page9.Slidetheunit intothefireplaceand
level. Attach draft diverter to the inbuilt.
5) Test gas pressure, page 10. Check aeration, page 10.
6) Test for flue spillage, page 11.
7) Assembleand installthe faceplateand trim.See page12.
8) Install the optional brick panels. See page 13.

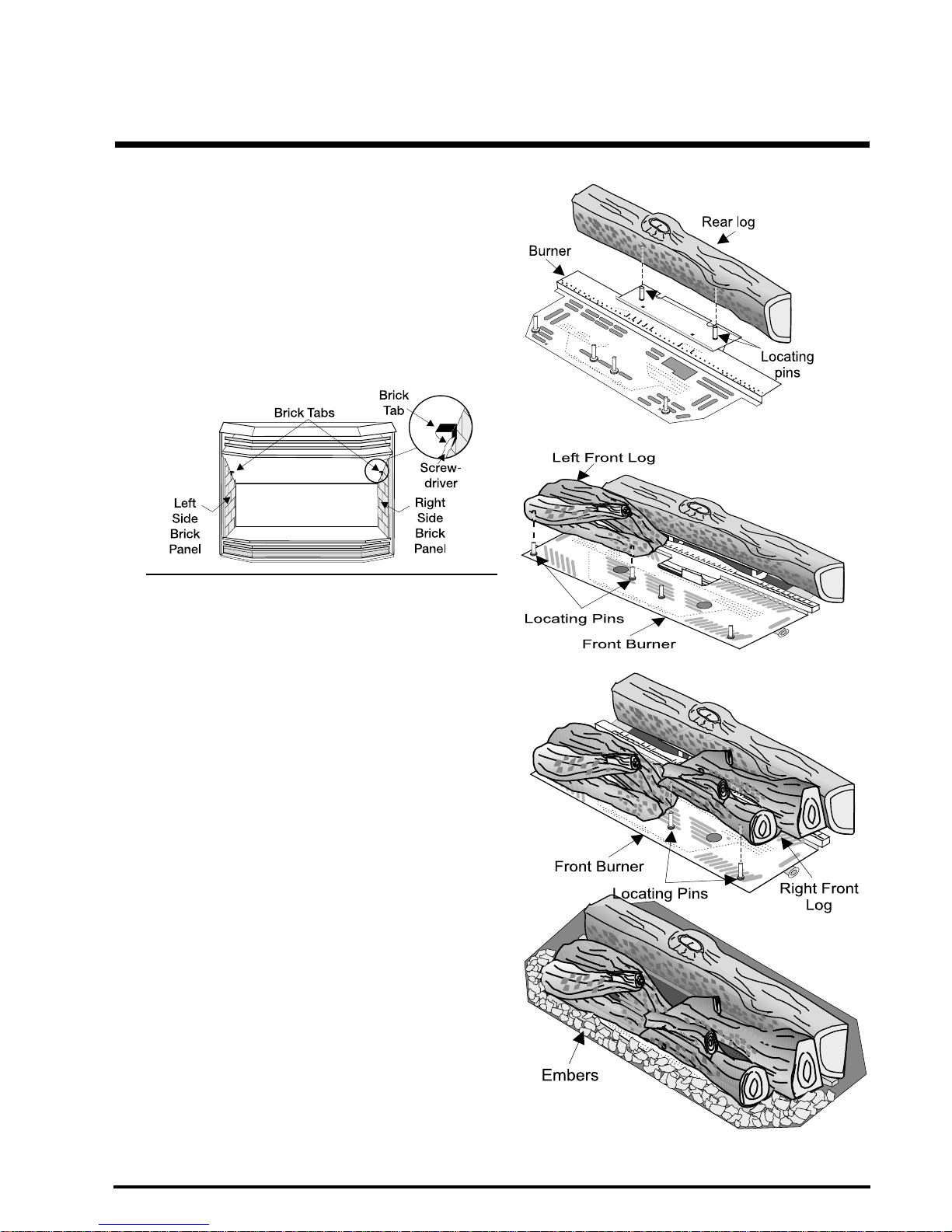

9) Install the 3 logs and embers. See page 13.
10) Install Doors. See page 14.
11) Install Optional Remote Control and Optional Wall Ther-
mostat, pages 14 and 15.
12) Explain controls to the homeowner.
13) Final check: Before leaving this unit with the customer,
the installer must ensure that the appliance is firing
correctly. This includes:
a) Clocking the appliance to ensure the correct firing
rate.
b) Adjusting the primary air, if required, to ensure that
the flame does not carbon. See page 10.
c) Ensuring that the appliance is flueing correctly. See
page 11.
MATERIALS REQUIRED
No electrical power supply is required for the gas control to
operate. A 240 Volt AC power cord is hooked up to the fan
switchand fan. Plug3 wirecordintoasuitablereceptacle. Do
not cut the ground terminal off under any circumstances.
When connected with 240 volts, the appliance must be
electrically grounded in accordance with local codes, or in the
absence of local codes with the current version of National
Code AS 3100.
INSTALLATION REQUIREMENTS
Note: This unit is equipped with a heat sensor thermo-
discwhichwillpreventthefanfromoperating until
the unit reaches the correct temperature.
CLEARANCES
Minimum Fireplace Clearances
The minimum fireplace clearances for the Masport gas inbuilt
fireplace are shown in the following diagrams:

7
Masport I43 NEW YORK / ULTIMATE Gas Inbuilt Fireplace
INSTALLATION REQUIREMENTS
I
G
J
H
A
D
B
E
F
C
Clearances to Combustibles
From Unit
Sides A 7.5" / 190 mm
Ceiling B 35" / 890 mm
Mantel C(My) 11 / 280 mm
From Surround
Sides D 2" / 50 mm
Ceiling E 25.5" / 650 mm
Mantel F 3" / 75 mm
Min. Alcove Width J 48" / 1120 mm
Mantel Depth G(Mx) 7.5" / 190 mm
Facing (Mantel Leg)
Side* K 1" / 25 mm
Top L 1" / 25 mm
Top View
Note: A non-combustible mantel may be installed at a lower height if the framing is
made of metal studs covered with a non-combustible board.
Mantle Clearances (mm)
Width (Mx) 140 152 165 178 190 203 216 229 241
Clearance (My) 279 289 298 311 317 321 324 327 330
Non-combustible Hearth Extension (mm)
Height (Hy) 0 16 32 48 60 70 79 89 95 101
Depth (Hx) 635 610 584 559 533 508 483 457 432 406
*Max. width of 25mm at 25mm from
surround, calculate depth at 45oas
shown in the diagram.

8Masport I43 NEW YORK / ULTIMATE Gas Inbuilt Fireplace
INSTALLATION INSTRUCTIONS
1) If the appliance is to be installed into an existing chimney
system, thoroughly clean the masonry fireplace and have
the chimney swept.
2) The gas connection is a 1/2" BSP male pipe on the rear
left side of the unit. The gas line can be rigid pipe or to
make installation easier use a listed flexible connector
and manual shut-off valve if allowed by local building
codes. A 1/2" gas supply pipe must be brought near this
inlet hole.
3) Locate the center point where the flue will pass through
the chimney above the appliance. Move the appliance
into the exact location where it is to be installed. Ensure
that the Inbuilt is level.
4) Thegascontrol valve isprovided with two"IN"and "OUT"
pressure taps, and are easily accessible for a test gauge
connection (see diagram on page 10).
5) Once the gas has been connected ensure that the pilot
valve is in line with burner.
GAS CONNECTION WARNING:
Only persons licensed to work with gas piping may make
the necessary gas connections to this appliance.
Valve Access: Loosen and
remove the wingnuts on the
both sides of the bottom lou-
vre and then remove the lou-
vre.
GAS CONNECTION
For minimum and maximum supply pressure see the System
Data table on page 8.
Note: Prior to any pressure testing of the gas supply
piping system that exceeds test pressures of 1/2
psig (3.45 kPa), this appliance and its individual
shut-off valve must be disconnected from the
piping system. If test pressures equal to or less
than 1/2 psig (3.45 kPa) are used then this appli-
ance must be isolated from the piping system by
closingits individualmanual shut-offvalve during
the testing.
System Data
For 0 to 610 metres altitude*
Burner Inlet Orifice Sizes:Burner Inlet Orifice Sizes:
Burner Inlet Orifice Sizes:Burner Inlet Orifice Sizes:
Burner Inlet Orifice Sizes:
Natural Gas Propane
Rear Burner n/a #54(1.4mm)
Front Burner #31(3.0mm) #56(1.15mm)
Input RatingInput Rating
Input RatingInput Rating
Input Rating - Natural Gas 40 mj
- Propane 39 mj
Supply Pressure:Supply Pressure:
Supply Pressure:Supply Pressure:
Supply Pressure:
Natural Gas min. 1.13 kPa
Propane min. 2.75 kPa
Manifold PressureManifold Pressure
Manifold PressureManifold Pressure
Manifold Pressure
Natural Gas .85 kPa
Propane 2.55 kPa
CAUTION: If the door is removed or opened for servicing,
it must be replaced and closed prior to operating the
appliance. The glass must be fixed in the door when
operating.

9
Masport I43 NEW YORK / ULTIMATE Gas Inbuilt Fireplace
FLUEING
THEAPPLIANCEMUSTNOTBECONNECTEDTOACHIM-
NEYFLUESERVINGASEPARATESOLIDFUELBURNING
APPLIANCE.
Thisapplianceis designed toattachto a 100mmdiameterflue
or approved aluminum flex liner running the full length of the
chimney. A minimum flue height of 3.6 m is recommended. B-
Vent must be supported by a flue support - supplied by flue
manufacturer. There must be at least 0.9 m of chimney above
the roof level.
Stack the pipe onto your finish support to a minimum height
of 0.9m above the roof penetration, or 0.6m above any point
within 3m measured horizontally. B-Vent chimneys require a
25mm clearance to combustibles.
TheMasport Inbuiltincorporatesits owninternal draftdiverter,
so no additional external draft diverter is required. Periodically
check that the flue is unrestricted and an adequate draft is
presentwhentheunitisinoperation. (Seepage11forspillage
test.)
Before installing flue system ensure that the damper plate is
lockedintotheopenpositionandsecuretopreventthedamper
plate from falling down and crushing the liner.
INSTALLATION REQUIREMENTS
DRAFT DIVERTER CONNECTION
1) Attach the flue to the flue collar on the detachable draft
diverter. The flue collar of the appliance will fit inside a
standard 100mm flue and may be fastened directly to the
flue by sheet metal screw.
2) Before pushing the appliance into position inside the
fireplace, align the draft diverter with the guides on the
inbuilt top and push forward. While pushing the unit back
into place keep pulling the draft diverter forward until the
screwholein the spilltube-rearaligns with thescrewhole
in the spill tube-front. (If screw holes do not line up then
draft diverter is not positioned correctly.) Secure the two
spill tubes with a screw.
Note: Finalgasconnectionshouldbeafterunitisinplace
toavoid damageto linewhen pushingtheunit into
position.

10 Masport I43 NEW YORK / ULTIMATE Gas Inbuilt Fireplace
INSTALLATION INSTRUCTIONS
AERATION SYSTEM
The burner aeration is factory set but may need adjusting due
to either the local gas supply, air supply or altitude.
Natural Gas: 8mm open
Propane: Fully open (rear) and fully open (front)
An aeration adjustment rod is attached to the air shutter on
each burner. The rod is used to adjust the aeration on the
burner without having to take the appliance apart. This
adjustment is performed by an authorised installer. The
factory setting should be sufficient for most installations.
Note: Any damage due to carboning resulting from im-
properly setting the aeration controls is NOT cov-
ered under warranty.
COMBUSTION & VENTILATION AIR
WARNING: This appliance needs fresh air for safe opera-
tion and must be installed with provisions for adequate
combustion and ventilation air available to the room in
which it is to be operating.
This appliance installation must conform with local codes or
in the absence of local codes, with AG 601 or NZS 5261.
Air for combustion is drawn in through the front of the unit,
therefore, the front of the unit must be kept clear of any
obstructions.
GAS PRESSURE TEST
Themanifoldpressure iscontrolledbyaregulatorbuiltinto the
gas control, and should be checked at the pressure test point.
Note: To properly check gas pressure, both inlet and
manifold pressures should be checked using the
valve pressure ports on the valve.
1) Make sure the valve is in the off position.
2) Loosen the screw at the outlet pressure test point, turn
captured screw counterclockwise 2 or 3 turns and then
placing tubing to gauge over test point.
3) Attach tubing to a manometer using a 8mm I.D. hose.
4) Light the pilot and turn the valve to "ON" position.
5) The pressure check should be carried out with the unit
burning and the setting should be within the limits spec-
ified on the safety label.
6) When finished reading the manometer, turn off the gas
valve, disconnect the hose and tighten the screw (clock-
wise) with a 3mm wide screwdriver closing torque: 9 in.
lbs.
Note: Use the same manner to check the inlet pressure.

11
Masport I43 NEW YORK / ULTIMATE Gas Inbuilt Fireplace
INSTALLATION INSTRUCTIONS
below.
The smoke should be drawn into the spill tube, if it does not,
leave the unit for a further five minutes and retest as above. If
the smoke is still not drawn into the spill tube, turn the unit off
and check for the cause of the lack of draft. If necessary,
rectify.
For wind turbulent sites, a wind cap may remedy the problem.
Note: The thermally activated safety switch will sense
the change in temperature and shut down the gas
valve in the event of a severe downdraft of air or a
blockedor disconnectedflue.The switchactsas a
safety shut-off to prevent a build up of carbon
monoxide. If the flue is blocked or has no "draw",
the switch will automatically shut off the supply of
gas within 5 - 10 minutes. Tampering with the
switchcanresultincarbonmonoxide(CO)poison-
normal
draft downdraft
or blocked
flue
Spill Tube
Non-combustible
Scrap
TEST FOR FLUE SPILLAGE
A “spillage” test must be made before the installed unit is left
with the customer. Follow the procedure below:
1) Startallexhaustfansinthehomeandthenclosealldoors
and windows in the room.
2) Light the unit and set controls to maximum. Turn fan off.
3) After five minutes, test that there is a “pull” on the flue by
placing a smoke match, cigarette or similar device which
givesoffsmoke,infrontofthespilltube.Toensureavalid
test, place a scrap piece of sheet metal (or other non-
combustible material) between the spill tube and the
upper louvre, this will prevent the natural convection of
the unit from interfering with the test. See diagrams
ing and possible death.
If the heater turns off because of lack of draft
during the spillage test, check for the cause and if
necessary, rectify.
Thethermallyactuatedsafetyswitchwillautomat-
ically reset after it has reduced in temperature.
The switch will continue to cycle until the draft
problem is corrected. DO NOT BYPASS OR DIS-
CONNECT THIS SWITCH.

12 Masport I43 NEW YORK / ULTIMATE Gas Inbuilt Fireplace
INSTALLATION INSTRUCTIONS
7) Thepower cordshould berun behindthe faceplatepanel.
8) Push the logo plate into the two holes in the bottom left
corner of the left side faceplate panel.
9) Secure the gold trim to the faceplate by drilling a
1/8" hole through into the faceplate side flange, using the
hole in the trim as a guide. Now fasten with the two brass
plated screws provided.
10) Lifttheassembledface-
plate up and over the
top of the inbuilt and
then lower it down so
the faceplate
tabs are in line
with the face-
platebrackets.
See diagram 4. Once
everything is properly
lined up you can tighten
the 4 screws on the face-
plate brackets. See dia-
gram 5.
3) Using the trim clips provided,
join the left side gold trim (the
one with the ON/OFF switch
and FAN switch) to the top
gold trim. See diagram 2. Re-
peat this step for right side.
FACEPLATE & TRIM INSTALLATION
Diagram 4
Diagram 1
Diagram 2
Hint: Before doing the faceplace installation, leave the
inbuiltoutapproximately4"sowiresmaybehooked
up easier.
1) Laythefaceplatepanelsflat,facedownonsomethingsoft
so they don't scratch.
2) Take the top faceplate and align the holes in it with the
holes in the side panels. Attach, using the screws
provided. See diagram 1.
Note: The holes in the top panel are slightly larger
than the holes in the side panel to facilitate
easier installation.
Diagram 5
Diagram 3
4) Place the trim on the assembled faceplate panels, align-
ing the wires from the switches with
the notch in the left side faceplate
panel.
Hint: Don't tighten
the screws down
completely at this
point, first do a trial
fit to the unit. Make
any necessary
a djustments and
whenit fitsproperly
then tighten down
the screws.
WARNING:The3wiresaretotheFanandthe2wires
are to the Burner ON/OFF switch. DO NOT connect
to the wrong switch.
Note: Ifyouaremakingcustomfaceplates,youmustuse
the faceplate louvres. Failure to do so will void the
certification on your unit. The faceplate louvres can be
purchased separately, part #: 610-909.
5) FAN switch wires: Hookup the 3 Fan Switch wires to the
fan switch on the left side trim.
6) Burner ON/OFF wires: Hookup the 2 Burner ON/OFF
wires to the Burner switch on the left side trim. Diagram
3.

13
Masport I43 NEW YORK / ULTIMATE Gas Inbuilt Fireplace
INSTALLATION INSTRUCTIONS
Diagram 2
Diagram 1
Diagram 3
BRICK PANEL INSTALLATION
1) Unwrap the brick pattern panels from the protective
wrapping.
2) Open the door and position the side brick panels into
place from the front of the firebox. There are two tabs to
the panels in place, on on each side. Carefully bend the
tabsdownwithascrewdriveruntilpanelsareheldsecure-
ly in place.
Note: Usecautionwhenputtingthesidepanelsinasthey
can easily be scratched by the hard component
parts.
LOG INSTALLATION
WARNING: Dangerousoperating conditionsmay occurif
these logs are not positioned in their approved locations.
Read the instructions below carefully and refer to the
diagrams. If logs are broken do not use the unit until they
are replaced. Broken logs can interfere with the pilot and
burner operation.
The gas log kit contains the following:
a) Front Right Log - Part #902-192
b) Front Left Log - Part #902-193
c) Rear log - Part #902-194
d) Embers - Part #902-151 (1 bag)
(Part #650-933 for the set of three logs)
1) Remove the logs from the box and carefully unwrap
them. The logs are fragile, handle with care - DO NOT
FORCE into position.
2) Place the rear log, carefully sliding it down onto the pins,
with the flat side of the log facing the back of the unit. See
diagram 1.
3) Place the left front log, carefully sliding it down onto the
left pins of the front burner. See diagram 2.
4) Place the right front log, carefully sliding it down onto the
right pins of the front burner. See diagram 3.
5) Distribute the embers along the front burner but do not
coverthe burnerports andaround thelogs. Seediagram
4.
Note: Do not force
logs down.
Diagram 4

14 Masport I43 NEW YORK / ULTIMATE Gas Inbuilt Fireplace
INSTALLATION INSTRUCTIONS
Note: Thedoorlatch mayrequireadjustmentasthe door
gasket material compresses after a few fires and
after glass replacement. Turn the latch to tighten
or loosen the latch.
3) Close the door. The latch plate must be centered around
the alignment pin. See diagram 2. If the latch plate
interferes with the corner of the stove you may want to
angle the plate slightly so the door closes more easily.
DOOR INSTALLATION
1) Open the two side doors.
2) Slidethedoorontothetwohingepinsmakingsurethetwo
pieces are flush together. See diagram 1.
Diagram 1
Diagram 3
Diagram 2
4) Thelatchesshouldalreadybeatthepropersetting. Ifthey
are too hard or too easy to close, you may want to adjust
them by turning the latch. See diagram 3.
5) Remove the blue plastic protective coating.
6) Test the seal around the door by placing a piece of paper
between the unit and the door, close the door and try to
pull the paper out. If it slips out easily, then the door is not
properly sealed. Turn the adjustable catch to tighten or
loosen the latch. See diagram 3.
Thermostat Wire Table
14 GA.
16 GA.
18 GA.
20 GA.
22 GA.
15.24 m
9.75 m
6.10 m
3.66 m
2.71 m
Recommended Maximum Lead Length
(Two-Wire) When Using Wall
Thermostat (CP-2 System)
Wire Size Max. Length
CAUTION
Do not connect the millivolt wall
thermostat wires to the 240V wires.
OPTIONAL WALL THERMOSTAT
A wall thermostat may be installed if desired. Connect the
wires as per the wiring diagrams. Note that the wires are
connected to the "TH" on the gas valve. Use chart below to
determine the maximum wire length:
Note: Preferable if the thermostat is installed on an
interior wall.
Masport offers a programmable thermostat but any CSA,
ULC or UL approved millivolt thermostat, 250-750 millivolt
rated non-anticipator type thermostat may be used.

15
Masport I43 NEW YORK / ULTIMATE Gas Inbuilt Fireplace
INSTALLATION INSTRUCTIONS
OPTIONAL REMOTE CONTROL
Use the Masport Remote Control Kits approved for this unit.
Use of other systems may void your warranty.
The remote control kit comes with a hand held transmitter, a
receiver and a wall mounting plate.
1) Choose a convenient location on the wall to install the
receiver and the receptacle box (protection from extreme
heat is very important). Run wires from the fireplace to
that location. Use Thermostat Wire Table.
2) Connect the wires as per the wiring diagram on page 15.
CAUTION
Do not connect the millivolt remote
control wires to the 240V wires.
3) Install alkaline batteries in both the receiver and the
transmitter. Install the receiver and its cover in the wall.
Switch the hand held remote transmitter to "remote"
mode. The remote control is now ready for operation.
FINAL CHECK
Before leaving this unit with the customer, the installer must
ensure that the appliance is firing correctly. This includes:
1) Check operating pressure (see Data Badge for operating
pressure settings).
2) Ifrequired, adjustingtheprimary airto ensurethatthe flame
does not carbon. First allow the unit to burn for 15 min. to
stabilize.
Natural Gas: 8mm
Propane Full open
3) Check for proper draft.
CAUTION
Anyalteration totheproductthat causessootingor carbon-
ing that results in damage to the exterior facia is not the
responsibility of the manufacturer.
WIRING DIAGRAM

16 Masport I43 NEW YORK / ULTIMATE Gas Inbuilt Fireplace
OPERATING INSTRUCTIONS
Before operating this appliance, proceed through the
following check list.
1) Read and understand these instructions before operating
this appliance.
2) Clean the burner and control compartment of lint and
house dust by brushing and vacuuming regularly. At
least once a year.
3) Never operate the appliance with any of the glass re-
moved or with the door open.
4) Verify log placement. If the pilot cannot be seen when
lighting the unit - the logs or the embers have been
incorrectly positioned.
5) The unit should never to turned off and on without a
minimum of a 60 second wait.
6) Do not operate with primary guard removed. See below.
3) Ifthe controlknob isin the"OFF" positionproceed toStep
5.
4) Push in gas control knob slightly and turn clockwise to
"OFF". Knob cannot be turned from "PILOT" to "OFF"
unless knob is pushed in slightly. Do not force.
5) Wait five minutes to allow gas, that may have accumulat-
ed in the main burner compartment, to escape. If you do
smell gas, follow the instructions on the front of this
manual. If you don't smell gas continue on to the next
step.
6) Turn the gas control counterclockwise to "PILOT".
7) Push in control knob all the way and hold in. Immediately
push black button on spark igniter until pilot lights.
Continue to hold the control knob in for approximately
one minute, then release the gas control knob. The pilot
flameshould continueto burn. Ifthe pilotdoesnotremain
lit, repeat operation allowing a longer period before
releasing gas control knob.
8) Turn gas control knob counterclockwise to "ON".
9) Use rocker switch to operate main burner.
10) Rotate the variable flame control to adjust the flame
height higher or lower.
11) Close the bottom louvre assembly and tighten the wing-
nut.
12) The door must be closed when operating the unit.
SHUTDOWN PROCEDURE
1) Use the rocker switch to turn off the main burner.
2) Open the bottom louvre assembly by turning the wing nut
and swinging the louvres out.
3) Push in the gas control knob slightly and turn clockwise
to "OFF". Do not force.
4) Disconnect all electric power to the appliance if service is
to be performed.
LIGHTING PROCEDURE
IMPORTANT: Gas cock knob cannot be turned from
"PILOT" to "OFF" unless it is partially depressed.
1) Opentheleftsidedoorwhenlightingthepilot,butoncethe
pilot is lit, DO NOT operate the unit with the front glass
door open.
2) Open the bottom louvre assembly by turning the wing nut
and swinging the louvres out. (See page 8 for diagram.)
THEGUARDISFITTEDTOTHISAPPLIANCETOREDUCE
THE RISK OF INJURY FROM BURNS AND NO PART OF
IT SHOULD BE PERMANENTLY REMOVED.
FOR PROTECTION OF YOUNG CHILDREN OR THE
INFIRM, A SECONDARY GUARD IS REQUIRED.
OPERATING INSTRUCTIONS

17
Masport I43 NEW YORK / ULTIMATE Gas Inbuilt Fireplace
OPERATING INSTRUCTIONS
COPY OF THE LIGHTING PLATE INSTRUCTIONS
LIGHTING INSTRUCTIONS
2) Wait five (5) minutes to clear out any gas. If you
then smell gas STOP! follow “B” in the safety
information above on this label. If you don’t
smell gas, go to the next step.
3) Turn knob on gas control counterclockwise
to “PILOT”.
4) Push in control knob all the way and hold in.
Immediately push black button on spark igniter
until pilot lights. Continue to hold the control
knob in for about 1/2 minute after the pilot is lit.
Releaseknobanditwillpopbackup.Pilotshould
remain lit. If it goes out, repeat steps 3) and 4).
Ifknobdoesnotpopupwhenreleased,stopand
immediately call your service technician or gas
supplier.
Ifthepilot will not staylitafterseveral tries, turn
the gas control knob to “OFF” and call your
servicetechnicianorgassupplier.
5) Turngascontrolknobcounterclockwise to
“ON”.
6) Use rocker switch to operate main burner.
STOP! Read the safety information above on this
label.
1) Pushingascontrolknobslightlyandturnclock-
wise to“OFF”.Knobcannotbeturnedfrom
“PILOT” to “OFF” unless knob is pushed in
slightly. Do not force.
TO TURN OFF GAS APPLIANCE
1) Push in the gas control knob slightly and turn
clockwise to “OFF”. Do not force.
2) Turn off all electric power to the appliance if
service is to be performed.
DO NOT REMOVE THIS
INSTRUCTIONPLATE
MadeinCanada 908-432
A)This appliance has a pilot which must be lighted
by hand, following the instructions below
exactly.
B)BEFORE LIGHTING smell all around the appli-
anceareaforgas.Besuretosmellnexttothefloor
because some gas is heavier than air and will
settle on the floor.
WHAT TO DO IF YOU SMELL GAS
- Do not try to light any appliance
- Donottouchanyelectricswitch,donotuseany
phone in your building
- Immediatelycallyourgassupplierfromaneigh-
boursphone.Followthegassupplier’sinstruc-
tions.
- If you cannot reach your gas supplier, call the
firedepartment.
C)Use only your hand to push in or turn the gas
controlknob.Neverusetools.Iftheknobwill not
push in or turn by hand, don’t try to repair it, call
aqualifiedservicetechnician.Forceorattempted
repair may result in a fire or explosion.
D)Do not use this appliance if any part has been
under water. Immediately call a qualified service
techniciantoinspecttheapplianceandtoreplace
anypartofthecontrolsystemandanygascontrol
which has been under water.
CAUTION: Hot while in operation. Do
not touch. Due to high surface
temperatures keep children, clothing
and furniture, away. Keep burner and
control compartment clean.
See installation and operating
instructions accompanying appliance.
WARNING: If you do not follow these
instructionsexactly,afire or explosion
may result causing property damage,
personal injury or loss of life. Improper
installation, adjustment, alteration,
serviceormaintenancecancauseinjury
orpropertydamage.Refertotheowner’s
information manual provided with this
appliance. For assistance or additional
informationconsultaqualifiedinstaller,
service agency or gas supplier.
FOR YOUR SAFETY
READ BEFORE LIGHTING
Thisappliancemustbeinstalledinaccordance
withlocalcodes,ifany;ifnot,followthecurrent
CAN1-B149/ANSI Z 223.1 (Australia: AG601 /
New Zealand: NZS 5261)
Thisapplianceneedsfreshairforsafeoperationand
mustbeinstalledsothereareprovisionsforadequate
combustion and ventilation air.

18 Masport I43 NEW YORK / ULTIMATE Gas Inbuilt Fireplace
FIRST FIRE
The first fire in your heater is part of the paint curing process.
To ensure that the paint is properly cured, it is recommended
that you burn your fireplace for at least four (4) hours the first
time you use it with the fan on. When first operated, the unit
will release an odour caused by the curing of the paint, the
burning off of any oils remaining from manufacturing. Smoke
detectors in the house may go off at this time. Open a few
windows to ventilate the room for a couple of hours.
The glass panel may require cleaning after the unit has
cooled down. DO NOT ATTEMPT TO CLEAN THEDO NOT ATTEMPT TO CLEAN THE
DO NOT ATTEMPT TO CLEAN THEDO NOT ATTEMPT TO CLEAN THE
DO NOT ATTEMPT TO CLEAN THE
GLASS WHILE IT IS HOT.GLASS WHILE IT IS HOT.
GLASS WHILE IT IS HOT.GLASS WHILE IT IS HOT.
GLASS WHILE IT IS HOT.
Note: When the glass is cold and the appliance is lit, it
may cause condensation and fog the glass. This
condensationisnormal andwilldisappearina few
minutes as the glass heats up.
DO NOT BURN THE APPLIANCE WITHOUT THE
GLASS FRONT IN PLACE.
AUTOMATIC CONVECTION FAN
OPERATION
The fan operates automatically, set the fan switch on the side
of the faceplate to the desired speed. The fan will turn on as
the stove comes up to operating temperature.
After the unit has been turned off and the unit cooled to below
a useful heat output range the fan will shut off automatically.
NORMAL OPERATING SOUNDS OF
GAS APPLIANCES
It is possible that you will hear some sounds from your gas
appliance. This is perfectly normal due to the fact that there
are various gauges and types of steel used within your
appliance. Listed below are some examples. All are normal
operating sounds and should not be considered as defects
in your appliance.
Fan:
Masport gas appliances use high tech fans to push heated air
farther into the room. It is not unusual for the fan to make a
"whirring" sound when ON. This sound will increase or
decrease in volume depending on the speed setting of your
fan speed switch.
Burner Tray:
The burner tray is positioned directly under the burner tube(s)
and logs and is made of a different gauge material from the
rest of the firebox and body. Therefore, the varying thickness-
es of steel will expand and contract at slightly different rates
which can cause "ticking" and "cracking" sounds. You should
also be aware that as there are temperature changes within
the unit these sounds will likely re-occur. Again, this is normal
for steel fireboxes.
Fan Thermodisc:
When this thermally activated switch turns ON it will create a
small "clicking" sound. This is the switch contacts closing and
is normal.
Pilot Flame:
While the pilot flame is on it can make a very slight "whisper"
sound.
Gas Control Valve:
As the gas control valve turns ON and OFF, a dull clicking
sound may be audible, this is normal operation of a gas
regulator or valve.
Unit Body/Firebox:
Different types and thicknesses of steel will expand and
contract at different rates resulting in some "cracking" and
"ticking" sounds will be heard throughout the cycling process.
OPERATING INSTRUCTIONS
WARNING:
Do not spray aerosols in the vicinity of this appliance.

19
Masport I43 NEW YORK / ULTIMATE Gas Inbuilt Fireplace
Incorrectflamepatternwillhavesmall,probablyyellowflames,
not coming into proper contact with the rear burner or thermo-
pile.
Top View of pilot flame
MAINTENANCE
Top View of pilot flame.
IMPORTANT
MAINTENANCE INSTRUCTIONS
SERVICE ANNUALLY ONLY BY AN
AUTHORISED PERSON
1) Clean the burner and control compartment of lint and
house dust by brushing and vacuuming at least once
a year. When cleaning the logs, use a soft clean brush
as the logs are fragile and easily damaged.
During the annual service the burners should be
removed from the burner tray and cleaned. Replace
logs and embers as per instructions on page 13.
2) Clean glass (never when unit is hot), appliance, door and
louvreswithadampcloth. Neveruseanabrasive cleaner.
Thegoldlouvres(andoptionalgolddoor)maybescratched
if abrasives are used to clean them.
The heater is finished in a heat resistant paint and should
only be refinished with heat resistant paint (not with wall
paint). Masport uses Stove Brite Paint - Metallic Black
#6309.
3) Make a periodic check of burner for proper position and
condition. Visually check the flame of the burner period-
ically, making sure the flames are steady;not lifting or
floating. If there is a problem, call an authorised service
person.
4) The appliance and flueing system must be inspected
before use, and at least annually, by an authorised field
service person, to ensure that the flow of combustion and
ventilation air is not obstructed.
5) Keep the area near the appliance clear and free from
combustiblematerials,gasoline,aerosols,andotherflam-
mable vapours and liquids.
WARNING: CHILDREN AND ADULTS SHOULD BE
ALERTED TO THE HAZARDS OF HIGH SURFACE TEM-
PERATURE AND SHOULD STAY AWAY TO AVOID
BURNS OR CLOTHING IGNITION. YOUNG CHILDREN
SHOULD BE CAREFULLY SUPERVISED WHEN THEY
ARE IN THE SAME ROOM AS THE APPLIANCE.
CAUTION: ANY SAFETY SCREEN OR GUARD RE-
MOVED FOR SERVICING AN APPLIANCE MUST BE
REPLACED PRIOR TO OPERATING THE APPLIANCE.
CLOTHING OR OTHER FLAMMABLE MATERIAL
SHOULD NOT BE PLACED ON OR NEAR THE APPLI-
ANCE.
7) Periodically check the pilot flames. Correct flame pattern
has three strong blue flames: 1 flowing around the
thermopile, 1 flowing across the rear burner and 1
reaching towards the front burner (it does not have to be
touching the burner.
Note: If you have an incorrect flame pattern, contact
your Masport dealer for further instructions.
6) Each time the appliance is lit, it may cause condensation
and fog the glass. This condensation and fog is normal
and will disappear in a few minutes as the glass heats up.
Neveroperatetheappliancewithouttheglassproper-
ly secured in place or with the door open.

20 Masport I43 NEW YORK / ULTIMATE Gas Inbuilt Fireplace
MAINTENANCE
GLASS REPLACEMENT
Your Masport stove is supplied with high temperature, 5 mm
Neoceram ceramic glass that will withstand the highest heat
that your unit will produce. In the event that you break your
glass by impact, purchase your replacement from an author-
ised Masport dealer only, and follow our step-by-step instruc-
tions for replacement.
Removing Glass
Note: Wearing gloves will protect your hands while han-
dling glass.
1) Remove the safety screen (Australia only). Remove the
door from the unit and place on a soft surface to prevent
scratching.
2) Pull out the door gasket.
3) Remove the 24 nuts holding the glass retainers in place.
Do not remove the nuts underneath the retainers.
4) Remove the door catch plate.
5) Remove glass retainers on sides first (3 each side) then
remove two center retainers.
Note: Center glass retainers are glued to center glass.
6) Remove glass from extrusions. When removing center
glass, leave white insulation in place.
Note: Safety
screen in
Australia only.
LOG REPLACEMENT
The unit should never be used with broken logs. Turn off the
gas valve and allow the unit to cool before opening door to
carefully remove the logs. The pilot light generates enough
heat to burn someone. If for any reason a log should need
replacement, you must use the proper replacement log. The
position of these logs must be as shown in the diagram under
Log Installation.
NOTE: Improper positioning of logs may createNOTE: Improper positioning of logs may create
NOTE: Improper positioning of logs may createNOTE: Improper positioning of logs may create
NOTE: Improper positioning of logs may create
carbon build-up and will alter the unit’s perform-carbon build-up and will alter the unit’s perform-
carbon build-up and will alter the unit’s perform-carbon build-up and will alter the unit’s perform-
carbon build-up and will alter the unit’s perform-
ance which is not covered under warranty.ance which is not covered under warranty.
ance which is not covered under warranty.ance which is not covered under warranty.
ance which is not covered under warranty.
GOLD-PLATED DOORS
The 24 carat gold plated finish on the door requires little
maintenance, and need only be cleaned with a damp cloth.
DO NOT use abrasive materials or chemical cleaners, as they
may harm the finish and void the warranty. Clean any finger-
printsoff before turningthe uniton. If gasketseal isnot tight
- door may discolour.
DOOR GASKET AND
GLASS GASKET
If the door gasket requires replacement use 7/8" diameter oval
door gasket . The glass requires 7/8" flat glass gasket. See
your Masport Dealer.
LATCH ADJUSTMENT
The door latch may require adjustment as the door gasket
material compresses after a few fires and after glass replace-
ment. Turn the adjustable latch to tighten or loosen the latch.
