Masseuse Therapeutic User manual

Safety and Maintenance
1. IMPORTANT SAFETY WARNING
•Do not allow children to touch the moveable parts of this product.
•Please only use the grounding power supply included with this product.
•Please unplug the product when not in use, or before cleaning, to avoid injury or causing
damage to the product.
•Please operate this product according to this instruction manual.
•Do not use accessories not recommended by the manufacturer.
•This product is not suitable for outdoor use.
•Any other usage that is not listed in this instruction manual is forbidden.
•The recommended usage time of this product is 20 minutes.
•Please do not use the product if the seat cover or leather is broken or damaged.
•Please do not use it if any ventilation holes are covered or blocked.
•Please do not drop anything into this product.
•Always start with the massage function on a lower strength setting before increasing it, in
order to avoid injury.
2. Environment for usage
•Keep this product out of high temperature environments. Keep away from fire and long
term exposure to the sun.
•Please do not use it in a dusty or caustic environment.
•Please do not use it where there is limited space or poor ventilation.
3. People who are not suitable to use this product
•People who are suffering from osteoporosis are not recommended to use this product.
•People who are suffering from heart disease or carrying electronic medical equipment such
as a pacemaker are not recommended to use this product.
•Pregnant women or menstruating women are not recommended to use this product.
•People who have injuries or skin disease are not recommended to use this product.
•Children under the age of 14 or people with mental health issues or disabilities are not
recommended to use this machine without supervision.
•People diagnosed with medical conditions are not recommended to use this product.
•People who have come in contact with water or those who are wet are forbidden to use this
product.
4. Safety
•Check that the voltage is suitable to the specification of this product.
•Do not pull the plug with wet hands.
Safety and Maintenance
•Do not get this product wet or let it come into contact with water. This will avoid electric
shock and damage to the product.
•Do not use wet cloth or any wet material to clean the electric parts of this product such as
the switch and plug.
•Stay away from this product during power interruptions to avoid any injury if the power is
suddenly restored.
•If this product stops working correctly, please stop using it immediately. Contact the
retailer.
•If you feel unwell, stop using the product and consult a doctor immediately.
•This product is not intended for use by individuals, including children with reduced physical,
sensory and mental capabilities. This product is also not intended for individuals who lack
the knowledge or experience to use it, unless there is proper supervision or they have been
thoroughly instructed on how to use it.
•Children should be supervised around and while using the product.
•If the supply cord is damaged, it should be replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid hazards.
5. Maintenance
•Product maintenance should only be done by approved service agents. Refrain from
disassembling the product yourself.
•Always unplug the power cord after product use.
•Do not use this product if the socket is loose.
•If this product is not often used, fold the wires properly and store in a cool, dry and dustless
place.
•Keep this product out of high temperature environments. Keep away from fire and long
term exposure to the sun.
•If the detachable cord/supply cord is damaged, only use replacements from the
manufacturer, its service agent or similarly qualified individuals to avoid hazards.
•Use dry cloth to clean this product. Do not use flammable liquids such as thinner, benzene,
or alcohol to clean this product.
•The mechanical components of this product are specially designed and made, it is not
necessary to have it regularly serviced.
•To move this product on an uneven surface, it should be lifted. Do not pull or roll it.
•Please use this product intermittently; do not use it continuously for long periods of time.
6. Solutions to ordinary malfunctions
•It is normal to hear the sound of the motor when the massage chair is in use.
•If the controller does not work normally, please check if the plug and socket are connected
properly and make sure that the switch is turned on.
•If the set massage time is over, this product will automatically shut down. If this product is
continuously used for a long period of time, the temperature protector will automatically
shut down the power. When this happens, this product should be used only after 30
minutes of rest.
02
03

Name and Function of Components
Functions
•The intelligent massage mechanism is four-wheel driven with a muted design that can move
up and down.
•Designed with five kinds of massage modes: kneading, tapping, synchronised kneading and
tapping, shiatsu, and knocking.
•Automatic testing and locating of shoulder position.
•Stores two massage states in memory.
•Four characteristic automatic massage functions: auto, full body air pressure, swing hip, and
waist stretch.
•Upper body characteristic automatic massage functions: whole back, neck and shoulder,
and back and waist.
•Three upper body manual massage mode functions: overall, partial, and fixed. Each
massage mode has five speed levels of adjustment. In fixed mode, the massage hands can
move up and down; under tapping, shiatsu and knocking, the width of the massage hands
has 3 levels to choose from - wide, medium and narrow.
•Three air pressure massage mode functions: arms, buttocks, and footrest, with three air
pressure intensity adjustments. If air pressure in buttocks and legs is working, this means
the lower body air pressure massage mode is on.
•Rollers in foot massager, adjustable to 3 speed levels.
•Extendable calf rest suitable for different body heights.
•Overturn function on upper arms suitable for different body heights.
•The calf rest and backrest can be raised up and down.
•Massage mechanism recovery when turning off the chair.
•LCD display panel.
•LED blue light effect on armrest.
04
05

Method of Usage Method of Usage
1. Switch on the machine
2. Manual controller usage
1) Switch massage function on / off
•Switch on massage function
•Switch off massage function. When turned off, the VFD displays an off state, all
massage functions stop, a “di-di-di” notification tone sounds and the massage
hands, calf rest and back rest all automatically reset to original positions.
2) Start massage
•Press the red button to start massage, the massage chair will automatically
recline.
•The chair will scan for your upper body pressure points and shoulder position.
After the scan, the “di-di-di” notification tone will sound. You can adjust the
shoulder position by pressing the up or down button according to the user's
height. If nothing happens in 5-10 seconds, the chair will switch into the massage
function automatically.
•Shoulder position adjustment.
Adjust the position of the massage balls upwards up to a suitable shoulder position.
Adjust the position of the massage balls downwards up to a suitable shoulder
position.
Suitable shoulder position:
3) Choose the massage function to start massage
•Memory function massage
•During the massage process, you can switch the memory massage function
from A to B at any time. Simply press the A or B button to change to the
stored memory mode.
05
06
07
06

Method of Usage
4) Auto massage
Button
Description
Display
AUTO
Soothing Massage: Soothes muscles Auto
A1
AUTO
Relaxing Massage: Promotes blood circulation Auto
A2
AUTO
Relieving Massage: Massage focuses on shiatsu points to relieve aches Auto
A3
AUTO
Recovery Massage: Invigorates muscles and reduce muscle fatigue Auto
A4
Note: Press the button repeatedly to choose different auto massage modes. Cycle through the 4
modes with each press.
•Specific massage
Button
Description
Display
WHOLE BODY
AIRBAGS
Full Body Air Pressure (shoulder, arms, waist, buttocks and legs): Air
pressure massage focuses on all areas simultaneously.
Auto
A5
HIP SWINGP
Hip Swing: Massage focuses on hips, airbags in seat cushion work together
to swing the hips left and right.
Auto
A6
WAIST STRETCH
Waist Stretch: The backrest reclines and the airbags in the legs squeeze
tightly. The calf rest is pulled downward in order to stretch the waist out.
Auto
A7
•Upper body automatic massage
Button
Description
Display
FULL BACK
Full Back Massage: Massage focuses on the upper body automatically
Auto
F1
NECK AND
SHOULDER Neck & Shoulder Massage: massage focuses on neck and shoulders Auto
F2
BACK AND
WAIST Back & Waist Massage: Massage focuses on back and waist Auto
F3
5) Sole roller
Button
Description
Display
SOLE ROLLER
Sole Roller: Press to switch sole roller on or off
SPEED
Speed: Change sole roller speed, choose from 3 levels
Method of Usage
6) Manually operated massage
Button
Description
Display
KNEAD
Kneading: Circular motion massage. Speed is adjustable
FLAP
Flapping: Brisk tapping massage. Adjust the width or speed
KNEAD & FLAP
Kneading & Flapping combined. Speed is adjustable
SHIATSU
Shiatsu: Finger pressure massage. Adjust the width or speed
KNOCK
Knocking: Firm rhythm massage. Adjust the width or speed
SPEED
Speed: 5 levels of adjustable speed
WIDTH
Width: 3 levels of adjustment
Button
Description
Display
BACK STRETCH
Permanent place (fixed point) massage
BACK STRETCH
Small scale (partial) massage back and forth
BACK STRETCH
Upper body (full back) massage back and forth
DOWNWARD
BUTTON
Downward Button: In fixed point and partial massage states, you can choose the
massage point by pressing this button to move down for precise positioning.
UPWARD BUTTON
Upward Button: In fixed point and partial massage states, you can choose the
massage point by pressing this button to move up for precise positioning.
08
09

Method of Usage
7) Air pressure massage
Button
Description
ARM
Arms air pressure massage function with switch and intensity settings, 3
intensity level adjustments (in one button)
BUTTOCKS
Buttocks air pressure massage function switch
FOOT
Footrest air pressure massage function switch
INTENSITY
Buttocks and legs air pressure intensity, 3 intensity level adjustments
CALF STRETCH
When the calf rest air pressure is working, pressing this button can switch
this function on / off
Note: If the buttocks and legs air pressure are at work, the lower body air pressure massage mode is
on.
8) Calf rest and back rest angle adjustment
Name
Button
Description
FOOT REST
Calf rest goes up button: Press this button, calf rest goes up; stops when
the button is released.
Calf rest goes down button: Press this button, calf rest goes down; stops
when the button is released.
BACK REST
Back rest goes up button: Press this button, backrest goes up slowly;
stops when the button is released.
Back rest goes down button: Press this button, backrest goes down
slowly, stops when the button is released.
POSITION
ADJUST
Linkage up button: Press this button, backrest goes up slowly, and calf
rest goes down; stops when the button is released.
Linkage down button: Press this button, backrest goes down slowly, and
calf rest goes up; stops when the button is released.
LIE DOWN
MODEL
Lie down mode: Has 4 settings; the setting will change with each button
press (Screen displays 01 - 04).
Method of Usage
3. Turn off power, stop massage
•During the massage process, pressing the red button will stop all massage functions and the
back rest and calf rest will restore automatically. If massage process is up to the set time, all
massage functions will stop, but the back rest and calf rest will not be restored
automatically.

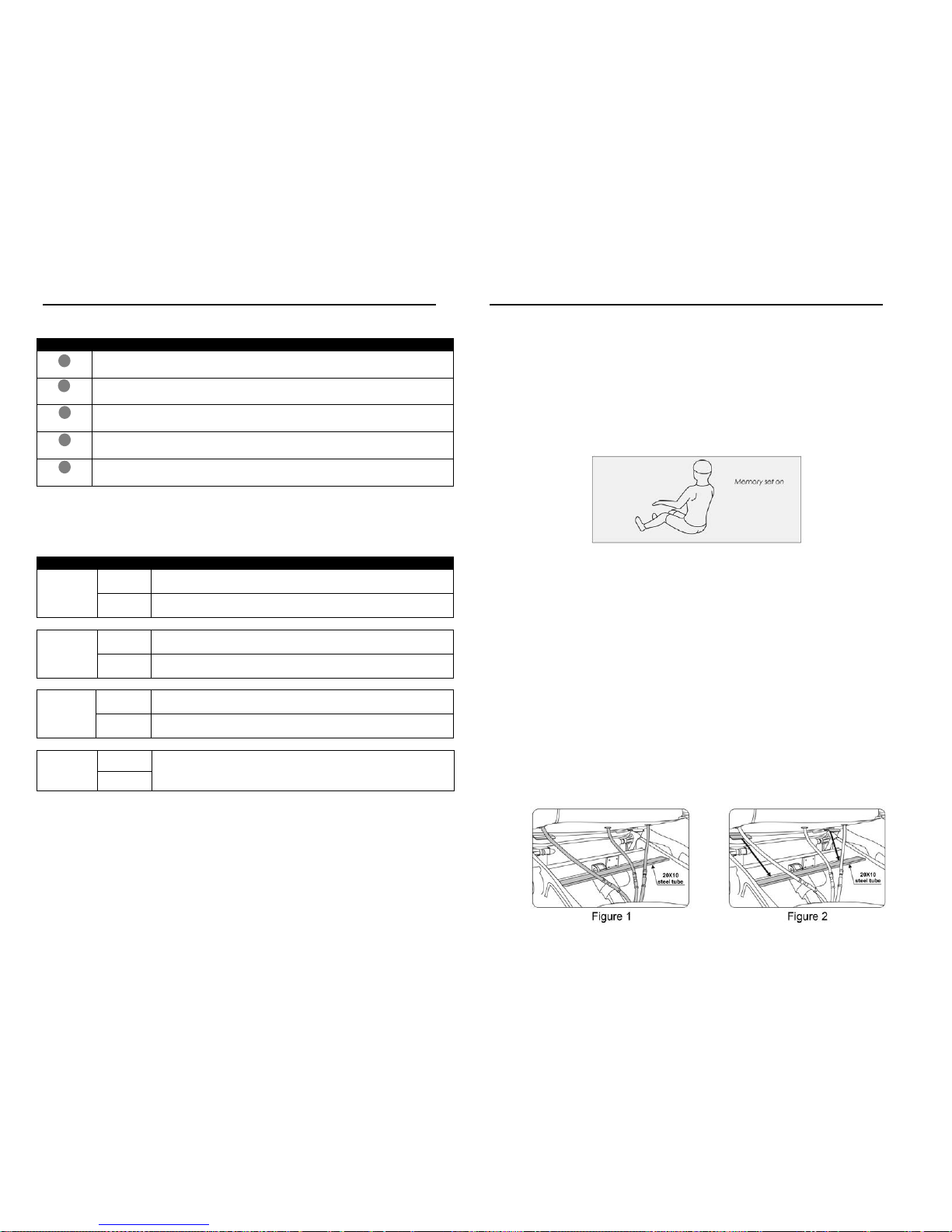

•At the end of the set time or when users turn off the massage chair, the manual controller
display will indicate “memory set on”. This reminds the users to either store the current
massage mode or choose memory A or B as needed to store it. Pressing the red button will
turn off the whole machine and restore the massage hands. Alternatively, waiting for 10
seconds will cause the machine to turn off automatically and restore the massage hands.
•Turn off the power
4. Seat cushion installation instructions
•Find the air tube fitting located on the left bottom of the seat frame and connect it well
according to the colour. Note: The three intake tubes in the seat must get through from the
20*10 steel tube in the middle of the seat frame.
•Make sure to align the two metal buttons under the seat with the 20*10 steel tube in the
mid of the seat frame. Push the seat cushion backward to make sure the metal buttons and
the 20*10 steel tubes are buckled well. Do this until the round hole at the right rear end of
the seat aligns with the threaded hole on the steel tube on the right side of the seat frame.
Note: before you push the seat cushion backward, you should straighten the intake tube in
the seat to avoid it getting stuck by the 20*10 steel tube. (Figure 2)
10
11

Method of Usage
•Install the joint ring and crossed screw on the round hole, which is at the right rear end of
the seat, and make sure to tighten it. (Figure 3)
•Aligning the zip on the bottom of the back cushion and back-end of the seat cushion, zip
them up and pull down the bottom of the back cushion until it is smooth. (Figure 4)
•Adjust the upper arms, then finish the installation of the seat cushion and upper arms.
(Figure 5)
5. Armrest installation instructions
•Find the air tube fitting and the corresponding plug connector from the bottom of the seat
frame and armrest then push it through the square hole on the fixed iron plate. (Figure 1)
•After the plug connector gets through the square hole on the fixed iron plate, align it to the
corresponding connection plug. (Figure 2)
Method of Usage
•Take the butt joint out from the bottom of the seat frame and plug it into the connector on
the armrest, and plug the air tube fitting. Make sure to it in plug well too. (Figure 3)
•After connecting the plug, put it in the bottom of the seat frame through the square hole on
the fixed iron plate. Avoid folding the air tube.
•Make the male pin on the armrest correspond to the female pin on the fixed plate, and the
outline of the iron plate correspond to the concave outline of the armrest. (Figure 5)
•Hold the armrest and align the two male pins on the armrest to the female pin on the iron
plate (observe whether the connecting line is in the bottom of the seat frame to avoid it
getting stuck). The whole armrest should be hitched on the fixed iron plate.
•After the armrest is hitched on the fixed iron plate, press the armrest downward. Make the
male pin on the armrest hangs over the female pin on the fixed iron plate, then pull the
armrest slightly to check that they are all fastened securely.
•Find the mounting hole in front of the fixed iron plate, and screw the inner hexagon screw
and flat washer to the inner hexagon mount. (Figure 8)
12
13

Method of Usage
•Find the upper mounting hole on the end of the fixed iron plate, and fasten the inner
hexagon screw tightly to finish the whole armrest installation. Use the same method for the
two armrest installations. (Figure 9)
•All finished. (Figure 10)
6. Manual controller support installation
•Prepare the manual controller support assembly. (Figure 1)
•Insert the manual controller support assembly into the cylindrical fixed tube. Note that the
two groups of mounting holes should correspond with one another. (Figure 2)
Method of Usage
•Prepare the two screws which will be fixed on either side. (Figure 3)
•Fasten the two screws to the two sides to finish the installation. (Figure 4)
7. Controller installation and usage
Insert the manual controller in the support. (Figure 1)
The support should be able to turn left and right freely. (Figure 2)
The manual controller should be able to swing freely in a horizontal direction. (Figure 3)
14
15

Method of Usage
8. How to use and disassemble the head and back cushions
You can weaken the kneading strength of the neck and shoulder by the head cushion. You can
use it according to your preference (highly advised). The back cushion connects with the back by
zipper (1), and the head cushion connects with the back cushion by fastener (2).
9. Method of movement
Make sure that all wires are off the ground; tilt the backrest backward to a certain degree (with
the gravity centre resting on the castors). Push the chair forward or backward with your hands
and then return the chair to its normal position in a slow and gentle manner.
Method of Usage
10. Floor protection
Putting the massage chair on a wooden floor for an extended period may damage the floor, so
please place carpet or any other floor protection beneath the chair to avoid damage.
Caution: Do not move the chairs with its castors on bumpy ground or in a narrow space. Two
people are required to lift the chair.
Product Specification
Model: Therapeutic
Description: Full Body Air Massage Chair
Rated Voltage: 220-240V~ 50Hz /60Hz
Rated Power Input: 180W
Rated Working Time: 15 minutes
Safety Design: Class I
Material introduction: PVC, PA, steel parts and electric and electron parts
16
17
