Master Tailgaters MR-43E2DVR1 User manual

USE R MANUA L
Serial No.: 2018AV5043LA6580119
Rear View Mirror with HD DVR Recording
the light sensor from the back of
mirror detects the ambient light
front light sensor detects the light
from rearward-approaching vehicles.
The auto dimming of our mirror works automatically when you start the engine, and the indicator will light up . The light
sensor in the back of the rearview mirror will always detect the ambient light. The auto-dimming doesn't work in the
broad day for the adequate daylight. However, when night falls and the ambient light is weak, the auto-dimming starts
to work and automatically dims to eliminate the glare of rearward-approaching vehicles. Furthermore, the degree of
brightness of the auto-dimming glass depends on the level of the light. The stronger the light from the back of the car
is, the darker the glass is. Hence it protects drivers from becoming dizzy and avoiding car accident.
The functions below are not included in the regular model, only customized design available.
AUTO-DIMMING (optional)
17
Master
Tailgaters
Model: MR-43E2DVR1

TABLE OF CONTENTS
01 PACKAGE 1
02 FEATURES 2
03 SPECIFICATIONS 2
04 BASIC OPERATING INSTRUCTIONS 4
05 HOW TO WIRE 6
06 HOW TO INSTALL MIRROR MONITOR 7
07 BACK UP CAMERA DISPLAY 9
908 AUTOMATIC BRIGHTNESS ADJUSTMENT
1009 SETTINGS
1510 MOBILE PHONE APP CONNECTION and OPERATION
11 AUTO-DIMMING (optional) 17
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
(2) this device must accept any interference received, including interference that may cause undesired operation.
-
ity to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation betweenthe equipment and receiver.
-- Connect the equipment into anoutlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or anexperienced radio/TV technician for help.
To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with
minimum distance between 20cm the radiator your body: Use only the supplied antenna.
Entertainment video is not permited when driving except for the navigation and backup camera
display!
This manual is only for your reference.
This DVRmirror can stop recording at any time, do not solely rely on the DVR mirror.

2
PACKAGE
The package contains the following:
01 Full HD DVR rear view mirror
02 Wire harness 05 SD card (option)
03 User manual
04 Wire cover
SPECIFICATIONS
FEATURES
1
04
03
For the items listed above, please check your packing contents. If any damage, please contact the distributor
or the agent as soon as possible.
02
01
High brightness display screen
Dual way recording
Front camera recording 1080P
G-sensor
Auto screen off
Auto record when car is on
Parkingmode recording
Motion detection recording
Loop recording
Back up camera display
Automatic brightness adjustment
Auto-dimming (optional)
Camera
05
Main control chip
Screensize
Recording angle
Video format
Video footage
Video resolution
Taiwan Novatek 96658
4.3 inch
1920*1080P
140 degree wide angle
.MOV
1 minute (defaulted)
HD, 1080P, 30F/S
Battery None
Videosignal
MIC
Memory card
Power supply mode
Video mode
Temperature range
Language
NTSC/PAL (defaulted as NTSC)
Support (default as ON)
2-32GB, over class 10
ACC
Seamless recording
-31°F~167°C
English, Simplied Chinese, Traditional Chinese,
Russian, and other languages.

3 4

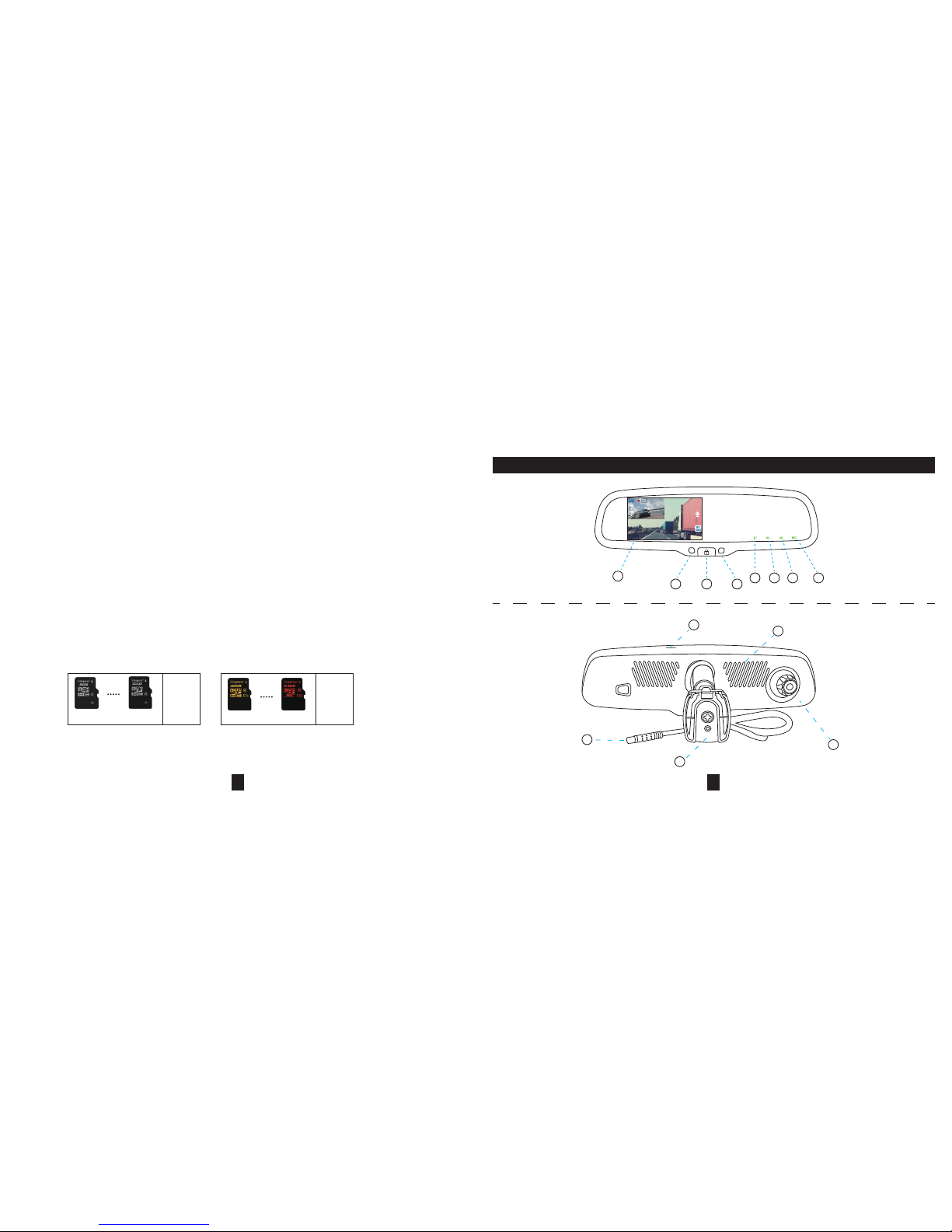

BASIC OPERATING INSTRUCTIONS
1. SD cards can be made by several different ways using different memory types and formatting types. In general, two types are
commonly found, MLCand TLC. TLC type cards are generally used in phones orotherequipment that does mostly reading only, suchas
playing back ground music. MLC type cards are designed for devices that read and write often such as DVR’s or video cameras. TL C type
memory will often fail more often underheavy recording of this type.
2. We only recommend brand name, high quality SD (or TF) cards using MLC technology for this HD DVR mirror. Also only use ca rds
with a 2K or higher (4k) recording speed. Using lower quality memory or incorrect speed memory will affect the recording qualit y and may
cause system errors.
3. Most SD Cards have a working life of about 2 years. Heat, amount of recording time, and overall usage, as well as the qu ality of the
card may vary as will the life of the card. Memory cards do need to be re-formatted from time to time and should be replaced at least once
per year to insure your DVR performing as expected. Remember your DVR is always recording when it is on, this is not the same a s a
normal camera that only records when a picture is taken. We suggest using a 32GB MLC type SD memory card with a minimum speed o f
90mb/s forthe best recording quality and reliability.
4. This DVR uses new technology and relies heavily on the SD Card memory. If the mirror or SD card fail to operate correctl y and fail
to record an incident, the manufacturer or re-seller cannot be held responsible. We recommend you check your SD card regularly to insure
the system is operating correctly. This device is designed for entertainment purposes only and you should check all local laws that may
relate to using such a device in yourvehicle. Always use carefully when driving as safety is always the drivers first responsibility.
Good
class 4 class 10 class U1 class U3
OK
Note: For the best performance and durability of video recording, we recommend to use C10 U1 level TF card or better.
56
7
8
9
2 1
4315 16 17 18
2015/05/27 14:28:40
2015/05/27 14:28:40
03:36:47
1080FHD

5 6
HOW TO WIRE
Green to back up signal
10
11
12
13
14
15
16
17
To back up camera
Enter / Exit the menu settings interface
Power button
1
2
3
4
5
6
8
9
7
long press: Switchthe screenoff
Indicator
4.3 inch high brightness monitor
TF card slot (max 32GB)
Speaker
Light sensor
Cable connector
Windshield Bracket
Camera Lens
Red to ignition +12V
Yellow to battery
Black to Ground
short press:Lock the recorded video (Recording)
Switch the screenon (stoprecording, off screen)
Short press: Front andrear video screen switching.
(If your machine can support dual recording )
In recording/stop recording state:
Long press: Open the WiFiinterface.
In the menu settings interface:upward selection.
In recording/stop recording state: on/off mic.
In the menu settings interface:downwardselection.
18 In recording/stop recording state: start/stop recording.
In the menu settings interface:
10
11
12
13
14
Camera
Black to GND
Red to ignition +12V
Yellowto battery
Camera power to reversing powerBack up camera
Greento back car singal

HOW TO INSTALL MIRROR MONITOR
Remove the original mirror
Car factory originalmirror The plate on the windshield
CAUTION!
NOTE: Always use caution, DO NOT force the mount. Master Tailgaters is not be responsible for
broken windshields. If you are not sure how to remove or re-install the mirror seek trained, professional help.
Dangerous Ok
Windshield
Windshield
DangerousOk
1. 2.
Different cars have different brackets. It depends
on your vehicle make and manufacturer.There are
many methods to remove the original rear view
mirror, however, please don’t force the mirror off
the bracket.
Master Tailgaters will not be responsible for
damage caused to your car by faulty installation of
the mirror.
Install mirror monitor on the plate
Installrear view mirror alongthis directionTake downyour originalmirror, and make
the mirror monitor ready
windshield
Please make sure to install the mirror to
the end of the bottom without any loose
Torque isabout 0.8-1.3N.m
windshield
windshield
7 8

When the car is reversing, the monitor will automatically display back up camera image.
Monitor brightness will change with the ambient light.
When ambient light islow, the screen will automatically reduce the brightness.
When ambient light is bright, the screen will automatically increase the brightness and get better
vision.
LOW LIGHT
BRIGHT LIGHT
9 10

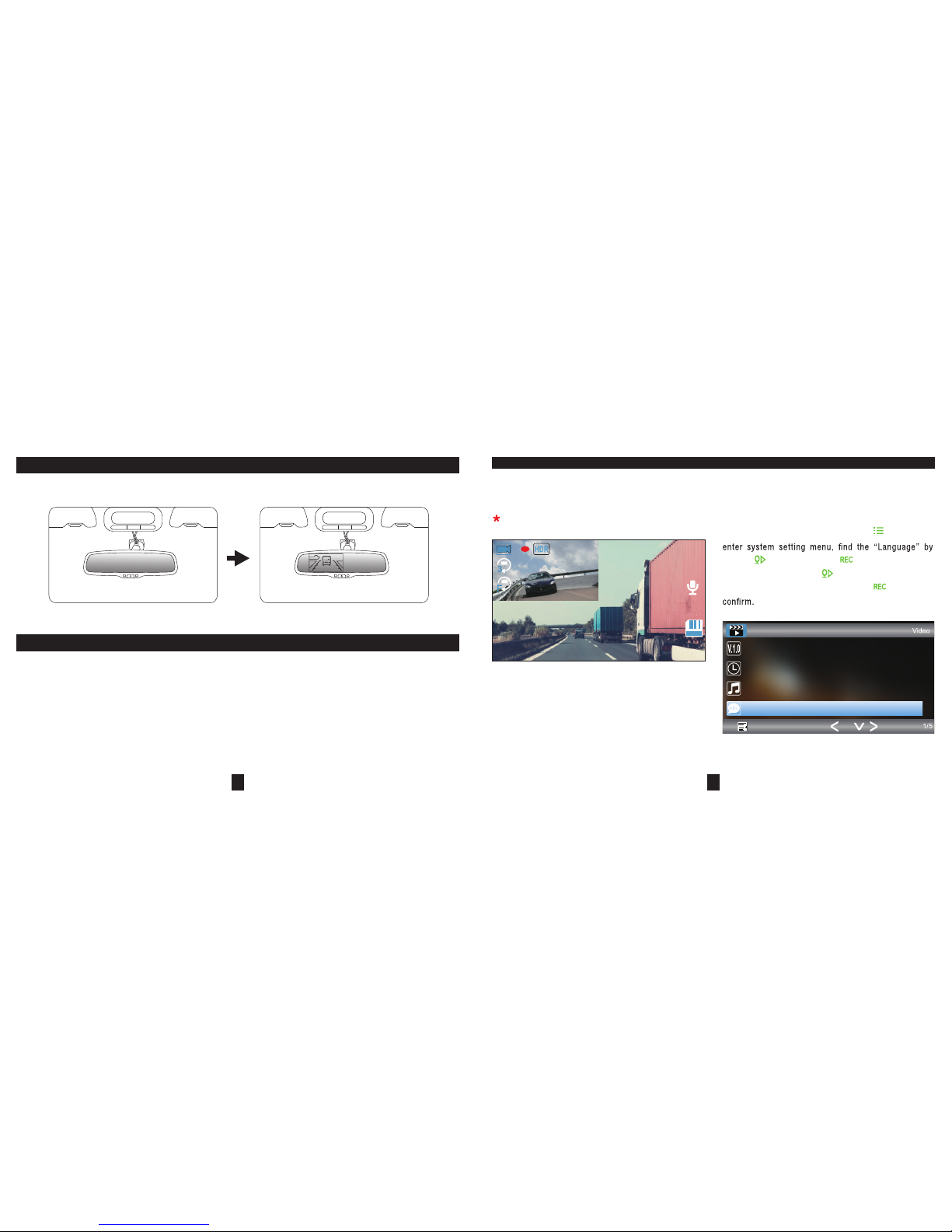

BACK UP CAMERA DISPLAY
AUTOMATIC BRIGHTNESS ADJUSTMENT
SETTINGS
Dual ways recording is optional.
the display monitor would show asbelow:
10 languages are available.
Under stop recording mode, press “ ” button to
press “ ” button, press “ ” to enter language
setting menu, press “ ” button to select the
“language” you prefer, then press “ ” button to
Playback
Date/Time
Beep Sound
Language
Languages
2015/05/27 14:28:40
2015/05/27 14:28:40
03:36:47
1080FHD
When the system is not recording, and the wifi is off,

11 12
Resotion
Loop recording
WDR
G-SENSOR
Resotion
Loop recording
WDR
G-SENSOR
Under stop recording mode, press “ ” button to
press “ ” button, press “ ” to enter resolution
setting menu, press “ ” button to select, then press
Resolution
This HD DVR provides 2 video recording resolution
options, “1080FHD” and “720P”.
Loop recording
This 1080P DVRhas loop recording function, to
auto overwrite the pre-recorded one .When record
recycle is on, you can choose a suitable length of
recording time from “ off, 1 Min, 3Mins and 5 Mins”.
Resotion
Loop recording
WDR
G-SENSOR
G-sensor
With G-sensor function, DVR can automatically save
of gravity changes greatly. For example, when car
cannot be overwritten in record cycle mode. It can only
be manually deletedone by one or formatted.
You can choose a suitable sensitivity of G-sensor
from“off, low, medium, high”. If G-sensor is off, the
DVR will not immediately save the current video
though car crashes. If you choose high-sensitivity
G-sensor, recorded video will be saved as read-only
sensitivity, then read-only video will only be saved
when car crashes heavily.
Motion detection
As memory capacity of TF card is limited, users hope
that the DVR can only record the dynamic video. The
motion detection initiates DVR recording when it
detects moving objects. Users can also choose to
disable thisfunction.
Park Record
Motion Detection
Recod Audio
Date Stamp
the video as read-only when it detects potential shock.

13 14
Format
If the videos stored in SD card is not needed, users
is no important video in SD card before formating.
TV Mode
Frequency
Format
Default Setting
Default Setting
Tap “Default Setting” to reset the DVR to the original
factory settings.
TV Mode
Frequency
Format
Default Setting
Switch PIP display (optional)
This DVR rear view mirror can display the two
channels video on the high brightness screen simulta-
neously. User can switch the video channel by
pressing the “” button.
This function is available only for dual ways
recording mirror.
2015/05/27 14:28:40
2015/05/27 14:28:40
03:36:47
1080FHD
2015/05/27 14:28:40
2015/05/27 14:28:40
03:36:47
1080FHD
2015/05/27 14:28:40
03:36:47
1080FHD
2015/05/27 14:28:40
03:36:47
1080FHD

15 16
1. Open APP store, search "Finalcam" to install or use
quick search by scan QR code.
2. Long press “ ” button to turn on mirror’s Wi-Fi
function.
3. Enter mobile phone interface, turn on Wi-Fi and
connect Wi-Fi ID (default name CARDV-Wi-Fi*, “*” is
password: 12345678, then connect.
4. open mobile phone APP, click the button “+” at top
Built- in WiFi module system allows to connect mobile
phone throughAndroid or IOS APP, please check
belowfor itssetup.
MOBILE PHONE APP CONNECTION and OPERATION 5. Once the device issuccessfully connected, the user can check the recording video and operate accordingly.
1
2
3
4
5
6 7 8 9 10
11
12
13
Recording interface
1. Motion detect on/off
2. Recording time on/off
3. Wide dynamic recordingon/off
4. Photo resolution settings
5. Video resolution settings
6. Screenbrightnessadjustment
7. Photo Capture
8. Start / stop recording
9. Sound recording on/off
10. System sound adjustment
11. Photos
12. Video download
13. Camera settings
QR code for IOS app
(Dual ways recording version) (Dual waysrecordingversion)
(Single way recording version) (Single way recording version)
QR code for Android app
QR code for IOS app QR code for Android app
