INSTRUCTION MANUAL

9. Do not let cord hang over edge of table or counter, or touch hot surfaces.
10. Do not use this appliance when missing oil reservoir, oil and any other materials,
11. Do not place on or near a hot gas or electric burner, or in a heated oven.
12. Extreme caution must be used when moving fryer c
ontaining hot oil.
13. Always attach plug to appliance first, then plug cord into the wall outlet.
14. Make sure handles are properly assembled to basket and locked in place.
See detailed assembly instructions.
15. Before use, always ensure that the oil reservoir is positioned correctly.
16. Never connect the fryer to the electricity supply without placing oil in
the oil reservoir first.
move your fryer until it is completely cool. Lift the oil reservoir using the handles.
18. Though the detachable oil reservoir can be completely immersed in water and
cleaned,
it must be thoroughly dried before next use to prevent electric shock.
19. Never overfill the fryer with oil. Fill only between the minimum and maximum levels, as
indicated inside the oil reservoir.
20. Do not add food to the hot oil that is wet or that has ice crystals.
21. This appliance is not intended for used by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliances by a person
responsible for their safety.
22. Children should be supervised to ensure that they do not play with the appliance.
23. On completion of frying, always raise the basket and wait a few seconds to allow steam
pressure to subside.
24. Do not use appliance for other than intended use.
25. Do not use outdoors.
26. Store the appliance indoors to prevent electronic parts failure.
Do not allow the power cord to hang over the edge of a counter where it may be grabbed by
children or become entangled with the user.
28. Save these instructions.
TM
Important Safeguards
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always be followed,
including the following:
1. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against electric shock do not immerse cord, plugs, or housing in water or
other liquid.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool down before
6
7.
. Do not put the appliance on a soft working surface or a desktop covered with table
cloth. Make sure the appliance is working on a rigid surface.
Do not operate any appliance with a damaged cord or plug, or after the appliance
malfunctions or has been damaged in any manner. Return appliance to the nearest
authorized service facility for examination, repair or adjustment.
8. The use of attachments not recommended by the appliance manufacturer may cause
injuries.
Important Safeguards 2
Know Your Deep Fryer 4
Control Panel 5
6
Before First Use
7
Assembly
9
Using the Deep Fryer
10
Frying Tips
Temperature Settings
Tips For Using Solid Fat
Filtering and Changing the Oil
11
Cleaning Instructions
The Reset Feature
Warranty
11
12
12
13
13
14
Troubleshooting
Table of Contents
Model no. 043-1338-0 | Contact us: 1-855-803-9313
32
Important Safeguards
DF7705-UL Manual-431338(32开).indd 2-3 2017/3/22 下午 17:57:19
TM
Table of Contents

Control Panel
Timer Control Knob
Ready Light
This light illumina
is thermostatically maintained.
The timer control knob turns the deep fryer on and sets the desired time for frying.
teswhen the timer dial is set. This light indicates that the deep fryer is on.
Power Indicator Light
Temperature Control Knob
Turn the temperature dial to select a temperature up to 375ºF (190ºC). The
temperature may be adjusted at any time.
The temperature control knob turns the deep fryer on and sets the desired
temperature for frying.

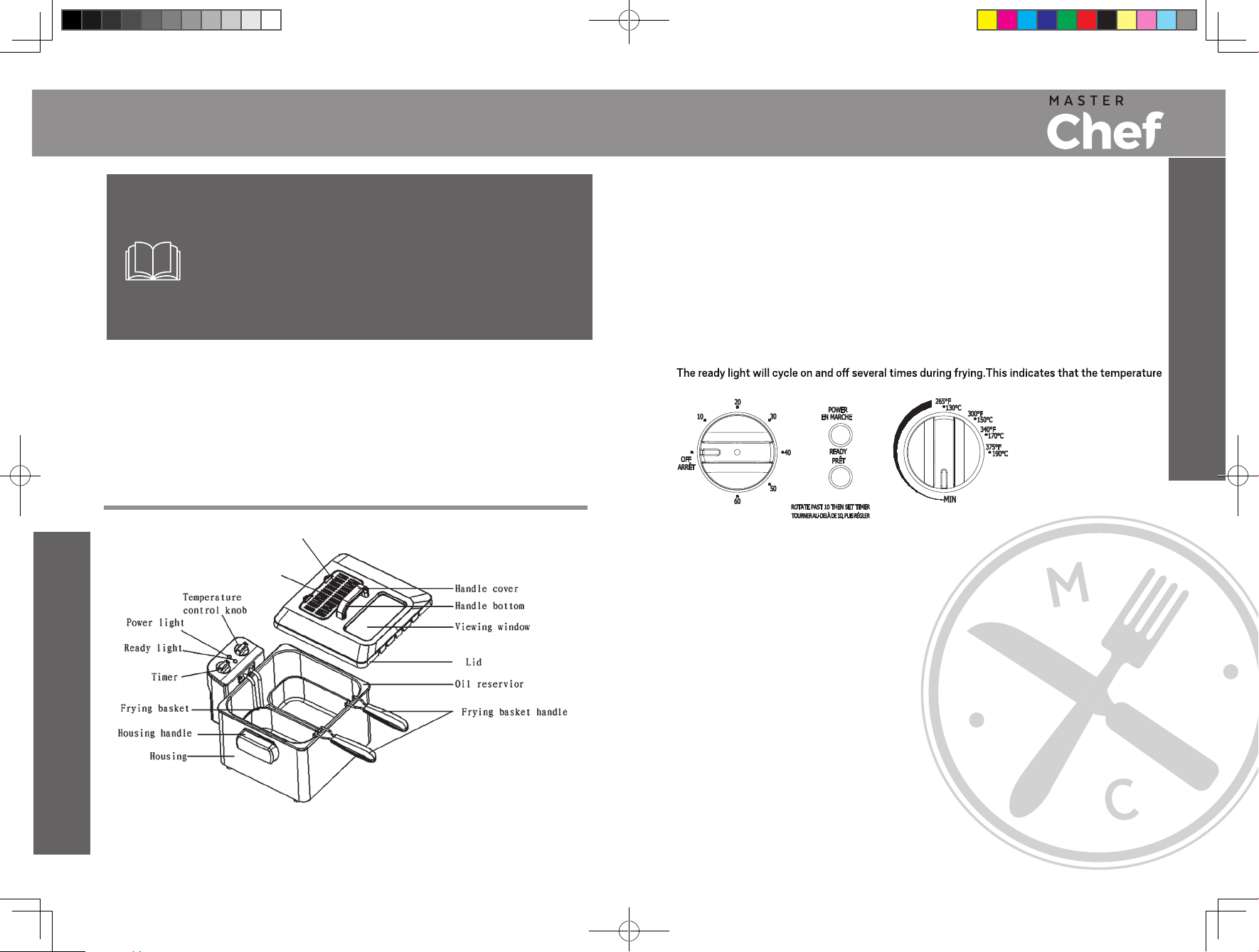

Know Your Deep Fryer
*
*
*
*
* Denotes parts available for replacement. Call 1-855-803-9313 for ordering details.
(without filter cover)
*
Filter cover
Filter
Know Your Deep Fryer
Model no. 043-1338-0 | Contact us: 1-855-803-9313
54
DF7705-UL Manual-431338(32开).indd 4-5 2017/3/22 下午 17:57:19
Notes on the cord plug
This appliance has a polarizedplug (one blade is wider than the other). To reduce the
risk of electric shock, this plug is intended to fitinto a polarized outletonly one way.
If the plug does not fitfullyinto the outlet, reverse the plug. If it still does not fit,
contact a qualifiedelectrician. Donot attempt to modify the plug in any way.
SAVE THESE INSTRUCTIONS
HOUSEHOLD USE ONLY
TM

WARNING: DO NOT come in contact with the magnetic connection on the
power cord while it is plugged into the electrical wall outlet. Injury
can occur.
WARNING:Use only the power cord provided with the deep fryer. Use of any
other magnetic cord could cause fire, electric shock or injury.
:WARNING DO NOT attempt to defeat the magnetic cord connection by
attempting to permanently attach the power cord to the deep fryer.
WARNING: The break-away safety cord is intended to prevent the tipping of
the appliance and hazardous spillage of hot oil. It is NOT intended
to disconnect the fryer during normal use.
NOTE: Your deep fryer has been specifically designed with your safety in mind
and is equipped with a unique, detachable power supply cord. This power
supply cord is designed to “break-away” from the fryer in the event that
the power cord or fryer is inadvertently pulled or tugged.
Plug the break-away safety cord into the back of the deep fryer. Make sure the top of the plug reads
“THIS SIDE UP”. You willfeel a magnetic pull if installed correctly. (Fig. 1)
Fig. 1
WARNING: Never plug the deep fryer into the electrical outlet
while the oil reservoir is empty.
SAVE THESE INSTRUCTIONS
HOUSEHOLD USE ONLY
Assembly
Model no. 043-1338-0 | Contact us: 1-855-803-9313
76
TM
DF7705-UL Manual-431338(32开).indd 4-5 2017/3/22 下午 17:57:19
1. Remove all the packaging materials, labels and/or stickers from the deep fryer.
2. Lift the control panel with heating element out of its slots by pulling it up from the bottom with one
hand while holding the body of the deep fryer with your other hand.
3. Remove the oil reservoir from the body of the deep fryer.
4. Wash the oil reservoir and the frying basket with hot water, a nonabrasive sponge, and dishwashing
liquid or other non-poisonous detergent. Dry thoroughly before use.
WARNING: Do not plug in the deep fryer when the control panel is not
installed in the deep fryer body. Only plug in the deep fryer when the unit is
fully assembled and the heating element is immersed in oil.
WARNING: Do not immerse the control panel, cord or plug in water.
WARNING: This unit should not be used to boil water.
WARNING:Do not immerse the control panel, power cord, or plugs into liquid
of any kind.
NOTE: The oil reservoir, frying basket, frying basket handle, filter and lid can be
washed in warm, soapy water.
Before First Use

6. Turn the temperature control knob to the desired temperature.
7. The ready light will illuminate when the set temperature is reached.
8. Do not fill the frying basket when it is immersed in the hot oil. Place the food in the frying
basket. Do not drop the food into the hot cooking oil. Do not overfill: t sidaolmumixameh
500 g. For optimum results and shorter frying time, fry smaller quantities.
Using the Deep Fryer
CAUTION : Never plug in the control panel when it is not assembled to the fryer
body. Do not immerse the control panel, power cord or plug in water or any other
liquid.
WARNING: When frying frozen foods, remove the frying basket from the deep fryer
before filling because oil will spatter and cause burns.
CAUTION: When frying frozen foods such as french fries, you should not exceed
frying. Failure to do so may cause fryer to overflow when food is placed in oil.
9. Immerse the frying basket into the oil reservoir carefully so that you do not splash the oil.
10. Replace thedeep fryer lid on the deep fryer while it is frying.
11
.
. When the cooking period is over, Turn the temperature control to the “OFF” position and remove the
plug from the electrical wall outlet.
12
31 .
Carefully remove the deep fryer lid lifting it up away from you to allow the steam to escape before
removing the lid completely. Keep your face away from the top of the appliance to avoid burns caused
by escaping steam.
Lift up the frying basket by the handle and place it on the oil container to allow the oil to drain.
Model no. 043-1338-0 | Contact us: 1-855-803-9313
98
TM
Assembly

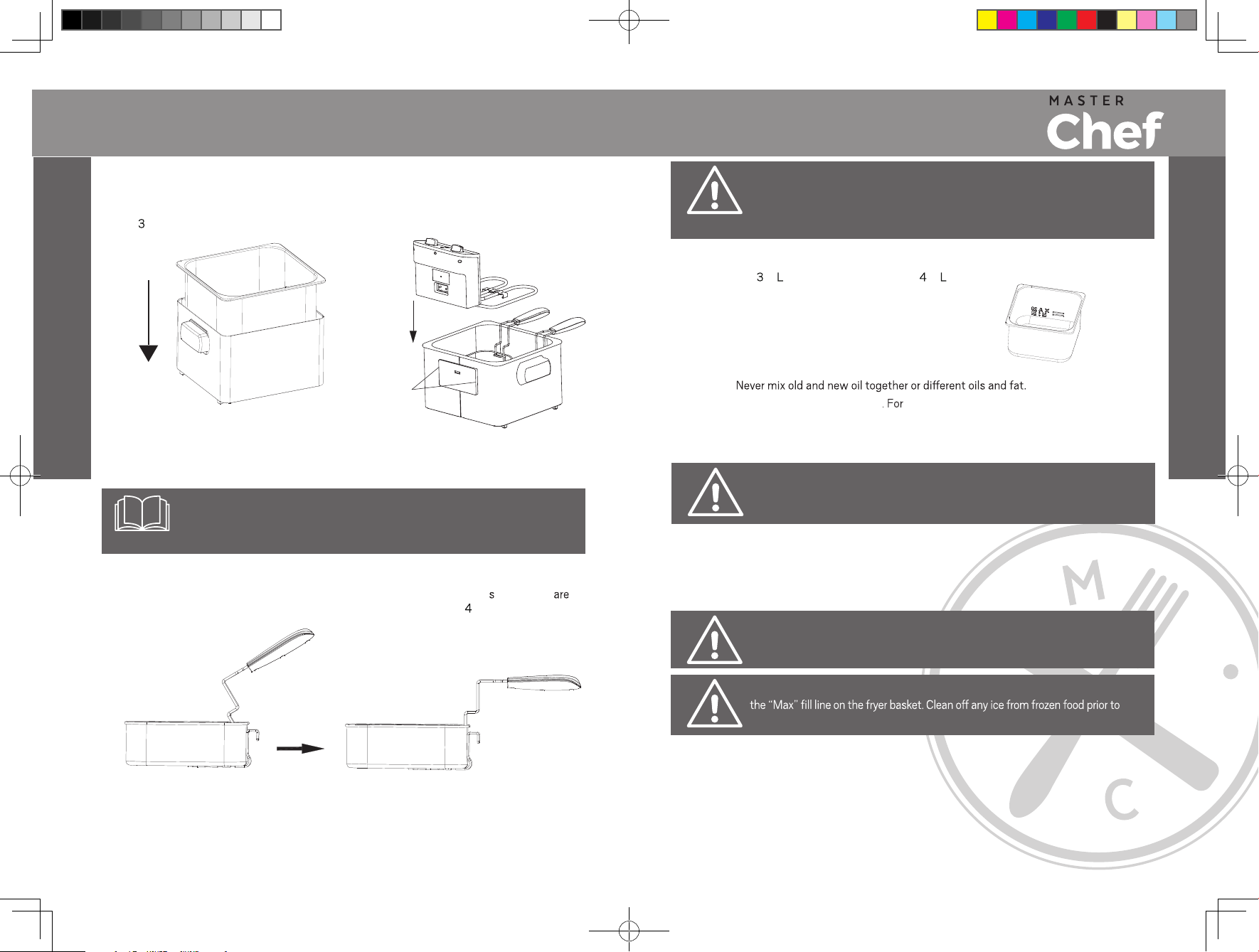

1. Place the oil reservoir into the deep fryer housing.（Fig. 2）
2. Insert the guide edges on the control panel into the guide rails mounted on the metal body
(Fig. ).
3. Slide the guide edges down as far as they can go.
4. Attach the fryer basket handle to the fryer basket by squeezing the handle bars together and
inserting them into the metal bracket on the basket. Make sure that the end
Slide down
Guide rails
Fig. 3
Fig. 2
of the bars
inserted into the bracket holes. Lift the handle up to lock in place. (Fig. )
1. Pour cooking oil into the oil reservoir making sure that it is between the “Min” and “Max” filling
lines in the oil container.
(Fig. 5)
Do not under fill or overfill.
the minimum ( .5 ) and the maximum levels ( .5 ) marked inside the oil container.
The oil levels must be maintained between
2. You can use blended vegetable oil, corn oil or canola oil. Do not use olive oil, margarine, lard or
drippings.
3. If you want to use solid fat, melt it first details refer to the section “TIPS
FOR USING SOLID FAT”.
4. Place the cover onto the deep fryer.
5. Insert the plug into the electrical wall outlet. The power light will illuminate.
NOTE: The deepfryer has an automatic safety switch to ensure that the unit will
not operate unless the control panel has been inserted securely into the guide rails
on the body of the deep fryer.
Fig. 4
WARNING: Never plug in the deep fryer before filling the oil reservoir with oil.
Always make sure that the control panel is securely in place in the housing of
the deep fryer and that the heating element is inside the oil in the oil reservoir
before plugging in.
Fig. 5
DF7705-UL Manual-431338(32开).indd 6-7 2017/3/22 下午 17:57:19

Model no. 043-1338-0 | Contact us: 1-855-803-9313
1110
TM
Frying Tips Tips For Using Solid Fat
In general, use lower settings for delicate foods (vegetables, fish) and higher settings for frozen foods,
french ries and chicken.
Temperature Settings
1. Always use the frying basket to fry food.
2. Always close the lid during frying. Replace the lid carefully.
3. When the oil is pre-heated, the ready indicator light will come on indicating that the desired
temperature has been reached.
4. Slowly lower the frying basket into the hot oil. Lowering the frying basket too quickly can result in the oil
overflowing and splashing.
5. It is normal for steam to escape through the sides of the lid while frying.
6. Avoid standing too close to the deep fryer while it is working.
7. Do not mix new and old oil together.
8. Replace oil regularly. In general, oil will be tainted fast when frying food containing a lot of protein, such as
poultry, meat and fish. When oil is used mainly to fry potatoes and is filtered after each use, it can be used up
to 8 to 10 times, but do not use the same oil for more than 6 months.
9. Always replace all oil as soon as it starts foaming when heated, when colour becomes dark or when it
has a rancid smell or taste or becomes syrupy.
10.
11 .
12.
Make sure that the food to be fried is dry. Remove loose ice from frozen food before frying.
To cook evenly, pieces should be the same size and thickness. Thicker pieces will take longer to cook.
The following cooking times reflect only the approximate timeneeded to fry one basket 1/2 full. The
TEMPERATURE
300 °F
375 °F
340 °F
340 °F
300 °F
300 °F
300 °F
340 °F
340 °F
300 °F
(190°C)
(150°C)
(150°C)
(150°C)
(150°C)
°F
(150°C)
(170°C)
(170°C)
(170°C)
(170°C)
300 (150°C)
FOOD COOKING TIME
French fries
Fish fillets
Chicken fingers
Chicken pieces
Fried zucchini
Fried mushrooms
Onion rings
Donuts
Apple fritters
Shrimp
6-9 minutes
3-5 minutes
6-8 minutes
13-20 minutes
3 minutes
3 minutes
3 minutes
3-5 minutes
4 minutes
4-6 minutes
thickness of pieces, etc.
Use only the following procedure when melting solid fat in your deep fryer:
1. Make sure the fat is at room temperature. If the fat is cold, then there is a greater risk of splashing.
2. Using a fork, carefully make some holes in the fat.
3. Make sure the lid is always securely closed while the fat is melting.
4. Set the temperature control knob to
.
WARNING: Do not put solid shortening in the oil reservoir or the frying basket.
1. If using solid vegetable shortening, melt it first in a separate container and
then very carefully pour the melted fat into the oil reservoir.
2. Previously used solid vegetable shortening which has curdled and hardened
in the oil reservoir should be removed from the oil reservoir and melted in a
separate pan before reusing.
WARNING: If you try to melt the solidified fat in the oil reservoir, there is a risk of
hot melted fat suddenly sputtering from below through the solid top layer of fat.
Using the Deep Fryer
served or placed in a dish.
WARNING: Always let the deep fryer cool completely (approximately 2 hours)
before cleaning or storing. Never carry or move the appliance with hot oil inside.
CAUTION: The metal surfaces of the deep fryer become hot during use. Do not
touch the sides of the appliance while it is use.
DF7705-UL Manual-431338(32开).indd 8-9 2017/3/22 下午 17:57:19

Troubleshooting
PROBLEM POSSIBLE CAUSE SOLUTION
The fryer is not
operating
Oil is spilling
out of the deep
fryer
1. The control assembly is
not installed correctly.
2. The plug is not con-
nected to the electrical
wall outlet.
3. The electrical outlet is
not energized.
4. The reset switch has
tripped.
1. Too much oil in the oil
reservoir.
2. The food basket is
overfilled.
3. Oil has been used too
often and is foaming.
1. Re-attach the control panel
assembly.
2. Insert the plug into the electrical
wall outlet.
3. Reset circuit breaker or replace
fuse.
cool completely. Then remove
the control panel and press the
thermostat reset button
oil cool completely and remove
some of the excess oil.
2. Remove some of the food from
the basket.
. Let the oil
cool completely and refill the oil
reservoir with new oil.
Model no. 043-1338-0 | Contact us: 1-855-803-9313
1312
TM
The Reset Feature

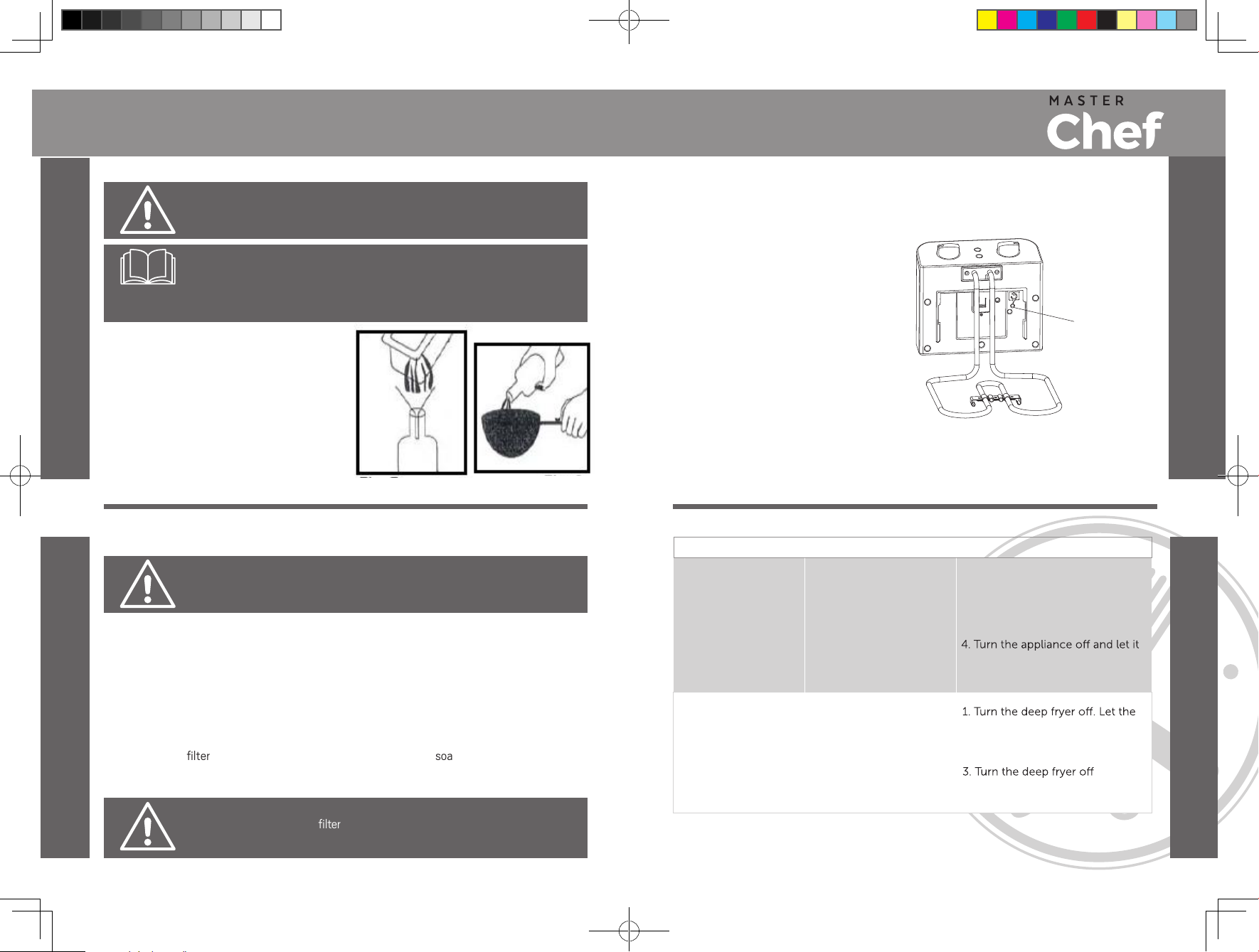

Filtering and Changing the Oil
To Filter the Oil:
1. Make sure the oil has cooled (approximately
2 hours) and then empty the oil from the oil
reservoir into another container or bottle. (Fig. 6)
2. Wash and dry the oil reservoir and frying basket.
3. Refill the oil reservoir with the oil by pouring the
oil through a wire strainer or paper filter. (Fig. 7)
To ensure many years of service from your appliance, clean your deep fryer after every use.
1. Never immerse the control panel, cord or plug in water or any other liquid.
2
. Do not place the control panel, cord or plug in the dishwasher.
3
. Clean the control panel with a damp cloth only.
4
. The oil reservoir, frying basket can be washed on the top rack of a dishwasher.
5
. The deep fryer lid can be washed in warm soapy water. Do not put the body of the deep fry
er in
6. To clean the filter, remove it from the cover and wash it in hot
soapy water. Rinse
and dry well before re-inserting it into the deep fryer cover. Replace the filter cover.
,
the liquid or dishwasher.
CAUTION: Do not clean the filter in the dishwasher.
Your deep fryer is equipped with a reset feature. If for some reason the deep fryer stops heating,
check to see if the reset switch has tripped.
To reset the deep fryer:
1. Unplug the appliance from the electrical
wall outlet.
2. Let the appliance and the oil in the oil
reservoir cool completely.
3. After the appliance has cooled completely,
lift the control panel and using the tip
of a ball point pen or pencil, push the
thermostat reset button that is located on
the inside of the control panel.(Fig. 8)
4. Re-assemble the control panel to the
housing of the deep fryer and resume frying.
Cleaning Instructions
Note: The oil does not need to be changed after each use. In general, the oil will be
tainted rather quickly when frying food containing a lot of protein (such as poultry,
meat or fish). When oil is mainly used to fry potatoes and is filtered after each use,
it can be used 8 to 10 times. However, do not use the same oil for longer than 6
months.
ATTENTION: Make sure the deep fryer is unplugged from the electrical socket and
the oilhas cooled (approximately 2 hours) before changing the oil, or cleaning and
storing the deepfryer.
WARNING: Always remove the plug from the electrical wall outlet before cleaning.
Allow the deep fryer and the oil to cool completely (approximately 2 hours) before
cleaning.
DF7705-UL Manual-431338(32开).indd 10-11 2017/3/22 下午 17:57:19
Fig. 6Fig. 7
Reset button
Fig. 8
,

Model no. 043-1338-0 | Contact us: 1-855-803-9313
1514
TM
Troubleshooting
Food is tasting
soggy or greasy
The cooking oil
is foaming or
emitting smoke
Food not
cooked
completely
1. Oil is not hot enough.
2. The food basket is
overfilled.
1. The oil has been used
too often.
1. Food pieces too large.
2. Cooking time too
short.
3. Oil temperature too
hot.
1. Adjust the temperature control
knob to appropriate temperature
for food being fried.
2. Remove some of the food from
the basket.
1. Let the oil cool completely and
replace with new oil.
1. Cut the food into smaller pieces.
2. Continue frying and check the
process continually.
3. Lower the temperature of the
oil to allow the food to cook
completely.
Limited Warranty
1-Year Limited Warranty
This product carries a one (1) year warranty against defects in workmanship and materials.
If found defective, return to place of purchase, with proof of purchase.
This product is not guaranteed against wear, misuse and/or abuse.
DF7705-UL Manual-431338(32开).indd 12-13 2017/3/22 下午 17:57:19
Warranty

Customer service hotline:
Masterchef Tel: [phone]
DF7705-UL Manual-431338(32开).indd 16 2017/3/22 下午 17:57:19
