MasterCraft 054-3181-2 User manual

INSTRUCTION MANUAL
DRYWALL
SCREWDRIVER
054-3181-2

If any parts are missing or
damaged, or if you have
any questions, please call
our toll-free helpline at
1-800-689-9928.
Read and understand this instruction manual thoroughly
before using the product. It contains important information
for your safety as well as operating and maintenance
advice.
Keep this instruction manual for future use. Should this
product be passed on to a third party, then this instruction
manual must be included.
DRYWALL SCREWDRIVER 054-3181-2
TECHNICAL SPECIFICATIONS 4
SAFETY GUIDELINES 5–11

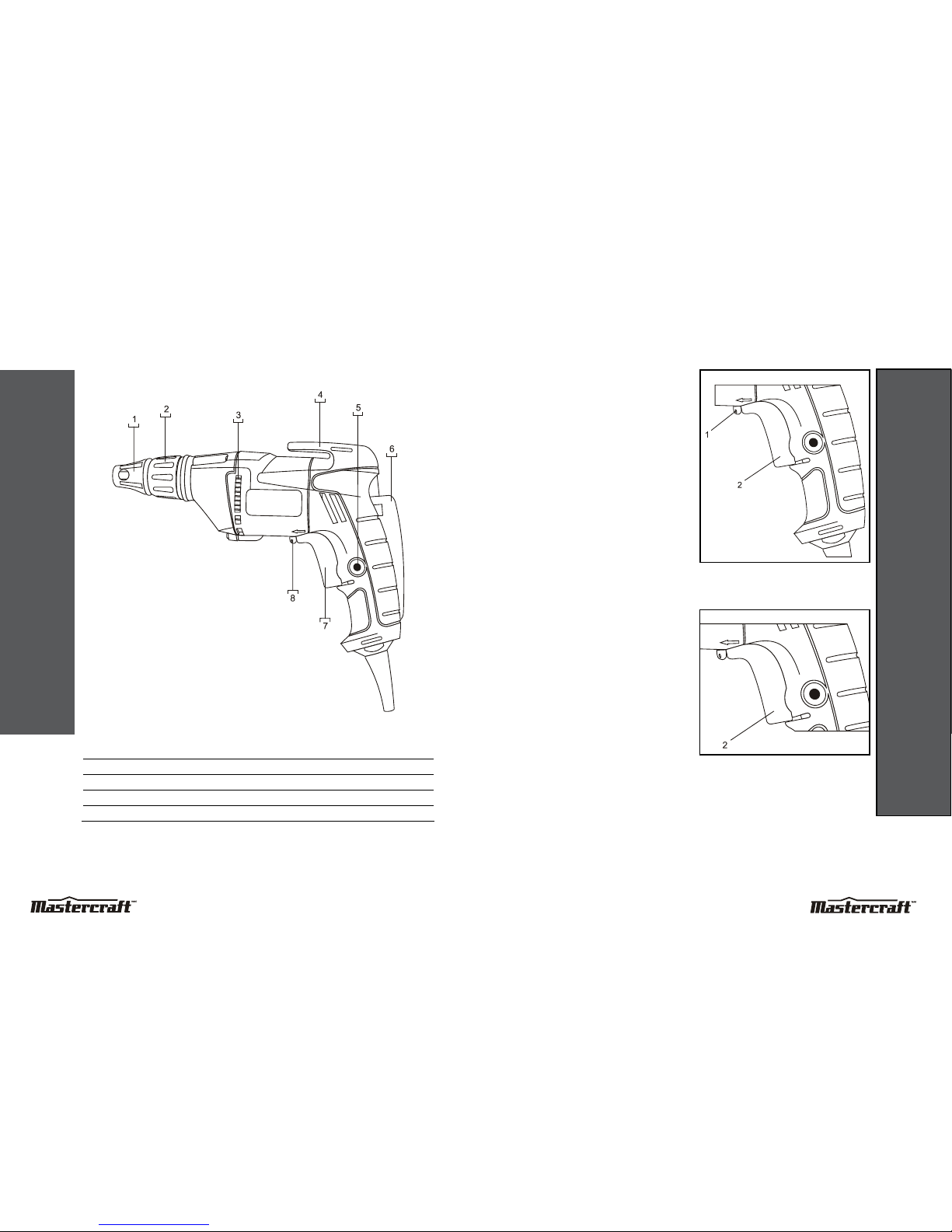

KEY PARTS DIAGRAM 12
OPERATING INSTRUCTIONS 13–19
MAINTENANCE 20
EXPLODED VIEW 21
PARTS LIST 22
WARRANTY 23–24
TABLE OF CONTENTS
3
DRYWALL SCREWDRIVER 054-3181-2
LISTED
3042597
JD2015U
This symbol designates that this tool is listed
with both Canadian and U.S. requirements
by ETL Testing Laboratories, Inc.
Conforms to UL Std. 60745-1, 60745-2-2.

Rating 120 V, 60 Hz, AC
Amperes 4.5 A
Speed 0–4500 RPM
(no load)
Chuck 3/8" Keyed
Torque 8 Nm
(70 in-lb)
Weight 3 lb 3 oz (1.45 kg)
TECHNICAL SPECIFICATIONS
4
General safety warnings
WARNING: Before using this tool or any of its accessories, read this manual and
follow all Safety Rules and Operating Instructions. The important precautions, safeguards and
instructions appearing in this manual are not meant to cover all possible situations. It must be
understood that common sense and caution are factors which cannot be built into the product.
This instruction manual includes the following:
• General Safety Rules • Operation
• Specic Safety Rules and Symbols • Maintenance
• Functional Description • Accessories
• Assembly
EYE, EAR & LUNG PROTECTION
ALWAYS WEAR EYE PROTECTION THAT CONFORMS WITH CSA REQUIREMENTS or
ANSI SAFETY STANDARD Z87.1
FLYING DEBRIS can cause permanent eye damage. Prescription eyeglasses ARE
NOT a replacement for proper eye protection.
WARNING: Non-compliant eyewear can cause serious injury if broken during
the operation of a power tool.
WARNING: Use hearing protection, particularly during extended periods of
operation of the tool, or if the operation is noisy.
WEAR A DUST MASK THAT IS DESIGNED TO BE USED
WHEN OPERATING A POWER TOOL IN A DUSTY
ENVIRONMENT.
SAVE THESE INSTRUCTIONS FOR REFERENCE
!
!
SAFETY GUIDELINES
5
!
DRYWALL SCREWDRIVER 054-3181-2 DRYWALL SCREWDRIVER 054-3181-2

WARNING: Dust that is created by power sanding, sawing, grinding, drilling, and
other construction activities may contain chemicals that are known to cause cancer, birth defects, or
other genetic abnormalities. These chemicals include:
• Lead from lead-based paints
• Crystalline silica from bricks, cement, and other masonry products
• Arsenic and chromium from chemically treated lumber
The level of risk from exposure to these chemicals varies, according to how often this type of work is
performed. In order to reduce exposure to these chemicals, work in a well-ventilated area, and use
approved safety equipment, such as a dust mask that is specically designed to lter out microscopic
particles.
Electrical safety
WARNING: To avoid electrical hazards, re hazards or damage to the tool, use
proper circuit protection.
This tool is wired at the factory for 120 V AC operation. It must be connected to a 120 V AC, 15 A circuit
that is protected by a time-delayed fuse or circuit breaker. To avoid shock or re, replace power cord
immediately if it is worn, cut or damaged in any way.
Power tool safety
WARNING: Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference.
Work area safety
Keep work area clean and well lit. Cluttered or dark areas invite accidents.
Do not operate power tools in explosive atmospheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
SAVE THESE INSTRUCTIONS FOR REFERENCE
!
!
SAFETY GUIDELINES
6
Keep children and bystanders away while operating a power tool. Distractions can cause you to lose
control.
Electrical safety
Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools. Unmodied plugs and matching outlets will reduce risk of
electric shock.
Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the
risk of electric shock.
Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the
risk of electric shock.
When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric shock.
If operating a power tool in a damp location is unavoidable, use a ground fault circuit interrupter
(GFCI) protected supply. Use of a ground fault circuit interrupter (GFCI) reduces the risk of electric
shock.
Personal safety
Stay alert, watch what you are doing and use common sense when operating a power tool. Do
not use a power tool while you are tired or under the inuence of drugs, alcohol or medication. A
moment of inattention while operating power tools may result in serious personal injury.
Use personal protective equipment. Always wear eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power
source and/or battery pack, picking up or carrying the tool. Carrying power tools with your nger on
the switch or energizing power tools that have the switch on invites accidents.
SAVE THESE INSTRUCTIONS FOR REFERENCE
SAFETY GUIDELINES
7
DRYWALL SCREWDRIVER 054-3181-2 DRYWALL SCREWDRIVER 054-3181-2

Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
If devices are provided for the connection of dust extraction and collection facilities, ensure these
are connected and properly used. Use of dust collection can reduce dust-related hazards.
Power tool use and care
Do not force the power tool. Use the correct power tool for your application. The correct power tool
will do the job better and safer at the rate for which it was designed.
Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
Disconnect the plug from the power source and/or the battery pack from the power tool before
making any adjustments, changing accessories, or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool accidentally.
Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool. Power tools are dangerous in the hands
of untrained users.
Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and
any other condition that may affect the power tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by poorly maintained power tools.
Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking
into account the working conditions and the work to be performed. Use of the power tool for
operations different from those intended could result in a hazardous situation.
SAVE THESE INSTRUCTIONS FOR REFERENCE
SAFETY GUIDELINES
8
Hold power tool by insulated gripping surfaces when performing an operation where cutting tool
may contact hidden wiring or its own cord. Contact with a “live” wire will make exposed metal parts
of the tool “live” and shock the operator.
Service
Have your power tool serviced by a qualied repair person using only identical replacement parts.
This will ensure that the safety of the power tool is maintained.
Specic safety rules
WARNING: Know your drywall screwdriver. Do not plug the tool into the power
source until you have read and understand this Instruction Manual. Learn the tool’s applications
and limitations, as well as the specic potential hazards related to this tool. Following this rule will
reduce the risk of electric shock, re, or serious injury.
Always wear eye protection. Any power tool can throw foreign objects into your eyes and cause
permanent eye damage. ALWAYS wear safety goggles (not glasses) that comply with ANSI safety standard
Z87.1. Everyday glasses have only impact resistant lenses. They ARE NOT safety glasses.
WARNING: Glasses or goggles not in compliance with ANSI Z87.1 could cause
serious injury when they break.
Always keep hands out of the path of the drywall screw. Avoid awkward hand positions where a sudden
slip could cause your hand to move into the path of the screw.
To avoid injury from accidental starting, always remove the plug from the power source before installing
or removing a screwdriver bit or when adjusting the depth control.
Always check the wall area where screws will be driven to be sure there are no hidden electrical wires in
the area.
Never leave the trigger lock ON. Before plugging the tool into the power source, make sure the trigger
lock is OFF.
SAVE THESE INSTRUCTIONS FOR REFERENCE
!
!
SAFETY GUIDELINES
9
DRYWALL SCREWDRIVER 054-3181-2 DRYWALL SCREWDRIVER 054-3181-2

SAFETY GUIDELINES
10
Extension cord safety
WARNING: Keep the extension cord clear of the working area. Position the cord
so it will not get caught on the workpiece, tools or any other obstructions while you are working with the
power tool.
Make sure any extension cord used with this tool is in good condition. When using an extension cord, be
sure to use one of heavy enough gauge to carry the current the tool will draw. An undersized cord will
cause a drop in line voltage resulting in loss of power and overheating.
The table below shows the correct size to use according to cord length and nameplate ampere rating. If
in doubt, use the next heavier gauge. The smaller the gauge number the heavier the cord.
Be sure your extension cord is properly wired and in good condition. Always replace a damaged
extension cord or have it repaired by a qualied electrician before using it. Protect your extension cord
from sharp objects, excessive heat and damp or wet areas.
Use a separate electrical circuit for your power tools. This circuit must not be less than 14 gauge wire
and should be protected with either a 15 A time delayed fuse or circuit breaker. Before connecting the
power tool to the power source, make sure the switch is in the OFF position and the power source is the
same as indicated on the nameplate. Running at lower voltage will damage the motor.
MINIMUM GAUGE (AWG) EXTENSION CORDS (120 V use only)
Amperage rating
Total length
More
than
Not more
than
25'
(7.5 m)
50'
(15 m)
100'
(30 m)
150'
(45 m)
0
6
18
16
16
14
6
10
18
16
14
12
10
12
16
16
14
12
12
16
14
12
Not Applicable
!
SAFETY GUIDELINES
11
Symbols
V …............ Volts
A ………... Amperes
Hz ……… Hertz
W ………. Watts
kW ........... Kilowatts
........ Microfarads
L ………... Litres
Kg ……… Kilograms
H ………... Hours
N/cm2....... Newtons per square
centimetre
Pa ……… Pascals
OPM ….. Oscillations per minute
Min ……. Minutes
S ………... Seconds
or a.c. …... Alternating current
.. Three-phase alternating
current
.. Three-phase alternating
current with neutral
….. Read all safety warnings
and instructions
WARNING: Some of the following symbols may appear on the drywall
screwdriver. Study these symbols and learn their meaning. Proper interpretation of these symbols
will allow for more efcient and safer operation of this tool.
!
... Direct current
……….. No load speed
………. Alternating or direct current
………. Class II construction
….......... Splash-proof construction
…….. Watertight construction
………. Protective grounding at
grounding terminal, Class I
tools
… Revolutions or reciprocations
per minute
…........... Diameter
0………….. Off position
……. Arrow
……... Warning symbol
………. Wear your safety glasses
……... Wear hearing protection
DRYWALL SCREWDRIVER 054-3181-2 DRYWALL SCREWDRIVER 054-3181-2

12 13
KEY PARTS DIAGRAM
No. Description No. Description
1 Depth stop 5 Lock-on button
2 Depth adjustment sleeve 6 Wrist strap
3 Air vent 7 Variable speed trigger switch
4 Belt clip 8 Forward/reverse switch
OPERATING INSTRUCTIONS
Forward/reverse switch
The forward/reverse switch (1) is conveniently
mounted in front of the trigger switch (2) (g. 1).
To make the screwdriver rotate clockwise for
driving screws, push the forward/reverse switch to
the left. To make the screwdriver rotate counter-
clockwise to remove screws, push the forward/
reverse switch to the right.
NOTES:
a) Never change the position of the forward/re-
verse switch while the screwdriver bit is turning.
b) The trigger switch will NOT function with the
forward/reverse switch in the middle position.
Variable speed trigger switch
This screwdriver is equipped with a variable-
speed ON/OFF trigger switch.
1. To start the screwdriver, gently squeeze the
trigger switch (2) (g. 2).
NOTE: The screwdriver will turn at its
slowest speed when the trigger switch is
depressed slightly. The screwdriver will turn
at its fastest speed when the trigger switch
is fully depressed.
2. To stop the screwdriver, release the trigger
switch.
Trigger switch lock-on
The trigger switch lock-on feature allows the
trigger switch to be locked in the ON position at
full speed when continuous operation for extended
periods of time is required.
g. 1
g. 2
DRYWALL SCREWDRIVER 054-3181-2 DRYWALL SCREWDRIVER 054-3181-2

14 15
OPERATING INSTRUCTIONS
To lock the trigger switch in the ON position,
pull back on the trigger switch (2) to start the
screwdriver and push the trigger switch lock
button (3) into the screwdriver handle (g. 3).
Release the trigger switch while holding the
trigger switch lock button into the screwdriver
handle. The screwdriver will continue to run. To
release the trigger switch lock button, pull trigger
switch back and then release the trigger.
NOTE: Operating the screwdriver with the trigger
switch ON for an extended period of time may
cause the screwdriver motor to overheat. If the
screwdriver gets hot, stop driving screws and
allow it to cool for at least 15 minutes.
Inserting a screwdriver bit
This tool has a magnetic bit holder that provides
convenient bit changes. To install a bit, simply
insert the hex bit shank (1) into the bit holder (2)
that is located inside the depth stop (3) (g. 4).
Push the bit into the bit holder until the magnet
holds the bit in place.
NOTES:
a) Use only 1" (25 mm) long bits that are designed
for use in driving drywall screws.
b) Make sure the bit size is correct for the drywall
screws being driven. This will usually be a #2 size.
Replacing the magnetic bit
holder
If the magnetic bit holder becomes worn or
damaged, it must be replaced. The replacement
bit holder must be of the same dimensions as the
original and have the ANSI retention groove on the
end that is inserted into the tool.
1. Remove the nosepiece (1) by turning it
counter clockwise (g. 5).
NOTE: Do not use pliers on the nosepiece.
Only use your hand.
2. Grasp the screwdriver bit (2) with pliers and
pull it out of the bit holder (3).
3. Grasp the large end of the bit holder
with pliers and pull it straight out of the
screwdriver spindle (4).
4. Reverse the process by inserting the
replacement bit holder into the tool.
NOTE: When inserting the replacement bit holder,
gently tap it into place to make sure it is fully
inserted. Grasp the large end of the bit holder to
ensure the retention groove (5) is holding the bit
holder in place in the tool.
5. Reinstall the screwdriver bit and nose piece.
g. 3
g. 4
g. 5
DRYWALL SCREWDRIVER 054-3181-2 DRYWALL SCREWDRIVER 054-3181-2
OPERATING INSTRUCTIONS

17
OPERATING INSTRUCTIONS
OPERATING INSTRUCTIONS
Adjusting the screw driving
depth
It is important to control the depth to which the
drywall screw will be driven. Over driving the
screw will drive the screw too deep and break the
outer paper layer of the drywall. Under driving the
screw will leave the screw head above the drywall
surface making it impossible to properly nish the
drywall.
16
Have you read "GENERAL SAFETY WARNINGS",
"POWER TOOL SAFETY", "SPECIFIC SAFETY
RULES", "EXTENSION CORD SAFETY" and
"SYMBOLS" on pages 5 through 11 of this
Instruction Manual? If not, please do it now
before you operate this drywall screwdriver.
Your safety depends on it!
Every time you use the drywall screwdriver
you should verify the following:
1. Safety glasses, safety goggles, or face
shield are being worn.
2. Hearing protection is being worn.
3. The screwdriver bit is the correct size
and is in good condition.
4. There are no potentially "live"
electrical wires where screws are
being driven.
Failure to adhere to these safety rules can
greatly increase the chances of injury.
WARNING
!

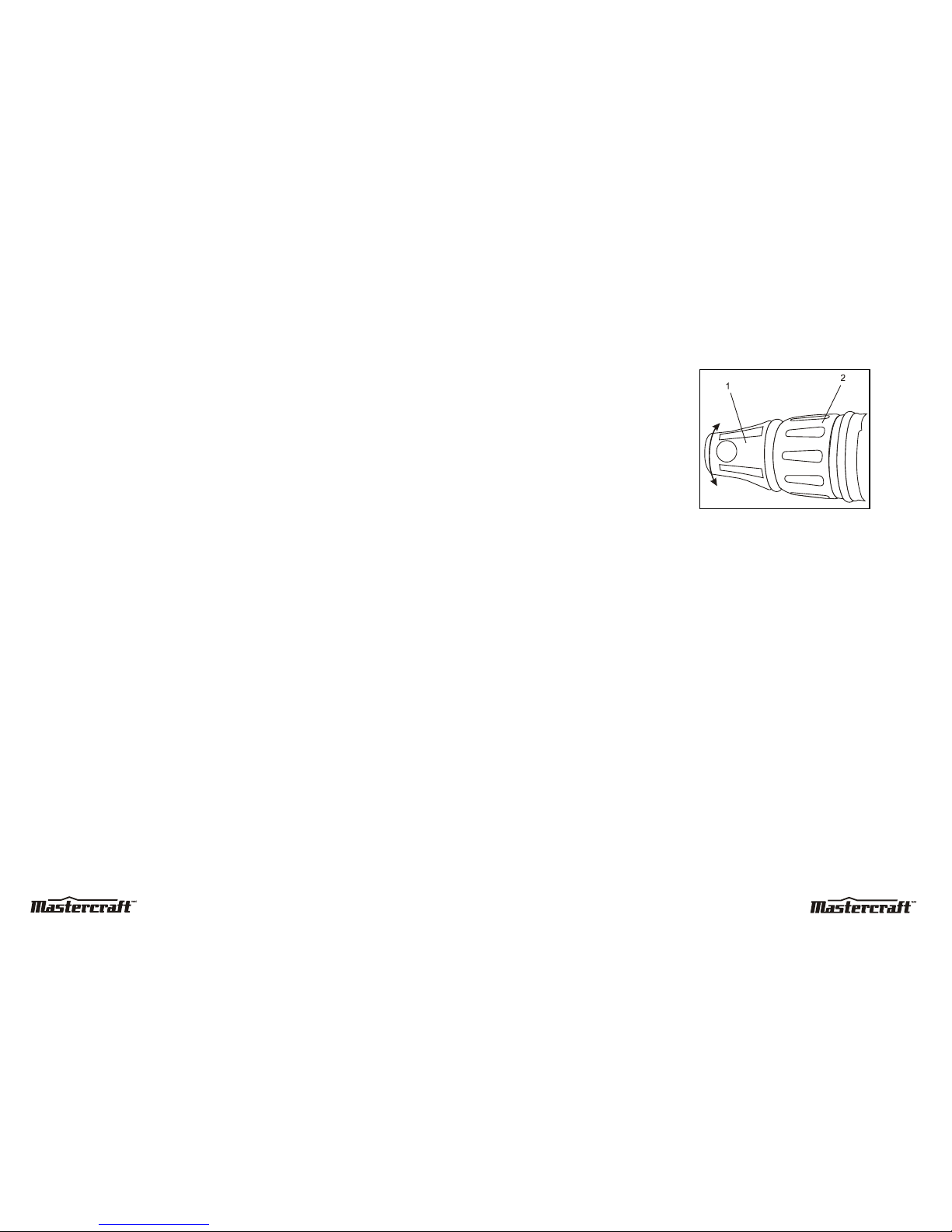

The depth control system is made up of the depth
stop (1) and the depth adjustment sleeve (2)
(g. 6).
NOTE: The following adjustments should always
be veried using a scrap piece of drywall to avoid
damaging the "good" drywall sections.
1. Rotate the depth adjustment sleeve counter
clockwise until approximately 1/4” of the
screwdriver bit extends beyond the depth
stop.
2. Place a drywall screw onto the screwdriver
bit. The magnetized bit will hold the screw
onto the bit.
NOTE: Before driving the screw, press the
screw point into the drywall and make sure
the screw is perpendicular to the drywall.
3. Press the screw against the drywall with
steady even pressure and squeeze the
trigger switch. The clutch in the tool will
engage and the screw will be driven to the
preset depth.
4. If the screw is not driven deep enough, the
head of the screw will not be recessed into
the drywall (g. 7). In this case, turn the
depth adjustment sleeve clockwise until
the correct depth has been achieved. If the
screw is driven too deep, it will be recessed
too far into the drywall and the outer paper
of the drywall will be fractured (g. 8). In
this case, turn the depth adjustment sleeve
counter clockwise until the correct depth
has been achieved. The correct depth for the
screw to be driven is illustrated in g. 9.
g. 6
g. 7
g. 8
g. 9
DRYWALL SCREWDRIVER 054-3181-2 DRYWALL SCREWDRIVER 054-3181-2

OPERATING INSTRUCTIONS
18 19
OPERATING INSTRUCTIONS
NOTE: For each revolution the depth adjustment
sleeve is rotated, the depth will increase/decrease
approximately 1/16" (1.6 mm).
Tips for driving drywall screws
• Always drive the screws perpendicular
to the drywall so the heads are properly
countersunk. They should never be driven
at an angle.
• Support the tool with both hands wherever
possible. This will provide better control over
the tool help eliminate screws being driven
at an angle.
• Place the drywall screw on the screwdriver
bit. The magnetic bit holder will hold any
steel screw for easy starting.
• Press the screw against the drywall with
steady even pressure and squeeze the
trigger switch. The clutch in the tool will
engage and the screw will be driven to the
preset depth. Once fully driven, the clutch
will make a chattering sound until the
trigger is released.
• When the screw is properly driven, the
screw head will be slightly countersunk
into the drywall without breaking the outer
drywall paper. At this point, the clutch will
release to prevent over driving the screw.
This will result in minimum work to ll the
holes and taping the seams.
• The belt clip allows you to conveniently
attach the screwdriver to your belt. This will
allow you to use both hands for positioning
the drywall.
Removing drywall screws
To remove drywall screws, remove the depth stop
(1) to expose the screwdriver bit (Fig. 10).
NOTES:
a) The depth stop is a press t onto the depth ad-
justment sleeve (2). Simply twist and pull outward
to slide it off the depth adjustment sleeve.
b) You can also turn the depth adjustment sleeve
clockwise to expose the screwdriver bit. This
however will cause you to lose the depth setting
and you will have to re-set the depth.
g. 10
DRYWALL SCREWDRIVER 054-3181-2 DRYWALL SCREWDRIVER 054-3181-2

General
WARNING: When servicing,
use only identical replacement parts. The use
of any other part may create a hazard or cause
product damage.
DO NOT use solvents when cleaning plastic
parts. Plastics are susceptible to damage from
various types of commercial solvents and may be
damaged by their use. Use a clean cloth to remove
dirt, dust, oil, grease etc.
WARNING: Do not allow
brake uids, gasoline, petroleum-based
products, penetrating oils, etc. to come into
contact with plastic parts. They contain
chemicals that can damage, weaken or
destroy plastic.
Remove accumulated dust and debris regularly
using a soft DRY brush.
WARNING: Use safety
goggles when using an air jet to blow dust out of
the tool. Keep air vents clean and unobstructed to
allow maximum airow through the tool.
DO NOT abuse power tools. Abusive practices can
damage the tool and the workpiece.
WARNING: DO NOT attempt
to modify tools or create accessories. Any
such alteration or modication is misuse and
could result in a hazardous condition leading
to possible serious injury. It will also void the
warranty.
20
!
!
!
21
MAINTENANCE
EXPLODED VIEW
!
Lubrication
All of the bearings in this tool are lubricated with
a sufcient amount of high-grade lubricant for the
life of the unit under normal conditions. Therefore,
no further lubrication is required.
DRYWALL SCREWDRIVER 054-3181-2 DRYWALL SCREWDRIVER 054-3181-2

22
WARNING:When servicing, use only Mastercraft™ replacement parts. The use of
any other parts may create a safety hazard or cause damage to the drywall screwdriver.
Any attempt to repair or replace electrical parts on this drywall screwdriver may create a safety hazard
unless repairs are performed by a qualied technician. For more information, call the Toll-free Helpline, at
1-800-689-9928.
Always order by PART NUMBER, not by key number.
!
23
Key # Part # Part Name Qty
28 3150050044 ST screw 2
29 4030010136 Bafe plate 1
30 1230030003 ST screw 2
31 1230010097 Brush holder 2
32 2050020025 Brush 2
33 3150160146 Brush spring 2
34 3150160146 Holder support 2
35 1010190002 Rotor 1
36 3120070083 Left handle 1
37 3011010012 Motor housing 1
38 3120070083 Right handle 1
39 4030010106 ST screw 3
40 4030010125 ST screw 1
41 3150020004 Cord clamp 1
42 1061020005 Switch 1
43 3120010045 Knob 1
44 4020020017 Screw 1
45 1190080002 Power cord 1
46 3140010057 Cord guard 1
47 3140020043 O-ring 1
48 4080040001 Ball 2
49 3120080077 Nozzle base 1
50 2010080081 Bushing 1
51 8120080086 Nozzle cover 2
52 4080060001 Ball 1
53 3140020044 O-ring 1
54 2040300002 Nozzle tip 1
Key # Part # Part Name Qty
1 4030010114 ST screw 3
2 3140020042 Seal ring 1
3 3150070062 Gear housing 1
4 4010020006 Needle bearing 1
5 2010240031 Catch disk 1
6 2040290039 Bit-holder 1
7 2050070051 Bit-lock ring 1
8 4080030001 Ball Ø3.5 1
9 2040290041 Output spindle 1
10 2040290041 Clutch-I 1
11 2050080132 Spring 1
12 2030020178 Washer 2
13 2010080081 Slide bearing 1
14 2010020009 Output gear 1
15 4080020001 Ball Ø3.0 1
16 2010240037 Clutch-II 1
17 4010060003 Thrust bearing 1
18 4010020002 Needle bearing 3
19 2020130024 Bearing seat 1
20 4010010087 Ball bearing 1
21 3190060007 Seal washer 1
22 4030010074 ST screw 3
23 3140070015 Hand strap pad 1
24 4010010053 Hand strap 1
25 1210050029 Ball bearing 1
26 1020190002 Choke 2
27 4030010112 Stator 1
PARTS LIST
WARRANTY
DRYWALL SCREWDRIVER 054-3181-2 DRYWALL SCREWDRIVER 054-3181-2
This Mastercraft®product is guaranteed for a period of three years from the date of original retail
purchase against defects in workmanship and materials, except for the following components:
a. Component A: Batteries, chargers and carrying case, which are guaranteed for a period of two
years from the date of original retail purchase against defects in workmanship and materials;
b. Component B: Accessories which are guaranteed for a period of one year from the date of original
retail purchase against defects in workmanship and materials.
Subject to the conditions and limitations described below, this product, if returned to us with proof
of purchase within the stated warranty period and is covered under this warranty, will be repaired or
replaced (with the same model, or one of equal value or specication), at our option. We will bear the cost
of any repair or replacement and any costs of labour relating thereto.
These warranties are subject to the following conditions and
limitations:
a. A bill of sale verifying the purchase and the purchase date must be provided;
b. This warranty will not apply to any product or part thereof that is worn, broken or that has become
inoperative due to abuse, misuse, accidental damage, neglect or lack of proper installation, opera-
tion or maintenance (as outlined in the applicable owner’s manual or operating instructions) or that
is being used for industrial, professional, commercial or rental purposes;
c. This warranty will not apply to normal wear and tear or to expendable parts or accessories that
may be supplied with the product and that are expected to become inoperative or usable after a
reasonable period of use;
d. This warranty will not apply to routine maintenance and consumable items such as, including but
not limited to, fuel, lubricants, vacuum bags, blades, belts, sandpaper, bits, uids, tune-ups or
adjustments;
e. This warranty will not apply where damage is caused by repairs made or attempted by others (i.e.:
persons not authorized by the manufacturer);
f. This warranty will not apply to any product that was sold to the original purchaser as a recondi-
tioned or refurbished product (unless specied otherwise in writing);
YEAR
ANS
3
LIMITED WARRANTY
†
DE GARANTIE LIMITÉE
†

DRYWALL SCREWDRIVER 054-3181-2
24
g. This warranty will not apply to any product or part thereof if any part from another manufacturer
is installed therein or any repairs or alterations have been made or attempted by unauthorized
persons;
h. This warranty will not apply to normal deterioration of the exterior nish, such as, including but
not limited to, scratches, dents, paint chips, or to any corrosion or discolouring by heat, abrasive
and chemical cleaners; and
i. This warranty will not apply to component parts sold by and identied as the product of another
company, which shall be covered under that product manufacturer’s warranty, if any.
Additional Limitations
This warranty applies only to the original purchaser, and cannot be transferred. Neither the retailer nor
the manufacturer shall be liable for any other expense, loss or damage, including, without limitation, but
not limited to any indirect, incidental, consequential or exemplary damages arising in connection with the
sale, use or inability to use this product.
Notice to Consumer
This warranty gives you specic legal rights, and you may have other rights, which may vary from
province to province. The provisions contained in this warranty are not intended to limit, modify, take
away from, disclaim or exclude any statutory warranties set forth in any applicable provincial or federal
legislation.
Mastercraft is a superior line of products selected for their workmanship and materials. These products
are designed to meet rigorous quality and performance standards, and are approved by our Quality
Assurance laboratory.
TOLL-FREE HELPLINE: 1-800-689-9928
WARRANTY
Rev 1.6 25/06/2013
