Owner’s Manual
ROTARY TOOL
054-1250-0
CAUTION:
Before using this
rotary tool or any of its
accessories, read this
manual and follow all
its Safety Rules and
Operating Instructions.
General Safety Rules
Specific Safety Rules
and Symbols
Functional Description
Assembly
Operation
Maintenance
Accessories
Imported by Mastercraft Canada Toronto, Canada M4S 2B8
Rev 1.8 05/05/2012

2
SECTION
PAGE
SECTION
PAGE
Warranty ….……………………….
2
Accessories ……………………
10
Product specifications …………...
2
Carton contents ……..………...
10–14
Power tool safety ………………..
3–5
Accessory description & use ...
15–16
Specific safety rules ……………..
6
Assembly & operation ..………
16–21
Extension cord safety ……………
7
Maintenance …….……………..
20
Symbols …………………………..
8
Parts & service ..……..………..
21–24
Know your rotary tool ……………
9
Motor rating …………………………
120 V, 60 Hz
Amp. …. …………………………….
1.5 A
RPM (no load) ………………………
5000–35000 RPM
Collets ……………………………….
1/16”, 3/32” & 1/8”
Weight ……………………………….
9 lb 8 oz (4.3 kg)
TABLE OF CONTENTS
WARRANTY
Limited 3-year Replacement Warranty
This Mastercraft product carries a three (3) year repair warranty against defects in
workmanship and materials. At its discretion, Mastercraft Canada agrees to have
any defective part(s) repaired or replaced free of charge, within the stated warranty
period, when returned by the original purchaser with proof of purchase. This
product is not guaranteed against wear or breakage due to misuse and/or abuse.
This product is not guaranteed if used for industrial or commercial purposes.
Mastercraft is a superior line of products selected for their workmanship and
materials. These products are designed to meet rigorous quality and performance
standards, and are approved by our Quality Assurance laboratory.
TOLL FREE HELPLINE: 1-800-689-9928

3
POWER TOOL SAFETY
WARNING: To avoid electrical hazards, fire hazards or damage to the rotary
tool, use proper circuit protection.
This rotary tool is wired at the factory for 120 V operation. It must be connected to a
120 V 15 A time delayed fuse or circuit breaker. To avoid shock or fire, replace
power cord immediately if it is worn, cut or damaged in any way.
!
WARNING: Some dust created by power sanding, sawing, grinding, drilling
and other construction activities contains chemicals known to cause cancer, birth
defects or other reproductive harm. Some examples of these chemicals are:
Lead from lead-based paints
Crystalline silica from bricks, cement and other masonry products
Arsenic and chromium from chemically-treated lumber
Your level of risk from these exposures varies, depending on how often you do
this type of work. To reduce your exposure to these chemicals, work in a well-
ventilated area and work with approved safety equipment such as dust masks that
are specially designed to filter out microscopic particles.
!
!
ALWAYS WEAR EYE PROTECTION
Any power tool can throw foreign objects into your eyes which could cause
permanent eye damage. ALWAYS wear safety goggles (not glasses) that
comply with ANSI safety standard Z87.1. Everyday glasses have only
impact resistant lenses. They ARE NOT safety glasses.
WARNING: Glasses or goggles not in compliance with ANSI Z87.1 could
cause serious injury when they break.

4
POWER TOOL SAFETY
GENERAL SAFETY RULES
WARNING: Read and understand
all instructions. Failure to follow all
instructions listed below may result in
electric shock, fire and/or serious personal
injury.
WORK AREA
Keep your work area clean and well lit.
Cluttered benches and dark areas invite
accidents.
Do not operate power tools in potentially
explosive environments, such as in the
presence of flammable liquids, gas or
dust. Power tools create sparks which may
ignite the dust or fumes.
Keep bystanders, children and visitors
away while operating the tool.
Distractions can cause you to lose control.
ELECTRICAL SAFETY
Double insulated tools are equipped
with a polarized plug (one blade is wider
than the other). This plug will fit in a
polarized plug only one way. If the plug
does not fit fully in the outlet, reverse
the plug. If it still does not fit, contact a
qualified electrician to install a polarized
outlet. Do not alter the plug in any way.
Double insulation eliminates the need for
the three-prong grounded power cord and
grounded power supply system.
Avoid body contact with grounded surfaces
such as pipes, radiators, ranges and
refrigerators. There is increased risk of
electric shock if your body is grounded.
Do not expose power tools to rain or wet
conditions. Water entering the power tool
will increase the risk of electric shock.
Do not abuse the cord. Never use the
cord to carry the tool or pull the plug from
an outlet. Keep cord away from heat, oil,
sharp edges or moving parts. Replace
damaged cords immediately. Damaged
cords increase the risk of electric shock.
When operating a power tool outdoors,
use an outdoor extension cord marked
“W-A” or “W”. These cords are rated for
outdoor use and reduce the risk of electric
shock.
PERSONAL SAFETY
Stay alert, watch what you are doing and
use common sense when operating a
power tool. Do not use the tool while
tired or under the influence of drugs,
alcohol or medication. A moment of
inattention while operating power tools may
result in serious personal injury.
Dress properly. Do not wear loose
clothing or jewellery.
Contain long hair. Keep your hair,
clothing and gloves away from moving
parts. Loose clothing, jewellery or long hair
can be caught in moving parts.
Avoid accidental starting. Be sure the
switch is OFF before plugging in.
Carrying tools with your finger on the switch
or plugging in tools that have the switch ON
invites accidents.
SAVE THESE INSTRUCTIONS FOR REFERENCE
!

5
POWER TOOL SAFETY
PERSONAL SAFETY –cont’d
Remove adjusting keys or wrenches
before turning the tool ON. A wrench or
key that is left attached to a rotating part of
the tool may result in personal injury.
Do not overreach. Keep proper footing
and balance at all times. Proper footing
and balance enables better control of the
tool in unexpected situations.
Use safety equipment. Always wear eye
protection. Dust mask, non-skid safety
shoes, hard hat or hearing protection must
be used for appropriate conditions.
TOOL USE AND CARE
Use clamps or another practical way to
secure and support the workpiece to a
stable platform. Holding the work by hand
or against your body is unstable and may
lead to loss of control.
Do not force the tool. Use the correct
tool for your application. The correct tool
will do the job better and safer at the rate
for which it was designed.
Do not use the tool if the power switch
does not turn it ON or OFF. Any tool that
cannot be controlled with the switch is
dangerous and must be repaired.
Disconnect the plug from the power
source before making any adjustments,
changing accessories or storing the
tool. Such preventive safety measures
reduce the risk of starting the tool
accidentally.
Store idle tools out of reach of children
and other untrained persons. Tools are
dangerous in the hands of untrained users.
Maintain tools with care. Keep cutting
tools sharp and clean. Properly
maintained cutting tools with sharp cutting
edges are less likely to bind and are easier
to control.
Check for misalignment or binding of
moving parts, breakage of parts and any
other condition that may affect the tool’s
operation. If damaged, have the tool
serviced before using. Many accidents
are caused by poorly maintained tools.
Use only accessories that are
recommended by the manufacturer for
your model. Accessories that may be
suitable for one tool may become
hazardous when used on another tool.
SERVICE
Tool service must be performed only by
qualified personnel. Service or
maintenance performed by unqualified
personnel could result in risk of injury.
When servicing a tool, use only identical
replacement parts. Follow instructions
in the Maintenance section of this
manual. Use of unauthorized parts or
failure to follow Maintenance instructions
may create a risk of electric shock or injury.
SAVE THESE INSTRUCTIONS FOR REFERENCE

6
SPECIFIC SAFETY RULES
WARNING: Know your rotary tool.
Read the Owner’s Manual carefully.
Learn the tool’s applications and
limitations, as well as the specific
potential hazards related to this tool.
Following this rule will reduce the risk of
electric shock, fire or serious injury.
Always wear eye protection. Any power
tool can throw foreign objects
into your eyes which could
cause permanent eye damage.
ALWAYS wear safety goggles
(not glasses) that comply with ANSI safety
standard Z87.1. Everyday glasses have
only impact resistant lenses. They ARE
NOT safety glasses.
WARNING: Glasses or goggles
not in compliance with ANSI Z87.1 could
cause serious injury when they break.
Hold tool by insulated gripping surfaces
when performing an operation where the
cutting tool may contact hidden wiring
or its own cord. Contact with a “live” wire
will make exposed metal parts of the tool
“live” and shock the operator.
Always make sure the work surface is
free from nails and other foreign
objects. Cutting into a nail can cause the
bit and the tool to jump and damage the bit.
Never hold the workpiece in one hand
and the tool in the other hand when in
use. Never place the hands near or
below the cutting surface. Clamping the
material and guiding the tool with both
hands is much safer.
Never lay workpiece on hard surfaces
like concrete, stone, etc. Protruding
cutting bit may cause the tool to jump.
Always wear safety goggles and dust
mask. Use only in well-ventilated area.
Using personal safety devices and working
in a safe environment reduces risk of injury.
After changing the bits and accessories
or making adjustments, make sure the
collet nut and any other adjustment
devices are securely tightened. Loose
adjustment devices will be violently thrown.
Always use the correct collet size. If the
collet size is larger than the accessory
shank size it will not grip the shank
properly, leading to possible injury to the
operator or damage to the tool.
Always check accessory bits, grinding
stones, cut-off wheels etc. for damage
before each use. Damaged accessories
can break during use and cause serious
injury.
Never use dull or damaged bits. Sharp
bits must be handled with care.
Damaged bits can snap during use. Dull
bits require more force to push the tool,
possibly causing the bit to break.
Never touch the bit during or
immediately after use. After use the bit is
too hot to be touched by bare hands.
Never operate the flexible shaft with a
bend radius of less that 6”. Shorter bend
radii will damage the flexible shaft and the
rotary tool motor.
SAVE THESE INSTRUCTIONS FOR REFERENCE
!
!

7
EXTENSION CORD SAFETY
WARNING: Keep the extension
cord clear of the working area. Position
the cord so it will not get caught on the
workpiece, tools or any other
obstructions while you are working with
the power tool.
Make sure any extension cord used with
this tool is in good condition. When
using an extension cord, be sure to use one
of heavy enough gauge to carry the current
the tool will draw. An undersized cord will
cause a drop in line voltage resulting in loss
of power and overheating.
The table at right shows the correct size to
use according to cord length and
nameplate ampere rating. If in doubt, use
the next heavier gauge. The smaller the
gauge number the heavier the cord.
Be sure your extension cord is properly
wired and in good condition. Always
replace a damaged extension cord or have
it repaired by a qualified electrician before
using it. Protect your extension cord from
sharp objects, excessive heat and damp or
wet areas.
Use a separate electrical circuit for your
power tools. This circuit must not be less
than 14 gauge wire and should be
protected with either a 15 A time delayed
fuse or circuit breaker. Before connecting
the power tool to the power source, make
sure the switch is in the OFF position and
the power source is the same as indicated
on the nameplate. Running at lower voltage
will damage the motor.
!
SAVE THESE INSTRUCTIONS FOR REFERENCE
MINIMUM GAUGE (AWG)
EXTENSION CORDS (120 V use only)
Amperage
rating
Total length
More
than
Not
more
than
25'
(7.5 m)
50'
(15 m)
100'
(30 m)
150'
(45 m)
0
6
18
16
16
14
6
10
18
16
14
12
10
12
16
16
14
12
12
16
14
12
Not Applicable

8
V
volts
A
amperes
Hz
hertz
W
watt
kW
kilowatts
microfarads
L
litres
Kg
kilograms
N/cm2
newtons per square
centimeter
Pa
pascals
H
Hours
Min
minutes
S
seconds
alternating current
three-phase alternating
current
three-phase alternating
current with neutral
direct current
no load speed
alternating or direct current
class II construction
splash proof construction
watertight construction
protective earthing at
earthing terminal, Class I
tools
revolutions or
reciprocations per minute
diameter
off position
arrow
warning symbol
wear your safety glasses

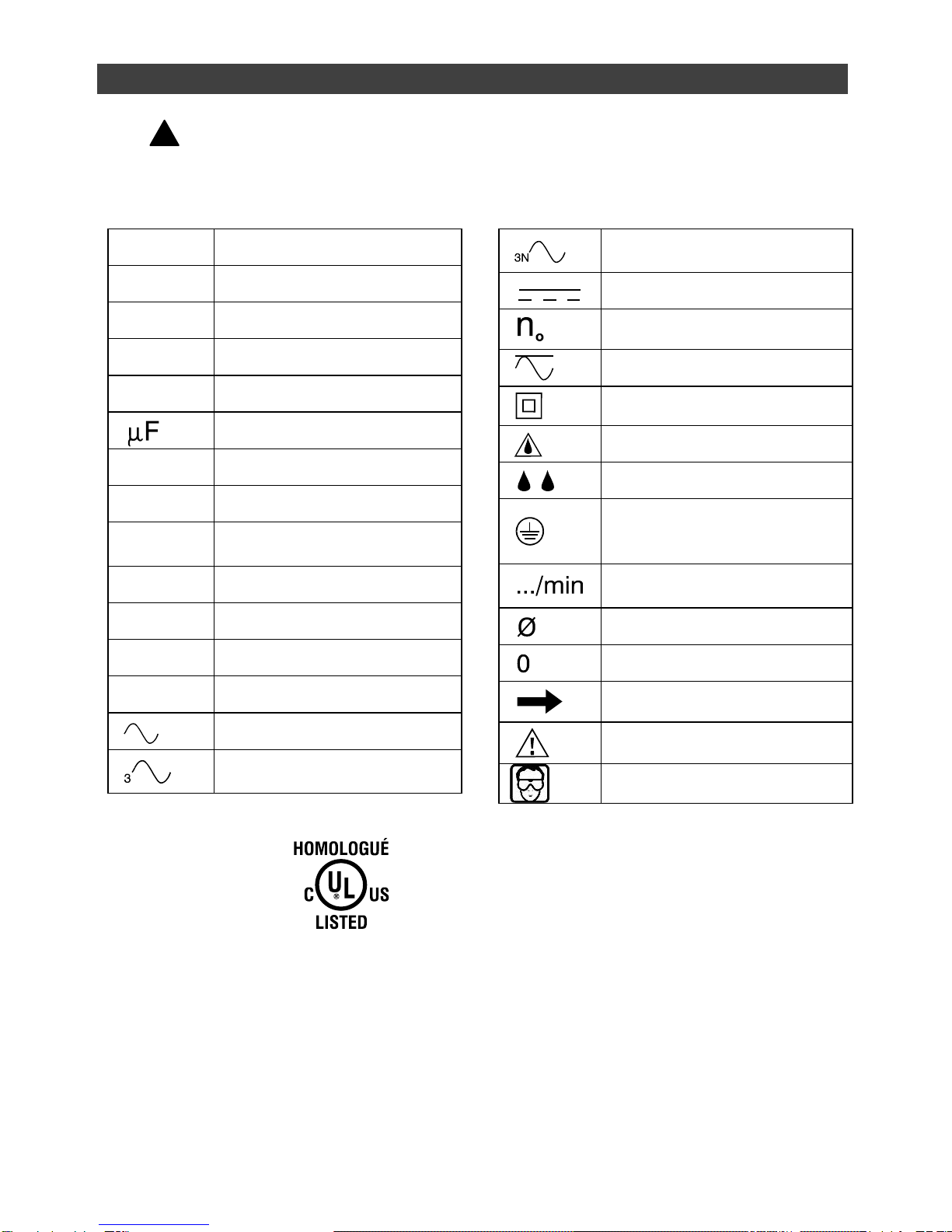

SYMBOLS
WARNING: Some of the following symbols may be used on your
tool. Please study them and learn their meaning. Proper interpretation of
these symbols will allow you to operate the tool better and safer.
!
This symbol designates that
this tool is listed with both
Canadian and U.S.
requirements by Underwriters
Laboratories.
61TN
E213739
JD3306U

9
KNOW YOUR ROTARY TOOL
ON/OFF switch
& speed control
Spindle lock
button
Hang rod
Hanging loop
Rotary tool
Flexible shaft
C-clamp
Stand
Flexible shaft
head nut

10
ACCESSORIES & CARTON CONTENTS
AVAILABLE ACCESSORIES
WARNING: Use only accessories
recommended for this rotary tool.
Follow instructions that accompany
accessories. Use of improper
accessories may cause injury to the
operator or damage to the rotary tool.
Do not use any accessory unless you have
completely read the instructions or Owner’s
Manual for that accessory.
Grinding stones
Cut-off wheels
Polishing wheels
Wire brushes
Bristle brushes
Sanding drums
Cutting bits
Drill bits
Dressing stones
NOTE: Most commonly used bits and
accessories with 1/16”, 3/32” and
1/8”shanks will fit this tool. Rotary tool
accessories such as a drill press designed
for other rotary tools may not fit this tool.
WARNING: If any part is missing
or damaged, do not plug the rotary tool
into the power source until the missing
or damaged part is replaced.
Carefully unpack the rotary tool and all its
components. Compare against the “Rotary
Tool Components” chart.
NOTE: See illustration of rotary tool and
accessories on Pages 11, 12, 13 & 14.
WARNING: To avoid fire or toxic
reaction, never use gasoline, naphtha,
acetone, lacquer thinner or similar
highly volatile solvents to clean the tool.
CARTON CONTENTS
ROTARY TOOL COMPONENTS
KEY
DESCRIPTION
QTY
A
Flexible shaft
1
B
General purpose
accessory kit (see
Pages 12, 13 & 14 for
contents)
1
C
C-clamp
1
D
Hang rod
1
E
Rotary tool
1
Tote (not illustrated)
1
Owner’s manual
1
!
!
!

11
CARTON CONTENTS

12

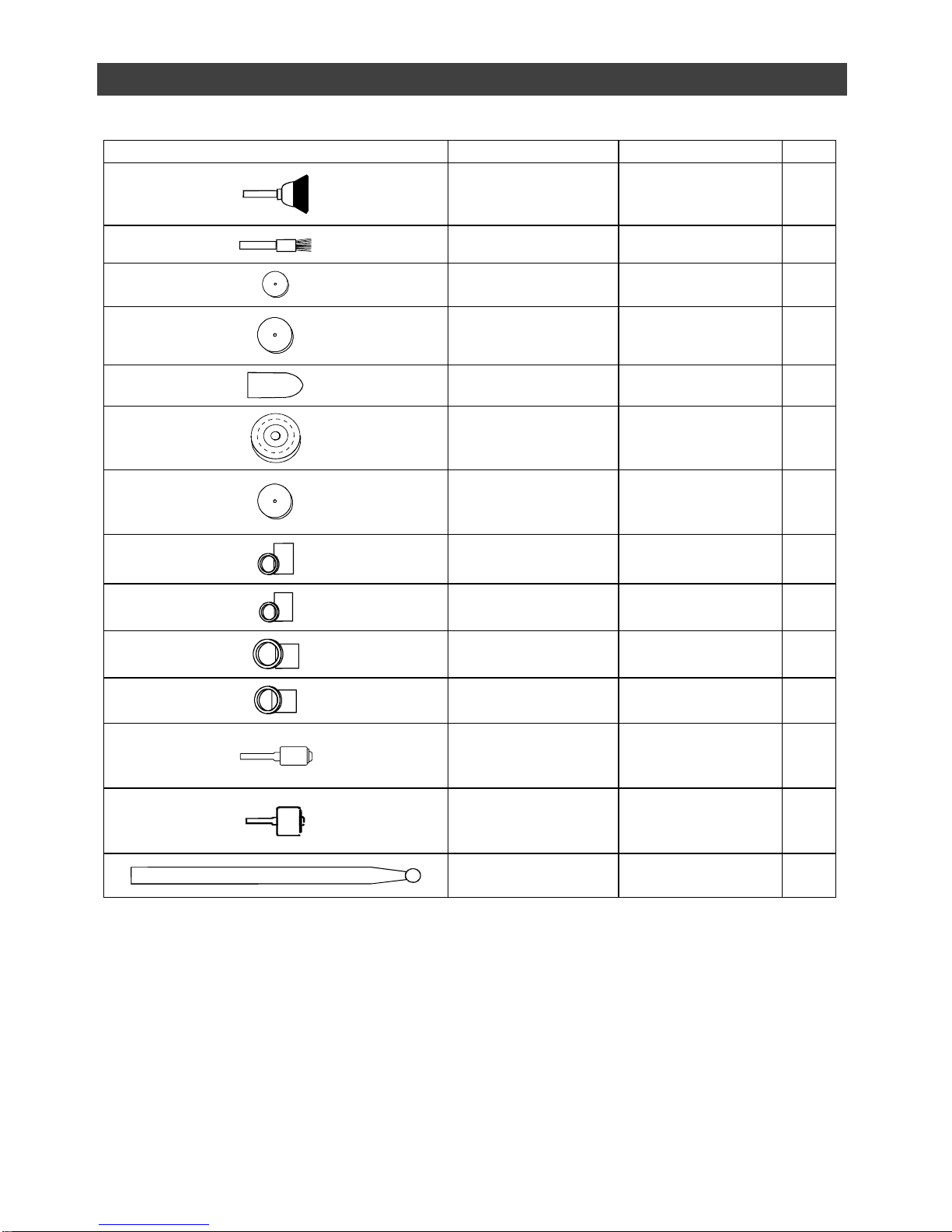

ACCESSORY KIT CONTENTS
Illustration
Description
Shape
Qty
Aluminum oxide
grinding stone
3/8” Radial
1
Aluminum oxide
grinding stone
5/8” Radial
1
Aluminum oxide
grinding stone
Parabolic 3/8”
2
Aluminum oxide
grinding stone
Abrasive wheel 3/4”
2
Silicon carbide
grinding stone
3/8” Radial
2
Silicon carbide
grinding stone
5/8”
2
Silicon carbide wheel
Abrasive wheel 3/4“
2
Grinding disc
7/8”
1
Heavy duty cut-off
wheel
15/16” x 0.031” thick
30
Bristle brush
1/2” Axial
1
Bristle brush
1/4” Axial
1
Stainless steel brush
1/2 ” Axial
1

13
ACCESSORY KIT CONTENTS
Illustration
Description
Shape
Qty
Brass brush
1/2” Axial
1
Brass brush
1/4” Axial
1
Felt polishing
wheel
1/2”
4
Felt polishing
wheel
1”
1
Felt polishing tip
3/8” Pointed tip
1
Cloth wheel
1”
1
Polishing wheel
Emery
impregnated
disc 7/8”
1
Sanding band
1/4” 60 grit
4
Sanding band
1/4” 120 grit
4
Sanding band
1/2” 60 grit
4
Sanding band
1/2” 120 grit
4
Drum sander
¼” with 1/8”
shank for ¼”
sanding band
1
Drum sander
½” with 1/8”
shank for ½”
sanding band
1
Diamond wheel
point
5/64” Ball
1

14
ACCESSORY KIT CONTENTS
Illustration
Description
Shape
Qty
Diamond wheel
point
5/32” Ball
1
Diamond point
5/64” Taper
1
Multi-purpose bit
1/8” Cylinder
2
Multi-purpose bit
3/32” Cylinder
4
Multi-purpose bit
1/16” Cylinder
4
Collet
1/8”
1
Collet
3/32”
1
Collet
1/16”
1
Screw mandrel
1/8”
2
Mandrel
1/8” for felt
wheels
1
Wrench
For collet nut,
drum sander
1
Dressing stone
3/8 x 3/8 x 1”
square
1
Grinding
compound
1
L-key
1

15
ACCESSORY DESCRIPTION & USE
NOTE: Not all accessories listed below are included with this tool. Please refer
to Pages 12, 13 & 14 for a listing of those accessories included with this tool.
Accessory Description
Accessory Use
Aluminum oxide (pink)
Grinding stones
Grinding wheels
Abrasive wheels
Use on metals, castings, welded joints, rivets and
rust. Ideal for sharpening, de-burring, rust removal
and general-purpose grinding of most materials.
High-speed steel cutter
For shaping, hollowing, grooving, slotting and
making tapered holes in soft metals, plastics and
woods.
Cut-off wheel
Ideal for cutting, grooving and trimming all kinds of
materials—including metal, wood and ceramics.
You can use it to cut screws and rusted bolts,
make slots in screw heads, trim castings and
more.
Polishing wheel
Felt & cloth
Ideal for polishing most metal surfaces and
plastics. Can be used with polishing compound.
Bristle brush
Use for light de-burring, cleaning and polishing of
silverware, jewellery and other precious metals.
Can be used with polishing compound.
Brass brush
Brass brushes are non-sparking and softer than
steel. They will not scratch soft metals like gold,
copper, brass, etc.
Multi-purpose bit
Cuts wood, plastic, fibreglass, drywall, laminate,
aluminum and vinyl siding.
Sanding band
For rough shaping and smoothing wood and
fibreglass; removing rust from metal surfaces;
shaping rubber surfaces. Sanding bands are
easily replaceable on drums.
Sanding wheel
Ideal for rough-shaping and smoothing wood and
fibreglass—as well as removing rust from metal
surfaces, shaping rubber surfaces and more.
Screw mandrel
Use with sanding discs, felt wheels, polishing,
grinding and cut-off wheels.
Mandrel for cloth wheel
Use with sanding discs and polishing, grinding
and cut-off wheels.
Collet
For use with accessories.
Collet wrench
For tightening & loosening collet nut, screw of
drum sanders.
Dressing stone
Cleans grinding wheels and stones. Shapes or
reshapes stones for desired applications.
Silicon carbide (green)
Stones
Wheels
Designed to work well on stone, glass, ceramics,
porcelain and non-ferrous metals.
Polishing wheel
Emery-impregnated
Ideal for cleaning and polishing coarse surfaces.

16
ACCESSORY DESCRIPTION & USE
ASSEMBLY & OPERATION
ON/OFF & SPEED CONTROL SWITCH
Both the ON/OFF and speed control
functions are controlled by one switch (1)
located on the top of the tool (see Fig. 1).
To turn the tool ON, slide the switch to the
right. To turn the tool OFF, slide the switch
to the left.
To increase the speed, turn the tool ON
and continue to slide the switch to the right.
To decrease the speed, slide the switch to
the left.
Accessory Description
Accessory Use
Stainless steel brush
Stainless steel brushes do not cause "after-rust"
when used on corrosive-resistant materials like
pewter, aluminum and stainless steel.
Mandrel for emery-impregnated
polishing wheel
Use with emery-impregnated polishing wheel.
Carbide grout cutter
Ideal for use on wall and floor grout.
Flap wheel
Flap wheels grind and polish flat or contoured
surfaces. They are used most effectively to finish
a surface after heavier sanding and material
removal have been completed.
Diamond wheel point
Great for cutting, sawing and carving of hard
materials such as marble, concrete, brick,
porcelain, ceramics, hard epoxy and soft and hard
wood.
Engraving Cutter
For detail engraving, carving and routing in wood,
fibreglass, plastic and soft metals.
Tungsten-carbide cutter
Use for shaping, smoothing and material removal.
Use on hardened steel, stainless steel, cast iron,
nonferrous metals, fired ceramics, plastics, hard
woods and other hard materials.
NOTE: This Mastercraft®Rotary Tool is also compatible to most accessories and
attachments provided by other leading brands.
Fig. 1

17
CHANGING THE COLLET
Some accessories require the use of
different sized collets. Collet sizes can be
1/16”, 3/32” and 1/8”. It is important to ensure
that the collet size matches the accessory.
NOTE: This tool includes the most
commonly used collets: 1/16”, 3/32” and 1/8”.
WARNING: Using a collet that is
too large for the accessory will result in
the accessory possibly being thrown
from the tool causing serious injury.
1. Turn the tool switch OFF and remove
the plug from the power source.
2. Depress the spindle lock button (1) and
slowly turn the collet nut (2) until the
spindle lock button locks the spindle
(4) (see Fig. 2).
3. While holding the spindle lock button
down, turn the collet nut counter
clockwise until it is removed.
4. Remove the collet (3) by pulling it out
of the spindle.
5. Insert the replacement collet into the
spindle and replace the collet nut by
turning it clockwise while holding the
spindle lock button down.
NOTE: Do not tighten the collet nut
without an accessory installed in the
collet. You will damage the collet.
INSTALLING ACCESSORIES
1. Turn the switch OFF and disconnect
the tool from the power source.
2. Depress the spindle lock button (1) and
slowly turn the collet nut (2) until the
spindle lock button locks the spindle
(see Fig. 3).
3. While holding the spindle lock button
down, turn the collet nut counter-
clockwise until the collet is loose inside
the collet nut.
4. Insert accessory (3) into collet.
NOTES:
a) Make sure the correct collet is used
for the accessory. If collet is too large,
replace the collet with the next smaller
size.
b) Insert accessory at least 3/4" into the
collet.
5. Press the spindle lock button and
engage it in the spindle. While holding
the spindle lock button down, hand-
tighten the collet by turning it
clockwise.
NOTE: Do not use pliers to tighten the
collet nut. Use the small wrench (4)
supplied. Over tightening will cause
damage to the tool.
6. Pull on the accessory to ensure it is
securely in place.
ASSEMBLY & OPERATION
!
Fig. 2
Fig. 3

18
CONNECT FLEXIBLE SHAFT TO TOOL
The flexible shaft is designed to facilitate
working in confined spaces where
otherwise using the rotary tool may be
awkward.
WARNING: Never bend the
flexible shaft with a radius of less than
6” when operating. Store the flexible
shaft in the designated compartment of
the blow moulded case when not in use.
1. Remove umbrella nut (1) from the tool
by turning it counter-clockwise (see
Fig. 4).
2. Before replacing collet nut, check to
make sure the 1/8” collet is installed in
the motor shaft.
NOTES:
a) To change collet, see Fig. 2.
b) Do not tighten collet nut on collet.
3. Pull flexible shaft inner cable (2) out of
the outer casing (3) about 2”.
4. Insert flexible shaft inner cable into the
collet until the stopper (4) touches the
collet.
5. Tighten collet nut (see Fig. 3).
NOTE: Do not use pliers to tighten the
collet nut. Use the small wrench
supplied. Over tightening will cause
damage to the tool.
6. Slide flexible shaft outer casing over
the collet nut until casing rests against
the threaded spindle (5).
NOTE: DO NOT force the outer
casing. If the outer casing will not
easily slide over the inner cable, turn
the collet on the opposite end of the
flexible shaft until the resistance of the
inner cable ceases. This should allow
the outer casing to slide over the inner
cable, and then allow the casing to rest
against the threaded spindle.
7. Screw flexible shaft head nut (6) onto
the threaded spindle by turning it
clockwise.
NOTE: Only finger-tighten spindle nut.
Do not use pliers or wrench.
CHANGING COLLET & ACCESSORIES
IN FLEXIBLE SHAFT
To change the collet or to install an
accessory in the flexible shaft, follow
“changing the collet” and “installing
accessories” (see Page 17). To lock the
shaft, pull back on the flexible shaft grip (1)
and rotate the collet until the shaft grip
locks the shaft (see Fig. 5). The flexible
shaft grip will return to its normal position
when not being held in the lock position.
NOTES:
a) Do not attempt to loosen or tighten the
collet without locking the shaft as noted
above. Damage to the flexible shaft will
result.
b) Do not over tighten collet nut.
WARNING: When using the flexible
shaft, only hold the shaft by the grip. Do
not force the cutting accessory so as to
avoid damaging the flexible shaft.
ASSEMBLY & OPERATION
!
!
Fig. 4
Fig. 5

19
ASSEMBLING & INSTALLING THE
STAND
The C-clamp that holds the hang bar rod
can be mounted either horizontally or
vertically (see Fig. 6a & 6b).
1. To open the clamp (1), pull back on the
quick release lever (2) and pull
outward on the clamp knob (3).
2. Clamp the C-clamp onto a work table
(horizontal surface) or other
appropriate vertical surface by pushing
inward on the clamp knob. Complete
the tightening process by turning the
clamp knob clockwise (see Fig. 6a &
6b).
NOTE: Do not over tighten to avoid
breaking the clamp.
3. Thread screw (3) in the bottom of the
hang bar rod (4) into the appropriate
mounting hole (5) in the C-clamp (see
Fig. 7).
NOTE: Do not over tighten. Hand-
tighten only.
4. Loosen hang bar sections (6) by
turning them counter-clockwise.
5. Pull out each hang bar section
approximately 5” and lock into place by
turning them clockwise.
NOTE: Do not over tighten. You will
damage the locking mechanism.
6. Insert the rotary tool hanger (7) into the
top of the hang bar rod.
7. Using the hang loop on the rotary tool
(8) hang rotary tool from the stand (see
Fig. 8).
ASSEMBLY & OPERATION
Fig. 6a
Fig. 6b
Fig. 7
Fig. 8

20
MAINTENANCE
OPERATION
SELECTING PROPER SPEEDS
Different speeds are required depending
upon the type of operation being
performed. The following chart outlines
those basic speeds:
GENERAL
WARNING: When servicing, use
only identical Mastercraft® parts. Use of
any other part may create a hazard or
cause product damage.
DO NOT use solvents when cleaning
plastic parts. Most plastics are susceptible
to damage from various types of
commercial solvents and may be damaged
by their use. Use clean cloth to remove dirt,
dust, oil, grease etc.
WARNING: Do not at any time
allow brake fluids, gasoline, petroleum-
based products, penetrating oils, etc. to
come in contact with plastic parts. They
contain chemicals that can damage,
weaken or destroy plastic.
DO NOT abuse power tools. Abusive
practices can damage the tool as well as
the workpiece.
WARNING: DO NOT attempt to
modify this rotary tool or create
accessories not recommended for use.
Any such alteration or modification is
misuse and could result in a hazardous
condition leading to possible serious
injury. It will also void the warranty.
LUBRICATION
All of the bearings in this rotary tool are
lubricated with a sufficient amount of high-
grade lubricant for the life of the unit under
normal conditions. Therefore, no further
lubrication is required.
OPERATION & MAINTENANCE
OPERATION
SPEED
Cutting metal
Maximum
Sanding wood
Maximum
Cutting hard metal
Maximum
Engraving metal
Med-Max
De-burring
Med-Max
Drilling holes
Med-Max
Removing rust
Med
Sharpening
Med
Polishing
Slow
WARNING: Have you read
“POWER TOOL SAFETY”,
“SPECIFIC SAFETY RULES”,
EXTENSION CORD SAFETY” and
“SYMBOLS” on pages 3, 4, 5, 6, 7
& 8 of this Manual? If not, please
do it now before you operate this
rotary tool. Your safety depends
on it!
Every time you use the rotary tool
you should verify the following:
1. Accessory is in good
condition and not damaged in
any way.
2. Workpiece is properly
secured.
3. Safety glasses are being
worn.
Failure to adhere to these safety
rules can greatly increase the
chances of injury.
!
!
!
!
