MasterTop 8420110X User manual

Freedom Mesh Bimini Top Plus,
for 2020-Current Ford Bronco 4 Dr Vehicles
Loss of vehicle control involves risk of death or serious injury, particularly to parts of your body not
restrained within vehicle. This product is intended for weather protection only and should not be
relied upon to contain occupants in the event of an accident or to protect from either ground contact
or falling objects. To reduce risk of accident or injury:
•ALWAYS WEAR SEATBELTS
• Always keep head, arms & body parts within vehicle.
• Fully secure or stow the soft top before driving according to instructions. Never try to latch or
fold soft top while driving. Do not use if damaged or worn.
• Read and follow all instructions & warnings accompanying this product, in your vehicle owner’s
manual and O󰀨 Road Driving Supplement.
RISK OF EYE INJURY. Safety glasses should be worn at all times while installing or maintaining
this product.
Required Tools:
Safety Glasses
Torx driver and bitt (found in Factory supplied tool kit)
Installation Instructions
Item #8420110X
Part List:
Fabric Mesh Bimini Top Plus QTY 1
Freedom Mesh Bimini Top Plus for 4
Door Bronco Shown

Important Safety information
Your MasterTop® Freedom Mesh Bimini Top Plus is intended to increase the fair weather enjoyment of your o󰀨-road
capable vehicle. Before installation, please take a moment to review the following safety information and installation
instructions. Important safety information is generally preceded by one of three signal words indicating the relative
risk of injury. The signal words mean:
A hazardous situation which, if not avoided, could result in death or serious injury. You CAN be KILLED
or SERIOUSLY HURT if you don’t follow instructions.
WARNING
CAUTION
NOTICE
A hazardous situation which, if not avoided, could result in minor or moderate injury. You CAN be mod-
erately HURT and also may su󰀨er property damage if you don’t follow instructions.
Careful attention is required to this instruction or operation but does generally not relate to personal
injury. Damage to your MasterTop® product or other property may result if you don’t follow instructions.
Before you begin Installation:
We are excited that you have chosen the MasterTop Freedom Mesh Bimini Top Plus. These high quality tops are
designed to enhance your fair weather driving pleasure while providing needed shade while driving in the hot sun.
Please note that it is important that you become familiar with the installation process of this top by reading the follow-
ing instruction sheet and warnings thoroughly. Though we use only the nest materials in creating this top, any prod-
uct that is exposed to the elements requires some general maintenance to keep it looking like new. Please see page
5 for these important maintenance tips. Please also note that it is normal for the mesh fabric to contract and wrinkle
when stored in the shipping carton. In a few days the fabric will relax and wrinkles will disappear.
When unpacking, carefully check to make sure all parts are included. If any part is missing
or broken, please call MasterTop customer service at 720-575-5440. When unpacking, check to make sure all parts
are included.
Remove your factory hard or soft top before installation. For those vehicles with a factory soft top, you will NOT be
using your factory soft top header for this installation.
NOTICE
2
IMPORTANT Instruction Sheet Strap Installation Note:
Installing the MasterTop® Freedom Mesh Bimini Top Plus entails the wrapping of nylon webbing around several lo-
cations on your factory installed sport bar. In order to simplify the installation process, the following instructions show
the general location of these straps and may not match exactly to the model you purchased. In all cases, the straps
are to be wrapped around the sport bar and not around the door surround hardware unless noted.

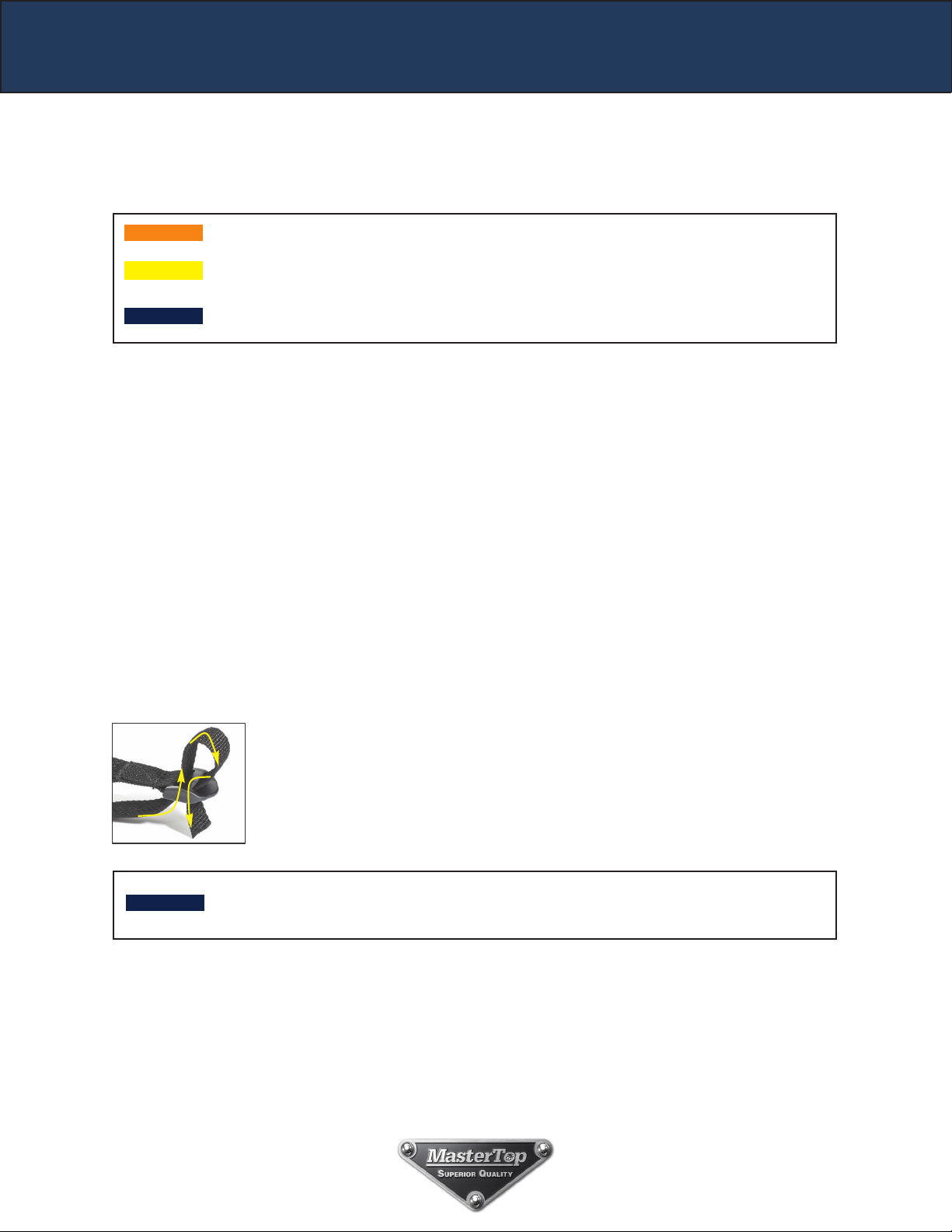

Threading Straps through Buckles:
Throughout the installation, you will need to thread webbing straps through buckles several
times. Please review the picture for correct strap routing through the buckles. As a rule of
thumb, run the strap below and through the sewn side of the buckle rst and then back down
through the end of the buckle. Tighten the strap by simply pulling the exposed webbing after
threading the strap through the buckle.

3
Installation of Freedom Mesh Bimini Top Plus for Bronco
FIG 1
FIG 3
FIG 5
FIG 2
FIG 4
FIG 6
FIG 7
Pull the strap
and tighten
FIG 8
Step 1: Attach to Windshield
Put on safety glasses.
After removing your hard top or soft top, drape the mesh
fabric over the top of your Bronco with the hook end of
the straps to the front.
Pull the strap to the front and hook to the windshield
(FIG1). There are 2 center windshield hook straps total.
See Fig 2. Locate the front two windshield Header
straps attached to the top front buckles
Using the ratchet and torx 1P50 included in the factory
provided Bronco tool kit, remove the torx bolt located on
the side windshield header (FIG 3) and place it through
the webbing hole in the Front windshield header straps.
Re-install the torx bolt as shown in fig. 4.
Once the strap is secure to the windshield header attach
the front side buckle and tighten. See fig. 5
Repeat on the other side.
Step 2: Attach Front Side Section Straps
After securing the front of the Bimini Top Plus to the
front of the Bronco, Locate the two side front straps with
hooks. See FIG 6.
Pull the short strap over the vehicle frame and hook
each straps into the exposed/opening hole on the front
side of the door frame (Fig 7)
Pull the end of the strap to tighten securely. (FIG 8
Repeat on the other side.

4
Installation of Freedom Mesh Bimini Top Plus for Bronco
FIG 9
FIG 10 FIG 11
FIG 12
Rear side straps, wrapping
around the B pillar & buckle
FIG 13
FIG 14
Step 3: Secure Center Side & B-Pillar Straps
Locate the 2 hook straps each side of the freedom
mesh top (FIG 9).
Hook the short straps, adjust to secure and tighten as
shown in g. 10 & 11.
Repeat on the other side.
Locate the rear side straps, wrap around the B-Pillar
and thread into the buckles. See FIG's. 12, 13 & 14.
Tighten the straps while making sure the top is centered
on the vehicle.
Notice in FIG 14 how the center straps wrap around the
“B-Pillar” on 4 Dr Bronco.
Step 4: Secure Rear Straps
Locate the rear corner straps, wrap the straps around
the roll bar leg,thread the end of the strap through
the buckle and tighten. Repeat on the other side of the
vehicle making sure the top is centered and the straps
are towards the front of the Speaker as shown in FIG
15. See FIG's. 15, 16 & 17.
FIG 15 FIG 16
FIG 17

5
Care and Maintenance of your MasterTop Freedom Mesh Bimini Top Plus for Bronco:
Your MasterTop Mesh Bimini Top, Bimini Top Plus is made of the finest materials available but to keep it looking
new and for the maximum possible wear, it will need periodic cleaning and basic maintenance. The main threat to
your soft top is pollutants, dirt and grime. By keeping your top clean you will prolong the life of your top.
We recommend the following to keep your top like new
Washing:
The top fabric should be washed often using a mild soap, warm water and a soft bristle brush. You can also use spe-
cial soft top cleaners available on our Distributors websites. Make sure that after cleaning you rinse with clear water
to remove all traces of soap to avoid residue. Hang to dry, do not put a Mesh Top in a clothes dryer.
For more information on MasterTop:
This and other helpful product information is available on www.mastertop.com
Please visit our website frequently for product updates and exciting news.
Using your Mesh Top: Your mesh top has cutouts for attaching the factory Top panels back on the vehicle, after plac-
ing the Top panels on the vehicle, slip your hand through the cutouts to secure the panels to the vehicle. Note that for
the outside panel latches it may be easier to reach around the fabric to install the panels.

Limited 3 Year Warranty
Your MasterTop® accessory is covered by the following Limited Warranty provided exclusively by Master-
Top, Inc., 420 J Corporate Circle, Golden, CO 80401.
This Limited Warranty is the only warranty made in connection with your purchase. MasterTop neither
assumes nor authorizes any vendor, retailer or other person or entity to assume for it any other obligation
or liability in connection with this product or Limited Warranty. This Limited Warranty does not apply and is
not cumulative to any accessory or part distributed by any MasterTop distributor for which the Manufacturer
provides a separate written warranty.
What is Covered: Subject to the terms, exclusions and limitations herein and with respect only to Master-
Top branded accessories rst sold in the United States, MasterTop warrants to the initial retail purchaser
only that your MasterTop accessory shall be free of defects in material and workmanship; for a period of 3
years from date of initial retail sale.
All other warranties are hereby disclaimed, except to the extent prohibited by applicable law in which case
any implied warranty of merchantability or tness for a particular purpose on this product is limited to 3
years from date of initial retail sale. MasterTop reserves the rights to: (a.) require invoice or other proof
your product is within the terms of this Limited Warranty as a condition of warranty service and, (b.) make
future revisions to this product and Limited Warranty without prior notice or obligation to upgrade your
product.
What is Not Covered: Your MasterTop Limited Warranty does not cover products or parts MasterTop de-
termines to have been damaged by or subjected to: (a.) installation damage, alteration, modication, failure
to maintain or attempted repair or service by anyone not authorized by MasterTop, (b.) normal wear and
tear, cosmetic damage or damage from water immersion, (c.) Acts of God, accidents, misuse, negligence,
inadequate mounting or impact with vehicle(s), obstacles or other aspects of the environment, (d.) theft,
vandalism or other intentional damage, (e.) eet, rental or commercial use, (f.) use in competition or racing.
Remedy Limited to Repair/Replacement: The exclusive remedy provided hereunder shall, upon Mas-
terTop inspection and at MasterTop’s option, be either repair or replacement of product or parts (new or
refurbished) covered under this Limited Warranty. Customers requesting warranty consideration on Mas-
terTop Products should rst contact MasterTop to obtain a RGA number (720-575-5440). All labor, removal,
shipping and installation costs are customer’s responsibility.
Other Limitations - Exclusion of Damages
- Your Rights Under State Law:
In consideration of the purchase price paid, neither MasterTop nor any independent MasterTop distributor
/licensee are responsible for any time loss, rental costs, or for any incidental, consequential, punitive or
other damages you may have or incur in connection with any part or product purchased. Your exclusive
remedy hereunder for covered parts is repair/replacement as described above.
This Limited Warranty gives you specic rights. You may also have other rights that vary from state to state.
For example, some states do not allow limitations of how long an implied warranty lasts and/or do not allow
the exclusion or limitation of incidental or consequential damages, so the limitations and exclusions herein
may not apply to you.
