Matrix 7xe User manual

2016 7XE/7XI
CONSOLE
SERVICE MANUAL

CHAPTER 1: SERIAL NUMBER LOCATION ........................................................... 1
CHAPTER 2: IMPORTANT SAFETY INSTRUCTIONS
2.1 Electrical Requirements ............................................................................................. 2
CHAPTER 3: PREVENTIVE MAINTENANCE
3.1 Recommended Cleaning Tips .................................................................................... 3
3.2 Check for Damaged Parts ......................................................................................... 3
CHAPTER 4: CONSOLE OVERLAY AND WORKOUT DESCRIPTION
4.1 Console Description .................................................................................................. 4
4.2 7xe/7xi Console Operation......................................................................................... 8
CHAPTER 5: MANAGER MODE
5.1 Using Manager Mode ................................................................................................ 14
5.2 Manager Mode Overview ........................................................................................... 15
CHAPTER 6: ENGINEERING MODE
6.1 Using Engineering Mode ........................................................................................... 19
6.2 Engineering Mode Overview ...................................................................................... 20
CHAPTER 7: SERVICE MODE / TEST MODE
7.1 Using Service Mode................................................................................................... 24
7.2 Service Mode Overview ............................................................................................. 25
CHAPTER 8: TROUBLESHOOTING
8.1 Electrical Diagram ...................................................................................................... 29
8.2 Error Code List............................................................................................................ 36
CHAPTER 9: PART REPLACEMENT GUIDE
9.1 Working Environment Set Up for Parts Replacement................................................. 41
9.2 T7xe UCB Replacement ............................................................................................. 42
9.3 T7xe TFT-LCD Module Replacement ......................................................................... 43
9.4 7xe UCB REPLACEMENT.......................................................................................... 44
9.5 7xe TFT-LCD Module Replacement ........................................................................... 45
9.6 T7xi UCB Module Replacement.................................................................................. 46
9.7 T7xi TFT-LCD Module Replacement .......................................................................... 47
9.8 7xi UCB REPLACEMENT........................................................................................... 48
9.9 7xi TFT-LCD Module Replacement............................................................................. 49
CHAPTER 10: CONSOLE SPECIFICATIONS AND ASSEMBLY GUIDE
10.1 VA installation.............................................................................................................. 50
10.2 RFID installation.......................................................................................................... 52
10.3 TV Programming Instructions .................................................................................... 57
CHAPTER 11: SOFTWARE UPGRADE PROCEDURE
11.1 Software Upgrade Procedure from USB..................................................................... 58
11.2 Software Upgrade Procedure from Website ............................................................... 59
TABLE OF CONTENTS

1
1.1 SERIAL NUMBER LOCATION
CHAPTER 1: SERIAL NUMBER LOCATION
CONSOLE SERIAL NUMBER LOCATION
T7XE / T7XI
7XE / 7XI

2
CHAPTER 2: IMPORTANT SAFETY INFORMATION
2.1 ELECTRICAL REQUIREMENTS
DEDICATED CIRCUIT AND ELECTRICAL INFO
A “Dedicated Circuit” means that each outlet you plug into should not have anything else running on that same circuit. The easiest way to verify
this is to locate the main circuit breaker box, and turn off the breaker(s) one at a time. Once a breaker has been turned off, the only thing that
should not have power to it are the units in question. No lamps, vending machines, fans, sound systems, or any other item should lose power
when you perform this test. Non-looped (isolated) neutral/grounding means that each circuit must have an individual neutral/ground connection
coming from it, and terminating at an approved earth ground. You cannot “jumper” a single neutral/ground from one circuit to the next.
ELECTRICAL REQUIREMENTS
For your safety and to ensure good unit performance, the ground on this circuit must be non-looped (isolated). Please refer to NEC article 210-21
and 210-23. Any alterations to the standard power cord provided could void all warranties of this product.
The 3x, 5x and 7xe bikes are designed to be self-powered and do not require an external power supply source to operate. Without an external
power supply, the console’s start-up time may be delayed. Add-on TV’s and other console accessories will increase the time needed for start-up.
An external power supply will ensure power is provided to the console at all times and is recommended when add-on accessories are used.
For units with an integrated TV (like the 7xe and 7xi), the TV power requirements are included in the unit. An RG6 coaxial cable with ‘F Type’
compression fittings on each end will need to be connected to the cardio unit and the video source. Additional power requirements are not needed
for the add-on digital TV (3x and 5x). For units with an add-on PCTV (3x and 5x), the TV power requirements are separate.
NOTE: ALL UNITS WITH VIRTUAL ACTIVE™ MUST BE POWERED!
110 V UNITS
All Matrix 3x, 5x, 7xe and 7xi 110 V bikes require the use of a 100-125 V, 60 Hz and a 15 A
“Dedicated Circuit”, with a non-looped (isolated) neutral/ground for power. This outlet should be a
NEMA 5-15R and have the same configuration as the plug. No adapter should be used with this
product. These bikes can be daisy-chained together with up to 4 units per 15 A dedicated circuit.
Matrix daisy-chain cord adapters are sold separately.
220 V UNITS
All Matrix 3x, 5x, 7xe and 7xi 220 V bikes require the use of a 216-250 V, 50 Hz and a 15 A
“Dedicated Circuit”, with a non-looped (isolated) neutral/ground for power. This outlet should be a
NEMA 6-15R and have the same configuration as the plug. No adapter should be used with this
product. These bikes can be daisy-chained together with up to 4 units per 15 A dedicated circuit.
Matrix daisy-chain cord adapters are sold separately.
North American power cord plugs shown.
Depending on your country, the plug type may vary.
220 NEMA 6-15P
PLUG
110 NEMA 5-15P
PLUG
GROUNDING INSTRUCTIONS
The unit must be grounded. If it should malfunction or break down, grounding provides a path of
least resistance for electric current to reduce the risk of electric shock. The unit is equipped with a cord having an equipment-grounding conduc-
tor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local
codes and ordinances. If the user does not follow these grounding instructions, the user could void the Matrix limited warranty.
ADDITIONAL ELECTRICAL INFO
In addition to the dedicated circuit requirement, the proper gauge wire must be used from the circuit breaker box, to each outlet that will have the
maximum number of units running off of it. If the distance from the circuit breaker box to each outlet is 100 ft (30.5 m) or less, then a 12 gauge
wire should be used. For distances greater than 100 ft (30.5 m) from the circuit breaker box to the outlet, a 10 gauge wire should be used.
ENERGY SAVING / LOW-POWER MODE
All units are configured with the ability to enter into an energy saving / low-power mode when the unit has not been in use for a specified period
of time. Additional time may be required to fully reactivate this unit once it has entered the low-power mode. This energy saving feature may be
enabled or disabled from within the ‘Manager Mode’ or ‘Engineering Mode'.

3
CHAPTER 3: PREVENTIVE MAINTENANCE
3.1 RECOMMENDED CLEANING TIPS
DO NOT use any equipment that is damaged or has worn or broken parts. Use only replacement parts supplied by Matrix Fitness Systems.
MAINTAIN LABELS AND NAMEPLATES. Do not remove labels for any reason. They contain important information. If unreadable or missing,
contact Matrix Fitness Systems for a replacement. 1-866-693-4863, www.matrixfitness.com
MAINTAIN ALL EQUIPMENT Preventive maintenance is the key to smooth operating equipment. Equipment needs to be inspected at regular
intervals. Defective components must be replaced immediately. Improperly working equipment must be kept out of use until it is repaired.
Ensure that any person(s) making adjustments or performing maintenance or repair of any kind is qualified to do so. Matrix Fitness Systems will
provide service and maintenance training at our corporate facility upon request or in the field if proper arrangements are made.
3.2 CHECK FOR DAMAGED PARTS
In order to maximize life span, and minimize down time, all Matrix Fitness Equipment requires regularly
scheduled cleaning.
YOU WILL NEED:
- Mild dish soap and water mixture in a spray bottle.
- Lint-free 100% cotton cleaning cloths or Microfiber cleaning cloths.
DAILY:
1. Wipe down the unit after each use with a mild dish soap and water mixture. NOTE: Spray the soap / water mixture onto the cloth.
NEVER spray directly onto the equipment. We recommend that you do NOT allow customers to use spray bottles to clean the equipment. If
the cleaner is sprayed directly on the equipment or overspray is present, it may cause your equipment to rust and / or cause damage to con-
sole overlays.
WEEKLY:
1. With a clean dry 100% lint-free cloth and water / soap mixture, wipe down the entire console area including the hand grips and hand rails.

4
4.1 CONSOLE DESCRIPTION
CHAPTER 4: CONSOLE OVERLAY AND WORKOUT DESCRIPTION
e.g. A7XE CONSOLE SHOWN
7XE CONSOLE DESCRIPTION
The Matrix machine is inspected before it is packaged. It is shipped in
two pieces: the base and the console. Carefully unpack the unit and
dispose of the box material. Note: There is a thin protective sheet of
clear plastic on the overlay of the console that should be removed
before use.
The 7xe has a fully integrated touch screen display. All
information required for workouts is explained on screen.
Exploration of the interface is highly encouraged. The information
explaining how to program for various workouts will give an
explanation about the contents of each screen on the 7xe.
A) GO: One Touch Start.
B) STOP (displayed on-screen during workout): Ends workout and
shows workout summary data.
C) COOL DOWN (displayed on-screen during workout): Puts unit
into Cool Down mode. Cool Down time is dependent on the
workout.
7XE ENTERTAINMENT ZONE
D) VOLUME UP/DOWN: Adjusts the volume output through
headphones.
E) CHANNEL UP/DOWN: Allows for channel selection on the
integrated console TV.
F) HOME: Will take the user back to the home screen.
G) LAST CHANNEL: Allows the user to cycle between the current
channel and the previous channel they were viewing.
H) CC/MUTE: Mutes sound and turns closed captioning on or off.
I) DISPLAY MODE: Allows user to cycle through display modes.
J) NUMBER KEYPAD: Allows for easy number inputs.
K) RFID SENSOR: Wireless login access location (optional add-
on feature).
A
F IG HED J K

5
e.g. T7XE CONSOLE SHOWN
T7XE CONSOLE DESCRIPTION
The Matrix machine is inspected before it is packaged. It is shipped in
two pieces: the base and the console. Carefully unpack the unit and
dispose of the box material. Note: There is a thin protective sheet of
clear plastic on the overlay of the console that should be removed
before use.
The T7xe has a fully integrated touch screen display. All information
required for workouts is explained on screen. Exploration of the
interface is highly encouraged. The information explaining how to
program for various workouts will give an explanation about the
contents of each screen on the T7xe.
A) GO: One Touch Start.
B)STOP: Ends workout and shows workout summary data.
C)INCLINE TOGGLES: Adjust incline during workout.
D) SPEED TOGGLES: Adjust speed during workout.
E) COOL DOWN: Puts treadmill into Cool Down mode. Cool
Down time is dependent on the length of the workout. Workouts
19 minutes and shorter will have a cool down length of 2
minutes. Workouts 20 minutes and longer will have a cool down
length of 5 minutes.
F)EMERGENCY STOP/ IMMOBILIZATION: To stop all functions
and immobilize the unit. The emergency stop on this treadmill
must be returned to its original position in order to allow normal
operation of the unit.
T7XE ENTERTAINMENT ZONE
G) VOLUME UP/DOWN: Adjusts the volume output through
headphones.
H) CHANNEL UP/DOWN: Allows for channel selection on the
integrated console TV.
I)HOME: Will take the user back to the home screen.
J) LAST CHANNEL: Allows the user to cycle between the current
channel and the previous channel they were viewing.
K) CC/MUTE: Mutes sound and turns closed captioning on or off.
L)DISPLAY MODE: Allows user to cycle through display modes.
M) NUMBER KEYPAD: Allows for easy number inputs.
N) RFID SENSOR: Wireless login access location (optional add-
on feature).
CHAPTER 4: CONSOLE OVERLAY AND WORKOUT DESCRIPTION
4.1 CONSOLE DESCRIPTION - CONTINUED
A
C D
NM
AE BF
LI J KHG

6
4.1 CONSOLE DESCRIPTION - CONTINUED
CHAPTER 4: CONSOLE OVERLAY AND WORKOUT DESCRIPTION
e.g. A7XI CONSOLE SHOWN
7XI CONSOLE DESCRIPTION
The Matrix machine is inspected before it is packaged. It is shipped in
two pieces: the base and the console. Carefully unpack the unit and
dispose of the box material. Note: There is a thin protective sheet of
clear plastic on the overlay of the console that should be removed
before use.
The 7xi has a fully integrated touch screen display. All information
required for workouts is explained on screen. Exploration of the
interface is highly encouraged. The information explaining how to
program for various workouts will give an explanation about the
contents of each screen on the 7xi.
A) GO: One Touch Start.
B)STOP(displayed on-screen during workout): Ends workout and
shows workout summary data.
C) COOL DOWN (displayed on-screen during workout): Puts unit
into Cool Down mode. Cool Down time is dependent on the
workout.
7XI ENTERTAINMENT ZONE
D) VOLUME UP/DOWN: Adjusts the volume output through
headphones.
E) CHANNEL UP/DOWN: Allows for channel selection on the
integrated console TV.
F)HOME: Will take the user back to the home screen.
G)LAST CHANNEL: Allows the user to cycle between the current
channel and the previous channel they were viewing.
H) CC/MUTE: Mutes sound and turns closed captioning on or off.
I) DISPLAY MODE: Allows user to cycle through display modes.
J) NUMBER KEYPAD: Allows for easy number inputs.
K) RFID SENSOR: Wireless login access location (optional add-
on feature).
A
F IG HED J K

7
e.g. T7XI CONSOLE SHOWN
T7XI CONSOLE DESCRIPTION
The Matrix machine is inspected before it is packaged. It is shipped in
two pieces: the base and the console. Carefully unpack the unit and
dispose of the box material. Note: There is a thin protective sheet of
clear plastic on the overlay of the console that should be removed
before use.
The T7xi has a fully integrated touch screen display. All information
required for workouts is explained on screen. Exploration of the
interface is highly encouraged. The information explaining how to
program for various workouts will give an explanation about the
contents of each screen on the T7xi.
A) GO: One Touch Start.
B)STOP: Ends workout and shows workout summary data.
C)INCLINE TOGGLES: Adjust incline during workout.
D) SPEED TOGGLES: Adjust speed during workout.
E) COOL DOWN: Puts treadmill into Cool Down mode. Cool
Down time is dependent on the length of the workout. Workouts
19 minutes and shorter will have a cool down length of 2
minutes. Workouts 20 minutes and longer will have a cool down
length of 5 minutes.
F)EMERGENCY STOP/ IMMOBILIZATION: To stop all functions
and immobilize the unit. The emergency stop on this treadmill
must be returned to its original position in order to allow normal
operation of the unit.
T7XI ENTERTAINMENT ZONE
G) VOLUME UP/DOWN: Adjusts the volume output through
headphones.
H) CHANNEL UP/DOWN: Allows for channel selection on the
integrated console TV.
I)HOME: Will take the user back to the home screen.
J) LAST CHANNEL: Allows the user to cycle between the current
channel and the previous channel they were viewing.
K) CC/MUTE: Mutes sound and turns closed captioning on or off.
L)DISPLAY MODE: Allows user to cycle through display modes.
M) NUMBER KEYPAD: Allows for easy number inputs.
N) RFID SENSOR: Wireless login access location (optional add-
on feature).
CHAPTER 4: CONSOLE OVERLAY AND WORKOUT DESCRIPTION
4.1 CONSOLE DESCRIPTION - CONTINUED
A
C D
NM
AE BF
LI J KHG

8
4.2 7XE/7XI CONSOLE OPERATION
CHAPTER 4: CONSOLE OVERLAY AND WORKOUT DESCRIPTION
7XE/7XI CONSOLE OPERATION
GETTING STARTED
•Touch the USER button to sign-in with your XID.
•Touch the GUEST button to work out anonymously.
•Touch the REGISTER button to create a new XID.
•For help or more information, touch .
•To change language, touch .
USER SIGN-IN
1) Enter your XID and touch .
2) Enter your PASSCODE and touch .
Consoles equipped with RFID will have this
symbol in the lower-right corner of the display.
To log in, touch your RFID tag to the symbol
located on the bottom right of the console.
REGISTER A NEW USER
1) Don’t have an xID account? Registration is easy.
2) Follow the on-screen prompts to create your free
account.
3) Review your information and select the I
ACCEPT THE TERMS AND CONDITIONS
box to review the Terms and Conditions.
4) Touch to complete registration. Your
account is now active and you are signed in.
LOGIN SCREEN
GO SCREEN
•Touch GO to begin working out immediately. Or...
•Touch the WORKOUT CATEGORY button of
your choice to customize your workout.
PROGRAM SETUP
1) After selecting a WORKOUT CATEGORY button, select
one of the PROGRAMS listed to the left.
For more information on a selected program, touch .
2) Use the SLIDER CONTROLS to
adjust your program settings.
3) Press GO to begin your workout.
Note: Workouts and features vary based on
model type, console configurations, software
versions and options purchased.
* Supported standards with carrier frequency of 13.56 MHz
include; ISO 14443 A, ISO 15693, ISO 14443 B, Sony
Felica, Inside Contactless (HID iClass), and LEGIC RF.

9
4.2 7XE/7XI CONSOLE OPERATION - CONTINUED
CHAPTER 4: CONSOLE OVERLAY AND WORKOUT DESCRIPTION
GO SCREEN
PROGRAM SETUP
Note: Workouts and features vary based on model type, console configurations, software versions and options purchased.

10
HOMESCREEN
•The USERNAME or GUEST is shown in the upper left corner.
•Touch to change WORKOUT STATISTICS
displayed at the bottom of the screen.
•Touch to go back to the home screen whenever you’re using an app.
•Touch to adjust VOLUME, pair a BLUETOOTH device or to
change AUDIO SOURCE (TV, My Media, Virtual Active, etc.).
•Touch to increase or decrease the intensity level, speed or incline.
•Touch to use the keypad to set intensity level,
speed or incline. Press to confirm change.
•Touch to change intensity level, speed or incline back to previous setting.
•Touch to temporarily pause your workout and touch to resume.
NOTE: After resuming, speed, incline and intensity levels will be reset.
•While paused, touch to end workout.
•Touch to increase or decrease the duration of your workout.
•Touch to enter cool down mode. Cool down lasts
for a few minutes while reducing the workout intensity,
allowing your body to recover from your workout.
•Touch to lock the screen in order to prevent accidental
screen touches from being implemented. Touch it again
to unlock the screen and allow screen touches.
•Touch to turn the fan on. There are three fan speeds (low, medium, high).
HOMESCREEN
CHAPTER 4: CONSOLE OVERLAY AND WORKOUT DESCRIPTION
4.2 7XE/7XI CONSOLE OPERATION - CONTINUED
Note: Workouts and features vary based on model type, console
configurations, software versions and options purchased.

11
4.2 7XE/7XI CONSOLE OPERATION - CONTINUED
CHAPTER 4: CONSOLE OVERLAY AND WORKOUT DESCRIPTION
APPS AND ENTERTAINMENT
SIMPLE
Workout stats are displayed in
3 customizeable windows.
TRACK
Displays a 400 m(1/4 mile) track. Split
feature allows you to keep track of your
fastest laps and improve your time.
VIRTUAL ACTIVE
Your workout info is displayed and Virtual
Active courses are shown. With Virtual Active,
escape the confines of an ordinary workout as
you or walk or run through exotic destinations.
TARGET HEART RATE
Track your progress while working out
to a Target Heart Rate program.
CONSTANT WATTS
Track your progress while working
out to a Constant Watts program.
FITNESS TEST
Track your progress while working
out to a Fitness Test program.
LANDMARKS
Track your progress while working
out to a Landmarks program.
SPRINT 8
Track your progress while working
out to a Sprint 8 program.
CHANGE WORKOUT
Select a different workout without
stopping your current workout.
MY MEDIA
Connect and control audio and video files
on-screen via USB port or Bluetooth.
TV
Watch live TV.
Note: Workouts and features vary based on
model type, console configurations, software
versions and options purchased.
WEATHER
Get local weather info.
WEB BROWSER
Access the world wide web
while you work out.
FACILITY CALENDAR
View Facility event schedule and other info.
YOUTUBE
Browse and watch YouTube
videos while you work out.
FACEBOOK
Browse your Facebook page
while you work out.
TWITTER
Access your Twitter feed while you work out.
NETFLIX
Browse and watch Netflix videos while
you work out. Netflix account required to
access content.
HULU PLUS
Browse and watch Hulu Plus videos
while you work out. Hulu Plus
account required to access content.
VEVO
Browse and watch Vevo videos
while you work out. Vevo account
required to access content.
VUDU
Browse and watch Vudu videos
while you work out. Vudu account
required to access content.
MYFITNESS PAL
Lose weight with MyFitnessPal, the fastest
and easiest to use calorie counter.

12

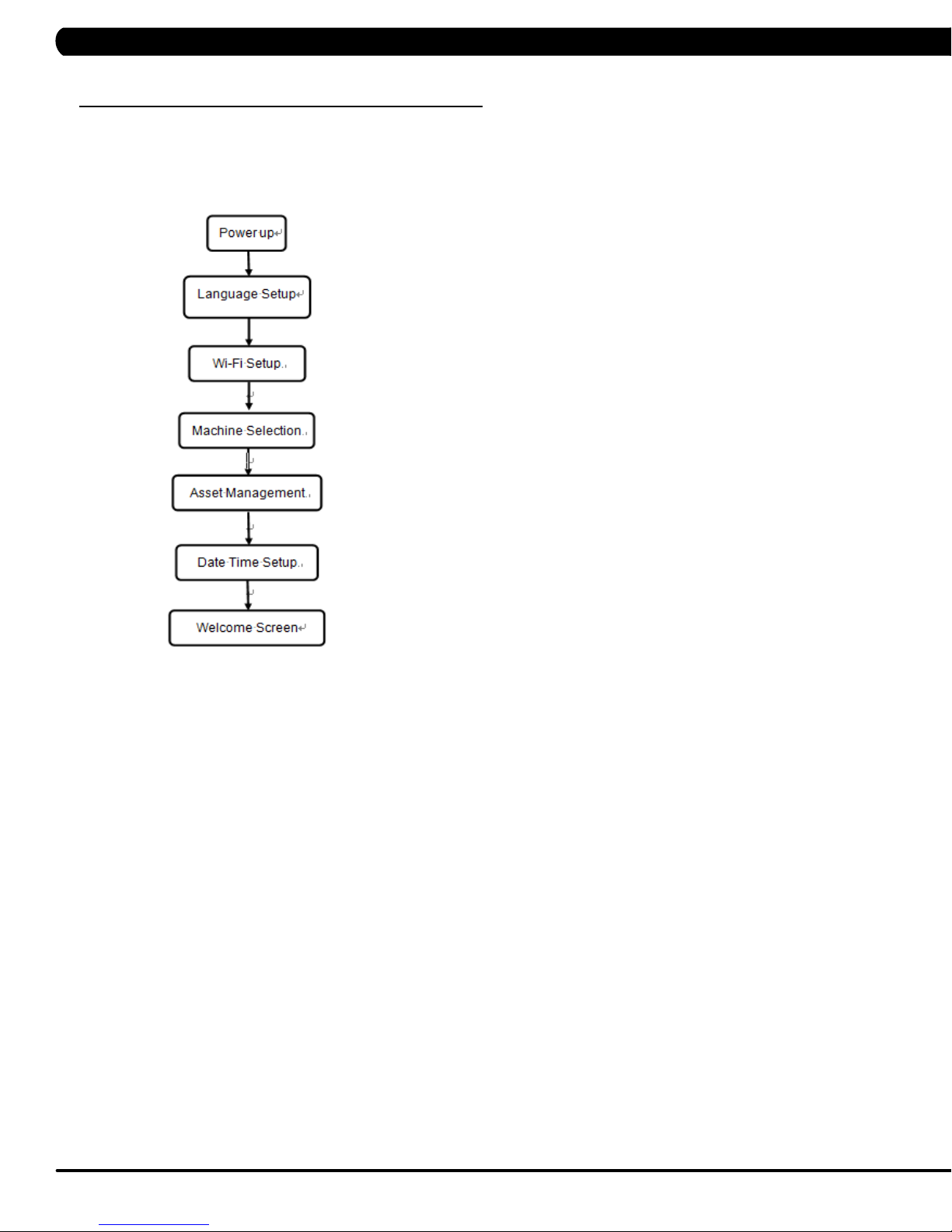

FIRST TIME SETUP SCREENS
To enter "Restore Factory Defaults" setting, press "ENTER, 3, 0, 0,
2, ENTER" on the number keypad and Factory Defaults setting will
appear on the display.
CHAPTER 4: CONSOLE OVERLAY AND WORKOUT DESCRIPTION
4.2 7XE/7XI CONSOLE OPERATION - CONTINUED

13
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment.
FCC RF Radiation Exposure Statement:
1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment
should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.
4.2 7XE/7XI CONSOLE OPERATION - CONTINUED
CHAPTER 4: CONSOLE OVERLAY AND WORKOUT DESCRIPTION

14
CHAPTER 5: MANAGER MODE
5.1 USING MANAGER MODE
1) To enter Manager Mode, press "ENTER, 1, 0, 0, 1, ENTER" on the number keypad and Manager Mode will appear on the display.
2) Manager Mode is divided into 9 tabs, located on the left side of the screen. They are General, Workout, Setup Defaults, Network Setup,
Asset Management, Weather, TV, Applications, Hardware and Service.
3) Choose a tab by touching the screen over the desired tab.
4) Each of the tabs has options that will appear once you have chosen that particular tab.
5) Press the "HOME" button or the EMERGENCY STOP to exit Manager Mode.

15
Category Name Models Default Range Units
General
Accumulated Time TACSEHUR 0 - Hours
Accumulated Distance TACSEHUR 0 - (TAEHU)Miles/Km
(CS)Floors
Serial Number - Console TACSEHUR Prefix+(Type)
+YYMM00000 YYMMxxxxx -
Serial Number - Frame TACSEHUR Prefix+(Type)
+YYMM00000 YYMMxxxxx -
Date TACSEHUR RTC Date 2000-2099/01
-12/01-31 -
Time TACSEHUR RTC Time 00-23:00-59:00-59 12hr/24hr
Time Zone TACSEHUR Central Time - -
Time Format TACSEHUR 12 Hour 12 Hour, 24 Hour -
Screen Timeout TACSEHUR 30 15-120, Never Seconds
Software Version History TACSEHUR - - -
Firmware Versions TACSEHUR - - -
Language Setup TACSEHUR English (U.S.) See Languages Table -
Social Network Post TACSEHUR
“I just exercised for
[time] on a Matrix
Fitness 7xi”
- -
Workouts
Keyboard Disable
Threshold T 2.0MPH/3.2KPH Machine Minimum - 4.0MPH/6.4KPH MPH/KPH
Maximum Workout Time TACSEHUR 60 10-120 Minutes
Maximum Workout
Calories TACSEHUR 10000 50-10000 Calories
Maximum Workout
Distance TAEHUR 31.1Mile/50Km (T)0.6-61.5Mile/1-99Km (AEHUR) 0.6-31.1Mile/1-50Km Miles/Km
Maximum Workout Floors CS 200 Floors 15-200 Floors Floors -
Maximum Level C 20 10-25 -
E-Stop Enable C TRUE True/False -
E-Stop Sensitivity C 100 4-400 -
Pause Time TACSEHUR 5 1-10 Minutes
Maximum Speed T 12 3.1-15.0 MPH/KPH
Start Speed T 0.5 0.5-1.4 MPH/KPH
Maximum Incline TA (T)15 / (A)100 (T)1.0-15.0 / (A)1-100 (T)% Grade / (A)%
Elevation TA (T)Below 5000 eet
(A) 0
(T)Above/Below
(A) 0-10000 Feet
Cooldown Time TACSEHUR 5 1-20 Minutes
Maximum Cool Down
Adjustment Time TACSEHUR 5 1-20 Minutes
CHAPTER 5: MANAGER MODE
5.2 MANAGER MODE OVERVIEW

16
CHAPTER 5: MANAGER MODE
5.2 MANAGER MODE OVERVIEW
Category Name Models Default Range Units
Setup Default
Level TASEHUR 1 (TSEHUR)1-20 (A)1-25 -
Age TACSEHUR 30 10-99 Years
Weight TACSEHUR 150lbs/68kg
(THUR)50-400lbs/22-182kg
(AE)44-440lbs/20-200kg
(CS) 80-400lbs/36-182kg
lbs/kg
Height TC 70in/173cm 40-90in/101-228cm in/cm
Gender TACSEHUR Male Male/Female -
Default Workout Time TACSEHUR 30 5-Max Minutes
Default Workout Calories TACSEHUR 300 50-Max Calories
Default Workout Distance TAEHUR 3.1Mile/5.0Km 0.1-Max (Mile and Km) Miles/Km
Default Workout Floors CS 20 15-Max Floors
Default Workout Incline A 0 0-Max %
Default Web page TACSEHUR http://www.google.
com - -
Update
Automatic Update TACSEHUR Check Check/No Check -
Update From USB TACSEHUR Update From USB Update From USB/Install -
Check For Updates TACSEHUR - Check For Updates/Install -
Network Setup
Wifi Mac Address TACSEHUR - - -
Ethernet Mac Address TACSEHUR - - -
Wi-fi Setup TACSEHUR - - -
Ethernet Setup TACSEHUR - - -
Asset
Management
Facility ID TACSEHUR 0 0-10000 -
Serial Number - Console TACSEHUR
C(for Console)
+ Prefix(Type)
+ Derivative
Model(A-Z,
AA, etc.)
+YYMMXXXXX
- -
Serial Number - Frame TACSEHUR
F (for Frame) +
Prefix (Type)+
Derivative Model
(A-Z, AA,etc.) +
YYMMXXXXX
- -
Asset Management TACSEHUR No Yes/No
Workout Tracking TACSEHUR No Yes/No
RFID Module Installed TACSEHUR No Yes/No
Upload Custom Theme TACSEHUR - - -
Show Custom logo TACSEHUR No Yes/No -
Custom Welcome
Screen TACSEHUR No Yes/No -
Custom Background
color TACSEHUR No Yes/No -
Show workout
Background TACSEHUR Production Dev, QA, Staging, Production -

17
CHAPTER 5: MANAGER MODE
5.2 MANAGER MODE OVERVIEW - CONTINUED
Category Name Models Default Range Units
Weather Enable Alerts TACSEHUR Check Check/No Check -
TV (Coaxial)
Tuner Type TACSEHUR Main Main, Brazil, Japan -
Connection Type TACSEHUR Antenna Antenna/Cable -
Country TACSEHUR United States - Countries
Source TACSEHUR ATSC ATSC, QAM, Analog -
Start Channel TACSEHUR 2 0-1000 -
Default Channel TACSEHUR 3 1.00-1000.00 Channels
Show TV Channel List TACSEHUR No Yes/No -
Aspect Ratio Mode TACSEHUR Auto Auto/Fill -
Over Scan Size TACSEHUR 0 0-20 -
Channel Button Setup TACSEHUR None/Channel 3 +
‘Name’ + TV Icon Channel Number: 1-999 -
Channel Order TACSEHUR - - -
Stop Channel TACSEHUR 100 0-1000 -
TV (Coaxial
Japan)
TV Channel Setup
(Control) TACSEHUR - Up, Down, Left, Right, Confirm, Scan, Menu, Exit
View input on mini
screen.
Default Channel TACSEHUR 3 1.00-1000.00 Channels
IPTV (Without
Set Top Box)
IPTV Channel Setup TACSEHUR None/Channel 1 +
‘Name’ Source, Name, Icon IP Address
Over Scan Size TACSEHUR 0 0-20 -
Default Channel TACSEHUR 3 - Channels
Use SAP Channel TACSEHUR No Check Check/No Check -
IPTV (With Set
Top Box)
IPTV HDMI Show
Remote TACSEHUR No Yes/No -
Over Scan Size TACSEHUR 0 0-20 -
IPTV Set Top Box Setup TACSEHUR None Enseo-3300_RAW IBT-
1283VOD LG_STB-2000_RAW
IPTV (HDMI over
IP)
Over Scan Size TACSEHUR 0 0-20 -
IPTV Set Top Box Setup TACSEHUR None Enseo-3300_RAW IBT-
1283VOD LG_STB-2000_RAW -
IPTV HDMI over IP
Setup TACSEHUR Broadcast Broadcast -
IPTV HDMI over IP
Setup TACSEHUR Connect Connect -
Direct Connect TACSEHUR No Yes/No -
Enable ErP TACSEHUR No Yes/No -
Enable SSL TACSEHUR Yes Yes/No -
IPTV HDMI Show
Remote TACSEHUR No Yes/No -
Enable Predefined
Commands TACSEHUR No Yes/No -
IPTV HDMI Bitrate TACSEHUR 4M 4M, 6M, 8M, 10M, 12M Mbps
HDMI over IP Command
List Setup TACSEHUR - - -

18
CHAPTER 5: MANAGER MODE
5.2 MANAGER MODE OVERVIEW - CONTINUED
Category Name Models Default Range Units
CAB
Default TV Channel TACSEHUR 3 - Channels
TV Channel Setup TACSEHUR - Up, Down, Confirm View input on mini
screen.
TV(Pro:ldiom)
Default TV Channel TACSEHUR 3 - Channels
Tuner Type TACSEHUR CVBS HDMI / CVBS
Applications Application Setup TACSEHUR Show Move, Hide/Make Inactive,
Locked -
Hardware
RFID Module Installed TACSEHUR No Check Check/No Check -
Backlight Brightness TACSEHUR 40 0-100 -
Master Volume TACSEHUR 30 0-30 -
Headphone Insertions TACSEHUR 0 - -
Headphone Removals TACSEHUR 0 - -
ErP TACSEHUR Check Check/No Check -
ErP Timeout TACSEHUR 30 1-60 Minutes
Play Key Sound TACSEHUR Check Check/No Check -
Play Workout Countdown
Sound TACSEHUR Check Check/No Check -
Ignore Incline Error TACSEHUR Check Check/No Check -
Ignore B Level Error TACSEHUR Check Check/No Check -
LCM Test TACSEHUR Write Test Pattern - -
LCM Version TACSEHUR - - -
Small LCD Reversed TACSEHUR No Yes/No -
Default Command
Expired Seconds TACSEHUR 5 3-15 Seconds
CSAFE - - - -
Remote TV Default
Channel - Disable Disable / Enable -
Service Service History TACSEHUR - - -
