G3-MS80 (MS80)
8-STACK MULTI STATION
STRENGTH
SERVICE MANUAL
All manuals and user guides at all-guides.com
all-guides.com

2
CHAPTER 1: SERIAL NUMBER LOCATION ………………………..…….3
CHAPTER 2: ASSEMBLY INSTRUCTIONS
2.1 G3-MS80 8-Stack Multi Station (MS80) Assembly Instructions..............................4
CHAPTER 3: TROUBLESHOOTING
3.1Troubleshooting - Cable issues……………………………….………………………12
CHAPTER 4: PART REPLACEMENT INSTRUCTIONS
4.1 Hand Grip Foam Replacement.............................................................................13
4.2 Pulley Set Adjustment Handle Replacement........................................................14
4.3 Pulley Set Sleeve Replacement...........................................................................16
4.4 Round Pad Replacement.....................................................................................17
4.5 Seat Pad Replacement.........................................................................................17
4.6 Back Pad Replacement........................................................................................18
4.7 Round Pad Adjustment Handle Replacement......................................................18
TABLE OF CONTENTS
All manuals and user guides at all-guides.com

3
1.1 SERIAL NUMBER LOCATION
The serial number is located at the bottom of the weight stack frame.
CHAPTER 1: SERIAL NUMBER LOCATION
All manuals and user guides at all-guides.com

4
2.1 G3-MS80 8-STACK MULTI STATION ASSEMBLY INSTRUCTIONS
UNPACKING G3-MS80 8-Stack Multi Station
Thank you for purchasing a MATRIX Fitness product. Your MATRIX G3-MS80 8-Stack Multi Station
is inspected before it is packaged.
Carefully unpack the unit from this box and dispose of the packing materials in accordance with
your local laws.
CAUTION
The weight of the G3-MS80 8-Stack Multi Station is 1980 lbs. (898.1 kg) not including the weight
stack. To avoid injury to yourself and prevent damage to the frame components, be sure to have
proper assistance removing the frame pieces from this box.
INCLUDE TOOLS REQUIRED FOR ASSEMBLY
3MM L-Shaped Allen Wrench
4MM L-Shaped Allen Wrench
5MM L-Shaped Allen Wrench
6MM L-Shaped Allen Wrench
8MM L-Shaped Allen Wrench
10MM L-Shaped Allen Wrench
Phillips Screwdriver
8MM Open-End Wrench
17MM Open-End Wrench
Guide Rod Lubrication
Hardware Bag
CHAPTER
2
: ASSEMBLY INSTRUCTIONS
All manuals and user guides at all-guides.com

5
The standard of the screw torque
NO Nom Diameter Torque (lbs/in)
1 M4 24
2 M5 49
3 M6 84
4 M8 288
5 M10 684
6 M12 1197
7 M14 1901
8 M16 2968
9 M18 4079
2.1 G3-MS80 8-STACK MULTI STATION ASSEMBLY INSTRUCTIONS - CONTINUED
All manuals and user guides at all-guides.com

6
2.1 G3-MS80 8-STACK MULTI STATION ASSEMBLY INSTRUCTIONS - CONTINUED
All manuals and user guides at all-guides.com
all-guides.com

7
2.1 G3-MS80 8-STACK MULTI STATION ASSEMBLY INSTRUCTIONS - CONTINUED
All manuals and user guides at all-guides.com

8
2.1 G3-MS80 8-STACK MULTI STATION ASSEMBLY INSTRUCTIONS - CONTINUED
All manuals and user guides at all-guides.com

9
2.1 G3-MS80 8-STACK MULTI STATION ASSEMBLY INSTRUCTIONS - CONTINUED
All manuals and user guides at all-guides.com

10
2.1 G3-MS80 8-STACK MULTI STATION ASSEMBLY INSTRUCTIONS - CONTINUED
All manuals and user guides at all-guides.com

11
2.1 G3-MS80 8-STACK MULTI STATION ASSEMBLY INSTRUCTIONS - CONTINUED
All manuals and user guides at all-guides.com
all-guides.com

12
3.1 TROUBLESHOOTING – CABLE ISSUES
CABLE IS LOOSE
POSSIBLE CAUSES
1. The fix bolts are loosed.
SOLUTION
1. Undo the top weight plate fixing nut, then the cable screw should be adjust fronted.(Figure A &
B).
2. Lock the fixing nut (Figure C).
Figure A Figure B
Figure C
CHAPTER
3
: TROUBLESHOOTING
All manuals and user guides at all-guides.com

13
4.1 HAND GRIP FOAM REPLACEMENT
1) To loose the screws of end cap of handlebar (Figure A).
2) To take off the end cap and cut off the original foam (Figure B).
3) Using tape to seal up the handlebar tube to avoid the oil or suds into the tube (Figure C).
4) To bent and hold the end of foam then put oil or suds into the inside of foam (Figure D).
5) Push the foam to tube (Figure E).
6) Take off the tape and fix the end cap. Torque required 24 lbs/in (Figure F)
Figure A Figure B
Figure C Figure D
Figure E Figure F
CHAPTER
4
: PART REPLACEMENT INSTRUCTIONS
All manuals and user guides at all-guides.com

14

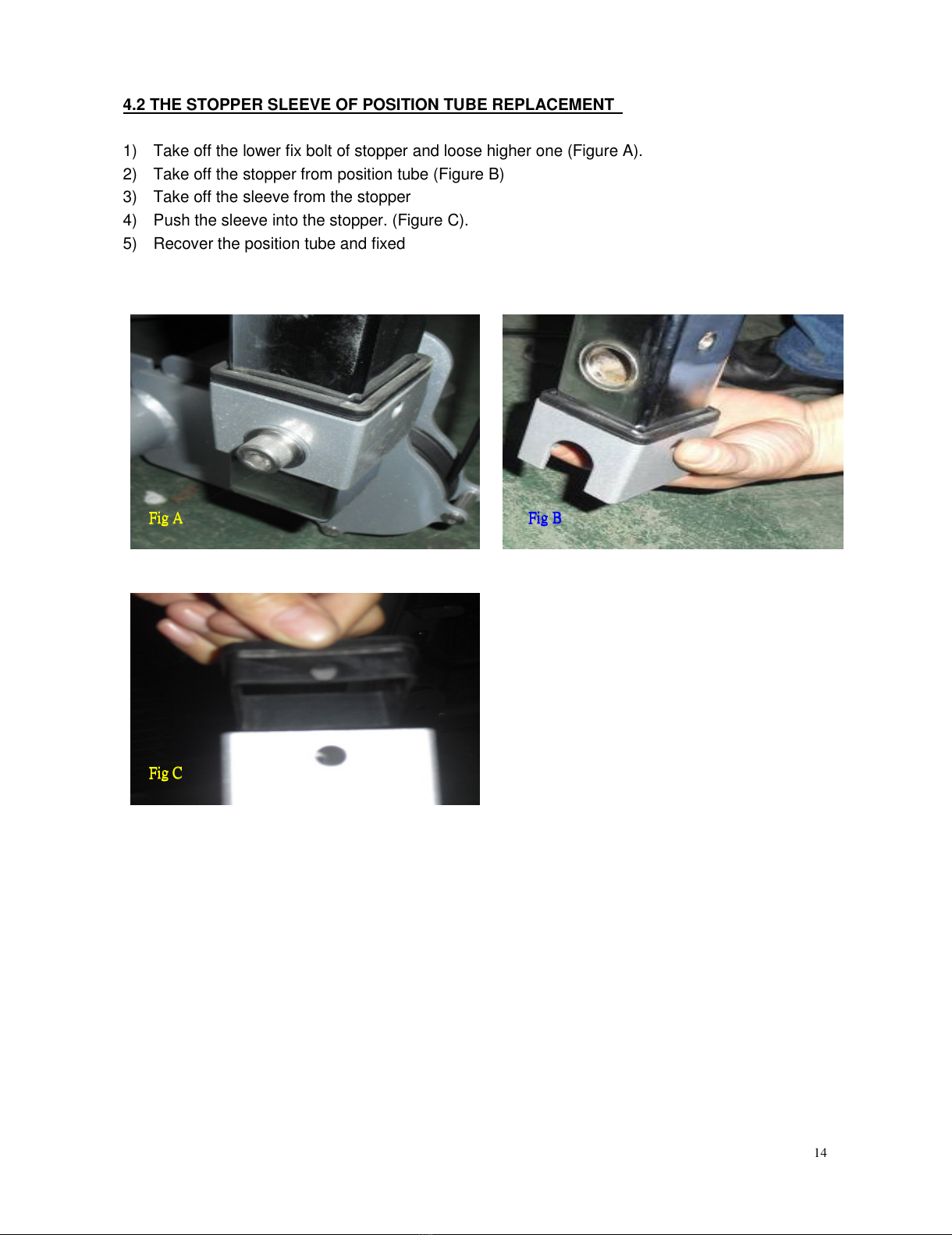

4.2 THE STOPPER SLEEVE OF POSITION TUBE REPLACEMENT
1) Take off the lower fix bolt of stopper and loose higher one (Figure A).
2) Take off the stopper from position tube (Figure B)
3) Take off the sleeve from the stopper
4) Push the sleeve into the stopper. (Figure C).
5) Recover the position tube and fixed
F
FF
Fi
ii
ig
gg
g C
CC
C
F
FF
Fi
ii
ig
gg
g B
BB
BF
FF
Fi
ii
ig
gg
g A
AA
A
All manuals and user guides at all-guides.com

15
4.3 THE SLEEVE OF PULLEY SET REPLACEMENT
1) Remove the cable fixing screw (Figures A)
2) Refer section 4.2 to remove the stopper then remove the pulley set from position tube (Fig. B)
3) Disconnect the two old tube bushings from the pulley set (Figures C & D).
4) Push another two new tube bushings in the pulley set (Figures E & F).
Figure A Figure B
Figure C Figure D
Figure E Figure F
All manuals and user guides at all-guides.com

16
4) Push the pulley set and sleeve into the adjustable tube (Figures G & H).
5) The cable fixing screw and the sleeve fixing screw should be locked (Figures I & J).
Figure G Figure H
Figure I Figure J
All manuals and user guides at all-guides.com
all-guides.com

17
4.4 ROUND PAD REPLACEMENT
1) Pull the old round pad from the tube (Figure A).
2) Push the new round pad into the tube (Figure B).
Figure A Figure B
4.5 SEAT PAD REPLACEMENT
1) Using 6MM L-Shaped Allen Wrench to take off 3 bolts of the old seat pad (Figure A)
2) Replace new pad and fix the 3 bolts (Figure B).
Figure A Figure B
1) Using 6MM L-Shaped Allen Wrench to take off 4 bolts of the old seat pad (Figure A)
2) Replace new pad and fix the 4 bolts (Figure B).
Figure A Figure B
All manuals and user guides at all-guides.com

18
4.6 BACK PAD REPLACEMENT
1) Using 8MM L-Shaped Allen Wrench to take off 4 bolts of the old back pad (Figure A)
2) Replace new pad and fix the 4 bolts (Figure B).
Figure A Figure B
4.7 ROUND PAD ADJUSTMENT PIN REPLACEMENT
1) Using 24MM Open-End Wrench to take off the old adjustment pin set (Figure A).
2) Replace new adjustment pin and fix it (Figure B)
Figure A Figure B
