Matrox Productiva G100 User manual

Matrox Graphics Architecture
Matrox Productiva G100 • Matrox Mystique G200 • Matrox Millennium G200
Installation Guide
10526-101-0420
1998.07.10
ENGLISH

2 Matrox Graphics Card – Installation Guide
Contents
Using this guide 3
Overview 4
Software supplied ...............................................................................................................4
Installation overview...........................................................................................................4
Hardware installation 5
Software installation 10
Software setup – Windows 95/98 11
Monitor setup....................................................................................................................11
Display setup.....................................................................................................................12
TV setup............................................................................................................................12
Software overview ............................................................................................................12
Software setup – Windows NT 4.0 14
Monitor setup....................................................................................................................14
Display setup.....................................................................................................................14
TV setup............................................................................................................................15
Software overview ............................................................................................................15
Troubleshooting 17
TV output..........................................................................................................................24
Display information 28
Hardware information 30
Customer support 32
Warranty 35
Index 37

Matrox Graphics Card – Installation Guide 3
Using this guide
This guide assumes you’re familiar with basic functions like click, right-click and double-click,
and that you’re familiar with the basics of the operating system you’re using. Also, we use the
following conventions:
Bold for text that appears on-screen, subheadings and labels.
Italics for file names, paths, publication titles, and new terms.
Bold Italics for emphasis.
Keyboard keys in square brackets, with a plus sign separating keys that you press
simultaneously. For example: press [Ctrl]+[Alt]+[Del] to restart your computer.
Arrows (“”) to separate ordered directions. For example, “click OK Close OK” is the
same as “click OK, then click Close, then click OK”.
When viewing online, green for cross-references and underlined green for links to Web pages.
Click green text to jump to what is being referenced. (To jump to Web pages, your system first
needs to have full Internet access.)
More information
We provide additional documentation in Help files, readme files, and Adobe Acrobat PDF
(Portable Document Format) files. To view or print PDF files, use the Acrobat Reader program,
which you can install from the “Matrox Installation” CD-ROM. This guide is available on the
CD-ROM as a PDF file (doc\inst_en.pdf). The online version of this guide has additional
information, including the following sections: “Hardware information”, “Customer support”,
“Warranty” and “Software license agreement”.
For context-sensitive Help where available, click the “ ” icon in the title bar, then click the
item you want help on. Right-click a Help topic for a pop-up menu that lets you print or copy it.
Also, be sure to check for any last-minute release notes at the end of this manual.

4 Matrox Graphics Card – Installation Guide
Overview
Thank you for purchasing a Matrox graphics card. Your Matrox Productiva G100, Mystique G200
or Millennium G200 card is a high-performance graphics card that plugs into an expansion slot
inside your personal computer.
The Matrox graphics engine gives you superior performance with Windows, digital video and 3D
graphics. To accelerate 3D programs, your Matrox card uses bus mastering and has hardware-
accelerated features, including texture mapping, Gouraud shading and Z-buffering. Matrox G200
cards also support more advanced 3D features such as alpha-blending, anti-aliasing, MIP-
mapping, and more. Depending on the model of your Matrox card, it supports display resolutions
up to 1800 × 1440 and 1920 × 1200.
Your Matrox graphics card is 100% VGA compatible and supports all VESA standards: VBE 2.0
(Super VGA modes), DPMS (energy saving), and DDC-2B (Plug-and-Play monitor).
Also,dependingonthemodelofyourMatroxcard,youcanupgradeitwithmoregraphicsmemory
ormultimedia hardwareadd-ons.Formoreinformationonavailableupgrades,seetheMatroxWeb
site (www.matrox.com/mga).
Software supplied
Matrox PowerDesk for Windows 95/98: Matrox display drivers; Accelerated DirectDraw and
Direct3D support; Settings, Monitor, Color, Hot Keys and Information property sheets; Matrox
Desktop Navigator, Matrox QuickDesk and Matrox Diagnostic programs; online documentation
Matrox PowerDesk for Windows NT 4.0: Matrox display drivers; Accelerated DirectDraw
and OpenGL support; Settings, Monitor,Information,Performance and PowerDesk property
sheets; Matrox Desktop Navigator and Matrox QuickDesk programs; online documentation
Accelerated drivers for Windows 3.1, Windows NT 3.51, and OS/2 Warp 3.0/4.0
Microsoft DirectX 5
Adobe Acrobat Reader for Windows
Online documentation
Various third-party software
Installation overview
1Install the hardware – see “Hardware installation”, page 5.
2Install the software –
for Windows 95/98 and Windows NT 4.0, see “Software installation”, page 10.
forWindows 3.1,Windows NT 3.51,andOS/2 Warp3.0/4.0,seethe readme fileintheroot
folder of the “Matrox Installation” CD-ROM.

Matrox Graphics Card – Installation Guide 5
Hardware installation
1Switch to the standard VGA display driver
If you’re running Windows 95/98 on your computer, this step isn’t necessary. If you’re using
another operating system (for example, Windows NT 4.0), see its documentation for how to
switch to VGA mode.
2Open your computer and remove your existing graphics card
Turn off your computer and all peripherals such as your monitor or printer. Open the computer
and remove your existing graphics card. (If you have a display adapter built into your
computer’s motherboard, it should automatically disable itself after your Matrox card is
installed.)
3Choose an expansion slot
Most computers have different types of
expansion slots. Choose an AGP or PCI slot,
depending on the type of Matrox graphics
card you have. Your system manual should
identify the location of each type of
expansion slot in your computer.
WARNING – Static electricity can severely damage electronic parts. Take these precautions:
Before touching any electronic parts, drain the static electricity from your body. You can do
this by touching the metal frame of your computer.
Don’t remove a card from the anti-static container it was shipped in until you’re ready to
install it. When you remove a card from your computer, place it back in its container.
When handling a card, hold it by its edges, and avoid touching its circuitry.
AGP slot
PCI slot
ISA slot
(Back of
computer)

6 Matrox Graphics Card – Installation Guide

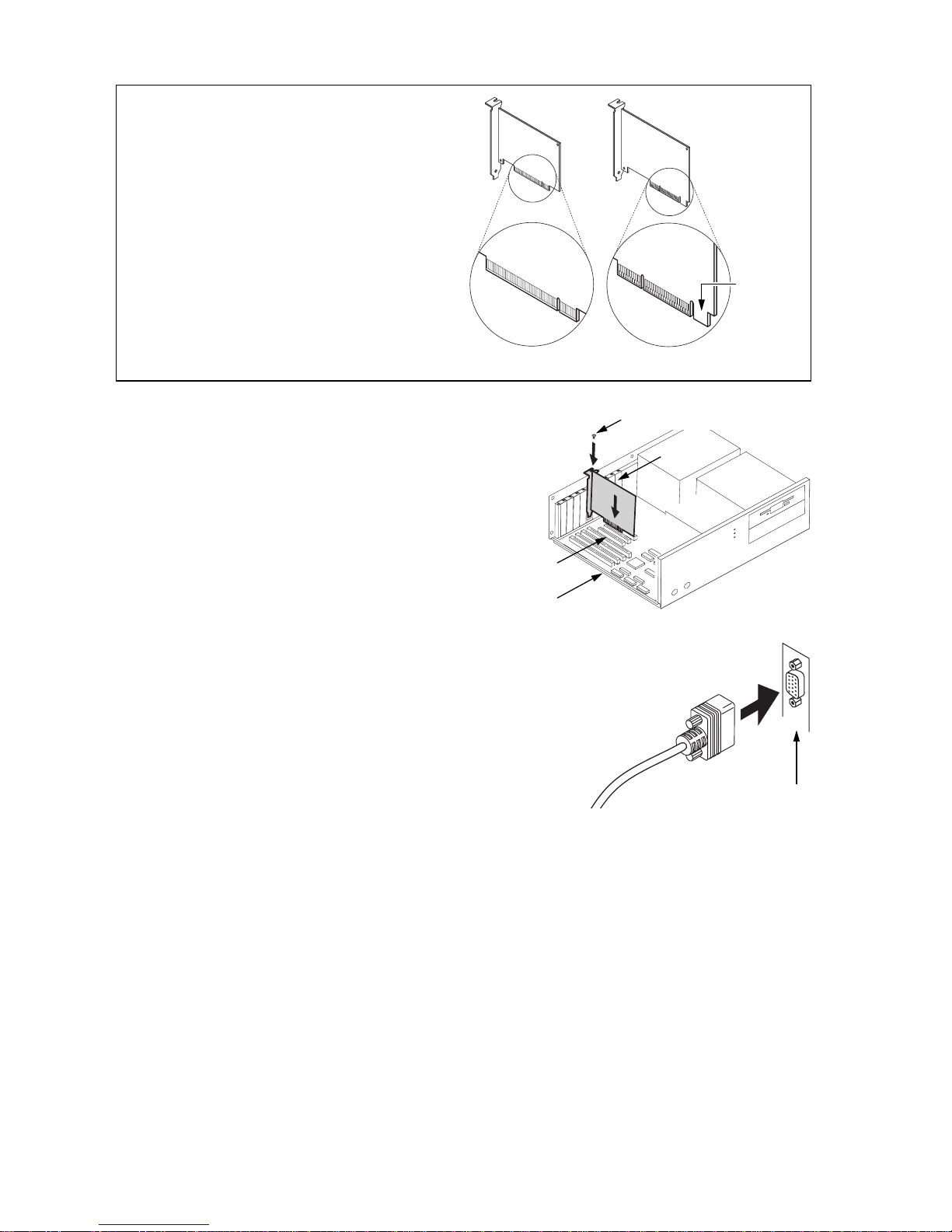

4Insert your Matrox card
Remove the cover for the slot you intend to
use. Save the screw for the mounting bracket.
Position your Matrox card over the expansion
slotyou’vechosen.Pushthecardinfirmlyand
evenly until it’s fully seated in the slot.
Replace the screw to secure the bracket of
your Matrox card to the computer frame.
5Connect the monitor
Simply plug your monitor cable into the
monitorconnectoronyour Matrox card. Make
sure the other end of the monitor cable is
properly connected to your monitor. See your
monitor manual for more information.
WARNING: Inserting your Matrox card into
the wrong type of slot could damage your
card, your computer, or both.
If you have an AGP card, don’t insert the
plastic tab (see picture) into the slot.
AGP cardPCI card
Plastic
tab
Expansion
slot
Graphics
card
Motherboard
Bracket screw
Matrox card
Monitor cable

Matrox Graphics Card – Installation Guide 7
6If your Matrox card
supports TV output:
Connect a TV or VCR (optional)
If your Matrox graphics card has extra video
connectors on its bracket, you can use them to
view or record the display of your computer
with a TV or VCR.
If your video device (TV or VCR) didn’t come
with composite video (RCA) or S-video
cables, this type of cable is available at most
electronics stores. The type you use depends
on what your video device (TV or VCR)
supports. Many video devices support
composite video connections, and some
higher-quality video devices support S-video
connections.
Attach one end of your composite video or
S-video cable to the appropriate connector on
your Matrox card. Attach the other end to the
VIDEO IN* connector on your TV† or VCR.
Before viewing or recording video output
directly from your computer, make sure your
TV or VCR is set up to use line input. For
example, if your TV has a TV/VIDEO switch,
set it to VIDEO; or if your VCR has a
TUNER/LINE switch, set it to LINE.
Optionally,ifyou use the compositevideo and
S-video connectors on your Matrox card, you
can directly connect two different video
devices at the same time.
To view and record output from the same
Matrox video connector, you can connect it to
aVCRandconnecttheVCRtoaTV.For more
information, see your VCR and TV manuals.
* The labels on your devices may not be consistent with what’s in this guide. Different manufacturers sometimes use
different labels for the same type of controls and connectors. For example, the VIDEO IN connector on your TV
may be labeled VIDEO 1 (or VIDEO 2). To match labels, see the documentation for your video devices.
† If your TV only has an antenna or cable TV connector, you can use an RF modulator to connect it to your Matrox
card. RF modulators are available at most electronics stores.
TV or VCR using
S-video
Composite video
(RCA) cable
S-video cable
TV or VCR using
composite video
Matrox card
(Note: Using the Matrox composite
video and S-video connectors at
the same time is optional.)

8 Matrox Graphics Card – Installation Guide
Sound output Typically, the sound
output from a computer comes from speakers
connected to your sound card. If you prefer,
you can hear or record the sound output from
yourcomputerusingthe same TV or VCR you
connect to your graphics card. To do this, you
need an audio cable with a stereo jack on one
end, and two RCA connectors on the other
end. If you don’t have this type of cable, you
can buy one at most consumer electronics
stores.
Plugthestereo-jackendof the audio cableinto
the LINE OUT* connector on your sound card.
Plug the other end of the cable into the left (L)
and right (R) AUDIO IN connectors of your
video device. For more information, see your
sound card manual.
SCART adapter Some video devices in
Europe only have SCART connectors. This
type of connector includes video and audio,
whereas composite video or S-video
connectors include only video.
If your TV or VCR only uses a SCART
connector, you need a SCARTcableadapterto
connect your computer to that TV or VCR. If
you don’t already have a SCART adapter, you
shouldbeableto purchase one from your local
electronics store. You need a SCART adapter
with 3 female connectors – 2 audio and
1 video. There are different SCART adapters
for composite video and S-video. If you’re not
sure which your TV or VCR supports, see its
manual.
* If your sound card has no LINE OUT connector, you can use its SPKR connector instead. In this case, all your
computer’s sound output goes to the video device you connected to.
TV or VCR
Sound
card
S-video SCART adapter
with 3 female
connectors
Composite SCART
adapter with 3 female
connectors
SCART connector

Matrox Graphics Card – Installation Guide 9
To use a SCART adapter, connect the SCART end of the adapter to your TV or VCR, then
connect the other end to your Matrox card and sound card.
For a TV with separate lines for red, green and blue video signals, a special SCART adapter is
available. For more information on this special adapter, see the Matrox Web site
(www.matrox.com/mga).
7Restart your computer
If you’re using Windows 95/98, it detects new hardware when you restart. If Matrox display
drivers haven’t been previously installed, Windows reports finding a PCI adapter (even if you
have an AGP card).
If you see the New Hardware Found dialog box, click “Do not install a driver”, then OK.*
If you see the Update Device Driver Wizard dialog box, click Next, then Finish.
If you see the Add New Hardware Wizard dialog box, click Next Next Next Next 
Finish, then Yes to restart your computer.
Atthispoint,Windowsisusingadisplaydriverthatdoesn’tfullysupportyourMatroxgraphics
card. To install Matrox display drivers and other software, see “Software installation”,
page 10.
8Install the software
If you’re using Windows 95/98 or Windows NT 4.0, see “Software installation”, page 10.
If you’re using Windows 3.1, Windows NT 3.51, or OS/2 Warp 3.0/4.0, see the readme file
in the root folder of the “Matrox Installation” CD-ROM.
* If you prefer, you can select “Driver from disk provided by hardware manufacturer” to install the Matrox display
drivers from the root folder of the “Matrox Installation” CD-ROM.

10 Matrox Graphics Card – Installation Guide
Software installation
This section describes how to install Matrox software for Windows 95/98 or WindowsNT4.0.
(For other operating systems, see the readme file in the root folder of the “Matrox Installation”
CD-ROM.)
1Insert the “Matrox Installation” CD-ROM in your CD-ROM drive – the mgasetup program
automatically starts. This setup program works with Windows 95/98 and Windows NT 4.0,
and detects which operating system you’re using.
2Select the language you want to use, then click Next.
3To see notes on the contents of the CD-ROM, click View ReadMe. To continue, click Next.
4If this is a first-time installation, the setup program lists the software that needs to be installed
to take advantage of your Matrox hardware. To begin the software installation, click Install.
5When prompted, choose an installation type:
To install the complete Matrox PowerDesk
(recommended), click Typical.
To customize the PowerDesk installation,
click Custom.
After you choose, the setup program
automatically installs Matrox software and
drivers. After this is done, leave the CD-ROM in
your CD-ROM drive, then click OK to restart your
computer and for all changes to take effect.
6After you restart your computer, the CD-ROM
setup program starts again. The main menu lists other software you can install from the
CD-ROM. To install, select an item, click Install, then follow the on-screen instructions. After
the installation of an item is finished, you can return to the main menu to install another. Click
Exit when you’re done.
If this is a first-time installation, your display is using a 640 × 480 resolution with 256 colors –
supported by most monitors. To adjust software monitor settings:
for Windows 95/98, see “Software setup – Windows 95/98”, page 11.
for Windows NT 4.0, see “Software setup – Windows NT 4.0”, page 14.

Matrox Graphics Card – Installation Guide 11
Software setup – Windows 95/98
To access Matrox PowerDesk programs and online documentation, click Programs 
Matrox PowerDesk. You can also access PowerDesk features by clicking the Matrox QuickDesk
icon ( ) on the Windows taskbar.
Monitor setup
To check your monitor settings
1Click Programs Matrox PowerDesk Matrox Display Properties Monitor.
2If you have a Plug-and-Play monitor:
Make sure the Windows monitor button is selected and Plug and
Play Monitor, or the model name of your monitor, appears
immediately under it. If so, the Matrox display driver automatically uses the correct settings
for your monitor.
If you don’t have a Plug-and-Play monitor:
If the monitor type listed under the Windows monitor button is
incorrect or shows Unknown Monitor, you should select a
monitor.
To select a monitor, click the Matrox monitor button, select your monitor by name in the list
below this button, then click OK. If your monitor doesn’t appear in the list, you can try the
Windows method of monitor selection. For more information on monitor selection, see the
online Matrox PowerDesk guide.
Note: The Matrox display driver for Windows 95/98 supports multiple displays with
Windows 98. However, Matrox PowerDesk features are disabled in multi-display mode. To
change your display settings while in multi-display mode, use Windows controls. For more
information on multi-display mode, see Windows 98 online Help under “Multiple Display
support”.
Note: Many Plug-and-Play monitors don’t automatically report if they’re capable of
1152 × 864, or 1600 × 1200 and higher display resolutions. To use these resolutions, or higher
refresh rates than those reported by the monitor, you can use the Matrox monitor selection
method.
WARNING: If incorrect software monitor settings are applied, some monitors can be
permanently damaged. For more information, see your monitor manual.

12 Matrox Graphics Card – Installation Guide
Display setup
After checking your monitor’s software settings, you can change your display resolution, color
palette and other Matrox PowerDesk settings. To access Matrox display property sheets, click
Programs Matrox PowerDesk Matrox Display Properties. To change your display
resolution or color palette, click the Settings tab. For more information on changing your display
settings, see the online Matrox PowerDesk guide.
TV setup
If your Matrox graphics card supports TV output, you can view or record your computer display
on a TV or VCR connected to your computer. (To connect video devices to your computer, see
page 7.) To use TV output mode:
1Click Programs Matrox PowerDesk Matrox Display Properties Settings.
2Enable the Output to TV check box.
(To adjust advanced TV output settings, click Advanced TV Out. For more information on
settings, see context-sensitive Help.)
3Click OK to close the dialog box and apply changes.
While in TV output mode, your computer display uses TV settings. TV settings have lower
resolutionsandrefreshratesthantypicalcomputermonitorsettings.Lowerrefreshratesmayresult
in more noticeable flicker. To turn off TV output mode, clear the Output to TV check box.
Software overview
Matrox PowerDesk for Windows 95/98 includes
Matrox display driver with:
DirectDraw and Direct3D support for direct access to Matrox hardware.
Plug-and-Play (DDC-2B) and Energy Star (DPMS) support.
Settings property sheet to change your display settings. Use this sheet to access Matrox
PowerDesk features such as:
Desktop mode buttons to set up a proportional, horizontal or vertical virtual desktop.
Display schemes to easily switch to a pre-defined display setting.
WARNING: Some computer monitors may not support the 50 Hz vertical refresh rate used
with European TV settings. Some monitors may even be damaged if they use this refresh rate.
For more information, see your monitor manual.

Matrox Graphics Card – Installation Guide 13
Performance property sheet to change Matrox display driver performance settings.
Utilities property sheet to configure Matrox PowerDesk options.
TV Out property sheet to control advanced TV output settings. (This is available only if
your Matrox graphics card supports TV output.)
Monitor property sheet to inform the Matrox display driver of your monitor’s capabilities. You
can use this sheet instead of the Windows method of monitor selection.
Color property sheet to change your display’s color balance.
Hot Key property sheet to define keyboard shortcuts for:
CenterWINDOW to center your view area on the active window.
MaxVIEW to resize the active program window to the size of your current display area.
PanEND to move your display area to the right or bottom of your virtual desktop.
PanHOME to move your display area to the left or top of your virtual desktop.
PanLOCK to enable or disable panning.
PixelTOUCH to magnify part of your desktop area.
Your favorite display schemes.
Information property sheet for information on your display hardware and software.
Matrox Desktop Navigator program to quickly move the view area of your desktop and for easy
access to the PixelTOUCH zoom, PanLOCK and CenterWINDOW features.
Matrox QuickDesk menu to quickly switch to a saved display scheme, to save and restore the
position of your desktop icons, to open the Matrox Display Properties dialog box, to start your
screen saver, or to start Matrox Desktop Navigator. To see this menu, click the QuickDesk icon
( ) on the Windows taskbar.
Matrox Diagnostic program to identify some possible display-related problems.

14 Matrox Graphics Card – Installation Guide
Software setup – Windows NT 4.0
To access PowerDesk programs and online documentation, click Programs Matrox
PowerDesk NT. You can also access PowerDesk features by clicking the Matrox QuickDesk icon
( ) on the Windows taskbar.
Monitor setup
To check your monitor settings
1Click Programs Matrox PowerDesk Matrox Display Properties Monitor.
2If you have a Plug-and-Play monitor:
Make sure the Plug-and-Play (DDC) monitor button is selected. If
so, the Matrox display driver automatically uses the correct settings for your monitor. If not,
click this button, then click Apply.
If you don’t have a Plug-and-Play monitor:
See if the Default monitor (60 Hz) button is selected. If so, use the
Matrox monitor selection method. For more information on Matrox monitor selection, see the
online Matrox PowerDesk guide.
Display setup
After checking your monitor’s software settings, you can change your display resolution, color
palette and other Matrox PowerDesk settings. To access Matrox display property sheets, click
Programs Matrox PowerDesk Matrox Display Properties. To change your display
resolution or color palette, click the Settings tab. For more information on changing your display
settings, see the Matrox PowerDesk online guide.
Note: Many Plug-and-Play monitors don’t automatically report if they’re capable of
1152 × 864 or 1600 × 1200 and higher display resolutions. To use these resolutions, or higher
refresh rates than those reported by the monitor, you can use the Matrox monitor selection
method.
WARNING: If incorrect software monitor settings are applied, some monitors can be
permanently damaged. For more information, see your monitor manual.

Matrox Graphics Card – Installation Guide 15
TV setup
If your Matrox graphics card supports TV output, you can view or record your computer display
on a TV or VCR connected to your computer. (To connect video devices to your computer, see
page 7.) To use TV output mode:
1Click Programs Matrox PowerDesk Matrox Display Properties Monitor.
2Depending on the standard your TV or VCR uses, click one of the following buttons:
Output to TV (NTSC) – The NTSC standard is used in North America and Japan, among
other places.
Output to TV (PAL) – The PAL standard is used in most of Western Europe and in China,
among other places.
If you’re not sure what standard your TV or VCR uses, check its documentation.
3Click OK to close the dialog box and apply changes.
While in TV output mode, your computer display uses TV settings. TV settings have lower
resolutionsandrefreshratesthantypicalcomputermonitorsettings.Lowerrefreshratesmayresult
in more noticeable flicker. To turn off TV output mode, select a monitor settings button (see
“Monitor setup”, page 14).
Software overview
Matrox PowerDesk for Windows NT 4.0 includes
Matrox display driver with:
Multi-display support to use up to 5 monitors at a time (one monitor for each Matrox card
– of the same type – in your computer)
Accelerated DirectDraw and OpenGL support for direct access to Matrox hardware.
Plug-and-Play (DDC-2B) monitor support.
Settings property sheet to change your display settings. This sheet provides access to Matrox
PowerDesk features such as:
Desktop mode buttons to set up a proportional, horizontal or vertical virtual desktop.
Display schemes to easily switch to a pre-defined display setting.
Monitor property sheet to inform the Matrox display driver of your monitor’s capabilities.
WARNING: Some computer monitors may not support the 50 Hz vertical refresh rate used
with European TV settings. Some monitors may even be damaged if they use this refresh rate.
For more information, see your monitor manual.

16 Matrox Graphics Card – Installation Guide
Information property sheet to display hardware and software version numbers and capabilities.
Performance property sheet to configure advanced driver performance settings.
PowerDesk property sheet with settings for:
PixelTOUCH to zoom in and pan on your view area.
CenterWINDOW to center opened windows in your view area.
MaxVIEW to maximize windows in your view area instead of your desktop.
CenterPOPUP to have new windows pop up in the center of your current view area.
Matrox Desktop Navigator (DeskNav)programtoquicklychangetheviewareaof your desktop
and give you quick access to the PixelTOUCH zoom and CenterWINDOW features. Access
DeskNav through Programs Matrox PowerDesk NT.
Matrox QuickDesk menu to quickly switch between your saved display schemes, open the
Matrox Display Properties dialog box or launch Matrox Desktop Navigator. This program
appears as a monitor icon on the Windows NT taskbar.

Matrox Graphics Card – Installation Guide 17
Troubleshooting
This section contains solutions to problems you may encounter with your Matrox graphics card.
Problem Computer doesn’t boot after Matrox card is installed
Cause There may be another graphics adapter in your computer. (For Matrox multi-
display mode in Windows NT, all other graphics cards in your computer must also
be Matrox cards of the same model.)
Solution If another graphics card is plugged into an expansion slot, remove it.
Solution If a graphics adapter is built-in to your computer’s motherboard, your system may
have not automatically disabled it when you inserted your Matrox card. Check your
system manual for instructions on how to disable your computer’s built-in graphics
adapter.
Problem Wrong color balance, screen image off-center, or no picture at all
Cause Your monitor’s video controls may be improperly set.
Solution Adjust your monitor’s controls (brightness, contrast and so on). For more
information, see your monitor manual.
Cause Your monitor may not be properly connected.
Solution Make sure the monitor’s power cable is firmly in place.
Solution Make sure the 15-pin connector to your Matrox graphics card
is firmly in place.
Solution If your monitor uses a 15-pin connector, make sure the
connection to the monitor is firmly in place.
For a list of notes, problems and limitations, click Programs Matrox PowerDesk 
Readme.
15-pin connector

18 Matrox Graphics Card – Installation Guide
Solution IfyourmonitorusesBNC input, make
sure the Red, Green, Blue, Horizontal
Sync (HSYNC – white or gray wire),
and Vertical Sync (VSYNC – black
wire) connections are firmly in place
and plugged into the correct input.
Cause If your monitor uses BNC input, one or more connection settings may be incorrect.
Solution Set each of your monitor’s RGB input and sync switches (if available) to 75 ohms,
with the sync set to “external”. These controls are usually switches on the back of
your monitor.
Problem After the startup screen, or after display settings are changed,
the screen image is garbled or unusable
(rolling screen images, overlapping screen images
or a blank screen)
Cause The Matrox display driver may be trying to use settings your monitor doesn’t
support. This can happen if a monitor was never selected in the software and the
display resolution was changed to one your monitor doesn’t support, or if the
monitor connected to your computer was changed without it being changed in the
software.
Solution Windows 95/98:
1Press [Ctrl]+[Alt]+[Del] twice to restart your computer.
2Before Windows starts, press [F5] to enter “safe mode”.
3Right-click the Windows desktop background, then click the Properties menu
item Settings tab.
4Move the Desktop area slider down to its lowest settings, then click OK.
5Restart your computer normally.
6Select a monitor with the Matrox Monitor property sheet, then you can adjust
your display settings. For more information, see the online Matrox PowerDesk
guide.
WARNING: If incorrect software monitor settings are applied, some monitors
can be permanently damaged. For more information, see your monitor manual.
Bayonet Nut Connect (BNC)

Matrox Graphics Card – Installation Guide 19
Solution Windows NT 4.0:
1Press [Ctrl]+[Alt]+[Del] [Tab] [Tab] [Enter] [] (down arrow) 
[Enter] to restart your computer.
2From the startup menu, choose Windows NT 4.0 “VGA mode”.
After startup, Matrox software prompts you that Matrox display drivers aren’t
active; click OK to continue.
3Right-click the Windows desktop background, then click the Properties menu
item Settings tab.
Windows may prompt you that the display settings are incorrect for the current
mode; click OK to continue.
4Move the Desktop area slider down to its lowest settings, then click OK.
5Restart your computer normally.
6Select a monitor with the Matrox Monitor property sheet, then you can adjust
your display settings. For more information, see the online Matrox PowerDesk
guide.
Problem After game for Windows 95/98 starts,
monitor doesn’t display properly
(rolling screen images, overlapping screen images
or a blank screen)
Cause If your game uses a low-resolution (640 × 480 and below), full-screen display
mode, your monitor may not support the refresh rate the Matrox driver is using.
Solution 1If the game is still running in full-screen mode, press [Ctrl]+[Alt]+[Del] once
for the Close Program dialog box, and then click the End Task button.
2Click Programs Matrox PowerDesk Matrox Display Properties 
Monitor (tab) Matrox monitor (button).
3From the Matrox monitor list, select the monitor model you’re using. If your
monitor model doesn’t appear in the list, select a monitor that runs at 60 Hz at
640 × 480 (for example, Standard Monitor Types Vesa 1024X768 @60Hz).
For more information on Matrox monitor selection, see the online Matrox
PowerDesk guide.
4Click OK to apply your selection and close the dialog box.

20 Matrox Graphics Card – Installation Guide
Problem 3D program for Windows 95/98 or Windows NT 4.0
doesn’t start or stops running
(program uses bus mastering)
Cause Your computer or program may not work well with bus mastering.
Solution Disable bus mastering.
(If you want to continue using bus mastering, see the other solutions.)
Windows 95/98:
1Click Programs Matrox PowerDesk Matrox Display Properties 
Settings Advanced Performance.
2Clear the Use Bus Mastering check box.
3Click OK OK Yes to accept the changes and restart your computer.
Windows NT 4.0:
1Click Programs Matrox PowerDesk Matrox Display Properties 
Performance.
2Clear the Use Bus Mastering (OpenGL) check box.
3Click OK Yes to accept the changes and restart your computer.
Cause (PCI graphics cards only) Your Matrox card may be in a “slave” expansion slot
on a computer that makes a distinction between bus mastering and slave slots.
Solution Change slots. Shut down your computer, disconnect it from the power supply,
remove your Matrox card and then insert it into a different PCI expansion slot. For
instructions on how to safely install your Matrox card, see “Hardware installation”,
page 5.
Cause Your computer may have not given an interrupt request (IRQ) to your Matrox
graphics card or may have given one used by another device in your computer. This
may be because your computer’s “Plug-and-Play” feature is turned off.
To check the display adapter’s IRQ (Windows 95/98):
1Right-click the My Computer icon on the Windows desktop background, then
click the Properties menu item Device Manager tab.
2Click the plus sign to the left of the Display adapters. An “X” through an icon
means the hardware has been disabled. A circled exclamation point through the
icon means the hardware has a problem.
