Maven SLA600 Series User manual

SLA UV 3D Printer
Guide and User Manual
1
Guide and User Manual
SLA600 Series
________________________________________________________
Maven Laser Automation Co.,Ltd.. Version: 02 Date:2019.06.30

SLA UV 3D Printer
Guide and User Manual
2
Catalog
Catalog ……………………………………………………………....2
1. Instruction…………………………………………………………..3
1.1 Instruction ……………………………………………………..3
1.2 Attention ……………………………………………………….3
1.2.1 Safety ……………………………………………………4
1.2.2 Contact us ………………………………………………4
1.3 Components checklist ……………………………………5
2. Product overview …………………………………………………5
2.1 Product catagory …………………………………………….5
2.2 Product appearance ……………………………………….6
2.3 Specifications ……………………………………………….7
2.3.1 Technical parameters …………………………………7
2.3.2 Operating environment…………………………………9
3. Operating instructions ………………………………………..9
3.1 Preparation before unpacking and printing………………10
3.2 Software instuction …………………………………………10
3.2.1 Introduction of software functions ……………........10
3.2.2 Printing process ………………………………………..11
4. Maintenance ……………………………………………….....16
5. Troubles and troubleshooting ………………………………16
6. Warranty statement and license agreement ……………….17
________________________________________________________
Maven Laser Automation Co.,Ltd.. Version: 02 Date:2019.06.30

SLA UV 3D Printer
Guide and User Manual
3
1. Instruction
1.1 Instruction
This Manual mainly inlcudes product overview, operation
instructions, model printing process , maintenance and
troubleshooting. Please read carefully and use this SLA
industrial 3D printer accordingly.
1.1 Attention
1. Please check if the components are complete and the
appearance is not damaged when receiving the printer.
2. Environmental requirements: temperature:25~30℃,
humidity: less than 40%, dust - free clean workshop.
3.Photosensitive resin is needed for this printer.In the
process of storage and printing of photosensitive resins,
natural light, oil and water should be avoided to pollute the
resin.
4. Do not move the printer or turn off power when the
printer is in the process of printing. Please follow this manual
to turrn on and turn off the printer.
5. Do not let the printer close to strong magnetic field
when printing, which will interfere with the printing process.
________________________________________________________
Maven Laser Automation Co.,Ltd.. Version: 02 Date:2019.06.30

SLA UV 3D Printer
Guide and User Manual
4
6. Press the emergency botton in time when wrongly
operation happened.
1.2.1 Safety
In the process of using and testing, attention should be
paid to safety and proper wearing of laser protective goggles
to avoid laser irradiation of eyes and skin.
The power should be turn off to prevent electric shock
when repairing the circuit.
1.2.2 Contact us
Company: Shenzhen SERON Laser Equipment Co.,Ltd.
Sales Manager: Anson
Mobile: [phone];
Email: [email protected];
Company address:
2/F Qingxiang industrial park,
Dakan, Huangjiang, Dongguan, 523750,
Guangdong, China.
________________________________________________________
Maven Laser Automation Co.,Ltd.. Version: 02 Date:2019.06.30

SLA UV 3D Printer
Guide and User Manual
5
1.3 Product checklist
Printer*1set
Power cables*1piece
2. Product Overview
2.1 Product Catagory
3D Printing is a rapid prototyping equipment based on
additional materials manufacturing(So called Stereo
Lithography Apparatus), of which process is fully controlled by
computer. You can print all kinds of complex
three-dimensional solid models when input 3D files in the
printing software. The machine is easy to operate. Even if you
have never used a 3D printer, you can easily print all kinds of
products with a SERON 3D printer.
________________________________________________________
Maven Laser Automation Co.,Ltd.. Version: 02 Date:2019.06.30

SLA UV 3D Printer
Guide and User Manual
6
2.2 Product appearance
________________________________________________________
Maven Laser Automation Co.,Ltd.. Version: 02 Date:2019.06.30

SLA UV 3D Printer
Guide and User Manual
7
2.3 Specifications

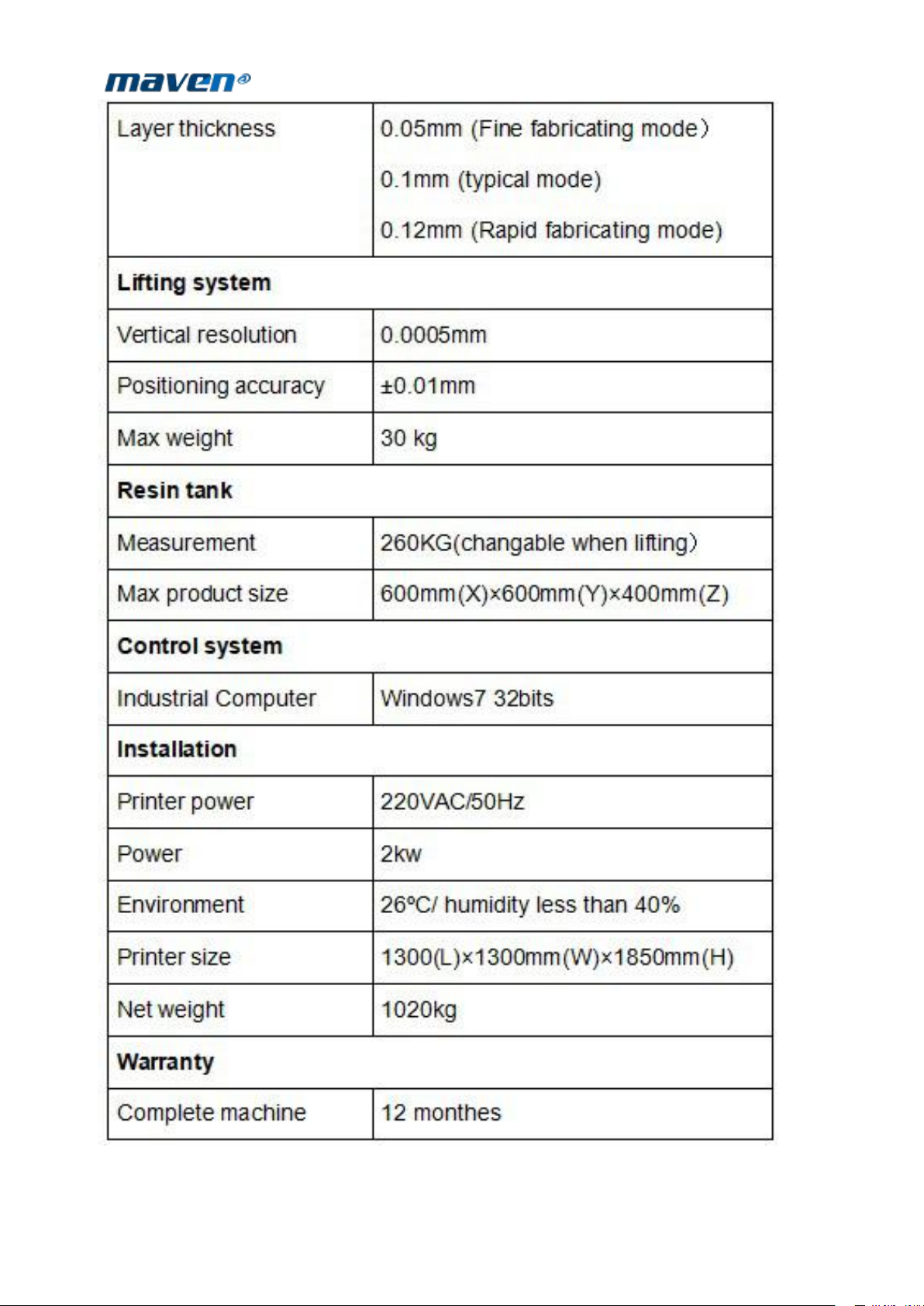

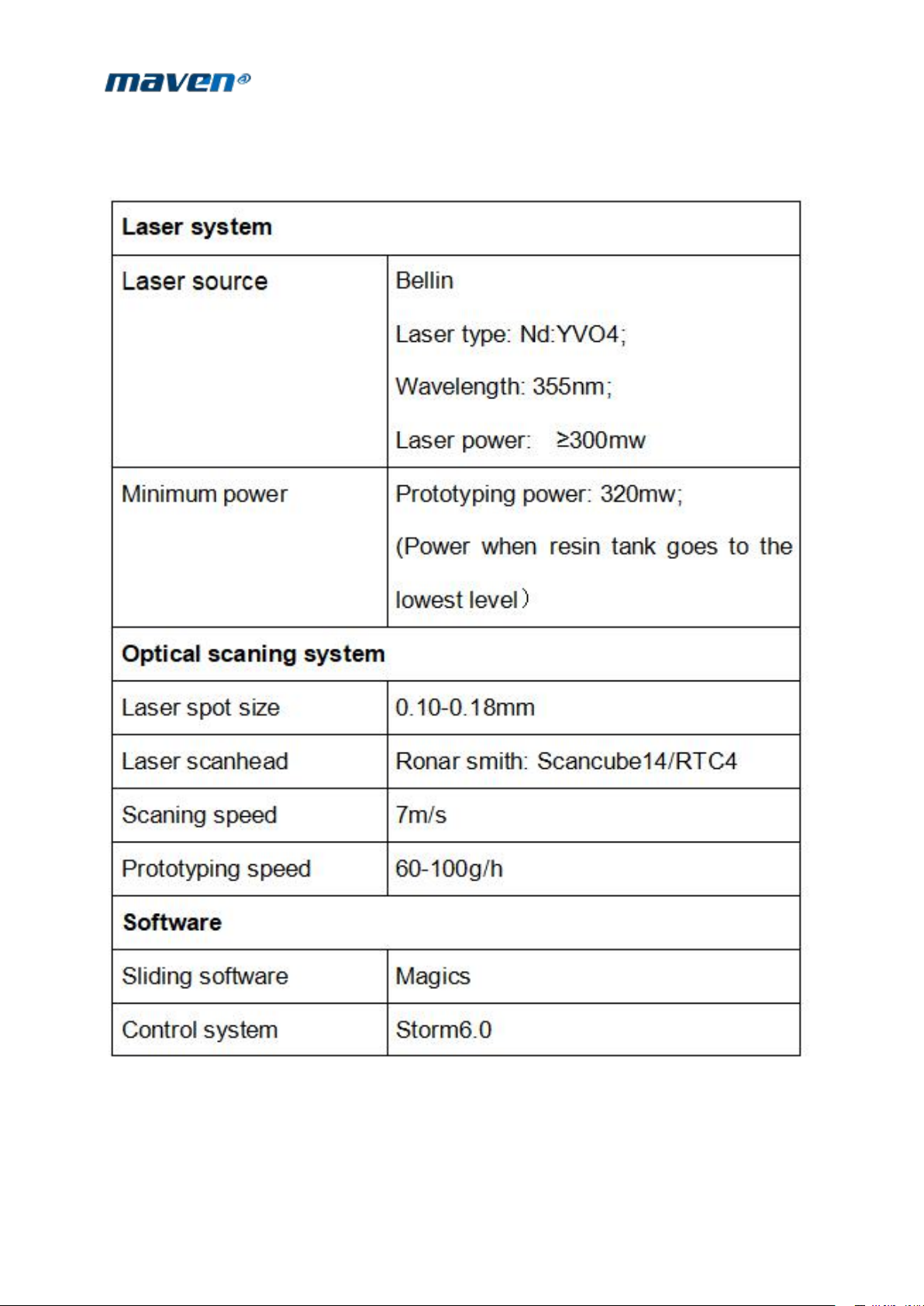

2.3.1 Technical parameters
________________________________________________________
Maven Laser Automation Co.,Ltd.. Version: 02 Date:2019.06.30

SLA UV 3D Printer
Guide and User Manual
8
________________________________________________________
Maven Laser Automation Co.,Ltd.. Version: 02 Date:2019.06.30

SLA UV 3D Printer
Guide and User Manual
9
2.3.2 Operating environment
Temperature: 25~30℃, humidity: less than 40%.
Avoid strong light illumination as far as possible.Yellow light
lamp is suggested for the room where the printer is lightening.
Keeping the room dust-free and clean to avoid the existence of
large vibration sources near the equipment, which will affect the printing
effect.
3. Operating instructions
3.1 Preparation before unpacking and printing
(1) Check and be sure the package of equipment is in good
condition, no scratches and damages.
(2) Install the machine. Putting two pieces fitter level device on
the marble in X and Y direction. Adjust the four pieces anchor bolts to
check the level of the printer then lock it.
(3) Energize the printer. Turn on the power of the
machine,industrial computer and laser source (follow the laser source
manual ).
(4) Unlock the emergency botton, press the start botton to
energize the machine.
________________________________________________________
Maven Laser Automation Co.,Ltd.. Version: 02 Date:2019.06.30

SLA UV 3D Printer
Guide and User Manual
10
(5) Press the QS-EXT key on laser comtrol panel to make
the laser in the external control mode.
3.2 Software instuction
3.2.1 . Printing steps
(1) Process 3D files via ‘Materialise Magics’. Place the workpieces
on Magics at a reasonable angle, build a reasonable support and layout.
Save the slices of the workpiece in ‘.slc’ ( solid file) and ‘s-.slc’
(supporting file). as printing file.
(2) Add the printing file to DvBuild1 software for printing.
________________________________________________________
Maven Laser Automation Co.,Ltd.. Version: 02 Date:2019.06.30

SLA UV 3D Printer
Guide and User Manual
11
(3) The product need to do post-treatment after printing process
finished. Soak the product in alcohol to remove the remaining resin on
the surface and supporting parts. Then use compressed air to clean up
the alcohol on the surface of the product.
(4) Put the product into the post-curing machine for sencdary
curing for 10~20minutes.
(5) Polishing the products and remove the supporting spot.
3.2.2. Software instruction
(1) File
Add, delete and Save file.
(2) Settings
________________________________________________________
Maven Laser Automation Co.,Ltd.. Version: 02 Date:2019.06.30

SLA UV 3D Printer
Guide and User Manual
12
①Laser souce testing: Manually start and power off the
laser source and scanhead.
②Adjust resin level: Manually control the movement of resin
level axis, automatically adjust the resin level and test
the resin level.
③Axis control: Manually control Z-axis and R-axis
movement, including speed control and distance control.
________________________________________________________
Maven Laser Automation Co.,Ltd.. Version: 02 Date:2019.06.30

SLA UV 3D Printer
Guide and User Manual
13
④Parameter setting: Set the printer running and printing
parameters.
________________________________________________________
Maven Laser Automation Co.,Ltd.. Version: 02 Date:2019.06.30

SLA UV 3D Printer
Guide and User Manual
14
（1）Tool
Auxiliary tools：Calculator, notepad and laser draw test

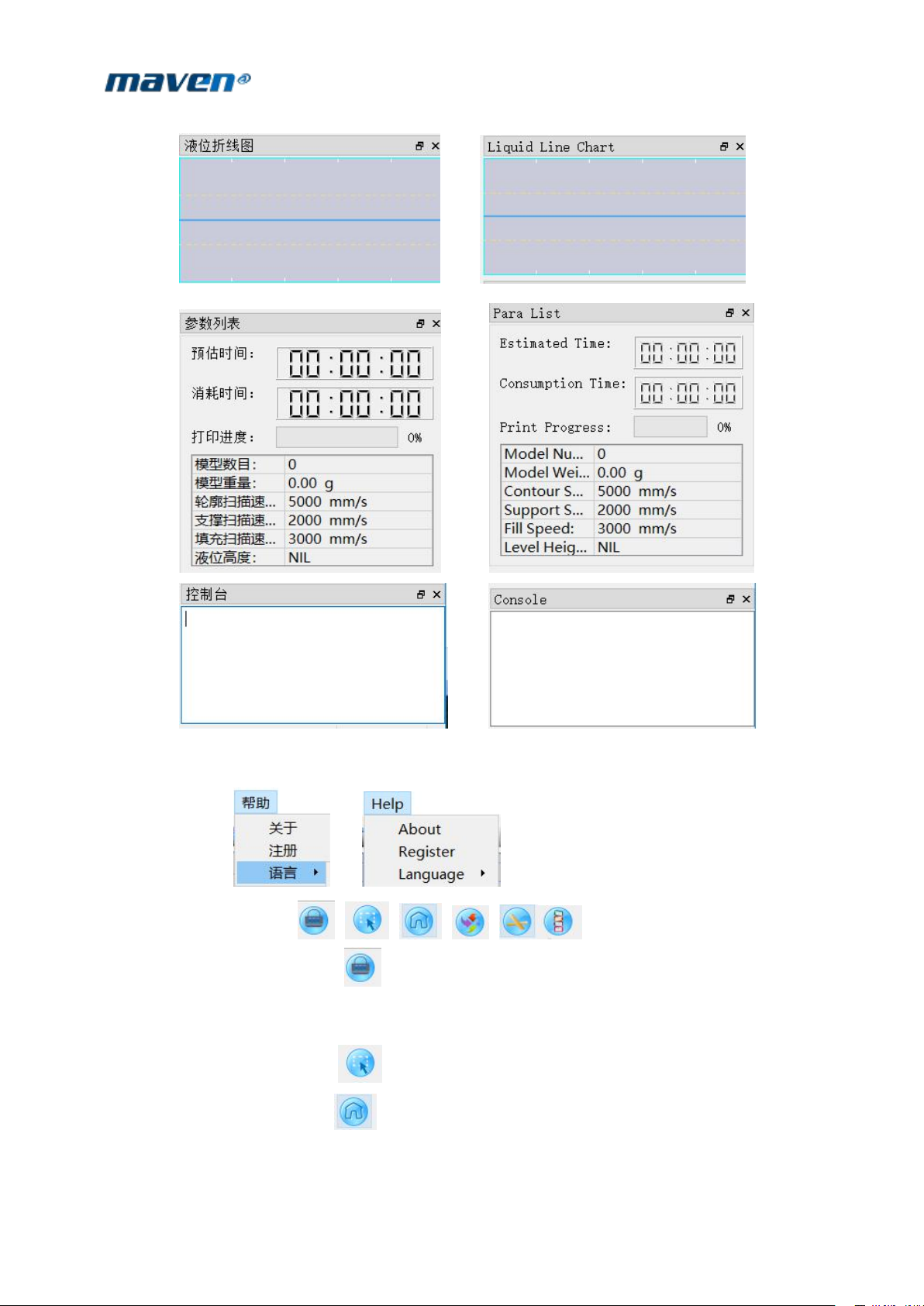

（2）Navigation
Navigation: File info, liquid line chart, para list and console.
________________________________________________________
Maven Laser Automation Co.,Ltd.. Version: 02 Date:2019.06.30

SLA UV 3D Printer
Guide and User Manual
15
（3）Help: Software version, register and language.
（4）View tool
①Lock-in model ：The model can not be moved and
rotated;
②Mobile model ：Model translation；
③Restore view ：Restore view in default state；
________________________________________________________
Maven Laser Automation Co.,Ltd.. Version: 02 Date:2019.06.30

SLA UV 3D Printer
Guide and User Manual
16
④Rotate model ：Rotate model；
⑤Measure ：Distance measurement；
⑥Array ：Array model;
4. Maintenance
(1) Keep the door of the printer closed against resin exposure to light；
(2) Keep printing workshop humidity less than 40% to protect resin frm
damp；
(3) Lubricating oil and antiseptic lubricant should be added a month to
guide rail and screw rod；
(4) Clean up the reticular lamina after printing every time;
(5) Clean up the blade of the scraper and the solid residue of printing
regularly. and clean up the scraper after printing failure;
5. Troubles and troubleshooting
(1). Sudden power failure of printer in the middle of printing. Restart
the equipment, confirm that the motor and laser are in the ready state,
then continue to print;
(2). Printing product is soft. Check laser power and Environmental
humidity.
________________________________________________________
Maven Laser Automation Co.,Ltd.. Version: 02 Date:2019.06.30

SLA UV 3D Printer
Guide and User Manual
17
(3). Prnting failure. Check the rationality of model support
construction. If there is no problem with the model support, check if the
blade edge of the scraper have resin residual. Check if the scraper is
working properly, and check the level of working platform.
(4). Servo motor alarm. Lock emergency botton and restart.
6. Warranty statement and license agreement
After-sale warranty
1. Within 7 days from receipt of the goods, we will bear the cost of
round-trip freight for you to replace or repaire free of charge due to the
quality problems.
2. From the 7th day to 90th day, we will change and repaire the
components free of charge due to the quality problem. The freight cost
should be undertaken by customer side.
3. Beyond the 90th day, the printer components and reparing cost
should be undertaken by customer side.
4. Artificial damage is not covered by warranty.
Return and Exchange
1. The basic rules for returning and exchanging goods are as
follows: 1. Guarantee the complete package, accessories and
instructions of the goods, and keep the goods the same as sold. As long
as one item above do not meet our basic rules, it is not acceptable to
________________________________________________________
Maven Laser Automation Co.,Ltd.. Version: 02 Date:2019.06.30

SLA UV 3D Printer
Guide and User Manual
18
return or exchange goods.
2. Return and exchange service is not covered if any of the
following items happens：
2.1 Packaging, components and instuctions are missing.
2.2 Obviously stained or artificially damaged.
2.3 Gifts is not covered in the policy of after-sale service.
