Max-Ability Pressalit 1000 R8406 User manual

7
53(019 /
8
)
058
4
33( /
8
)
059
3
73( /
8
)
52
)1(
5
43(088 /
8
)
042
4
9( /
8
)
042
4
9( /
8
)
07
6
2( /
8
)
07
6
2( /
8
)
071
6
6( /
8
)
571
7
6( /
8
)
50
2( )
071
6
6( /
8
)
X
3
2
NB!
1
Pressalit Care
Pressalitvej 1
DK 8680 Ry
Denmark
[phone]
[phone]
[email protected]
www.pressalitcare.com
Telephone:
Telefax:
E-mail:
Web:
pressalit
care
®
www.max-ability.com
MAX-Ability, Inc.
800.577.1555 [email protected]
Pressalit 1000
Fixed Height
Changing Table
R8406 / R8407
Subject to change without further notice.
Pub. May 2020 Page 1/5

[phone]
[phone]
[e-mail]
www.pressalit.com
Telephone:
Telefax:
E-mail:
Web:
Pressalit
Pressalitvej 1
DK 8680 Ry
Danmark
EN Operation and maintenance manual (OMM) for this product is enclosed in the box. Please hand over to the
user. It can also be downloaded at www.pressalit.com.
EN An operation signage (quick guide) for use by people with reading or cognitive disabilities, is enclosed in
the box. It can also be downloaded at www.pressalit.com. User information is not available in braille.
Mounting Instruction
Please read and carefully follow these instructions. Find the product number on the product label and ensure that these
assembly instructions match your product.
WARNING: Failure to comply with these instructions may result in accidents involving serious personal injury or the
product being damaged.
WARNING: If you suspect that any individual parts may be damaged, contact your Pressalit dealer or service
provider. Do not remove, attempt to repair or install parts yourself, unless directed to do so by Pressalit or its
agents.
WARNING: No modication of this equipment is allowed without express authorization from Pressalit.
WARNING: These instructions must be followed, and the product must be installed professionally by a qualied
person; e.g. a licensed plumber, in order to avoid personal injury or property damage while using the product.
WARNING: Pressalit cannot be held liable for injury to persons or damage to property caused by faulty mounting.
Installation location
This product is designed for indoor use in a wet environment, such as a bathroom or washroom. When choosing an
installation location, ensure that there will be adequate space for access to the product.
Assembly and installation
Mount the product against a wall in accordance with the illustrations in this assembly instruction. Contact your Pressalit agent,
if assistance is needed when installing the product.
MAX-Ability, Inc.
800.577.1555 [email protected]
www.max-ability.com
Installation
Drawing
Pub. May 2020 Page 2/5

fischer KD 8 snaptight wingit
fischer KD 8 snaptight wingit
Ø10 x 70
fischer GB 14
V8658
Ø10 x 70
fischer SX 12
V8608
Ø10 x 70
fischer SX 12
V8608
Ø10 x 70
fischer SX 12
V8608
Ø10 x 70
fischer SX 12
V8608
!
[phone]
[phone]
[e-mail]
www.pressalit.com
Telephone:
Telefax:
E-mail:
Web:
Pressalit
Pressalitvej 1
DK 8680 Ry
Danmark
Concrete >B25
Drywall water-resistant
Solid Brick >= Mz12
Solid Sand Lime Brick >= Hlz12
Aerated Concrete P4
Drywall water-resistant, re-enforced with wood
Drywall water-resistant, re-enforced with plywood
Drywall water-resistant, re-enforced with steel plates
(2 x 12,5 mm)
22 mm
(2 x 12,5 mm)
2 mm
(2 x 12,5 mm)
(2 x 12,5 mm)
MAX-Ability, Inc.
800.577.1555 [email protected]
www.max-ability.com
Installation
Drawing
Concrete anchors included at no additional charge.
Pub. May 2020 Page 3/5

T5200
Pressalit Care
Pressalitvej 1
DK 8680 Ry
Denmark
[phone]
[phone]
[email protected]
www.pressalitcare.com
Telephone:
Telefax:
E-mail:
Web:
pressalit
care
®
www.max-ability.com
MAX-Ability, Inc.
800.577.1555 [email protected]

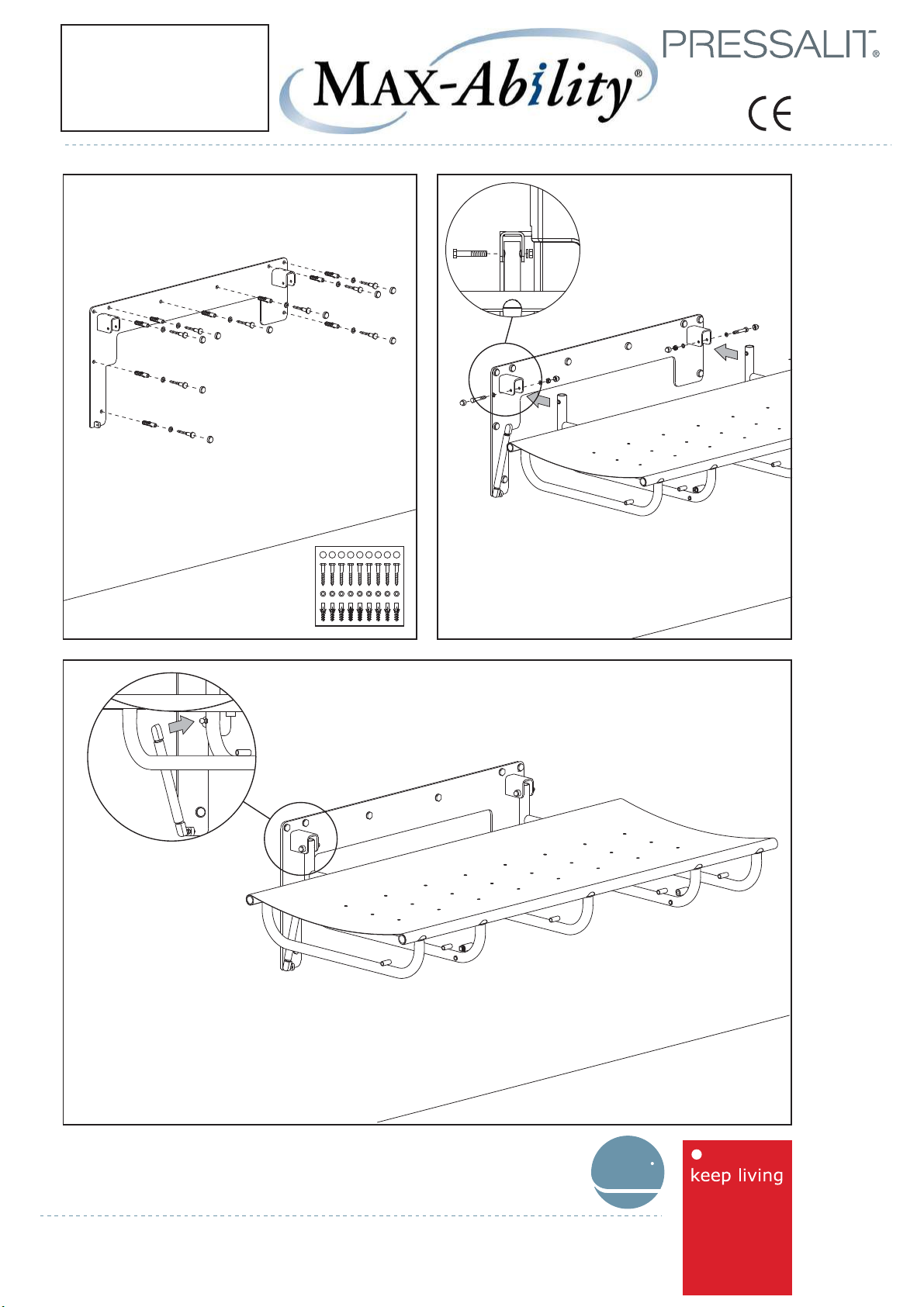

Installation
Drawing
Pub. May 2020 Page 4/5

1
55(0041 /
8
07(0081/)
7
/
8
)
1
32(785 /
8
)
2
82(717 /
8
)
)5(821
s)lb(330
max150 kg
(330 s)
max1 0
lb
950
(37 /
38
)
850
(33 /
48
)
1563
4
(61 /8)
717
2
(28 /8)
276
7
(10 /8)
Pressalit Care
Pressalitvej 1
DK 8680 Ry
Denmark
[phone]
[phone]
[email protected]
www.pressalitcare.com
Telephone:
Telefax:
E-mail:
Web:
pressalit
care
®
Pressalit Care
R8404
R8405
R8406
R8407
1400
(55
1
/
8
)
1400
(5
5
1
/
8
)
Maintenance, Cleaning:
Use only regular soap and water. Avoid cleaners
which polish, corrode, or contain chlorine
www.max-ability.com
MAX-Ability, Inc.
800.577.1555 [email protected]
R8406 (Child Size)
R8407 (Adult Size)
Pressalit 1000
Fixed Height
Table Dimensions
Pub. May 2020 Page 5/5
Find more information about these products on our
website:
R8406 -- Child Size
R8407 -- Adult Size

2019-06-07 · 1/7
[phone]
[phone]
[e-mail]
www.pressalitcare.com
Telephone:
Telefax:
E-mail:
Web:
Pressalit Care
Pressalitvej 1
DK 8680 Ry
Danmark
Pressalit can only be held responsible for installations carried out by Pressalit’s own installers.
Pressalit can not be held responsible for reinforcements made in a faulty manner.
The below recommendations are based on experience and internal test results.
The below recommendations are to be considered as guidelines only.
Subject to alteration without further notice.
Load bearing installation recommendations
US
MAX-Ability, Inc.
800.577.1555 [email protected]
www.max-ability.com
Wall
Reinforcement
Guide

2019-06-07 · 2/7
[phone]
[phone]
[e-mail]
www.pressalitcare.com
Telephone:
Telefax:
E-mail:
Web:
Pressalit Care
Pressalitvej 1
DK 8680 Ry
Danmark
This advisory document shows the maximum load capacity for individual bolts and other types
of anchors that can be used for fixing Pressalit’s products to the wall.
The maximum load capacities shown below are per bolt/anchor and must be considered in re-
lation to the information provided for the product that is being fitted. The information specific to
the product will show how great the load is on each fixing point when the product is used at its
recommended safe working load.
Only if the load on each fixing point of a given product is less than the maximum load capacity
of the type of bolt/anchor under consideration, should the bolt/anchor in question be used.
E.g.
One might wish to fit an adult changing table 3000 to an aerated concrete wall:
Maximum load Maximum load: 440 lbs.
When the bench is loaded with 440 lbs, each mounting bolt
supports 57 lbs.
Each fixing point is here carrying a load of 57 lbs, and the bolts typically recommended for
aerated concrete (Ø10, M8, M10) all have a maximum load capacity that is higher than 57 lbs,
so they can all be used.
Aerated Concrete P4 Plug Anchor / Bolt Maximum load
fischer GB 14 Ø10 x 80-105 198 Ibs
fischer FTP M 8 M8 x 35 143 Ibs
fischer FTP M 8 M8 X 35 143 Ibs
fischer FTP K 6 M5 x 50 88 Ibs
MAX-Ability, Inc.
800.577.1555 [email protected]
www.max-ability.com
Wall
Reinforcement
Guide
Please refer to installation drawings and specification pages (go to max-ability.com) for further
information about which types of bolts/anchors are recommended on specific wall types.
MAX-Ability provides concrete anchors at no additional charge.
Other fixing kits should be ordered separately.

2019-06-07 · 3/7
[phone]
[phone]
[e-mail]
www.pressalitcare.com
Telephone:
Telefax:
E-mail:
Web:
Pressalit Care
Pressalitvej 1
DK 8680 Ry
Danmark
Choose the appropriate anchor for your wall
Concrete > B25 Plug Anchor Maximum load
fischer SX 12 Ø10 x 70/80 375 Ibs.
fischer SX 10 Ø8 x 70/80 265 Ibs
fischer SX 6 Ø5 x 50 143 Ibs
Solid brick >= Mz12 Plug Anchor Maximum load
fischer SX 12 Ø10 x 70/80 154 Ibs
fischer SX 10 Ø8 x 70/80 132 Ibs
fischer SX 6 Ø5 x 50 66 Ibs
Solid sand lime brick >= Hlz12 Plug Anchor Maximum load
fischer SX 12 Ø10 x 70/80 375 Ibs
fischer SX 10 Ø8 x 70/80 265 Ibs
fischer SX 6 Ø5 x 50 110 Ibs
Aerated Concrete P4 Plug Anchor / Bolt Maximum load
fischer GB 14 Ø10 x 80-105 198 Ibs
fischer FTP M 8 M8 x 35 143 Ibs
fischer FTP M 8 M8 X 35 143 Ibs
fischer FTP K 6 M5 x 50 88 Ibs
MAX-Ability, Inc.
800.577.1555 [email protected]
www.max-ability.com
Wall Types

2019-06-07 · 4/7
[phone]
[phone]
[e-mail]
www.pressalitcare.com
Telephone:
Telefax:
E-mail:
Web:
Pressalit Care
Pressalitvej 1
DK 8680 Ry
Danmark
Drywall
(2 X 0.5”) water-resistant,
re-enforced with wood
Anchor Maximum load
Ø10 x 70/80 265 Ibs
Ø8 x 70/80 220 Ibs
Ø5 x 50 88 Ibs
Drywall
(2 X 0.5”) water-resistant,
re-enforced with 1” plywood
Anchor Maximum load
fischer KD8 toggle 293 Ibs
Wingit 293 Ibs
Snaptight 293 Ibs
Drywall
(2 X 0.5”) water-resistant,
re-enforced with steel plates (0.1”)
Anchor Maximum load
fischer KD8 toggle 207 Ibs
Wingit 207 Ibs
Snaptight 207 Ibs
Drywall
(2 X 0.5”) water-resistant
Anchor Maximum load
fischer KD8 toggle 187 Ibs
Wingit 187 Ibs
Snaptight 187 Ibs
MAX-Ability, Inc.
800.577.1555 [email protected]
www.max-ability.com
Wall Types

2019-06-07 · 5/7
[phone]
[phone]
[e-mail]
www.pressalitcare.com
Telephone:
Telefax:
E-mail:
Web:
Pressalit Care
Pressalitvej 1
DK 8680 Ry
Danmark
Drywall (2 X 0.5” water-resistant)
Wood (1.5-2”)
Please refer to mounting instructions
for indication of the placement in
height of wood plate.
Wood (1.5-2”)
Hollow between walls
Drywall (other side)
Drywall (2 X 0.5”)
Washer
Anchor to fit wall type
Wall cross-section
Reinforcements of walls should always comply with national standards.
Metal or wood studs
Reinforcement of wall with 1.5-2” wood
MAX-Ability, Inc.
800.577.1555 [email protected]
www.max-ability.com
Reinforcement
Diagram

2019-06-07 · 6/7
[phone]
[phone]
[e-mail]
www.pressalitcare.com
Telephone:
Telefax:
E-mail:
Web:
Pressalit Care
Pressalitvej 1
DK 8680 Ry
Danmark
Drywall (2 X 0.5” water-resistant)
Plywood (1 X 0.5”)
Please refer to mounting instructions
for indication of the placement in
height of plywood plate.
Plywood (1 X 0.5”)
Hollow between walls
Drywall (other side)
Drywall (2 X 0.5”)
Washer
Wall cross-section
Reinforcements of walls should always comply with national standards.
Metal or wood studs
Reinforcement of wall with plywood
Screw to fit wall type
MAX-Ability, Inc.
800.577.1555 [email protected]
www.max-ability.com
Reinforcement
Diagram

2019-06-07 · 7/7
[phone]
[phone]
[e-mail]
www.pressalitcare.com
Telephone:
Telefax:
E-mail:
Web:
Pressalit Care
Pressalitvej 1
DK 8680 Ry
Danmark
NO GO
GO
Reinforcement of wall with steel
Reinforcements of walls should always comply with national standards.
Please refer to mounting instructions
for indication of the placement in
height of steel plate.
Metal studs
Drywall (2 X 0.5” water-resistant)
Steel plate (1 X 0.1”)
Hollow between walls
Steel plate (1 X 0.1”)
Drywall (other side)
Drywall (2 X 0.5”)
Washer
Wall cross-section
Screw to fit wall type
MAX-Ability, Inc.
800.577.1555 [email protected]
www.max-ability.com
Reinforcement
Diagram
