Maxcare MAX-78A202S User manual

User Manual
MAX-78A202S (Silver)
MAX-78A202B (Black)

COMPANY PROFILE
After two decades of experience in the health industry, founder utilized
his knowledge and expertise in massage therapy from an Asian-Pacific perspective
to establish our brand - . Our massage therapy business was expanded
to Hong Kong in 2012 and is conferred 2017 Hong Kong Top Brand Award. Based
in Hong Kong, we are specializing in design & innovation, manufacturing, and
retailing of massage and healthcare products.
Believing in the value of ‘Technology improves our quality of life’ and ‘Caring for
your family’, has been innovating highly qualified products with international
patents. Besides, products fulfill various international safety standards,
namely EU CE Mark, US UL/ETL Mark, Germany GS Mark, TUV certification, and
China CCC Mark.
Motivated by our value, founder has been leading us to be one of the
most competitive brands in Hong Kong health industry. applies the
contemporary fashion design – neat and modern – on the mechanical engineering
of massage chairs. To deliver our value and offer incredible massage experience
and healthcare solution to the public, devotes to the innovation, design,
manufacturing the top-notch family massage products. By integrating the company
philosophy –Spirit of Healthy Life - into our products, brings health to
everyone.

Thank you for purchasing ’s products. Before using the product, please
read this manual thoroughly, particularly the Safety Precautions section, for the
correct use of the product.
This manual should be well kept for easy reference. It enables you to perform
a safe and efficient operation.
Safety Precautions
Name and Function of Components
Control Interface
How to Use
Cleaning and Maintenance
FAQs and Solutions
Technical Specifications
P.01 - P.06
P.07 - P.08
P.09
P.10 - P.29
P.30
P.31
P.32
CONTENT

P.01
Safety Precautions
3. People who have the below symptoms, please consult a doctor before use
1. Important safety warning
2. Environment for usage
• Please read this manual instruction carefully before operation.
• Any other usage that is not listed in this manual instruction is forbidden.
• Keep children and pets away from the movable parts of this product to avoid accidents caused
by the up-and down-ward movement of the calf rest and back cover.
• When in use, sliding or transporting, please ensure that there are no people or pets nearby
(the back, bottom, front and sides of the product), and that no foreign objects or pets inside
the product, to avoid accidents.
• Please use well-grounding power supply suited to this product.
• Please pull out the plug after use or before cleaning to avoid injury or damage to the product.
• Do not use unauthorized accessories.
• Do not use this product outdoors.
• People whose bodies are wet are forbidden to use this product.
• Recommended usage time of this product is 20 minutes/ session.
• Please check if any part of this products is damaged before use. If so, please do not use it and
contact us for repair.
• Please do not use it if the cover is broken or damaged.
• Please do not use it if the shell or surface is damaged.
• Please do not drop anything into this product.
• Please do not fall asleep while using this product.
• Please do not use it if drunk or feeling unwell.
• Please do not use it within one hour after having meal.
• Please do not adjust to the maximum intensity at the beginning of the massage to avoid
possible injury.
• Please do not keep sharp objects in pockets when use.
• Keep the plug clean from needles, rubbish or water.
• If the power cord is damaged, do not attempt to change on your own. Please contact us for
repair for safety reasons.
• Please do not use it in a moist environment such as bathrooms.
• Please do not use it when there is a drastic change in temperature.
• Please do not use it under heavy-dusty or caustic environment.
• Please do not use it where there is not enough space or not good ventilation.
• Please switch off the power and unplug the machine after use.
• Please do not use it when surrounding temperature is up to 40°C.
• Please do not use it when surrounding temperature is below 5°C. The lubricant can thicken
quickly and increase the friction between parts.
• Turn off and pull out the plug during thunderstorms.
• Place the product on a flat surface.
• Do not use outdoors.
• Do not place it near fire or directly under the sun.
• When moved from a low-temperature storage to a warm environment, the moisture inside the
machine may affect, or damage, its functionality. Please rest the product within room
temperature for 1 hour before use.
• People who are suffering from osteoporosis.
• People who have cancers, acute illnesses, heart diseases, or severe high blood pressure, etc.
are not suitable to use this product.
• People who have/ had back pain, or legs, waist, neck numbness/ injuries (disc herniation,
spondylosis and cervical protrusion, etc. patients) are not suitable to use this product.
• People who have rheumatoid arthritis, rheumatism, gout are not suitable to use this product.
• People who have respiratory difficulties are not suitable to use this product.
• People who have blood circulation problems such as thrombosis, severe aneurysm, or acute
venous tumor, or infectious skin diseases are not suitable to use this product.
• People who have perception disorders due to diabetes are not suitable to use this product.
• People who have spinal abnormalities or spine curvature disorders are not suitable to use this product.
• People whose health condition is poor are not suitable to use this product.
• People who are suffering from heart disease or carrying electronic medical equipment such as
heart pacemaker.
• People who have a fever.

P.02
4. Safety
5. Maintenance
6. Solution of ordinary malfunctions
Safety Precautions
• Pregnant women or women that are in menses period.
• People who got injured or skin diseases.
• Children under 14-year old or people mentally unbalanced without being supervised are not
allowed to use this machine.
• People who are told by doctor to have rest or people who feel unwell.
• The appliance has heating function. People who are insensitive to heat must be careful when
using the appliance.
• People who are receiving medical treatment, especially those who are physically unfit.
• People who have open wounds.
• People who aim for recovery.
• Please do not place heavy objects on this product.
• Do not use other therapy devices while using this product.
• This product is not to be used for medical treatment purpose.
• Only one person at a time.
• Recommended usage time of this product is 20 minutes/ session.
• It is possible to place a mat underneath the machine to avoid damage to the floor.
• For safety reason, maintain a minimum of 0.5m between the prdcut and others when use.
• Check if the voltage is suitable to the specification of this product.
• Do not use wet hands to pull the plug.
• Do not allow water to get into the product, to avoid electric shock or damage to this product.
• Do not pull or drag the power cord when unplugging. Please be gentle.
• Do not damage the wires or change the circuit of this product.
• Do not use wet cloths to clean the electric parts such as the switch and plug.
• Be away from this product during power cut to prevent injury in case power resumes suddenly.
• Stop using this product if there appears any irregularity, and please contact us immediately.
• Stop using this product if it causes discomfort, and please consult a doctor.
• This appliance is not intended for people (including children) with reduced physical, sensory or
mental capabilities, or a lack of experience and knowledge, unless they are under supervision
or instruction concerning the use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• If the power cord is damaged, it must be replaced by us in order to avoid a hazard.
• Do not ride on the handle to avoid injury or malfunction.
• Keep the power cord away from hot or moving objects.
• Please cut off power and pull out plug before moving.
• If the product is found damaged, broken, suffering from power leakage, or with exposed parts,
please stop using it.
• This product should be maintained by us, users are prohibited to disassemble or maintain by
themselves.
• Please always turn off the main power after use.
• Do not use this product if the socket is loose.
• If this product is to be left idle for long, please tie up the power cords and keep it in dry and
dustless environment.
• Do not keep this product at a high temperature or near fire. Do not keep under direct sunlight.
• Please clean this product with dry cloths. Do not use thinner, benzene or alcohol.
• The mechanical components of this product are specially designed and made, no special
maintenance required.
• Do not point sharp objects at this product.
• Do not roll or pull this product above uneven ground, it should be lifted before moving.
• Please use it intermittently; do not keep it continuously running for long.
• It is normal if the motor makes noises during operation.
• If the remote control can’t work normally, please check the plug and socket if they are
connected, and make sure the switch is turned on.
• If the rated working time is over, the power will automatically go off. If this product works
continuously for too long, the temperature control will automatically turn off the machine, if so,
please allow a 30-minute break before resuming.
Please make sure all the power is cut off before moving.
The power cord and all other cables should be disconnected.
CAUTION

P.03
Do Not Press
Safety Precautions
Warning
When the calf rest is ascending during use, do not apply pressure on it. This is to prevent
the massage chair from falling forward and causing damage or injury.
Warning
Prior to sitting on the massage chair, please make sure the mechanical massage hands are
not located under the seat. This is to avoid the discomfort caused to the hip area when
sitting and the possible damage to the massage hands.

P.04
Safety Precautions
Warning
In “standby” mode, or when the massage chair has been connected to power, do not allow
children to drag/ pull the power cord. Damage to the power plug (or its parts) due to forceful
pulling/ dragging will cause damage to the product or possible electric shock. It is advised
to unplug the massage chair and tie up the power cord when not in use.
Warning
When switch to “Zero Gravity” mode, please ensure that there are no kids or pets under the
calf rest and back area of the massage chair, or else there will be damage to the products
as well as personal injury due to the downward movement of the chair.

P.05
Safety Precautions
Warning
Warning
Never unplug and switch off the main power when the massage chair is operating. It
might cause damage to the product or personal injury.
Take off your belongings before starting the massage chair. (Such as: Keys, hand
watch, hard object, and so on. It might cause damage to the product or personal injury.

P.06
Safety Precautions
Warning
Warning
Try no to sleep when using the massage chair. It might cause personal injury.
Do not use it with two people at the same time, it will cause damage to the product or
personal injury. kids are not allowed to play on the chair with toys, or climb on any parts
of the chair, otherwise, it will cause damage to the product or personal injury.

P.07

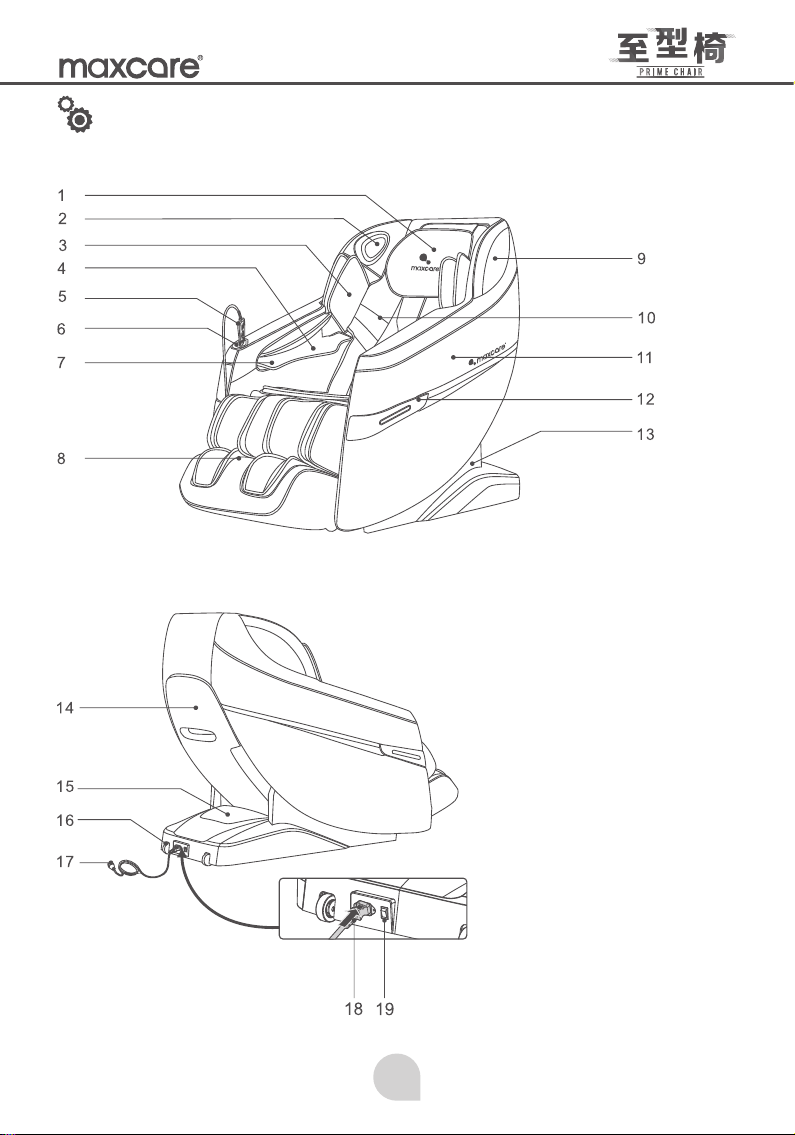

1. Headrest
2. Bluetooth Speaker
3. Upper Arm Airbags
4. Arm Airbags
5. Remote Handset Controller
6. Remote Handset Controller
Holder
7. Rugged Massage Belt and
Magnetotherapy
8. Leg Rest
9. Upper Armrest Decoration
10. Back Cushion
11. Armrest
12. Armrest Decoration
13. Side Cover
14. Back Cover
15. PCB Cover
16. Wheels
17. Power Cord and Plug
18. Power Jack
19. Power Switch
Name and Function of Components

P.08
Name and Function of Components
• This product is equipped with a set of silent smart 3D massage heads which move up
and down and front and back.
• Capable of automatically detecting and fine-tuning shoulder position; detecting body
curve and shiatsu points to adjust accordingly the movement of the massage heads.
This makes the massage experience more personal and scientific.
• 15 massage automatic settings: Pain Relief, Neck And Shoulder, Bottom Toning,
Full-body Stretch, Fresh Morning, Humpback Fix, Office Regimen, Spine Massage,
Noon Recharge, Relax, Quick Refresh, Comfort, Thai Massage, Sport Recovery and
Circulation Boost.
• 3 memory programs: Memory 1, Memory 2, Memory 3.
• Manual Massage Function for 5 selected areas: Spot,Partial,Upper Back, Lower Back
and Full Back.
• It is provided with manual massage function: including seven massage methods such
as knead, tap, knead and tap, shiatsu, knock,and 3D (3D I, 3D II).
• Level adjustment function: 3 strength levels for 3D massage, 3 for air pressure, and 4
for duration.
• Upper body air massage covering palms (4 built-in airbags), shoulders ((4 built-in
airbags) and arms (4 built-in airbags). 3 intensity levels available.
• Lower body air massage covering calves (12 built-in airbags). 3 intensity levels
available.
• Forward-sliding design eliminates the large space requirement between the chair and
the wall.
• SL-shaped ultra-long rail perfectly matches the human body shape, ensuring a
close-fitting massage from neck to thigh.
• The airbags in palm area allows rugged massage and magnetotherapy.
• Back and calf heating function: source of infrared heating.
• Music player system: 3D digital speakers installed above each armrest. Connect to
your smart device and play music via Bluetooth.
• Leg stretch massage program: By programming the movements of the leg rest and
back of the massage chair, together with air pressure at calves and the massage
heads at back, provide a comfortable leg stretch function.
• Leg rest height adjustment, synchronized seat and leg height adjustment, zero gravity
angle adjustment.
• Roller massage function: roller massage and gua sha (scraping) for sole. 3 speed
levels available.
• Flexible leg rest: The length of the leg rest is in accordance with the length of the legs.
The built-in springs help with the adjustment.
• Automatic reset upon shutting down.
• TFT LCD display remote controller.
Function:

選項
自動
P.09
TFT LCD Dsiplay
Power Button
Auto-massage Function
Zero-gravity Function
Up
Confirm
Left
Down
Raise Leg Rest
Lower Leg Rest
Pause/ Start
Menu
Right
Synchronized Sit-up
Synchronized
Lay-down
Note: The display is subject to the actual product.
Control Interface

P.10
1. Connect to power
2. Begin Massage
1. Press the power button to activate the massage program. The back and leg rest
will be set to the default position.
2. After the angle is set, the chair will automatically detect shoulder position and body
shape. Wait for the detection process to be over; or, press ‘OK’ to skip the
process and directly start massaging.
Attention please! Make sure there ...
Automatic angle
adjustment ...... Checking, Please wait......
'OK' to skip Body detection.
Body detection
選項
自動
Connect power diagram Massage chair
connect diagram On / off switch diagram
How to Use

P.11
1. Shoulder Adjustment
When detection is over, there will be “tik tik” sound. Further finetune the position of the
massage hands using the “up” and “down” buttons, if needed. There are 11 finetune
adjustment levels for shoulder position. If there is no adjustment after 10 seconds, the
massage will begin automatically. Or, press the “enter” button to directly enter the
massage program. If the shoulder position is not detected, the massage hands will be
set at the default height to begin massage.
During massage, if shoulder adjustment is needed, go to shoulder adjustment interface
in the status page by clicking the shoulder adjustment button. Use the “up” and “down”
buttons to position the mechanical hands; click “left” to go back to the previous page.
確認
DescriptionButton
Mechanical massage hands move upward.
Up
Down Mechanical massage hands move downward.
選項
自動
Press "upper" or "lower" key...
Shoulder Adjust
High shoulder position
Suitable shoulder position
Low shoulder position
Select 'up' or 'down' key and ...Select the object with “Left”...
Massage Adjust
Roll power Air power
Shoulder Adjust
Pain Relief Shoulder Adjust
How to Use

2. Massage Position Adjustment
3. Pause Button
• After entering the massage program, if it is necessary to adjust the massage position,
press the "Menu" key on the manual controller to select the manual program to enter,
select the manual program, and then press the "Left" key to return to the information
interface (the information interface is changed to the manual program interface).
• From the manual program interface, if the massage position displays fixed points or
local, you can directly press the "Up" or "Down" key to move the manipulator up and
down.
• From the manual program interface, if the massage position is not fixed point or local,
you need to select massage adjustment to enter, then select the massage part, select
fixed point or local, then press the "Left" key to return to the information interface, and
then press the "Up" or "Down" key to move and adjust the manipulator up and down.
When the massage is in progress, pressing the “pause” button will stop all massage
functions; and pressing it again will resume them. If the pause time exceeds 20 minutes,
all massage functions will automatically shut down.
Note: In auto mode, the manipulator cannot be moved up and down through the "up
key" or "down key".
Massage Function
operating mode
Massage Function
stopping mode
Select 'left' or 'right' key and ...
Massage Adjust
Roll power Air power
Shoulder Adjust
Pain Relief
自動 選項
自動 選項
MENU
Auto Mode
Manual Mode
AirMassage
Other Function
Customise
Setting
Select 'up' or 'down' key and ...
Pause!
Click pause button
to restore use
P.12
How to Use
Manual Mode
Manual
Area
Spot
Partial
Upper Back
Lower Back
Full Back
Width
Speed
Select 'navigation' key and press OK.

自動 選項
4. Menu Button
Press “menu” to enter masaage function interface, where there are auto massage mode,
manual mode, air pressure massage, auxilary function, storage and setting, etc.
Use the “up” or “down” button to choose the desired function and then press “OK” to
confirm. Click “left” to go back to the previous page.
A) Auto Massage: (Menu - Auto massage; press “auto” button to enter directly into
the auto-massage interface)
- Press “menu” to enter masaage function interface, Use the “up” or “down” button to
choose the auto massage function and then press “OK” to confirm.
- Auto massage function includes: Pain Relief, Neck And Shoulder, Bottom Toning,
Full-body Stretch, Fresh Morning, Humpback Fix, Office Regimen, Spine Massage,
Noon Recharge, Relax, Quick Refresh, Comfort, Thai Massage, Sport Recovery
and Circulation Boost.
- Use the “up” or “down” button to choose the desired function and then press “OK” to
confirm. The system will automatically return to the status page and also show that auto
massage is on.
MENU
Auto Mode
Manual Mode
Air Massage
Other Function
Customise
Setting
Select 'up' or 'down' key and ...
MENU
Auto Mode
Manual Mode
Air Massage
Other Function
Customise
Setting
Select 'up' or 'down' key and ...
選項
自動
P.13
Manual Mode
Pain Relief
Neck And Shoulder
Bottom Toning
Full-body Stretch
Fresh Morning
Humpback Fix
Select 'up' or 'down' key and ...
How to Use

Function Description
Pain Relief Soothe fatigue and pain on the human body, relax the limbs and
improve micro-circulation, relieve joint pain and restore vitality.
Neck And Shoulder Massage neck and shoulder area with the special designed program,
to effectively relieve shoulder pain and promote blood circulation (to brain).
Bottom Toning Focus on hip and thigh area for a shaping effect, help burning
excessive body fats.
Full-body Stretch Increase body flexibility by stretching body muscle.
Fresh Morning Wake body muscle and other mechanism to start the day fresh after
a night of sleep.
Humpback Fix Massage manipulator combine with shoulder airbags, kneading
massage focus on neck and shoulder, kneading and tapping massage
on back and waist, kneading massage on buttocks, kneading and
tapping massage on thigh, foot rollers, legs airbags and arm airbags
massage started at same time. With back and leg heat therapy function.
Office Regimen Especially designed for office workers who tend to sit for a long time.
Keep the muscle active by massaging and enhance body health.
Spine Massage Massage every section of the spinal cord to ensure a health spine.
Help with disc herniation and humpback.
Noon Recharge Boost quality of nap and hence raise work efficiency.
Relax Dredge meridian to encourage body’s microcirculation. Enhance
immune system.
Quick Refresh The most comfortable massage experience.
Comfort With kneading, shiatsu massage techniques, combined with
low-intensity air pressure massage and function, through the 12 health
acupoints massage, help to regulate and balance on human body; At
the same time, the massage chair automatically swings back and forth
to form a zero-gravity cradle massage state, so that people can fall
asleep more quickly,improve sleep quality.
Thai Massage Traditional Thai massage consisting of whole-body stretching.
Comprehensively erase body tiredness.
Sport Recovery By pressing and rubbing with the air bag and rolling with the wheel,
it can relieve the swelling of the shoulders, arms, knees, calves and
other key parts after exercise, and quickly recover the fatigue after
exercise.
Circulation Boost Improve blood circulation, reenergize body and boost the immune
system.
P.14
How to Use

B) Manual Massge:(Menu - Manual)
- Press “menu” to enter masaage function interface, Use the “up” or “down” button to
choose the manual massage function and then press “OK” to confirm.
- Manual massage includes: massage modes, areas, width and speed, etc.
- Use the “up” or “down” button to choose the desired function and then press “right” to
enter the sub-menu of the said function. Press “OK” to confirm. Click “left” to go back to
the previous page.
(i) Manual - Mode
- Method: including 7 different massage methods such as knead, tap, knead and
tap,shiatsu, knock,and 3D (3DI and 3DII).The width of the manipulator massage ball can
be adjusted under the massage methods including tapping, shiatsu,knocking and 3DII.
Except for stopping, the massage speed can be adjusted under other massage methods.
- In the manual function, use the “up” or “down” button to choose the desired function and
then press “right” to enter the sub-menu of the said function. Press “OK” to confirm.
Click “left” to go back to the previous page.
自動 選單
MENU
Auto Mode
Manual Mode
Air Massage
Other Function
Customise
Setting
Select 'up' or 'down' key and ...
Manual Mode
Manual
Area
STOP
Knead
Tap
Knead & Tap
Shiatsu
Knock
Width
Speed
Select 'navigation' key and press OK.
MENU
Auto Mode
Manual Mode
Air Massage
Other Function
Customise
Setting
Select 'up' or 'down' key and ...
Manual Mode
Manual
Area
STOP
Knead
Tap
Knead & Tap
Shiatsu
Knock
Width
Speed
Select 'navigation' key and press OK.
Manual Mode
Manual
Area
STOP
Knead
Tap
Knead & Tap
Shiatsu
Knock
Width
Speed
Select 'navigation' key and press OK.
P.15
How to Use

Function Mechanical Hand Adjustment
3 speed levels available
3 width levels available
STOP Width
Knead Speed
Tap Speed & Width
Knead & Tap Speed
Shiatsu Width
Function Description
Spot
Partial
Upper Back
Lower Back
Full Back
Massging a particular point.
Massaing a particular small area.
Circling around the upper back.
Circling around the lower back.
Circling around the whole back.
Knock Speed & Width
3D I Speed
3D II Speed & Width
(ii) Manual - Position
- Position : Spot,Partial,Upper Back, Lower Back and Full Back.
- In the manual function, use the “up” or “down” button to choose the desired position and
then press “right” to enter the sub-menu of the said function. Press “OK” to confirm.
Click “left” to go back to the previous page.
Manual Mode
Manual
Area
Spot
Partial
Upper Back
Lower Back
Full Back
Width
Speed
Select 'navigation' key and press OK.
Manual Mode
Manual
Area
Spot
Partial
Upper Back
Lower Back
Full Back
Width
Speed
Select 'navigation' key and press OK.
P.16
When choosing “spot” and “partial”,
adjust the targeted area by using
“up” and “down” buttons in the
status page.
How to Use
MENU
Auto Mode
Manual Mode
Air Massage
Other Function
Customise
Setting
Select 'up' or 'down' key and ...

(iii) Manual - Width
- Width: 3 width levels of adjustment of mechanical hands.
- In the manual function, use the “up” or “down” button to choose width function and then
press “right” to enter the sub-menu of the said function. Press “OK” to confirm. Click
“left” to go back to the previous page.
Manual Mode
Manual
Area
Narrow
Middle
Wide
Width
Speed
Select 'navigation' key and press OK.
Manual Mode
Manual
Area
Narrow
Middle
Wide
Width
Speed
Select 'navigation' key and press OK.
(iv) Manual - Speed
- Speed: 3 speed levels of adjustment of mechanical hands.
- In the manual function, use the “up” or “down” button to choose speed function and then
press “right” to enter the sub-menu of the said function. Press “OK” to confirm. Click
“left” to go back to the previous page.
Note: Width: the width can be adjusted under the massage methods including
tap,shiatsu,knock and 3D II, 3 levels of adjustment available.
Manual Mode
Manual
Area
1
2
3
Width
Speed
Select 'navigation' key and press OK.
Manual Mode
Manual
Area
1
2
3
Width
Speed
Select 'navigation' key and press OK.
P.17
How to Use
MENU
Auto Mode
Manual Mode
Air Massage
Other Function
Customise
Setting
Select 'up' or 'down' key and ...
MENU
Auto Mode
Manual Mode
Air Massage
Other Function
Customise
Setting
Select 'up' or 'down' key and ...
