Maxcess Fife-200 Manual

Fife-200 Web Guiding System
Installation and Service Manual
EN
MI 1-918 1 C
FIFE GUIDING SOLUTIONS

CONTENTS
www.maxcessintl.com
Fife-200 Web Guiding System
MI 1-918 1 C
INTRODUCTION 1-1
About these operating instructions ...................................................................... 1-1
CE marking .......................................................................................................... 1-1
Product overview .................................................................................................. 1-2
SAFETY INSTRUCTIONS 2-1
Instructions for use .............................................................................................. 2-1
Safety symbols ..................................................................................................... 2-1
Symbols used ....................................................................................................... 2-2
Basic safety information ....................................................................................... 2-3
INSTALLATION 3-1
Installing the web guide ....................................................................................... 3-2

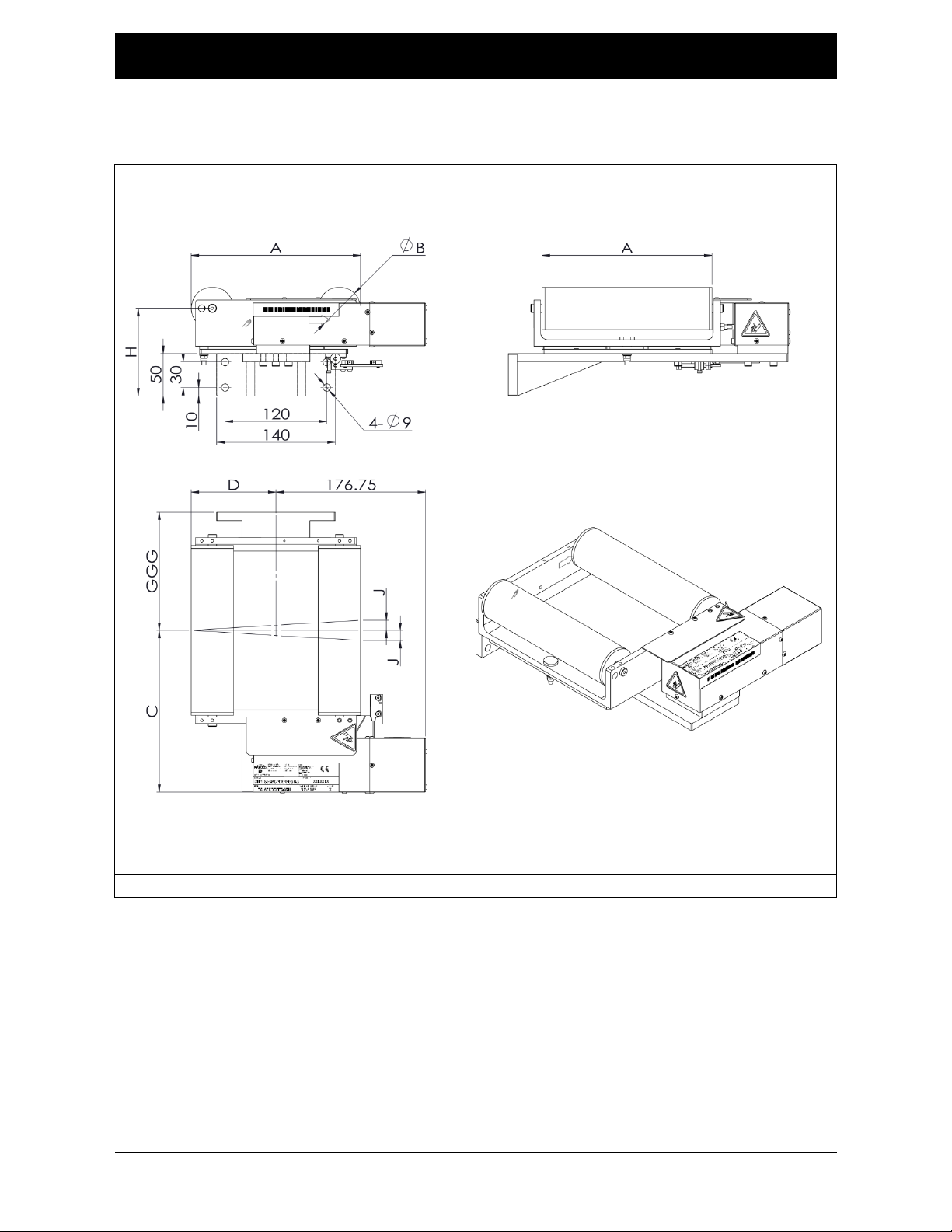

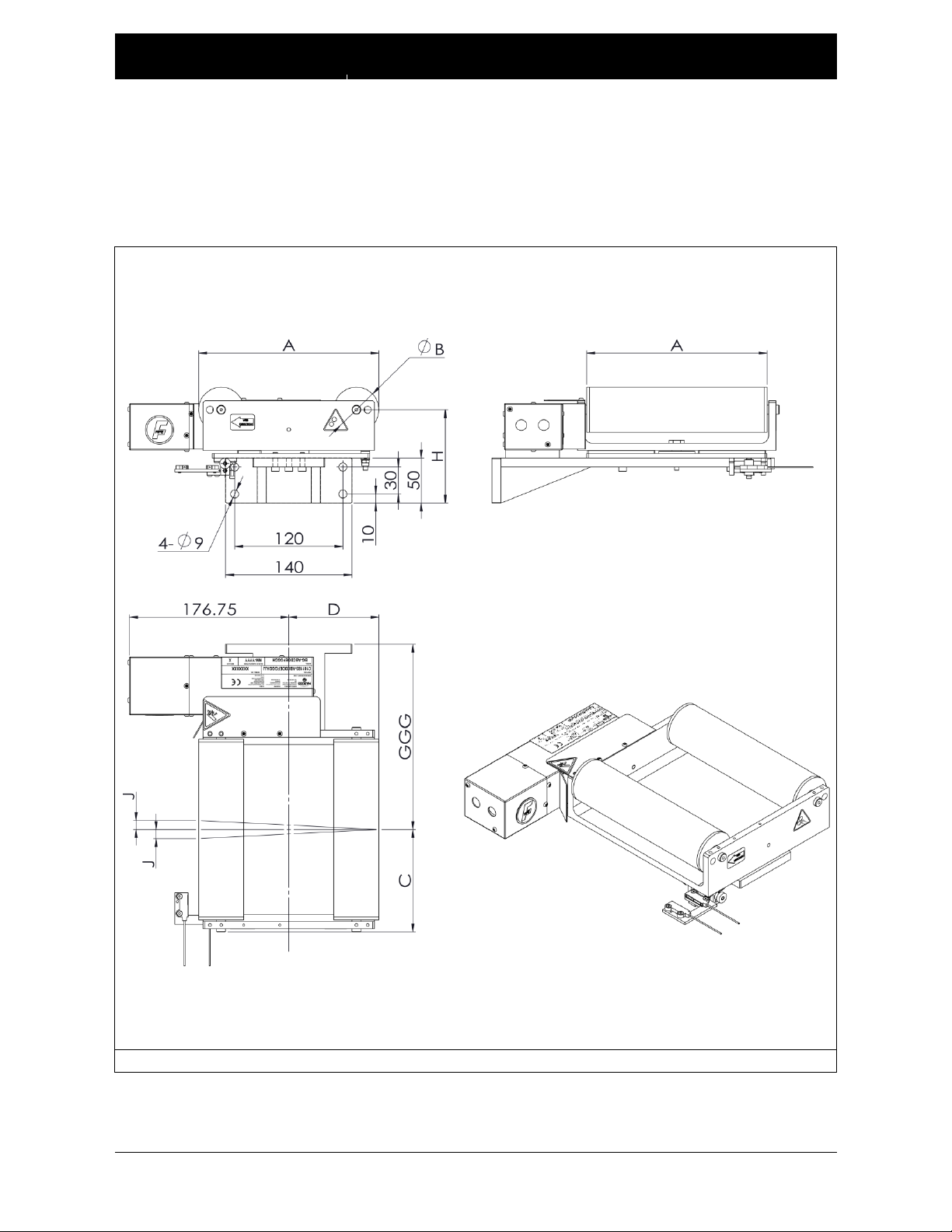

Mounting dimensions ...................................................................................... 3-4
Wrap styles ...................................................................................................... 3-5
Sensor installation................................................................................................ 3-6
SE-47 sensor ................................................................................................... 3-6

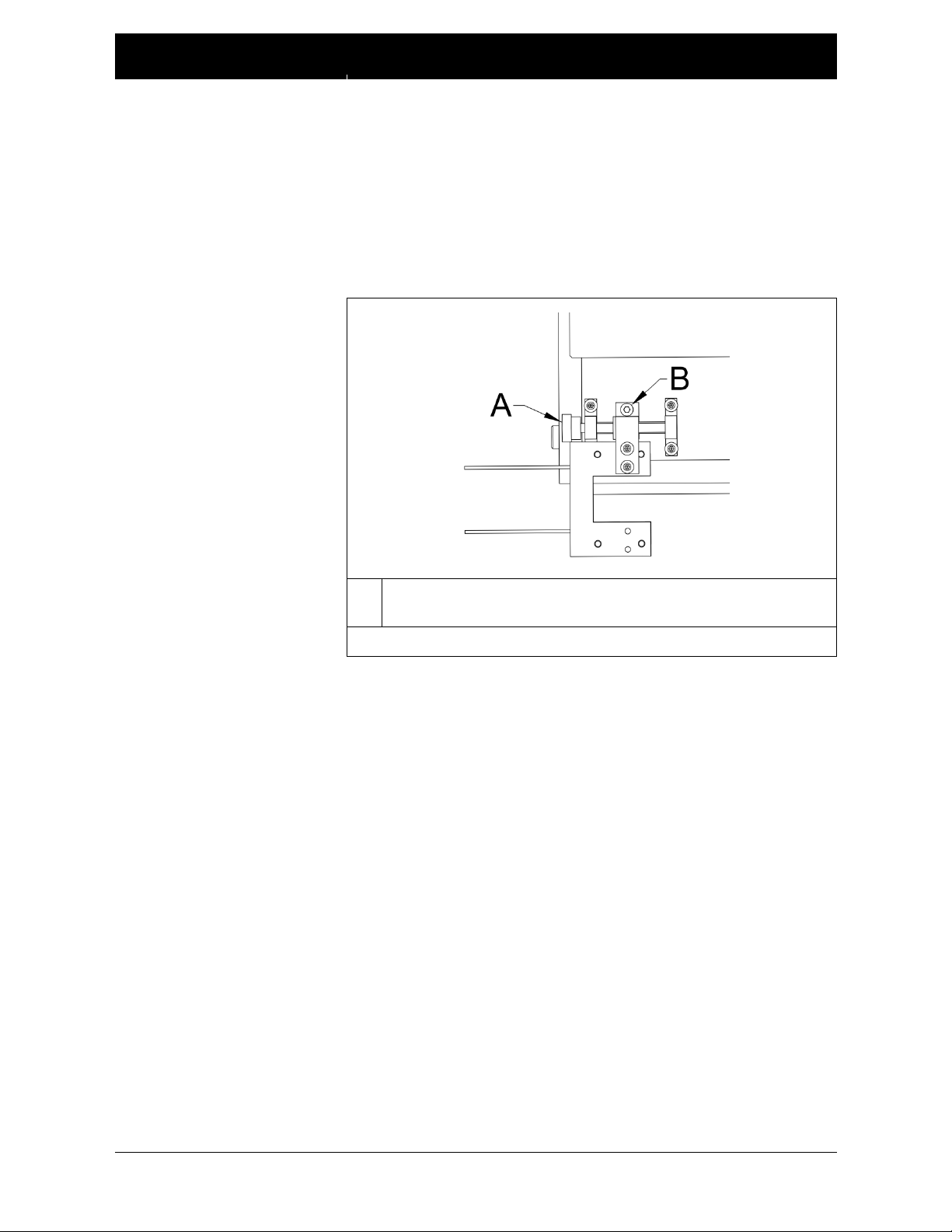

SE-47 sensor position adjustment................................................................... 3-7
Other Fife sensors ........................................................................................... 3-7
Installing the operator interface ........................................................................... 3-8

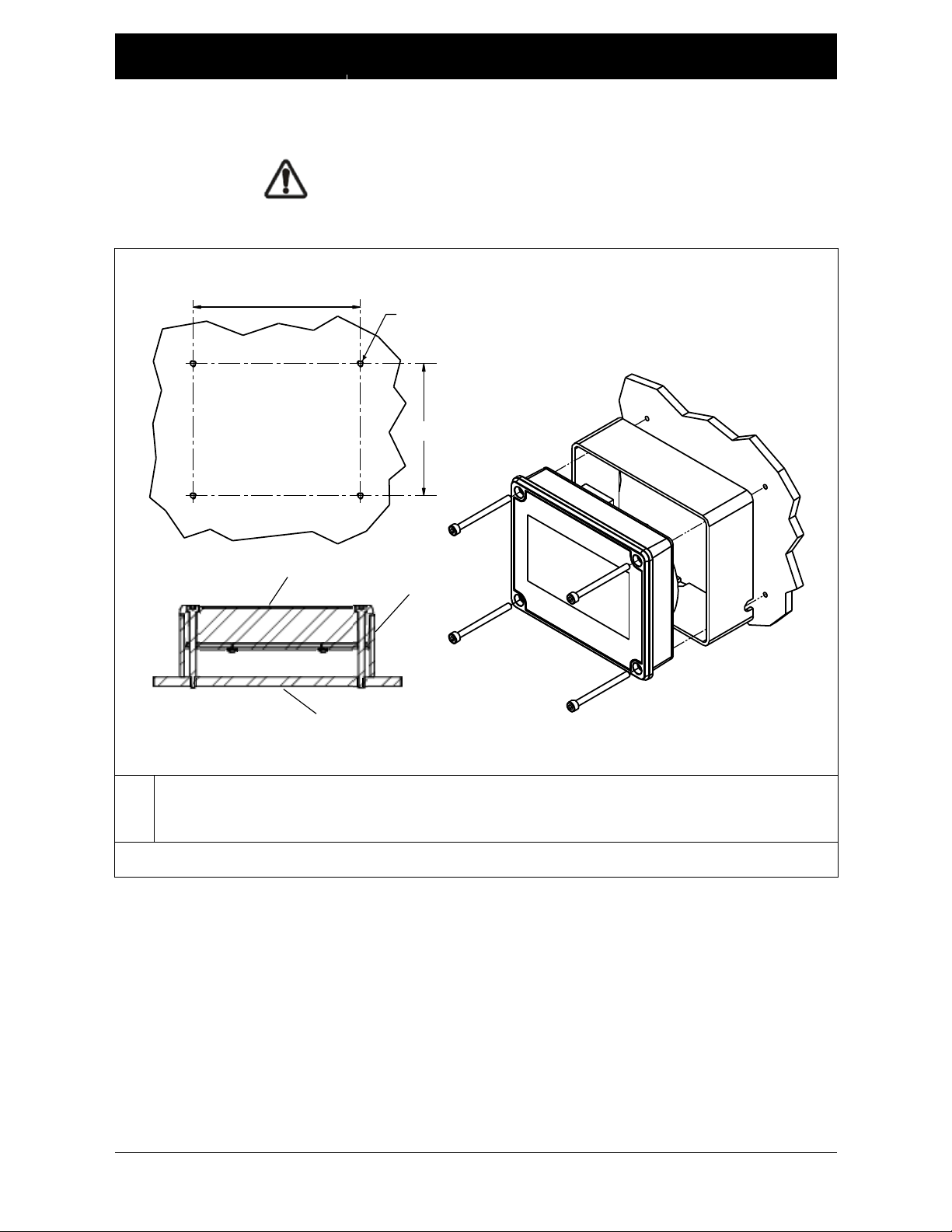

Panel mount model.......................................................................................... 3-8
Wall mount model ........................................................................................... 3-9
Electrical installation .......................................................................................... 3-10
Installing cables............................................................................................. 3-10
Controller connection diagrams ......................................................................... 3-14
Controller assembly mounting ........................................................................... 3-17
Power connection ............................................................................................... 3-18
Digital inputs/outputs........................................................................................ 3-19
MAINTENANCE 4-1
MODEL NUMBER KEY 5-1
SPECIFICATIONS 6-1
SERVICE AND REPLACEMENT PARTS 7-1

1–1
INTRODUCTION
www.maxcessintl.com
Fife-200 Web Guiding System
MI 1-918 1 C
About these
operating
instructions
All of the information herein is the exclusive proprietary
property of Maxcess International, and is disclosed with the
understanding that it will be retained in confidence and will
neither be duplicated nor copied in whole or in part nor be
used for any purpose other than for which disclosed.
Copyright 2015, all rights reserved.
Periodically there will be updates to this manual. The latest
version is available on our website or by calling the number
on the back page of this publication.
These web guiding systems must not be installed or used in a
machine or system which does not comply with the machinery
directive 2006/42/EC.
These web guiding systems were designed and manufactured
to be installed as Partly Completed Machinery into a machine
or partly completed machine.
The instructions must be read and used by all persons who
have the responsibility of installing and maintaining these
web guiding systems.
These instructions must be retained and incorporated in the
technical documentation for the machine or partly completed
machinery into which the web guiding system is installed.
Language
These are the original instructions, written in English.
CE marking
The Fife-200 Web Guiding System complies with the
2006/42/EC Machinery directive and the 2004/108/EC
Electromagnetic Compatibility directive.
Conventions used
All dimensions and specifications are shown in the format
mm [inches] unless otherwise specified.

1–2
INTRODUCTION
www.maxcessintl.com
Fife-200 Web Guiding System
MI 1-918 1 C
Product overview
The Fife-200 Web Guiding System is a small web guide and
controller that consists of three parts: an offset pivot guide
and sensor, a controller capable of controlling four guides
and sensors, and an operator interface. The Fife-200 Web
Guiding System has an IP40 ingress protection rating. The
Fife-200 Web Guiding System is available in four different roll
face and guide spans and two different roller diameters.
The Fife-200 Web Guiding System is designed for continuous
use. The controller has one sensor input per guide, three
parallel inputs per guide, and one parallel output per guide.
The controller controls all the guides through the color touch-
screen operator interface. The controller parallel inputs and
outputs are used for remote control and alarms. The Fife-200
Web Guiding System controls the position of the web by
monitoring the web position with the sensor mounted in the
web path and driving an actuator connected to the guide
assembly to steer the web to the desired position.
The Fife-200 Battery Guiding System is capable of Servo-
Center mode without a Servo-Center sensor for centering the
guide while threading the web. When entering Servo-Center
mode, the guide will jog between the mechanical stops and
center at the midpoint of the stops.The Fife-200 Web Guiding
System works with most FIFE sensors.

2–1
SAFETY INSTRUCTIONS
www.maxcessintl.com
Fife-200 Web Guiding System
MI 1-918 1 C
Instructions for use
To ensure safe and problem free installation of the Fife-200
Web Guiding System, it must be properly transported and
stored, professionally installed, and placed in operation.
Proper operation and maintenance will ensure a long service
life of the device. Only persons who are acquainted with the
installation, commissioning, operation, and maintenance of
the system and who possess the necessary qualifications for
their activities may work on the Fife-200 Web Guiding System.
Note: The safety information may not be comprehensive.
Please note the following:
The content of these operating instructions
Any safety instructions on the device
The machine manufacturer’s specifications
All national, state, and local requirements for installation,
accident prevention and environmental protection
Safety symbols
Information about
safety instructions
The safety instructions and symbols described in this section
are used in these operating instructions. They are used to
avoid possible dangers for users and to prevent material
damage.
SIGNAL WORD
Source of danger and its results
Avoiding dangers
The signal word DANGER refers to the danger of death or
serious bodily injuries.
The signal word WARNING refers to the danger of moderate to
severe bodily injuries.
The signal word CAUTION refers to the danger of slight to
moderate bodily injuries or material damage.
The signal word NOTICE refers to the possibility of damage to
equipment.

2–2
SAFETY INSTRUCTIONS
www.maxcessintl.com
Fife-200 Web Guiding System
MI 1-918 1 C
Symbols used
The following safety identification symbols are used in these
operating instructions.
WARNING/CAUTION –General danger or important note
Reference to general hazards that may result in bodily
injuries or damage to device or material.
WARNING/CAUTION –Danger due to crushing
Reference to danger of injury caused by crushing.
WARNING/CAUTION –Danger due to cutting
Reference to danger of injury caused by cutting.
WARNING/CAUTION –Danger due to voltage, electric shock
Reference to danger of injury caused by electric shock due to
voltage.
WARNING/CAUTION –Danger due to hot surfaces
Reference to risk of injury caused by burning.

2–3
SAFETY INSTRUCTIONS
www.maxcessintl.com
Fife-200 Web Guiding System
MI 1-918 1 C
Basic safety information
Proper use
The Fife-200 Web Guiding System is intended to be used on
machines or systems to guide a web of material.
Indoor operation: see environmental specifications
Improper use
Operation outside the technical specifications
Operation in an Ex-area or intrinsically safe area
Operation as a safety component. The Fife-200 Web Guiding
System does not hold the web position if power fails.
Outdoor operation
Any other use than the proper use shall be deemed
inappropriate.
Installation and commissioning
Any Fife-200 Web Guiding System which is damaged must not
be installed or put into operation.
Only perform installation, maintenance or repair tasks on the
Fife-200 Web Guiding System when the machine has been
stopped and is secured from being turned on.
Only perform installation, maintenance or repair tasks on the
Fife-200 Web Guiding System when there is no electrical power
in the system.
The Fife-200 Web Guiding System must be securely mounted
before being placed in operation.
Only replacement parts obtained from Fife may be used.
No modifications may be made to the Fife-200 Web Guiding
System.
Do not place electrical cables under mechanical strain.
WARNING –Death or injury can result from static electric shocks.
Moving webs of material can produce large static voltage
potentials. Protect against electric shocks by installing a
conductive connection between the power cable GREEN wire and
the PE circuit of the building or machine.
WARNING –The Fife-200 Web Guiding System contains rotating
and moving parts which could cause injury due to crushing.
Appropriate protective guards must be installed by the user
according to his use of this product.

2–4
SAFETY INSTRUCTIONS
www.maxcessintl.com
Fife-200 Web Guiding System
MI 1-918 1 C
WARNING –Death or injury can result from unexpected
movement.
Protect against unexpected movement by removing electrical
power from the Fife-200 Web Guiding System and the machine
into which it is being installed.
Operation
WARNING –The Fife-200 Web Guiding System contains rotating
and moving parts which could cause injury due to crushing. Do
not touch anything on or in the vicinity of the moving or rotating
parts. Appropriate protective guards must be installed by the
user according to his use of this product.
Maintenance and repair
WARNING –Death or injury can result from unexpected
movement.
Protect against unexpected movement by removing electrical
power from the Fife-200 Web Guiding System and the machine
into which it is installed.
WARNING –Danger of injury from crushing.
Maintenance and repair tasks on the Fife-200 Web Guiding
System must be performed only when the machine has been
stopped and has been secured from being turned on again.
Decommissioning
The Fife-200 Web Guiding System must be disposed of in
accordance with all the applicable national, state and local
regulations.

3–1
INSTALLATION
www.maxcessintl.com
Fife-200 Web Guiding System
MI 1-918 1 C
Electrical and
mechanical
installation
CAUTION –Never place electrical cables under mechanical
strain. Always provide mechanical support of wiring with
either clamps or flexible or rigid conduit.
WARNING –Death or injury can result from unexpected
movement.
Protect against unexpected movement by removing electrical
power from the Fife-200 Web Guiding System and the
machine into which the Fife-200 Web Guiding System is
installed.
WARNING –Danger of injury from crushing.
Maintenance and repair tasks on the Fife-200 Web Guiding
System must be performed only when the machine has been
stopped and has been secured from being turned on again.
WARNING –The Fife-200 Web Guiding System contains
rotating and moving parts which could cause injury due to
crushing. Appropriate protective guards must be installed by
the user according to his use of this product.

3–2
INSTALLATION
www.maxcessintl.com
Fife-200 Web Guiding System
MI 1-918 1 C
Installing the web guide
Mount the guide(s) in the web path on a rigid support frame using four M8 bolts through the
9 mm [0.35 in] diameter holes in the guide support frame.
Inside type (actuator is between mounting surface and guide)
Figure 1. Guide installation drawing, actuator mounting inside type

3–3
INSTALLATION
www.maxcessintl.com
Fife-200 Web Guiding System
MI 1-918 1 C
Outside type (actuator is NOT between mounting surface and guide)
Figure 2. Guide installation drawing, actuator mounting outside type

3–4
INSTALLATION
www.maxcessintl.com
Fife-200 Web Guiding System
MI 1-918 1 C
Mounting dimensions
Refer to Figure 1 for references to dimensions for the Actuator Mounting, Inside Type.
Roll Face
and
Guide Span
A
Roll
Diameter
B
D
Maximum
Correction
J
Maximum
Tension
T
Correction
Speed
S
Height
H
C
Guide
Center
Distance
GGG
60
[2.362]
25 [0.984]
30
[1.181]
+/-10
[+/-0.394]
49 N
[11 lb]
61 mm/s
[2.402 in/s]
78.5
[3.091]
56
[2.205]
125 to 350
[4.921 to
13.780]
110
[4.331]
25 [0.984]
48.5
[1.909]
+/-12
[+/-0.472]
67 mm/s
[2.638 in/s]
98.5
[3.878]
77.5
[3.051]
160 to 350
[6.299 to
13.780]
50 [1.969]
140
[5.512]
25 [0.984]
61.5
[2.421]
76 mm/s
[2.992 in/s]
103.5
[4.075]
85
[3.346]
175 to 350
[6.890 to
13.780]
50 [1.969]
200
[7.874]
25 [0.984]
100
[3.937]
81 mm/s
[3.189 in/s]
103.5
[4.075]
113.5
[4.469]
205 to 350
[8.071 to
13.780]
50 [1.969]
Table 1. Dimensions for actuator mounting inside.
Refer to Figure 2 for references to dimensions for the Actuator Mounting, Outside Type.
Roll Face
and
Guide Span
A
Roll
Diameter
B
D
Maximum
Correction
J
Maximum
Tension
T
Correction
Speed
S
Height
H
C
Guide
Center
Distance
GGG
60
[2.362]
25 [0.984]
30
[1.181]
+/-10
[+/-0.394]
49 N
[11 lb]
61 mm/s
[2.402 in/s]
78.5
[3.091]
134
[5.276]
125 to 300
[4.921 to
11.811]
110
[4.331]
25 [0.984]
48.5
[1.909]
+/-12
[+/-0.472]
67 mm/s
[2.638 in/s]
98.5
[3.878]
155.5
[6.122]
125 to 300
[4.921 to
11.811]
50 [1.969]
140
[5.512]
25 [0.984]
61.5
[2.421]
76 mm/s
[2.992 in/s]
103.5
[4.075]
163
[6.417]
125 to 300
[4.921 to
11.811]
50 [1.969]
200
[7.874]
25 [0.984]
100
[3.937]
81 mm/s
[3.189 in/s]
103.5
[4.075]
191.5
[7.539]
135 to 300
[5.315 to
11.811]
50 [1.969]
Table 2. Dimensions for actuator mounting outside.

3–5
INSTALLATION
www.maxcessintl.com
Fife-200 Web Guiding System
MI 1-918 1 C
Wrap styles
Allowed wrap styles
Mount the guide and thread the web using one of the allowed wrap styles, indicated by a
checkmark in Figure 3.
Figure 3. Allowed wrap styles

3–6
INSTALLATION
www.maxcessintl.com
Fife-200 Web Guiding System
MI 1-918 1 C

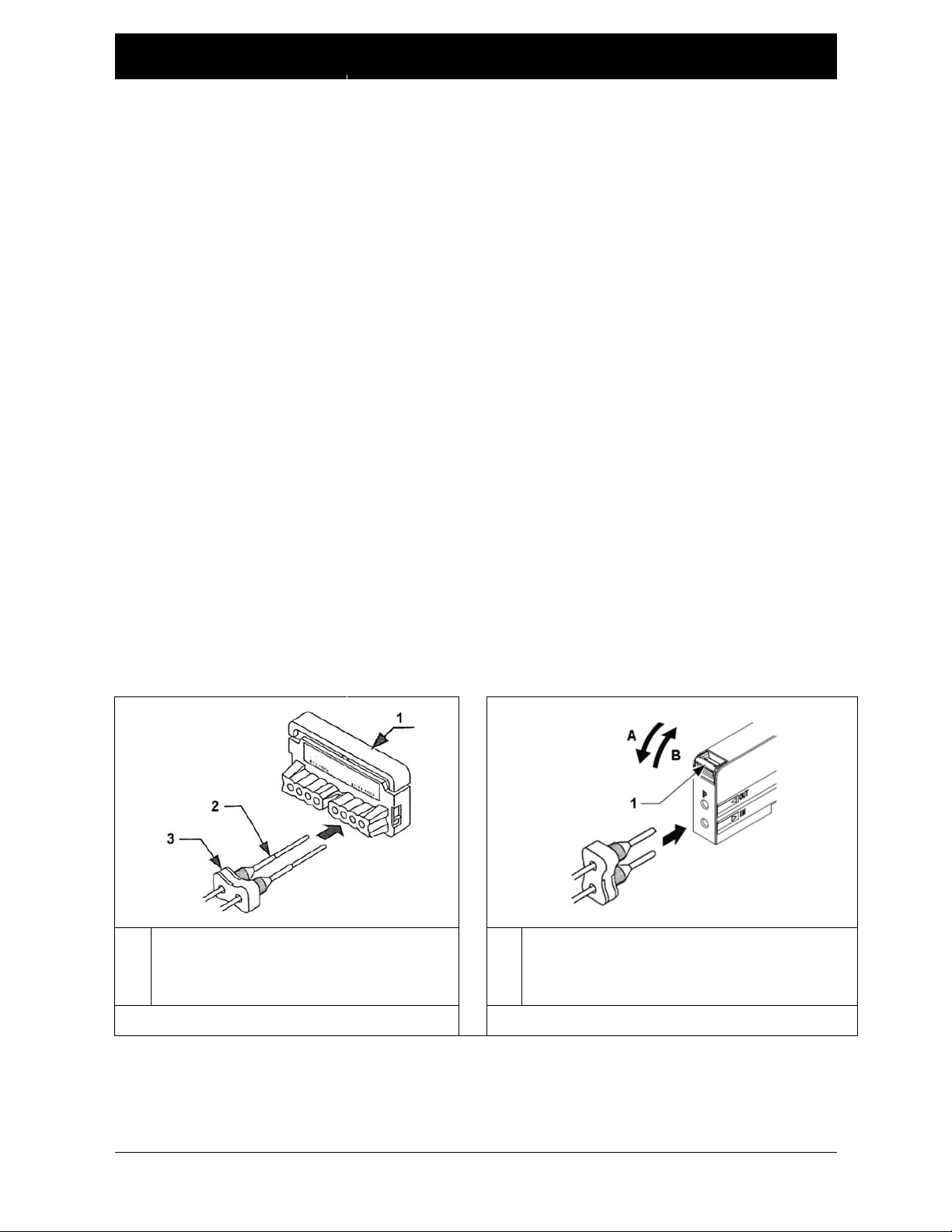

Sensor Installation
SE-47 sensor
This section only applies when using the SE-47 sensor.
1. Mount the SE-47 amplifier in a convenient location near
the guide on a small piece of 35 mm DIN rail.
2. Using the supplied cutting tool, trim the fiber optic cable
from the sensor head to a length needed to reach the
amplifier.
3. Loosen the holders and position the fibers for the length
that needs to be cut.
4. Tighten the holders to secure the fibers in the gland. Lift
the handle on the cutting tool.
5. Insert the gland into the cutting tool as shown in Figure 4.
6. Press down firmly on the cutting tool handle to cut off
excess length of fiber.
7. After the fibers are cut to length, open the fiber locking
latch on the amplifier as shown by moving to position (A)
in Figure 5.
8. Install the fibers into the fiber ports on the amplifier. Move
the fiber locking latch to position (B) to lock the fibers in
place.
1
Fiber cutting tool
1
Fiber locking latch
2
Holder
A
Open
3
Gland
B
Locked
Figure 4. Inserting fibers in cutting tool.
Figure 5. Installing fibers into SE-47 amplifier.
▶▶ See next page for sensor position adjustment.

3–7
INSTALLATION
www.maxcessintl.com
Fife-200 Web Guiding System
MI 1-918 1 C
SE-47 sensor position
adjustment
Adjust the position of the SE-47 sensor heads, by loosening
set screw (B) and turning the adjustment knob (A).
Once the sensor heads are in the desired location, tighten the
set screw to prevent the sensor heads from moving.
A
Position adjustment knob
B
Set screw
Figure 6. SE-47 sensor position adjustment
Other Fife sensor
installation
This section only applies when using other standard Fife
sensors, including the SE-11, SE-22, SE-44R, SE-31, and SE-
26A.
Mount the sensors in the web path on a customer-supplied
support frame.

3–8
INSTALLATION
www.maxcessintl.com
Fife-200 Web Guiding System
MI 1-918 1 C
Installing the
operator interface
The operator interface can be mounted in a panel or on a wall.
Installation kits
Description
Part Number
OI-FB Panel Mounting Kit
215802-001
OI-FB Wall Mounting Kit
216873-001
Panel mount model
CAUTION –Never place electrical cables under mechanical
strain. Always provide mechanical support of wiring with
either clamps or flexible or rigid conduit.
1
Operator interface
2
Panel
3
Mounting bracket
4
Panel jack screws
5
Installation cut-out
Figure 7. Operator interface panel mount kit installation.
124[4.882]
R4 [0.157] MAX (4X)






3–9
INSTALLATION
www.maxcessintl.com
Fife-200 Web Guiding System
MI 1-918 1 C
Wall mount model
CAUTION –Never place electrical cables under mechanical strain.
Always provide mechanical support of wiring with either clamps or
flexible or rigid conduit.
1
Operator interface
2
Operator interface shroud
3
Wall
Figure 8. Operator interface wall mount kit installation
M4 x 0.7 (4X)


111 [4.370]
87.7 [3.453]

3–10
INSTALLATION
www.maxcessintl.com
Fife-200 Web Guiding System
MI 1-918 1 C
Controller
installation
Installing cables in the
controller housing
OI, motor, sensor, and parallel I/O cables
Figure 9 shows the system connection overview for sensor types
SE-47, SE-11, SE-22, SE-44R, and SE-31. Sensor 1 should be
sensing the web on Guide 1. The same is true for the other guides
and sensors.
The controller can control four guides; however, when using the
SE-26A sensor it will only control two guides. See Figure 10 on
next page.
Figure 9. System connection overview for sensors types SE-47, SE-11, SE-22, SE-44R, or SE-31.

3–11
INSTALLATION
www.maxcessintl.com
Fife-200 Web Guiding System
MI 1-918 1 C
Installing cables
(continued)
Figure 10 shows the system connection overview for sensor type
SE-26A.
Figure 10. System connection overview for sensor type SE-26A.
