Maxell ACTIVEPAD Motecare Light User manual

MXES-B220
Light
EMS Sport Device
Thank you for buying this product. Please read this user manual in advance and use the product safely.
Please keep this user manual for future reference.
Motecare
PA1768-00
11
Index
Preface 2
3
6
6
9
Safety caution
Names of parts of the device
Usage
Maintenance
Troubleshooting
1
2
3
4
5
6
712
Specification

2
1Preface
About the user manual
• Contents of this user manual might change in the future without prior notice.
• For product improvement, change of appearance or specication might not be
announced in advance.
• Except for personal use, any unauthorised copying of part or all parts of this manual is
prohibited. Unauthorised republication is strictly prohibited.
Disclaimer
•Maxell shall not be responsible for any damage caused by res, earthquakes, action
of a third party, any accidents, intended or unintended misuse or other usage
under abnormal conditions.
•All explicit and implicit contents not stated in the user manual are not covered.
•Maxell shall not be responsible for failure due to any damage caused by usage
other than described in the user manual.
• This product is not designed to be used in medical equipment, nuclear equipment,
aerospace equipment, transportation equipment and other device or equipment
that involve human life and require high reliability. In the instance that this product
is used as the above equipment and/or systems, Maxell is not responsible for any
injuries or re accidents caused by the failure of this product.
Contents of the box
Controller
Controller
Main Unit and Controller x 2
Main Unit and Controller x 1
Accessories
Accessories
Protective Sheet x 2
Protective Sheet x 1
Main Unit
Main Unit
＜ MXES
-
B220LBK2P ＞
＜ MXES-B220LBK1P ＞
Trial Battery
×1(CR2032) Gel Pad x 2
Trial Battery
×2(CR2032) Gel Pad x 4
Quick Guide User manual
Quick Guide User manual

Safety caution
2
Please observe the precautions which are intended for safe and correct use of
the product.
Warning
Caution
Warning refers to misuse which might lead to death or serious injury*1to a
high degree.
Caution refers to misuse which might lead to injury*2and may cause property
damage*3.
Warning refers to misuse which might lead to death or serious injury*1.
*1: Severe injury is indicated by those that have after eects such as blindness, injury, burns(high tempera-
ture burns/low temperature burns, chemical burns), electric shock, fracture, poisoning, etc. and those
requiring hospitalization or long-term regular hospital visits for treatment.
*2: Injury refers to burns, electric shock which do not result in hospitalisation or long-term follow-up.
*3: Damages refers broad damages to houses or properties and domestic animal / pets.
Example of symbols
Prohibited actions when handling the product. Details will be illustrated inside or
next to the symbol or with written description next to it.
Graphic symbols representing specic instructions are shown in black
color in the shape of .
Caution to re, electric shock, high temperature when handling the product.
Details will be illustrated inside the symbol.
Graphic symbols representing specic instructions are shown in black
color in the shape of .
Instruction which must be followed. Details will be illustrated inside or next to the
symbol or with written description next to it.
Graphic symbols representing specic instructions are shown in white
color in the shape of ●.
Danger
Prohibited to use with the following electronic medical equipment
(1) Heart rate regulator implanted in the body.
(2) Medical equipment to maintain life such as cardiopulmonary machine, etc.
(3) ECG and other external electronic medical equipment. It may cause medical electronics
accidents and impediment to the body.
Do not touch leaked liquid
If liquid leaks from this device and gets into the eye, do not rub. Rinse with plenty of clean
water immediately and consult a doctor. It may cause blindness.
Keep batteries out of reach of children.
Children may swallow the battery. If a battery is swallowed, it may cause death. Consult a
doctor immediately for instructions.
Danger
3

4
Warning
• The following people must consult the doctor before use
(1) People with acute disease. (2) People with malignant tumor.
(3) People with infectious disease. (4) Pregnant women or shortly after delivery.
(5) People with heart failure. (6) People with fever. (7) People with anemia.
(8) People with infection, wounds, etc. on skin surrounding the application area.
(9) People with abnormal blood pressure.
(10) People who feel an abnormality and need resting.
(11) People with vertebral fracture, sprains, muscle torn or similar acute (pain) disease.
(12) People with perceptual disorders resulting from advanced endovascular
disorders due to diabetes, etc.
(13) People who have undergone plastic surgery or breast augmentation surgery.
(14) Except the above mentioned, who feel an abnormality on their body.
It may cause accident or physical deterioration.
• The following people must not use the device
(1) People who are consuming or recently consumed alcohol. (2) People under 18.
(3) Do not use on children or pets.
• Turn off the power supply while placing and removing the gel pads
This may cause electric shock.
• If you feel unwell, stop use immediately
This may cause accidents or physical deterioration. Discontinue use and consult a
doctor if you feel any discomfort or abnormality such as dry skin, itchiness, redness,
burning or inammation during use. Continued use may aggravate the symptoms.
• Do not use near your heart, head, face, eyes, neck or vulva
This may cause accidents or physical deterioration.
• Do not use in highly humid locations such as bathroom
This may cause overheating, electric shock or malfunction.
• Do not put into heating appliances such as microwave ovens or pressure
cookers
This may cause overheating, smoke or re.
• Do not operate with wet hands
This may cause overheating, shock, malfunction.
• Do not pour liquid or water on the device
This may cause overheating, smoke, re, malfunction, injury or damage the device.
• Store in a place out of a child's reach
This may cause accidents or physical deterioration.
• Do not sleep during use
This may cause accidents or injury.
• Do not wear metal accessories such as necklaces during use
This may cause electric shock.
• Do not disassemble or remodel
This may cause overheating, smoke, re, liquid leak, injury or damage the device.
• Stop using broken devices
This may cause accidents or injury.

5
• Do not use more than two devices on different body parts at one time
This may cause accidents or injury.
• Do not carry out housework involving water, knives or fire during use
This may cause accidents or injury.
• Do not short the terminals
This may cause overheating, electric shock, malfunction or injury.
• Be sure to attach the gel pad to the main unit
If the electrodes touch the body directly, there is a risk of burns.
• Do not put into fire
This may cause smoke, re or damage the device.
• Do not heat the battery or put it into fire
This may cause smoke, re or damage the device.
• Charge within 10-35°C
Charging out of this temperature range may result in liquid leak, overheating,
malfunction or damage to the device.
• Do not forcibly press the device
This may deform or damage the device. This may also cause liquid leak, overheating,
re or malfunction.
• Do not use the device on the same body part for more than once a day
Even up to 2 dierent parts per day.
• Do not use continuously
Continuous usage may result in muscular or neuropathic pain.
• Do not leave the gel pads on your body
This may cause skin inammation.
• Do not use other electrical devices such as mobile phones during use
This may cause accidents.
• Do not use before or whilst driving
This may cause trac accidents.
• Do not use and store in locations of high temperature
This may cause accidents, injury or malfunction.
• Do not step on, drop or apply strong shock to the device
This may deform or damage the device. This may also cause liquid leak, overheating,
re or malfunction.
Caution
• Do not place flammable or heavy objects on the device, or cover the device
with foreign objects such as towels or cushions
This may cause overheating, re, liquid leak or damage the device.
• Do not use for purposes other than body training
This may cause accidents or injury.
• Do not exercise while using this product
This may cause injury.
• Insert the "+" and "-" poles of the battery correctly
This may cause rupture, damage, malfunction or injury due to the overheating or
leakage.

Caution
Insert the "+" and "-" poles of the battery correctly.
This may cause rupture, damage, malfunction or injury due to the overheating or leakage.
•
If a battery or battery lid is swallowed, contact a doctor immediately for instructions.
•
❸Insert a battery
Insert the battery with the "+" mark facing up.
※Make sure that the battery is installed securely.
Battery Used Button type lithium battery
CR2032
（Recommendation：Maxell Manufacture ）
Names of parts of the device
3
Main Unit
LED
Indicator
•
Power Button Battery Lid
Intensity
Selection Button
Snap
(Stocket)
4

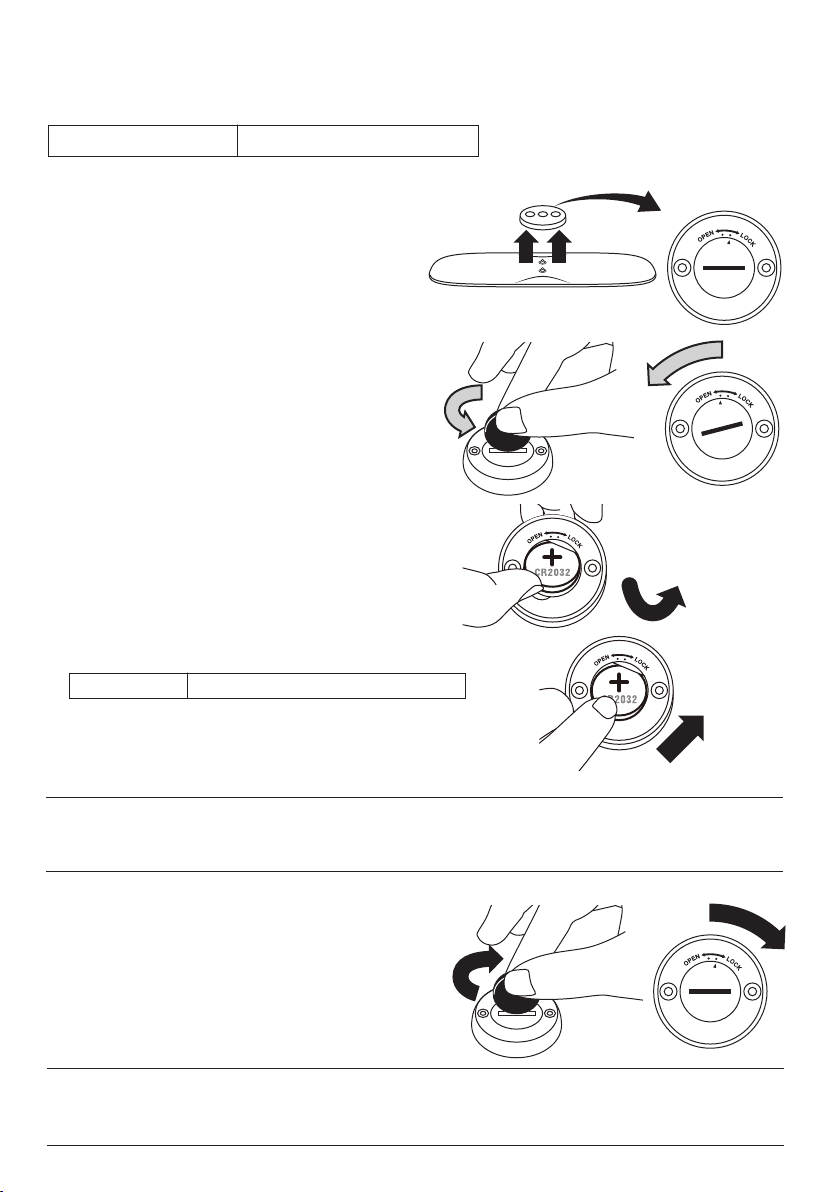

❷Open the battery lid
❶Remove the controller
Use a coin etc. to open the battery lid.
Remove the controller from the main
unit and turn it over.
※Be careful not to lose the battery lid.
Open
Open
Push in
Back
• Use specified battery
This may cause rupture, damage, malfunction or injury due to the overheating or
leakage.
• Do not use a battery that has exceeded the recommended usage period
It may cause injury or malfunction.
Controller
6
Usage
Main Unit Snap (Stud) Electrode

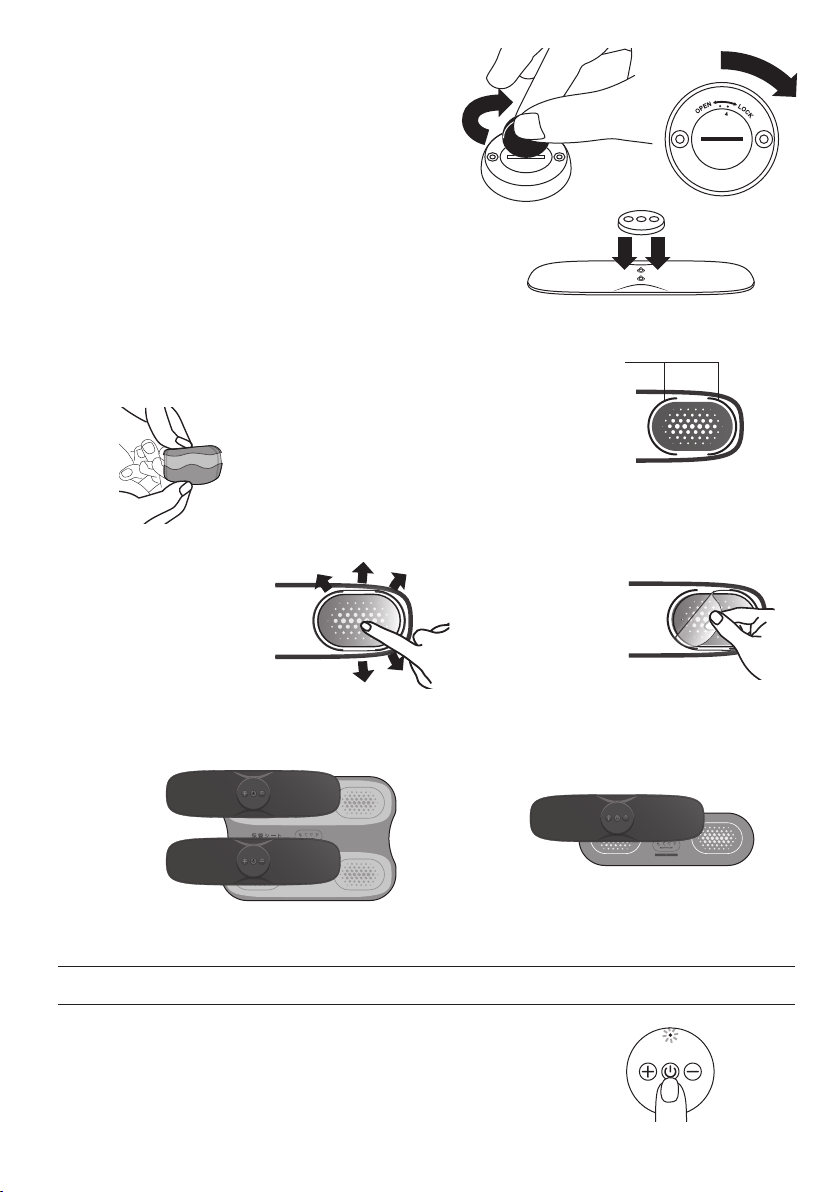

❺Install the controller
❻Attaching Gel Pads
❹Close the battery lid
Close
Close
※Make sure that the battery lid is tightly
closed. If the battery lid is not closed
securely, product operation may stop
during operation or may not work.
・Remove the blue lm
・・Remove the
transparent lm
・
Use a coin etc. to close the battery lid.
Make sure the controller is rmly attached to the main unit,
paying attention to the positions of the snap stud and socket.
・
Paste the gel pad along the guide
※Place the gel pads on the
electrodes and ensure no air
inside. Please put the gel pad
correctly so as to cover the
electrode part. If the electrode is
used in direct contact with your
skin, you may get burned.
・Stick the gel pad on the part of the body to be trained.
❼Usage
Beep
・Remove the protective sheet of the device
・Press and hold the battery button (about 1 second) A beep will sound and
the LED will light.
When the device turns on, the intensity is preset as level 1 (minimum).
Caution
If used improperly, the adhesive strength will decrease and the gel pad may deteriorate faster.
Paste on protective sheet
Press the pads with your
nger tip to clear the
air inside
7
＜ MXES
-
B220LBK2P ＞ ＜
MXES
-
B220LBK1P ＞
Guide

❾Training finishes
• After starting the operation, approx. 20 mins, it will have beep sound and
then automatically closed.
• To turn o the power in during use, press and hold the power button
(approx. 2 seconds) until you hear the beep sound, the LED light turns
o and the power is turned OFF.
• Remove the device from the body in vertical direction slowly after use.

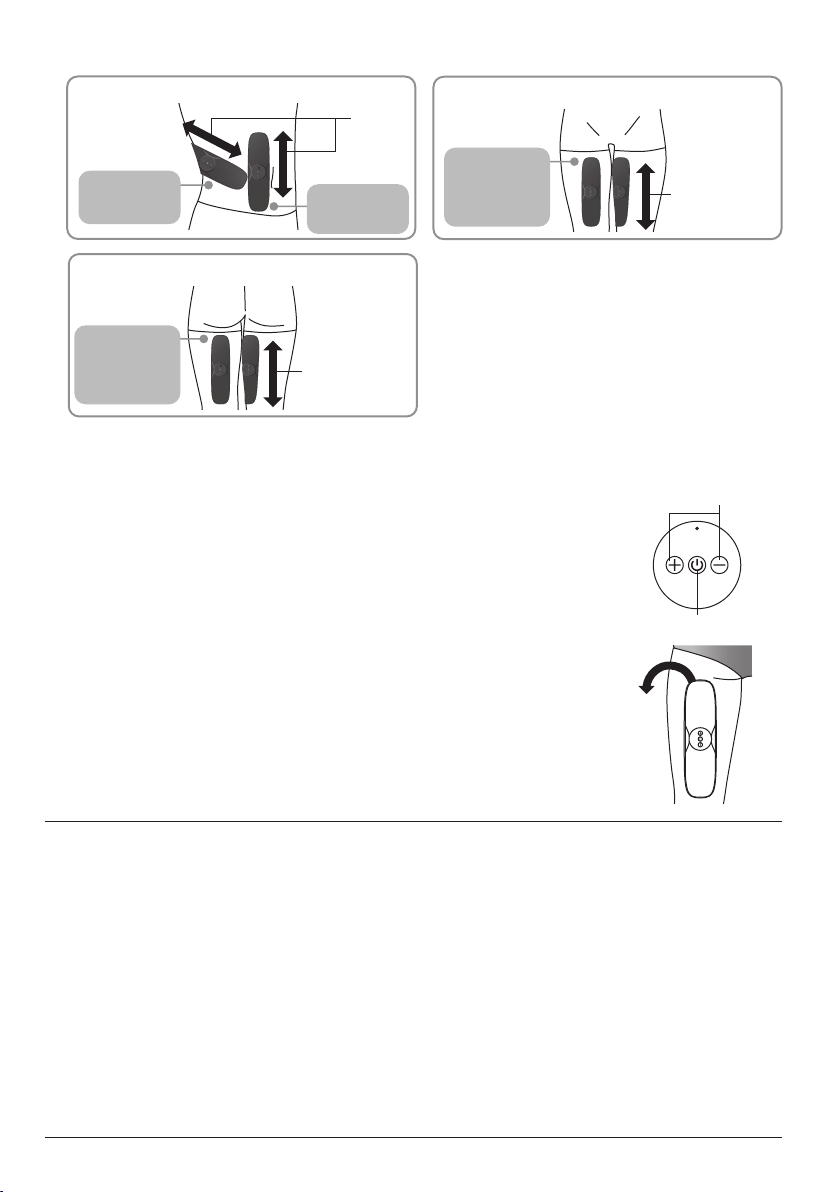

※Please stick on the body according to the direction
of muscle texture. Before sticking to the body,
wipe of sweat, moisture and dirt from the skin. It
may reduce adhesive strength.
※If the gel pad is not in close contact with your skin,
repeated beeps will sound, and the LED will blink.
(About 1 minute) If you do not attach it to your
body for about 1 minute, the power will turn o
automatically.
※You can stick in on your body rst then turn ON to
use.
• If you feel pain or numbness during use, switch o the device and try on a dierent location of your
body.
• Do not forcibly increase the intensity.
• In beginning, please start the training from low strength level (level 1, etc.), and gradually increase the
intensity level after getting used to electrical stimulation.
• Traning steps will be switched automatically and does not support manual operation.
• When the device is stopped during the training, next training will start from the beginning.
• Use within 10-35°C.
• When removing the device, please proceed slowly and carefully. Electrode may be damaged when
remove with strong force.
• If the LED does not light on or the electrical stimulus cannot be felt, the battery may be used up.
Please replace the battery. (The gel pad may be deteriorated.)
• The electrodes parts may darken depending on the method of use and frequency of use.
Caution

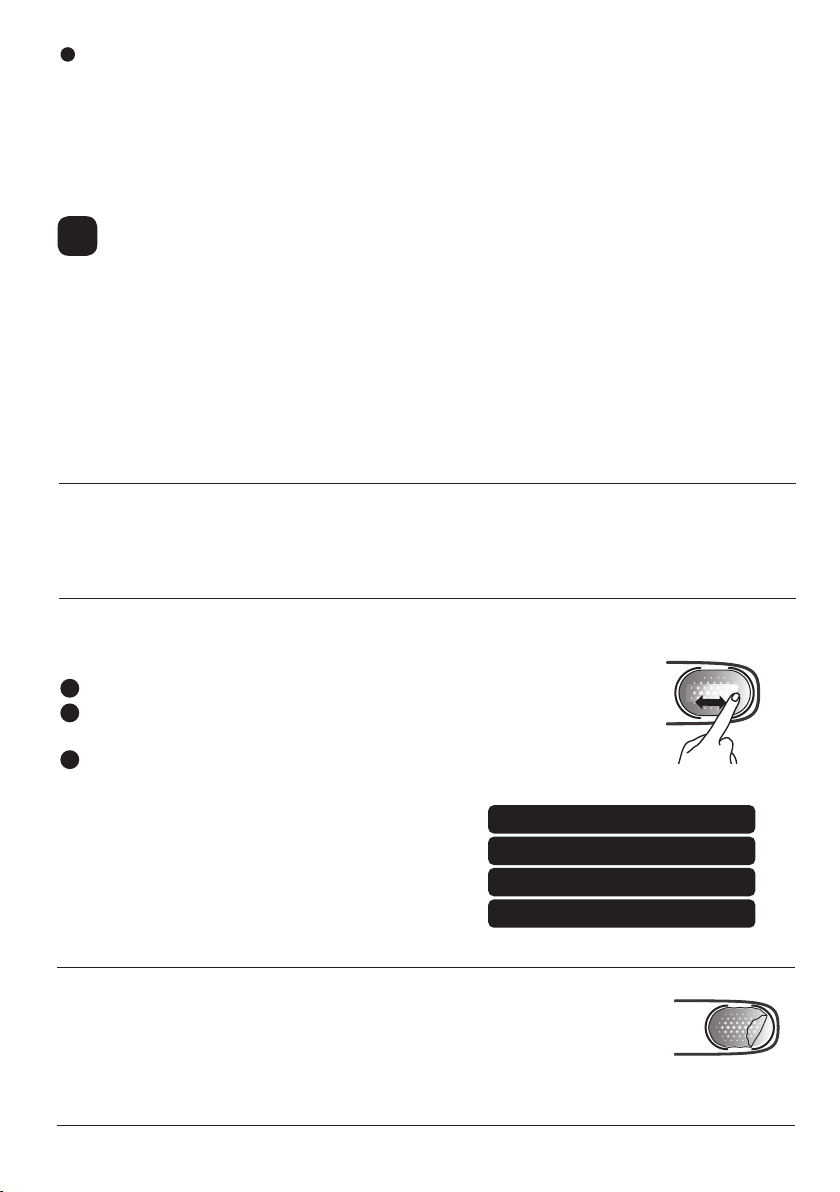

❽Adjust intensity
• There are 15 levels of strength. Select “+” or “-” from the strength selection
button. When you operate the “+” or “-” button, it will have beep sound and
the strength changes.
• When the strength level reaches 15 (maximum) or 1 (minimum), it will have
beep beep sound.
Power button
Intensity selection
button
8
※Low
frequency ow
※Low
frequency ow
※Low
frequency ow
※MXES-B220LBK1P contains only one main unit and one controllerSticking Location (Example)
Training tummy
External oblique
muscles of abdomen
The direction
of muscles is
vertical
Abdominal
Training the front thighs
Training the back thighs
The direction
of muscles is
generally
vertical
The direction
of muscles is
generally
vertical
We recommend sticking it a little inside from the middle!
We recommend sticking it a little inside from the middle!
The direction
of muscles is
diagonal

Never carry out maintenance during charging and ensure power supply is o. Before cleaning,
be sure to power o and remove the controller from the main unit.
MXES
-
GELB4S (4pcs set Pack)
(8pcs set Pack)
Maintenance
5
MXES
-
GELB8S
MXES
-
GELC4S
・After use, wipe o sweat and moisture, and attach the main unit on a storage sheet for storage.
・If the product is left without wiping o sweat or moisture, the product life may be shortened.
・Do not store the unit using anything other than a protective sheet. If you use other paper, it will not
be removed.
・When the battery has been used up or are not going to be used for a long time (more than 3
months), remove the battery and store it.
MXES
-
GELC8S
Storage
Caution
• The gel pad may peel o depending on the usage conditions, storage environment
or insucient maintenance. • Frequent use and maintenance will reduce the
adhesiveness and the longevity of gel pads. • Never stick the gel pads together.
Place the protective lms on the adhesive side of the pads and store properly.
• Please be aware that we are not liable for any trouble caused by using non-original
gel pads.
When the adhesiveness of the gel pads is signicantly
reduced after continuous use and maintenance,
replacement gel pad (sold separately) shown on the
right.
• This product is not waterproof. Please make sure that do not allow water to enter the controller and the
main unit.
• Do not wipe with chemicals such as benzine, thinner or alcohol.
• If the product is used without being cleaned or stored for a long period of time, the electrodes may
darken. Regular maintenance is recommended.
Caution
Maintenance of Device and Controller
• Please use dry and soft cloth to wipe away the dirt on the device.
• For severe dirt, please use damp soft cloth to wipe away the dirt on the device gently. Please
squeeze out water from wet cloth before wiping.
• Clean the gel pad according to “Maintenance of the Gel Pad”.
1
2
3
Maintenance of Gel Pad
Dip your nger tip in water and wipe away the dirt on the adhesive side.
Wipe away the water, place the adhesive side on top and dry in a cool, well
ventilated location.
Let it dry naturally and then paste on the protective sheet.
Please follow the steps below to clean the adhesive side of the gel pads.
Gel pads are consumable parts.
Replacement Gel Pad
(4pcs set Pack)
(8pcs set Pack)
10
9

Replace Battery
• Be sure to replace the battery with a new.
• For the removed battery, cover the "+" and "-" poles with adhesive tape to insulate it, then dispose it
according to the disposal rule of the district of your live (city).
❸Take out the battery
Put your nger in the recess, press from the bottom,
and take out the battery.
If the LED does not turn on, or no electrical stimulation can be felt, the battery may be uesd up. Replace
with a new battery. ※The included battery is for trial use. The battery life may be short.
※ １： When using Maxell lithium battery CR2032. It may vary
depending on the environment used. Due to the
characteristics of the battery, the battery will be depleted
little by little after each use, and electrical stimulation
will be weakened.
Push in
❷Open the battery lid
Use a coin etc. to open the battery lid.
※Be careful not to lose the battery lid.
❺Close the battery lid
※Make sure that the battery lid is tightly
closed. If the battery cover is not closed
securely, product operation may stop
during operation or may not work.
Use a coin etc. to close the battery lid.
❶Remove the controller
Remove the controller from the main
unit and turn it over.
Back
❹Insert a battery
Insert the battery with the "+" mark facing up.
※Make sure that the battery is installed securely.
Do not insert the battery with the "+" and "-" poles in the incorrect orientation.
This may cause rupture, damage, malfunction or injury due to the overheating or leakage.
•
If a battery or battery lid is swallowed, contact a doctor immediately for instructions.
•
Number of Training※1Intensity 15 Approx. 40 times
Caution
Caution
Battery Used Button type lithium battery
CR2032
（Recommendation：Maxell Manufacture ）
Close
Open
Open
Close
press from the
bottom, and take
out the battery.
10

Device disposal
For the removed battery, cover the "+" and "-" poles with aadhesive tape to insulate it, then dispose it
according to the disposal rule of the district of your live (city).
6
Take out the battery before disposal of the device and then dispose of it according to the disposal rule of
your live (city).
Troubleshooting
11
Weak sensation,
Device cannot
operate
intensity does not
increase
The time to press and hold the
power button is not long enough
Not using an original gel pad
Not using an original gel pad
Not using an original gel pad
Used continuously
The gel pad is not applied correctly
When the power button is pressed for
approximately 1 second, a beep sounds
and the power turns on.
Use original gel pads.
Use original gel pads.
Use original gel pads
For the same part, use once in a day
This device will stop after approx. 20 mins.
Stick the blue lm side to the main unit
Power supply automatically
turns o after several time
Problem Cause Solution
Cannot feel the
training/ Weak
sensation
Sensation is too
strong or feels
painful
Gel pads detached
from the device
Battery level is low Replace battery
Replace battery
Replace battery
Gel pads not properly placed Reattach the gel pads well and try again
Reattach the gel pads well and try again
Battery level is low
Power supply
cannot turn on
Continuous
warning sounds
There is air between the gel
pads and the device
Place the gel pads on the electrode and
squeeze the air inside using your nger tip
Extremely dry skin Use water to moisten your skin and try
again
Replace a new gel pads
Reattach the gel pads well and try again
Charge the device
Press "+" to increase intensity
Use water to moisten your skin and try again
Gel pads deterioration
Gel pads deterioration
Gel pads are not attached well
Not enough remaining battery
Intensity is too weak
Press "-" to increase intensity
Intensity is too strong
Extremely dry skin
Gel pads not properly placed

7
Maxell,Ltd.
30-13 Motoyoyogi-Cho, Shibuya-Ku, Tokyo 151-8527
Specification
12
Dimension (Main Unit＋Controller)
Weight
Battery
Continuous operation time
Accessories Protective sheet, User manual (This book),
Quick guide, Trial battery
Dimension
Weight
Material
Model
Main Unit,Controller
Gel Pad
(Accessories)
W45 × H75 × D0.8 mm ／pc
Approx. 3 g / pc
Hydro Gel
W228 × H62 × 14 mm
MXES-B220LBK1P MXES-B220LBK2P
Coin type battery ( CR2032 )
Approx. 44 g (without gel pad, battery)
Approx. 20mins
Main Unit
×1、
Controller
×1Main Unit×2、
Controller×2
Gel Pad×2 Gel Pad×4
