MaxLite AR Series User manual

Operating Instructions AR Series
MaxLite LED Medium Area Light
• To reduce the risk of death, personal injury or property damage from fire,
electric shock, falling parts, cuts/abrasions, and other hazards read all
warnings and instructions included with and on the fixture box and all
fixture labels.
• Before installing, servicing, or performing routine maintenance upon
this equipment, follow these general precautions.
• Commercial installation, service and maintenance of luminaires
should be performed by a qualified licensed electrician.
• DO NOT INSTALL DAMAGED PRODUCT!
• This fixture is intended to be connected to a properly installed and
grounded UL listed junction box.
WARNING:
RISK O ELECTRICALSHOCK
• Turn off electrical power at fuse or circuit breaker box before wiring fixture
to the power supply.
• Turn off the power when you perform any maintenance.
• Verify that supply voltage is correct by comparing it with the luminaire label
information.
• Make all electrical and grounded connections in accordance with the National Electrical
Code and any applicable local code requirements.
• All wiring connections should be capped with UL approved wire connectors.
CAUTION:
RISK O INJURY
• Unit will fall if not installed properly. ollow installation instructions.
• Wear gloves and safety glasses at all times when removing luminaire from carton, installing,
servicing or performing maintenance.
• Avoid direct eye exposure to the light source while it is on.
• Account for small parts and destroy packing material, as these may be hazardous to children.
CAUTION:
RISK O IRE
• Keep combustible and other materials that can burn away from luminaire and lamp/lens.
• MIN 75°C SUPPLY CONDUCTORS.
Models:
Example: AR60, AR100, AR140, AR210 and AR280 Series
Operating characteristics:
Operating temperature: -40°C to 55°C
Input voltage range: 100-277, 347-480V, 50/60 HZ
© Copyright 2018. MaxLite, Inc. All Rights Reserved.
12 York Ave, West Caldwell, NJ 07006 Tel: [phone] ax: 973-244-7333 Email: [e-mail]
0.77”
(
2
2
®

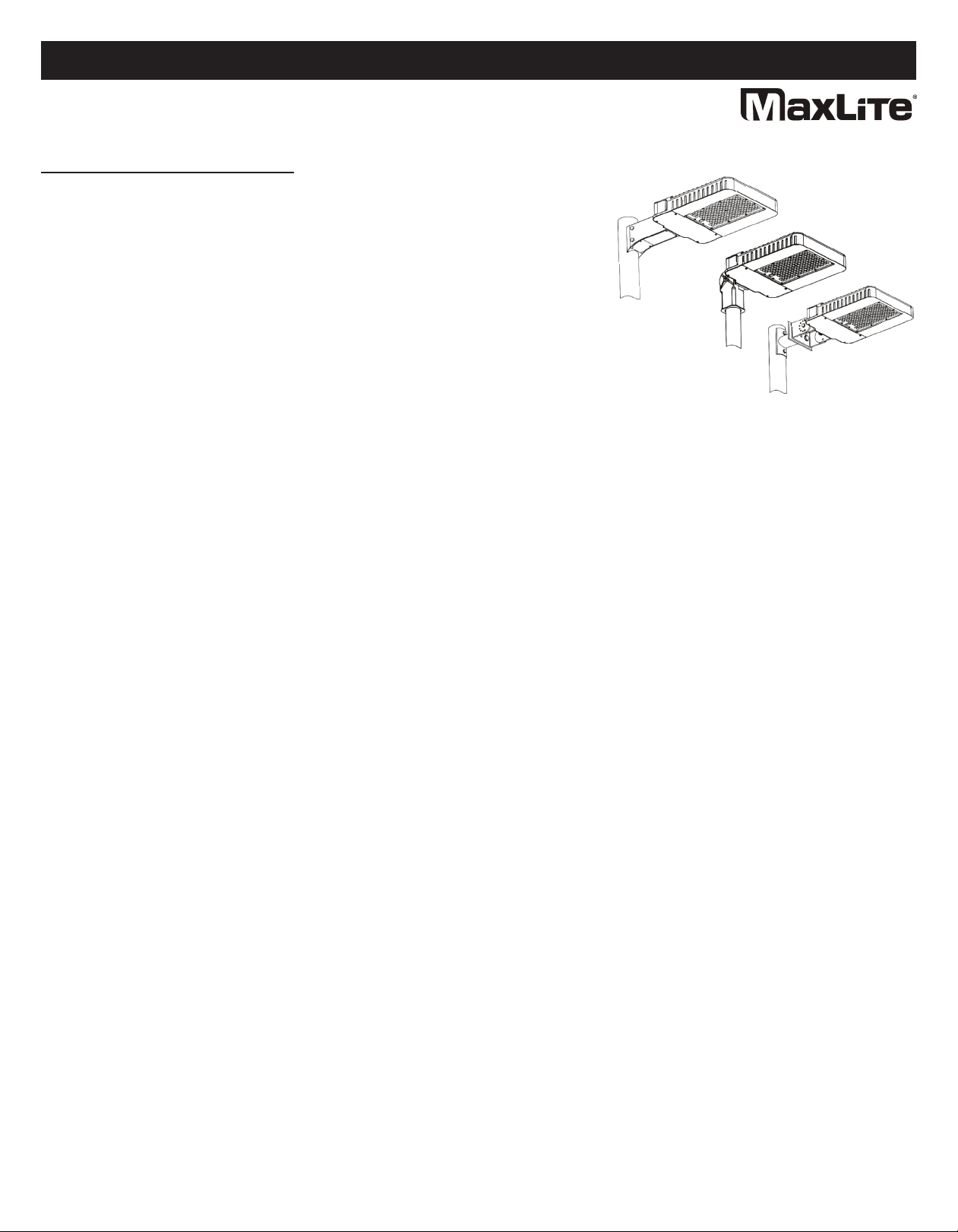

Picture is for illustration purposes only.
Your model may vary.
General Safety Information
Page: 1
REV: 5/21/18

Installation & Operation

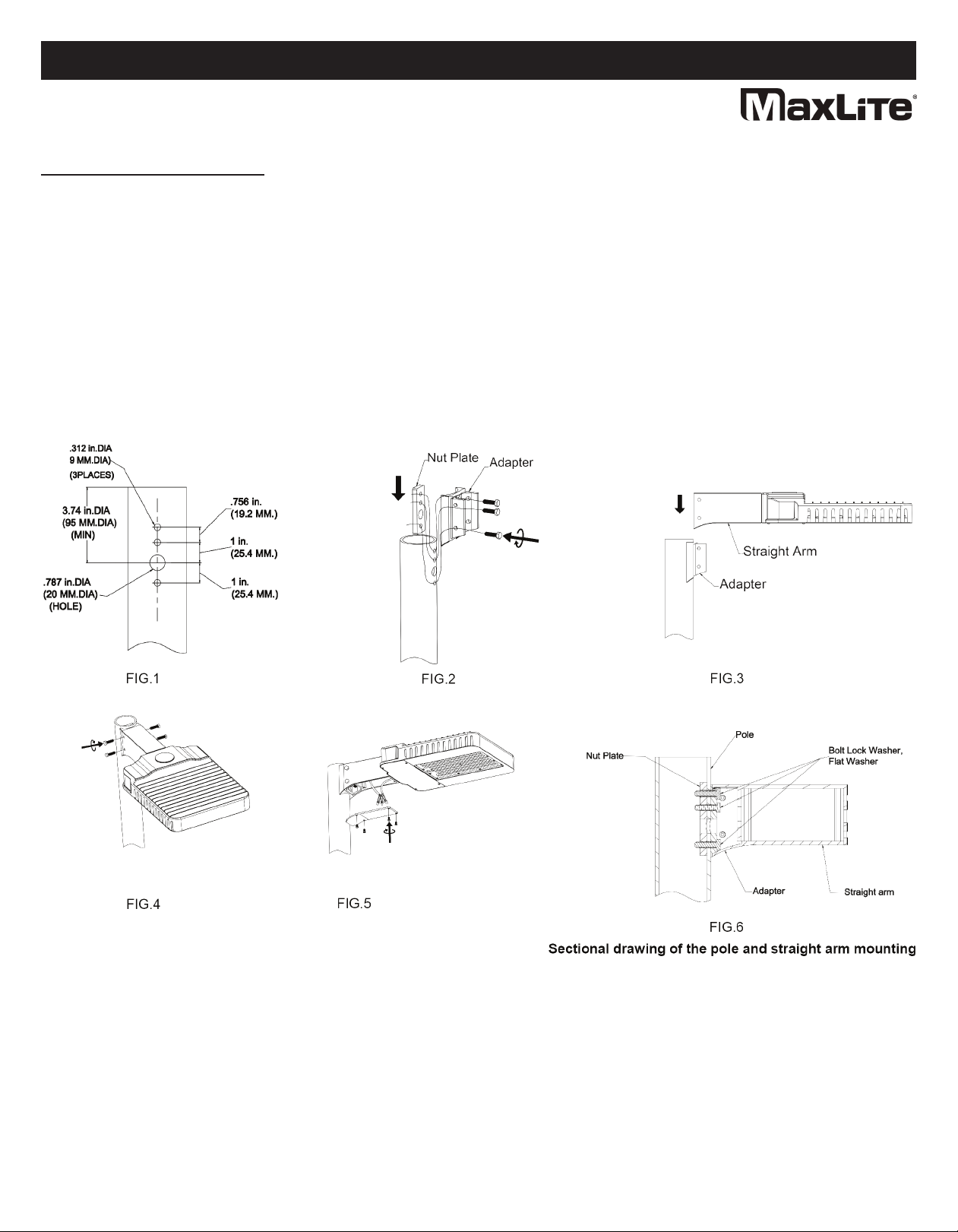

Straight Arm ole Mounting:
This fixture can be configured to pole and an adapter plate has been included to mount to the pole. Hole pattern on the
pole shall be in accordance with FIG.1. If there is no hole on the pole, drill holes according to the pattern in FIG.1.
Different adapters are optional, including square pole adapter, 3”round pole adapter (RPA), 4”RPA, and 5”RPA.
• Tighten the nut plate and adapter on the pole (see FIG.2).
• Insert the fixture into the adapter (see FIG.3).
• Tighten the four M8 screws on the straight arm and secure it to the adapter (see FIG.4).
• Connect the power lead properly, make wirings inside the straight arm, and tighten the arm door with
screws (see FIG.5).
• Inspect installation to ensure fixture is secure.
Operating Instructions AR Series
MaxLite LED Medium Area Light
®
© Copyright 2018. MaxLite, Inc. All Rights Reserved.
12 York Ave, West Caldwell, NJ 07006 Tel: [phone] ax: 973-244-7333 Email: [e-mail]
Page: 2
REV: 5/21/18

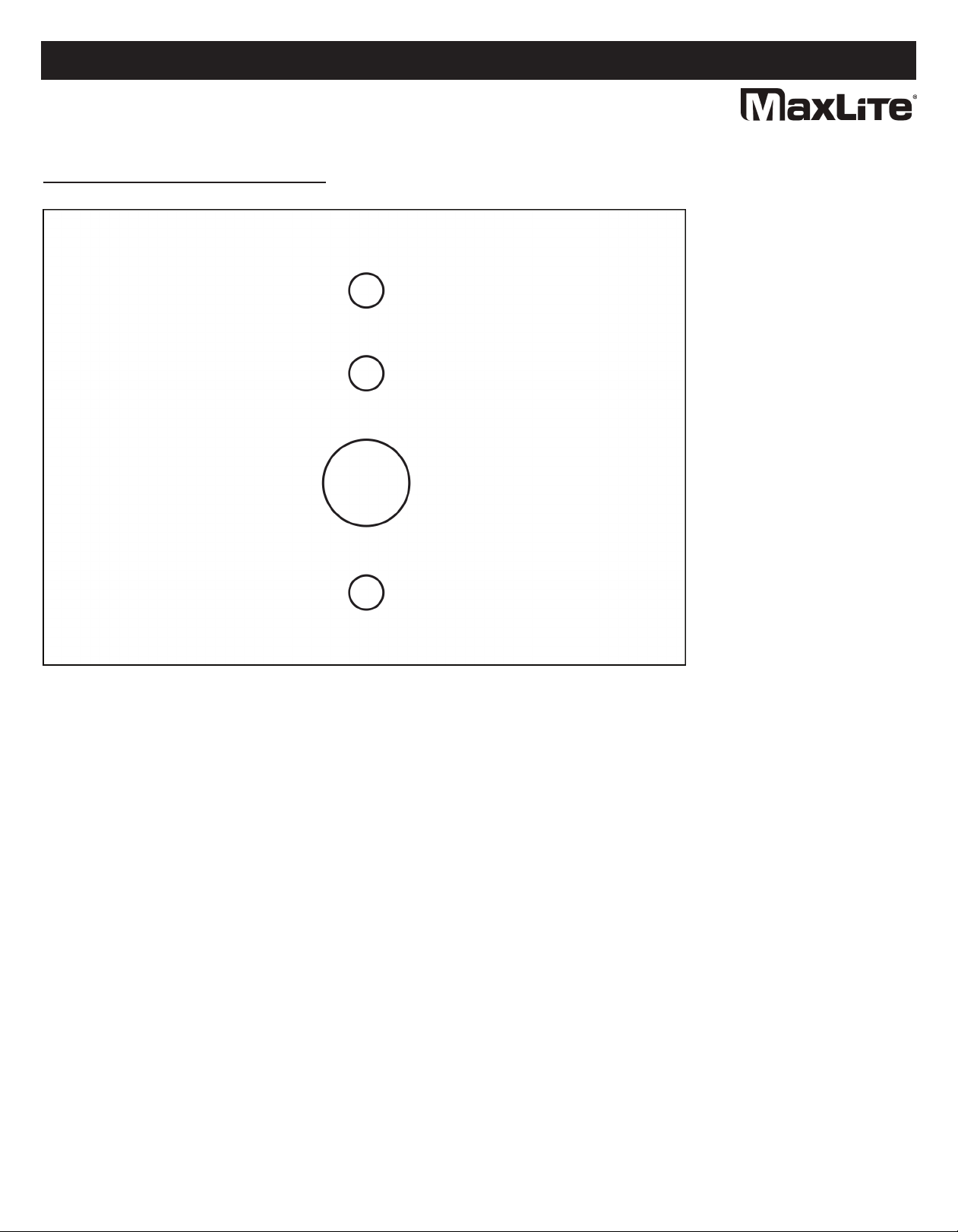

Straight Arm ole Drill attern
Operating Instructions AR Series
MaxLite LED Medium Area Light
®
© Copyright 2018. MaxLite, Inc. All Rights Reserved.
12 York Ave, West Caldwell, NJ 07006 Tel: [phone] ax: 973-244-7333 Email: [e-mail]
Page: 3
REV: 5/21/18

Installation & Operation
Straight Arm ole Mounting
(Continued):
4.26”
(108.22mm)
2.95”
(75mm)
2.54”
(64.40mm)
0.40”
(10.22mm)
2.06”
(52.40mm)
0.35”
(9.00mm)
0.77”
(19.60mm)
0
(3.50mm)
0
1
0
(15mm)
(11mm)
(7.00mm)
+ 0.30
- 0.00
+ 0.30
- 0.00
(75mm)
4.72”(120mm)
4.84” (123mm)
0.14”
(3.50mm)
0.59” (15mm)
1.93” (49mm)
(15mm)
(53mm)
(5.70mm)
0.004”
(.10mm)depth
(75mm)
(7.00mm)
+
(75mm)
(64.40mm)
(3.50mm)
1.93”
(49mm)
0.59”
(15mm)
2.08”
(53mm)
2.00”
(50.80mm)
0.22”
(5.70mm)
0.43”
(11mm)
0.24”
(6mm)
2.95”
(75mm)
0.28”
(7.00mm)
+
+ 0.20 - 0.00

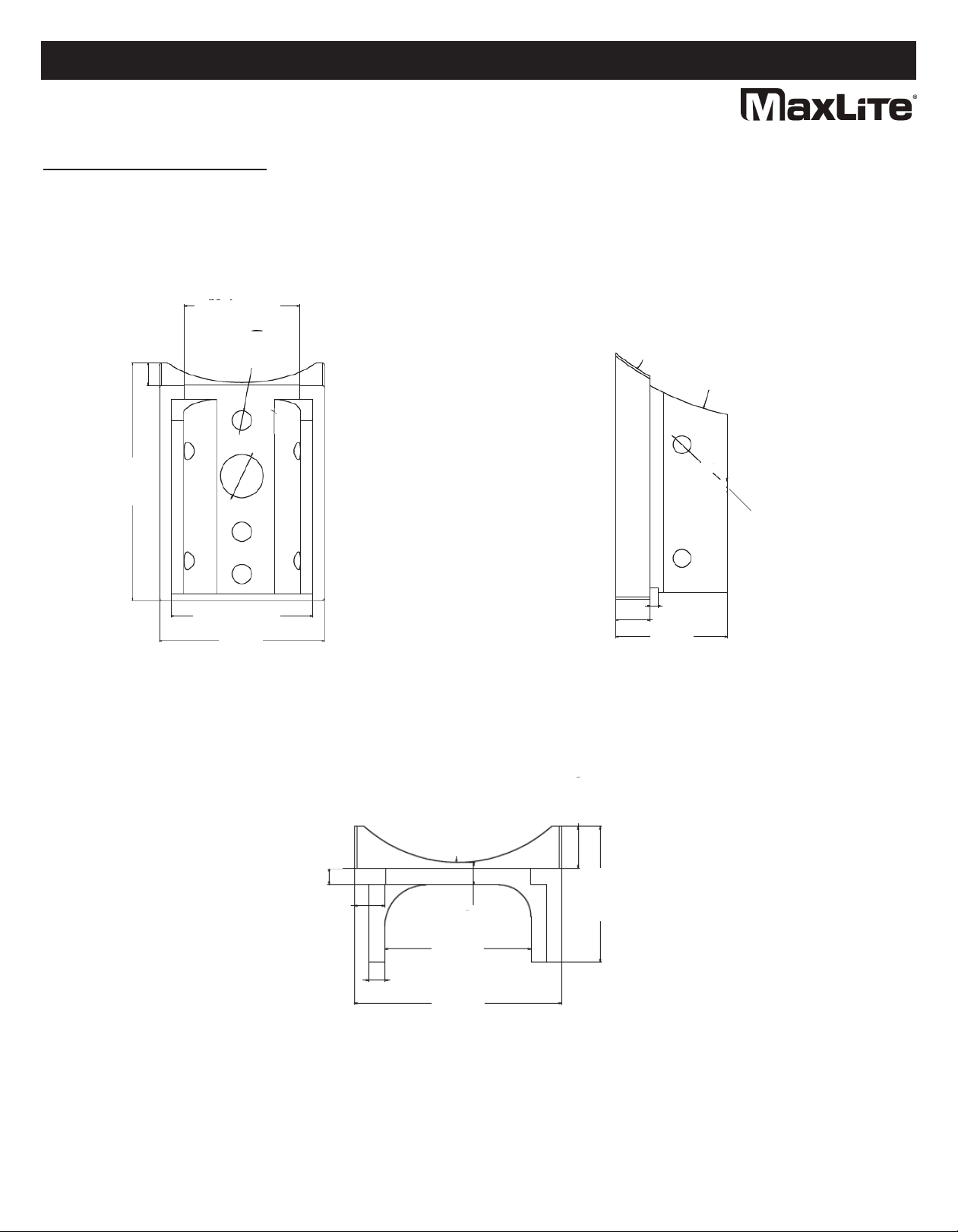

4” Round ole Adaptor
Operating Instructions AR Series
MaxLite LED Medium Area Light
®
© Copyright 2018. MaxLite, Inc. All Rights Reserved.
12 York Ave, West Caldwell, NJ 07006 Tel: [phone] ax: 973-244-7333 Email: [e-mail]
Page: 4
REV: 5/21/18

Installation & Operation
Straight Arm ole Mounting
(Continued):
0.14”
(3.50mm)
0
(12mm)
1
(46mm)
4.17”
(105.90mm)
2.5”
2.06”
(52.40mm)
0.57”
(14.44mm)
0.31”
(7.87mm)
0.47”
(12.00mm)
+ 0.30
- 0.00
4.84” (123mm)
4.72”(120mm)
0.14”
(3.50mm)
0.47”
(12mm)
1.8”
(46mm)
0.004”
(.10mm)Depth
2
2.5”
0.13”
2.06”
0
0.47”
0.14”
(3.50mm)
0
(12mm)
(46mm)
2.95”
(75mm)
2.54”
(64.40mm)
0.22”
(5.70mm)
0.24”
(6.00mm)
2.5”
(63.50mm)
0.44”
(11.30mm)
0.13”
(3.29mm)
1.81” (46mm)
2.06”
0.28”
(7.00mm)
+ 0.30
- 0.00
+ 0.20 - 0.00
0.47”
(12.00mm)
+

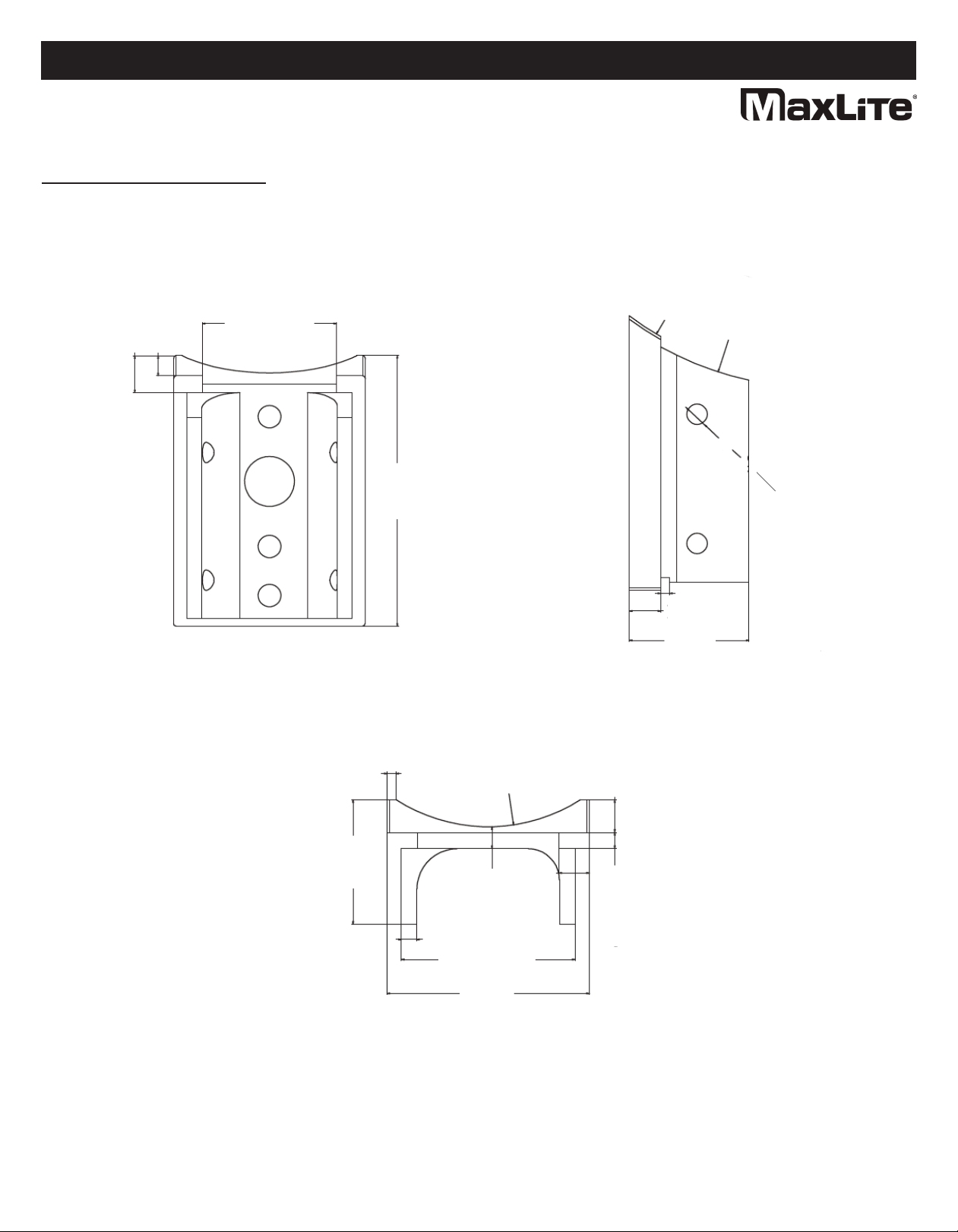

5” Round ole Adaptor
Operating Instructions AR Series
MaxLite LED Medium Area Light
®
© Copyright 2018. MaxLite, Inc. All Rights Reserved.
12 York Ave, West Caldwell, NJ 07006 Tel: [phone] ax: 973-244-7333 Email: [e-mail]
Page: 5
REV: 5/21/18

Installation & Operation (Continued)
Slipfitter Mounting:
This fixture can be configured to provide 0 to 60° both upward and downward aiming in 15° increments (see FIG.7).
• Connect the power lead properly, Make wiring connection (see WIRING) and lay the wires in the pole, insert the slipfitter
to the pole(see FIG.8).
• Tighten the four M8 bolts on the slipfitter and secure it to the pole (see FIG.9).
• To aim the fixture, loosen and adjust the M12 knuckle bolt to right angle, adjust the aim 0 to 60°both upward and
downward(see FIG.10).
• Inspect installation to ensure fixture is secure.
Trunnion Mounting:
This fixture can be configured to mount to the tenon pole or tenon adapter.
• Tighten the fixture to the tenon pole or tenon adapter by two M12 bolts (see FIG.11).
• Loosen and adjust the adjusting bolts to the right angle, and the maximum is 60°(see FIG.12).
• Make wiring connection (see WIRING),
• Inspect installation to ensure fixture is secure.
Operating Instructions AR Series
MaxLite LED Medium Area Light
®
© Copyright 2018. MaxLite, Inc. All Rights Reserved.
12 York Ave, West Caldwell, NJ 07006 Tel: [phone] ax: 973-244-7333 Email: [e-mail]
Page: 6
REV: 5/21/18

Maintenance
The unit is designed for years with minimum care. or optimum performance, periodically clean lens
with a mild, non-abrasive glass cleaner and soft cloth. Do NOT use solvents or cleaners containing
abrasive agents. When cleaning the fixture, make sure you have the power turned off and do not
spray liquid cleaner directly onto the LED, or wiring.
Wiring:
CAUTION: Turn off electrical power at fuse or circuit breaker box before wiring fixture to the power suppl . All units
must be individuall connected to AC suppl .
Note:
1. Verify that supply voltage is correct by comparing it to claimed voltage on the product label.
2. All Wiring inside the fixture use WAGO connector of 5 PIN, 3 PIN and 2 PIN (See FIG.13). If need to remove or replace
any component in the driver compartment, please keep the WAGO connector for future use.
3. The FIG. 14 to FIG.16 demonstrates the interior wiring of three different configurations in the driver compartment (When
need to remove or replace any component in the driver compartment, please refer to the below wiring FIG. 14 to FIG. 17
and base on the actual condition, resume using the fixture by wire connecting).
4. Disconnect the AC power supply to prevent electric shock when making wiring or installation, removing or replacing
any component in the fixture. Make sure to use WAGO connector properly to ensure proper and secure wiring, make sure
of correct wiring before restoring power supply to light up the fixture.
Operating Instructions AR Series
MaxLite LED Medium Area Light
®
© Copyright 2018. MaxLite, Inc. All Rights Reserved.
12 York Ave, West Caldwell, NJ 07006 Tel: [phone] ax: 973-244-7333 Email: [e-mail]
Page: 7
REV: 5/21/18

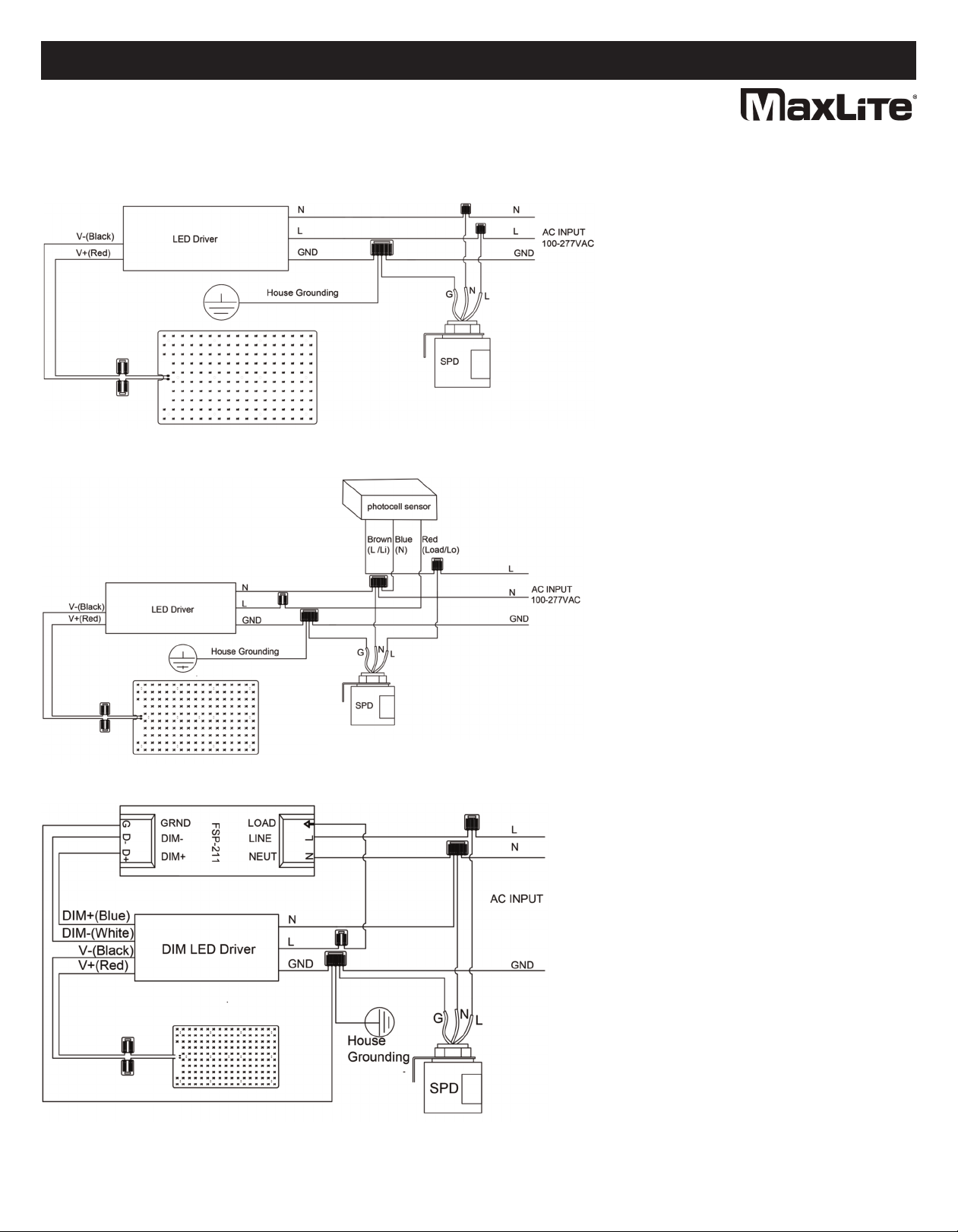

Fixture wiring diagram:
3. FIG.14 is for standard wiring which includes a 10kV Surge Suppressor.
4. FIG.15 is for wiring when a photocell sensor is used.
Operating Instructions AR Series
MaxLite LED Medium Area Light
®
FIG.14
FIG.15
5. FIG.16 is for wirings when dimmable driver, surge protector, SP-211 sensor are used.
FIG.16
© Copyright 2018. MaxLite, Inc. All Rights Reserved.
12 York Ave, West Caldwell, NJ 07006 Tel: [phone] ax: 973-244-7333 Email: [e-mail]
Page: 8
REV: 5/21/18

The SP-211 is a motion sensor that dims lighting from high to low
based on movement. This slim, low-profile sensor is designed for
installation inside the bottom of a light fixture body. The PIR lens
module connects to the SP-211 through a 1.30" diameter hole in
the bottom of the fixture.
The sensors use passive infrared (PIR) sensing technology that
reacts to changes in infrared energy (moving body heat) within the
coverage area. Once the sensor stops detecting movement and the
time delay elapses lights will go from high to low mode and eventually
to an O position if it is desired. Sensors must directly “see” motion
of a person or moving object to detect them, so careful consideration
must be given to sensor luminaire placement and lens selection. Avoid
placing the sensor where obstructions may block the sensor’s line
of sight.
IR Occupancy Sensor: FS -211
IR Occupancy Sensor Installation Instruction
1. Determine an appropriate mounting location inside the light fixture minimizing the electric light contribution to
the sensor’s photocell. Allow a minimum distance of 0.2" (5.1mm) from the wiring end of the sensor to the wall
of the fixture.
2. Drill a hole 1.30" (33.0mm) in diameter through the sheet metal in the bottom of the fixture.
3. Add the rubber gasket to the threaded collar, and install the sensor face down, parallel to the mounting
surface. Ensure the rubber gasket touches the inside surface of the fixture. Install the plastic nut securely
against the fixture to a torque of 25-30 in-lbs to ensure IP rating is maintained.
4. Align the locking features between the sensor and lens module and push the lens module forward until the
o-ring seals firmly. Turn the lens module clockwise to ensure it locks in place.
5. Connect wires as shown in wiring diagram.
6. Restore power from the circuit breaker.
NOTE: The Outside ixture Wall
thickness should be no greater
than 0.125"(3.18mm) for optimal
sensor mounting and security.
Operating Instructions AR Series
MaxLite LED Medium Area Light
®
© Copyright 2018. MaxLite, Inc. All Rights Reserved.
12 York Ave, West Caldwell, NJ 07006 Tel: [phone] ax: 973-244-7333 Email: [e-mail]
Page: 9
REV: 5/21/18

Sequence of Operation
Dimming: When motion is detected within the sensor’s coverage area, the sensor sends a signal to ramp the load up
to the selectable High Mode level unless the ambient light level is higher than the selected setpoint. When no motion is
detected for the duration of the time delay setting (factory preset at 5 minutes), the lights will go to the selectable Low
Mode level based on the signal from the sensor. If desired, a cut off time delay (factory preset at 1 hour) will trigger to
eventually turn the lights O .
Non-dimming: When motion is detected within the sensor’s coverage area, the sensor sends a signal to turn the load
ON unless the ambient light level is higher than the selected setpoint. When no motion is detected for the duration of
the time delay setting (factory preset at 5 minutes), the lights will go O based on the signal from the sensor.
Dusk to dawn control: When photocell on/off is enabled, and the ambient light falls below the photocell setpoint, the
sensor ramps the load up to the selectable High Mode level. If no motion is detected for the duration of the time delay
setting (factory preset at 5 minutes), the lights will go to the selectable Low Mode level. If the cut off time delay is
disabled, the load will remain on, at High or Low level, based on motion detection, until the ambient light increases
above the photocell setpoint.

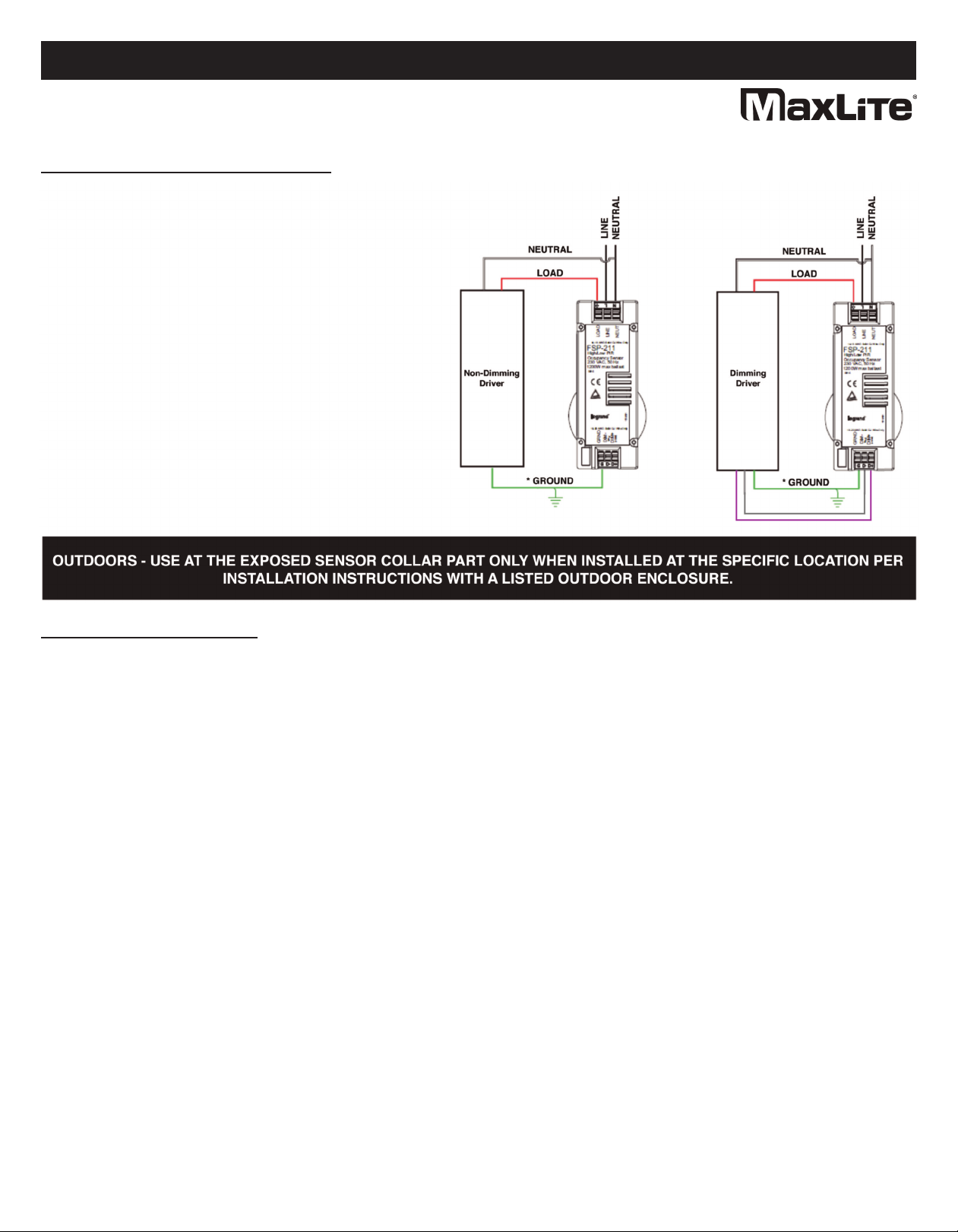

IR Occupancy Sensor: Wiring
NOTE: The SP-211 must be grounded to
ensure signal integrity, not for safety ground.
Operating Instructions AR Series
MaxLite LED Medium Area Light
®
© Copyright 2018. MaxLite, Inc. All Rights Reserved.
12 York Ave, West Caldwell, NJ 07006 Tel: [phone] ax: 973-244-7333 Email: [e-mail]
Page: 10
REV: 5/21/18

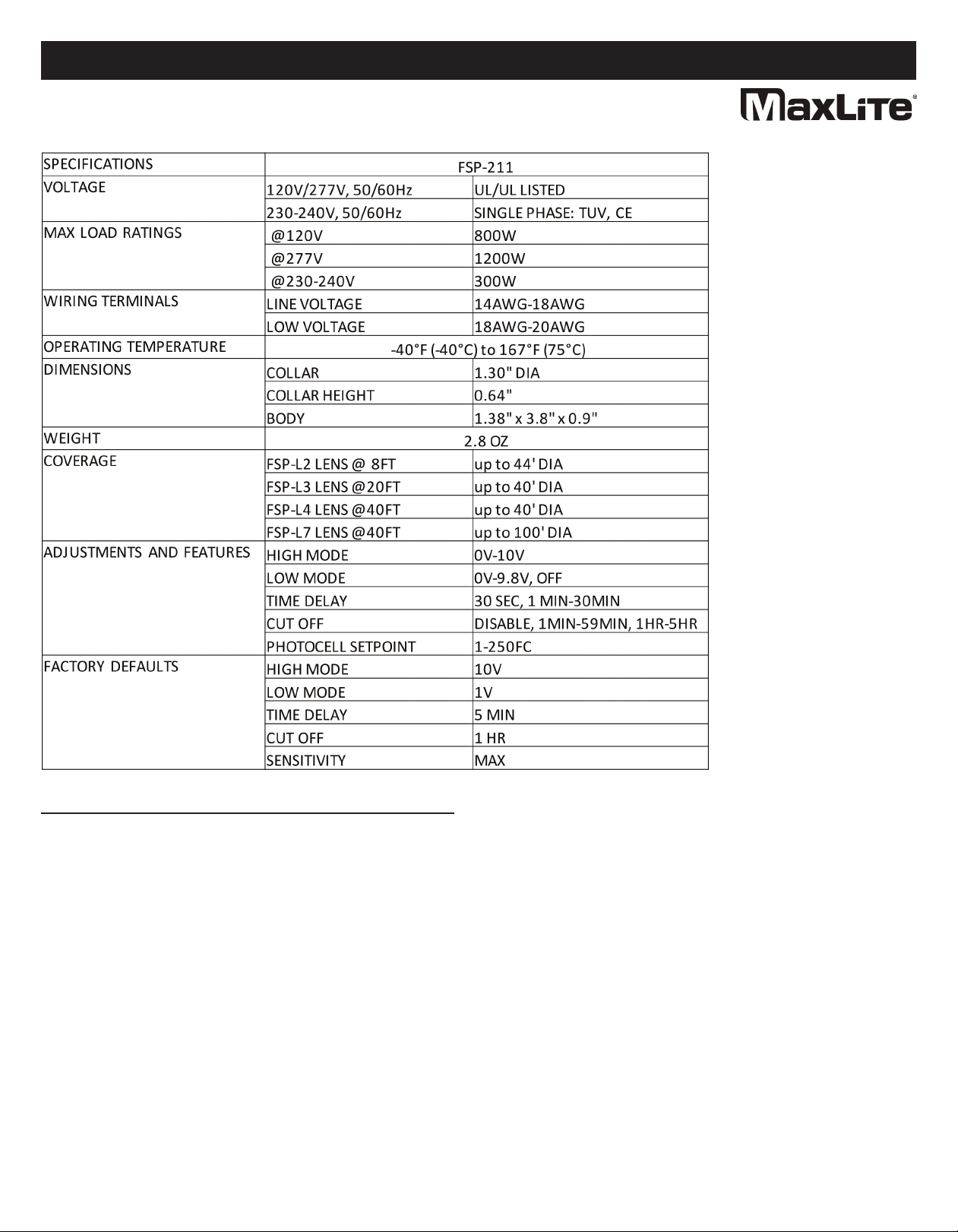

The configuration process establishes the appropriate parameters for the SP-211 operation. This is done through
the SIR-100 configuration tool. If no configuration steps are taken, the sensor will use its default parameter
values.
The SIR-100 Wireless IR Configuration Tool is a handheld tool for changing defaults and testing of SP-211. It
provides wireless access to the SP-211 sensors for parameter changes and testing.
The SIR-100 display shows menus and prompts to lead you through each process. The navigation pad provides
a simple way to navigate through the customization fields.
Within a certain mounting height of the sensor, the SIR-100 allows modification of the system without requiring
ladders or tools; simply with a touch of a few buttons.
The SIR-100 IR transceiver allows bi-directional communication between the SP-211 and the SIR-100
configuration tool. Simple menu screens let you see the current status of the sensor and make changes. It can
change SP-211 sensor parameters such as high/low mode, sensitivity, time delay, cut off, and more. With the
SIR-100 you can also establish and store SP-211 parameter profiles.
Optional Remote Control Configuration Tool
Operating Instructions AR Series
MaxLite LED Medium Area Light
®
© Copyright 2018. MaxLite, Inc. All Rights Reserved.
12 York Ave, West Caldwell, NJ 07006 Tel: [phone] ax: 973-244-7333 Email: [e-mail]
Page: 11
REV: 5/21/18

Batteries
The SIR-100 operates on three standard 1.5V AAA Alkaline batteries or three rechargeable AAA NiMH batteries. The
battery status displays in the upper right corner of the display. Three bars next to BAT= indicates a full battery charge. A
warning appears on the display when the battery level falls below a minimum acceptable level. To conserve battery
power, the SIR-100 automatically shuts off 10 minutes after the last key press.
• If communication is not successful, (if possible) move closer to the sensor.
• If still not successful, there may be too much IR interference from other sources. Programming the unit at night
when there is no daylight available may be the only way to communicate with the sensor.
Navigation
Navigate from one field to another using (up) or (down) arrow keys. The
active field is indicated by flashing (alternates) between yellow text on
black background and black text on yellow background.
Once active, use the Select button to move to a menu or function within
the active field. Value fields are used to adjust parameter settings. They
are shown in “less-than/greater-than” symbols: <value>. Once active,
change them using(left) and(right) arrow keys. The right key increments
and the left key decrements a value. Selections wrap-around if you
continue to press the key beyond maximum or minimum values. Moving
away from the value field overwrites the original value. The Home button
takes you to the main menu. The Back button can be thought of as an undo
function. It takes you back one screen. Changes that were in process prior
to pressing the key are lost.
IR Communication
IR communication can be affected by the mounting height of the sensor
and high ambient lighting such as direct daylight or electric light such as
floodlights, and some halogen, fluorescent lamps, LED’s.
When trying to communicate with the SP-211, be sure to be positioned
under the sensor without any obstructions. Every time the commissioning
tool establishes communication with the SP-211, the controlled load will
cycle.
Operating Instructions AR Series
MaxLite LED Medium Area Light
®
© Copyright 2018. MaxLite, Inc. All Rights Reserved.
12 York Ave, West Caldwell, NJ 07006 Tel: [phone] ax: 973-244-7333 Email: [e-mail]
Page: 12
REV: 5/21/18

Troubleshooting
Lights will not go to High Mode:
• Check all wire connections and verify the load and the ground wires are tightly secured.
• Make sure that the sensor is not obstructed.
• Check light level parameter, to find out the amount of light that the sensor is detecting. Cover the sensor lens to
simulate darkness in the room. If the lights come ON, the setpoint needs to be adjusted. If set for minimum, more
than 1 fc at the sensor of ambient light will cause the lights to be held O . See the new settings section for
instructions.
Lights will not go into Low Mode:
• The time delay can be set from a minimum of 30 seconds to a maximum of 30 minutes. Ensure that the time delay
is set to the desired delay and that there is no movement within the sensor’s view for that time period.
• To quickly test the unit operation, enable test mode and move out of the sensor’s view. Lights should fade to
low mode after 5 seconds.
Lights will not turn OFF:
• Cut Off time may be set to “None.”
• Ensure that the Cut Off is set to the desired time and that there is no movement within the sensor’s view for that
time period when the lights are in Low Mode.
• To quickly test the unit operation, enable test mode and move out of the sensor’s view. Lights should fade to low
mode after 5 seconds, and the O (if cut off is enabled) after 10 sec.
alse Triggering may occur if the sensor is exposed to high ambient temperature conditions and the unit is set to
maximum sensitivity for PIR detection.
• If this occurs, reduce the PIR sensitivity setting from maximum to a medium point and re-check unit operation.
• If experiencing false triggering during fade down/Off, try increasing the fade time.
Lights do not turn ON:
Check for blinking red LED. If the LED blinks with long pulses, as opposed to short pulses, the sensor has reached
its Hold Off setpoint or Photocell Light Level setpoint.
Lights suddenly turn off and will not come back on:
Check for blinking red LED. If the LED blinks with long pulses, as opposed to short pulses, the sensor has reached
its Hold Off setpoint or Photocell Light Level setpoint.
Operating Instructions AR Series
MaxLite LED Medium Area Light
®
© Copyright 2018. MaxLite, Inc. All Rights Reserved.
12 York Ave, West Caldwell, NJ 07006 Tel: [phone] ax: 973-244-7333 Email: [e-mail]
Page: 13
REV: 5/21/18

House Side Shield Installation Instructions
60W / 100W / 140W / 210W / 280W LED Area Lights:
1.) or 60W/100W/140W area lights:
a.) Position and secure House Side Shield in place with (4) M4 x 6mm stainless steel screws, flat washer and
split locker washer. See Fig 1.
Operating Instructions AR Series
MaxLite LED Medium Area Light
®
© Copyright 2018. MaxLite, Inc. All Rights Reserved.
12 York Ave, West Caldwell, NJ 07006 Tel: [phone] ax: 973-244-7333 Email: [e-mail]
Page: 14
REV: 5/21/18
2.) or 210W / 280W area lights:
a.) Remove (2) existing M4 x 14mm screws from driver cover plate. See Fig 2.
b.) Position and secure House Side Shield in place with (2) existing M4 x 14mm and (4) M4 x 6mm stainless steel
screws, flat washer and split locker washer. See Fig 3.

MaxLite Inc. warrants its products for a minimum period of FIVE (5) years from the date of original purchase from
MaxLite or its authorized distributor/dealer (the “Warranty Period”), as follows: If a Product fails to operate during the
Warranty Period as a result of defects in materials or workmanship, MaxLite will, at its option, repair it, replace it with
the same or like Product.
Please refer to Maxlite’s website (at http://maxlite.com/resources/warranties) for the complete
terms and conditions of our warranty.
Limitation of Liability
THE OREGOING WARRANTY IS EXCLUSIVE, AND IS THE SOLE REMEDY OR ANY AND ALL CLAIMS,
WHETHER IN CONTRACT, IN TORT OR OTHERWISE ARISING ROM THE AILURE O PRODUCT AND IS IN
LIEU O ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ALL WARRANTIES O
MERCHANTABILITY OR ITNESS OR A PARTICULAR PURPOSE, WHICH WARRANTIES ARE HEREBY
EXPRESSLY DISCLAIMED TO THE EXTENT PERMITTED BY LAW AND, IN ANY EVENT, SHALL BE LIMITED TO
THE WARRANTY PERIOD SPECI IED ABOVE. THE LIABILITY O MAXLITE SHALL BE LIMITED TO THE TERMS
O THE EXPRESS WARRANTY SET ORTH HEREIN. IN NO EVENT WILL MAXLITE BE LIABLE OR ANY
SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES INCLUDING, WITHOUT LIMITATION, DAMAGES
RESULTING ROM LOSS O USE, PRO ITS, BUSINESS OR GOODWILL, LABOR COSTS, REMOVAL OR
INSTALLATION COSTS, DECREASE IN THE LIGHT OUTPUT O THE LAMP, AND/OR DETERIORATION IN THE
LAMP’S PER ORMANCE, WHETHER OR NOT MAXLITE HAS BEEN ADVISED O THE POSSIBILITY THEREO .
UNDER NO CIRCUMSTANCES SHALL MAXLITE’S ENTIRE LIABILITY OR A DE ECTIVE PRODUCT EXCEED
THE PURCHASE PRICE O THAT PRODUCT. WARRANTY SERVICES PROVIDED UNDER THESE TERMS AND
CONDITIONS DO NOT ENSURE THE UNINTERRUPTED OPERATION O PRODUCTS; MAXLITE SHALL NOT BE
LIABLE OR DAMAGES CAUSED BY ANY DELAYS INVOLVING WARRANTY SERVICE.
This Limited Warranty gives you specific legal rights and you may also have other rights that may vary from state to
state. Because some states or jurisdictions do not allow the exclusion or limitation of liability for consequential or
incidental damages, this limitation may not apply to you.
Warranty Information
Operating Instructions AR Series
MaxLite LED Medium Area Light
®
© Copyright 2018. MaxLite, Inc. All Rights Reserved.
12 York Ave, West Caldwell, NJ 07006 Tel: [phone] ax: 973-244-7333 Email: [e-mail]
Page: 15
REV: 5/21/18
