Maxon MX-7930 User manual

Entry
1
Table of contents
Subject: Page:
Phonebook
Look-up and add contacts 37
Phonebook settings 39
Organizer
Calendar 43
Tasks 45
Alarm 45
Calculator 46
PC-Synchronization (Optional) 47
MaxFun
Games (1-3) 51
My Phone
Personalizing sounds 53
MelodyMaker 55
Graphics 57
Caller Groups 58
LED 58
Subject: Page:
Entry
Read me first Cover
Legal statement Cover
Table of contents 1
Welcome 3
Getting started
What’s in the package 5
Setting language, time & date 6
Get acquainted 13
Messaging
T9 editor 21
SMS/EMS 23
Cell Broadcast 27
E-mail (Optional) 28
WAP
WAP Home & Bookmarks 31
WAP settings 33
02207155_1.2 11/18/02 3:35 PM Side 1

Entry
2
Table of contents
Subject: Page:
Settings
Language 8
Time & date 9
PIN code (Security) 9
Data 59
Network 60
Call forward & waiting 61
Call barring 63
Billing 64
Miscellaneous
Cellular phones in brief 65
Abbreviations & acronyms 68
Cell phone care 69
Questions & Answers (FAQ) 73
Technical data 76
EU Certificate of compliance 77
Index 79
02207155_1.2 11/18/02 3:35 PM Side 2

Entry
3
Welcome
Uplink to the Mobile Internis facilitated
with WAP 1.2 and a fast GPRS data con-
nection.
Size has always been a Maxon
focuspoint, and the 7930-series
have very modest exterior
dimensions and will fit into
any shirt pocket or purse.
50 different ring signals,
SMS alert signals, wallpa-
pers along with renameable
profiles and caller groups
facilitates a high degree of
personalization.
You have acquired a phone and
a communications companion
that will enable you to stay tuned
wherever you choose to go.
Thank you for choosing a cel-
lular phone from Maxon Telecom, Koreas
second-largest IT industrial complex
and a manufacturer with more
that two decades of experi-
ence within the electronic
communications industry.
Your new communica-
tions device represents
the cutting edge tech-
nology of the 21st cen-
tury, featuring 64k
brilliant color display,
enhanced messaging
service (EMS), polyphon-
ic ring tones. PC-syn-
chronisation and stunning
games along with extensive
Organizer and Phonebook prop-
erties.
02207155_1.2 11/18/02 3:35 PM Side 3

Entry
4
About this user guide
This user guide is written for the Maxon
MX7930/31-series cellular handsets and
for these models only.
The layout of the user guide follows the
same order as the phone menu system.
Please note that optional functions may
not be shared by all models. The text is
printed in grey color if optional.
The user guide is accompanied by a Mini
Guide describing the most commonly
used functions.
Symbols used in the text:
>Indicates a user action
< indicates system response
-indicates a listing
Grey text indicates optional functions
indicates direction of joy-
stick presses
OK indicates a downwards joystick press
Indicates a network ressource
Queries regarding the user guide or
phone handling can be addressed to:
Maxon Technical Marketing
User guide order no.: 02207155
Mini Guide order no.: 02207159
02207155_1.2 11/18/02 3:35 PM Side 4

Get started
5
What’s in the package
When you open your MX7930/31 sales
package you should find the phone
itself, the battery, the charger, the
MaxSoft CD (Optional), the Mini Guide
and this user guide. Depending of your
place of purchase, various accessories
may also be included. Contact your
retailer if any of the above is missing.
The battery
Your phone comes with a high-perform-
ance rechargeable battery. The battery
must be fully charged before you use
your phone. Failure to do so may impair
the service life of the battery. Use only
the charger supplied with the phone.
To install the battery, align the pins at
the bottom with the guides in the cover
and click in place. To remove the bat-
tery, pull the button on the back of the
phone upwards and lift off. The battery
Important:
Carefully read the “Read me first”
statement at the inside of the cover as
it contains vital information concerning
your security, the security of others
and your legal rights.
Open retail box
photo (MTHQ)
02207155_1.2 11/18/02 3:35 PM Side 5

Get started
6
Battery installation and charging
must be installed on the phone prior to
charging.
To charge the battery:
>Connect the charger to the plug at
the base of the phone with the “arrow”
symbol on the plug pointing towards the
display.
>Connect charger to mains
< an animation indicates charging in
progress. When the animation stops,
charging is completed
>Press release tabs on side of charger
plug and remove plug.
> Remove charger from mains by pulling
the charger itself (do not pull cord).
Important:
Be sure to charge the battery for four
hours prior to using it the first time.
For longest service life, prefér full
chargings to frequent small chargings
when possible.
02207155_1.2 11/18/02 3:35 PM Side 6

Get started
7
Installing SIM card
To connect to your network operator
your phone must have a SIM card
installed. The SIM card slot is located
under the battery.
>Switch off the phone and remove
charger if connected. Release the bat-
tery and remove it to access the SIM
cradle.
> Install the SIM card, gold-plated side
down and with the cut corner of the
card matching the slot profile. Never
use force. Avoid touching the gold-plat-
ed side of the SIM.
>Secure the card with the lock and
reinstall the battery.
>Turn on the phone by pressing the
key for a few seconds.
< a tune is heard and the display
becomes active. You are prompted to
enter the PIN code.
NOTE THAT UP TO THIS POINT, PRESSING SELECT
ON THE RIGHT SOFTKEY WILL DISPLAY A LIST OF
AVAILABLE PHONE LANGUAGES.
>Enter the network-supplied PIN code.
Press the OK key to accept.
02207155_1.2 11/18/02 3:35 PM Side 7

Get started
8
Set language
Settings menu. Press OK.
NOTE THAT IF YOU DID NOT SELECT LANGUAGE
BEFORE YOU ENTERED THE PIN CODE, OR IF YOU
WANT TO CHANGE THE LANGUAGE:
>Scroll to the Language submenu.
Press OK.
< a list of languages appears.
>Scroll, and select language with OK.
Exit with Back.
< the display will change to the
selected language
< your phone will search for the net-
work. When connection is established,
the the network name is displayed. You
are now able to make and receive calls
NOTE THAT ENTERING AN INCORRECT PIN CODE
THREE TIMES IN SUCCESSION WILL LOCK THE SIM
CARD AND YOU MUST ENTER THE PUK CODE TO
UNLOCK (SEE P. 9)
To set up language, time & date and to
change the default PIN code:
-Enter the menu by pressing the Menu
key. Use or to step to the
02207155_1.2 11/18/02 3:35 PM Side 8

Get started
9
Set time & date, change PIN
>Enter the time. Press OK. Enter the
date. Press OK
>Step Back to the Settings menu and:
>Scroll to highlight the Security sub-
menu. Press OK.The options are:
PIN code 1 Switch PIN on/off
Change PIN 1 Alter your primary PIN
Change PIN 2 Alter your secondary
PIN
SIM lock Only the designated SIM
can be used
>Step Back to the Settings menu and:
>Scroll to highlight the Time & date
submenu. Press OK
< the time & date submenu opens
>Scroll to Time zone to select your
present location and proceed to Date
format to change this if so desired
>Tick the Summer time box If you
wish to apply daylight saving time
>Scroll to Set time/date. Press OK
< the time & date editor opens
02207155_1.2 11/18/02 3:35 PM Side 9

Get started
10
The IMEI number
>Scroll to Change PIN1 and press OK.
Enter your old PIN code followed by the
new code. Confirm it when prompted.
Press OK.
>Exit with right softkey.
NOTE THAT IF YOU ENTER AN INCORRECT PIN
CODE THREE TIMES IN SUCCESSION, YOUR SIM
CARD WILL LOCK AND YOU MUST ENTER THE PUK
CODE TO UNLOCK. PIN AND PUK CODES ARE
EITHER SUPPLIED WITH YOUR PHONE OR MUST BE
OBTAINED FROM YOUR NETWORK PROVIDER OR
PLACE OF PURCHASE.
As a unique identification, your phone is
furnished with a code number known as
IMEI. You must retain this number in
case you need to block your account,
e.i. if your phone is lost or stolen. We
reccomend that you write it down here:
The IMEI number is printed on the label
under the battery.
IMEI No.
02207155_1.2 11/18/02 3:35 PM Side 10

Get started
11
Answer or reject a call
>Press the Reject / End softkey
If you miss a call, the calling number
will be stored in the Dial list. To
retrieve a number, use to open the
list, scroll to the appropriate number
and press OK
To mute the phone, press the Mute key
below the volume keys on the side
To make a national call, simply enter
the desired number and press the Call
softkey. A calling or busy tone will
sound. To end the call, press End
When called, your phone will play the
selected tone or melody and/or vibrate
and flash LED as selected. The display
will show the calling number or, if the
caller is listed in your phone book, the
name will be displayed.
To answer the call, simply open your
phone and:
>Press the Answer softkey
< connection is established
To reject or terminate a call:
MUTE
02207155_1.2 11/18/02 3:35 PM Side 11

Get started
12

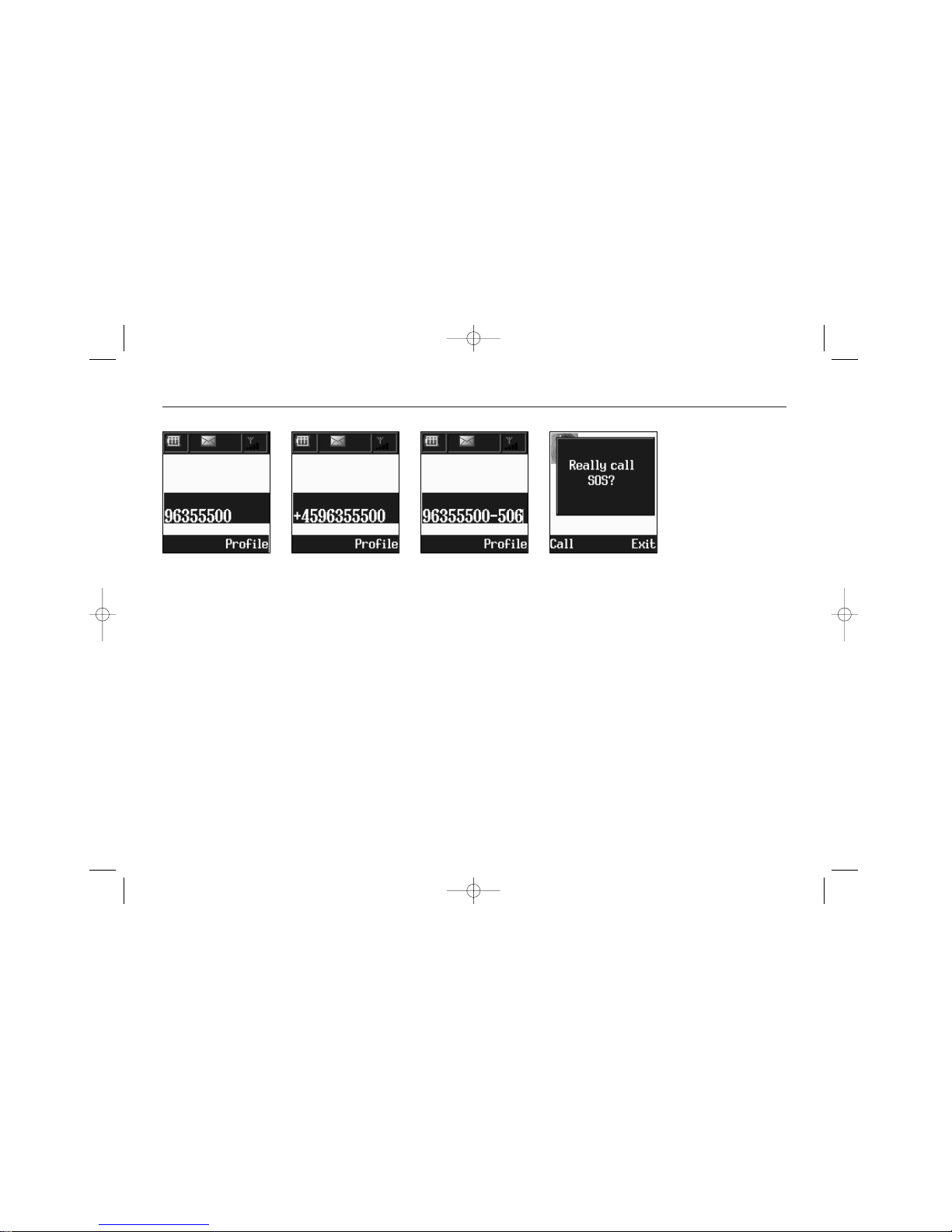

International calls, call to an extension, emergency call
>Enter the main phone number.
>Press the *key until -appears.
>Enter the extension number. Press OK.
< the call will automatically be rout-
ed to the extension
You will be able to make emergency
calls at all times, even without a SIM
card installed. You will be prompted to
confirm your call (to avoid unintentional
calling)
Some countries (e.g. USA) uses area
codes. In this case you must enter the
area code before the telephone number
(no space between)
To make an international call, press the
* key until + is displayed. Then enter
the appropriate country code, area code
if necessary and finally the telephone
number, all in succession (no spaces)
To make a call to an extension line you
may sometimes have to go through an
automated switchboard. To do so:
02207155_1.2 11/18/02 3:35 PM Side 12

Get started
13
Get acquainted
The keypad. The backlit
keypad has 7 dedicated keys
and 12 alphanumeric keys,
allowing for number and
text entries
WAP key. Pressing right
arrow key will access the
Mobile Internet
Menu key. Left arrow key
opens the menu
Answer key. Answer a
phone call
Reject key. Reject a call,
terminate a call. Turn
phone On/Off
Volume keys. On side of
casing
Mute key. On side of casing
below volume keys (long key press)
Long key press. In the start screen, a
The MX7930/31 is equipped with illumi-
nated dual displays. Main display is a
128 by 128 pixel 64K colour display
with full graphic capabilities
In the start screen, the fol-
lowing information may be
displayed:
-Top area: Battery status,
Call forwarding or Call bar-
ring set, SMS-alert, Mute (if
selected), Signal strength
-Middle area: Wallpaper
-Bottom area: Softkey
commands
The sub display is 80 by 50
pixel with orange backlight.
The display shows:
- Battery status, time, signal strength
and network name
02207155_1.2 11/18/02 3:35 PM Side 13

Get started
14
Keypad function
press will open the Symbols pop-up.
Toggles between * + - / and =in standby
mode
Hash key (#). Toggle between: # . , ; :
“ ‘ ? and !in stand by. Controls .(peri-
od) in text editors
Keypad tone. May be switched on/off in
the Profiles menu
DTMF tones. The keypad allows for the
use of DTMF tones, enabling you to
access certain public services and to
remote control various devices, e.g. an
answering machine
Volume control. On the side of the
phone
Earphones with microphone may be
plugged in, opposite to the antenna
long key press on the keys 2 to 9 will
initiate a call to the connected shortcut
number, provided that this is activated
Caps on/off & digits. In text editors
repeated pressing on the * key will
cause the cursor to toggle between
upper and lower case. A long key press
on the keys 1-9 will produce the digit
Symbols. Punctuation and symbols are
selected in the options menu during
text editing, but can also be found on
the # key (in ABC mode)
Delete. Delete with the right softkey
(Command: Clear)
Space. Space with the 1-key key
Star key (*). Switch between upper and
lower case letters in text editors. A long
02207155_1.2 11/18/02 3:35 PM Side 14

Get started
15
Navigating
press will enter the main Menu, whereas
an up key press has no function in
standby. A long press on OK will activate
Voice dial (Optional)
In main menu mode
-Pressing the arrow keys will step
through menus and OK will enter the
selected menu
Once you have entered a menu, you can
scroll up and down to highlight submenu
items with the action bar. All menus are
in a continuous loop, meaning that
when you reach the end, the menu will
start over again
-Pressing will move the action bar
upwards
-Pressing will move the action bar
downwards
base, automatically disconnecting the
earpiece. A switch on the microphone
enables you to accept and end a call
Data and charger socket (bottom of
casing). Use only original Maxon cables
and accessories
Navigating. The arrow keys and the OK
key functions much like arrows and
Enter on your PC, whereas two softkeys
control shortcut commands. The soft-
keys are placed left and right to the
arrow keys and softkey commands are
displayed in the lover corners of the dis-
play. If no commands are displayed, the
softkeys are not active
In standby mode
-Adown key press will open the
Dial list. Left key press will access
Phone Book Look Up and right key
02207155_1.2 11/18/02 3:35 PM Side 15

Get started
16
Navigating, cont.
Left key press:
- Phone book menu
Menu key press:
- SIM Toolkit (if supported)
- Service Numbers (if supported)
- Messages (SMS/EMS, E-mail & CB)
- Mobile Internet (WAP)
- Phone Book (incl. Voice dial)
- Organizer (Calendar, Tasks, Calc.)
- Games (3 Games)
- MyPhone (Audio & Visual settings,
MelodyMaker, picture & sound)
- Settings (Time, Language, Data,
Security, Network and Call settings)
-Pressing OK will enter the highlighted
submenu, make a selection in a radio-
button list or tick a checkbox.
From the start screen, following menus
can be accessed:
Up key press:
- Phone Book Look Up
Down key press:
- Dial list
Right key press:
- WAP (Mobile Internet) menu
02207155_1.2 11/18/02 3:35 PM Side 16

Get started
17
Softkeys
function of the softkeys will change as
you navigate through the menus. If no
commands are displayed, softkeys are
not applicable
In the start screen, right softkey control
the Profiles menu, letting you select
one of five profiles suit the situation
you are in. All profiles can be renamed
Inside menus, the left softkey is gener-
ally used to select and the right key to
clear, backspace or end
When the left softkey controls Save, the
command line will remain blank until all
the required information is entered. In
text editors, the right softkey command
will change when text input is initiated
The right softkey also controls on/off
(long key press)
In submenu mode
In some submenus you can go one step
or deeper into the menu. Highlight the
desired item and press OK. Pressing the
right softkey with the command Back
takes you up one level
Left and right arrow keys will increase/
decrease values in settings menus (e.g.
volume)
All options in settings as well as in fea-
ture menus can be accessed via the
arrow keys, but you may also use the
softkeys as shortcuts to many features
Softkeys. Your phone has two softkeys
that allow you to access most features
via roll-up menus. When one or both
softkeys are applicable, the relevant
softkey commands will appear in the
display. Commands and subsequent
02207155_1.2 11/18/02 3:35 PM Side 17

Get started
18
Display items
OK or Select. When all requested infor-
mation is entered, store with Save
Text editor. Appears when you write
SMS messages. You can choose to accept
the text entry or exit the editor at any
time, using the softkeys
Pop-up windows. Pop-up windows will
appear as a question, information, an
event reminder, or an alert to inform
you of problems
Checkboxes & radio buttons. When set-
ting up or using your phone, you may
Scroll arrows. If the text is too large to
fit in the window, scroll arrows will
appear to show there is more text out-
side the window
One-line editors. When you wish to
enter information, e.g. in the phone
book or calendar, a list will appear from
which you, line by line, can access the
editor. The editor will start in T9 mode
Longpress on #key will enter ABC mode
Scroll through the list and enter the
necessary information. Make selections
in checkbox and radio button lists with
02207155_1.2 11/18/02 3:35 PM Side 18

Get started
19
Voice mail, voice dial
Voice dial (Optional). Enables you to
access selected contacts from your
phone book simply by speaking the con-
tacts name into the microphone. The
phone will dial the contact automatical-
ly according to the settings selected. To
use and setup Voice dial, see p. 41
Scratch pad. During a call you may wish
to take down a telephone number.
Simply enter the number during the call
and it will be stored in the Dial list
Dial list. To access the dial list, simply
press in the start screen. A list of
the last calls is displayed by phone num-
ber (In: > Out: <). Select Details in the
softkey menu to view date & time of
the call. If the caller is listed in your
phone book, the name is shown instead
of the number.
enable or disable functions by ticking
one or more checkboxes or selecting
from an array of options activated by
radio buttons . In the latter case,
only one option can be active at a time.
Icons. Many functions in your phone are
accompanied by illustrative icons. Some
of these will be animated, e.g. to indi-
cate that the phone is working, or to
illustrate a new event such as a incom-
ing SMS
Features not accessed from the menu:
Voice mail is your network-based
answering machine. A new voice mail
will be indicated by a symbol in the
start screen, You may play recorded
messages by selecting Voice mail in the
start screen Options key or you may
simply apply a long key press on the “1”
key
02207155_1.2 11/18/02 3:35 PM Side 19

Get started
20
Scratch pad, dial list, conference call
If OK is pressed while a phone number
or name is highlighted, that number will
be called
Conference call. You can conduct
multi-party conversation on your phone.
During a call, select Hold on left softkey
and call another party. You can include
the first-called party in the conversa-
tion by selecting Join in the options
menu. All parties can now converse. To
include more parties, start by putting
each connected participant on hold
while you call the next. Then select
Join all from the Options menu to open
the conference. As many as five people
can be online at the same time
To release a participant from a confer-
ence call, select Release in the Options
menu. To dismiss all in a multi-party
conversation, select Release all
02207155_1.2 11/18/02 3:35 PM Side 20
Table of contents
Other Maxon Cell Phone manuals
