User Instructions
Dolphin Liberty

Contents
1. INTRODUCTION...................................................................... 2
2. WARNINGS AND CAUTIONS.................................................. 2
3. SPECIFICATIONS..................................................................... 3
3.1. Robot specifiactions......................................................... 3
3.2. Charger specifications...................................................... 3
3.3. Battery specifications ....................................................... 3
4. WHAT YOU’LL FIND INSIDE THE BOX ................................... 4
5. USING THE POOL CLEANER .................................................. 5
5.1. Preparing the robot for use.............................................. 5
5.2. The interactive float ......................................................... 7
6. PLACING THE ROBOT IN THE WATER................................... 8
7. TAKING THE ROBOT OUT OF THE WATER ........................... 9
7.1. Turning the robot off........................................................ 9
7.2. Pulling the robot out of the water.................................... 9
8. ROUTINE MAINTENANCE ...................................................... 11
8.1. Cleaning the filter cartridges............................................ 11
8.2. Dismantling and cleaning the impeller ............................ 12
8.3. Storing the robot.............................................................. 13
9. USING THE REMOTE CONTROL ............................................ 14
9.1. The control panel ............................................................ 14
9.2. Manual direction control mode........................................ 15
9.3. Automatic mode settings................................................. 16
10. TROUBLESHOOTING GUIDE................................................. 17
11. CADDY ASSEMBLY INSTRUCTIONS ...................................... 18
Dolphin Liberty
User Instructions
EN

2Dolphin Liberty |User Instructions
1. INTRODUCTION
Thank you for purchasing the Dolphin Liberty cordless robotic pool cleaner.
Like all Dolphin robots from Maytronics, your new Dolphin Liberty robot is designed for easy,
reliable and efficient operation.
Please read this instruction manual carefully and be sure to follow all the recommendations regarding
operation and care of your Dolphin Liberty. This is essential for optimal cleaning and to protect your
robot at all time, whether in use or in storage.
1. The Dolphin Liberty is a cordless, battery-powered robotic pool cleaner designed to clean any
residential pool up to 15m (50ft) in length. It is particularly suited for pools with irregular shapes
and/or in-pool features, such as bridges, fountains, pillars, and other obstacles that may hinder the
free movement of a power cable.
2. The Dolphin Liberty is a wall-climbing model; it cleans the pool floor, walls, and waterline without
intervention.
3. The robot is battery-operated and must be charged before each use by the charger that is
supplied with it.
4. The default duration of the cleaning cycle is 1hr. and 15 min. The duration can be changed to a
1hr. and 30 min. This is done with the remote control.
5. Charging the robot takes 4-5 hrs., after which the robot is ready for use.
6. Upon completion of an operating cycle, the robot automatically moves to one of the pool walls
before switching off. This makes it easier to take the robot out of the water for charging and
cleaning the cartridges.
7. If the robot completes its work and stops at an inaccessible location inside the pool, it can be
steered with the remote control to a more accessible location, this must be done within 12 hours
from the robot’s completion of the operating cycle.
8. If required, the robot can be steered with the remote control during its operation.
9. The pool cleaner can work under a pool cover.
2. WARNINGS AND CAUTIONS
1. Use only the original charger supplied with the robot and manufactured by Maytronics.
2. Place the charger in a shaded dry area during both charging and storage.
3. Always place the charger at a minimum of 3m (10ft) distance from the edge of the pool,
especially during charging.
4. Prior to connecting the float and charger for charging purposes, verify that the connector
and socket are dry and clean.
5. Before operation, disconnect the charging cable and close the charging socket cover.
6. Do not open or disassemble the motor unit in any way.
7. Ensure the electrical outlet used for charging is protected by a ground fault interrupter (GFI)
or an earth leakage interrupter (ELI).
8. Do not enter the pool while the pool cleaner is working.
9. The pool cleaner must be charged before storage.
10. The pool cleaner is not to be used by children or persons with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction.

Dolphin Liberty |User Instructions 3
3. SPECIFICATIONS
3.1. Robot specifiactions
• Motor protection: IP 68
• Minimum pool depth: 0.80m (2.6ft)
• Maximum pool depth: 5m (16.4ft)
The pool water conditions must be within the following parameters:
PH 7.0-7.8
Temperature 6°-34°C (43°-93°F)
Salt Max 5,000 ppm
Chlorine Max 4 ppm
3.2. Charger specifications
Digital switch-mode charger:
• Input: 100-250AC volts
50-60Hz
115W
• Output: 26 VDC
IP 54
3.3. Battery specifications
• Application: Robotic pool cleaner
• Battery type: Lithium ion
• Battery Configuration: 6S4P
• Nominal Voltage: 22.2V
• Maximum Charge Voltage: 25.2V
• Discharge Cut-off Voltage: 18V
• Typical Capacity: 10400mAh
• Standard Discharge Current: 1.7A
• Maximum Charging Current: 4.5A
• Operating Temperature: 0°-45°C/ 32°-113°F (charging)
-10°-60°C/ 14°-140°F (discharging)
• Storage Temperature: 0°-30°C/ 32°-86°F
• Safety Device: Each cell is equipped with a safety vent system. Each pack is equipped
with a protection circuit against over-voltage, over-discharge and over-current.
• Safety Regulation: UL1642, (UL file no.: MH21015), UN38.3

4Dolphin Liberty |User Instructions

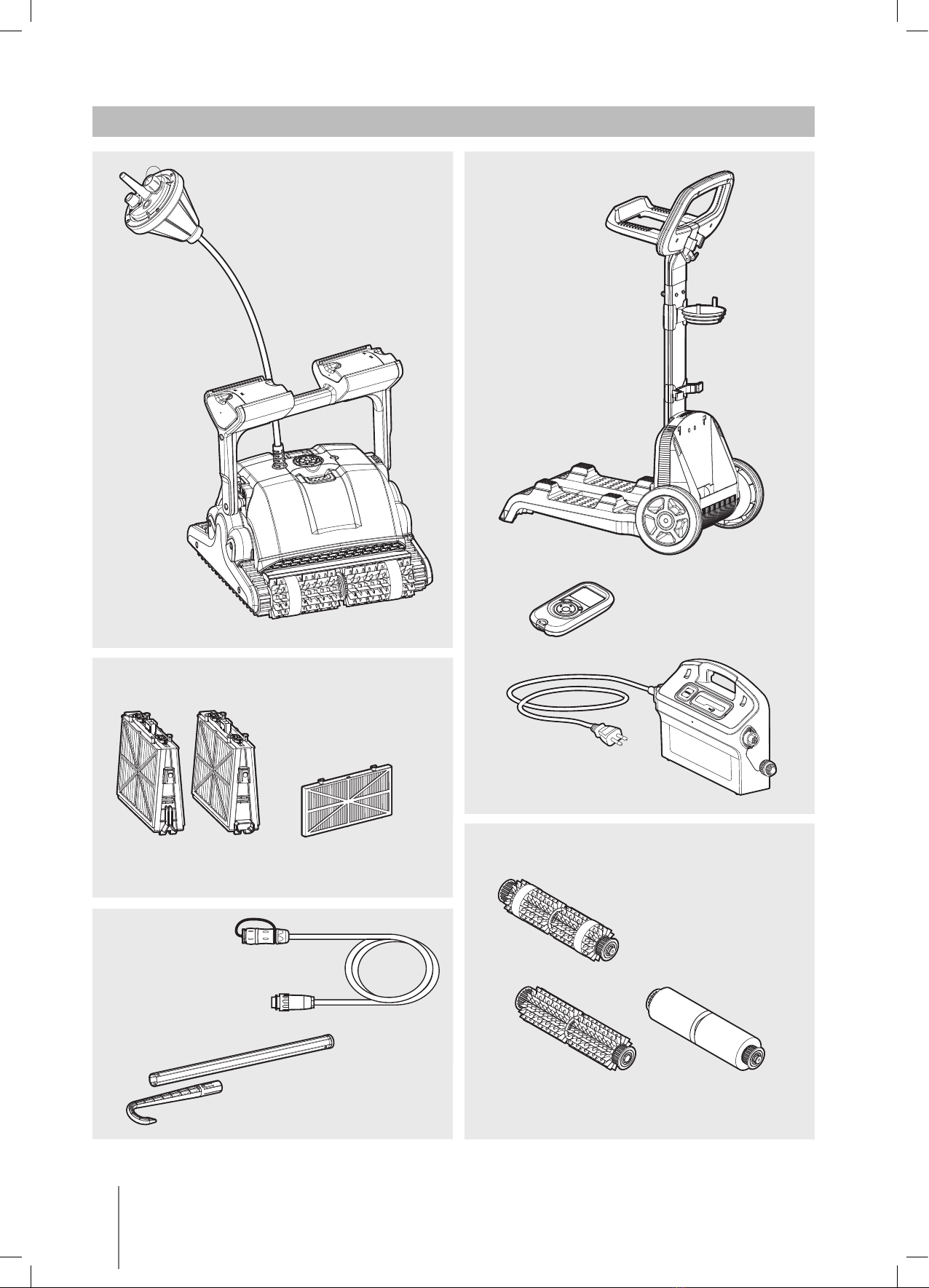

4. WHAT YOU’LL FIND INSIDE THE BOX
Wonder brush
For smooth ceramics.
Combined brush
For rough ceramic
surfaces and mosiac tiles.
PVC brush
For concrete, PVC,
fiberglass and liner.
Caddy
Charger
Brushes - options
Filteration
Pulling hook
Dolphin
Liberty
Remote control unit
Cartridge with
ultra-fine filters
Spring net filter
X4
Charging cable

Dolphin Liberty |User Instructions 5
5. USING THE POOL CLEANER
5.1. Preparing the robot for use
5.1.1. Assembling the Caddy kit
For instructions on how to assemle the Caddy see page 18.
5.1.2. Caddy and charger positioning
Position the charger at a distance of at least
3m (10ft) from the edge of the pool.
5.1.3. Adjusting the handle angle
The robot’s handle should be adjusted and locked diagonally in order to ensure optimum cleaning
results.
The handle angle can be adjusted also to determine the speed at which the robot advances along
the water-line.
To adjust the handle angle:
A. Press the latch down and hold it in position.
B. Move the handle to the desired position and release the latch to hold the handle in place.
10ft/3m
Master4D02B
A
B

6Dolphin Liberty |User Instructions

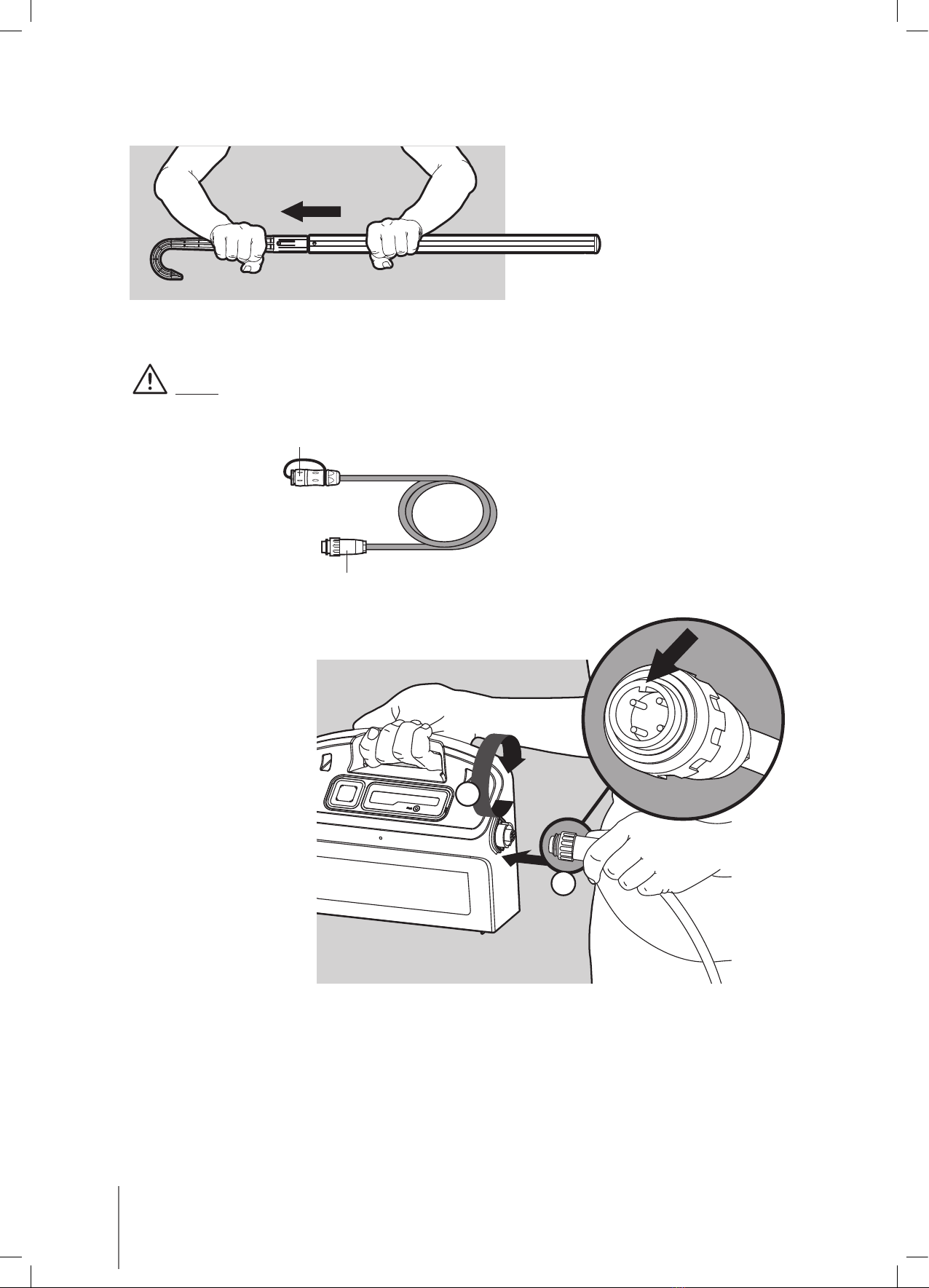

5.1.4. Assembling the pulling hook
5.1.5. Charging the robot
CAUTION
Note: The pool cleaner must be charged before operation.
1. Plug the charging cable into the charger.
2. Plug the electrical cable from the charger into the mains.
3. Open the charging connector cover of the charging cable.
Charging cable
Charging Cable connector to float + cover
Charging Cable connector to Cahrger
2
1

Dolphin Liberty |User Instructions 7

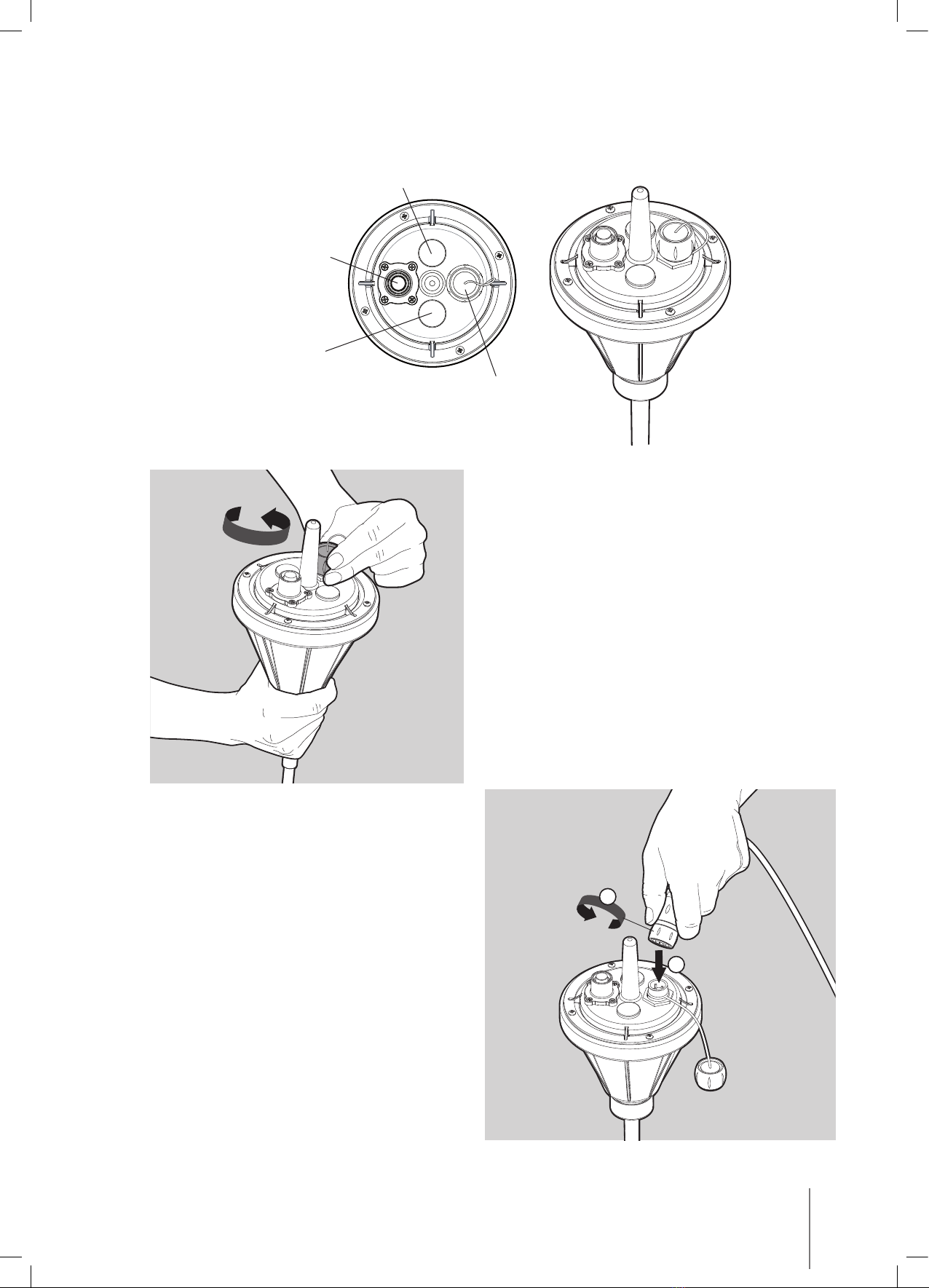

5.2. The interactive float
Green LED
Blink while working
ON/OFF switch
Red LED
Low battery indicator Charging socket
and cover
Open the charging socket cover on the float.
Connect the charging connector to the
charging socket on the float (1) with a slight
rotation until in position, push down and turn
to secure in place (2).
2
1

8Dolphin Liberty |User Instructions

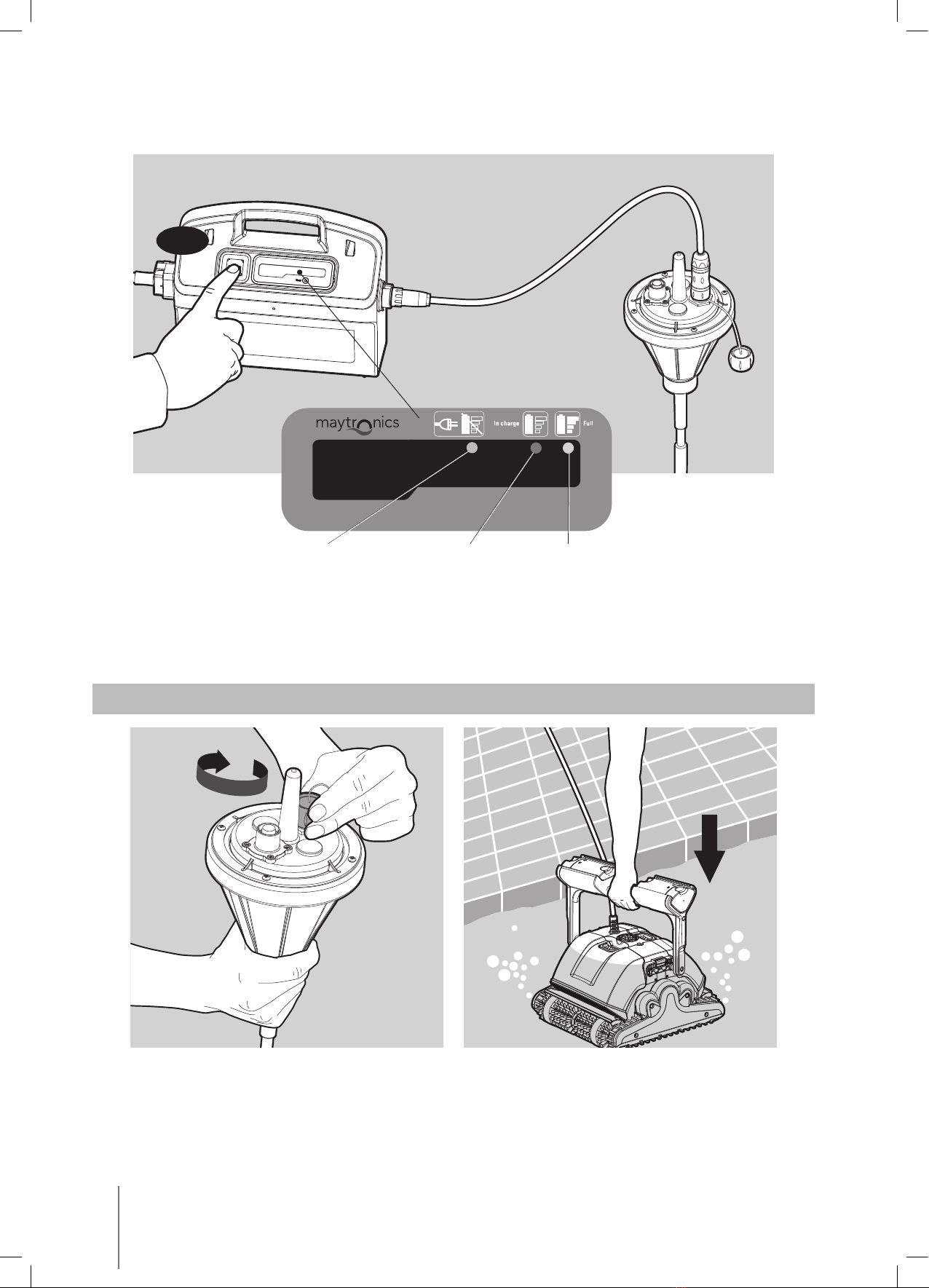

Press the on/off switch button on the charger, at this stage the LED indicators on the charger
and float will remain lit for one second.
•
ON
Full batteryNo connection In charge
While charging, the red “In charge” LED indicator will flash.
• When the battery is full, the green “Full Battery” LED indicator will light up and will remain lit.
• In case of a charging failure or if charging is not performed correctly, the orange “No
connection” Led indicator will flash.
6. PLACING THE ROBOT IN THE WATER
1. Before operation, disconnect the charging cable from the float and close the charging
socket cover.
2. Put the robot into the water while holding the float. Let the robot descend to the bottom
of the pool.

Dolphin Liberty |User Instructions 9
CAUTION
Note: When using combined brushes or Wonder brushes remove the plastic coverings on the
brushes before use. Gently squeeze the Wonder brush material in the water until it is totally wet.
ON

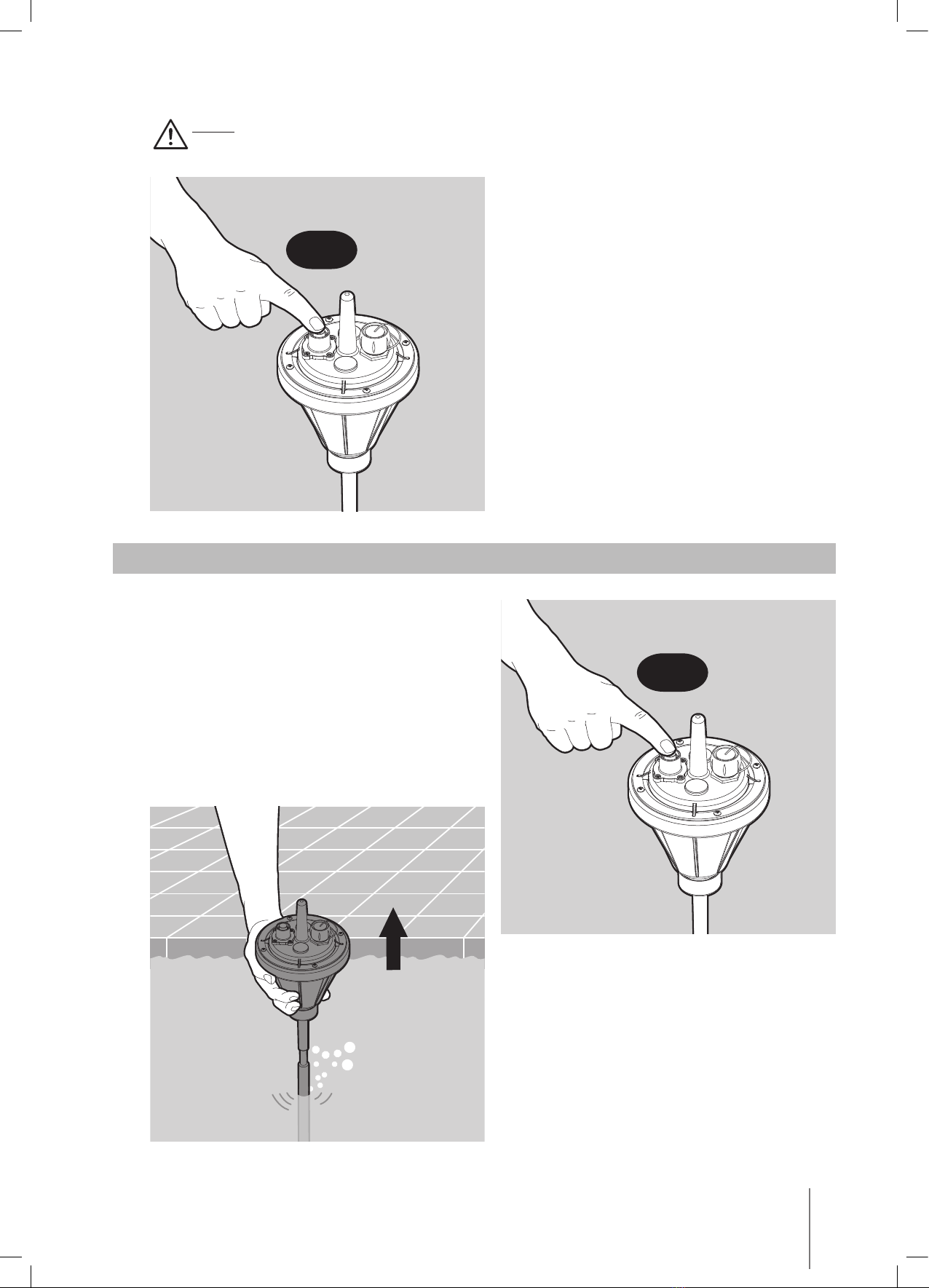

3. Press the on/off switch button on the float for
one second until both LED indicators are lit.
Now you can release the float.
The robot will start its working cycle.
The green LED indicator flashes throughout the
cleaning cycle.
7. TAKING THE ROBOT OUT OF THE WATER
OFF
7.1. Turning the robot off
The robot will automatically shut down either at
the end of the cleaning cycle or when the battery
capacity drops below the lowest allowable level.
If you would like to turn off the robot before the
end of the cleaning cycle, press continuously for
2 seconds on the on/off switch button. The LED
indicators will flash quickly several times and the
robot will switch off.
7.2. Pulling the robot out of the
water
Upon completion of an operating cycle, the
robot automatically switches off and moves to
one of the pool walls to make pulling it out of the
pool easier.
Bring the robot to the surface by gently pulling
the float and cable.

10 Dolphin Liberty |User Instructions

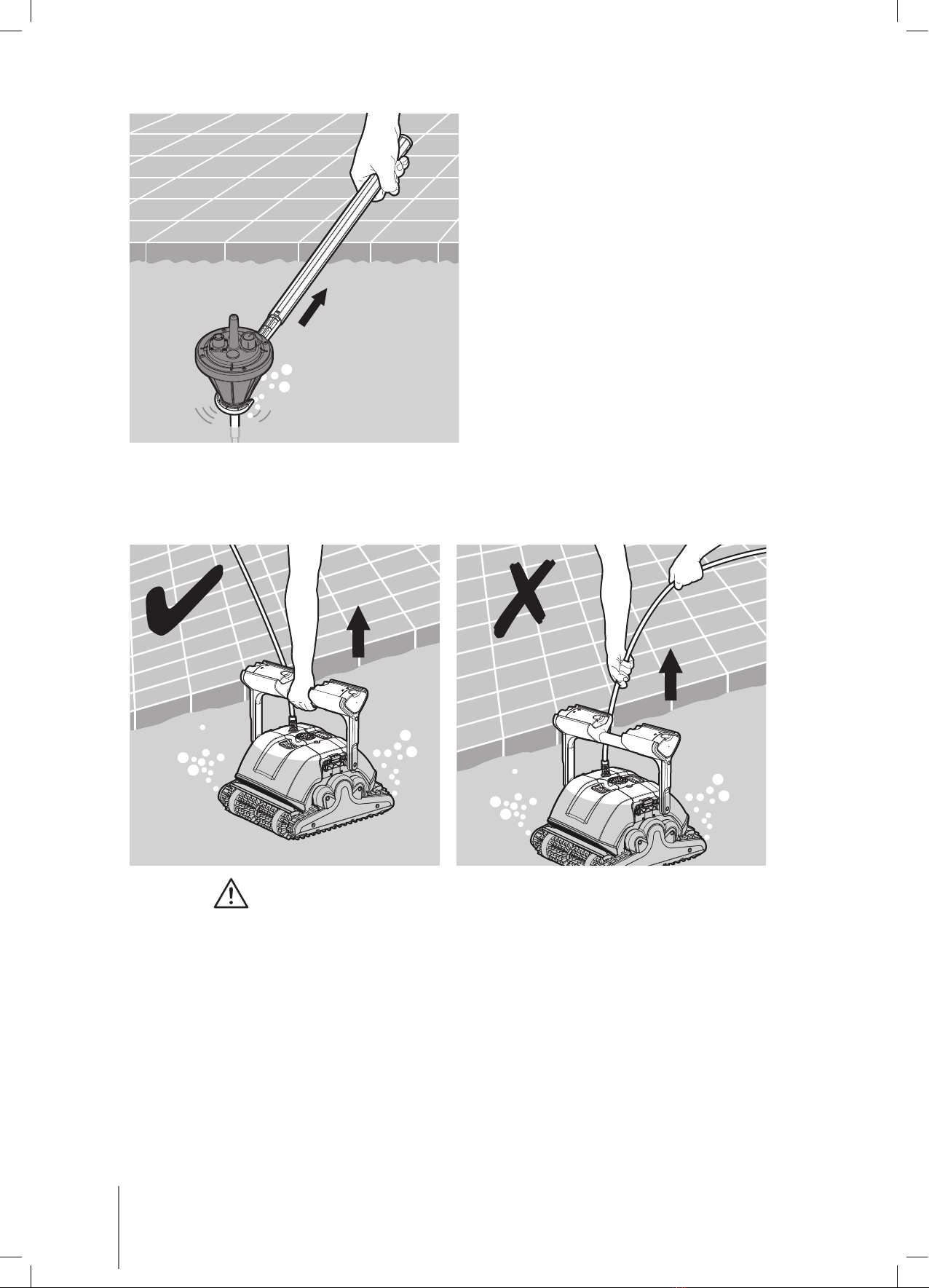

If the Dolphin has stopped in an inaccessible
location, use the remote control to maneuver the
robot closer to you. Alternatively, use the pulling
hook to grab the float and gently reel in the
robot.
Pull the floating cable gently until the robot has risen to the surface. Lift the robot out of the water
by its handle.
CAUTION
Important: Do NOT lift the Dolphin from the water by its cable.

Dolphin Liberty |User Instructions 11
8. ROUTINE MAINTENANCE

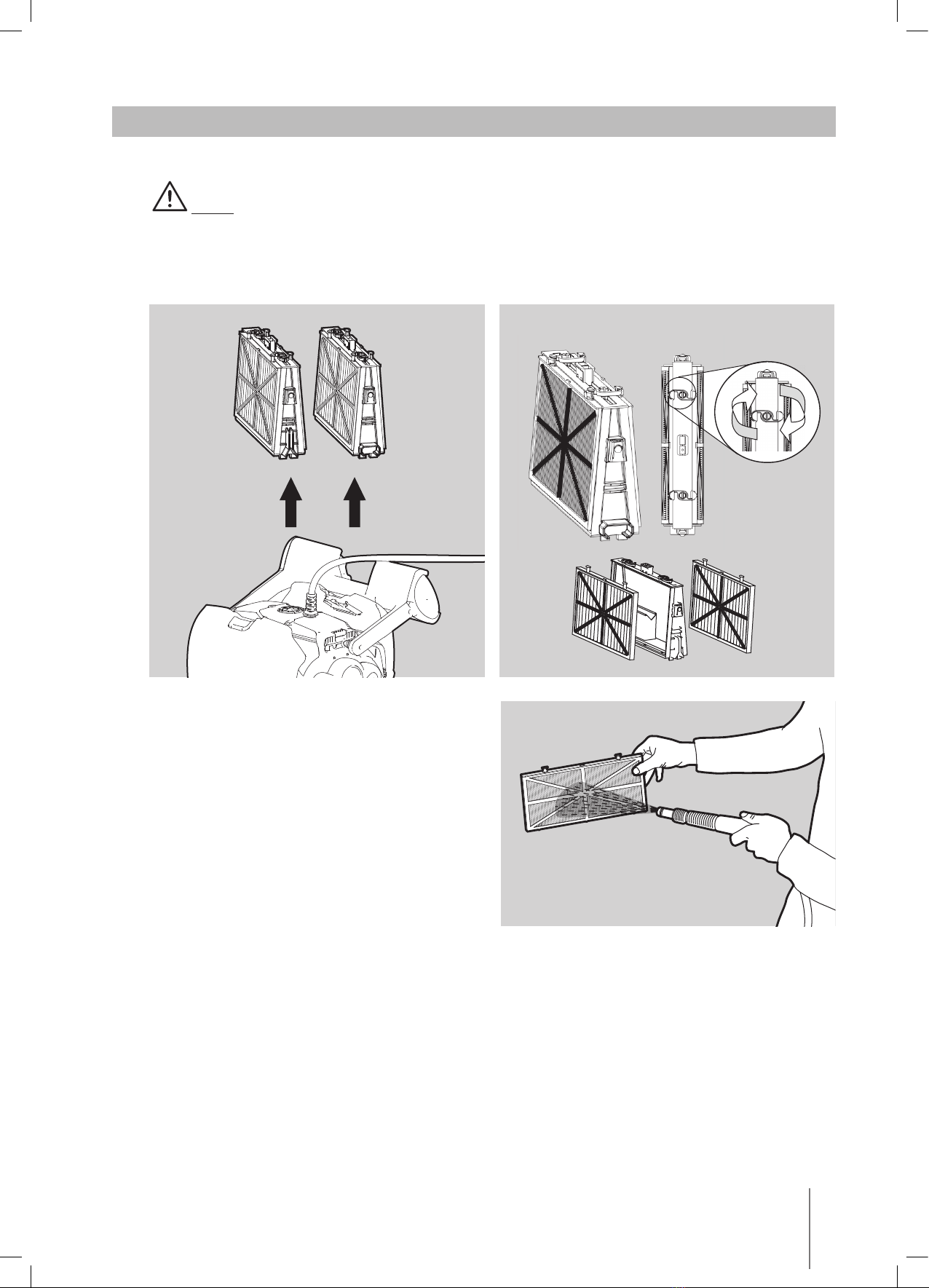

8.1. Cleaning the filter cartridges
CAUTION
Note: Do not let the filter cartridges dry out before cleaning.
1. Open the filter covers and remove the cartridges from both sides of the robot.
2. Open the clips and remove the filters.
3. Clean the filters with a hose.

12 Dolphin Liberty |User Instructions
4. Reassembling the filter elements
Insert the locating tabs at the bottom of the filter element into their grooves on the base frame
then close the “S” clip.
Reinstall the base frames with filters according
to the diagram.
CAUTION
Do not force the filters into place.
8.2. Dismantling and cleaning the impeller
CAUTION
Ensure to switch the robot off before
opening the impeller, by pressing on
the on/off switch on the float.
The LEDs will blink for several seconds
before shutting down.
If you notice debris trapped in the impeller,
open the impeller and remove the debris, then
reassemble.
Locating tab
Locating tab groove
“S” clip
Octagonal
end
fitting
Grooved
end
fitting

Dolphin Liberty |User Instructions 13
8.3. Storing the robot
CAUTION
The robot must be fully charged before storing.
CAUTION
The robot must be charged every six months during the storage period.
1. Thoroughly clean the cartridges and insert them in place.
2. Store the robot in a protected place at temperatures between 0-30°C (32-86°F).
3. Store the robot either on its Caddy or simply upside down.
• Do NOT store the robot where it will be exposed to direct sunlight.
• Do NOT store the robot where it will be exposed to excessive heat.
• Do NOT store the robot where it will be exposed to frost.

14 Dolphin Liberty |User Instructions
9. USING THE REMOTE CONTROL
The remote control unit (RCU) offers two operation modes – automatic mode and manual direction
control mode.
In automatic mode, the cleaning parameters can be changed.
In manual direction mode, the robot’s motion can be controlled manually.
9.1. The control panel
Radio reception meter
When no black lines are showing, move
closer to the robot
Battery level meter
When flashing, change the batteries
Manual control indicator
When flashing, you are in manual direction
control mode
Cleaning cycle icons
Delay timer icons
Cleaning mode icons
ON/OFF button
Manual/automatic select button
Set/OK button
Direction control arrows

Dolphin Liberty |User Instructions 15
9.2. Manual direction control mode
Manual direction control mode
1. Press the on/off button once.
The remote control will start in
manual direction control mode.
2. Use the direction control
arrows (see right) to control the
movement of the robot around
the pool.
Exiting manual direction control mode
1. To exit the manual direction
control mode, press the
manual/automatic select button
once only.
2. The digital screen will light up
and three rows of function icons
will be displayed in default
mode.
1. To change the parameters press
the up or down arrows. To select
the parameter settings use the
right or left arrows.
2. When you reach the required
function press the Set/OK
button.

16 Dolphin Liberty |User Instructions
9.3. Automatic mode settings
To change the automatic mode settings, press the manual/automatic select button and then choose
the desired parameters according to the following table:
Cleaning cycle
indicator
This determines
the length of the
cleaning cycle.
Fast
1 hour cycle
Efficient
1.25 hour cycle
for everyday use.
(default setting)
Heavy duty
1.5 hour cycle
Delay time
indicator
This determines
when the pool
cleaner starts to
work. Delaying
allows the dirt
to settle to the
bottom of the
pool.
Immediate start
(default setting)
One-hour delay Two-hour delay
When activated,
the green LED will
flash every five
seconds.
Cleaning action
indicator
Standard
Floor and wall
cleaning
(default setting)
Ultra-clean
Stronger suction
and slower
movement when
cleaning floor and
walls.
Floor only
Cleans only the
floor and the area
where the floor and
walls meet.
Walls Only
Cleans walls and
waterline only.
Note:
• If no button is pressed after two minutes, the remote control automatically turns off.
The robot will continue to work according to the last settings chosen.
• After “Ultra-clean” and “Walls only” cleaning cycles, the robot returns to default settings.
• In “Floor only” mode, the cleaning cycle will stay as it is until deliberately changed.

Dolphin Liberty |User Instructions 17
10. TROUBLESHOOTING GUIDE
Before contacting your Dolphin dealer, please read through this guide.
Problem Solution
The robot is moving in circles or
does not reach all areas of the pool.
1. Check that no foreign objects are blocking the moving parts.
2. Make sure the filter cartridge is clean and well-mounted and that
the filter doors are closed.
3. Before using the robot at the beginning of the season, brush any
algae from the floor and walls of the pool.
The robot is not moving sideways on
walls.
Adjust the diagonal angle of the handle.
The robot does not climb walls. 1. Clean the filter cartridges.
2. If this is the beginning of the season, use the spring cartridge.
3. Check if brushes are worn and replace them if necessary.
4. Make sure the impeller area is clean.
5. Check that the remote control is set for climbing.
Dolphin is not sinking. If using Wonder brushes or the combined brushes make sure they are
soaked in water.
Remote control unit is not working. Check if the batteries need to be replaced.
The robot stops working before
completing the cleaning cycle.
1. Check if the impeller is blocked.
2. Check if the drive system is blocked.
3. The battery may be empty; charge the robot.
If none of the above help, please contact your dealer.
The “No connection” LEDs are lit
when charging.
Check that the charging cable is connected properly and that the
connectors are dry. Wait 10 seconds and try again.
The green light on the float remains
on after the robot has finished a
cleaning cycle.
The charging contacts on the float are wet. Dry the contacts before
charging.
When the on button on the float is
pressed the robot does not begin to
work and the red LED flashes.
The battery is empty. Recharge the battery.

18 Dolphin Liberty |User Instructions
1 2
3a 3b
4a 4b 4c
11. CADDY ASSEMBLY INSTRUCTIONS
