MBM FC-10 User manual

OPERATION MANUAL
for
Tabletop Paper Collator
FC-10
- Connected Use -
A PRODUCT OF
CORPORATION
The Leader in Paper Handling Equipment
1-800-223-2508
www.mbmcorp.com
APRIL.25.2005
0
NBM
https://www.supplychimp.com

1
https://www.supplychimp.com

Safety Instructions
Definition of Symbols and Notes
In this manual following names and signs stand for possible dangers.
Danger
This Symbol stands for immediate danger threatening the life and health of
persons. Disregarding these instructions may cause severe damage to health and
even serious injuries.
Caution
This symbol stands for an endangering situation that may occur. Disregarding
these instructions may lead to slight injuries or damage to property.
Note
This symbol stands for notes, operational hints and other useful information.
They are convenient for exploiting the machine’s functional abilities.
Danger
Operate the collator with designated AC current only. Use an exclusive outlet, as overloading
may cause fire or an electrical shock.
Do not plug or unplug the power cord from an outlet with a wet hand; it can result in an electrical
shock.
Caution
Do not install the machine in a humid or dusty place; excessive humidity and dust can cause fire
or physical injury.
Never unplug the power cord from the outlet by gripping the cord itself. Doing so may
damage the cord, causing fire or injury. Always disconnect the machine by gripping the plug.
Be sure to remove the power plug from the outlet when moving the machine, otherwise it may
damage the cord, causing fire or an injury.
When the collator will not be used for several days, such during consecutive holidays, etc., be
sure to unplug the power cord from the outlet for safety’s sake.
Do not place receptacles containing water, such as vases, flowerpots and cups, on the machine.
Spilled water can cause fire or an electrical shock.
Do not damage, destroy or process the power plug and cord. Placing heavy things on the cord,
pulling it, or bending it forcibly may damage the plug and cord and cause fire or an electrical shock.
Do not remove the cover of the machine, as it can cause an electrical shock or injury.
Do not dismantle the machine, it may cause fire or an electrical shock.
Continuing operation in spite of irregularities, such as overheating, smoking and unusual odor, may
cause fire or an electrical shock. In such cases, turn off the power switch, remove the plug from
the outlet and contact your dealer.
When foreign substances, such as metal fragments, water or other liquids, fall into the machine, turn
off the power switch immediately, remove the plug from the outlet and contact your dealer.
Continued operation with such substances in the machine may cause fire or an electrical shock.
2
https://www.supplychimp.com

INTRODUCTION
Read this “Operation Manual” carefully before use.
Keep it at a specific place for handy reference.
Since the specifications of this machine are subject to change, be sure not to mistake this manual for
one of a different mode, descriptions of may differ.
CONTENTS
1. PRECAUTIONS FOR INSTALLATION AND USE ････････････････････････････ 4
1.1 Place for installation ･･･････････････････････････････････････････････････ 4
1.2 Confirmation of contents and attachments ･･････････････････････････････････ 4
2. COMPONENT NAME ･･･････････････････････････････････････････････････ 4
3. HOW TO CONNECT TWO TABLETOP COLLATORS ･････････････････････････ 5
4. HOW TO CONNECT THE CONNECTOR ･･･････････････････････････････････ 8
5. HOW TO OPERATE TWO COLLATORS WHEN THEY ARE CONNECTED ･･･････ 9
6. RELOCATION OR DISPOSAL ････････････････････････････････････････････ 10
6.1 Relocation ････････････････････････････････････････････････････････ 10
6.1.1 Removal of the machine from its present location ････････････････････････ 10
6.1.2 Transport ････････････････････････････････････････････････････････ 10
6.1.3 Installation ･･･････････････････････････････････････････････････････ 10
6.2 Disposal ･･････････････････････････････････････････････････････････ 10
3
https://www.supplychimp.com

1. PRECAUTIONS FOR INSTALLATION AND USE
1.1 Place for installation
・
Locations with extremely high or low temperatures. Room temperature should be between 5 and
35 degrees centigrade.
・Locations with the potential for producing electrical leaks, for example, owing to splashing water.
・Near heat sources
・Places exposed to wind
・Narrow spots with poor ventilation, or dark places
・Locations exposed to direct sunlight or other powerful light sources. Direct sunlight or other
strong light sources may cause the optical sensor to malfunction. Install the machine in an
appropriate place or shield the light with a heavy curtain or other material.
1.2 Confirmation of contents and attachments
After unpacking the collator, check the attachments. Should any part be missing, contact your
dealer immediately.
(1) Upper chassis fitting knob (2) Upper chassis (3) RKWS 4×6 screws (10 pcs)
(4) Fitting plate (L) (5) Bridge side plate (6) Connecting chassis (7) Two collators connecting cord
2. COMPONENT NAME
4
(l)Upper chassis fitting knob
C2lUpper chassis
(6)Connecting chassis
(7)Two collators
connecting cord
(4)F;!ting
plate(L)
"'
•
•
(3) RKWS4)( 6 screws (10 pes)
I
•
https://www.supplychimp.com

3. HOW TO CONNECT TWO TABLETOP COLLATORS

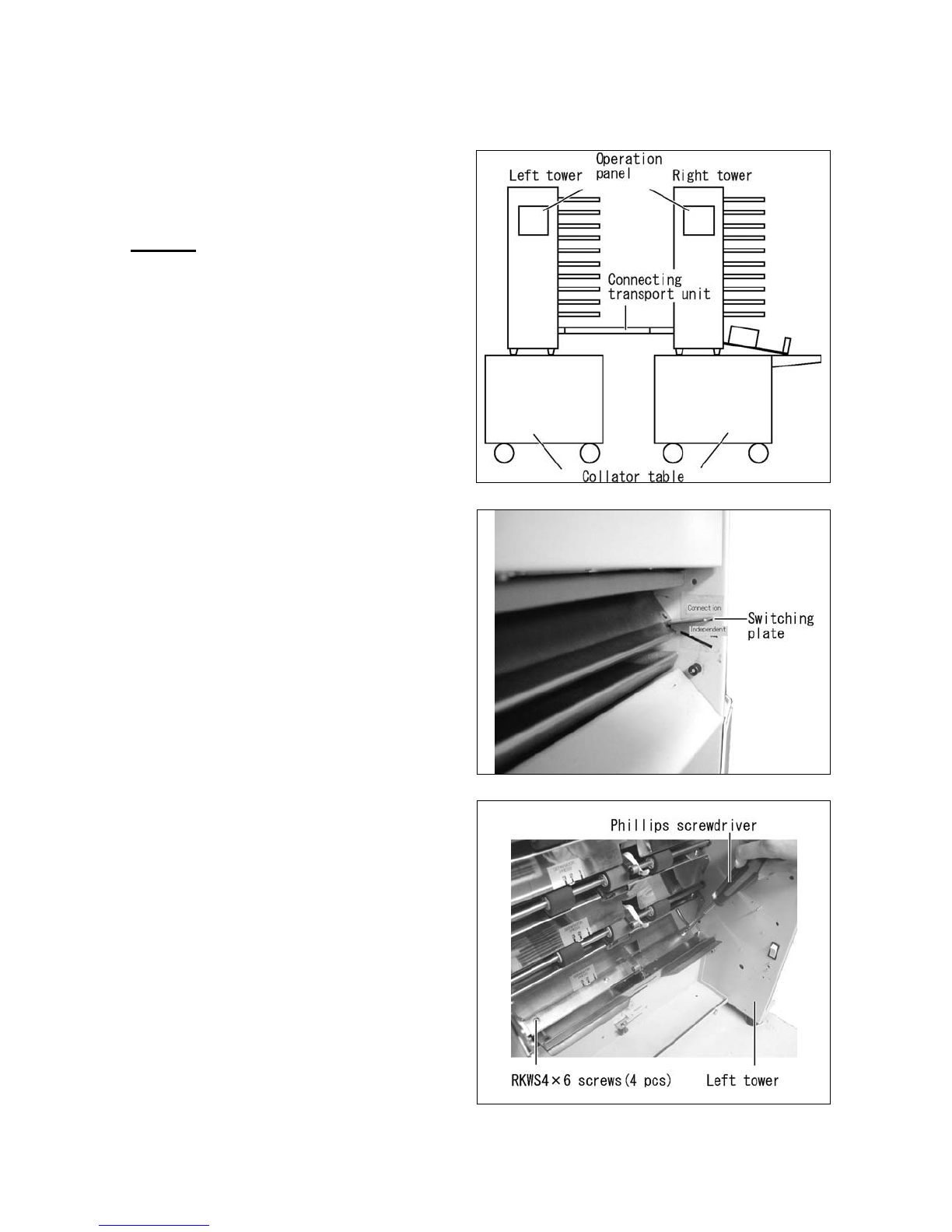

1. Assemble tabletop collator tables and install
the right and left towers on them.
Caution!
・As for assembly of collator, refer to the
assembly plan.
・
In case two connected collators are used, be
sure to install them on the collator tables
designed for collator.
If two collators are not kept in parallel, it
may cause paper feed trouble
・Fix the collator to the collator table firmly
with metal fittings.
2. Switch the switching plate to “Connection”
side.
3. Using Phillips screwdriver, fit the L fitting
plate to the wing beneath paper ejection of
the left tower using RKWS4x6 screws
(4 pcs) (4 locations).
5
Operation
Left tower panel Right tower
p
Collator table
-,-
j...
~~-----Switching
, plate
[,
II
Phillips screwdriver
RKWS4 x 6 screws (4 pcs)
left tower
https://www.supplychimp.com

4. Fix the connecting chassis to the left tower
(1) It spends by the hand so that the ditch of
operation driver in a left tower may
become the same as the direction of the pin
of connecting shaft, it matches, and the pin
is set in the ditch.
Note!
Place a base or the like beneath the
connecting chassis to keep the chassis level.
It will make the assembly easier.
Caution!
If the parts are not fitted properly, the
collators may not start to work, or it may
cause machine trouble.
(2) Using Phillips screwdriver, fix the
connecting chassis with RKWS4x4
screws (4 locations).
6
,.
•
Operation driver
-left tower
Connecting Pin Connecting
shaft
chassis
Operation driver
-1--
Pin
Connect i ng shaft
o
left tower RKWS4 x 6 (4 pcs) Ph ill ips screwdr i ver
https://www.supplychimp.com

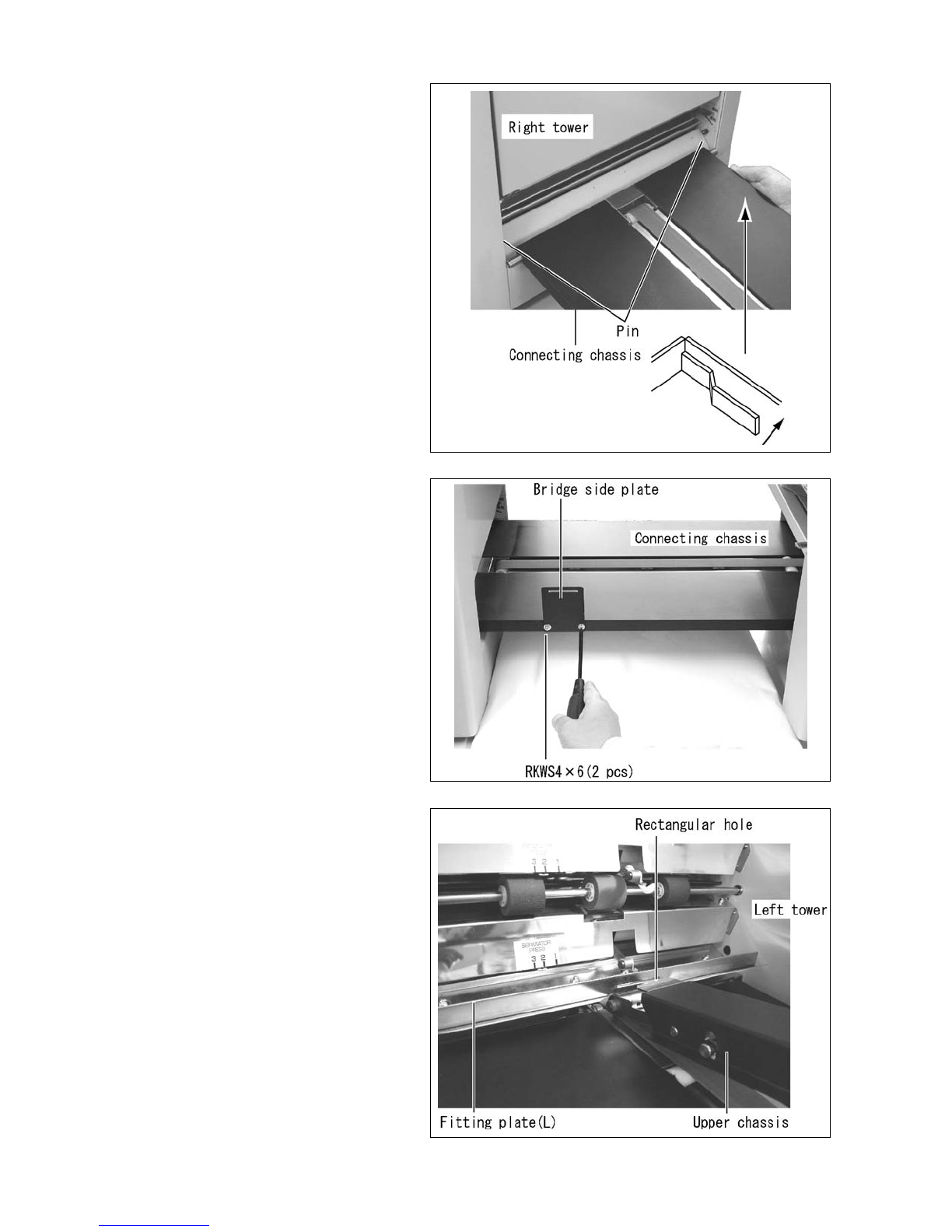

5. Install the connecting chassis at the
right tower.
After moving the collator table to a
position where the connecting chassis
can be set, hold the connecting chassis
in the way as shown on the photo and
insert the connecting chassis shaft into
the pin (on the left side) of the right
tower while pulling the chassis in the
direction of arrow with your finger
placed inside.
While keeping the state as it is, insert
the connecting chassis shaft in the
right side pin and remove your fingers
placed inside, and then, the chassis is
set.
6. Fit the bridge side plate to the
connecting chassis with RKWS4x6
screws (2 pcs).
7. Fix the upper chassis
(1) Insert the left side tip of the upper
chassis in the rectangular hole on the
fitting plate (L) of the left tower.
7
Pin
Connecting chassis
Bridge side plate
RKWS4 x6 (2 pcs)
Rectangular hole
Fitting plate(L) Upper chass is
https://www.supplychimp.com

(2) Insert the right side tip of the upper
chassis in the sqaure hole on the bridge
side plate, and fit the upper chassis to the
connecting chassis using the upper
chassis fitting knob.
4. HOW TO CONNECT THE CONNECTOR
Insert the power cords of the collators (right
and left towers) in the power supply outlet and
insert the two collators connecting cord in both
tower and fix them firmly.
8
Bridge side plate Upper chassis
Upper chassis fitting knob
Cora for oorr.oetlrl two t~-'!·~
Coilitor 13cN~ Power coni
Socket for post-prooeu,rc eqJ,p:oert
https://www.supplychimp.com

5. HOW TO OPERATE TWO COLLATORS WHEN THEY ARE CONNECTED
1. As for power supply, first turn on the power switch of the left tower and then turn on the switch
of the right tower within five seconds. If the interval between the timings to switch on two
collators exceeds five seconds, or the right tower is switched on first, the machines may not work
properly.
2. The left tower should be used when key operation on the operation panel is performed.
3. The methods of installation and operation of post-processing equipment vary according to the
equipment. Installation and operation should be performed according to the operation manual
of respective machine.
<Setting procedures of the system constants>
＊Be sure to set them in order to operate the machine properly.
1. Turn on the power switch of both left and right towers.
2. Press “O” key on the operation panel of the left tower for three seconds.
[P X] flashes on the counter.
3. Press the MODE key twice. Them, the counter shows [L X].
4. (1) In case the left tower and large-capacity stacker are used,
Display of [L . 5] - Press the numerical key “ 7 “ and if [L . 7] is displayed, press the
“START/STOP” key.
(2) In case both left and right towers and large-capacity stacker are used,
Display of [L . 5] - Keep this displayed and press the “START/STOP” key.
＊
Press the START/STOP” key as the last step. Then, even if the power is turned off, the system
constant value is memorized. Re-entry of the data will not be necessary.
＊ Use different L value of the system constant for when both left and right towers
andlarge-capacity stacker are used, from that for when the left tower and large-capacity stacker
are used.
＊ If the system constant is not properly set, collating speed will become a little slower when both
left and right towers and large-capacity stacker are used.
＊ If the system constant is not properly set, paper jam may occur in the large-capacity stacker
when the left tower and large-capacity stacker are used.
Cautions for use!
1. How to load paper (loading paper when all twenty stations are not used while two collated
are connected)
- In case 10 or less stations are used, use the left tower only.
(e.g. If paper is loaded on five station of the right tower and on another five stations of
the left tower, it may cause paper jam as paper ejected from the left tower meets paper
ejected from the right tower.
- In case eleven to nineteen stations are used, use ten stations of the left tower and use the
remainder out of the right tower while loading paper from the bottom station.
2. REPEAT function cannot be used while two collators are collated.
3. INSERT/CHIT functions cannot be used while two collators are connected.
4. If the left tower only is used independently, the following three methods can be selected.
- Switch on the power of the left tower only.
- Switch the ejection switching plate to “Independent”
- When the ejection switching plate on the right tower is set at “Independent”, press the
“MODE” key and “6” key on the operation panel of the left tower.
9
https://www.supplychimp.com

6.RELOCATION OR DISPOSAL
6.1 Relocation
6.1.1 Removal of the machine from its present location
Before removing the machine from its present location, be sure to remove the power plug from the wall
outlet.
6.1.2 Transport
1) Transport the removed parts, attachments and Operation Manual together with the machine.
2) Take care not to expose the collator to strong vibration or shock.
6.1.3 Installation
When installing the collator at its new location, observe the same procedure as when first installing it.
6.2 Disposal
When disposing of the collator, ask a contractor specialized in industrial waste disposal to handle it in
accordance to the local regulations.
10
https://www.supplychimp.com

11
MBM Corporation
