12-FIRST START-UP
Technical Dept. - All rights reserved - Reproduction prohibited
WARNINGS BEFORE IGNITION
GENERAL WARNINGS
Remove all parts that may burn from the brazier and the glass (manual, various adhesive labels or any polystyrene).
Check that the brazier is positioned correctly and rests properly on the base.
The rst ignition may not be successful as the feed screw is empty and does not always manage to load the brazier
with the required amount of pellets in time to light the ame.
CLEAR THE FAILED IGNITION ALARM FROM THE STOVE PANEL OR APP.
REMOVE THE PELLETS LEFT IN THE BRAZIER AND REPEAT IGNITION.
If, after repeated attempts, the ame fails to ignite, despite a regular ow of pellets, check the correct positioning of the brazier, which
must rest snugly against the slots. If no anomaly is found during this inspection, there may be a problem with the product components
or installation may not be correct.
REMOVE THE PELLETS FROM THE BRAZIER AND CONTACT AN AUTHORISED TECHNICIAN.
Do not touch the stove during the rst start-up, as it is during this phase that the paint sets. If you touch the paint,
you may expose the steel surface.
It is good practice to ensure eective ventilation in the room during the initial start-up, as the stove will emit some
smoke and smell of paint.
If necessary, touch up the paint with the spray can of the specic colour.
Do not stand close to the stove and, as mentioned, air out the room. The smoke and smell of paint will disappear after about an hour of
operation, however, they are not harmful in any case.
The product will be subject to expansion and contraction during the start-up and cooling stages, therefore slight
creaking noises may be heard. This is perfectly normal as the structure is made of laminated steel and must not be
considered a defect.
Upon rst ignition, for the rst pellet hopper, it is recommended to start the stove at maximum power so that the structure and the
smell of the paint settle more quickly.
It is recommended to install the ceramic or serpentine stone cladding after the rst successful ignition.
DO NOT EXPECT HEATING EFFICIENCY IMMEDIATELY!!!

4
13-GRAPHIC PANEL
MAESTRO GRAPHIC PANEL

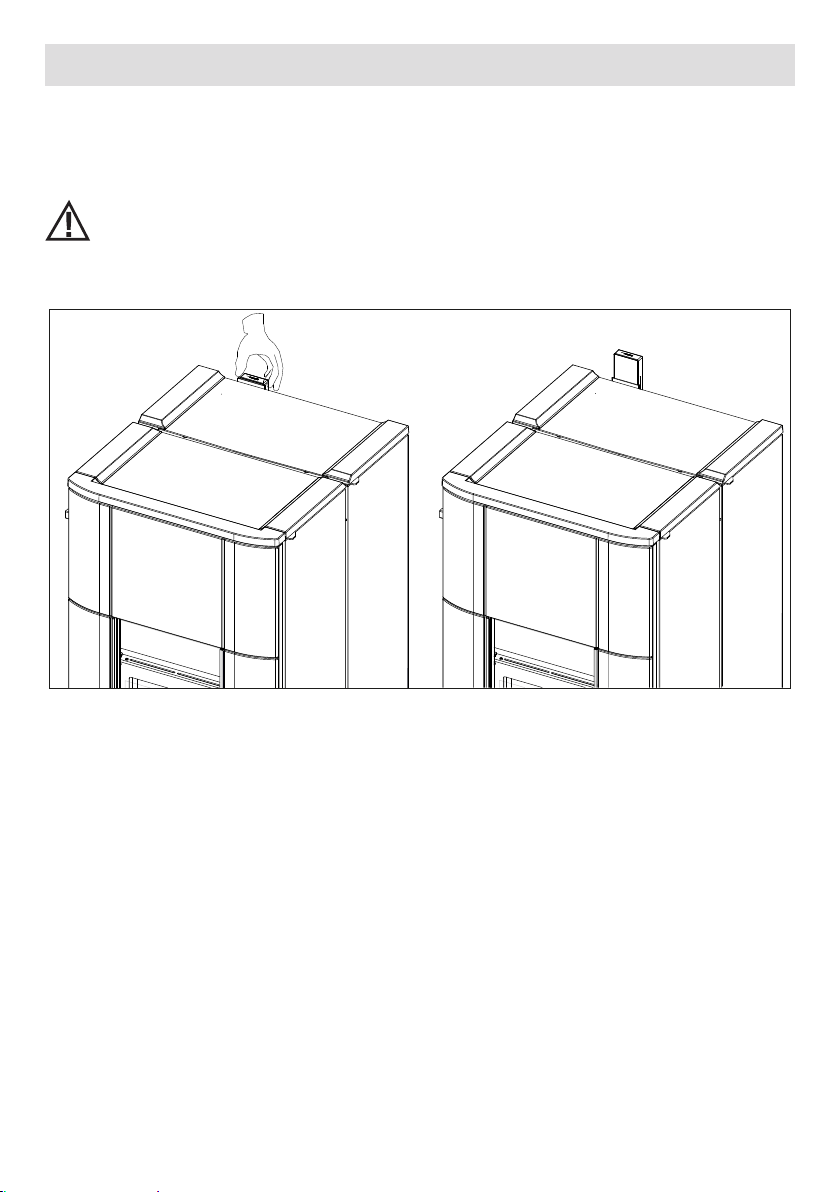

The“foldaway”panel is located at the back of the product. Grasp the panel at the sides with your hand and lift it. The panel will block in
the raised position. The display is graphic only while the controls are“soft touch”
Attention! It is advisable to put the panel in the “HIDDEN” position while loading the pellet.
It is not necessary to guide the panel into the “CONCEALED” position.
•

5
13-GRAPHIC PANEL
Technical Dept. - All rights reserved - Reproduction prohibited
KEY FUNCTIONS
CONTROL AND MENU SCROLLING KEYS FAN CONTROL MENU
NAVIGATION IN THE DIFFERENT OPERATING
MODES (PROGRAMMES)
ON/OFF AND CONFIRMATION OF MENU
CHOICES
START&STOP ENABLING/DISABLING
GRAPHIC DISPLAY
CHRONO/SLEEP ENABLING/DISABLING

6
14-DISPLAYS
DISPLAY AT FIRST PRODUCT IGNITION
The display shows an additional sequence to that described in the following paragraph only when the product is rst powered up. This
additional sequence makes it possible to adjust/conrm the current date and time (to make the adjustment later, see the dedicated user
menu paragraph).
DISPLAY UPON SUBSEQUENT PRODUCT FEEDING
Each time the product is powered, the display shows the following sequence:
The Bluetooth sensor (if active) will search for the previously paired devices (see the Bluetooth chapter).

7
14-DISPLAYS
Technical Dept. - All rights reserved - Reproduction prohibited
Display with the product o
1. WI-FI active and connected, the icon is only present if the product is connected to a router or a network.
2. Bluetooth active and/or connected.The icon is present if the Bluetooth has been activated and turns blue if it is connected to a
paired device.
3. Room temperature recorded by the local probe or remote control (OPTIONAL)
4. Current time
5. Active Chrono Programming
6. Icon that identies the need for end-of-season maintenance (2000 h)
7. Pellet reserve light (OPTIONAL)
8. OFF/STANDBY in case of active START&STOP.
The keys are all lit because during this phase each key can allow you to activate functions or access dedicated menus
The icon has a steady white light if the product is o and cold. For the other lighting states of the key, see the shutdown chapters.
After 2 minutes (standard time that can be changed from the menu), the displays goes into standby/energy saving mode (see chap.
“DISPLAYS”)

10
11
5
1
6
3
7
9
2
4
8
12
8
14-DISPLAYS

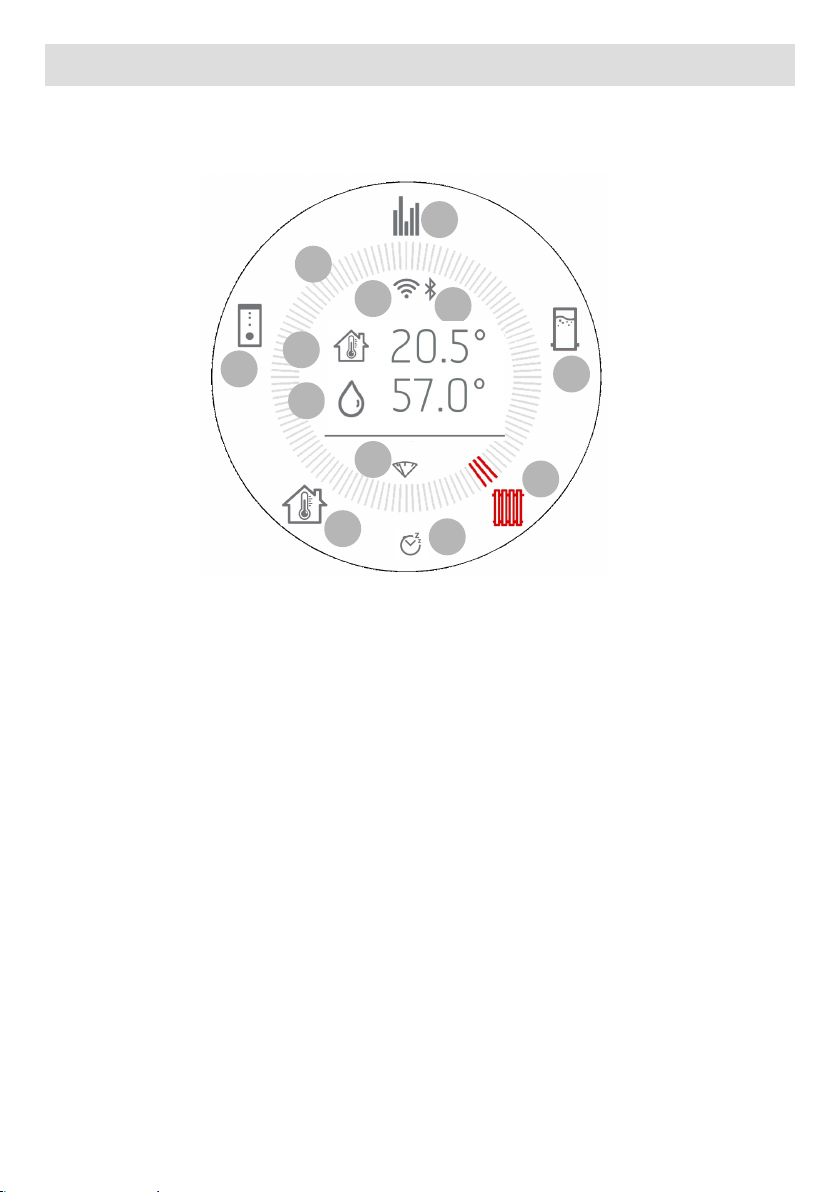

Display with the product on
1. On
2. Operating mode crown
3. WI-FI active and connected
4. Bluetooth active and connected
5. Puer
6. Storage tank
7. Room temperature
8. Pellet reserve light (OPTIONAL)
9. Temperature of water in the boiler
10. Room temperature
11. Radiators
12. Timer or Sleep active (see dedicated paragraph for the correct iconography for each function)

9
14-DISPLAYS
Technical Dept. - All rights reserved - Reproduction prohibited
PRODUCT IGNITION
DISPLAY WITH THE PRODUCT OFF
When the display is in stand-by with the product o, the room
temperature, the current time and the word OFF appear; the keys
below turn o.
Simply press any key to awaken the display from this state.
The panel automatically goes into STAND-BY mode after a 2”
time-out (the time can be changed from the panel menu).
The stand-by mode still indicates changes in the operating mode
of the equipment (e.g.: pellet reserve, shutdown or cooling) and
the room temperature changes with a 60 second interval.
DISPLAY WITH THE PRODUCT ON
When the display is in stand-by with the product on, the room
temperature, the current time, the word ON and the equipment
operating mode icon appear.
Simply press any key to awaken the display from this state.

10
14-DISPLAYS
IGNITION
FEED SCREW ACTIVATION (FIRST IGNITION OR AFTER HOPPER EMPTYING)
Prior to rst product ignition, it is necessary to load the fuel and preload the pellets inside the feed screw for loading the fuel in the brazier.
To do this, simply press and hold the key for 10 seconds and the“feed screw
loading”will activate.
The button turns red until the phase ends or is interrupted.
To activate this function, the product must be OFF and COLD (the key
must be white and NOT ashing).
The display shows the feed screw icon and the countdown starting from the
maximum number of seconds provided for the preload cycle (e.g. 120 seconds).
The moment you start to see the pellet drop into the brazier, you must
stop loading by pressing the key.
Ignition must start with an empty brazier and not with a preload.
RED ICON
Display upon ignition
Display at rst ignition:
• Press and hold the key for at least 2” (after having awakened the display), the product switches to on and the key ashes until
the ignition phase has been completed. The crown appears and moves to the icon at the top, relative to general operation
• The room temperature reading appears
• Upon rst ignition, only three icons are enabled (general operation/room temperature/system temperature) the others are
displayed but not enabled
• If you later decide to enable the puer or storage tank outputs, the other icons will also be enabled (see “User menu” chap.).
• The icon for the stove appears as well as the power request from the various radiators/puers/storage/DHW.

11
14-DISPLAYS
Technical Dept. - All rights reserved - Reproduction prohibited
Attention! Representation with all of the crown icons provided by way of example, see chapters below for enabling.
Below is a series of representations:

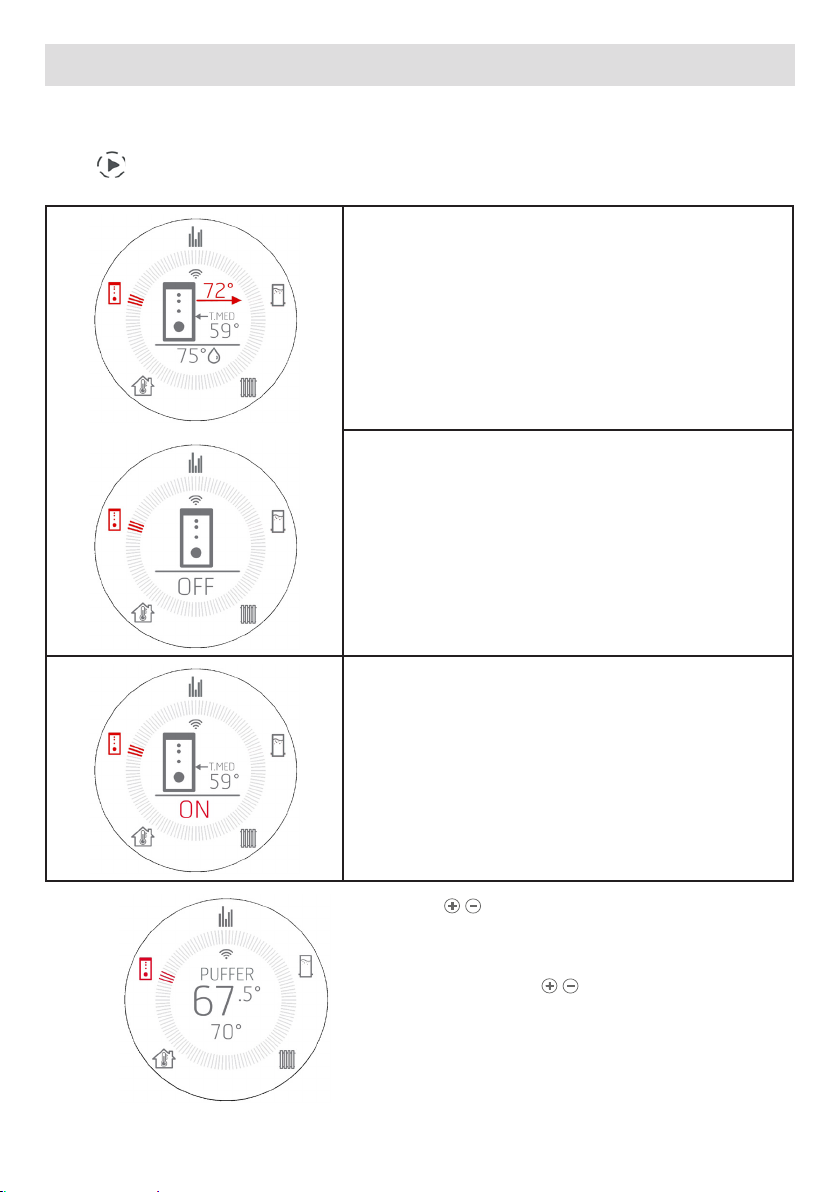

STOVE ON WITH PUMP ON AND REQUEST
FROM THE SYSTEM
STOVE ON WITH PUMP ON AND REQUEST
FROM DHW
STOVE ON WITH PUMP ON AND REQUEST
FROM STORAGE TANK
1
STOVE ON WITH PUMP ON AND REQUEST
FROM PUFFER
STOVE ON WITH PUMP ON (NO REQUEST-
STOVE ON MINIMUM)
SELECTION OF SYSTEM COMPONENTS (USES) SUCH AS PUFFER/STORAGE TANK
These functions can be activated from the specic MENU from the stove panel. The adjustment must be made only one time when the
system is installed by the qualied technician.
The adjustment of the hysteresis must be made by the installation technician through the APP.

12
15-TEMPERATURE SELECTION
Scroll with . Every time it is pressed, the next icon on the crown will light up. The icon and the dashes will turn red. It will be conrmed
automatically 3”after selection. Use the keys to select the desired temperature
GENERAL OPERATION SCREEN
When the start-up stage is complete, the screen appears with information on room temperature and
system status, and on what the stove is doing (e.g.: pump on and heat request from DHW).
During operation, the key stays on steady and white.
STOVE WATER TEMPERATURE
ROOM TEMPERATURE

13
15-TEMPERATURE SELECTION
Technical Dept. - All rights reserved - Reproduction prohibited
STOVE BOILER TEMPERATURE ADJUSTMENT SCREEN - INSTALLATION SET 1 CONFIGURATION
• With the key, access stove boiler temperature adjustment.
• The current temperature of the water in the stove boiler will appear in large characters, and the
desired temperature at the bottom in small characters
• The keys allow you to modify the temperature and if you press them, all the texts at the
centre of the display disappear and only the current setting appears.
• The rst press only enters the edit mode; pressing the keys again will change the value. The display lasts 3”and in case of
no further inputs, it returns to the image with the crown and updated temperature.
ROOM TEMPERATURE ADJUSTMENT SCREEN
• With the key, access the room temperature adjustment.
• The current room temperature will appear in large characters, and the desired temperature at the
bottom in small characters (as on the APP)
• The keys allow you to modify the temperature and if you press them, all the texts at the
centre of the display disappear and only the current setting appears.
• The rst press only enters the edit mode; pressing the
keys again will change the value. The display lasts 3”
and in case of no further inputs, it returns to the image with the
crown and updated temperature.
•

14
15-TEMPERATURE SELECTION
DOMESTIC HOT WATER TEMPERATURE ADJUSTMENT SCREEN (ONLY DHW VERSION MODELS)- INSTALLATION SET 2
CONFIGURATION
• With the key, access DHW temperature adjustment.
• The current DHW temperature will appear in large characters
• The keys allow you to edit the temperature.
• The rst press only enters the edit mode; pressing the keys again will change the value. It will be conrmed automatically.
DISPLAY WITH EXTERNAL THERMOSTAT (see ”User Menu”chap.)
ON/OFF alternating withT.EXT
where ON and OFF indicate whether there is a call
or not (and not whether the external thermostat
is active or not)
When there is an external thermostat, the room temperature adjustment screen is as follows:
When setting an AUX conguration (2-3 see ”User Menu”chap.) to set the temperature of the AUX
contact on the NTC1, always use the screen relative to the temperature setting of the room where it
is represented:

15
15-TEMPERATURE SELECTION
Technical Dept. - All rights reserved - Reproduction prohibited
STORAGE TANK TEMPERATURE ADJUSTMENT SCREEN - NTC3 ACTIVE-INSTALLATION SET 3-4 CONFIGURATION
(SEE SYSTEM CONFIGURATION IN THE USER MENU)
With the key, access the storage tank temperature adjustment.
The STORAGE TANK screen with probe appears
when INSTALLATION SET 4 CONFIGURATION is
activated.
At the bottom of the display, the temperature
SET appears, and at the top the storage tank
temperature recorded by the NTC.
If the INSTALLATION SET 3 STORAGE TANK
CONFIGURATION with thermostat (dry contact)
is set, only ON/OFF will appear at the bottom.
ON appears in red. OFF appears in grey.
• The keys allow you to edit the temperature. By pressing the keys, at the centre of the display, all of the words will
disappear and only the current setting is shown.
• The rst press only enters the edit mode; pressing the keys again will change the value. The display lasts 3”and in case of
no further inputs, it returns to the image with the crown and updated temperature.

16
15-TEMPERATURE SELECTION
PUFFER TEMPERATURE ADJUSTMENT SCREEN - NTC2 ACTIVE-INSTALLATION SET 5-6 CONFIGURATION
(SEE SYSTEM CONFIGURATION IN THE USER MENU)
With the key, access the puer temperature adjustment.
The PUFFER screen with probe appears when the INSTALLATION SET 6
CONFIGURATION is active.
At the bottom of the screen the temperature SET appears, at the top the
withdrawal HIGH probe temperature (NTC2) and if you decide to also enable
NTC3 (READ-ONLY) the T.MED (average temperature or mid puer) indication
appears to include the stratication rating (NTC3 =T.MED).
On the other hand, if you select INSTALLATION SET 5 PUFFER CONFIGURATION
with thermostat, only ON/OFF will appear at the bottom.
ON appears in red. OFF appears in grey.
If NTC 2 is set in T.EXT you can nevertheless set NTC 3 in T.MED to activate
the reading of the puer’s average temperature (without the possibility of
adjustment), to include the stratication rating.
• The keys allow you to edit the temperature. By pressing the
keys, all of the words at the centre of the display disappear, leaving only the current
setting visible.
• The rst press only enters the edit mode and shows the screen
illustrated above; pressing the keys again will change the value.
Conrmation is automatic after a few seconds of inactivity.

17
16 - FANS
Technical Dept. - All rights reserved - Reproduction prohibited
FAN ADJUSTMENT (PRE-SET MODELS ONLY)
From the database, if the fan is active, the key is activated and it is possible to perform these adjustments
Press the key once
(tangential fan)
• Press once to go to the editing view.
• The keys are used to edit fan speed.
• The display lasts 3” and in case of no further inputs, it returns to the
image with the crown and previous operating mode.
PLEASE NOTE If the product does not feature a room fan, this key will
be disabled.
LOW AIR
LOW AIR fan adjustment
If the fan is set to zero (0), the fan icon turns to LOW AIR, the minimum
fan value allowed according to the powers.
LOW AIR will therefore be displayed.

18
17-START&STOP
START&STOP
The START&STOP function switches o the product when it reaches the required room temperature and if the set temperature hysteresis
is also respected.
By pressing the button the START&STOP function is started. The icon will appear for 3”, and then go back to the previous view, where
the house near the temperature turns into the icon, as a reminder that it is activated.
When the room temperature reaches the set temperature and all the other parameters are also
respected (see the next paragraph), the equipment switches o and the display indicates the room
temperature, the current time and the STANDBY indication to indicate the standby mode, which
allows the product to turn on again as soon as the temperature drops below the set threshold or if
the intended temperature in the room increases.
The key appears steady green once the panel is activated.
Deactivate by simply pressing the button again and the house icon returns to how it was previously.
START&STOP is recommended for well-insulated rooms where even with the stove at minimum power, the temperature
will rise.
On the other hand, it is not recommended where the product is forced to switch on and o frequently (for example after
at least 1 hour of operation) because in this way, besides premature wear of the glow plug, the product never manages to
reach full eciency and temperature, thereby causing greater accumulation of ash or even condensation.

19
17-START&STOP
Technical Dept. - All rights reserved - Reproduction prohibited
INTERVENTION DELAY (ADJUSTMENTS OF THE START&STOP TEMPERATURE HYSTERESIS)
When the room temperature is reached, there is a waiting time for intervention to prevent the equipment from suddenly turning on/o as
the room temperature drops/rises, for example, when a door or an external window is opened. This waiting time therefore allows you to
be sure that the room temperature has actually dropped for a certain time inside the room (for example 5 minutes).
There is also a temperature threshold beyond which the equipment reacts to in the event of switching on and o and this is called
hysteresis. The NEGATIVE hysteresis identies the temperature delta, outside of which the appliance must switch back on.
The POSITIVE hysteresis identies the temperature delta, outside of which the appliance must switch o.
The hysteresis are both included in the user menu.
Example1: With the product switched on, POSITIVE hysteresis is 2°C. The room temperature is 21°C and the set temperature is 22°C. The
product will remain on until the room temperature is exceeded by 2°C and therefore, when T>23.0°C
Example2:With the product o, NEGATIVE hysteresis is 2°C.The room temperature is 19°C and the set temperature is 20°C. The product will
remain o until the set temperature drops 2°C and therefore, whenT<18.0°C
Factory settings: POSITIVE HYSTERESIS = 0
NEGATIVE HYSTERESIS = 2°
FORCED RESTART FROM START&STOP WITH BUTTON OR TEMPERATURE
As previously mentioned, when a shutdown occurs via START&STOP, the display indicates the o condition with the icon, the key
remains green and the word STAND BY is displayed.
In this display condition, the product can be turned back on as follows:
1. Wait for the room temperature to drop below the intended temperature so that the
restart occurs via START&STOP
2. Deactivate the START&STOP with the relative
button and proceed with a new start-up.
3. Change the intended temperature by pressing the
keys.
In this case, the temperature modication screen
appears. The equipment will turn on when the
setting is higher than the room temperature + the
POSITIVE hysteresis.
On the other hand, it remains in STAND BY if the
setting is lower than the room temperature + POSITIVE hysteresis and it is not possible to
switch on the device, even with the text .
GREEN ICON

20
17-START&STOP
WATER TEMPERATURE SETTING
For hydro stoves, it is also possible to adjust the temperature of the water in the boiler/puer/storage for possibly re-starting the stove by
pressing the keys.
In some system congurations, restarting from stand by (which happens by editing the water temperature set) occurs when the
temperature - hysteresis conditions are no longer fullled (ΔT PUFFER=10°C; ΔT STORAGETANK =10°C).
Alternatively, for restarting, it is possible to raise the H2O Temp. SET. (Puer or storage tank) or adjust the external thermostat.
In STANDBY status, pressing the keys makes it possible to scroll through the various BOILER/PUFFER/STORAGE/ROOM
temperature adjustments with the key, to possibly edit the set point, also with the stove in STANDBY and possibly turn it back on.
With the ON/OFF key, the stove can be switched o completely also in STANDBY, it can only be turned back on by pressing ON/OFF again.
ACTIVATING START&STOP WITH THE EQUIPMENT OFF
If the equipment is OFF and the START&STOP needs to be activated, the following occurs when the key is pressed:
• The stove changes from OFF to STAND BY,
• the house icon becomes and the key turns green
• In any case, the product remains o, however:
o If the previously set temperature is already lower than the room temperature, the product remains o and the on/o
key turns steady green. The stove will eventually turn on again when the room temperature drops or by modifying the
temperature setting, as seen previously, with the keys.
Under no circumstances can the product be switched on again whenTSET<ROOM T.
o If the previously set temperature is already higher than the room temperature, the equipment remains o
but the green key will start to ash to alert the user that an additional input is required to allow the product
to switch on (on/o key pressed for 2’’).
EXTRA DISPLAY
In comparison to the standard where the icon turns green, there are representations where this icon disappears to leave space for
other settings such as AUX2 – AUX3 – AUX4.
In this case, the word AUX will turn green, highlighting the fact that START&STOP is active.
In congurations where START&STOP cannot be disabled (see 5 and 6), the key is not active.
