MED Associates RAZEL R99-E User manual

RAZEL R99-E SYRINGE PUMP
USER’S MANUAL
DOC-227
Rev. 1.5
Copyright © 2017
All Rights Reserved
Razel S ientifi Instruments
www.razels ientifi . om

RAZE L S CI E N T I FI C INST R UMENT S R99-E M AN U A L
- ii -
TABLE OF CONTENTS
Cha ter 1 .............................................................................................. 3
Pump Overview ..................................................................................................... 1
R99-E Options ................................................................................................... 1
User Interfa e ................................................................................................... 2
Automati Shut-Off Swit h .................................................................................. 4
Cha ter 2 .............................................................................................. 4
Loading a Syringe ................................................................................................. 5
Cha ter 3 .............................................................................................. 6
Spe ialty Syringes ................................................................................................. 7
Glass Syringes ................................................................................................... 7
Small Syringes ................................................................................................... 7
Cha ter 4 .............................................................................................. 7
R99-E Operating Instru tions ................................................................................. 8
Applying Power .................................................................................................. 8
Sele ting and Setting the Rate Using BD Multifit
TM
Syringes.................................... 9
Cha ter 5 .............................................................................................. 9
Option-Spe ifi Operating Instru tions .................................................................. 10
Option JM........................................................................................................ 10
Cha ter 6 ............................................................................................ 12
Using Other Syringe Brands and Sizes ................................................................... 12
Common Syringe Brands and Sizes .................................................................... 12
Other Syringe Brands and Sizes ......................................................................... 13
Cha ter 7 ............................................................................................ 15
Options B and F .................................................................................................. 15
Option B ......................................................................................................... 15
Option F .......................................................................................................... 15
A endix A .......................................................................................... 16
Te hni al Spe ifi ations ....................................................................................... 16
A ura y ......................................................................................................... 16
Pressure Limits ................................................................................................ 16
Ele tri al ......................................................................................................... 16

RAZE L S CI E N T I FI C INST R UMENT S R99-E M AN U A L
- iii -
Available Flow Rates......................................................................................... 16
Pump Motor ..................................................................................................... 17
A endix B .......................................................................................... 17
Maintenan e Instru tions ..................................................................................... 18
Care and Use ................................................................................................... 18
Cleaning .......................................................................................................... 18
Lubri ation ...................................................................................................... 18
Flow Rate Validation ......................................................................................... 19
A endix C .......................................................................................... 19
Troubleshooting .................................................................................................. 19
A endix D.......................................................................................... 20
Warranty Information .......................................................................................... 20
Limited Warranty ............................................................................................. 20
Limitations of Warranty .................................................................................... 20

RAZE L S CI E N T I FI C INST R UMENT S R99-E M AN U A L
- 1 - DOC-227 Rev. 1.5 Copyright 2017
Razel S ientifi In struments
Pum Overview
The Razel R99-E multiple speed syringe pump is ompatible with syringe sizes from 5 to 50
and in ludes a safety shut-off swit h that stops the pump when the end of the syringe is rea hed.
The R99-E has a movable flow rate hart that is used as a guide for determining the swit h
setting ne essary to a hieve the desired flow rate. The flow rates on the movable hart apply
only when using BD Multifit
TM
syringes; however other syringe brands may be used. The R99-E
flow rates range from 0.25 to 143 /hr and the flow rate an be hanged during an infusion.
R99-E O tions
The Razel R99-E syringe pump is available with several different options and an be equipped
with more than one option. The options in luded on ea h pump are indi ated in the model
number, whi h an be found on the serial number tag, as shown below.
Figure 1.1 - Serial Number Tag with Model Number
Figure 1.2 – R99-E Options
O tion Descri tion
B This option allows the pump to operate in reverse.
F This is the alarm option.
JM This option allows a range of flow rates from 0.025 to 430 /hr.
S This option adds remote operation (TTL, 28VDC, swit h losure).
Z This option indi ates the pump is equipped for 230VAC operation.
ES This option indi ates the pump is equipped with a grounding port.

RAZE L S CI E N T I FI C INST R UMENT S R99-E M AN U A L
- 2 - DOC-227 Rev. 1.5 Copyright 2017
Razel S ientifi In struments
User Interface
Figure 1.3 – R99-E Control Panel
Figure 1.4 - R99-F Ba k Panel (Alarm In luded on F Option Only)
Figure 1.5 – R99-EB Front Panel (Forward/Reverse Swit h In luded on B Option Only)
Figure 1.6 – R99-EXXX-ES Ba k Panel (Grounding Port In luded With ES Option Only)
Ground
Port

RAZE L S CI E N T I FI C INST R UMENT S R99-E M AN U A L
- 3 - DOC-227 Rev. 1.5 Copyright 2017
Razel S ientifi In struments

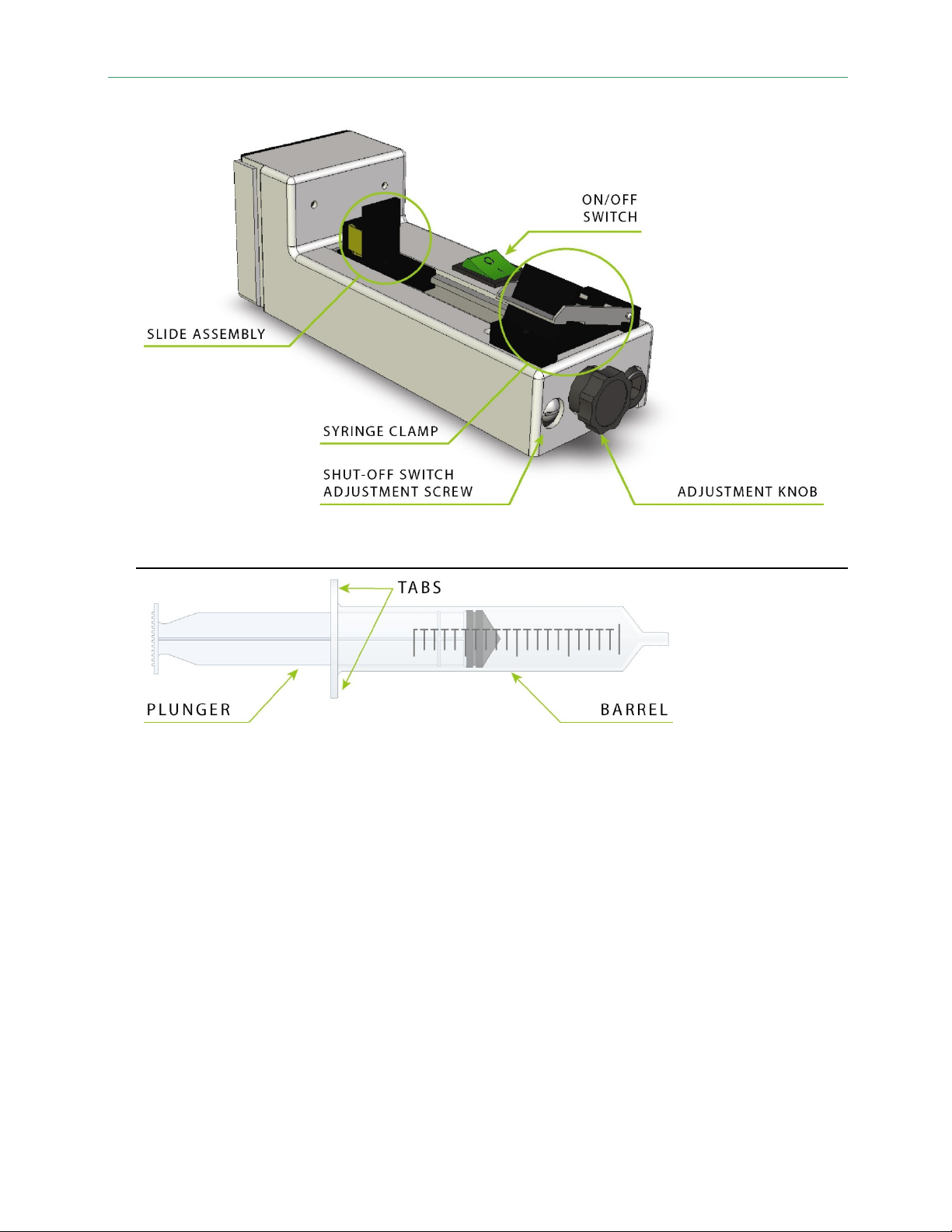

Figure 1.7 - Pump Me hanism Components
Figure 1.8 - Syringe Components Labeled

RAZE L S CI E N T I FI C INST R UMENT S R99-E M AN U A L
- 4 - DOC-227 Rev. 1.5 Copyright 2017
Razel S ientifi In struments
Automatic Shut-Off Switch
The automati shut-off swit h stops an infusion if the pump rea hes the end of the syringe. In
addition, the green ON/OFF swit h light will turn off and if the pump is equipped with Option F,
the audible alarm will sound.
The automati shut-off swit h uses an internal mi ro-swit h that dete ts when the slide assembly
rea hes a ertain point. This point is adjustable so that the pump an a ommodate various sizes
and brands of syringes.
To adjust the automati shut-off swit h, insert an empty syringe with the plunger at the desired
shut-off position. Move the slide assembly until it omes in onta t with the syringe plunger
(Figure 1.9A). When the pushbutton swit hes are all set to 0, and the pump is turned on, turn
the adjustment s rew (Figure 1.9B) until the green ON/OFF swit h light turns off. Ea h lo kwise
½ turn of the adjustment s rew will ause the swit h to a tivate .025 in hes later, and ea h
ounter lo kwise ½ turn of the adjustment s rew will ause the swit h to a tivate .025 in hes
sooner.
In order to reset the swit h and resume pump operation, squeeze the tabs on the slide assembly,
and move it ba k until the swit h is dea tivated.
Figure 1.9 - Automati Shut-Off Swit h Adjustment

RAZE L S CI E N T I FI C INST R UMENT S R99-E M AN U A L
- 5 - DOC-227 Rev. 1.5 Copyright 2017
Razel S ientifi In struments
Loading a Syringe
Care should be exer ised so that the syringe is positioned orre tly. A urate flow rates annot
be assured if the syringe is not properly loaded. It is important that the slide is making onta t
with the syringe plunger. Complete the following steps to properly load a syringe.
1. Move the slide to the rear (towards the motor) by squeezing the jaws and sliding it ba k, as
shown in Figure 2.1.
Figure 2.1 – Moving the Slide Assembly to the Rear of the Pump
2. Sele t a syringe and fill with the appropriate fluid.
3. Insert the syringe by lifting the lamp over and pla ing the syringe barrel into the lamp, as
shown in Figure 2.2.
Figure 2.2 - Open Syringe Clamp and Insert Syringe

RAZE L S CI E N T I FI C INST R UMENT S R99-E M AN U A L
- 6 - DOC-227 Rev. 1.5 Copyright 2017
Razel S ientifi In struments
4. B OPTION ONLY: Ensure that the syringe tabs are properly inserted between the syringe
lamp, and the retaining posts. Ensure that the syringe is loaded with the syringe tabs
positioned horizontally, so that they do not impede the travel of the slide assembly, as shown
in Figure 2.3.
Figure 2.3 - Syringe Properly Loaded in B Option Pump
5. Move the slide forward until it makes onta t with the syringe plunger.
6. B OPTION ONLY: Insert the plunger into the slide assembly lamp, as shown in Figure 2.4.
Figure 2.4 – Plunger Positioned in Slide Assembly Clamp on B Option Pump
7. Run the pump (in FORWARD mode for B Option) until the slide assembly makes onta t with
the plunger and fluid drips from the syringe.

RAZE L S CI E N T I FI C INST R UMENT S R99-E M AN U A L
- 7 - DOC-227 Rev. 1.5 Copyright 2017
Razel S ientifi In struments
S ecialty Syringes
Glass Syringes
Extra aution is needed when using glass syringes with a ground glass plunger. These syringes
exhibit almost no sliding fri tion, and thus an ause an un ontrolled infusion in the following
ways:
1. The weight of the plunger may be suffi ient to push the fluid out of the syringe if the syringe
is held with the plunger above the syringe.
2. The weight of the fluid in the tubing may be suffi ient to siphon the fluid out of the syringe if
the atheter infusion site is below the height of the syringe.
To test for these two onditions, it is re ommended that the syringe be onne ted to the tubing
and held verti ally at the height of the pump. If no motion o urs, the syringe an then be
pla ed in the pump.
The following may redu e the danger of an un ontrolled infusion:
1. Lower the relative height of the infusion pump in relation to the infusion site. With the pump
below the infusion site, the instrument will pump the fluid to the higher elevation.
2. Use a smaller bore atheter, whi h will redu e the weight of the fluid in the tubing and
in rease the fri tion on the flowing fluid.
3. Use a syringe with a rubber seal on the plunger, i.e. an o-ring sealed or plasti syringe.
Small Syringes
Syringes with a apa ity less than five milliliters an be held more se urely in the syringe lamp if
the R-ACC Mi ro Syringe Adapter is used. This adapter slides into the standard syringe lamp and
an hold one mi ro syringe.

RAZE L S CI E N T I FI C INST R UMENT S R99-E M AN U A L
- 8 - DOC-227 Rev. 1.5 Copyright 2017
Razel S ientifi In struments
R99-E O erating Instructions
This hapter in ludes operating instru tions that apply to all R99-E pumps, regardless of whi h
options are in luded. Refer to Cha ter 1, R99-E O tions for spe ifi instru tions for ea h
option.
A lying Power
Be sure the ON/OFF swit h is set to OFF, then use the in luded power adapter to onne t the
pump to the appropriate power sour e. If the pump has a grounding port (R99-E-ES and R99-
EJM-ES only), use the in luded grounding ord (PHM-156-EGC, green ord) to onne t the pump
to a grounded outlet. If using an extension ord or a power strip, ensure that the ord or strip is
apable of being grounded as well (has three prongs that onne ts to an outlet).
Figure 3.1 - Applying Power to the Pump
Figure 3.2 - Applying Ground to Pump (R99-E-ES and R99-EJM-ES only)

RAZE L S CI E N T I FI C INST R UMENT S R99-E M AN U A L
- 9 - DOC-227 Rev. 1.5 Copyright 2017
Razel S ientifi In struments
Sele ting and Setting the Rate Using BD Multifit
TM
Syringes
The movable hart on the R99-E ontains the flow rates in /hr that orrespond with five sizes of
BD Multifit
TM
syringes (5, 10, 20, 30 and 50 ). Other syringe brands may be used, however
some al ulations are required. Refer to Cha ter 6 of this manual for more detailed information
on using other syringe brands.
Figure 3.3 – R99-E Rate Sele tion Diagram
1. Using the thumbwheel , lo ate the desired flow rate on the movable hart that orresponds
to the syringe size being used (applying Adjustment Fa tor if ne essary, refer to Cha ter 6 of
this manual).
2. Read the two-digit number on the left of the dial .
3. Set the pushbutton swit hes to that number .

RAZE L S CI E N T I FI C INST R UMENT S R99-E M AN U A L
- 10 - DOC-227 Rev. 1.5 Copyright 2017
Razel S ientifi In struments
O tion-S ecific O erating Instructions
This hapter in ludes operating instru tions for R99-EJM pump equipped with the option for
extended flow rates (JM). Refer to Cha ter 1, R99-E O tions for information regarding
identifying pump options.
O tion JM
Option JM allows flow rates from 0.025 to 430 /hr. This allows the user to utilize the flow rates
available with the standard R99-E (0.25 to 143 /hr), while also making extended flow rates
available.
To utilize the standard moveable hart flow rates with the R99-EJM pump, follow the instru tions
in Cha ter 3 and set the flow rate using the two middle pushbuttons, as shown below in Figure
5.1. To utilize the extended JM flow rates, refer to Figure 5.2 and 5.3.
Figure 4.1 – R99-EJM Pushbutton Swit hes

RAZE L S CI E N T I FI C INST R UMENT S R99-E M AN U A L
- 11 - DOC-227 Rev. 1.5 Copyright 2017
Razel S ientifi In struments
Figure 4.2 – Using x10 Speeds
1. Assume the desired flow rate is 250 /hr using a 30 BD Multifit
TM
syringe.
2. Lo ate 1/10 the desired flow rate on the movable hart (applying Adjustment Fa tor if
ne essary, refer to Chapter 6 of this manual) .
3. Read the two-digit number on the left of the dial .
4. Set the two left-most pushbutton swit hes to that number .
Note: The last digit on the swit h an be used as a fine adjustment
Figure 4.3 – Using 1/10 Speeds
1. Assume the desired flow rate is 2.5 /hr using a 30 BD Multifit
TM
syringe.
2. Lo ate 10 times the desired flow rate on the movable hart (applying Adjustment Fa tor if
ne essary, refer to Chapter 6 of this manual) .
3. Read the two-digit number on the left of the dial .
4. Set the two right-most pushbutton swit hes to that number .

RAZE L S CI E N T I FI C INST R UMENT S R99-E M AN U A L
- 12 - DOC-227 Rev. 1.5 Copyright 2017
Razel S ientifi In struments
CHAPTER 6
Using Other Syringe Brands and Sizes
Common Syringe Brands and Sizes
When using the R99-E with a syringe that is not a BD Multifit
TM
, or is a size that is not in luded
on the movable s ale, an adjustment fa tor must be used to determine the swit h setting
ne essary to attain the desired flow rate. These adjustment fa tors are shown in the table below.
Figure 0.1 – Syringe Brand Adjustment Fa tors
SIZE
( )
BRAND
BD MULTIFIT
TM
GLASS
HAMILTON
TM
GLASS
KENDALL
MONOJECT
TM
PLASTIC
BD
PLASTIPAK
TM
PLASTIC
TERUMO
®
PLASTIC
5 - 6
1.00 0.77 1.16 1.04 1.22
10 - 12
1.00 0.99 1.17 0.97 1.16
20
1.00 1.10 0.95 1.06
30 – 35
1.00 1.11 0.91 1.04
50 – 60
1.00 0.90 0.90 1.08
To find the appropriate swit h setting, divide the desired flow rate ( /hr) by the adjustment
fa tor from Figure 0.1 that orresponds to the syringe being used. Lo ate the adjusted rate on
the movable hart and set the swit hes a ordingly.
For example, to find the swit h setting ne essary for a flow rate of 25 /hr using a 30 BD
Plastipak syringe:
25 / 0.91 = 27.47 /hr
Lo ate the rate losest to 27.47 /hr on the movable hart, as shown in Figure 0.2. Set the
swit hes to 29 to a hieve a flow rate of 25 /hr using the 30 BD Plastipak syringe.
Figure 0.2 – Lo ating the Adjusted Flow Rate on the Movable Chart

RAZE L S CI E N T I FI C INST R UMENT S R99-E M AN U A L
- 13 - DOC-227 Rev. 1.5 Copyright 2017
Razel S ientifi In struments
Other Syringe Brands and Sizes
Syringe brands and sizes not in luded in Figure 0.1 may also be used with the R99-E. The ross-
se tional area of the syringe must be used to al ulate the appropriate swit h setting. The
equation for al ulating the swit h setting is as follows:
For example, if a flow rate of 50 /hr is desired using a 20 Monoje t plasti syringe, the
al ulation is as follows:
Figure 0.3 and Figure 0.4 are lists of ross-se tional areas of various syringes from different
manufa turers. These sizes have some importan e when using a syringe type pump, be ause
of the a ura y of the flow rate is determined by the ubi entimeters of fluid per unit length
of syringe.
Figure 0.3 – Syringe Cross-Se tional Areas
B D M U L T I F I T
T M
g l a s s
syringe size ( ) ross-se tion ( m
2
)
1 0.176
2 0.626
M O N O J E C T
T M
l a s t i c
syringe size ( ) ross-se tion ( m
2
)
1 0.173
3 0.622
6 1.263
12 1.977
20 3.308
35 4.474
60 5.545
B D P L A S T I P A K
T M
l a s t i c
syringe size ( ) ross-se tion ( m
2
)
1 0.173
2.5 0.578
H A M I L T O N
T M
g l a s s
syringe size ( ) ross-se tion ( m
2
)
.05 0.008
.10 0.017
.25 0.042
.50 0.083
1 0.167
2.5 0.417
U N I M E T R I C S
T M
g l a s s
syringe size ( ) ross-se tion ( m
2
)
.05 0.008
.10 0.017
.25 0.042
.50 0.083
1 0.167
T E R U M O
T M
l a s t i c
syringe size ( ) ross-se tion ( m
2
)
3 0.629

RAZE L S CI E N T I FI C INST R UMENT S R99-E M AN U A L
- 14 - DOC-227 Rev. 1.5 Copyright 2017
Razel S ientifi In struments
Figure 0.4 – Syringe Cross-Se tional Areas
MULTIFIT
T M
, glass HAMILTON
T M
, glass UNIMETRICS
T M
, glass
Sy
r
i
n
g
e
s
i
ze
C
r
o
s
s
-
s
e
t
i
o
n
Sy
r
i
n
g
e
s
i
ze
C
r
o
s
s
-
s
e
t
i
o
n
Sy
r
i
n
g
e
s
i
ze
C
r
o
s
s
-
s
e
t
i
o
n
1
m
l
0
.
176
s
q
m
.
05
m
l
0
.
008
s
q
m
.
05
m
l
0
.
008
s
q
m
2ml 0.626 sq m .10ml 0.017 sq m .10ml 0.017 sq m
5
m
l
1
.
084
s
q
m
.
25
m
l
0
.
042
s
q
m
.
25
m
l
0
.
042
s
q
m
10
m
l
1
.
692
s
q
m
.
50
m
l
0
.
083
s
q
m
.
50
m
l
0
.
083
s
q
m
20ml 3.017 sq m 1ml 0.167 sq m 1ml 0.167 sq m
30
m
l
4
.
0
47
s
q
m
2
.
5
m
l
0
.
417
s
q
m
50
m
l
6
.
173
s
q
m
5
m
l
0
.
833
s
q
m
10
m
l
1
.
667
s
q
m
MONOJECT
T M
, lastic B-D PLASTIPAK
T M
, lastic TERUMO
T M
, lastic
Sy
r
i
n
g
e
s
i
ze
C
r
o
s
s
-
s
e
t
i
o
n
Sy
r
i
n
g
e
s
i
ze
C
r
o
s
s
-
s
e
t
i
o
n
Sy
r
i
n
g
e
s
i
ze
C
r
o
s
s
-
s
e
t
i
o
n
1ml 0.173 sq m 1ml 0.173 sq m 3ml 0.629 sq m
3
m
l
0
.
622
s
q
m
2
.
5
m
l
0
.
578
s
q
m
5
m
l
1
.
327
s
q
m
6
m
l
1
.
263
s
q
m
5
m
l
1
.
129
s
q
m
10
m
l
1
.
961
s
q
m
12
m
l
1
.
977
s
q
m
10
m
l
1
.
635
s
q
m
20
m
l
3
.
189
s
q
m
20
m
l
3
.
308
s
q
m
20
m
l
2
.
850
s
q
m
30
m
l
4
.
191
s
q
m
35ml 4.474 sq m 30ml 3.662 sq m 60ml 6.651 sq m
60
m
l
5
.
545
s
q
m
60
m
l
5
.
556
s
q
m
MULTIFIT is the trademark of Be ton, Di kinson & Co., Rutherford, NJ.
HAMILTON is the trademark of Hamilton Company, Reno, NV.
UNIMETRICS is the trademark of Unimetri s Corp., A naheim, CA.
MONOJECT is the trademark of Sherwood Medi al Industries, St. Louis, MO.
PLASTIPAK is the trademark of Be ton, Di kinson & Co., Rutherford, NJ.
TERUMO is the trademark of Terumo Corporation, Pis ataway, NJ.

RAZE L S CI E N T I FI C INST R UMENT S R99-E M AN U A L
- 15 - DOC-227 Rev. 1.5 Copyright 2017
Razel S ientifi In struments
CHAPTER 7
O tions B and F
O tion B
Option B allows the pump to operate in reverse. The FORWARD/REVERSE swit h lo ated on the
side panel determines the dire tion that the pump will operate in. It is important to verify the
position of this swit h prior to running the pump. The infusion dire tion (forward or reverse) an
be hanged during an infusion.
Figure 0.1 - Option B Forward / Reverse Swit h
O tion F
Option F is an audible alarm that sounds when the Automati Shut-Off Swit h is a tivated (refer
to Cha ter 1, Automatic Shut-Off Switch). The speaker and ontrol swit hes are lo ated on
the ba k panel of the pump. The left swit h ontrols the volume of the alarm (LOUD is
approximately 70 dB at 8” and SOFT is approximately 40 dB at 8”). The right swit h ontrols the
frequen y of the alarm (FAST is two beeps per se ond and SLOW is one beep per seven se onds).
The swit hes an be adjusted to satisfy the individual requirements of ea h appli ation.
Figure 0.2 – Option F Speaker and Control Swit hes

RAZE L S CI E N T I FI C INST R UMENT S R99-E M AN U A L
- 16 - DOC-227 Rev. 1.5 Copyright 2017
Razel S ientifi In struments
APPENDIX A
Technical S ecifications
Accuracy
The R99-E Syringe Pump is a urate within 2% and is alibrated at 115 volts A.C.
Pressure Limits
Flow rates may be ome ina urate if the pressure ex eeds the values shown in Figure A.1.
Figure A.1 – R99-E Pressure Limits
Syringe Size (cc) Maximum Pressure
si mmHg
10 20 1000
20 10 500
30 - 35 7 400
50 – 60 5 270
Electrical
The R99-E pump is equipped with a 12V table top power supply.
Input voltage: 100-240VAC (50/60Hz); Maximum Current: 0.5A.
Output voltage: 12VDC; Maximum Current: 1.50A; 18-Watt.
Available Flow Rates
The flow rate of the R99-E depends on the size of the syringe being used. The table below
indi ates the flow rate range for ea h syringe size. If t he syringe being used is not a BD
Multifit
TM
, be sure that the Adjustment Fa tor is used when sele ting the swit h setting (refer to
Chapter 6).
Table A.1 – R99-E Flow Rates
Flow Rate Range (cc/hr)
Model
5 cc Syringe 10 cc Syringe 20 cc Syringe 30 cc Syringe 50 cc Syringe
R99-E 0.25 – 25 0.40 – 39 0.71 – 70 0.95 – 94 1.45 - 143
R99-EJM 0.025 – 75 0.040 – 117 0.071 – 210 0.095 – 282 0.145 - 430

RAZE L S CI E N T I FI C INST R UMENT S R99-E M AN U A L
- 17 - DOC-227 Rev. 1.5 Copyright 2017
Razel S ientifi In struments
Pum Motor
The R99-E pushes a syringe by imparting linear motion through the rotation of a stainless steel
lead s rew. The relationship between rotary speed and linear travel is:
1 revolution = .07692 in hes = .19538 m
The motor is a stepper type and ea h step is .09375°, whi h is equivalent to 3840 steps per
revolution. Thus ea h step is equivalent to .00002003 in hes or .00005088 entimeters of linear
motion.
When the pushbutton swit hes are at the following settings, the orresponding motor speeds and
number of pulses per se ond are:
Figure A.2 – R99-E Motor Speeds and Pulse Rates
SWITCHES MOTOR SPEED
(RPM)
PULSE RATE
(PPS)
01 .020 1.28
10 .200 12.80
20 .400 25.60
50 1.000 64.00
90 1.800 115.20
99 1.980 126.72
With the JM option, the orresponding numbers are:
Figure A.3 – R99-EJM Option Motor Speeds and Pulse Rates
SWITCHES MOTOR SPEED
(RPM)
PULSE RATE
(PPS)
00.1 .005 .128
00.5 .010 .640
200 4.00 256.0
299 5.98 382.72
