MedeaWiz DV-6664 User manual

For Powerful Digital Marketing and Total Multimedia Solution
DV-6664& DV-6664T
User’s Guide version 1.0

Acknowledgements
The MedeaWiz logo and DV-6664 are trademarks of MedeaWiz Corporation. All
other trademarks or registered trademarks are acknowledged as the exclusive
property of their respective owners.
Notice
The information contained in this document is subject to change without notice.
MedeaWiz Corporation makes no warranty of any kind with regard to this material,
including, but not limited to, the implied warranty of merchantability and fitness for a
particular purpose.
MedeaWiz shall not be liable for any errors or for incidental or consequential damages
in connection with the furnishing, performance, or use of this material.
All rights reserved. Reproduction, adaptation, or translation of this manual is
prohibited without prior written permission of MedeaWiz Corporation, except as
allowed under copyright laws.
No part of this document may be photocopied, reproduced, or translated to another
language without the prior written consent of MedeaWiz Corporation.
MedeaWiz Corporation 2004
Distributed and supported in Europe by
Imagine Graphics Ltd., 14 Alban Park, Hatfield Road, St. Albans, AL4 0JJ, UK.
Tel: [phone], Fax: [phone]
email: [email protected] web: www.imaginegraphics.co.uk

Table of Contents
1. INTRODUCTION ...............................................................................................................................................1
1.1 Package Contents......................................................................................................................... 1
1.2 Features ........................................................................................................................................ 1
2. SETTING UP YOUR DV-6664..........................................................................................................................2
Step 1. How to program the contents to your CompactFlash® card ................................................. 2
Step 2. Insert Hi-Speed CompactFlash® Card into DV-6664............................................................ 3
Step 3. Connect your DV-6664 to other display device (optional)..................................................... 3
Step 4. Turn on the display device (optional) .................................................................................... 4
Step 5. Plug in the power ................................................................................................................... 4
3. USING YOUR DV-6664 ....................................................................................................................................5
3.1 Control panel outlook .................................................................................................................... 5
Button Switches .............................................................................................................................. 5
DIP Switches................................................................................................................................... 6
Control Swtiches ............................................................................................................................. 6
3.2 Using the controls ......................................................................................................................... 7
3.3 Mounting mechanism .................................................................................................................... 8
4. INTRODUCING DV-6664 ACCESSORIES (OPTIONAL)..............................................................................9
4.1 DV-66K, Keypad Controller........................................................................................................... 9
4.2 DV-66U, Universal Controller........................................................................................................ 9
4.3 DV-66F, Function Selector............................................................................................................ 9
5. TOUCH SCREEN SPECIFICATIONS ...........................................................................................................10
6. DV-6664 SPECIFICATIONS...........................................................................................................................11

1
1. INTRODUCTION
1. INTRODUCTION1. INTRODUCTION
1. INTRODUCTION
DV-6664 is a compact and rugged solution that features our reliable DV-66 MPEG-2 Player linked to a
crisp 6.4" TFT-LCD. It can be programmed up to 14 minutes of video (with 512MB CF card), and up
to 99 tracks. It is small and light enough to be wall mounted or integrated into a full size kiosk.
DV-6664 provides high quality hardware solution at an affordable price. The unit is available with or
without touch panel.
DV-6664 - w/out touch screen feature
DV-6664T - with touch screen, see page 10 for touch screen specification.
1.1 Package
Contents
• DV-6664 MPEG-2 Digital Player
• AC adapter
• Video/Audio cable
• Four mounting plates
1.2 Features
• 6.4" TFT LCD display
• Touch screen option
• Supports multiple format support: MPEG-2, MPEG-1, MP3, and JPEG
• Repeat or Menu modes available
• Multiple track selection, up to 99 tracks
• Instant track response
• Stereo audio output
• Auto-start on power on

2
2. SETTING UP YOUR D
2. SETTING UP YOUR D2. SETTING UP YOUR D
2. SETTING UP YOUR DV
VV
V-
--
-6664
66646664
6664
Step 1. How to program the contents to your
CompactFlash® card
In order to setup your content to work with the DV-6664 you must have a high speed
CompactFlash® card. To integrate your media content (MPEG-1, MPEG-2, MP3, or JPEGs) you will
need to use a CompactFlash® reader with your computer to load the appropriate files and setup; see
programming below for more details.
Connect your card reader to your PC (note: be sure that the card
reader driver is installed) and insert the CompactFlash® card (we
recommend 128 MB minimum) into the reader. To program your
multimedia content on to the media card, open the file manager and
copy the files to the card reader drive.
The DV-66 utilizes a three-digit numeric ID system for
programming your content tracks, so you will need to number your
tracks using this system. Please note that you can keep your track
descriptions as well. There are two types of play modes, MENU
and REPEAT, which determine what number is the first track.
For instance, in the MENU mode the first track is 000, which is the looping track. For the REPEAT
mode the first track is 001.
Menu mode: This is the factory default mode. Track 000 is the looping track for your menu file and it
will continue to play until another track is selected from a push button or touch screen input device.
To switch from Repeat mode back to Menu mode, please depress & hold switch button #1, then plug
in the power until the unit start initialing, then the unit will be setup to play files as “menu mode”.
Switch button #1 can be located either on the touch screen (if used) or on the DV-66K (keypad
controller, sold separately).
Repeat mode: To change to repeat mode, please depress & hold switch button #2 then plug in the
power until the unit start initialing. Repeat mode will play in sequence, one track at a time in numeric
order, and after the last track it will start with track 001 again.
Note:
Setup changes will be saved on the flash memory, so the selection made will not change when the power is off.

3
Step 2. Insert Hi-Speed CompactFlash® Card
into DV-6664
Caution: DO NOT plug in the power before the CompactFlash® Card is inserted into DV-6664 card slot.
MedeaWiz recommends that the CompactFlash® Card to be inserted into the slot first, and then the power can be
applied to the unit as described later.
Step 3. Connect your DV-6664 to other display
device (optional)
Simply connect DV-6664 to any video display such as a PC monitor or TV with A/V inputs, and you
can start watching the video clips stored on your CompactFlash® Card. You can control the track
selection with the optional DV-66K Keypad Controller, and it gives you the ability to control up to 99
tracks on the DV-66 player.
A
V out
A
U DIO
IN
L
R
VIDEO
IN
Audio/video cable
(included)
red white yellow
Television
DV-66104
Keypad A/V out DV IN 12V/2A CompactFlash® card
your Hi-speed CompactFlash® card

4
Note: Normally the A/V inputs are located in the back of a TV or VCR. For more instructions on how to use A/V
input on your displaying device, consult the manual for the device.
Step 4. Turn on the display device (optional)
Turn on the display device and change the channel to the corresponding A/V input channel if
necessary. Please see the manual of your display device for further instruction.
Step 5. Plug in the power
You are one step away from playing your media files on DV-6664! Just plug in the included power
adapter and the DV-6664 will automatically start playing the first video clip on the CompactFlash®
Card!
Note: Make sure that you have inserted the CompactFlash® Card correctly, and its content meets DV-66’s
specifications.
AC adapter (included)
DV in 12V/2A

5
3. USING YOUR DV
3. USING YOUR DV3. USING YOUR DV
3. USING YOUR DV-
--
-666
666666
6664
44
4
3.1 Control panel outlook
BUTTON SWITCHES
With the button switches, you can have an external set of buttons or control pad.
Note: only 8 tracks are supported in the mode.

6
DOWN RIGHT
UP
FUNCTION_
SETTING
DIPSW 1 2 3 4
ON
OFF
Dip SW 1: Auto-Mute On/Off
Dip SW 2: Not available
Dip SW3: On On Off Off
Dip SW4: On Off Off Off
C0 + S1 = SW 1
C0 + S2 = SW 2
C0 + S3 = SW 3
C0 + S4 = SW 4
C1 + S1 = SW 5
C1 + S2 = SW 6
C1 + S3 = SW 7
C1 + S4 = SW 8
C0 S1 S2 S3 S4 C1
BUTTONSW1-SW8WIRING C0 S1 S2 S3 S4C1
Wires are fed through the holes located on top
of the metal housing.
Fixing the wires by fasten the screws on the wiring socket.

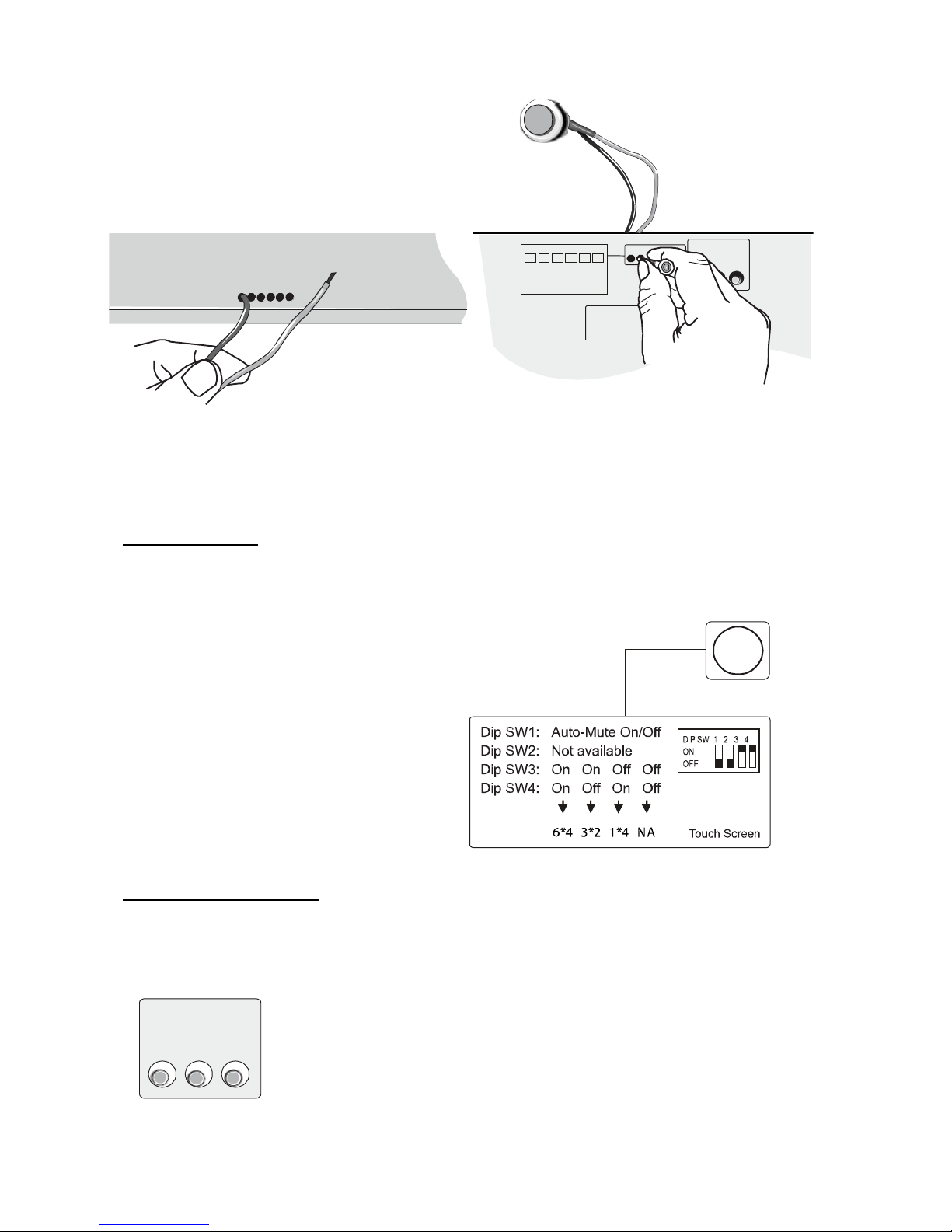

DIP SWITCHES
With the DIP switches, you can control “Auto-mute On/Off,” and configure the touch screen to have 4,
6, or 24 tracks.
Note: The default setting is SW1 & SW2 off; SW3 & SW4 On.
Note: Auto-mute will disable sound after 5 minutes of inactivity.
CONTROL SWTICHES
The control buttons control volume, brightness, contrast,color, tint, misc (speaker on/off, revolve
direction and reset picture).
RIGHT – Press once to see the available setting options then
keep on press for item selection.
UP & DOWN – Press to increase or decrease the property
parameter or go to the desire setting options.
DOWN RIGHT
UP
FUNCTION
SETTING

7
3.2 Using the controls
After turn on DV-6664, you can start controlling its various options by following the steps below.
Step 1.
You will need a small screwdriver or any similar type of tool to
reach the controls of DV-6664.
Note: A tool is not included in the DV-6664 package. A small
screwdriver like the one shown in the picture will do.
Step 2.
Determine which control you like to configure, see Control
Switches in page 6.
CAUTION: The button only requires a light touch. Do not press too
hard on the button. MedeaWiz is not responsible for any damages
caused by the abuse.
Step 3.
After pressing the “RIGHT” button, a menu will appear on the
LCD display against whatever video image is playing at the
time.
Go to the option that you would like to change by pressing
the “RIGHT” button again and cycle through the options.
Note: If you would like to go to the “MISC” menu, press the
“RIGHT” button until “MISC” is selected on the screen, and press
either “UP” or “DOWN” button to enter the “MISC” menu. The
“MISC” menu will have the options as shown below.
Step 4.
When an option is selected, use the “UP” and “DOWN” buttons to change the properties of each
option.
DOWN RIGHT
UP
FUNCTION
SETTING

8
Step 5.
When the changes are completed, press the “RIGHT” button and cycle to “EXIT” on screen, then
press either “UP” or “DOWN” to exit the menu. Or you can press the “EXIT” button to exit the menu.
Note: The menu will also automatically exit after 5 seconds of inactivity.
CAUTION: Any changes will not be saved if power is turned off before the menu is properly exited.
CAUTION: Use carefully when making any setting changes, MedeaWiz is not responsible for any damages that
you made during the operations described in this chapter.

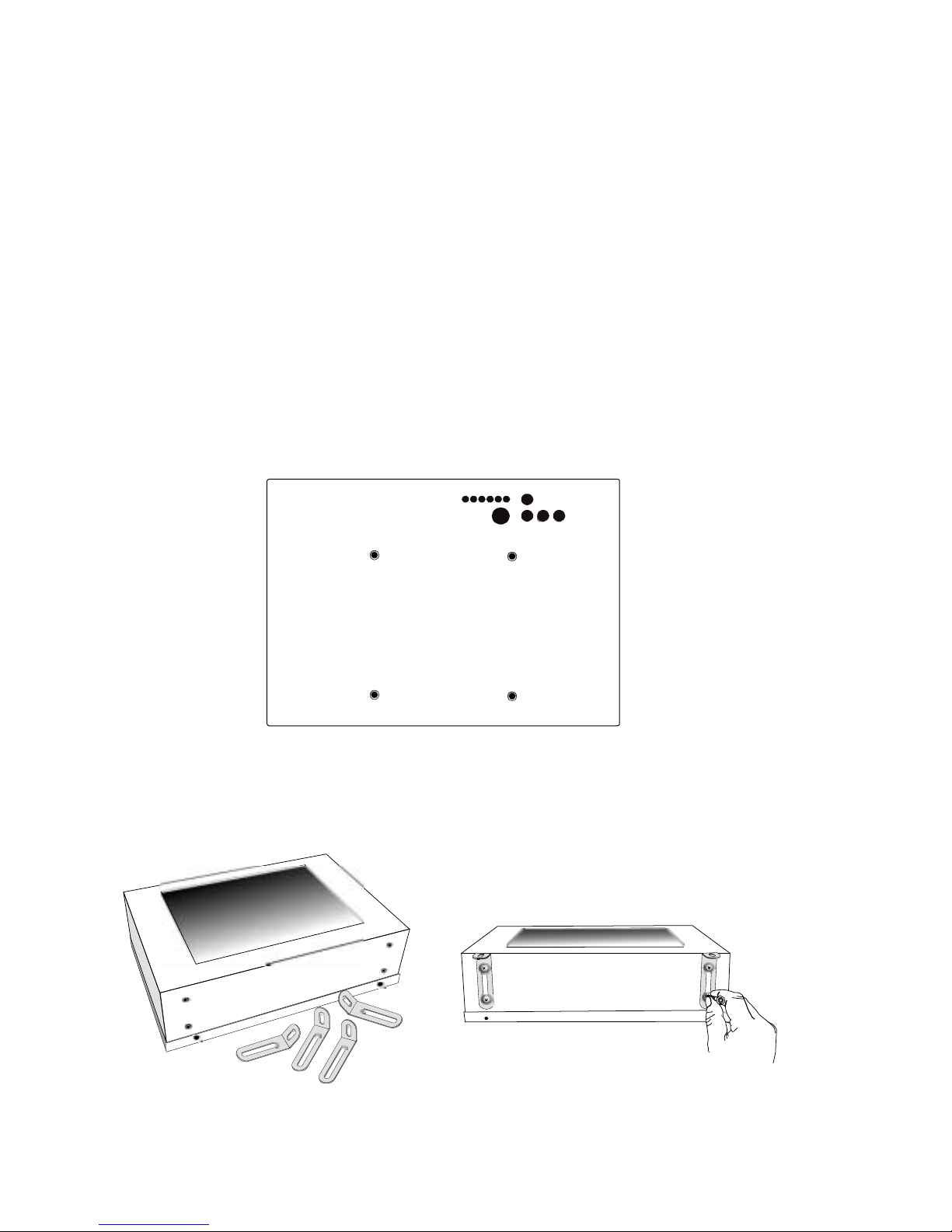

3.3 Mounting mechanism
Mechanism 1.
Four M4 nuts (pitch 75x75mm) mounted can be found on the back of DV-6664 housing to fit standard
LCD mounting bracket for rear mounting.
Mechanism 2.
Four mounting plates (included) allow front mounting to fit all kiosk cases.

9
4. INTRODUCING DV
4. INTRODUCING DV4. INTRODUCING DV
4. INTRODUCING DV-
--
-66
6666
6664
6464
64
ACCESSORIES (OPTIONA
ACCESSORIES (OPTIONAACCESSORIES (OPTIONA
ACCESSORIES (OPTIONAL)
L)L)
L)
4.1 DV-66K, Keypad Controller
The required interface for connecting and controlling the DV-6664
player with an external input device, such as push buttons. There
are eight buttons per controller. 4800 baud rate.
4.2 DV-66U, Universal Controller
The required interface for connecting the DV-6664 player with
an analog touch screen. There are eight switch buttons
per controller. 4800 baud rate.
CAUTION: Analog touch screen used with DV-66U is subject to any
dimension of the standard 4-wire resistive type touch screen; it is different
with the matrix type touch screen built in the DV-66104 unit
4.3 DV-66F, Function Selector
The function selector provides the custom options available on the
DV-66 (4800 baud rate), which include:
• OSD - on or off
• Repeat or Menu mode
• VGA or Composite video output
• Volume - up and down

10

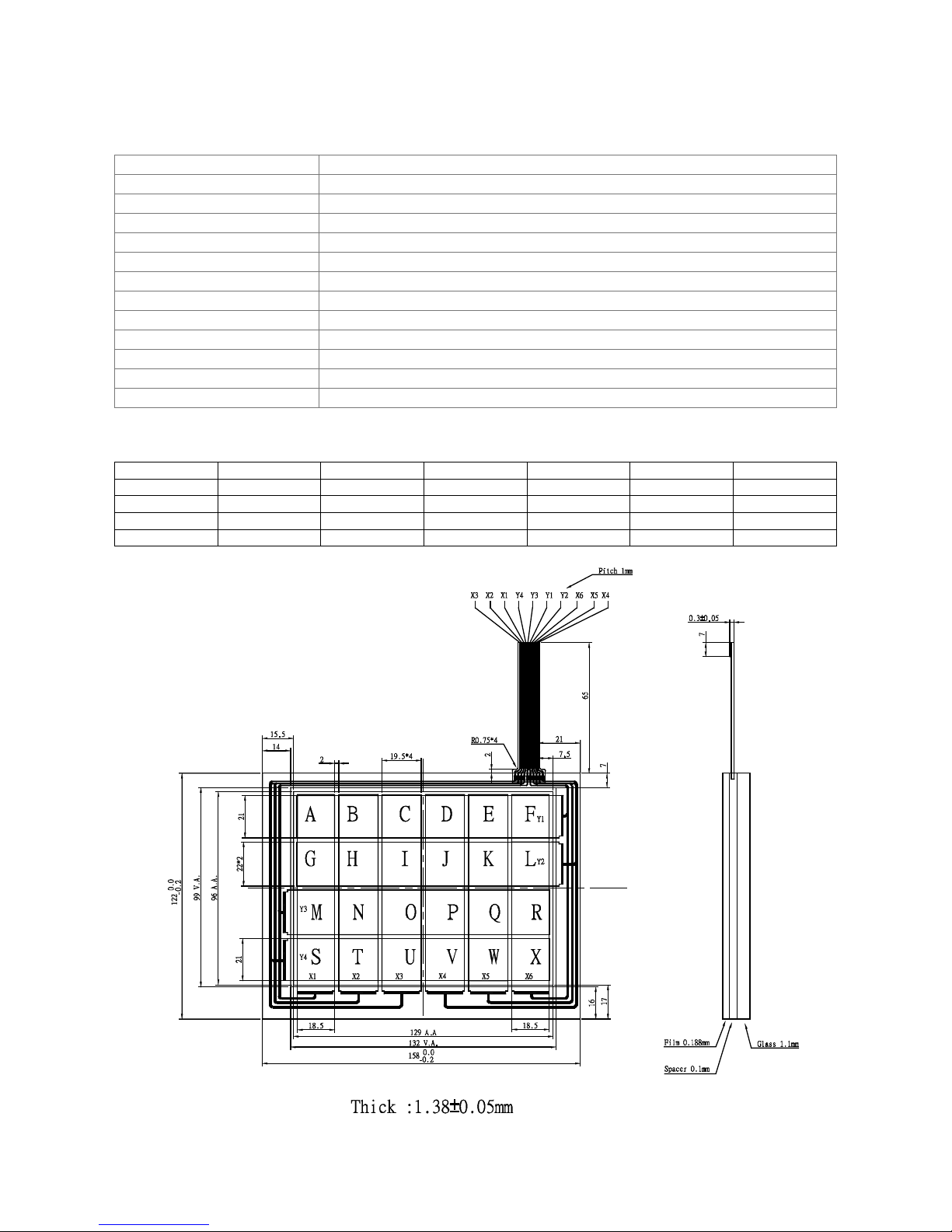

5. TOUCH SCREEN
5. TOUCH SCREEN5. TOUCH SCREEN
5. TOUCH SCREEN S
SS
SPECIFICATIONS
PECIFICATIONSPECIFICATIONS
PECIFICATIONS
For DV-6664T (DV-6664 unit with built-in touchscreen)
ITO Film 280Ω/SQ, Anti-Glare, 0.188mm thickness
ITO Glass 110Ω/SQ, 1.1mm thickness
Tail FPC, ITO Glass
Operating Resistance ≤3.5k ohm
Insulating Resistance ≥20M ohm
Transparency > 70%
Hardness ≤3H, ITO film
Voltage DC 0 ~ 5 V, 30mA
FPC Peeling Strength ≤700 gram
Actuation Force > 100 gram
Life ≥1000000 times
Operating Temperature 14°F ~ 140°F, 50±30R. H
Storage Temperature -4°F ~ 158°F, 50±30R. H
Pin Assignment
Pin X1 X2 X3 X4 X5 X6
Y1 A B C D E F
Y2 G H I J K L
Y3 M N O P Q R
Y4 S T U V W X

11
6. DV
6. DV6. DV
6. DV-
--
-6664 SPECIFICA
6664 SPECIFICA6664 SPECIFICA
6664 SPECIFICATIONS
TIONSTIONS
TIONS
System Type Digital Audio/Video playback
Format MPEG-1 (VCD), MPEG-2(DVD), JPEG, MP3
Dimension W/housing: 6.25"(L) x 4.25"(W) x 1.25"(H) ; board level: 6" x 4"
Power Consumption 13.5 Watts
Power Supply Universal Switching Power Supply Input AC 100/240V, Output DC 12V/2A
Operating Current 1.125Amps @ 12V
Operating Voltage 12 VDC
Video Output NTSC/PAL
Audio Output Stereo (line level)
Storage Format High Speed CompactFlash® Card (min. 40x or up)
1 x Data transfer rate means 150 KB per second
Storage Capacity 128MB up to 1GB CompactFlash®
Est. Max. Playback
256M CF is at least 7.5 minutes.
512M CF is at least 15 minutes.
1GB CF is at least 30 minutes
The information in this document is subject to change without notice.
For more information about DV-6664 or its optional accessories,
please visit our website at http://www.medeawiz.com/
Or e-mail us at [e-mail]
Copyright©2004 MedeaWiz Corporation. All rights reserved.
18688 San Jose Ave., Industry, CA 91748 (USA)
Tel: [phone] • Fax: [phone]
www.medeawiz.com
Distributed and supported in Europe by
Imagine Graphics Ltd., 14 Alban Park, Hatfield Road, St. Albans, AL4 0JJ, UK.
Tel: [phone], Fax: [phone]
email: [email protected] web: www.imaginegraphics.co.uk
