Medeli DD522 User manual

0
5
25
75
95
100
AW_DD522_manual_G04_140310
2014󾾠󾾠3󾾠󾾠12󾾠󾾠 13:11:56

2
INFORMATION FOR YOUR SAFETY!
THE FCC REGULATION WARNING (for USA)
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician
for help.
Unauthorized changes or modification to this system can
void the user's authority to operate this equipment.
CAUTION
The normal function of the product may be disturbed by
Strong Electro Magnetic Interference. If so, simply reset
the product to resume normal operation by following the
owner's manual. In case the function could not resume,
please use the product in other location.
PRECAUTIONS
PLEASE READ CAREFULLY BEFORE PROCEEDING
Please keep this manual in a safe place for future reference.
Power Supply
Please connect the designated AC adaptor to an AC outlet
of the correct voltage.
Do not connect it to an AC outlet of voltage other than that
for which your instrument is intended.
Unplug the AC power adaptor when not using the
instrument, or during electrical storms.
Connections
Before connecting the instrument to other devices, turn off
the power to all units. This will help prevent malfunction and
/ or damage to other devices.
Location
Do not expose the instrument to the following conditions to
avoid deformation, discoloration, or more serious damage:
Direct sunlight
Extreme temperature or humidity
Excessive dusty or dirty location
Strong vibrations or shocks
Close to magnetic fields
Interference with other electrical devices
Radios and televisions placed nearby may experience
reception interference. Operate this unit at a suitable
distance from radios and televisions.
Cleaning
Clean only with a soft, dry cloth.
Do not use paint thinners, solvents, cleaning fluids, or
chemical-impregnated wiping cloths.
Handling
Do not apply excessive force to the switches or controls.
Do not let paper, metallic, or other objects into the
instrument. If this happens, remove the electric plug from
the outlet. Then have the instrument inspected by qualified
service personnel.
Disconnect all cables before moving the instrument.
0
5
25
75
95
100
AW_DD522_manual_G04_140310
2014󾾠󾾠3󾾠󾾠12󾾠󾾠 13:11:57

3
Contents
Appendix
Drum Kit List 24
Drum Voice List.........................................................25
Song List...................................................................28
GM Drum Voice List..................................................29
......................................
MIDI Implementation Chart.......................................32
..............................................................
GM Backing Instrument List 31
Main Features 4
Panel & Display Description
Front Panel..................................................................5
Side Panel (Connecting).............................................6
LCD Display................................................................7
Setup
Connecting Pads and Pedals......................................8
Getting Ready to Play
Setting up the Power Supply.......................................9
Turning the Power On/Off...........................................9
.............................9
Quick Play
Drum Kits and Voices................................................10
Playing the Pads.......................................................11
Metronome................................................................12
Select a Preset Drum Kit and Create a User Drum
Kit
About the Preset and User Drum Kit.........................13
Edit the Drum Kit Parameters...................................13
Edit the Voice Parameters........................................13

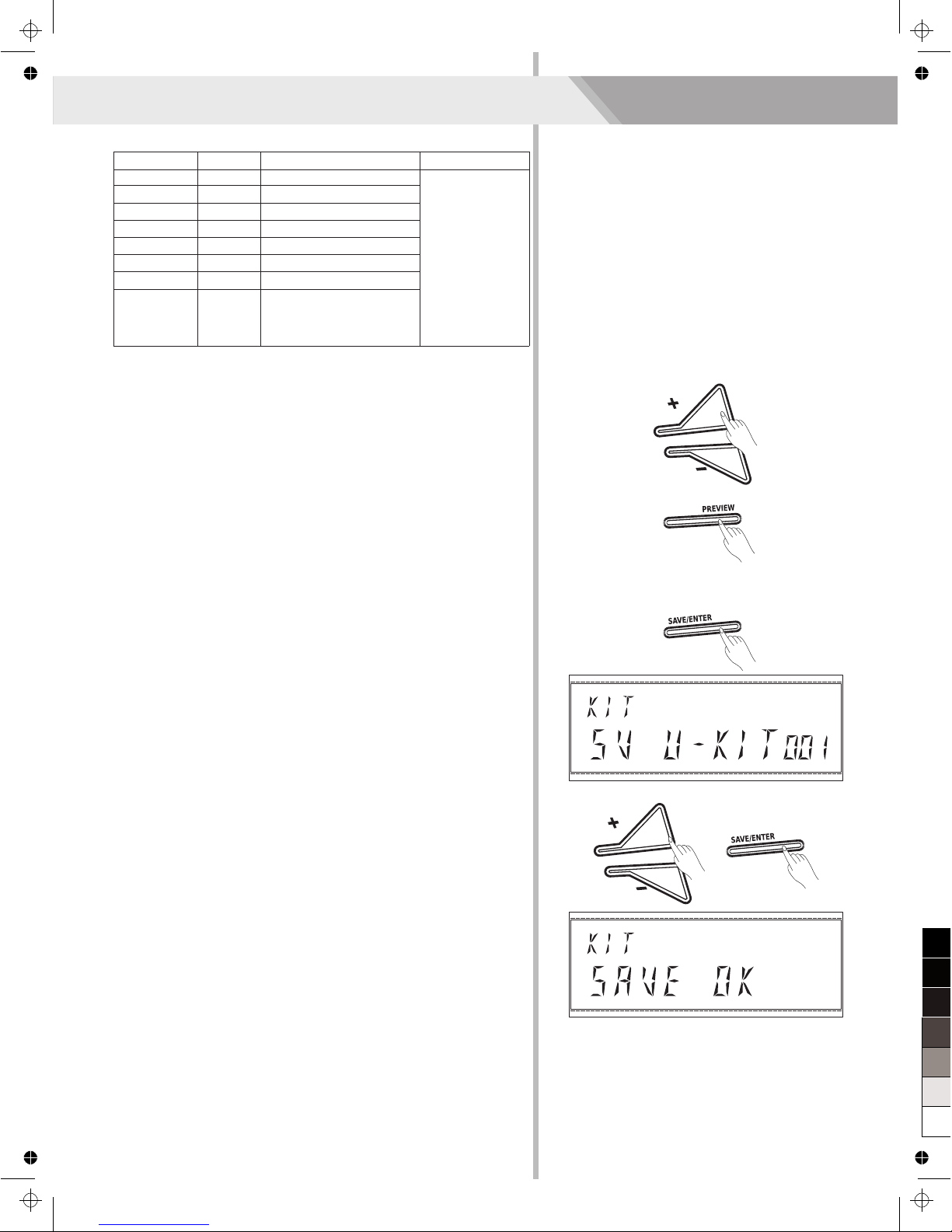

Save User Drum Kit..................................................14
Playing Along with a Song
Playing Along with a Song........................................15
Mute the Drum Part of Song.....................................15
Utility Mode (Utility)
The Drum Pad Trigger Settings................................16
The Drum Module Settings.......................................17
Record
Preparing Record......................................................19
Start / Stop Recording...............................................19
Downloading MIDI Songs from a Computer.........20
MIDI
About MIDI................................................................21
Troubleshooting......................................................22
Prompt Messages...................................................22
Specifications..........................................................23
............................................................
About the Auto Power Off Function
0
5
25
75
95
100
AW_DD522_manual_G04_140310
2014󾾠󾾠3󾾠󾾠12󾾠󾾠 13:11:57

4
Main Features
Bring the Professional Experience to Your Performance
Natural and Realistic Voices
This fresh digital drum has equipped with all fresh voices, which vastly improved sound quality and will reach a
super natural and realistic sense for your ears. No matter playing the stroke roll or striking pads with velocity
dynamic, all of these let you enjoy delicate nuances and natural voice, capture the unique characteristics of
acoustic drum kit.
Professional Hi-hat Controlling
Our engineers are always keeping keen on simulating the real drum kit, this time we have redefined our previous
pad designing, and if desired, the drummers can adjust the Close Point according to their playing habits on Hi-hat
Pedal.
With different positions the pedal pressed down, the voice of pad varied while you are striking the Hi-Hat pad. And
this is similar to an acoustic drum.
Conveniently Design for Left-hand Drummer
Exchange the Pads
To satisfy the requirement of left-hand player, conveniently exchange pads by referring to the Owner’s Manual.
Shortcut Buttons
Add [SHIFT] to panel buttons, combined with other buttons to quickly enter the specified menu.
Preview Button
Use the preview function to listening pad voice, you can edit and play voice even in the condition that pads are
unconnected, the force you pressed on the button will affect the volume of voice.
Fashionable Appearance
Used the LCD display, equipped with transparent LED buttons, all above sophisticate advantages make a vogue
and attractive appearance and powerful feature drum for your performance journey.
0
5
25
75
95
100
AW_DD522_manual_G04_140310
2014󾾠󾾠3󾾠󾾠12󾾠󾾠 13:11:57

5
1. LCD Display
Shows the name and parameter settings of Kit,
Voice, Song and so on.
2. [TEMPO] Button
Adjust the tempo value.
3. [UTILITY] Button
Enter the utility mode.
4. [DRUM OFF] Button
Mute the drum part.
5. [CLICK] Button
Start/Stop the metronome, enter the metronome
parameter setting.
6. [SONG] Button
Accesses to Song screen. With [SHIFT] + [SONG]
shortcut buttons, quickly enter the user songs.
7. [KIT] Button
Switches drum kit. With [SHIFT] + [KIT] shortcut
buttons, quickly enter the user kit.
8. [VOICE] Button
Enter the voice mode.
9. [PAGE +]/ [TRIG +]Buttons and [PAGE -]/ [TRIG -]
Page selection.
Use the combination of [SHIFT] + [PAGE -] / [PAGE +]
buttons to select a trigger pad, such as snare, kick and
so on.
Panel & Display Description
10. [+]/[-] Button
Gradually increasing or decreasing the value of
settings.
11. [SHIFT] Button
Combined with [SONG] / [KIT] / [PAGE+] / [PAGE-]
/ [START / STOP] buttons.
Combined with [SONG]/ [KIT] button, quickly enter
the user mode.
Combined with [PAGE+]/ [PAGE-] button, select a
trigger you want.
Combined with [START]/ [STOP] button, enter
the quick record mode.
12. [START/STOP]/ [REC] Button
Start / Stop playing songs.
Press the [SHIFT] + [START / STOP], enter quick
record.
13. [ ] Button
Save the drum kit / pad settings.
14. [PREVIEW] Button
Press this button when you want to preview pad
voice, the volume value are related to the force
level you have pressed on the button.
SAVE/ENTER
1
2
3
4
5
6
7
8
9
10
11 12
13
14
Front Panel
0
5
25
75
95
100
AW_DD522_manual_G04_140310
2014󾾠󾾠3󾾠󾾠12󾾠󾾠 13:11:57

15. DC IN jack
Connect the AC adaptor here. Plug the AC adaptor cable
into the DC IN jack.
16. USB MIDI Terminal
Use this when you want to connect a PC/laptop or USB
host device.
Note:
Only transmit MIDI data.
17. MIDI Terminal
Use this to connect extra MIDI sequencer, transmit
MIDI data.
MIDI IN Connector: receive MIDI data; you can receive
MIDI data from an extra MIDI device or a PC/laptop.
MIDI OUT Connector: send MIDI data; you can send
MIDI data to an extra MIDI device or a PC/laptop.
18. CRASH 2 jack (1/4”)
This allows you to connect additional Crash 2.
19. jack (L/ MONO, R) (2×1/4” )
For connecting to your audio system or amplifier, all
sounds from the module are output here.
L/ MONO jack: output sound in MONO.
R and L/ MONO jacks: output sound in stereo.
OUTPUT
15 16 17 18 19 20 21
23
22
20. AUX IN jack (1/8”)
For connecting an extra audio player, for example, Mp3
and so on via a stereo plug. You can enjoy playing the
drum along with your favorite songs.
21. PHONES jack(1/8”)
Connect stereo headphones here. Detecting all output
sounds. Plug the headphone cable into this jack, sound
will still be output from the OUTPUT jacks.
22. VOLUME knob
AUX IN: adjust the volume of extra audio.
MASTER: adjust the volume of headphone and output.
Note:
Before turning the module on, always be sure to turn the
volume down.
23. POWER button
Press this button to power on / off the module.
24. TRIGGER INPUT CONNECTOR terminal
Connect the included dedicated cable to this connector,
and use it to connect the pads and pedals.
24
Side Panel (Connecting)
6
MIDI Device
Note:
To prevent malfunction and equipment failure, alwaysturndown the volume, and turn off all the units before making any connections.
Panel & Display Description
0
5
25
75
95
100
AW_DD522_manual_G04_140310
2014󾾠󾾠3󾾠󾾠12󾾠󾾠 13:11:57

LCD Display
1. Mode
Display the current mode, such as SONG, KIT and so on.
2. Velocity
Display the touch sensitivity of current pad you are
playing or the force level you press on the [PREVIEW]
button.
3. Pad Name
Display the current pad name.
4. Parameter Name
Display the parameter name, such as PAN, REVERB and
so on or the name of song/kit.
5. Parameter Value
Display the value which corresponding to the parameter
or the number of song /kit.
7
123
45
Panel & Display Description
0
5
25
75
95
100
AW_DD522_manual_G04_140310
2014󾾠󾾠3󾾠󾾠12󾾠󾾠 13:11:57

8
Caution!
To prevent electric shock and damage to drum module or other devices, always turn off the power of all
devices before making any connections.
Connecting Pads and Pedals
Standard configuration: KICK, SNARE (rim shot), TOM 1~3, CRASH 1 (Choke), RIDE (Choke), HI-HAT, HI-HAT
CONTROL PEDAL.
Additional configuration: CRASH 2.
Setup
Note:
1. The SNARE, CRASH 1 (CRASH 2) and RIDE are stereo output, and other pads are mono output.
2. Using the cables provided, connect each Trigger input jack on the rear panel of the module, and make sure each pad is
connected to its corresponding trigger input jack.
3. For details on assembling the drum stand, attaching the digital drum and connecting pads, refer to the Installation Manual
description.
Ride
Crash1
Hi-Hat
Drum Module
Hi-Hat Control
Kick
Snare
Tom1 Tom2
Tom3
0
5
25
75
95
100
AW_DD522_manual_G04_140310
2014󾾠󾾠3󾾠󾾠12󾾠󾾠 13:11:58

Getting Ready to Play
Setting up the Power Supply
1. Connect the DC plug of the AC power adaptor to the DC IN jack on
the rear panel.
2. Connect the other end of the power cord to the AC outlet.
Note:
1. Only use the voltage specified as correct for the drum module.
2. Even when the module is turned off, electricity is still flowing to the
module at the minimum level. When you are not using the drum
module for a long time, make sure to unplug the AC power adaptor
from the wall AC outlet.
Turning the Power On/Off
Turning the power on
Make sure that you have made all necessary connections (trigger,
audio and so on), turn down all volume controls of the module and
other audio equipment.
1. Turn the [VOLUME] knob always to minimize the volume.
2. Minimize the volume of the connected amplifier, headphone or audio
system.
3. Press the POWER button.
4. Turn the amplifier or audio system on, or listen to the headphone.
5. Striking the pads and adjust the volume by slowly turning the
[VOLUME] knob (module, amplifier, audio or headphone) toward the
right direction. Keep turning until you get an appropriate value.
Turning the power off
1. Minimize the volume of the module and the external equipment
connected to the module.
2. Power off all the external equipment.
3. Press the POWER button again.
Hint:
The drum module automatically stores saved settings before it turns off,
you can also restore the factory set by following steps:
a) Press the [+] and [-] buttons simultaneously.
b) Press POWER button.
c) Until the LCD displays “FACRESET”, complete reset operation.
About the Auto Power Off Function
In order to save energy, we have designed the “Automatic Power Off”
function to the digital drum. With this function, the drum will be powered
off automatically when being idle for more than 30 (default) minutes.
Refer to Utility Settings.
9
0
5
25
75
95
100
AW_DD522_manual_G04_140310
2014󾾠󾾠3󾾠󾾠12󾾠󾾠 13:11:58

10
Drum Kits and Voices
There is only a fixed drum kit in an acoustic drum, but, to a digital
drum, it has a lot of drum kits. This is just one of the digital drum
characteristics.
The structure of a drum kit showed on the right:
Drum Kits and Voices
1. Press the [KIT] button, enter drum kit menu.
The screen shows on the right:
2. Press the [+] / [-] button, select your desired drum kit. (Refer to
Drum Kit list)
Selecting a voice
While striking the pads, you can listen to the ensemble kit sound
effect. If you are not satisfied the voice of any pads, you can
individually change the pad voice.
1. Press the [VOICE] button, enter the voice menu.
The screen shows on the right:
2. Hit the pad that you want to change its voice or you can use the
combination buttons [SHIFT] + [PAGE +] / [PAGE -]. The screen
displays the name of current pad.
3. While striking the pad, pressing the [+] / [-] button until you find an
appropriate voice for your pads. (Refer to Voice List)
Quick Play
KIT xx
KICK
Head
SNARE TOM1 TOM2
Head Head Head
TOM3
Head
HI-HAT CRASH1 CRASH2
Head Head Head
Rim
(option)
RIDE
Head
Drum Kit settings: Volume, 3-Band EQ.
Voice settings: Volume, Pan, Pitch, Reverb, Decay, Pad Song
and so on.
Mode
Kit Name Kit Number
Mode Current Pad
Voice Name Voice Number
0
5
25
75
95
100
AW_DD522_manual_G04_140310
2014󾾠󾾠3󾾠󾾠12󾾠󾾠 13:11:58

Playing the Pads
This section introduces various performance functions that will help
you perform more expressively on the pads. Similar to an acoustic
drum kit, the digital drum responds differently to various playing
techniques and dynamics. All the pads are velocity sensitive. And
some voices change timbre depending on the striking force.
Pad
Only the snare drum can detect both head and rim shot.
Head
Hit only the head of the pad.
Rim Shot
Strike the head and the rim of the pad simultaneously. Or you can
only strike the rim of the pad.
Cymbal
Cymbal Bow shot
Playing the bow area of the cymbal.
Choke Play
Both Ride and Crash cymbals have cymbal choke. But hi-hat don't
have the cymbal choke.
Choking the crash/ride edge with the hand immediately after hitting
the crash/ride mutes the crash/ride sound.
Hi-Hat
Hi-Hat Pedal Change
With different positions the pedal pressed down, the voice of pad
varied while you are striking the Hi-Hat pad. And this is similar to an
acoustic drum.
Open Hi-Hat
Strike the Hi-Hat pad without pressing the pedal.
Closed Hi-Hat
Strike the Hi-Hat pad with the pedal pressed completely down.
Hi-Hat Pedal
Press the hi-hat controller’s pedal to create a foot-close sound
without having to strike the hi-hat pad.
Splash
Playing the hi-hat with the pedal fully pressed and then instantly
opening it.
Head
Head
Rim
11
Quick Play
0
5
25
75
95
100
AW_DD522_manual_G04_140310
2014󾾠󾾠3󾾠󾾠12󾾠󾾠 13:11:58

Metronome
Practicing with the metronome is the best way to develop your accurate
timing. Adjust a right tempo for your learning / performance require.
Starting/ Stopping the Metronome and Its Feature
1. Press the [CLICK] button.
The metronome will start playing, and the button will blink as the
tempo.
2. Change the Voice, Volume, Tempo, Beat and Rhythm parameters of
metronome. Use the [Page +] / [Page -] button to select the parameter
you want to edit.
3. Use the [+] / [-] button to change the parameter value.
4. Press the [CLICK] button again to stop the metronome, and you will
find the light goes out.
12
Parameter
TIME SIGNATURE
INTERVAL
NAME
VOLUME
TEMPO
Value
0-9/2, 0-9/4,
0-9/8, 0-9/16
1/2, 3/8, 1/4,
1/8, 1/12, 1/16
1~6
0~16
30~280
Description
Select the voice name which
corresponding to each number.
Adjust the volume of metronome.
Adjust the tempo value.
Adjust the time signature.
Adjust the interval.
Quick Play
0
5
25
75
95
100
AW_DD522_manual_G04_140310
2014󾾠󾾠3󾾠󾾠12󾾠󾾠 13:11:59

13
Select a Preset Drum Kit and Create a User Drum Kit
About the Preset and User Drum Kit
From no.1 to 30 are preset drum kits. You can edit the parameter of drum
kit (from no.1-30), and you need save these changes into user drum kits
(from user kit 001~005).
Note:
After you have edited the drum kit parameter or voice data, please save
your changes immediately or all changes may lost.
Edit the Drum Kit Parameters
Change drum kit volume and EQ parameters, the overall effect of drum
kit will be affected. That is to say, if you increase the volume of drum kit,
all volume of the pads will be increased.
1. Press the [KIT] button, the LCD will display the kit menu.
Use the combination of [SHIFT] + [KIT] buttons to enter the user drum
kit USER KIT001 quickly.
2. Press the [PAGE +] / [PAGE -] button to select the item that you want
to edit.
Parameter
KIT NAME
VOLUME
EQ HIGH
EQ MID
EQ LOW
Value
Preset:
User:
1~30
1~5
0~16
-12~12
-12~12
-12~12
Description
Drum kit selection.
Adjust the volume of drum kit; the volume of
each pad will be changed.
Increase / Decrease the EQ High frequency.
Increase / Decrease the EQ Mid frequency.
Increase / Decrease the EQ Low frequency.
3. Press the [+] / [-] button to adjust parameter value.
Edit the Voice Parameters
The voice parameters are aimed at one pad. For example, if you have
increased the volume of snare, the other pads wouldn’t change their
volumes.
1. Press the [VOICE] button, and the LCD will display voice menu.
2. Press the [TRIG +] / [TRIG -] button or strike the pad that you want to
edit.
Combination buttons: [SHIFT] + PAGE +] / [PAGE -].
3. Press the [PAGE +] / [PAGE -] button to select an item you want to
edit.
0
5
25
75
95
100
AW_DD522_manual_G04_140310
2014󾾠󾾠3󾾠󾾠12󾾠󾾠 13:12:00

14
Select a Preset Drum Kit and Create a User Drum Kit
Parameter
VOICE NAME
VOLUME
PAN
PITCH
REVERB
DECAY
NOTE
PAD SONG
Value
1-380
0~16
-8~8
-8~8
0~16
-5~0
0~127
Off，1-82
Description
Select a voice.
Adjust the volume of voice.
Adjust the pan of voice.
Change the pitch of voice.
Adjust the reverb of voice.
Adjust the decay of voice.
MIDI note.
Switch the pad song on/off
and choose the song
number.
Triggers
KI (Kick)
SN (Snare)
SNR (Snare Rim)
T1 (Tom1)
T2 (Tom2)
T3 (Tom3)
HH (Hi-hat)
C1 (Crash1)
RD (Ride)
PD (Hi-hat Pedal)
C2 (Crash2)
PS (Hi-hat Splash)
4. Press the [+] / [-] button to adjust parameter value.
Preview pad voice
Expect striking the pads, you can also pressing the [PREVIEW] button to
preview the instrument voice. The force you pressed on the button will
affect the volume of voice.
Save User Drum Kit
You should always save the edited drum kit and voice data before you
switch to other menu or turn the module off, or the data will be lost.
1. While in the drum kit and voice edit menu, pressing the [SAVE] button
to save all changes.
2. Use the [+] / [-] button to select a user drum kit (From user kit 001 to
005).
3. Press the [SAVE] button again, you will find the LCD displays “SAVE
OK”, it means saved successfully.
0
5
25
75
95
100
AW_DD522_manual_G04_140310
2014󾾠󾾠3󾾠󾾠12󾾠󾾠 13:12:00

15
There are 82 built-in songs coving a variety of styles. You can play the
drums while listening to one of these songs.
Playing Along with a Song
1. Press the [SONG] button to enter the selection menu.
2. Press the [PAGE +] / [PAGE -] button to select the menu that you
want to edit.
Playing Along with a Song
Parameter
DELETE
SONG NAME
ACCOMPANY VOLUME
DRUM VOLUME
Value
---
1~82
0~16
0~16
Description
Select a song.
Adjust the accompaniment volume.
Adjust the drum volume.
Delete user song.
Press [SAVE/ENTER] button to
enter “CONFIRM N”，then press [+]
to switch “CONFIRM Y” display and
press [SAVE/ENTER] to confirm.
3. Use the [+] / [-] button to adjust the value.
4. Press the [START/STOP] button to play/stop song.
Mute the Drum Part of Song
If you want to learn a song, you can first practicing this song while
playing songs. As you have controlled the drum part of a song, you can
use this mute function to make some challenges, mute the drum part,
or decrease the drum volume gradually.
Press the [DRUM OFF] button to mute the drum part, the [DRUM OFF]
button will light.
0
5
25
75
95
100
AW_DD522_manual_G04_140310
2014󾾠󾾠3󾾠󾾠12󾾠󾾠 13:12:00

16
This mode contains two parts: the drum pad trigger settings and drum
module settings.
The Drum Pad Trigger Settings
As a professional drummer, you may be very pleased to set your drum
triggers carefully corresponding to your playing habits and feelings,
making your performance more interesting and professional. At the
meantime, your digital drum will be more operability.
1. Press the [UTILITY] button, the LCD will display the UTILITY menu.
2. Press the [PAGE +] / [PAGE -] button; select the trigger parameters
that you want to edit.
The drum pad trigger settings are as bellow:
Utility Mode (UTILITY)
Parameter
RIM SENS
SENSITIVITY
THRESHOLD
XTALK
CURVE
RETRIG
CANCEL
HH CLOSE
SPLASH
Value
1~5
1~16
1~16
1~16
1~16
1~6
1~16
0~2
Description
You can adjust the sensitivity of the pads to accommodate your personal playing habit.
Higher sensitivity allows the pad to produce a loud volume even when played softly.
Lower sensitivity will keep the pad to producing a low volume even when played forcefully.
Adjust the sensitivity of rim shot.
This setting allows a trigger signal to be received only when the pad is above a
determined dynamic level (velocity). This can be used to prevent a pad from
sounding because of vibrations from other pads.
For example, B will sound but A and C will not sound. When set to a higher
value, no sound is produced when the pad is struck lightly. Gradually raise
the “Threshold” value while striking the pad. Check this and adjust accordingly.
Repeat this process until you get the perfect setting for your playing style.
This setting avoids “crosstalk”, which means that when you play one pad you can hear a sound coming
from another pad. This can happen when two pads are installed on the same stand.
For example: If you hit the snare pad and the tom 1 also sounds.
While striking the snare pad, gradually increase the “XTALK” value for the tom 1 pad until the tom 1 pad
no longer sounds when you hit the snare pad. If you raise the “XTALK” higher, the tom 1 pad will be less
prone to receive crosstalk from other pads.
Note: If the value is set too high, and two pads are played simultaneously, the one that is struck less
forcefully may not sound. Be careful and set this parameter to the minimum value required to prevent
crosstalk.
This setting allows you to control the relation between playing velocity (striking force) and changes in
volume. Adjust this curve until the response feels as natural as possible. Refer to the CURVE
description.
This setting avoids “re-triggering”, which means that when you strike a pad once, maybe you can hear
two hits coming from one strike. This can happen as the pad oscillate.
While repeatedly striking the pad, raise the “Retrig Cancel” value until re-triggering nolonger occurs.
Although setting this to a high value prevents re-triggering, it then becomes easy for sounds to be
omitted when the drums played fast (roll etc.). Set this to the lowest value possible while still ensuring
that there is no re-triggering.
Adjust the position of Hi-Hat close.
If you set the parameter as “0”, it means a low Hi-Hat close position; you need to step the pedal almost
down tightly.
If you set the parameter as “1”, it means a mid Hi-Hat close position; you just only to step the pedal on
an appropriate level.
If you set the parameter as “2”, it means a high Hi-Hat close position; you don’t need to step the pedal by
too much force.
Splash sensitivity. The higher value makes the splash easier.
ABC
Threshold
0
5
25
75
95
100
AW_DD522_manual_G04_140310
2014󾾠󾾠3󾾠󾾠12󾾠󾾠 13:12:00

3. Striking the specified pad or use the [SHIFT] + [PAGE +] / [SHIFT] +
[PAGE -] combination buttons, select the pad that you want to edit.
4. Use the [+] / [-] button to adjust the parameter value.
Note:
The Curve description:
Curve 1: The standard setting. This produces the most natural
correspondence between playing dynamics and volume change.
Curve 2, 3: Compared to Curve 1, strong dynamics produce a greater
change.
Curve 4, 5: Compared to Curve 1, a soft playing produces a greater
change.
Curve 6: Very little dynamic response, making it easy to maintain
strong volume levels.
Curve1 Curve2 Curve3
Playing
Dynamics
Volume
The Drum Module Settings
You can go further set the drum module function, do as the procedures
showed below:
1. Press the [UTILITY] button, the LCD will display the UTILITY menu.
2. Press the [PAGE+] / [PAGE-] button to select the “L-R EXCH” item
on the LCD menu.
What is “L-R EXCH”?
The “L-R EXCH” function is specially designed for those drummers
who play drums with left-hand habit. Detailed description bellow:
1. The default pad position diagram showed on the right, please
confirm the “L-R EXCH” setting is set to “R”, this is the default
parameter.
2. Now, maybe you want to move pad positions to adapt to your left-
hand playing, not that much trouble, with our new design you can
finish pad position in the condition of no changelings of cables.
Firstly changing the “L-R EXCH” setting to “L”, and following the
procedure 3 below:
a) Tom 1 and Tom 2
b) Crash and Ride
c) Hi-hat, Pedal and Bass Drum
d) Move the Snare to right side, and the Tom 3 to left side.
3. Continue pad exchange, suggest operation as follows:
a) Make sure the module is powered off.
b) Pull out all pad cables.
c) Move the left and right standers backward direction (About 90
degrees) to an appropriate position.
d) Rotated the horizontal stick of snare in backward direction about
90 degrees.
e) Loosen and pull out the left side stander, pull out the module with
its pedestal, and then separate the module from pedestal,
adapting negative-fixed to put them up again. Install back to the
horizontal stick.
f) Remove the Hi-hat pedal and Bass Drum to the opposite side,
adjust pads, crashes to an appropriate position and direction.
g) Connect cables to corresponding pads.
h) Above procedures completed, power module on, and set the “L-R
EXCH” parameter to “L”, press “SAVE/ENTER” button to save
settings.
Utility Mode (UTILITY)
17
Volume Volume
Volume Volume Volume
Curve4 Curve5 Curve6
Playing
Dynamics
Playing
Dynamics
Playing
Dynamics
Playing
Dynamics
Playing
Dynamics
0
5
25
75
95
100
AW_DD522_manual_G04_140310
2014󾾠󾾠3󾾠󾾠12󾾠󾾠 13:12:02

18
3. You can press the [PAGE +] / [PAGE -] button to select the function
menu and use the [+] / [-] button to adjust the parameter value.
The Setting description of drum module, as follows:
Parameter
L-R EXCH
LOCAL
GM MODE
AUTO POWER
Value
R/L
ON/OFF
ON/OFF
30, 60 ,OFF
Description
Exchange the left and right pad position.
R: Normal settings.
L: You can exchange the left and right pad
position to satisfy the left-hand player.
Specifies whether the pad signal will be
connected to the internal sequencer or
disconnected from the internal sound
generator.
ON: The pads and internal sequencer are
connected to the digital drum’s internal
sound generator. Sounds are produced by
the internal sound generator when the
pads are struck.
OFF: The pads and internal sequencer
are disconnected from the digital drum’s
internal sound generator. Striking the pads
does not cause sound to be produced by
the internal sound generator.
ON: The channel 10 will respond GM
drum kit.
OFF: The channel 10 will respond local
drum kit.
Factory settings, approximately 30
minutes.
30: Automatically turns the power off if no
operation for approximately 30 minutes.
60: Automatically turns the power off if no
operation for approximately 60 minutes.
OFF: The power will not power off auto-
matically.
Utility Mode (UTILITY)
0
5
25
75
95
100
AW_DD522_manual_G04_140310
2014󾾠󾾠3󾾠󾾠12󾾠󾾠 13:12:02

19
This digital drum lets you easily record your own performance. Quick
record 5 user songs and about 6500 drum notes could be recorded in a
song. Each song has two parts (The Drum and Accompaniment).
Preparing and starting record, refer to details bellow:
Preparing Record
Press the [REC] button (Combination buttons [SHIFT] + [START/STOP])
to enter prepare record mode, the [REC] button will light, enter the
record standby mode.
Select User Song
1. The U-SONG 001~005 which with “U-” prefix are user songs, for
example, the name of the song displayed as “* U_SONG”（Pay
attention to the “ *” mark）, it means this song is empty, no data.
Otherwise, contains record data.
2. Press the [+] / [-] button to select user song (from U-SONG
001~005).
Select an Accompaniment Song
1. Press the [PAGE +] / [PAGE -] button, enter the Accompaniment
Song Selection menu, the LCD displays “SONG xx”。
2. Press the [+] / [-] button to select an accompaniment song.
“--”: There is no accompaniment song.
1~60: The number of preset songs.
The Parameters of Record
In state of preparing record, you can adjust these parameters below:
Record
Parameter
TIME
SIGNATURE
INTERVAL
*U_ SONG
SONG
KIT
TEMPO
DRUM OFF
PRECOUNT
Value
1-9/2，1-9/4，
1-9/8，1-9/16
1/2，3/8，1/4，
1/8，1/12，1/16
001~005
--/1，2,…,60
1~35
30~280
ON/OFF
ON/OFF
Description
Select a recorded song. The name with
“*” mark means the song is empty.
Accompaniment song and the “--” means
there is no accompaniment song and you
can record drum solo.
Recorded drum kit.
Adjust the tempo value.
Adjust the time signature.
Select a interval.
Turn off the drum part.
ON: Keep the drum part playing.
OFF: Turn off the drum part.
Turn on/off the precount function.
Start / Stop Recording
1. You can start recording in real time while in the preparing record
menu, there are two ways to start record:
Press the [START/STOP] button.
Strike one pad.
2. While recording song, the [REC] button keeps flashing all along,
and the LCD displays as “RECORDING---”.
3. Press the [START/STOP] button again or you can press the [REC]
button (Combination buttons [SHIFT] + [START/STOP]) to stop
recording, and the [REC] button light will goes out.
Note:
If the record storage capacity is full, the LCD will display “REC FULL”
temporarily and then stop recording.
0
5
25
75
95
100
AW_DD522_manual_G04_140310
2014󾾠󾾠3󾾠󾾠12󾾠󾾠 13:12:02

20
There are 5 user songs can be saved and all data will not be erased.
Except 5 songs recorded by this module in quick record way, you can
also download 5 user songs from a computer.
Note:
Prepare for computer, download software, USB or USB-MIDI cable to
download user songs from computer.
The interface of download software showed on the right side:
1. Download specified software:
You can download “Style Transfer” software on the website
http://www.medeli.com.hk/....
2. Connect to a computer:
3. Download MIDI songs from a computer.
It is very easily to download MIDI songs to your module (For more
details, please refer to PC help content).
Note:
Support SMF MIDI file only.
Capacity less than 20K per MIDI file.
The filename extension should be ***.MID.
The download song only can be saved in one of user song 1~5.
The new download song will automatically cover the old one, so
you do not have to delete it in advance.
Support Window XP, Window 7 32bit, Window 7 64bit, Window 8
32bit, Window 8 64bit system.
Downloading MIDI Songs from a Computer
0
5
25
75
95
100
AW_DD522_manual_G04_140310
2014󾾠󾾠3󾾠󾾠12󾾠󾾠 13:12:03
