Medic Therapeutics 005-018 User manual
TOUCHLESS THERMOMETER
User Manual
INTRODUCTION
Thank you for purchasing this Touchless Thermometer. It has been
carefully developed for accurate, safe and fast temperature measurements.
Please read these instructions carefully before using this product and
keep the instructions and the thermometer in a safe place.
PACKAGE CONTENTS
No. Name Quantity
1Infrared Thermometer 1
2Pouch 1
3Battery (AAA) 2
4User Manual 1
2
3
TABLE CONTENTS
WARNINGS AND PRECAUTIONS 4
Product Description 5
Overview 5
Structure 6
Operating principle 6
Indications for use 6
Features 7
Product Structure 7
Display description 8
How to use your thermometer 8
Take your forehead temperature 8
Take room/object temperature 9
After a measurement 9
Read your temperature 10
Switching between mute and un-mute 10
Checking 35 sets of memory data 10
°C/°F conversion 10
Temperature compensation adjustment 10
To turn off 11
Replace the battery 11
Temperature taking tips 11
Care and cleaning 12
Error and Troubleshooting 13
Specifications 15
Symbols 16
EMC information 17
Warranty and After-Sale Service 22
2
3
WARNINGS AND PRECAUTIONS
• Keep out of reach of children under 12 years.
• Never immerse the thermometer into water or other liquids (not
waterproof). For cleaning and disinfecting please follow the
instructions in the “Care and cleaning” section.
• Never use the thermometer for purposes other than those it has been
intended for. Please follow the general safety precautions when using
on children.
• Keep the thermometer away from direct exposure to the sun and
keep it in a dust- free, dry area, well-ventilated place at a temperature
between 50°F (10°C) - 104°F (40°C). Do not use the thermometer in
high humidity environments. (>95% RH)
• Do not use the thermometer if there are signs of damage on the
measuring sensor or on the instrument itself. If damaged, do not
attempt to repair the instrument! Please contact dealer.
• This thermometer consists of high-quality precision parts. Do not drop
the instrument. Protect it from severe impact and shock. Do not twist
the instrument or the measuring sensor.
• Please consult your doctor if you see symptoms such as unexplained
irritability, vomiting, diarrhea, dehydration, changes in appetite or
activity, seizure, muscle pain, shivering, stiff neck, pain when urinating,
etc., even in the absence of fever.
• Even in the absence of fever, those who exhibit a normal temperature
may still need to receive medical attention. People who are on
antibiotics, analgesics, or antipyretics should not be assessed solely on
temperature readings to determine the severity of their illness.
• Temperature elevation may signal a serious illness, especially in adults
who are old, frail, have a weakened immune system, or neonates and
infants. Please seek professional advice immediately when there is a
temperature elevation and if you are taking temperature for whom are:
• Over 60 years of age (Fever may be blunted or even absent in elderly
patients)
• Having diabetes mellitus or a weakened immune system (e.g.,
HIV positive, cancer, chemotherapy, chronic steroid treatment,
splenectomy)
• Bedridden (e.g., nursing home patient, stroke, chronic illness)
• A transplant patient (e.g., liver, heart, lung, kidney)
• This thermometer is not intended for pre-term babies or small-for-
gestational age babies. This thermometer is not intended to interpret
hypothermic temperatures. Do not allow children to take their
temperatures unattended.
•
Use of this thermometer is not intended as a substitute for consultation
with your physician or pediatrician. It is for household use only.
• Clean the thermometer probe after each use.
4
5
• Do not use the thermometer on newborns for continuous temperature
monitoring purposes.
• Do not take a measurement while or immediately after nursing a baby.
• Patients should not drink, eat, or be physically active before/while
taking the measurement.
PRODUCT DESCRIPTION
Overview

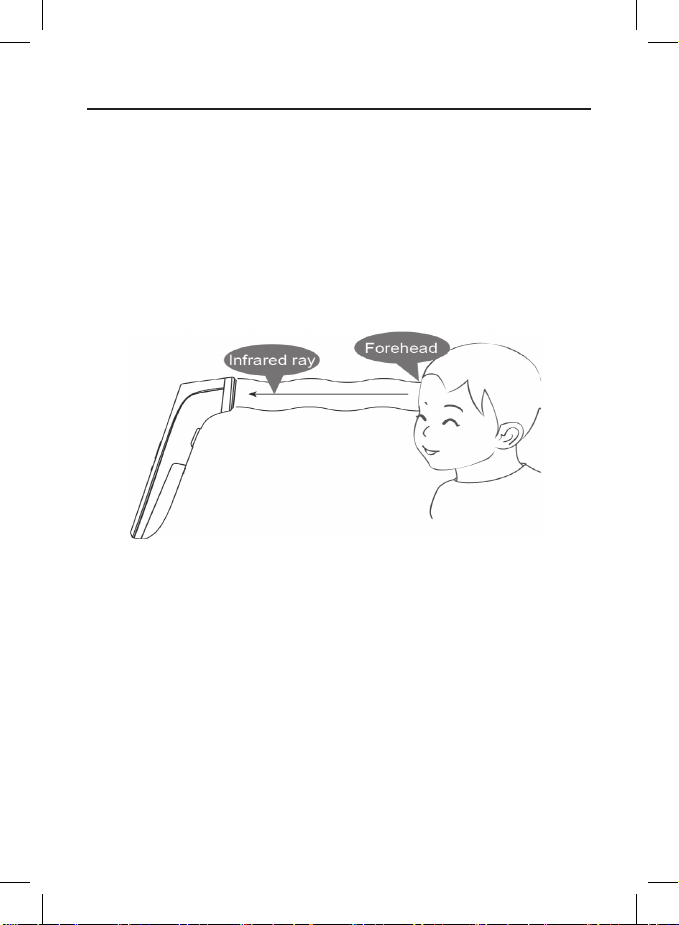

Infrared Thermometer measures the body temperature based on the
infrared energy emitted from the forehead. Users can quickly get
measurement results after properly scanning the forehead.
Normal body temperature is a range. The following tables show that
this normal range also varies by site. Therefore, readings from different
site should not be directly compared. Tell your doctor what type of
thermometer you used to take your temperature and on what part of the
body. Also bear this in mind if you are diagnosing yourself.
Measurements
Forehead temperature 97.0°F to 99.5°F
(36.1°C to 37.5°C)
Ear temperature 96.4°F to 100.4°F
(35.8°C to 38.0°C)
Oral temperature 95.9°F to 99.5°F
(35.5°C to 37.5°C)
Rectal temperature
97.9°F to 100.4°F
(36.6°C to 38.0°C)
Axillary temperature 94.5°F to 99.1°F
(34.7°C to 37.3°C)
4
5
6
7
WARNINGS AND PRECAUTIONS
Structure
The thermometer consists of a shell, an LCD, a measure button, a beeper,
an infrared temperature sensor, and a Microprocessor.
Operating principle
The infrared temperature sensor collects infrared energy emitted by the
skin surface. After being focused by a lens, the energy is converted into
a temperature reading by the thermopiles and measurement circuits.
Indications for use
The Touchless Thermometer is intended for the measurement of human
body temperatures. The forehead mode is indicated for people of all ages.
6
7
FEATURES
• Non-Contact Design, Safe and more hygienic to use.
• Quick measurement, less than 1 second.
• Accurate and reliable.
• Easy operation, one button design.
• Multi-functional, can measure forehead, room, liquids,
and object temperature.
• 35 sets of memories, easy to recall.
• Switching between mute and un-mute mode.
• Fever alarm function, displayed in orange and red light.
• Switching between °C and °F.
• Auto shut-down and power-savings.

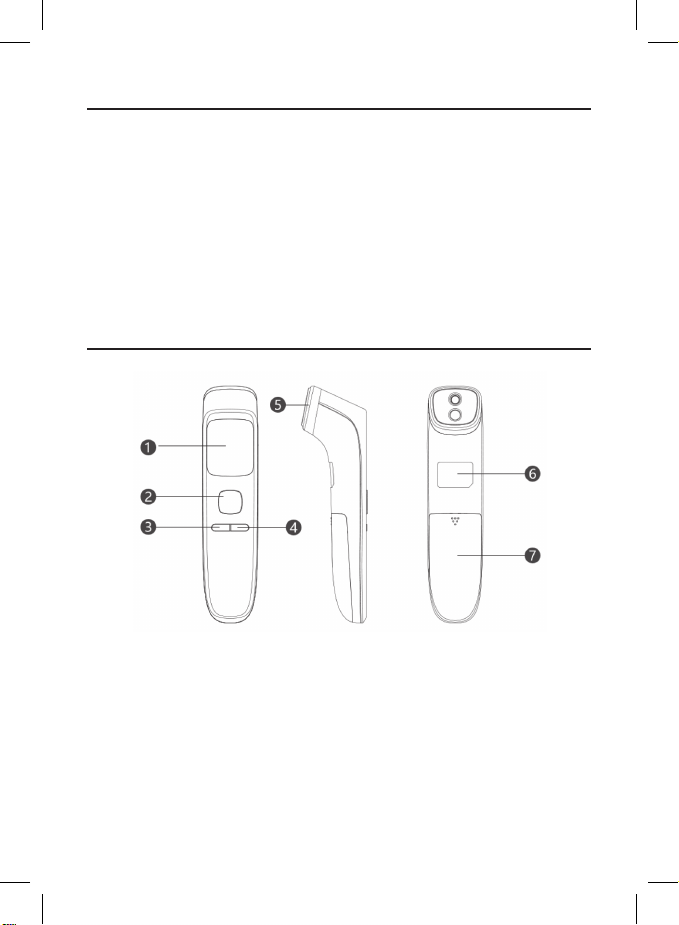

PRODUCT STRUCTURE
1. LCD display screen
2. Measure button
3. Mem (Memory Recall)
4. Mute-unmute button (or °C/°F conversion)
5. Sensor
6. Rating label
7. Battery Cover
8
9
DISPLAY DESCRIPTION
1. Temperature value
2. Object temperature mode
3. Forehead temperature mode
4. Fahrenheit / Celsius degrees
5. Battery level
6. Memory recall
7. Mute /Un-mute
HOW TO USE YOUR THERMOMETER
When using the thermometer for the first time, please load the batteries.
Take your forehead temperature
Press the Measure button to power on. Only aim at forehead at a distance
of 0-3cm, no need to make skin contact. Press the Measure button again,
the thermometer will beep once it has completed the measurement and it
will display the temperature on the display screen.
NOTE: The forehead measurement is an indicative reading. The measured
forehead temperature can fluctuate up to 1 °F/0.5 °C from your actual
body temperature. Please be aware of the factors that influence the
accuracy as described in the section ‘Temperature taking tips’ and
‘WARNINGS AND PRECAUTIONS’*1.
8
9
If the eyebrow area is covered with hair, sweat or dirt, please clean
the area beforehand to improve the reading accuracy.
Always check if the lens is clean.
Always make sure the user and the thermometer will have been in
the same room prior to the measurement.

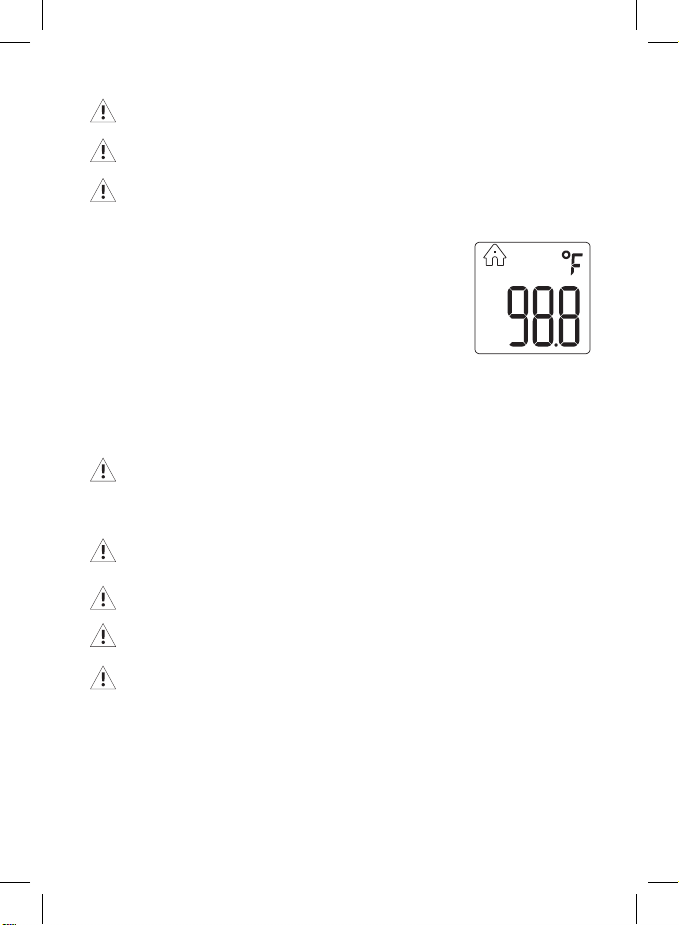

Take room/object temperature
Make sure the thermometer is powered off. Press
the Mem button for 3 seconds. The thermometer will
turn on and switch to room/object temperature mode.
Press the measure button to measure room/object.
Keep the thermometer about 1-3cm away from the
object. Press the Measure button, the thermometer
will beep once it has completed the measurement and
it will display the temperature on the display screen.
After a measurement
Once the reading has been completed, remove the thermometer
away from the forehead and observe temperature.
After each measurement, you can enter the recall mode and query
earlier temperature readings.
Do not hold the thermometer for a long time, because it is sensitive
to the ambient temperature.
After each measurement, clean the temperature probe with a soft
cloth, and put the thermometer in a dry and well-ventilated place.
You should wait at least 10 seconds between each measurement.
It is dangerous to make a self-diagnosis or self-treatment based on
the obtained measurement results. For such purposes, please consult
a doctor.
10
11
READING YOUR TEMPERATURE
Tindicates a temperature reading in forehead mode.
1. If89.6°F≤T≤99.2°F(32°C≤T≤37.3°C),thegreenlightwilllastfor
12 seconds, with one long beep.
2. If99.3°F≤T≤100.3°F(37.4°C≤T≤37.9°C),theorangelightwill
last for 12 seconds, with 3 short beeps, and the value in LCD flickers,
which is a warning that you may have a light fever.
3. If100.4°F≤T≤109.2°F(38°C≤T≤42.9°C),theredlightwilllastfor
12 seconds, with 5 short beeps, and the value in LCD flickers, which is
a warning that you may have a high fever.
SWITCHING BETWEEN MUTE AND UN-MUTE
When the thermometer is turned on, keep short pressing the
Mute-unmute button for less than 1 second, to switch from
un-mute to mute.
CHECKING 35 SETS OF MEMORY DATA
When the thermometer is turned on, by short pressing the Mem to go
to the memory mode, press this button again to check the 35 sets of
memories one by one. If no value, it will display “---M”
°C/°F CONVERSION
When the thermometer is turned on, long press the Mute- unmute button
for 5 seconds, to change the temperature setting between °C/°F.
TEMPERATURE COMPENSATION ADJUSTMENT
When the thermometer is turn on, press both the Mute-unmute button
and Mem button for 2-3 seconds to go to the temperature compensation
mode. By pressing the Mem to adjust the temperature from ±0.0 to ±2.0.
NOTE: All future temperature you take will automatically add the value
you selected.
10
11
TO TURN OFF
The unit will shut down automatically after 10 seconds of no use. Or you
can long press the Measure button for 6 seconds to turn the device off.
CAUTION
1. All memory records will be lost when you uninstall/reinstall the
batteries.
2. All settings will come to default when uninstalling the battery.
If settings need to be adjusted, make sure to power on the device
and apply the new settings.
REPLACING THE BATTERY
Slide the battery cover off along the marked direction. Put two AAA
batteries correctly into the compartment.
Remove the batteries if the thermometer will not be used for more
than two months.
TEMPERATURE TAKING TIPS
1. It is important to know each individual’s normal temperature when
they are well. This is the only way to accurately diagnose a fever.
Record readings twice a day (early morning and late afternoon).
Take the average of the two temperatures to calculate normal oral
equivalent temperature. Always take the temperature in the same
location, since the temperature readings may vary from different
locations on the forehead.
2. A child’s normal temperature can be as high as 99.9°F (37.7°C) or as
low as 97.0°F (36.11°C). Please note that this unit reads 0.9°F (0.5°C)
lower than a rectal digital thermometer.
3. Holding the thermometer for too long in the hand before taking
a measurement can cause the device to warm up. This means the
measurement could be incorrect.
4. Patients and the thermometer should stay in steady-state room
condition.
5. Before placing the thermometer sensor on the forehead, remove dirt,
hair, or sweat from the forehead area. Wait 10 minutes after cleaning
before taking measurement.
6. Use an alcohol swab to carefully clean the sensor and wait for 5
minutes before taking a measurement on another patient. Wiping
the forehead with a warm or cool cloth may impact your reading. It is
advised to wait 10 minutes before taking a reading.
12
13
7. In the following situations it is recommended that 3-5 temperatures in
the same location be taken and the highest one taken as the reading:
• Newborn infants in the first 100 days.
• Children under three years of age with a compromised immune
system and for whom the presence or absence of fever is critical.
• When the user is learning how to use the thermometer for the
first time until he/she has familiarized himself/herself with the
instrument and obtains consistent readings.

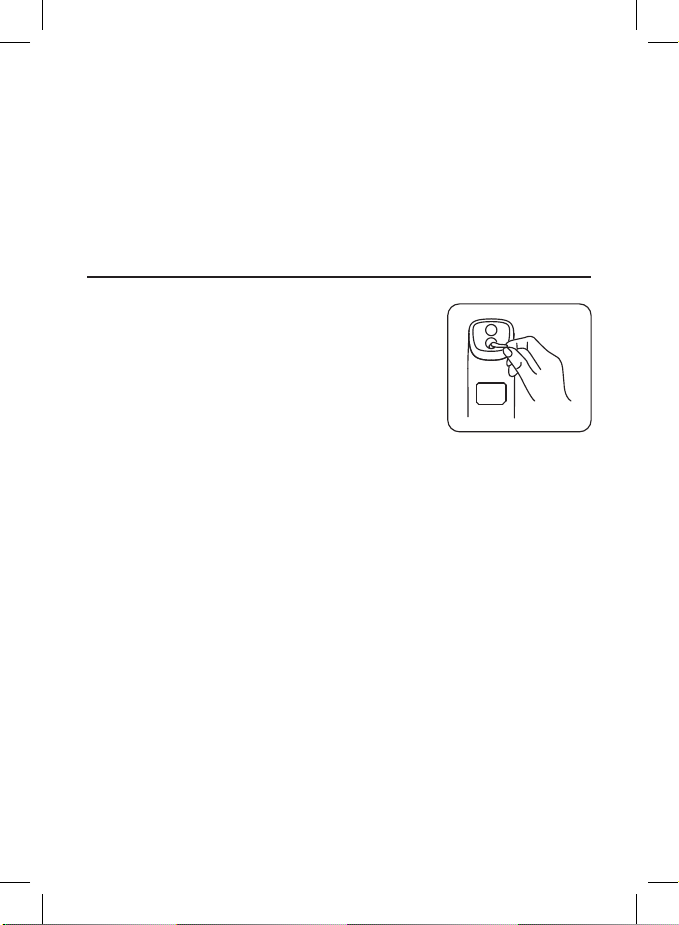

CARE AND CLEANING
Use an alcohol swab or cotton swab moistened
with 95% alcohol to clean the thermometer
casing and the measuring probe. After the alcohol
has completely dried out, you can take a new
measurement.
Ensure that no liquid enters the interior of
the thermometer. Never use abrasive cleaning
agents, thinners or benzene for cleaning and
never immerse the instrument in water or other
cleaning liquids. Take care not to scratch the
surface of the LCD screen.
12
13

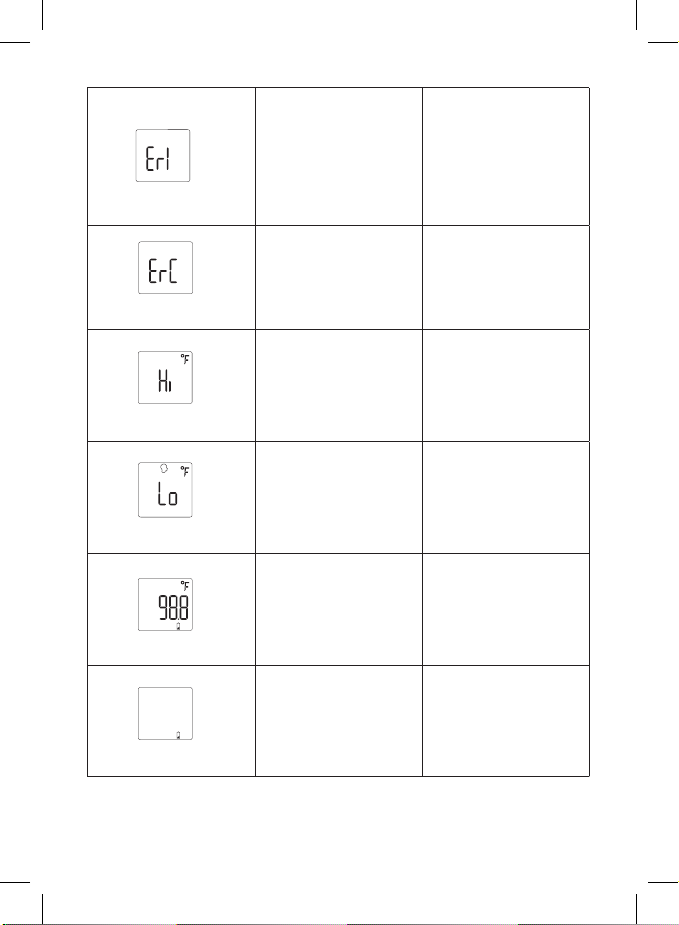

ERROR AND TROUBLESHOOTING
Error Type Possible Cause Description &
Solution
Failed to power on The battery level is
too low
Replace with a new
battery
Polarities of the
batteries are reversed
Ensure the batteries
are in the right
position
The thermometer is
damaged
Contact dealer
The reading is too low The lens of the probe
is dirty
Clean the lens with a
cotton swab
The distance of the
item and target is
too far
Ensure the
thermometer
measuring the
forehead center
within 3cm
Individual came from
a cold environment
Individual must
remain in a warmer
room for at least 30
minutes before taking
a reading
The reading is too
high
Individual came from
a hot environment
Individual must
remain in an
adequately cool
room for at least 30
minutes before taking
a reading
14
15
The ambient
temperature is not in
range
3 short beeps and red
backlit for 3 seconds.
Take a measurement
under an ambient
temperature between
50.0°F (10°C) and
104°F (40°C)
Memory Error 3 short beeps and red
backlit for 3 seconds.
Contact dealer
In forehead mode, T >
109.2°F (42.9°C)
3 short beeps and red
backlit for 3 seconds
In forehead mode, T <
32°C (89.6°F)
3 short beeps and red
backlit for 3 seconds
2.5V±3%≤power
voltage≤2.6V±3%
The battery level is
low, it suggests you
to replace the battery,
but you can continue
to use it
The power voltage is
lower than 2.5V± 3%
It will turn off
automatically after
30 seconds. Please
replace with a new
battery
14
15
SPECIFICATIONS
Product name Infrared thermometer
Power supply DC1.5Vx2
Measurement range
Forehead: 32.0°C-42.9°C
(89.6°F—109.2°F)
Object: 0°C-100°C(32°F-212°F)
Accuracy (Laboratory)
Forehead mode ±0.2°C/±0.4°F
Object mode ±1.0°C/1.8°F
Display resolution 0.1°C/°F
Measuring distance 0-3cm
Automatic shutdown 10s±1s
Memory 35 groups of measured temperature
Operational conditions
Temperature: 10°C-40°C (50°F-104°F)/
Humidity: 15-95%RH, non-condensing
Atmospheric pressure: 86-106 kPa
Battery 2*AAA, can be used for more than
3000 times
Weight & Dimension 66.8g (without battery),
36x42x153.5mm
16
17

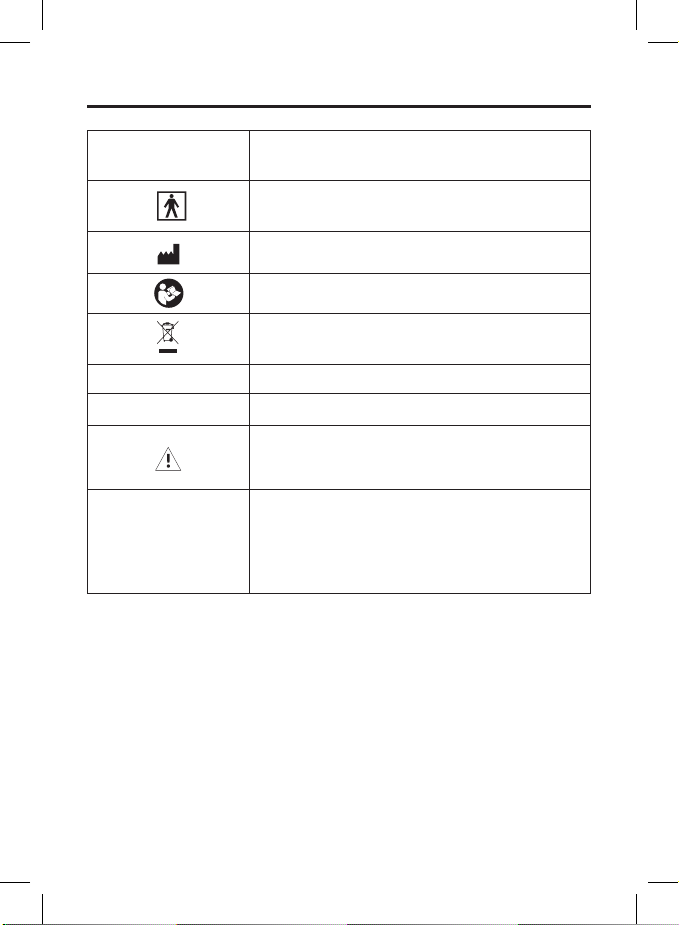

SYMBOLS
Symbol Description
Type BF applied part
Information about a manufacturer
Please read the instructions carefully
Waste electrical materials should be sent to a
dedicated collection point for recycling
SN Serial number
LOT Batch number
IMPORTANT
Inaccurate reading or thermometer damage may
occur if the thermometer is not correctly used.
IP22 2 Protected against solid foreign objects of
12,5 mm Ø and greater;
2 If keep the thermometer in 15 degree angle,
it still can prevent the water drop.
16
17
EMC INFORMATION
Guidance and manufacturer’s declaration-electromagnetic emissions
The infrared thermometer is intended for using in the electromagnetic
environment specified below. The customer or the user of the infrared
thermometer should assure that it is used in such an environment
Emissions test Compliance Electromagnetic
environment-guidance
RF emissions
CISPR11
Group 1 The infrared
thermometer uses
RF energy only for
its internal function.
Therefore, its RF
emissions are very low
and are not likely to
cause and interference
in nearby electronic
equipment
RF emissions
CISPR11
Class B The infrared
thermometer is
suitable for use in
all establishments
other than domestic
and those directly
connected to the public
low-voltage power
supply
Harmonic emissions
IEC 61000-3-2
N/A
Voltage fluctuations/
flicker emission IEC
N/A Network that supplies
building used for
domestic purpose
18
Guidance and manufacturer’s declaration-electromagnetic immunity
The infrared thermometer is intended for use in the electromagnetic
environment specified below. The customer or the user of the infrared
thermometer should assure that it is used in such an environment.
Immunity test IEC60601 test
level
Compliance
level
Electromagnetic
environment
-guidance
Electrostatic
discharge
(ESD)
IEC 61000-
4-2
±2, ±4, ±6,
±8kVfor
Contact
discharge ±2,
±4, ±8, ±15kV
air discharge
±2, ±4, ±6,
±8kVfor
Contact
discharge
±2, ±4,
±8kV,
±15kV air
discharge
Floors should be
wood, concrete or
ceramic tile. If floors
are covered with
synthetic material,
the relative humidity
should be at least 30%
Electrical fast
transient/
burst IEC
61000-4-4
±2 kV for a.c.
power lines
±1 kV for d.c.
power lines
N/A Main power quality
should be that of a
typical commercial or
hospital environment
Surge
IEC 61000-
4-5
±1 kV line(s) to
line(s)
±2 kV line(s) to
earth
N/A Main power quality
should be that of a
typical commercial or
hospital environment
Voltage
dips, short
interruptions
and voltage
variations in
power supply
input lines
IEC 61000-
4-11
<5% UT
(>95 dip in UT)
for 0.5 cycle
40% UT
(60% dip in UT)
for 5 cycles
70% UT
(30% dip in UT)
for 25 cycles
<5% UT(>95%
dip in UTfor
5 s
N/A Main power quality
should be that of a
typical commercial or
hospital environment.
If the user of the
thermometer requires
continued operation
during power main
interruptions, it is
recommended that
the thermometer be
powered from an
uninterrupted power
supply or a battery
18
19
Guidance and manufacturer *s declaration-electromagnetic immunity
The infrared thermometer is intended for use in the electromagnetic
environment specified below. The customer or the user of the infrared
thermometer should assure that it is used in such an environment.
Immunity test IEC 60601
test level
Compliance
level
Electromagnetic
environment
-guidance
Conducted RF
IEC 61000-
4-6
3Vrms
150kHz to
80MHz
N/A Portable and mobile
RF communications
equipment should
be used no closer
to any part of the
infrared thermometer
including cables, than
the recommended
separation distance
calculated from the
equation applicable to
the frequency of the
transmitter.
Recommended
seperation distance
d=1.2 P
Power
frequency
(50/60Hz)
magnetic field
IEC 61000-
4-8
3A/m 3A/m Power frequency
magnetic fields
should be at levels
characteristic of a
typical location in a
typical commercial or
hospital environment
NOTE UTis the a.c. mains voltage prior to application of the test level.
IEC 6100043 3V/m 80kHz
to 2.5GHz
3V/m d=1.2P80MHz to 800MHz
d=2.3P 800MHz to2.5MHz
Here P is the maximum
output power rating of the
transmitter in watts (W)
according to the transmitter
manufacturer and dis the
recommended separation
distance in meters (m). Field
strengths form fixed RF
transmitters, as determined
by an electromagnetic site
survey, should be less than
the compliance b level
in each frequency range.
Interference may occur in
the vicinity of equipment
marked with the following
symbol:
NOTE 1 At 90MHz and 800MHz, the higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations.
Electromagnetic propagation is affected by absorption and reflection
from structures, objects and people.
a) Field strengths from fixed transmitters, such as base stations for
radio (cellular/cordless) telephones and land mobile radios, amateur
radio, AM and FM radio broadcast and TV broadcast cannot be
predicted theoretically with accuracy. To assess the electromagnetic
environment due to fixed RF transmitters, an electromagnetic site
survey should be considered. If the measured field strength in the
location in which the thermometer is used exceeds the applicable
RF compliance level above, the thermometer should be observed
to verify normal operation. If abnormal performance is observed,
additional measures may be necessary, such as reorienting or
relocating the thermometer.
b) Over the frequency range 150kHz to 80MHz, field strengths should
be less than 3V/m.
20
21
Table of contents
