MeiTrack A89 User manual

A89 Driver Fatigue Monitor User Guide
A89 Driver Fatigue Monitor
User Guide
Applicable Model: T366

A89 Driver Fatigue Monitor User Guide
Copyright © 2018 Meitrack Group All rights reserved. - 2 -
Change History
File Name A89 Driver Fatigue Monitor User Guide
Applicable Firmware T366_Y12V202 Creation Date
Update Date
2018-07-24
2018-08-02
Subproject Accessory User Guide Total Pages 12
Version V1.0 Confidential External Documentation

A89 Driver Fatigue Monitor User Guide
Copyright © 2018 Meitrack Group All rights reserved. - 3 -
Contents
1 Copyright and Disclaimer........................................................................................................................................... - 4 -
2 Product Introduction ................................................................................................................................................. - 4 -
2.1 Product Functions......................................................................................................................................... - 4 -
2.2 Function Description..................................................................................................................................... - 4 -
3 Main Device and Accessories .................................................................................................................................... - 5 -
4 Product Specifications ............................................................................................................................................... - 5 -
5 A89 Installation.......................................................................................................................................................... - 6 -
5.1 Connecting the A89 to the T366 Tracker ...................................................................................................... - 6 -
5.2 Installing the A89 .......................................................................................................................................... - 6 -

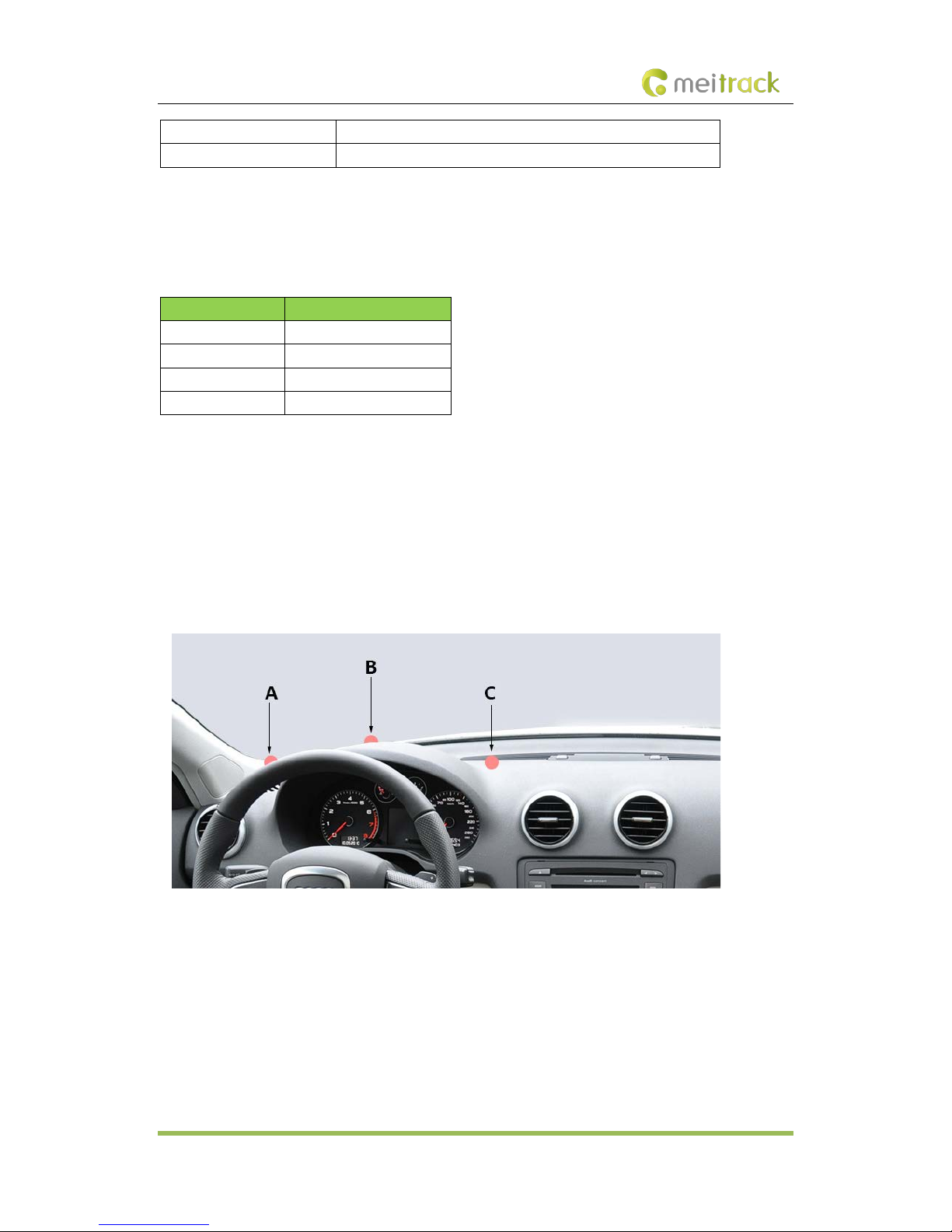

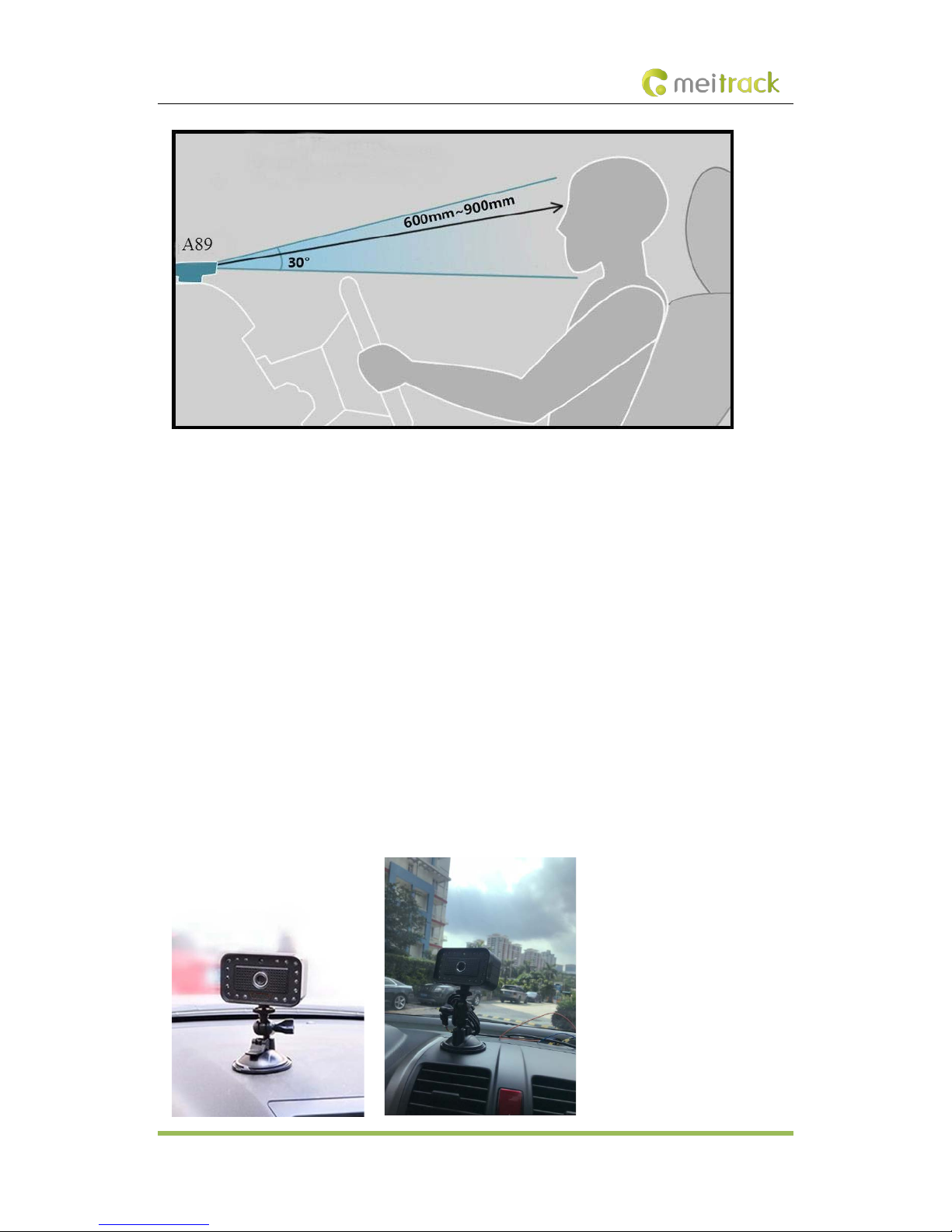

5.2.1 Finding an Installation Location ........................................................................................................... - 6 -
5.2.2 Testing the A89 .................................................................................................................................... - 6 -

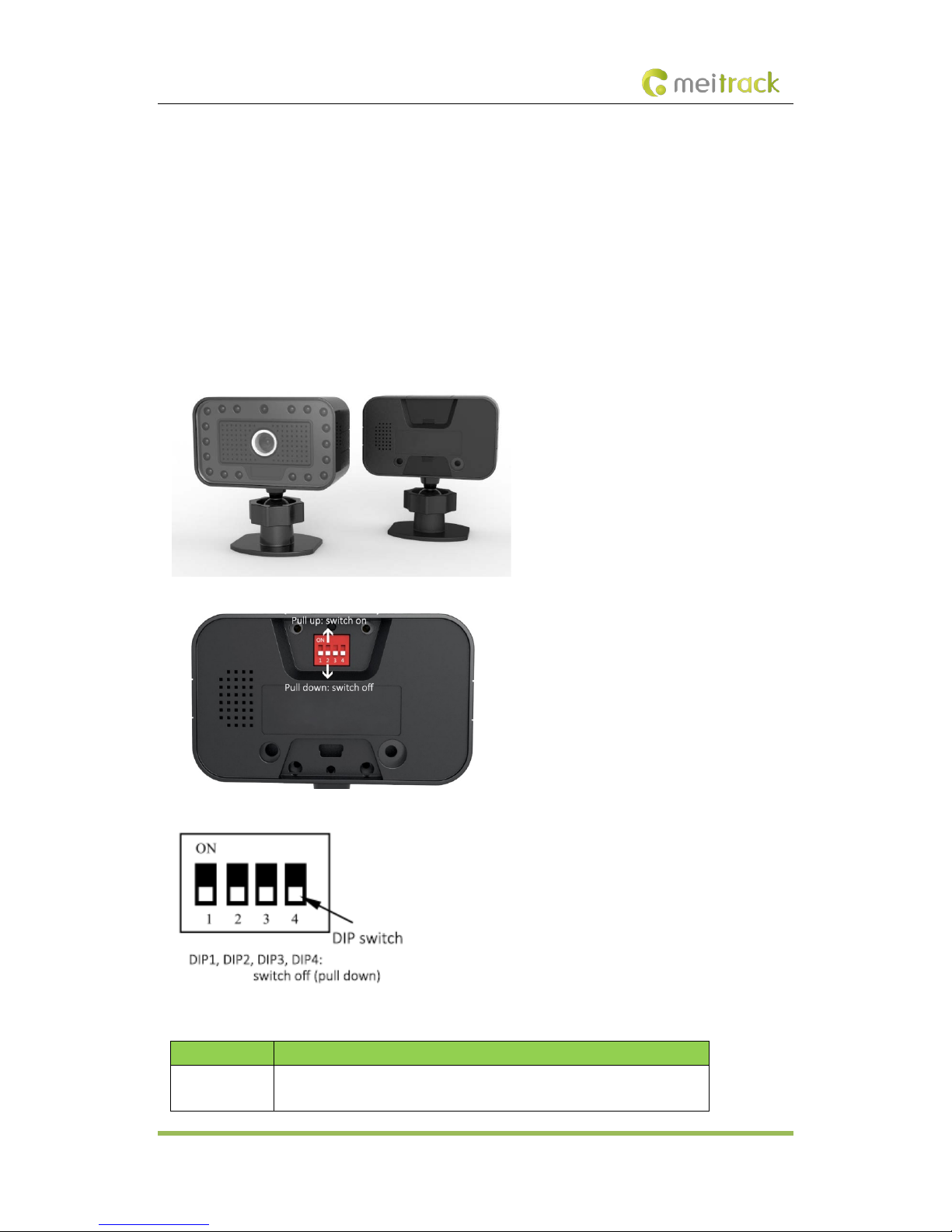

6 DIP Switch Introduction ............................................................................................................................................. - 8 -
7 Configuring the A89 on Meitrack Manager ............................................................................................................... - 9 -
7.1 Setting the GPRS Event ................................................................................................................................. - 9 -
7.2 Selecting a Peripheral ................................................................................................................................... - 9 -
7.3 Selecting Alerts ............................................................................................................................................. - 9 -
7.4 Setting the Alert Volume ............................................................................................................................ - 10 -
8 Setting Parameters by Command ............................................................................................................................ - 10 -
9 GPRS Protocol About Alert Event 114...................................................................................................................... - 10 -

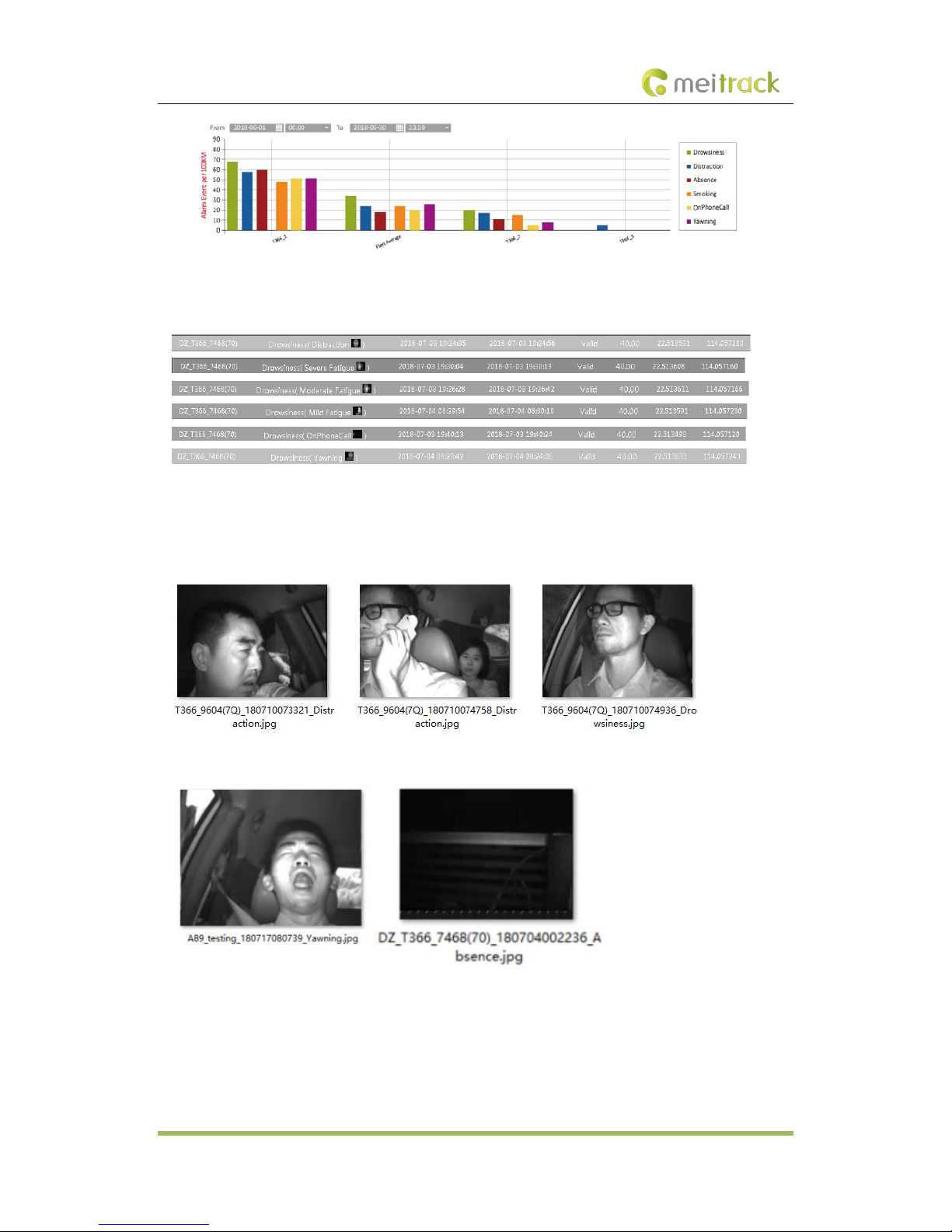

10 Querying Reports and Photos from the MS03 Platform ........................................................................................ - 11 -
10.1 Querying Driver Fatigue Time Statistics Reports....................................................................................... - 11 -
10.2 Querying Driver Fatigue Trip Statistics Reports......................................................................................... - 11 -
10.3 Querying Driver Fatigue Mileage Statistics Reports.................................................................................. - 11 -
10.4 Querying Alert Reports ............................................................................................................................. - 12 -
10.5 Querying Alert Photos .............................................................................................................................. - 12 -

A89 Driver Fatigue Monitor User Guide
Copyright © 2018 Meitrack Group All rights reserved. - 4 -
1Copyright and Disclaimer
Copyright © 2018 MEITRACK. All rights reserved.
, and are trademarks that belong to Meitrack Group and its subsidiary.
The user manual may be changed without notice.
Without prior written consent of Meitrack Group, this user manual, or any part thereof, may not be reproduced for
any purpose whatsoever, or transmitted in any form, either electronically or mechanically, including photocopying
and recording.
Meitrack Group shall not be liable for direct, indirect, special, incidental, or consequential damages (including but
not limited to economic losses, personal injuries, and loss of assets and property) caused by the use, inability, or
illegality to use the product or documentation.
2Product Introduction
2.1 Product Functions
Drowsiness alert
Distraction alert
Absence alert
Smoking alert
On Phone Call alert
Yawning alert
2.2 Function Description
The A89 driver fatigue monitor can be used by logistics companies and long-distance bus companies to detect a
driver's fatigue state and provide an early voice warning. This will help prevent accidents in a timely manner, protect
fleet companies' properties, and ensure driver safety. In addition, driver behaviors can be monitored.
This monitor can detect the following six events by recognizing faces and eyeballs:
Function Triggering Condition Voice Warning Photo
Drowsiness
alert
When the green LED indicator is steady on
and the driver closes the eyes, lowers the
head, or does not keep the eyes on the
road, a drowsiness alert will be generated.
When the driver opens the eyes, the alert
will be cleared.
Please watch the road. Upload alert photos.
Distraction
alert
When the driver is distracted, looks up, or
does not keep the eyes on the road, a
distraction alert will be generated.
When the driver keeps the eyes on the
road, the alert will be cleared.
Please keep your eyes
on the road.
Upload alert photos.
Absence
alert
When the green LED indicator is on and
the driver is absent or covers the camera
Please aim the
monitor at your face.
Upload alert photos.

A89 Driver Fatigue Monitor User Guide
Copyright © 2018 Meitrack Group All rights reserved. - 5 -
for more than 15 seconds, an absence
alert will be generated.
When the camera can capture the driver's
face, the alert will be cleared.
Smoking
alert
When the green LED indicator is on and
the driver is smoking, a smoking alert will
be generated.
When the driver is not smoking, the alert
will be cleared.
No smoking, please. Upload alert photos.
On Phone
Call alert
When the green LED indicator is on and
the driver calls for 15 seconds, an On
Phone Call alert will be generated.
When the driver puts down the phone,
the alert will be cleared.
No calling, please. Upload alert photos.
Yawning
alert
When the green LED indicator is on and
the driver is yawning, a yawning alert will
be generated.
When the driver is not yawning, the alert
will be cleared.
Please take a rest. Upload alert photos.

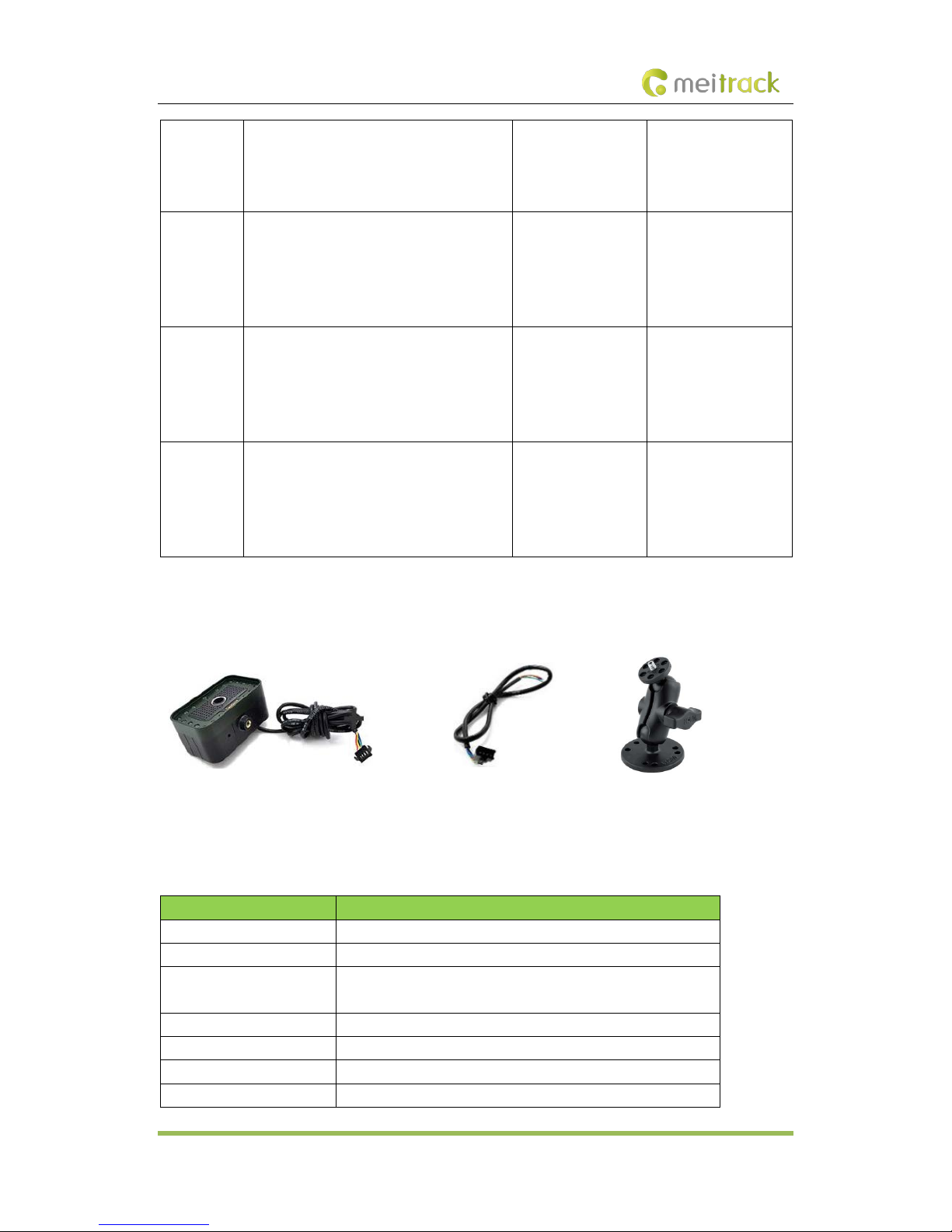

3Main Device and Accessories
A89 Driver Fatigue Monitor 4-pin extension cable Bracket
4Product Specifications
Item Specifications
Weight 300g
Power supply 9–32 V
Average operating current 340 mA (12 V)
180 mA (24 V)
Operating temperature -30°C to 75°C
Operating humidity 5 %–95 %
Pixel 320x480
Baud rate 115200 bps
