Memphis Beale Street BGBS26 User manual

Contents
Grill Clearance to Combustible Materials
2
Grill Island Dimensions
3
Hardware Kit
4
Installation Step 1-5 6-8
WiFi Setup 9-10
Wiring Diagram 11-12
MODEL NUMBER: BGBS26
Revision 1.0
READ ALL INSTRUCTIONS BEFORE INSTALLING AND USING THIS APPLIANCE
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
Installation Recommendations 5

2
DIMENSION (US)
Clearance To Combustible Materials
WARNING: The structure and surrounding objects MUST maintain the specified minimum clearance to
combustible materials.
Built-in structures constructed of wood or other combustible materials may require the use of the OPTIONAL Built- In Heat Shield Kit to maintain
the required clearance to combustible materials. The grill may be supported by either the three support brackets, or the four leveling feet. Please
note that there must be at least 3/8” (1.0cm) clearance between the bottom of the grill and the structure.
Maintain the clearance to combustible materials as specified below.
A MAJOR CAUSE OF FIRES IS FAILURE TO MAINTAIN REQUIRED CLEARANCES
(AIR SPACES) TO COMBUSTIBLE MATERIALS. IT IS OF UTMOST IMPORTANCE
THAT THIS PRODUCT BE INSTALLED ONLY IN ACCORDANCE WITH THESE
INSTRUCTIONS

3
Built-In Grill Island Dimensions
BGBS26 BEALE BUILT-IN
DIMENSION TOLERANCE
A 30 1/4" ± 1/8”
B 16 3/4” ± 1/8”
C 24 1/2” ± 1/8”
3 1/2" MIN
BGBS26 BEALE BUILT-IN
DIMENSION TOLERANCE
A 76.9 cm ± .30cm
B 42.6 cm ± .30cm
C 62.9 cm ± .30cm
D
8.9 cm MIN
WARNING: See clearance to combustible materials, when designing and constructing a built-in island. Built-In islands must
be built to the specifications listed below.
The owner and/or builder are responsible for consulting local, county and state building codes for securing any necessary
building permits before construction. NOTE: Construction codes vary from locality to locality.
NOTE: Dimensions are to the finished surfaces. Grill cavity
surfaces are to be plumb and level to ensure a proper fit.
D D

4
·3/8” Open End Wrench,
Socket or Adjustable
Wrench
· Phillips Screw Driver or Drill
· Snips or Heavy Duty Scissors
· Cut Resistant Gloves
1.5 Hours
HARDWARE COMPONENTS
TIME REQUIRED
QTY:
1
1
10
1
2
2
2
DESCRIPTION/PART
NO.
HARDWARE COMPONENTS CONT.
DESCRIPTION/PART
NO.
8) Left Mounting Bracket
BG8002
QTY:
1
1
1
2
4
TOOLS REQUIRED
10) Rear Mounting Bracket
BG8001
9) Right Mounting Bracket
BG8003
OPTIONAL
5) #10 Screw (SS)
DS2186
1) Grate Kit
VG4409
2) Savorizer
BG2700
3) Bracket Bolt
DS2311
4) Antenna
VG9025
7)#10 SS PH SCREW
DS2350
6) Concrete Anchor
DS2349
11) HEAT SHIELD
VGBHSK
12) #10 SCREW(BLK)
DS2185

5
INSTALLATION RECOMMENDATIONS
Review diagram below for minimum vent hood dimensions. The edge of the hood extends a minimum of 3"
past the side edges of the cook surface and 3 1/2" from the back. The bottom of the hood is located 30" -
44" above the cook surface. The blower CFM rating is a minimum of 1,200 cubic feet per minute. Overall
minimum coverage area for hood is 31 1/2" X 22 1/4".
OUTDOOR VENT HOOD
DEDICATED ELECTRICAL CIRCUIT WITH GFCI PROTECTED OUTLET
A dedicated GFCI protected electrical circuit is required for all Memphis Wood Fire Grills and controller
systems. This circuit should be installed by a Certified Electrician. Although the Memphis Grill only uses
about 4 amps of current during startup, any other equipment (refrigerator, pool pump, fountains, ect.) that
have high current draw, consistently or intermittently from the same electrical circuit can cause potential
issues and/ or interruptions with the performance of the grill. We recommend an on/off switch to be
installed in this circuit so that the grill can be easily disconnected from power when not in operation. This
will prevent the buildup of interference that could affect the controller’s operation.

6
INSTALLATION STEP 1: UNPACKING
Grill requires (2) two people for safe assembly
Please note that during shipping some movement may have taken place, so a complete visual
inspection is required. Be sure to inspect entire grill after removing the protective shipping carton.
Report any damage to your local dealer immediately. Shipping damage is not covered under warranty.
Some surfaces may be sharp so wear gloves when assembling. Do not plug in the grill until it's fully
assembled, the plastic protective film is removed from all stainless steel surfaces, and you're ready to
cook. See: “startup procedure” for more details.
1) Remove the Savorizer (item 2) and
included grates (item 1) from inside the
grill hood. To remove the Savorizer, cut the
4 zip ties holding it in place. Set aside
grates and Savorizer until needed.
2) Peel all plastic protective film from the
grill. Be diligent about inspection as the
protective film will be hard to remove once
a grill is installed and first burned.
Grates
Mounting Brackets
1
INSTALLATION STEP 2: WIRING
3) Install the included antenna into its bulk
head. The bulk head is located on the left
panel of the grill (Looking at the grill from
the front).
3
Packaging Locations
Hardware Kit
Indirect Insert

7
Follow the assembly steps listed below, prior
to installation of the unit. The unit is
mounted by the support brackets
(items 8, 9& 10). Refer to page 4 for item
part numbers, descriptions and quantities.
4) Remove the ash/grease drawers from the unit.
5) Fasten the left and right support brackets
(items 8 and 9) to the unit using the ten
1/4”-20 stainless steel hex bolts (item 3).
6) Fasten the rear support bracket (item 10) to the
left and right support brackets
(items 8 and 9) with two 10-24 x ½” long
stainless steel screws (item 5).
INSTALLATION STEP 3: BRACKETS
4-6
7-8
9-11 12-13
INSTALLATION STEP 4: GRILL MOUNTING
7) Place the unit into the island, and position it to
the desired depth. Ensure that the vent holes in
the support brackets are unobstructed.
8) Locate the two mounting holes found in the
back of the left and right support brackets (items
8 & 9), and mark the hole locations onto the
island’s countertop.
9) Carefully slide the unit out of the island,
exposing the marked holes on the countertop.
10) Drill two 5/16” holes into the countertop
using a drill bit appropriate for the material of the
countertop.
11) Insert two concrete anchors (item 8), into
the two 5/16” holes.
12) Slide the unit back into position, lining up
the mounting holes in the left and right support
brackets with the concrete anchors.
13) Fasten the unit into place using the two
1¾” long stainless steel screws (item 9). Do not
over-tighten.

8
Refer to page 4for item part numbers, descriptions and quantities
Vent holes on the mounting brackets must remain unobstructed.
Refer to the manual for first time use instructions.
INSTALLATION STEP 5: FINAL ASSEMBLY
14) Insert the ash/grease drawer back into the unit.
15) Place Savorizer (item 2) onto the left and right lower brackets found inside the unit.
16) Place the four lower cook grates (item 1) onto the front and rear supports. Place the long cook
grate (item 1) onto the left and right upper brackets found inside the unit.

MEMPHISWI-FI SET UP GUIDE
ON YOUR GRILL CONTROLLER:
1) A Wi-Fi connection can be set up in minutes on your Memphis Wood Fire Grill. First
power the grill on pressing the upper left button on the controller, and from the home
screen press the
lower left button “MENU”, then the bottom right button “DOWN ARROW”, and then the
upper right button “WIFI”.
2) The “WIFI” screen on your grill contains everything needed to connect your grill to a Wi-
Fi network. First, you will notice that Wi-Fi is OFF, this is enabled by default for users
not wishing to use Wi-Fi. To turn Wi-Fi ON, simply press the lower left button “TURN ON
WIFI”.
3) Next, press and release the upper right button “SETUP” and the grill will start
broadcasting the Memphis Grill network. Once the status field displays “CONNECTING”
the grill is ready to be connected to your network via any Wi-Fi compatible device.
4) Simply go to available Wi-Fi networks on your phone or tablet and select the network
“Memphis Grill xx:xx”
NOTE: The xx:xx characters will be your own unique combination of letters and numbers, and
will match the last 4 digits shown on the grill controller next to MAC.
5) Once selected, the grills network will automatically bring you to the provisioning page where
you will connect your grill to your desired Wi-Fi network. Find all connectible networks in the
grills range by hitting the button labeled "Search". Once displayed you can click and release
the desired network name and it will auto populate the “SSID” with your selection. Now you
can enter your desired networks password. If the network does not require a password, leave
the password field blank.
NOTE: 5.0 GHz networks will not show in the list of available networks as the grill cannot
connect to them.
The network name and password cannot contain any non-alphanumeric characters ie. #, !, ?,
-.
The Wi-Fi signal strength at the grill is indicated in the box to the far right of the network
name. This will be a negative number ranging from 0 to -100. 0 being the best and -100 being
the worst.
Some devices will not bring up the provisioning page automatically. Once your device is
connected to the grills network, go into your phones web browser and visit
www.wificonfig.com to manually bring up the provisioning page.
6) Click "Connect" and the page will automatically close.
NOTE: Your device may momentarily display an error message. This indicates that the grill
has disconnected from your phone and is attempting to connect to your desired network.
7) The Wi-Fi setup is now complete. The status on the controller should now read “WIFI
CONNECTED”. The time period from hitting “CONNECT” to “WIFI CONNECTED” can take up to
3 minutes based on connection strength. If the grill does not connect please refer to
www.memphisgrills.com/wi-fi-setup for troubleshooting.
ON YOUR PHONE OR TABLET: (UNDER WIFI SETTINGS)
2
4
5
6
3
SSID MAC
Signal
Strength
9

9
11

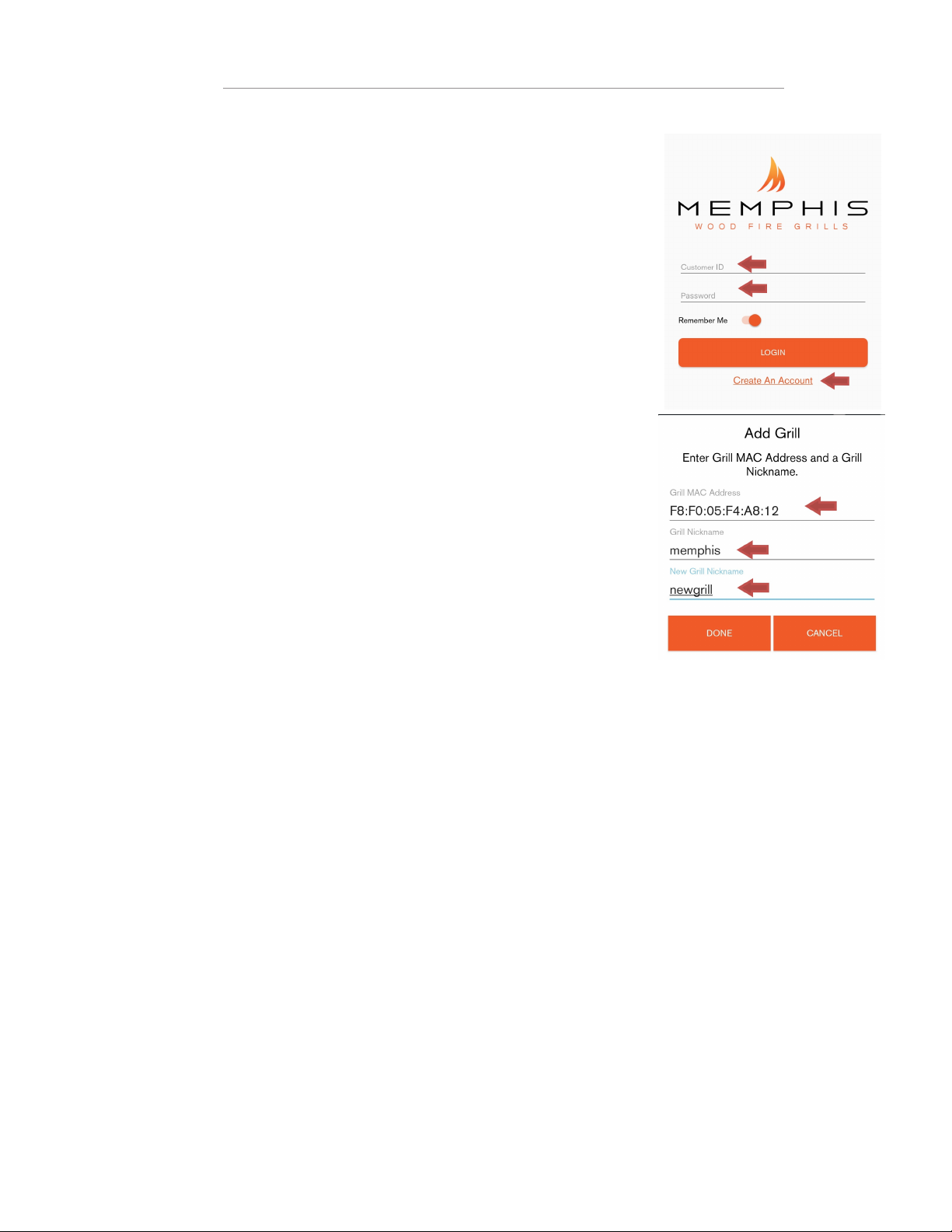

8) Download our app MEMPHIS GRILLS from the IOS App Store or Google Play Store
9) Enter a valid email into the “CUSTOMER ID” field, and create a password that you
will use to login to the app. Then click "Create an Account" this will bring up our
cloud providers Terms of Service, click "Accept". You will then receive an email
confirmation link at the email used to sign up from Grovestreams who is our cloud
provider.
NOTE: The email address you used to confirm your Memphis Grills account will
become your Customer ID when logging into the app. This email can take up to 15
minutes to appear in your inbox, and may appear in your junk or spam folders.
10) Once the confirmation link is followed from your email, return to the app.
11) Once confirmed, login to the app again and you will be able to add your grill. Enter
the exact MAC Address and Nickname shown on the grill controller including the
colons.
Example: MAC: F8:F0:05:F4 2F4:A8:1
NOTE: There are only numerical zeros, fives, and ones in the MAC Address.
Nickname is not case sensitive.
12) If this is the first time adding the grill and the nickname shows Memphis on the grill
it will ask for a new grill nickname. If the nickname on the grill is anything other
than Memphis put that in as the grill nickname.
NOTE: The grill nickname can only contain numbers and letters, NO spaces.
MEMPHIS WI-FI SET UP GUIDE CONTINUED
9
11
8) Download our app MEMPHIS GRILLS from the IOS App Store or Google Play Store
9) Enter a valid email into the “CUSTOMER ID” field, and create a password that you
will use to login to the app. Then click "Create an Account" this will bring up our
cloud providers Terms of Service, click "Accept". You will then receive an email
confirmation link at the email used to sign up from Grovestreams who is our cloud
provider.
NOTE: The email address you used to confirm your Memphis Grills account will
become your Customer ID when logging into the app. This email can take up to 15
minutes to appear in your inbox, and may appear in your junk or spam folders.
10) Once the confirmation link is followed from your email, return to the app.
11) Once confirmed, login to the app again and you will be able to add your grill. Enter
the exact MAC Address and Nickname shown on the grill controller including the
colons.
Example: MAC: F8:F0:05:F4 2F4:A8:1
NOTE: There are only numerical zeros, fives, and ones in the MAC Address.
Nickname is not case sensitive.
12) If this is the first time adding the grill and the nickname shows Memphis on the grill
it will ask for a new grill nickname. If the nickname on the grill is anything other
than Memphis put that in as the grill nickname.
NOTE: The grill nickname can only contain numbers and letters, NO spaces.
MEMPHIS WI-FI SET UP GUIDE CONTINUED
10

11

12
Item # NAME Wire Identification DESCRIPTION / INSTRUCTION
1 Auger Motor Wiring
1x Black Wire, 1x White Wire
Snap Disk
Leads Extending from Auger Motor
Attach the white wire shown to one of the leads extending from the auger
motor. Attach the black wire to the snap disk as shown. The 2nd lead
extending from the auger motor attaches to the opposite side of the snap
disk as shown. The snap disk is a thermal switch which will cut power to
the auger motor in the event that its critical temperature is reached.
2 RTD Wiring 1x Orange Wire, 1x Brown Wire Attach both spade connectors to the leads extending from the RTD as
shown above.
3 Grounding Wire Green Wire The connection point for the ground is located on the auger motor
gearbox body as shown.
4 Ethernet Cable Black Cable with Ethernet End
Attach the Ethernet cable to the terminal on the Wi-Fi card as shown.
Ensure that the wiring does not interfere with the auger motor’s moving
components.
5 Igniter Wiring 1x Red Wire, 1x White Wire Attach both spade connectors to the leads extending from the igniter.
These leads will extend from next to the fan.
6 Fan Wiring 1x Blue Wire w/ 2 spade ends,
1x White Wire w/ 2 spade ends
Attach the connections on this jumper to the two tabs located on the side
of the fan housing.
7 USB Port N/A Used to update your grill, see the “Updating Controller Software” section
of the main manual for information.
8 Meat Probe Wiring 1x Red Wire 1x Black Wire,
Wires twisted around each other
This terminal is used to connect the meat probes to the controller
9 120/240 Select
Jumper 1x Black Wire Used when changing the input voltage to the controller, see “120v to
240v Conversion” section of the main manual for information.
10 AC Load Wire from
Filter to Controller 1x Black Wire Carries AC voltage from the filter to the control board, load wire.
11
AC Neutral Wire
from Filter to
Controller
1x White Wire
Carries AC voltage from the filter to the control board, neutral wire.
12 Filter N/A Reduces electrical feedback. Line = Outlet Side, Load = Grill Side. L1 =
Load L2= Neutral
13 MOV + Fuse Holder
1x Red Wire 1x White Wire,
Pair is joined in the middle with
black shrink wrap. Fuse holder is
cylindrical and white plastic.
A two wire component which has a ferrite choke to eliminate input
electrical disturbances from the grid. Load and Neutral wires. Fuse holder
that accepts
CONTACT YOUR DEALER OR MEMPHIS GRILLS TECHNICAL SERVICE WITH ANY QUESTIONS.
TECHNICAL SERVICE NUMBER: 1-888-883-2260
