Memphis 42000 Btu Owner's manual

Assembly & User Instructions
Memphis 42000 Btu
Heat Focusing Patio Heater
These instructions are for your safety. Please read them
thoroughly before use and retain them for future reference.
DANGER:
If you smell gas:
1. Shut o gas to the appliance.
2. Extinguish any open ame.
3. If odor continues, keep away from
the appliance and immediately call
your gas supplier or re department.
DANGER:
Do not store or use gasoline or other
ammable vapors and liquids in the
vicinity of this or any other appliance.
An LP-cylinder not connected for use
shall not be stored in the vicinity of any
other appliance.
WARNING:
For Outdoor Use Only.
WARNING:
Improper installation, adjustment,
alteration, service or maintenance can
cause injury, property damage or death.
Read the installation, operating and
maintenance instructions thoroughly
before installing or servicing this
equipment.
Patent No: US 8,176,910

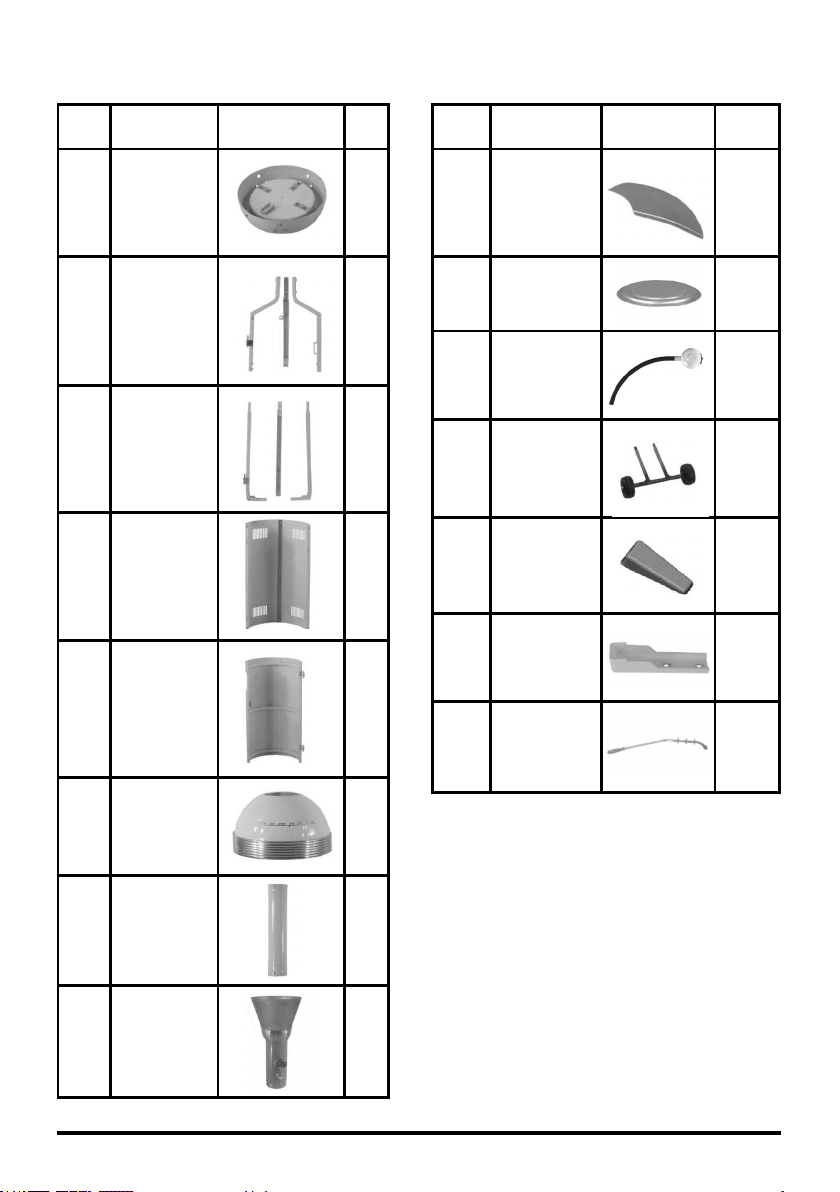

Ref Description Illustration Qty Ref Description Illustration Qty
Parts Supplied
1
2
3
4
5
6
7
8
Base
Upper
Cylinder
Chamber
Supports
Lower
Cylinder
Chamber
Supports
Cylinder
Chamber
Wall
Cylinder
Chamber
Door
Cylinder
Chamber
Cover
Support
Pole
Lantern
1
3
3
1
1
1
1
1
9
10
11
12
13
14
15
Parasol
Side
Panels
Parasol Top
Panel
Hose and
Regulator
Wheels
Legs
Base Plate
Reector
Handle
6
1
1
1
5
1
1
Page 2

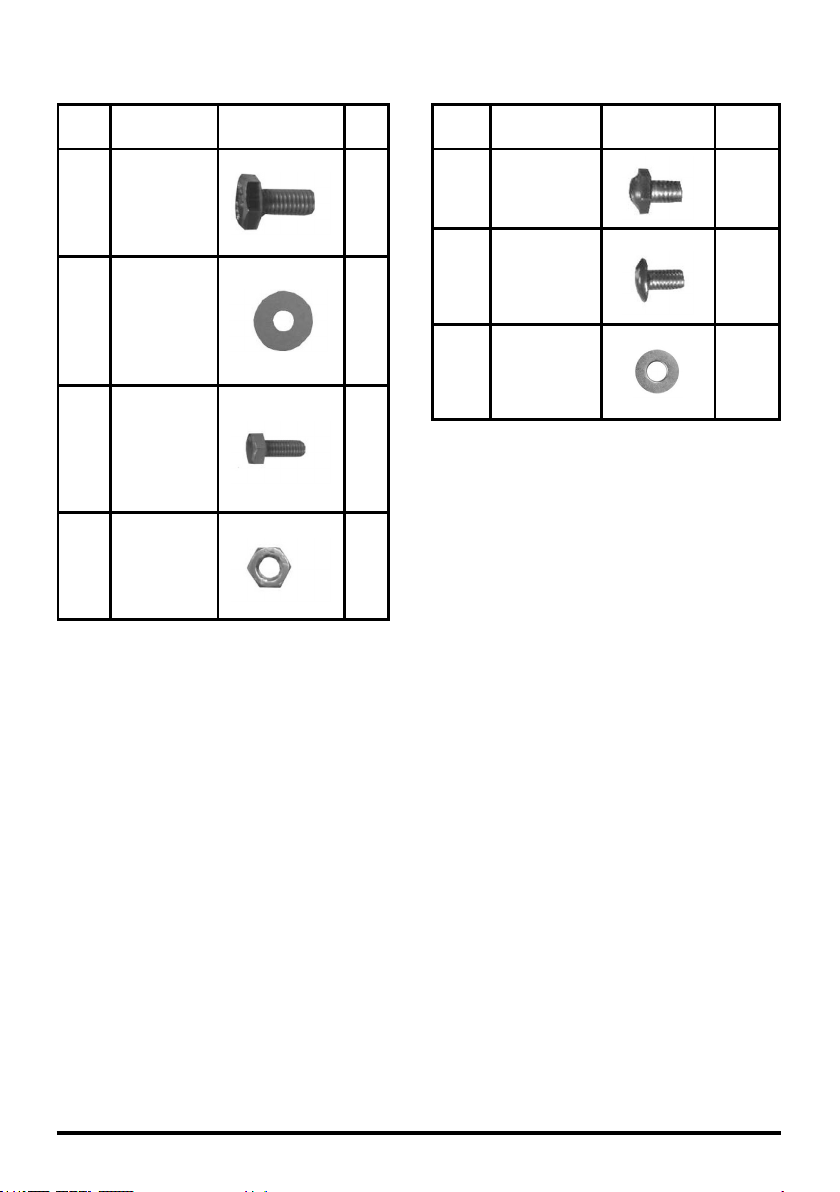

Ref Description Illustration Qty Ref Description Illustration Qty
Fixings Supplied
A
B
C
D
M8 x 10
Bolt
M8 Large
Washer
Stainless
Steel
M6x16 Bolt
M6 Nut
3
3
29
22
E
F
G
M6x10 Bolt
M6x10
Dome
Head
M6 Washer
13
22
4
Page 3
Note: Fixings not shown to actual size.
Before You Start
• When you are ready to start, make sure that you have the right tools at
hand, plenty of space and a clean dry area for assembly.
Assembly
• Please lay out all nuts and bolts and check lengths before assembly. It is
recommended that the carton is cut open and spread out on the
oor and used as a protective surface during assembly. Refer to the
assembly diagrams as necessary.
• Important - while every precaution has been made in the manufacture of
this product, care must be taken during assembly in case sharp edges
are present.

Page 4

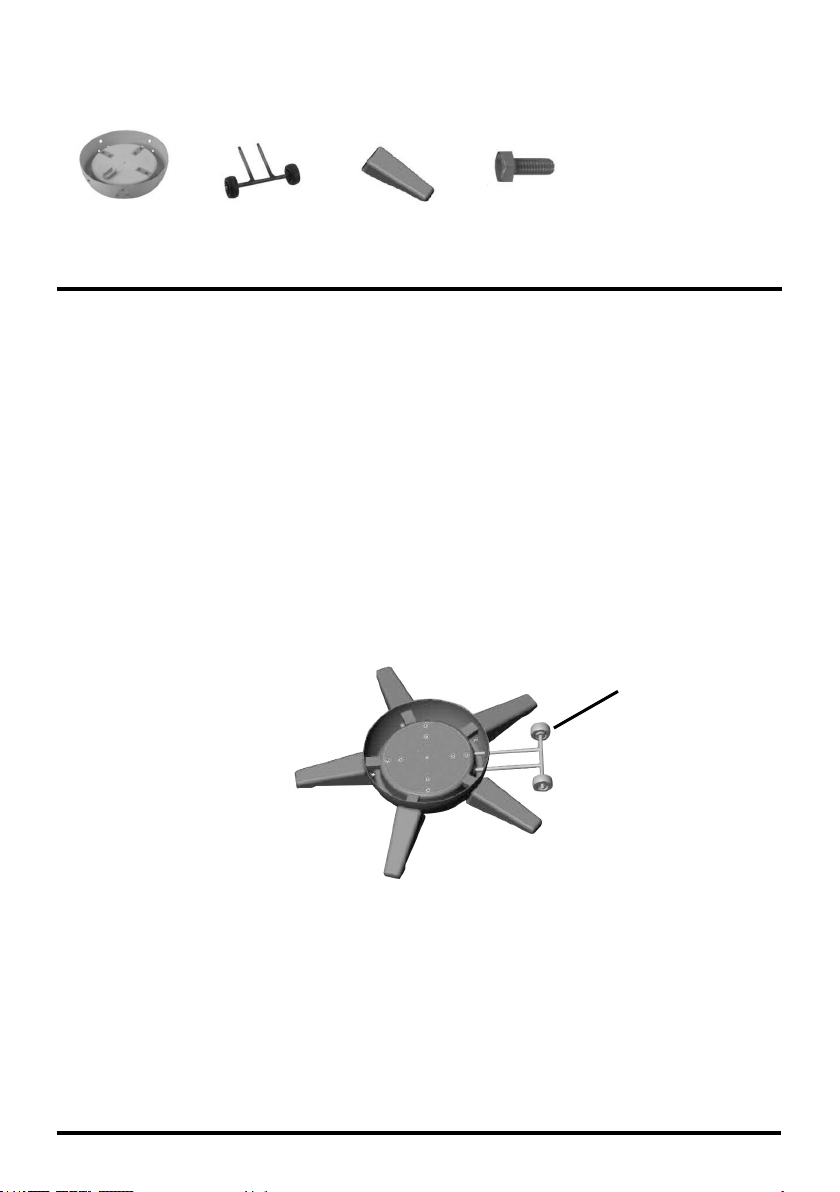

Assembly step 1
Base Wheels Legs M6X16
Bolts (C)
1. Turn the base upside down. Remove the pretted nuts and washers
from the wheels and push wheels into the holes on the base. Secure
with nuts and washers.
Note: Wheels will only t into the bigger set of holes.
3. Fix Legs using 3 of the M6x16 Bolts (C) per leg.
4. Turn the base back over to prepare for the next step.
Base Over View
Wheels

Page 5

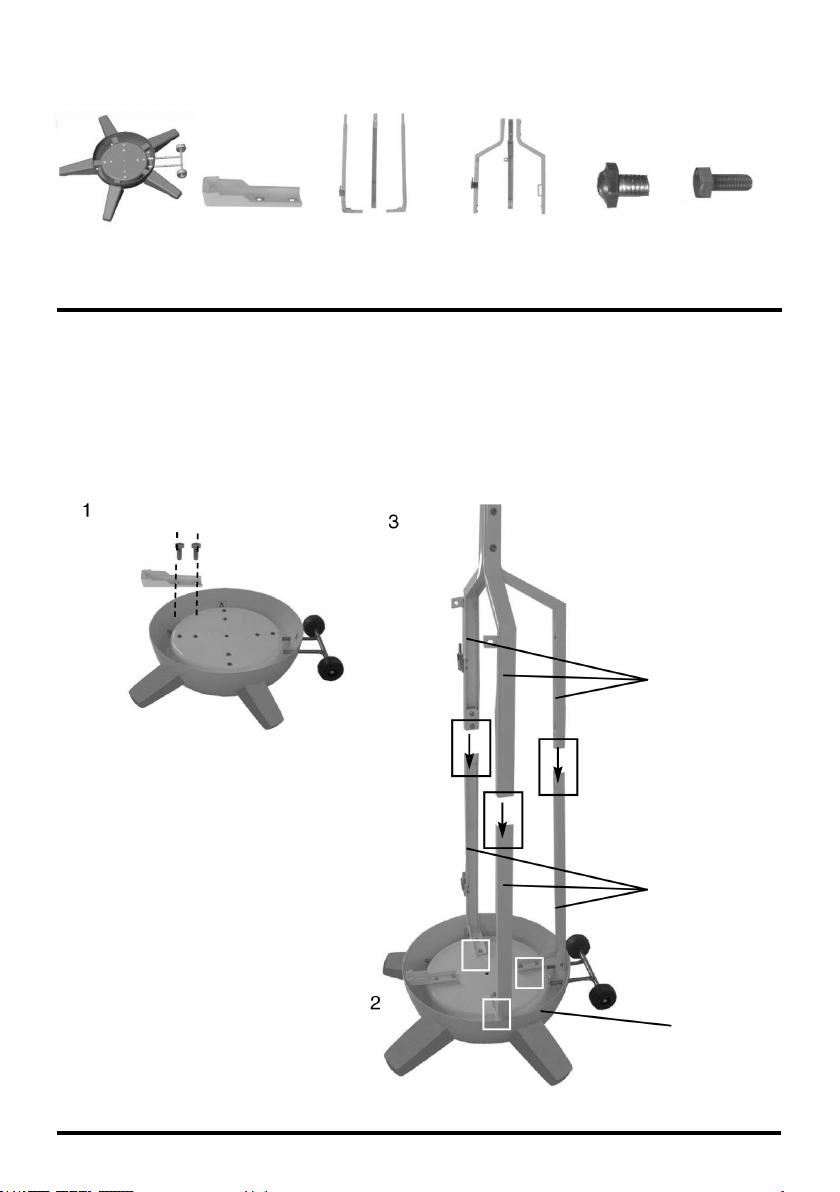

Assembly step 2
Base Base Plate Lower cylinder
chamber
supports
Upper cylinder
chamber
supports
M6 x 10
Bolt (E)

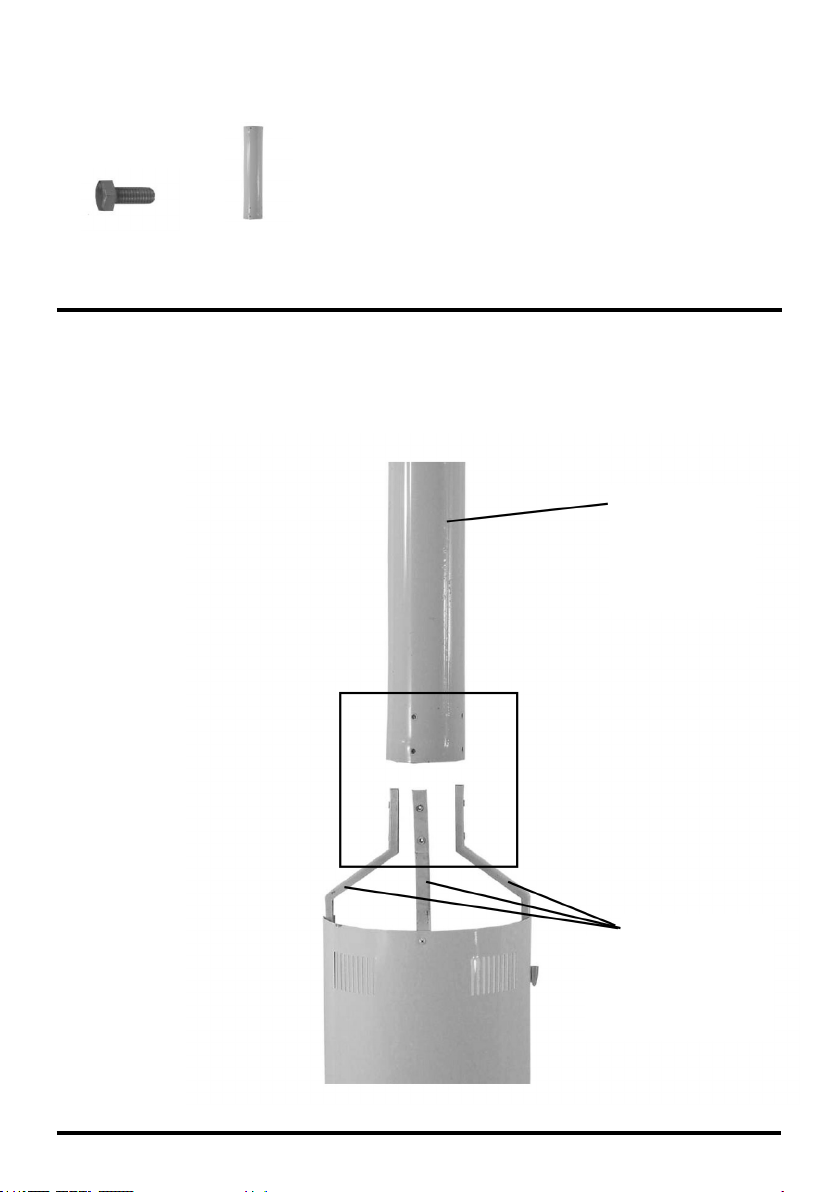

M6 x 16
Bolt (C)
1. Fix base plate to base using 2 M6x16 (C) Bolts.
2. Fix lower cylinder chamber supports to the corresponding letters on
the base of heater using 6 of the M6x16 (C) Bolts. Finger tighten only
at this stage.
3. Slide upper cylinder chamber supports over the lower chamber
supports and tighten into place using 6 of the M6x10 (E) Bolts.
Upper
Cylinder
Chamber
Supports
Lower
Cylinder
Chamber
Supports
Base

Page 6

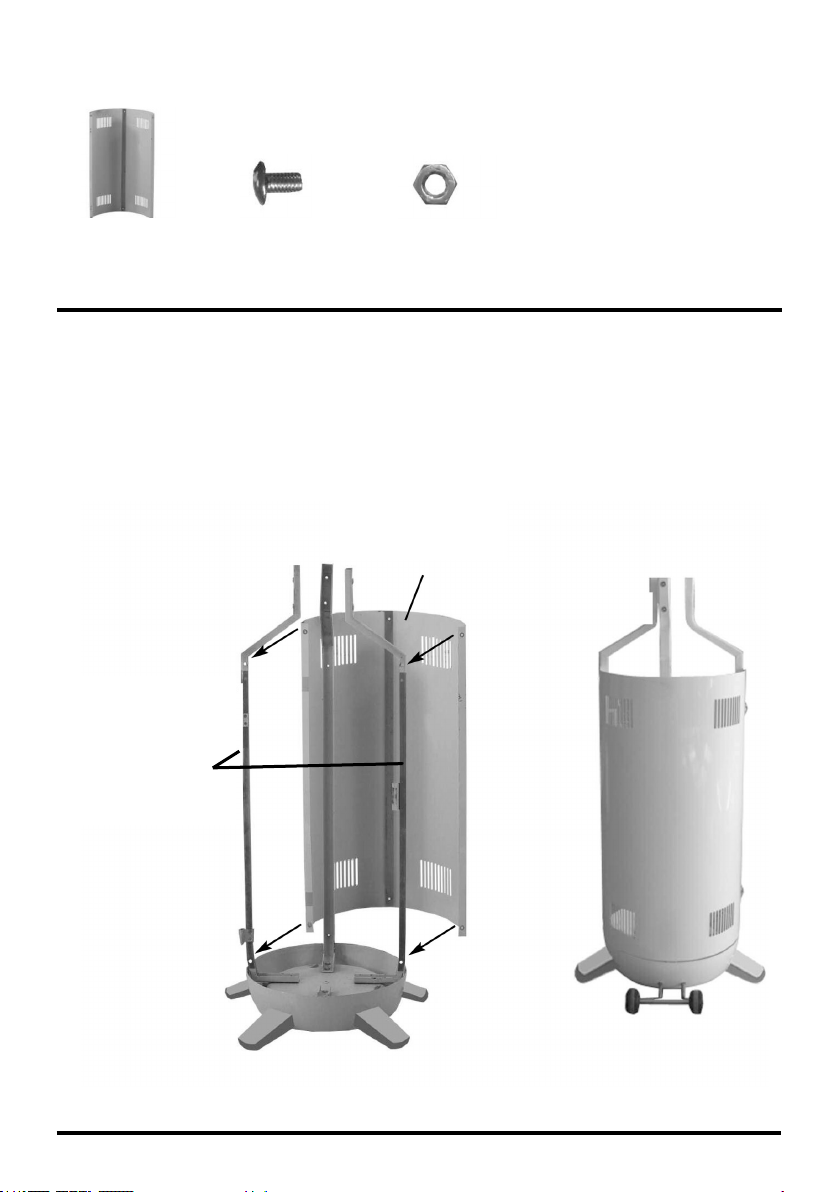

Assembly step 3
Cylinder
Chamber Wall
M6 x 10
Dome
Head Bolt (F)
M6 Nut (D)
Fix cylinder chamber wall to cylinder chamber supports using 4 of the M6
x10 Dome Head Bolt (F) and M6 Nut (D) as shown.
Finger tighten only at this stage.
Cylinder
Chamber Wall
Cylinder Chamber
Supports
M6 x 10 Dome
Head Bolt
& M6 Nut

Page 7
Assembly step 4
M6 x 16
Bolt (C)
Support
Pole
Fix support pole to cylinder chamber supports as shown using 6 of the
M6 x 16 (C) Bolts. Finger tighten to locate and then tighten securely.
Tighten all bolts that are tted at stages 2 and 3.
Support Pole
Cylinder
Chamber
Supports

Page 8
Assembly step 5

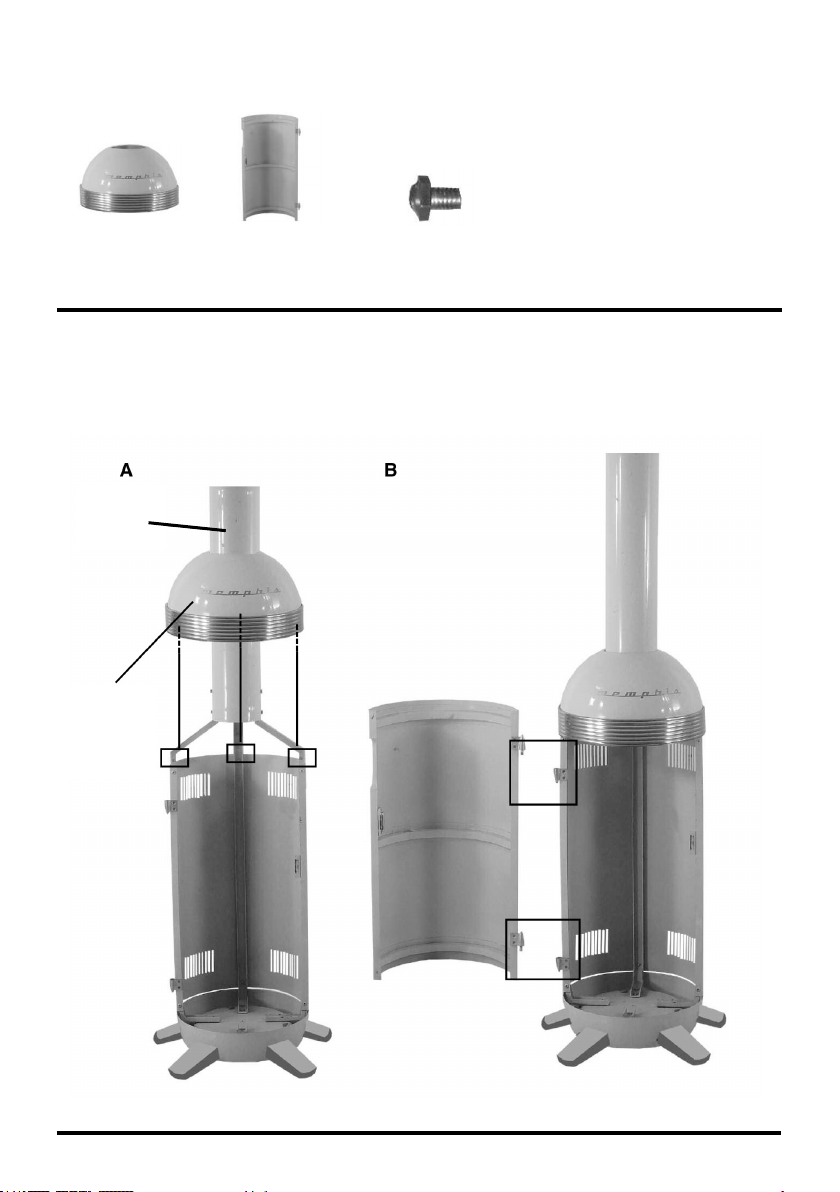

Cylinder
Chamber Cover
Cylinder
Chamber Door
M6 x 10
Bolt (E)
A. Secure cylinder chamber cover to support legs as shown using 3 of
the M6 x 10 (E) Bolt.
B. Fit door in position as shown in diagram.
Support
Pole
Cylinder
Chamber
Cover

Page 9
Assembly step 6
Lantern Hose &
Regulator
Feed the gas hose through the support pole
Flexible
Gas hose
Lantern
Support Pole
Connect the regulator to the LP gas
cylinder by screwing onto the cylinder
valve. Turn clockwise to tighten securely.
The cylinder should be located in the
cylinder chamber as shown.
NB: The cylinder must be orientated in this
way to provide vapor withdrawal.
Screw
regulator onto
gas cylinder
Locate cylinder
as shown
securing in
place with
chain.

Screw
regulator onto
gas cylinder
Page 10
Assembly step 7
M6 x 10
Bolt (E)

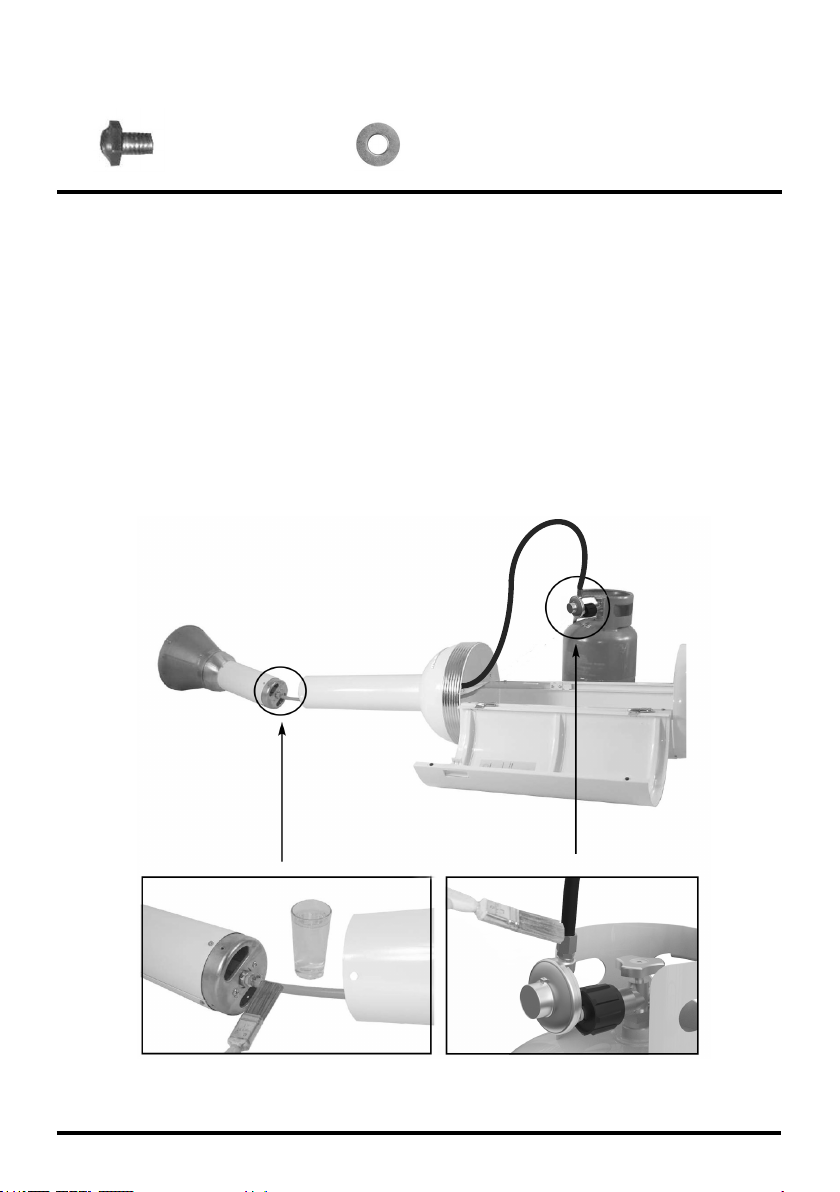

To check patio heaters for leaks
To be performed in a well ventilated area. Lie heater down on the oor as shown
below. Conrm all control knobs are in the o position. Open the gas control
valve on the bottle or regulator.
Check for leaks by brushing a solution of 1/2 water and 1/2 soap over the gas
system joints as shown in the hose connection and regulator connection.
NEVER USE AN OPEN FLAME to test for leaks at any time.
If bubbles form over any of the joints, there is a leak. Turn o gas supply and
re-tighten all joints.
Repeat test. If bubbles form again, do not use the patio heater. Please contact
your local gas dealer for assistance or email the factory [email protected] or phone
678 534 2876. Leak test annually and whenever the gas bottle is removed or
replaced.
When leak test complete secure lantern to top of support pole with 4 of
the M6x10 bolts (E) and M6 washer.
M6 Washer (G)

Page 11
Assembly step 8
Reector Handle
Fitting reector handle
R Clip Retaining Pin
Heat focus
reector bracket
Remove R clip and
retaining pin
Reector
handle
Fit reector handle
Secure with retaining
pin and R clip.

Page 12
Assembly step 9
Top
Panel
Side
Panel
M6 Nut
(D)
Loosely screw parasol side panels together overlapping as shown, with
12 bolts and nuts (D,F), x the top panel to the top of assembled side
panels using 6 bolts and nuts (D,F). Tighten all nuts. Fix assembled
parasol onto top of Heat Focusing Reector Bracket with 3 bolts (A) and
Washer (B).
M6 x 10
Dome Head
Bolt (F)
M8 x 10
Bolt
(A)
Stainless
Steel
Washer (B)
Top Panel Side Panels
Lantern
Use the reector handle to adjust
the degree of reector tilt.

Page 13
For all appliances:
• The heater, when installed, must be electrically grounded in accordance with local codes or, in the
absence of local codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical
Code, CSA C22.1.
• Certain materials or items, when stored under the heater, will be subjected to radiant heat and could
be seriously damaged.
• Inspect the visible portion of the hose before each use of the appliance. Check full length of the
hose annually.
• Children and adults should be alerted to the hazards of high surface temperatures and should stay
away to avoid burns or clothing ignition.
• Young children should be carefully supervised when they are in the area of the heater.
• Clothing or other ammable materials should not be hung from the heater, or placed on or near the
heater.
• Any guard or other protective device removed for servicing the heater must be replaced prior to
operating the heater.
• Installation and repair should be done by a qualied service person. The heater should be inspected
before use and at least annually by a qualied service person.
More frequent cleaning may be required as necessary. It is imperative that control compartment,
burners and circulating air passageways of the heater be kept clean.
• Keep the appliance area clear and free from combustible materials, gasoline and other ammable
vapors and liquids.
• Do not obstruct the ow of combustion and ventilation air.
• Keeping the ventilation opening(s) of the cylinder enclosure free and clear from debris.
• Clean the appliance, including special surfaces, with recommended cleaning agents, if necessary.
An appliance may be installed with shelter no more inclusive than:
a. With walls on all sides, but with no overhead cover.
b. Within a partial enclosure which includes an overhead cover and no more than two side walls.
These side walls may be parallel, as in a breezeway, or right angles to each other.
c. Within a partial enclosure which includes an overhead cover and three side walls, as long as 30
percent or more of the horizontal periphery of the enclosure is permanently open.
The LP-gas supply cylinder to be used must be:
a. Constructed and marked in accordance with the specications for LP-gas cylinders of the
U.S. Department of Transportation (DOT); or the Standard for cylinders, Spheres and Tubes for
Transportation of Dangerous Goods and Commission, CAN/CSA-B339, as applicable;
b. Provided with a listed overlling prevention device; and
c. Provided with a cylinder connection device compatible with the connection for the appliance.
d. 20LP (9kg) cylinder. LPG capacity 4.7 gallons (17.8 litres) Cylinder Dimensions: Height 17.75
inches (451mm) and width 12.25 inches (311mm)
e. The LP - gas cylinder used must include a collar to protect the cylinder valve.
A cylinder must be stored outdoors in a well-ventilated area out of reach of children. A disconnected
cylinder must have dust caps tightly installed and must not be stored in a building, garage or any
enclosed area.
The pressure regulator and hose must be used and any replacement pressure regulator or hose must
be those as specied by the manufacturer.
Do not store spare LP-gas cylinder under or near this appliance.
Never ll the cylinder beyond 80 percent full.
Place the dust cap on the cylinder valve outlet whenever the cylinder is not in use. Only install the
type of dust cap on the cylinder valve that is provided with the cylinder valve. Other types of caps or
plugs may result in leakage of propane.

Page 14
Gas and Regulator
• The gas hose must be connected in accordance with these instructions. When installed
correctly all parts of the hose should be contained within the Patio Heater pole and gas
cylinder chamber. No part of hose should be outside of the Patio heater body where it could be a
trip hazard or could be accidentally damaged.
This appliance is for propane use only.
• See instructions supplied with regulator for correct use and attachment.
• Gas bottles should never be stored on their side.
• Never store gas bottles indoors.
• This appliance is supplied with a propane regulator which must only be
used for propane gas. NEVER use an adjustable regulator with this appliance.
• Please consult your gas dealer for the most suitable gas bottles for your regulator.
Siting Instructions
• This appliance is for OUTDOOR USE ONLY and should be placed in a well ventilated area.
• A well ventilated area must have a minimum of 30% of its surface area open.
(Surface area is dened as the total surface of the walls surface.)
• The sides of the appliance should NEVER be closer than 24 inches (0.6m) from any combustible
surface.
• Keep this appliance away from any ammable materials!
• Important - Make sure the gas bottle is placed level within the base.
• Should you need to change the gas bottle, conrm the gas supply is turned o at the regulator or
bottle / cylinder valve, and there are no sources of ignition (cigarettes, open ame, sparks, etc.) near
before proceeding.
• For additional safety if required, x heater securely through the holes in base to a sound surface
(xings not supplied).
• Inspect the gas hose to ensure it is free from any twisting or tension. The hose should hang freely
with no bends, folds, or kinks that could obstruct free ow of gas. Always inspect the hose for
cuts, cracks, or excessive wear before use. If the hose is damaged, it must be replaced with hose
suitable for use with LPG and meet the national standards for the country of use.
Connecting to the cylinder
• Conrm all control knobs are in the o position.
• Connect the regulator to the gas bottle according to your regulator and bottle dealers instructions.
Page 14
Leak Testing
• To be performed in a well ventilated area.
• Conrm all control knobs are in the o position.
• Open the gas control valve on the bottle.
• Check for leaks by brushing a solution of 50% water and 50% dish soap over the gas system joints,
including all valve connections, hose connections and regulator connections.
• NEVER USE AN OPEN FLAME to test for leaks at any time.
• If bubbles form over any of the joints, there is a leak.
• Turn o gas supply and retighten all joints.
• Repeat test. If bubbles form again, do not use the patio heater. Please contact the helpline stated in
this manual.
• Leak test annually and whenever the gas bottle is removed or replaced.
Gas and Regulator
• The gas hose must be connected in accordance with these instructions. When installed correctly all
parts of the hose should be contained within the Patio Heater pole and gas cylinder chamber. No
part of hose should be outside of the Patio heater body where it could be a trip hazard or could be
accidently damaged.
This appliance is for propane use only.
• See instructions supplied with regulator for correct use and attachment.
• Gas bottles should never be stored on their side.
• Never store gas bottles indoors.
• This appliance is supplied with a propane regulator which must only be used for propane gas.
NEVER use an adjustable regulator with this appliance.
• Please consult your gas dealer for the most suitable gas bottles for your regulator.
Siting Instructions
• This appliance is for OUTDOOR USE ONLY and should be placed in a well ventilated area.
• A well ventilated area must have a minimum of 30% of its surface area open.
(Surface area is dened as the total surface of the walls surface.)
• The sides of the appliance should NEVER be closer than 40 inches (1m) from any combustible surface.
• Keep this appliance away from any ammable materials!
• Important - Make sure the gas bottle is placed level within the base.
• Should you need to change the gas bottle, conrm the gas supply is turned o at the regulator or
bottle / cylinder valve, and there are no sources of ignition (cigarettes, open ame, sparks, etc.) near
before proceeding.
• Inspect the gas hose to ensure it is free from any twisting or tension. The hose should hang freely with
no bends, folds, or kinks that could obstruct free ow of gas. Always inspect the hose for cuts, cracks,
or excessive wear before use. If the hose is damaged, it must be replaced with hose suitable for use
with LPG and meet the national standards for the country of use.
Connecting to the cylinder
• Conrm all control knobs are in the o position.
• Connect the regulator to the gas bottle according to your regulator and bottle dealers instructions.
WARNING:
FUELS USED IN LIQUEFIED PROPANE GAS
APPLIANCES, AND THE PRODUCTS OF COMBUSTION OF SUCH
FUELS, CAN EXPOSE YOU TO CHEMICALS INCLUDING BENZENE,
WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE
CANCER AND CAUSE BIRTH DEFECTS OR OTHER REPRODUCTIVE
HARM.
For more information go to: www.P65Warnings.ca.gov.

Page 15
Use Instructions
Before proceeding make sure you understand the warnings section of this manual.
Lighting instructions:
• Turn on gas supply at cylinder.
• Push dial in and turn to position .
• While dial is held pressed in at position , press spark button repeatedly to ignite
the heater.
• Hold dial in for at least 10 seconds to ensure heater stays lit.
• If the heater does not light after holding dial in for 20 seconds, wait 5 minutes and try again.
Do not continuously hold the dial in as you may cause a build up of gas.
• In windy conditions, shield from wind to ensure easy lighting and hold dial in for at least 20 seconds
to ensure heater stays lit.
• Turn control dial to high or low ame position as required.
• Correct operation of the burner is indicated by a predominantly blue quiet ame.
If the piezo sparker fails you can light your patio heater using a match.
To light Patio Heater with match:
1. Place lit match through the gap below the burner mesh and wind guard.
2. Turn the control dial to the position. After burner ignites keep control dial
held in for 10 seconds to ensure burner stays lit and then release.
3. If the burner does not light after holding the control dial in for 20 seconds
with the lit match in position, remove the match, turn the control dial to the
o position, wait 5 minutes and then repeat.
To Turn O:
• Push dial in and turn to position .
• Turn the gas o and disconnect at the cylinder when not in use.
Flame Characteristic
The ame pattern at the burner mesh should be visually checked whenever the heater is
operated. Normally the burner ame is blue with yellow ame at the top. The Burner mesh will
become red hot. If ames extend beyond the surface of the burner mesh, or the phenomena of
ame lift or light back, or black spot is accumulating on the burner mesh or reector, the
heater should be turned o immediately. The heater should not be operated again until the
unit is serviced or repaired.
Care and Maintenance
• Regularly clean your patio heater between uses and especially after extended periods of storage.
• Ensure the heater control is turned fully to the o position. the gas supply is shut o at the regulator
or bottle / cylinder valve, and the heater and its components are suciently cool before cleaning.
• Never douse the heater with water when its surfaces are hot.
• We recommend that servicing of this appliance should be performed either after every 100 hours of
use or annually, which ever is achieved soonest.
Fixings
All screws and bolts, etc. should be checked and tightened on a regular basis.
Storage
• Do not leave the patio heater exposed to outside weather conditions or stored in damp moist
conditions.
• To save space during long-term storage, the reector can be removed. Take care to ensure the
shape of the reector is not damaged or deformed, as this will aect performance.
Control Dial
Yellow Tip
Primary blue
ame
Reector
Burner mesh

Page 16
• When using the heater after extended periods of storage, re-attach the reector.
The heater should never be operated without the reector in place.
• If the heater is to be stored indoors, the gas bottle must be disconnected and left outside. in a dry,
well-ventilated area,away from any sources of heat or ignition.
• Do not let children tamper with the bottle.
Service
If your heater needs maintenance or is not working properly, please contact your local
authorized agent for service. It is a necessity to contact an authorized source for replacement of parts
and/or servicing. This work must be carried out by a qualied gas technician. Spare parts may be
obtained by contacting our spare parts department by email: [e-mail]
WARNINGS
• This product is for OUTDOOR USE ONLY
• NEVER use indoors, in an enclosed area or below ground level.
• This appliance is intended for use with LPG bottled gas only.
• This appliance has been supplied with a PROPANE REGULATOR (only use with Propane gas).
• NEVER use an adjustable regulator with this appliance.
• This appliance features a ame failure and tilt device. In the event of a wind blowing the ame out or
the unit being tipped over, the gas supply will be cut o from the cylinder. In this event, the knobs
should be set to o and you should wait 5 minutes before re-lighting.
• Failure to read and follow these instructions could result in serious injury or damage to property.
• This product will become hot when in use – take care when touching.
• Keep children and pets at a safe distance from the unit when in use.
• DO NOT move this product when in use.
• Any modication of this appliance may be dangerous.
• DO NOT use heater where the reector is within 24 inches (0.6m) of any ammable structure or
surface.
• NEVER operate the heater with the top half covered (burner head, reector, etc..)
• DO NOT leave this product unattended when in use.
• Always keep the cylinder level and vertical when positioning inside the base.
• ONLY use this appliance on a at LEVEL non ammable surface or ground. Positioning, ensure the
unit is a minimum of 24 inches (0.6m) from ammable items or structure from all sides and above.
• Always leak test the unit before use, annually, or after storage, when parts are replaced/serviced or
if the gas cylinder is removed or replaced.
• When storing the appliance or gas cylinder, ensure they are away from ammable materials or
liquids.
• Regularly check that the regulator seal and hose is tted and that it is in good condition. Replace
parts if necessary.
• Always follow the care and maintenance instructions – regularly maintain your appliance.
• Always replace worn parts – do not use the appliance if a leak, wear, or damage is found.
• DO NOT store or cover the appliance until fully cooled.
• DO NOT obstruct the ventilation holes of the cylinder housing.
• Always shut o the valve at the gas cylinder or the regulator before moving the appliance.
• In the event of high winds particular attention must be taken. Store the unit away or ensure it is at a
safe distance from other items in the event that the unit is blown over.
• Only use with gazebo’s specically designed to be used with patio heaters.
• Ensure the heater is at a safe distance from glass and PVC doors and windows to stop damage
from any heat build up.
• Read the warnings and instructions use before operation.
Warning: Do not leave the patio heater heat focusing reector in the tilt position during rain or windy
conditions or when the patio heater is not in use or unattended.
Always position the heat focus reector in the full down position when not in use or during Wind/Rain
conditions.
DURING RAIN/HIGH WIND CONDITIONS OR WHEN UNATTENDED

CAUTION
• It is normal for the heater to smoke during the rst few minutes of use.
• Regularly clean your patio heater after every use.
• If you smell gas – turn o the appliance and extinguish all ames. If the odour
continues, immediately contact your gas supplier.
• In the event of an uncontrollable re, immediately disconnect the gas cylinder moving
it away from re and contact the re services. DO NOT PUT YOURSELF AT RISK!
• Ensure aerosols are not used near this unit when in use.
• Ensure all packaging and plastic bags are disposed of safely.
Technical Data
Overall Height: 90" approx.
Overall Weight: 84lbs
Overall Width: 34" approx.
Heater Heat Input(·Qn): 42000 Btu/h
Heater Gas Consumption: 2.0 Lbs per hour
Heater Injector Size: 0.077"
Setting Pressure: 11" per W.C
Regulator Outlet Pressure: 11" per W.C
Standard: ANSI Z83.26-(2014).CSA 2.37-(2014)
Gas Fired Outdoor infrared Patio heaters
Gas Supply Pressure: Max.250 PSI, MIN.5 PSI
Specications are subject to change without prior notice.
Universal Innovations China Ltd.
168# Jianghan Road, Zhijiang City, Hubei Province 443200, China.
Shall be used only in a well ventilated space and shall not be used in a building,
garage or any other enclosed area. Maybe installed in shelter no more inclusive
than:
– With walls on all sides but with no overhead cover.
– Within a partial enclosure which includes an overhead cover and no more
than two side walls. These side walls may be parallel, as in a breezeway, or
at right angles to each other.
– Within a partial enclosure which includes an overhead cover and three side
walls, as long as 30% or more of the horizontal periphery of the enclosure is
permanently open.
Warranty
Keep these instructions for future reference.The patio heater has been manufactured under the
highest standards of quality and workmanship.We warrant to the original consumer purchaser that all
aspects of this product will be free of defects in material and workmanship for 1 year from the date
of purchase. A replacement for any defective part will be supplied free of charge for installation by
the consumer. Defects or damage caused by the use of other genuine parts are not covered by this
warranty. This warranty shall be eective from the date of purchase as shown in the purchaser’s
receipt.
This warranty is valid for the original customer only and excludes product damage due to shipment
or failure which results from alteration, product abuse or product misuse whether performed by
a contractor, service company, or consumer. We will not be responsible for labor charges and/or
damage incurred in installation, repair or replacement, nor for incidental or consequential damage.
Contact: [email protected] Tel: [phone]
24"(0.6M) 24"(0.6M)
5010530
