Mepla Alfit Soft-close User manual

1.5
The unique hinge Soft-close®
system for doors
Soft-close ®
Soft-close®
Soft-close®

1.5.4
Soft-close® CST
1.5.8
1.5.12
1.5.13
Page
Soft-close ®
Summary
•For hinges CST04, CST 05, CST 22 and CST 29
•Quick and easy tool-less installation
Soft-close® CS
•For hinges CS04, CS 05, CS 22 and CS 29
•Quick and easy tool-less installation
Soft-close® F65
•For hinges CST 65 und CS 65
•Quick and easy tool-less installation
Soft-close® Mirro
•For hinges Mirro and Mirro -15°
•Quick and easy tool-less installation
1.5.2

1.5.14
Soft-close® ACC
1.5.16
Page
•For face frame doors
Soft-close® AL
•For aluminium frame doors
1.5.3
Soft-close®

Elegant design and fascinating engineering.
The perfect combination of the hinge series CST Twin NT
with Soft-close® CST.
Feel like something quiet? Then use Soft-close® CST.
Experience – how doors move in a floating motion.
The future is entering into all furniture.
Either kitchen, bath or furniture, Soft-close®
CST can be installed immediately or be
mounted onto CST Twin NT after the hinge
is already installed.
Fast, secure and comple-tely toolless. The
number of Soft-close® CST installed depends
on the door size and weight. Please use the
recommended data from the chart.
Twin NT hinges and Soft-close® CST are the
perfect match in functionality. The system
indicates directions by the harmonizing
perfect design. The design developed by
Mepla-Alfit is unique and defines a new
closing of doors: The motion of the doors is
softly slowed down and the door self closes
softly and quiet – the perfect balance
between form and function.
Soft-close ® CST
The unique hinge Soft-close® system for doors
1.5.4

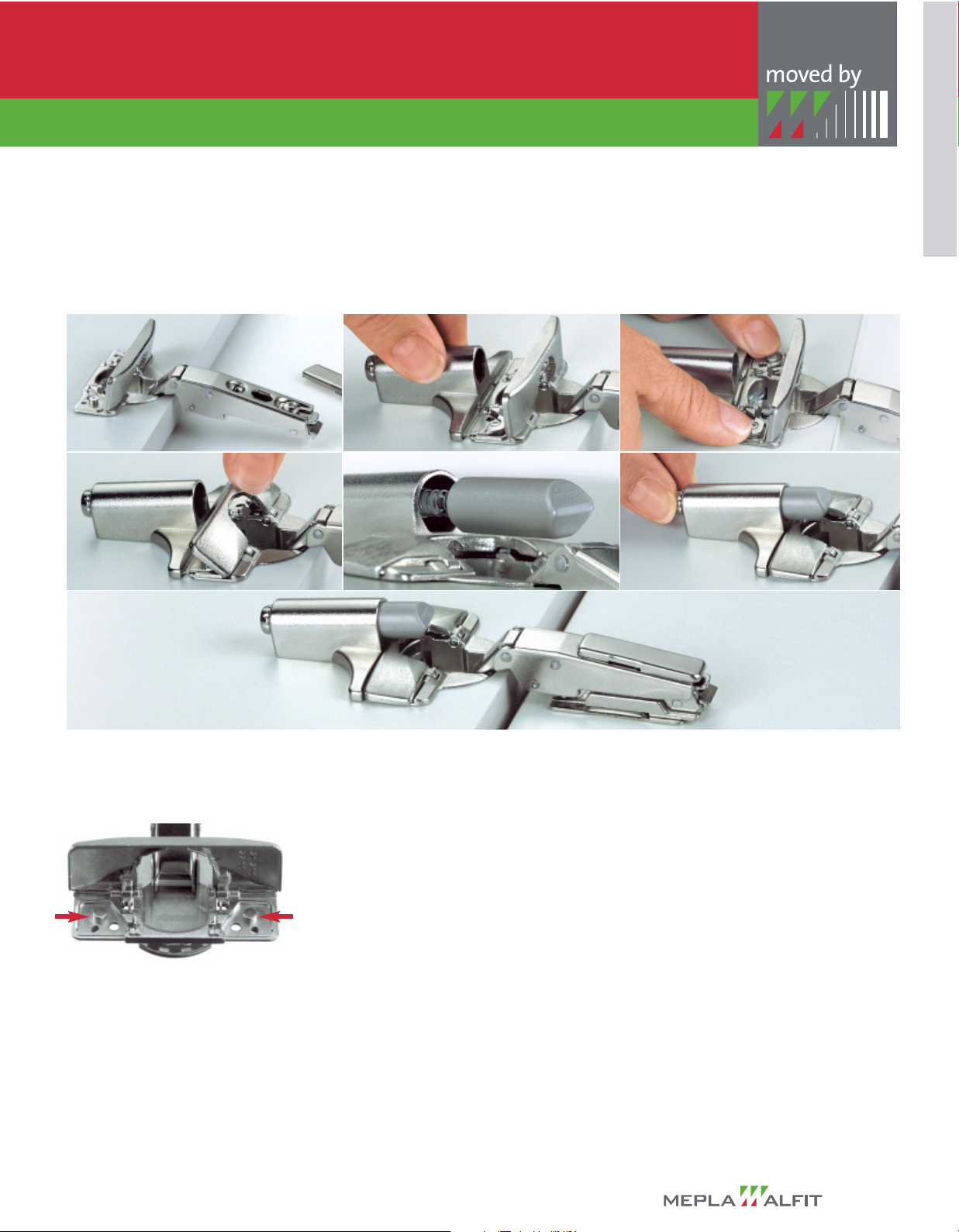

Soft-close® CST – quick and easy to install.
Mounting is toolless, easy and quick:
1Take door off the cabinet, remove cover cap (if installed) on 00 cranking hinges , open
flap of hinge cup.
2Insert Soft-close® CST adapter onto locator pins which are attached to the hinge cup.
3Close Twin NT flap of hinge cup completely.
4Insert Soft-close® damper completely into Soft-close® adapter with the flattened side
pointing down.
Click-on cabinet door to mounting plates.
Mount cover cap on hinge if desired (cover cap is included in set).
5Adjust Soft-close® CST to different opening angles and cranking if necessary via
adjustment screw.
3
12
45
2a
Please check:
Are locator pins attached to the hinge
cup?
Soft-close®
1.5.5

PU = Packing unit
125 pcs.
924.200.41.0015
PU
Ref. No.
125 pcs.
924.012.50.0142
PU
Ref. No.
Soft-close® CST Set
125 set
924.200.41.0115
PU
Ref. No.
Soft-close® CST Adapter Soft-close® damper
For hinge cranking 00 For hinge cranking 08 and 15
1 Set consisting of:
1 Soft-close® CST adapter
1 Soft-close® CST damper
2 Hinge arm cover caps
Cover caps
125 pcs.
514.300.21.0115
PU
Ref. No.
nickel plated, unprinted
1000 pcs.
514.300.21.0215
PU
nickel plated, unprinted
1000 pcs.
514.300.22.0015
PU
Ref. No.
nickel plated, unprinted
CST Twin NT Scharnier-Übersicht Page 1.5.4
Suitable for CST 04, CST 05, CST 22, and CST 29 hinges
Soft-close®CST
1.5.6

Technical Information
Warning
Usage of low grade board material or furniture doors under-
going constant rough usage, the screwing of the adapter with
screws Ø 3 mm is recommended.
Soft-close®CST is not recommended for frame door application.
Position f0r Soft-close® CST
Position for additionalSoft-close® CST
(recommended)
Soft-close®
The installing of our furniture fittings must comply with the
Mepla-Alfit instructions that are stated in our available sales
brochures, otherwise Mepla-Alfit can’t be held liable. If further
information on installation and assembly is needed, please
contact one of our factories directly.
Thank you for your understanding.
1.5.7

Elegant design and fascinating engineering.
The perfect combination of the hinge series CS Click-on
with Soft-close® CS.
Feel like something quiet? Then use Soft-close® CS.
Experience – how doors move in a floating motion.
The future is entering into all furniture.
Either kitchen, bath or furniture, Soft-close®
CS can be installed immediately or be
mounted onto CS Click-on after the hinge
is already installed. Fast, secure and comple-
tely toolless. The number of Soft-close® CS
installed depends on the door size and
weight. Please use the recommended data
from the chart.
A matching hinge cup cover cap for the
CS Click-on hinges without Soft-close® CS
underlines perfectly the elegant design. The
design developed by Mepla-Alfit is unique
and defines a new closing of doors:
The motion of the doors is softly slowed
down and the door self closes softly and
quiet – the perfect balance between form
and function.
Soft-close ® CS
The unique hinge Soft-close® system for doors
1.5.8

Soft-close® CS – quick and easy to install.
Mounting is toolless, easy and quick:
1Take door off the cabinet, place it horizontal on a stable surface. Remove cover cap
(if installed) on 00 cranking hinges.
2Insert Soft-close® CS adapter into notches located on the sides of the hinge cup and attach
adapter.
3Press both sides of the adapter downwards until you hear a noticeable “click”.
4Mount cover cap on hinge if desired (cover cap is included in set).
5Adjust Soft-close® CS to different opening angles and cranking if necessary via adjustment
screw.
6Use cover for hinge cup (included in set) for the hinge without Soft-close® CS to achieve a
uniform appearance.
4
12
5
3
6
Please check:
Are notches located on both sides of the
hinge cup?
Soft-close®
1.5.9

125 pcs.
514.300.20.0115
PU
Ref. No.
125 pcs.
924.200.40.0215
PU
Ref. No.
Soft-close® CS Set
125 set
924.200.40.0115
PU
Ref. No.
Soft-close® CS Adapter
With pre-mounted Soft-close®
1 Set concisting of:
1 Soft-close® CST adapter with
pre-mounted Soft-close®
1 Hinge cup cover cap CS
2 Hinge arm cover caps
Cover cap for CS hinge cup
steel, nickel plated
125 pcs.
514.300.21.0115
PU
Ref. No.
nickel plated, unprinted
1000 pcs.
514.300.21.0215
PU
nickel plated, unprinted
1000 pcs.
514.300.22.0015
PU
Ref. No.
nickel plated, unprinted
For hinge cranking 00 For hinge cranking 08 and 15
Cover caps
PU = Packing unit
CS Click-on Scharnier-Übersicht Page 1.2.4
For hinges CS04, CS 05, CS 22 and CS 29
Soft-close®CS
1.5.10

Technical Information
The installing of our furniture fittings must comply
with the Mepla-Alfit instructions that are stated in our
available sales brochures, otherwise Mepla-Alfit can’t
be held liable. If further information on installation and
assembly is needed, please contact one of our factories
directly.
Thank you for your understanding.
Position for Soft-close® CS
Position for additionalSoft-close® CS
(recommended)
Soft-close®
1.5.11

PU = Packing unit
Soft-close® F65

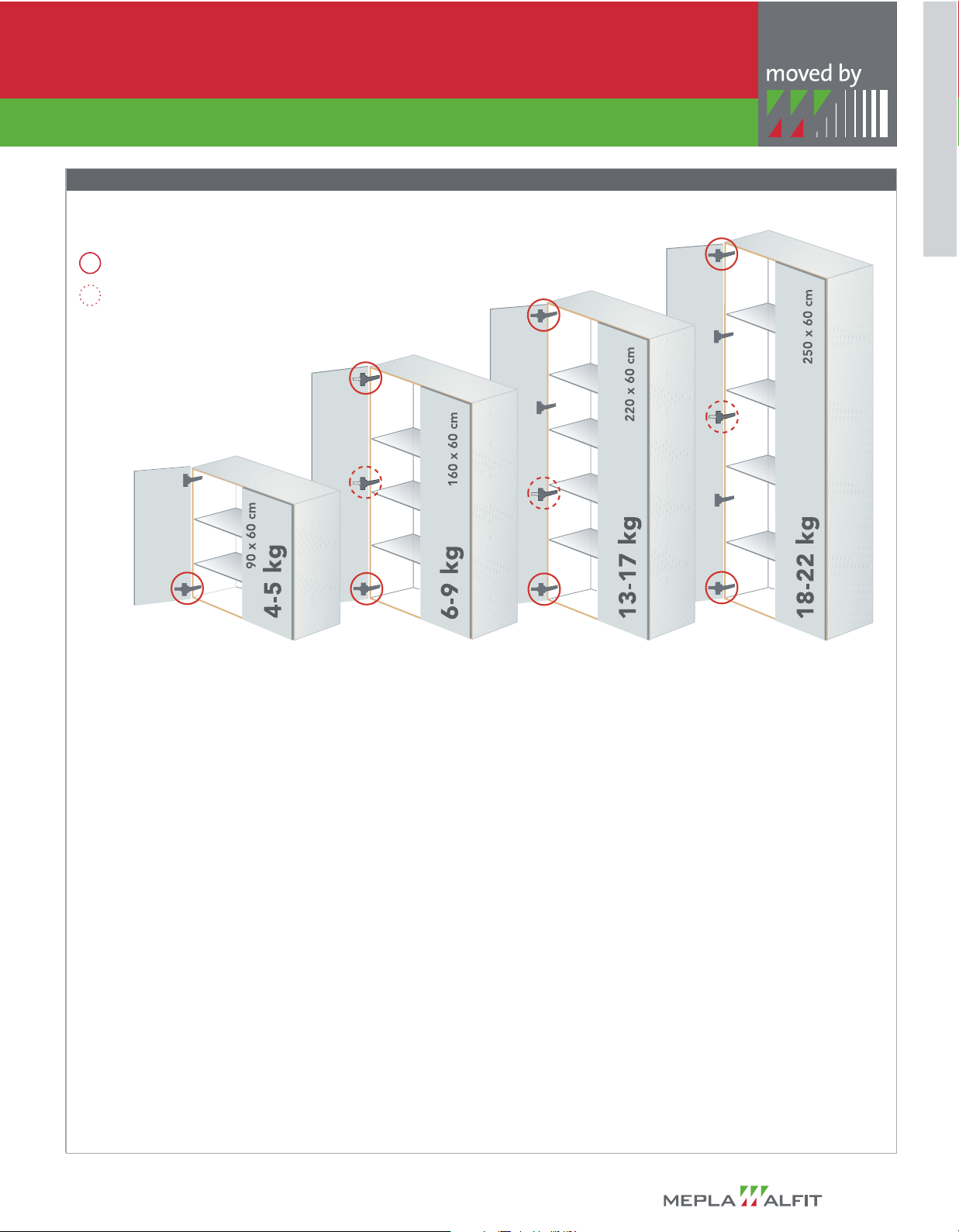

Technical Information
18-22 kg
250 x 60 cm
13-17 kg
220 x 60 cm
6-9 kg
160 x 60 cm
4-5 kg
90 x 60 cm
The installing of our furniture fittings must comply
with the Mepla-Alfit instructions that are stated in our
available sales brochures, otherwise Mepla-Alfit can’t
be held liable. If further information on installation and
assembly is needed, please contact one of our factories
directly.
Thank you for your understanding.
Position für Soft-close® CS
Position for additionalSoft-close® F65
(recommended)
125 pcs.
924.200.39.0215
PU
Ref. No.
Soft-close® F65
with CS 65 hinge
Soft-close® F65
with CST 65 hinge
Drawing with mounting plate, thickness 02
CS 65 Click-on Hinges Page 1.2.1
CST 65 Twin NT Hinges Page 1.5.1
Suitable for hinges CST 65 and CS 65
Soft-close®F65
1.5.12

CS 07 Mirro 15° negative Hinge
Page 1.5.58
CS 07 Mirro Hinge
Page 1.5.56
PU = Packing unit
Soft-close® Mirro
Technical Information
The installing of our furniture fittings must comply
with the Mepla-Alfit instructions that are stated in our
available sales brochures, otherwise Mepla-Alfit can’t
be held liable. If further information on installation and
assembly is needed, please contact one of our factories
directly.
Thank you for your understanding.
Position for Soft-close® Mirro
Position for additionalSoft-close® Mirro
(recommended)
50 pcs.
924.200.38.0215
PU
Ref. No.
Soft-close® Mirrro
with Mirro -15° hinge
Soft-close®Mirro
with Mirro hinge
Drawing with mounting plate, thickness 02
For CS 07 Mirro and CS 07 Mirro 15° negative angle hinges
Soft-close®Mirro
1.5.13
Soft-close®

125 pcs.
924.200.36.0215
PU
Ref. No.
125 pcs.
514.200.60.0115
PU
Ref. No.
514.000.85.0115
514.000.86.0115
125 pcs.PU
Ref. No.
For frame doors
Soft-close®ACC
PU = Packing unit

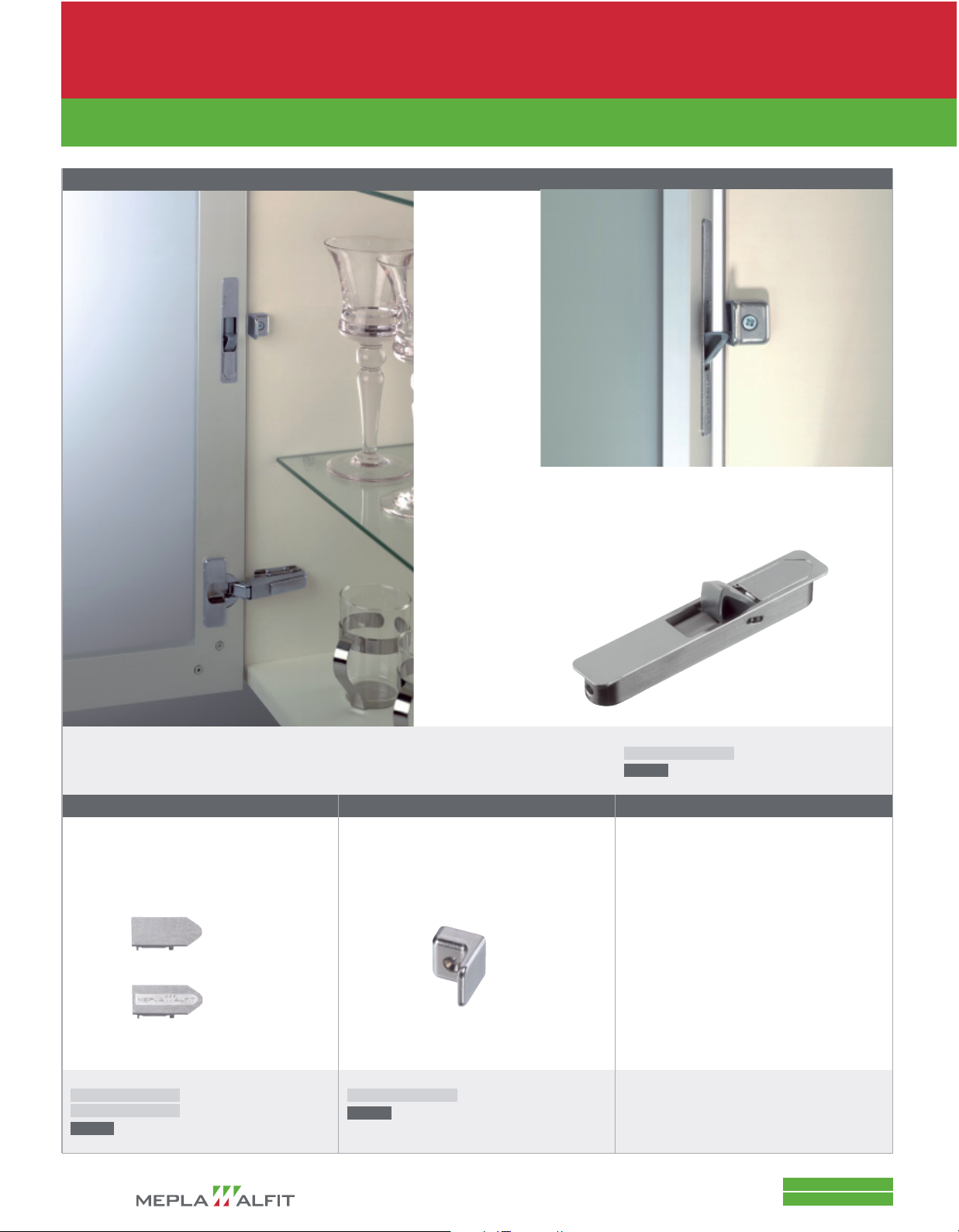

Soft-close® ACC
Cover cap Counter part, universal
CS Click-on hinges Chapter 1.2
CST Twin NT hinges Chapter 1.1
1.5.14
Plastic, nickel plated Zinc die-cast, nickel plated
suitable for use with all crankings
Plastic, nickel plated
with Mepla-Alfit Logo
•For wooden and aluminium frame doors
•Soft-close characteristic can be adjusted
•Simple assembly
•Invisible from the outside
•Elegant design

1.5.15
Technical Information
Soft-close®
00
910 11
xxx
xxx
xxx
(TA) 4 mmHinge Cranking 00
(K)
910 11
xxx
xxx
xxx
(TA) 5 mm
(K)
910 11
xxx
xxx
xxx
(TA) 6 mm
(K)
Mounting plate
thickness (f) 02
04
00
4
x
x
x
(TA) 4 mmHinge Cranking 08
(K)
4
x
x
x
(TA) 5 mm
(K)
4
x
x
x
(TA) 6 mm
(K)
Mounting plate
thickness (f) 02
04
00
4
x
x
x
(TA) 4 mmHinge Cranking 15
(K)
4
x
x
x
(TA) 5 mm
(K)
4
x
x
x
(TA) 6 mm
(K)
Mounting plate
thickness (f) 02
04
Recommended position for Soft-close® ACC
g = s + m
Values based on door edge 1 mm radius. We recommend a trial mount.
When using wooden frames smaller than 60 mm we recommend a trial mount.
When using aluminium frames use of glass gasket or Silicon is not allowed in
the area where Soft-close ACC is fitted.
*Position for inset door:
10,5 mm + door thickness + 2 mm
*

For aluminium frame doors

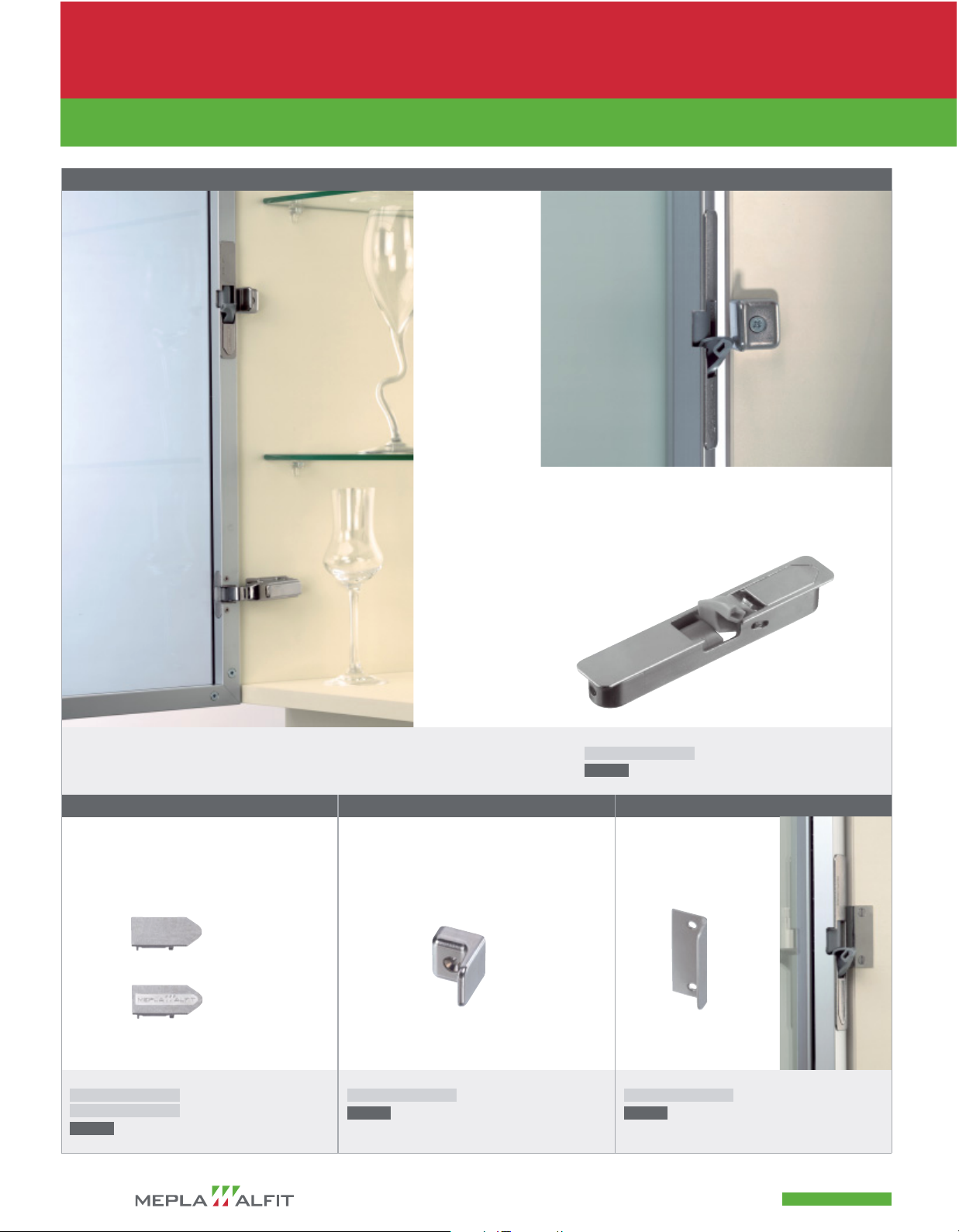

Soft-close®AL
CS 17 AL Click-on hinges Page 1.2.44
Soft-close® AL
1.5.16
125 pcs.
924.200.37.0215
PU
Ref. No.
suitable for use with all crankings suitable for use with
cranking 00 only
125 pcs.
514.300.55.0115
PU
Ref. No.
125 pcs.
514.200.60.0115
PU
Ref. No.
514.000.85.0115
514.000.86.0115
125 pcs.PU
Ref. No.
Cover cap Counter part, universal Counter part
Plastic, nickel plated Zinc die-cast, nickel plated Steel, nickel plated
Plastic, nickel plated
with Mepla-Alfit Logo
PU = Packing unit
•For aluminium frames 20 x 20 mm
•To use with CS 17 AL hinges
•Soft-close characteristic can be adjusted
•Simple assembly
•Invisible from the outside
•Elegant design

1.5.17
Soft-close®
Recommended position for Soft-close® AL
Use of glass gasket or Silicon is not allowed in the area where Soft-close AL is fitted.
We recommend a trial mount.
g = s + m
*Position for inset door: 10,5 mm + door thickness + 2 mm
*

DWD-Dynamic-XP
• Excellent designed drawer system
•DWD-XP – double wall steel drawer system
with precision and individuality
•Integrated front adjustment
•High quality finish
•Dynamic-XP – The runner with smooth and
soft movement
•No side play
•High carrying capacity
•Soft-close®
Add-on Systems
•Variowing
Glass-Add-on system
•Duowing
Double wall add-on system
•Solowing
Single wall add-on system
Organizing Systems
•Magic Optima – Organizing system for
Variowing, Duowing and Solowing
•Magic Classic – Organizing system for
Duowing and Solowing
•Magic Sorto – Stainless steel inserts
Integra
•Single-wall steel drawer system
•Proven technology, outstanding quality
•Parallel self closing
•Available with three different front fixing
brackets
•Easy and quick assembly
•Eccentric cam adjustment
•Excellent processing technology
Soft-close®
