INSTRUCTIONS FOR USE
for medical work chairs in the REAL9000PLUS
device range
Instructions for use and care
EN
(international)

[Space for device label with
serial number]

Table of contents
User information
1. Introduction ....................4
1.1. Contact details ....................5
1.2. Warranty ..........................5
2. Getting started ..................6
2.1. Before use ........................6
2.2. Electrical and manual height
adjustment ........................9
2.3. Charging ..........................9
2.4. Transfers........................ 10
3. Caring for the device ........... 11
3.1. Padded parts .................... 11
3.2. Castors and brake feet ............ 11
3.3. Other parts ...................... 11
3.4. Transport and storage ............ 12
Device information
4. Intended use.................. 13
4.1. Operating environment ........... 13
5. Configurations and settings ..... 14
5.1. Required level of competence for
setting and adjusting ............. 14
5.2. Basic design..................... 15
5.3. Electrical functions ............... 16
5.4. Seat ............................ 19
5.5. Manual height adjustment ......... 20
5.6. Manual seat tilt .................. 21
5.7. Coxit mechanism................. 22
5.8. Seat rotation .................... 23
5.9. Backrest ........................ 23
5.10. Manual backrest mechanism ..... 25
5.11. Armrest panel .................. 27
5.12. Armrest mechanism ............. 28
5.13. Base .......................... 30
5.14. Manual brake................... 33
5.15. Individual adaptation ............ 34
6. Important safety information.... 36
6.1. Standards met and classification ... 36
6.2. Warnings........................ 37
6.3. Expected service life.............. 38
6.4. Reporting of adverse events and
incidents........................ 39
Service manual
7. Technical information .......... 40
7.1. Symbols ........................ 42
8. Servicing & reconditioning ...... 45
8.1. Troubleshooting guide ............ 46
8.2. Battery replacement.............. 48
8.3. Reconditioning and periodic
maintenance .................... 49
9. Instructions for destruction ..... 56
9.1. Recycling ....................... 56
Instructions for use for medical work chairs in the REAL9000PLUS device range
21-08742-EN-01

4
Instructions for use for medical work chairs in the REAL9000PLUS device range Introduction
21-08742-EN-01
1. Introduction
Thank you for choosing Mercado Medic as the supplier of this device. By choosing
a REAL chair, you get to learn about a 50-year history of developing medical
devices with high function, safety, quality and flexibility. We manufacture all our
different medical chairs under our own management in Sweden.
Mercado Medic is certified to ISO 13485, ISO 9001 and ISO 14001, and complies with
applicable labour and environmental legislation.
We reserve the right to make changes to this manual and its contents.
Sufficient competence in the safe use of this device is achieved by carefully reading through
these instructions for use before using the device for the first time.
PDF versions of our instructions for use with zoom options are always
available in their most current version on our website www.mercado.se.

5
Instructions for use for medical work chairs in the REAL9000PLUS device range Introduction
21-08742-EN-01
1.2. Warranty
All components of Mercado Medic's devices
are covered by warranty, under the time
periods and general terms and conditions
set out below, unless other specific periods
and conditions are agreed in writing between
Mercado Medic and the contracting customer
in connection with major procurements.
As a user, you should contact your prescriber,
assistive technology centre or distributor if
you experience problems with the device.
Distributors in turn should contact Mercado
Medic using the contact details available
under Section 1.1. Contact details.
Warranty periods
• Metal structures: 3 years.
• Lifting mechanism (electric and gas
spring): 2 years.
• Other components (e.g. wheels, batteries,
padded parts): 1 year.
General terms and conditions
The warranty does not cover:
• Damage or condition considered to be
normal wear and tear.
• Damage caused by negligence or misuse.
• Spare parts, components or accessories
not sold by Mercado Medic.
• Adjustments to the device made by
unauthorised service technicians.
• Components previously fitted to devices
other than the item in question.
• Bleaching or natural variations in the
colours of fabrics, synthetic leather and
natural leather.
1.1. Contact details
Manufacturer
Street address: Mercado Medic AB,
Tryffelslingan 14, SE-181 57 Lidingö, Sweden
Postal address: Mercado Medic AB,
Box 1074, SE-181 22 Lidingö, Sweden
Tel: [phone]
Email: [e-mail]
Website: www.mercado.se
Servicing and technical support
Telephone: [phone]
Email: [e-mail]
To report warranty claims, adverse events
and incidents or other feedback please use
the form at www.mercado.se/en/support.
Distributor
Space for additional distributor contact
details:

6
Instructions for use for medical work chairs in the REAL9000PLUS device range Getting started
21-08742-EN-01
2. Getting started
This section is primarily aimed at you as a user of the device. It describes how to prepare
the device for use, adjust the seat height, charge electric models, and how to create good
conditions when moving. For care instructions, see 3. Caring for the device.
If you have any questions about your device or if something unexpected has happened, please
first contact your prescriber or dealer. You can find up-to-date contact details in Section 1.1.
Contact details. You are also welcome to contact us at Mercado Medic.
2.1. Before use
The device is always supplied with a seat,
backrest, armrest and brake. When delivered
from Mercado Medic, the backrest and brake
lever are not yet fitted. These should always
be fitted before the device is first used.
Brake lever
Insert the brake lever into the brake lever
bracket (A), see Figure 2.1. The brake lever
can be placed on the right or left side.
Backrest mechanism
Place the backrest support post in the back
recliner (B) and set the desired height level,
see Figure 2.1. Tighten all controls (B). The
image shows one of several back mechanisms
available for Mercado Medic devices. Other
back mechanisms are mounted in the same
way, although the appearance may differ
from that in the image.
Armrests
Loosen the armrest controls (C) and set the
desired height and width levels, see Figure
2.1. Tighten all controls (C).
Neck support
If the device is supplied with a neck support,
insert the neck support mechanism into the
backrest bracket (D) and set the desired
height level, see Figure 2.1. Tighten all
controls (D).
Battery
Before first use, the battery in electric models
must be activated and charged. This is done
by connecting the battery charger to the
device's charging socket and to a wall outlet
(E), see Figure 2.1. The charging socket can
be placed in different places on the device.
The most common is that the device comes
with the charging socket mounted at the rear
edge of the left armrest.
Wait until the battery is fully charged before
using the device. This normally takes 2 to 5
hours. When the battery is fully charged, the
LED on the charger lights up green. For other
charging instructions, see 2.3. Charging.

7
Instructions for use for medical work chairs in the REAL9000PLUS device range Getting started
21-08742-EN-01

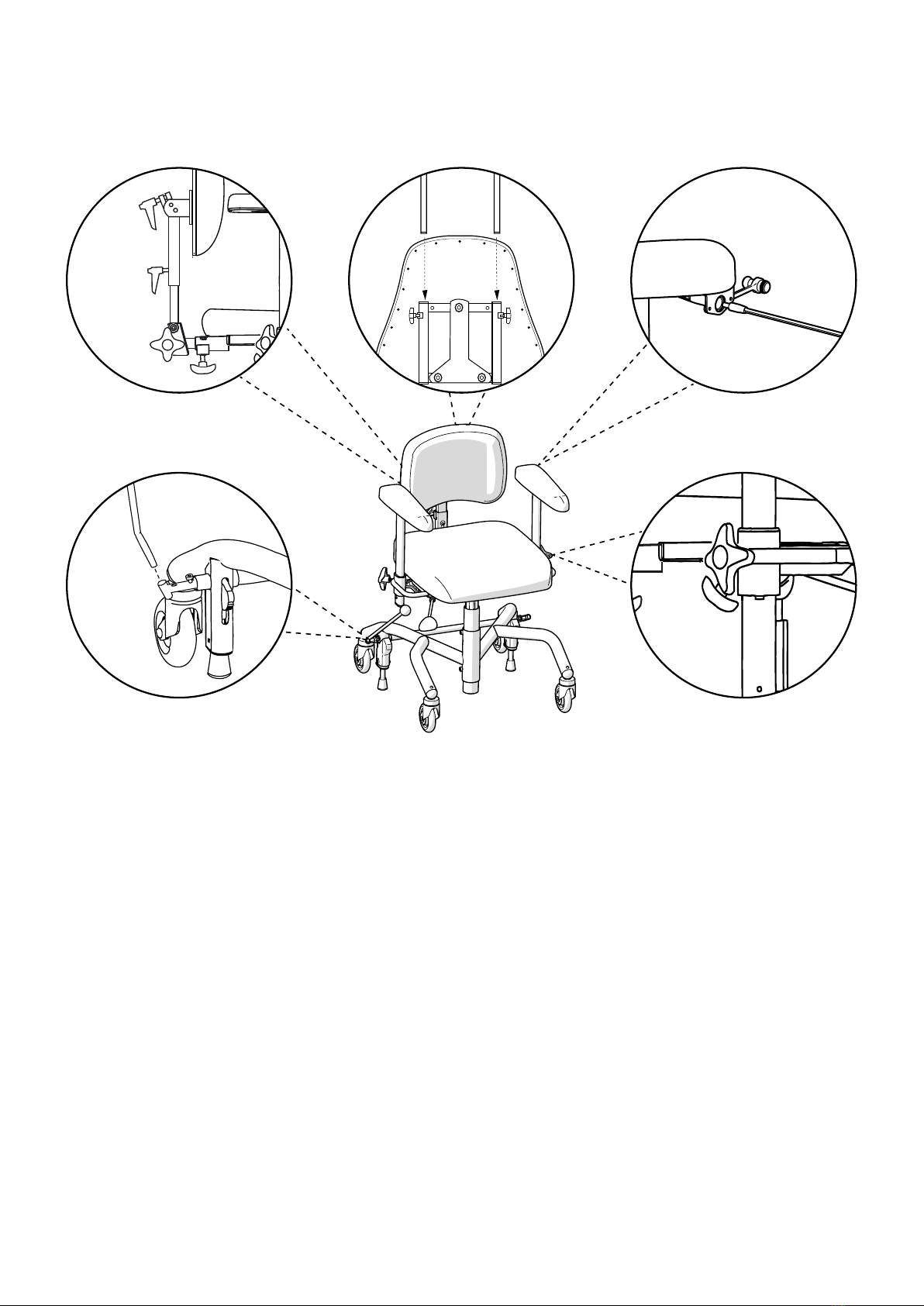

Figure 2.1. Preparations before the device is put into use.
Armrests
Neck support Battery
Brake lever
Backrest mechanism (Medic)
A
B
C
D E
Consider the following before and during
use of the device
• All settings controls should be tightened
before using the device.
• The device must not be used without
fitting the backrest.
• The device must not be used without
fitting the armrests.
• The device’s brake must always be applied
when sitting down and getting up.
• The braking capacity of the device may be
impaired on heavily sloping floors.
• The braking capacity of the device may be
impaired on uneven floors.
• The device must be operated with care.
Always be aware of your surroundings
before moving. Pets or children on the
floor could be easily hit.
• The optional foot support ring is designed
to rest your feet on, not to stand on.
For models with electrical functions,
• Charge the device according to these
instructions for use, see Charging.
• The electrical functions cannot be used
when the device is charging.
• If the device is equipped with leg support,
your feet should always be in contact with

8
Instructions for use for medical work chairs in the REAL9000PLUS device range Getting started
21-08742-EN-01
the footplate when using the electrical
functions.
• The seat must never be set to a height
where you are unable to get out of the
device safely.
• The device must not be moved when the
seat is in the raised position.
• Emergency stop for control buttons:
If, for whatever reason, the system
does not interrupt a movement after
the corresponding control button has
been released, the movement can be
interrupted by pressing the button for
movement in another direction.
• Emergency stop for hand-held controller:
If, for whatever reason, the system
does not interrupt a movement after
the corresponding control button has
been released, the movement can be
interrupted by pressing any of the other
buttons on the hand-held controller.
• Button lock on hand-held controller:
To enable or disable the button lock
for a function, press and hold both of
the directional buttons of the relevant
function for at least three seconds.
The button lock locks only the current
function. To lock multiple functions, each
function must be locked separately.
Warning! As a user, you should
contact your prescriber, technical
aids centre or distributor if the
device shows reduced or altered
performance. A device showing a
loss of or change in performance
must immediately be taken out of
use in order to avoid an accident.
The device must not be used again
until an authorised technician has
examined the device.
Warning! To maintain safety, the
device should only be used by the
person and purpose for which it is
intended. The device is set up for a
single user. Changing settings may
affect the user's seating position,
which may result in damage or injury.
Warning! You are not permitted to
modify the device yourself. If you
would like individual customisation,
contact your prescriber or distributor.
If the device is modified, the CE
marking no longer applies and
Mercado Medic may no longer have
full device liability. Modifications
may affect the safety of the device
and lead to accidents.
Warning! The device may be
equipped with long cables or
wires that cannot be secured in
order for the device to function
properly. Cables and wires can pose
strangulation risks to small children,
for example. Do not leave the device
unattended with small children
nearby.
Warning! The device is equipped
with small parts such as screws that
can come loose. Small parts that
have come loose can pose choking
hazards for children and pets.
Warning! Metal surfaces may become
very hot if they are exposed to direct
sunlight. Skin contact with hot
surfaces can lead to burns. Avoid
exposing metal surfaces to direct
sunlight.
Warning! Always ensure that the
device’s brake is applied when
sitting down and getting up. If the
device is not braked, it risks rolling
away when you get up or sit down,
which can lead to fall injuries.

9
Instructions for use for medical work chairs in the REAL9000PLUS device range Getting started
21-08742-EN-01
2.2. Electrical and manual height adjustment
Depending on the model, the device has
electric or manual height adjustment.
Electric height adjustment is controlled by
the hand-held controller or by the control
button located under the right armrest,
see Figure 2.2. Manual height adjustment
is controlled by controls placed under the
seat or under the right armrest, see Figure
2.3. See 5. Configurations and settings for
detailed information about all the features
and controls of the device.
2.3. Charging
For electric models, the battery should
be charged once a day. Fully charging the
battery on a daily basis will take 2 to 5 hours.
It is important that the battery is never
completely discharged, as this helps to
prolong the life of the battery. Daily charging
of the battery is especially important on the
configurations with electric brake, electric
seat tilt and electric back recliner, to ensure
that you as a user can always get in and out
of the device safely. The device emits a low
battery level warning sound, for both low and
critical. Low battery is indicated by a short
signal. Critical battery level is indicated by
a short signal that ends with a loud beep.
If the device is equipped with a hand-held
controller, the battery level can also be
determined by checking the indicator lights,
see Figure 2.4.
The device must be charged in a safe
manner. The electrical functions cannot be
used when the device is charging. For this
reason, choose an easily accessible wall
socket to plug the charger into. The charger
cable to the wall socket is 1 metre long and
must not be extended. In case of emergency,
disconnect the device from the mains by
unplugging the charger from the wall socket.
Figure 2.3. Controls on the manual model.
Figure 2.2. Controls on the electric model.
Figure 2.4. Battery level indicator on hand-held controller.

10
Instructions for use for medical work chairs in the REAL9000PLUS device range Getting started
21-08742-EN-01
How to charge the device
1. Connect the charger plug into the
charging socket, see Figure 2.5. The
charging socket is normally located at the
rear edge of the left armrest, but can also
be located under the seat, for example.
2. Connect the charger plug into the wall
socket. The LED on the charger will
indicate that charging is underway.
3. The battery is fully charged when the
LED on the charger changes colour from
red to green. If you are using the hand-
held controller, this will also be indicated
by the three green battery LEDs on the
controller, which will start to flash at the
same time.
If the electrical functions have not been
used for 7 days, the battery switches off
automatically. To reconnect the battery,
connect the battery charger to the charging
socket and the wall outlet and wait at least 5
seconds before unplugging the charger. Itis
recommended to charge the battery fully
after the battery has been disconnected.
If no electrical functions are working, try
charging the battery. If electrical functions
still do not work, contact your prescriber or
distributor, see 1.1. Contact details.
2.4. Transfers
When moving around while sitting in the
device, it is important to make good contact
with the floor. For example, rubber-soled
indoor shoes can provide better grip and
thus facilitate movement. If the device is
equipped with seat tilt, and if you have
the physical balance to adjust the seat tilt
forward slightly, then this can also provide
better grip on the floor. A slightly forward-
leaning seating position also gives more
power in the movement. Rugs and carpets
make the movement more difficult. It is
therefore recommended to remove rugs or
carpets if you want to move while sitting.
When moving across different surfaces,
you get more power if you move backwards
over thresholds, mouldings and gaps. Lower
the seat and, if possible, adjust the seat tilt
forward slightly to get over the threshold.
Warning! Always ensure that the
device’s brake is applied when
sitting down and getting up. If the
device is not braked, it risks rolling
away when you get up or sit down,
which can lead to fall injuries.
Figure 2.5. Connecting the plug to the charging socket
under the armrest.

3. Caring for the device
Clean the device according to the instructions in this section to maintain its functions and
service life. If you still have issues that cannot be resolved using available home resources,
please contact your prescriber or distributor for reconditioning.
PLEASE NOTE! Do not wash the device with water or other liquids and chemicals.
3.1. Padded parts
To maintain good device hygiene, the device’s
padded parts should be cleaned regularly.
Ifpadded parts are not regularly cleaned,
thedevice may require reconditioning.
Plush padded parts
Use a foam cleaner to clean plush padded
parts. Start by removing any loose debris.
Then use a cloth to distribute a thin layer of
foam. Wipe with a clean, damp cloth. Finish
by vacuuming the upholstery after it has
dried.
Synthetic leather padded parts
Use soap and water or surface disinfectant
to clean synthetic leather padded parts.
Start by removing any loose debris. Then
use a cloth to clean the upholstery with soap
and water or surface disinfectant. If the
upholstery is cleaned using soap and water,
finish by wiping with a clean, damp cloth.
Leather padded parts
Use water to clean leather padded parts.
Start by removing any loose debris. Then
clean the upholstery with a clean, damp
cloth. For best effect, padded parts should
be cleaned immediately after something
is spilled on it. To extend the service life
of padded parts, avoid direct contact with
chemicals or prolonged sunlight.
3.2. Castors and brake feet
Regular cleaning of castors and brake feet
is required to maintain the operation of the
device. Wipe castors and brake feet with
a damp cloth. Remove any hair from the
castors using a thin crochet needle or similar
implement.
3.3. Other parts
The device’s lifting mechanism and other
actuators, see Figure 3.1 (may be in electric
seat tilt, back recliner and brake), should
not be cleaned. This is because there is
a risk that the grease required for these
mechanisms to function as intended might
be removed during cleaning.
If necessary, a dry cloth can be used to
remove dust from any electronic parts of
the device. Clean the other non-electronic
11
Instructions for use for medical work chairs in the REAL9000PLUS device range Caring for the device
21-08742-EN-01
Figure 3.1. Device’s lifting mechanism and other actuators.

12
Instructions for use for medical work chairs in the REAL9000PLUS device range Caring for the device
21-08742-EN-01
parts of the device once a week or when
necessary. Use a clean, damp cloth with mild
detergent (pH 7-12), surface disinfectant or
use a steam cleaner (max. 8 bar).
3.4. Transport and storage
When transporting and storing the device,
keep the following in mind:
• The device moves by rolling on a flat
surface.
• The device should be lifted by two people.
Suitable grip points are at the front,
rear, right and left sides of the seat, see
Figure3.2.
• The device is intended to be transported
and stored at between -25°C to +60°C
and up to 90% non-condensing relative
humidity.
• The device must be transported in the
intended cardboard box on a pallet.
If the device is transported by car, it
must be strapped in place using straps
over both the base and the seat, and it
should be set to the lowest possible seat
height. To reduce the size of the device
during transport, the backrest can be
removed and the armrests lowered. Be
sure to select the settings so that they
can be easily reset. Tape or similar easily
removable marking is recommended.
• The device must not be used as a seat
when transported in a car or aircraft, for
example.
• In the case of air transport, the device
must be stored in the hold. Original
Mercado Medic batteries are approved for
air transport. For information on battery
type, see 7. Technical information.
Figure 3.2. Suitable grips when lifting.

The REAL 9000 device range consists of
modular indoor work chairs designed to be
used by people who need assistive devices to
perform sitting dynamic activities, move by
their own power or stand up from sitting. The
REAL 9000 intends to make use of the user's
physical ability and can therefore be adapted
individually in a large number of designs.
The device is also intended to be used by
passive users who need to correct their
seating position to varying degrees. In these
cases, the device is configured to be moved
and adjusted by an assistant. The device is
designed to relieve muscles, joints, bones
and relieve pains linked to passivity.
The REAL 9000 is designed and
recommended for one or more of the
following indications:
• Difficulty or inability to walk.
• Difficulty or inability to stand up from
sitting.
• Difficulty in maintaining an adequate
seating position.
• Pain or exhaustion as a result of everyday
tasks at home or at work.
• Where use of a wheelchair is not suitable
as a result of activities of daily living.
Contraindications
There are no known contraindications
for use of the REAL 9000. If the device is
purchased without prescription from qualified
healthcare professionals, the user should
consult their doctor whether there are any
contraindications.
4.1. Operating environment
• The device is intended for indoor use only
and must not be used outdoors.
• The device is intended to be used at
between -5°C to +40°C and 15-90%
non-condensing relative humidity. If
the device is stored in an environment
outside these limits, the device must be
acclimatised for up to 4 hours to achieve
an approved temperature before use.
• The device must not be used at altitudes
greater than 2000 m above sea level.
• The device must not be exposed to
extreme cold or heat, prolonged sunlight
or other radiation.
• The device must not be exposed to water,
liquids or chemicals to any extent other
than that specified in the care information
in Section 3. Caring for the device.
4. Intended use
13
Instructions for use for medical work chairs in the REAL9000PLUS device range Intended use
21-08742-EN-01

5. Configurations and settings
This section is primarily aimed at you as a
prescriber of the device. It describes the
device's models, options when configuring
the device, and information about setting
and adjusting the device's functions. For
dimensions and performance, see 7.
Technical information.
The device is available in several configurable
models. The basic design of each model
is described below, see 5.2. Basic design.
Inaddition to the basic design, there are
a large number of options to personalise
the device. For available options, see the
description for each function in this section.
The models can also be equipped as
positioning chairs with, for example, torso
support, side support and neck support, and
further adapted both inside and outside the
CE marking, see 5.15. Individual adaptation.
Forinformation about accessories and
current combination agreements please
visit our website www.mercado.se. For an
overview of accessories, read the document
'Accessories'.
The device is compatible with two seating
systems, ErgoMedic and ErgoMedic Plus. The
seating systems include seats, backrests
and armrests. The padded parts can be
combined as needed for support, relief
and stability when sitting. For users with
pain problems, the Slow Recovery variant
is available for both seating systems. This
variant contains a pressure-relieving foam
that is activated by body heat. For specific
needs, a seat mat with anti-slip material can
be fitted for using third-party seat cushions,
see 5.15. Individual adaptation. For more
information about the seating systems
and other padded parts, please visit our
website www.mercado.se. For an overview
of available upholstered details, read the
document 'Seat systems'.
On www.mercado.se there are various forms
of prescription support such as information
sheets, order forms and a digital chair
configurator. There are also instructions for
use and device information for all Mercado
Medic devices.
5.1. Required level of competence for
setting and adjusting
The functions and accessories for positioning
and relief sitting should only be set by the
prescriber of the device unless otherwise
agreed, as this requires knowledge of
good sitting positions. These features and
accessories include neck support, trunk
support, side support, Coxit mechanism, leg
support and width adjustment of armrests.
Daily functions, such as adjusting the seat
height, seat tilt, brake, gas spring-controlled
back recliner and armrest height can be
adjusted by the user themselves where
appropriate and if this can be done safely.
14
Instructions for use for medical work chairs in the REAL9000PLUS device range Configurations and settings
21-08742-EN-01

5.2. Basic design
The device is always supplied with seat, backrest, armrests, base with four castors (100 mm
as standard), manual brake with brake lever (350 mm as standard) and an angular seat frame
that does not allow seat tilt. Depending on the model, the device has either electric or manual
height adjustment.
PLEASE NOTE! The basic design of the device may vary between regions and contracting entities.
REAL 9000 PLUS
Adult model with manual
height adjustment.
REAL 9100 PLUS EL 24V
Adult model with electric
height adjustment.
REAL 9300 PLUS
Child model with manual
height adjustment.
REAL 9400 PLUS EL 24V
Child model with electric
height adjustment.
REAL 9700 PLUS
Coxit adult model with
manual height adjustment.
REAL 9800 PLUS EL 24V
Coxit adult model with
electric height adjustment.
EVI
Manual child model with
high-low function for the
smallest.
15
Instructions for use for medical work chairs in the REAL9000PLUS device range Configurations and settings
21-08742-EN-01

5.3. Electrical functions
Electric models can be equipped with up to four electrical functions, electric height adjustment,
electric brake (optional), electric seat tilt (optional) and electric back recliner (optional). These
can be adjusted in two ways; either using the control button located under the armrest or with
the hand-held controller.
The functions of electric height adjustment and electric seat tilt can be used at the same
time1and will then act as an aid to getting up. This is made easier by allowing the user to raise
the seat and keep their feet on the floor for the whole movement up. It also provides more
controlled support when the user sits down.
Control button
The control button is an electric control with three positions (off, up and down), which can
be used to adjust seat height, seat tilt or back recliner. With the option of several electrical
functions, the device is equipped with several control buttons. If the device is equipped with
an electric brake, there is a special control button with two positions (sleep mode and switch
between activated and deactivated) for this.
Seat height
The seat height control button is located under the front
edge of the right armrest, see Figure 5.1.
Adjustment:
1. Press up for upward movement.
2. Press down for downward movement. Figure 5.1. Control button for adjusting seat
height.
Brake
The brake control button is located on the outside under
the right armrest, see Figure 5.2.
Activation and deactivation of brake:
1. A short press activates the brake.
2. A short press on the same button deactivates the
brake. Figure 5.2. Control button for activation and
deactivation of brake.
1 Only applies to electric models supplied from 2021-05-26.
16
Instructions for use for medical work chairs in the REAL9000PLUS device range Configurations and settings
21-08742-EN-01

Seat tilt
The seat tilt control button is located under the front edge
of the left armrest, see Figure 5.3.
Adjustment:
1. Press up for backward seat tilt.
2. Press down for forward seat tilt.
PLEASE NOTE! If the device is equipped with all four
electrical functions, a seat tilt control button and a back
recliner control button are located on the same armrest
next to each other. Figure 5.3. Control button for adjusting seat tilt.
Back recliner
The back recliner control button is located under the front
edge of the left armrest, see Figure 5.4.
Adjustment:
1. Press up to move the back recliner backwards.
2. Press down to move the back recliner forwards.
PLEASE NOTE! If the device is equipped with all four
electrical functions, a seat tilt control button and a back
recliner control button are located on the same armrest
next to each other. Figure 5.4. Control button for adjusting back
recliner.
Hand-held controller
The hand-held controller (optional) is available in two versions, wired controller and wireless
remote control. These are available in models with 1 function or 4 functions. The 1-function
is intended to only control raising and lowering. The 4-function can control all four functions.
Thehand-held controller also has a button lock function, see Figure 5.9.
Seat height
Buttons on the upper keypad on the left, see Figure 5.5.
Adjustment:
1. Press up for upward movement.
2. Press down for downward movement. Figure 5.5. Button for adjusting seat height.
17
Instructions for use for medical work chairs in the REAL9000PLUS device range Configurations and settings
21-08742-EN-01

Brake
Button in the middle at the bottom, see Figure 5.6.
Activation and deactivation of brake:
1. A short press activates the brake.
2. A short press on the same button deactivates
thebrake. Figure 5.6. Button for activation and
deactivation of brake.
Seat tilt
Buttons on the upper keypad on the right, see Figure 5.7.
Adjustment:
1. Press up for forward seat tilt.
2. Press down for backward seat tilt. Figure 5.7. Button for adjusting seat tilt.
Back recliner
Buttons in the middle on the lower keypad, see Figure 5.8.
Adjustment:
1. Press up to move the back recliner forwards.
2. Press down to move the back recliner backwards. Figure 5.8. Button for adjusting back recliner.
Button lock
Activating and deactivating the button lock:
1. To activate the button lock, press and hold both of the
directional buttons of the relevant function for at least
three seconds.
2. To deactivate the button lock, press and hold both of
the directional buttons of the relevant function again
for at least three seconds.
PLEASE NOTE! The button lock only locks and unlocks
the function that has locked buttons. To lock multiple
functions, each function must be locked separately. Figure 5.9. Examples of activation or
deactivation of button locks for back recliner.
18
Instructions for use for medical work chairs in the REAL9000PLUS device range Configurations and settings
21-08742-EN-01
3s

5.4. Seat
Seats are available in three versions, ErgoMedic, ErgoMedic Plus and ErgoMedic Plus Coxit.
These are also available with the optional Slow Recovery padding.
Seat upholstery is available in four materials: plush, synthetic leather (optional), patterned
fabric (optional) and hygiene fabric (optional). Upholstery in hygiene fabric is used to protect
the seat from moisture. Plush and hygiene fabric covers (optional) are also available for all
seat designs and sizes. Hygienic fabric covers have a plush exterior and a plasticised interior.
For more information about upholstery, covers and available colours, please visit our website
www.mercado.se. For an overview of available upholstery and covers, read the document
'Seatsystems'.
ErgoMedic
ErgoMedic is a flat seat with seat indent and extra support
under the thighs, see Figure 5.10. The seat is available in
sizes from 290 x 320 mm to 480 x 530 mm.
Figure 5.10. ErgoMedic seat.
ErgoMedic Plus
ErgoMedic Plus is a more positioning seat with raised
sides for better relief, see Figure 5.11. The seat is
available in sizes from 290 x 320 mm to 480 x 530 mm.
Figure 5.11. ErgoMedic Plus seat.
ErgoMedic Coxit
ErgoMedic Coxit is a seat with angle-adjustable flaps,
see Figure 5.12. The seat is available in sizes from
400 x 390mm to 440 x 480 mm.
Figure 5.12. ErgoMedic Coxit seat.
ErgoMedic Plus Coxit
ErgoMedic Plus Coxit is a more positioning seat with
angle-adjustable flaps and raised sides for better relief,
see Figure 5.13. The seat is available in sizes from
400 x 390 mm to 440 x 480 mm.
Figure 5.13. ErgoMedic Plus Coxit seat.
19
Instructions for use for medical work chairs in the REAL9000PLUS device range Configurations and settings
21-08742-EN-01

5.5. Manual height adjustment
Manual height adjustment is available in two ranges, standard seat height and low seat
height. These are also available for three different user weight ranges 0 - 55 kg, 55 - 90 kg
and 90 - 150 kg. Manual height adjustment uses a gas spring lever. Height adjustment is also
available as an electrical function, see 5.3. Electrical functions.
PLEASE NOTE! Lightweight users may need help raising and lowering the gas spring controlled
height adjustment.
Gas spring lever
The height adjustment lever can be placed under the seat
(standard) or under the armrests (optional). The lever can
be placed on the right or left side, see Figure 5.14.
Adjustment:
1. Pull the lever upwards to disengage the gas spring
driven lifting mechanism, then select the desired
height with your feet on the floor.
2. Lock the height by releasing the lever. Figure 5.14. Gas spring lever for height
adjustment.
20
Instructions for use for medical work chairs in the REAL9000PLUS device range Configurations and settings
21-08742-EN-01
