Mercado Medic REAL 9200 TWIN Assembly instructions

Translation of manual
Item number: 21-08861-UK
Revision: 01
Valid from: 2021-05-26
Amended: -
INSTRUCTIONS FOR USE
of medical bariatric work chairs in theof medical bariatric work chairs in the
REAL9200 TWIN product rangeREAL9200 TWIN product range
Instructions for use and care
UK

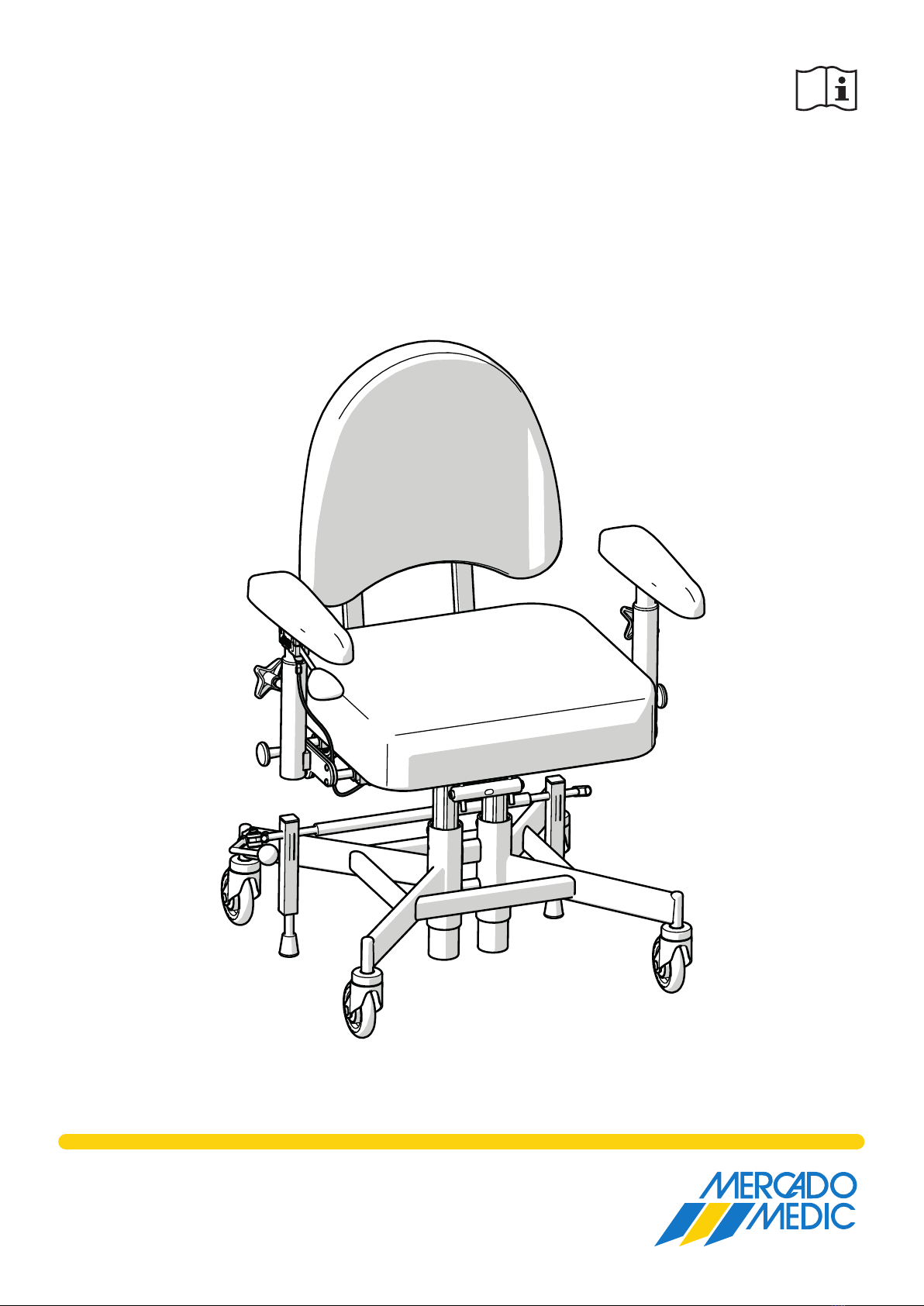

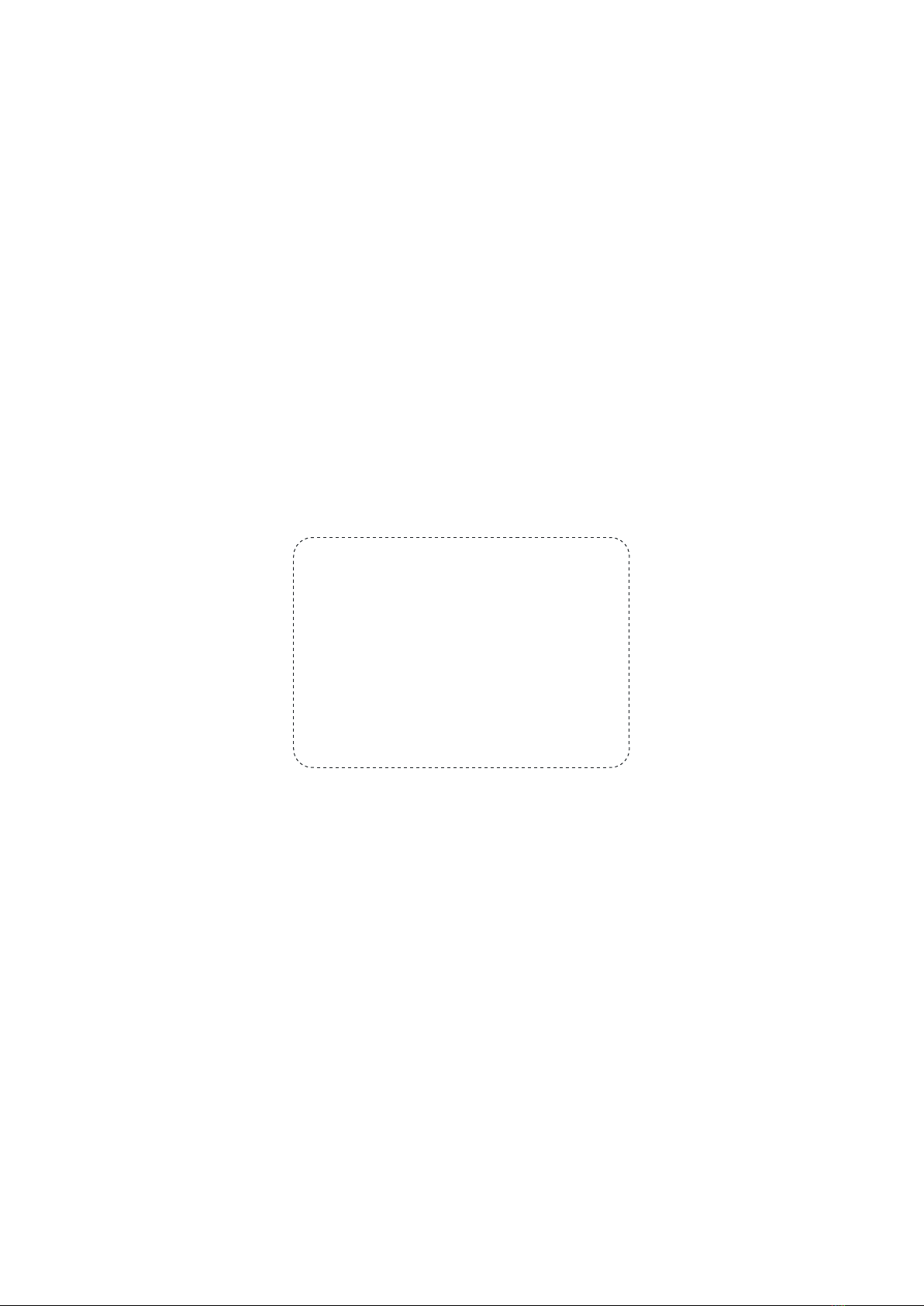

[Space for device label with
serial number]

Table of contents
User information
1. Introduction ....................4
1.1. Contact details ....................5
1.2. Warranty ..........................5
2. Getting started ..................6
2.1. Before use ........................6
2.2. Electrical and manual height
adjustment ........................9
2.3. Charging ..........................9
2.4. Transfers........................ 10
3. Caring for the device ........... 11
3.1. Padded parts .................... 11
3.2. Castors and brake feet ............ 11
3.3. Other parts ...................... 11
3.4. Transport and storage ............ 12
Device information
4. intended use .................. 13
4.1. Operating environment ........... 13
5. Configurations and settings ..... 14
5.1. Required level of competence
forsetting and adjusting........... 14
5.2. Basic design..................... 15
5.3. Electrical functions ............... 16
5.4. Seat ............................ 18
5.5. Manual height adjustment ......... 18
5.6. Backrest ........................ 19
5.7. Backrest mechanism ............. 20
5.8. Armrest panel ................... 21
5.9. Armrest mechanism .............. 22
5.10. Base .......................... 23
5.11. Manual brake................... 24
5.12. Individual adaptation ............ 25
6. Important safety information.... 27
6.1. Standards met and classification ... 27
6.2. Warnings........................ 28
6.3. Expected service life.............. 29
6.4. Reporting of adverse events
andincidents .................... 30
Service manual
7. Technical information .......... 31
7.1. Symbols ........................ 33
8. Servicing & reconditioning ...... 36
8.1. Troubleshooting guide ............ 37
8.2. Battery replacement.............. 39
8.3. Reconditioning and periodic
maintenance .................... 40
9. Instructions for destruction ..... 46
9.1. Recycling ....................... 46
Instruction manual for the use of medical bariatric work chairs
21-08861-UK-01

4
Instruction manual for the use of medical bariatric work chairs Introduction
21-08861-UK-01
1. Introduction
Thank you for choosing Mercado Medic as the supplier of this device. By choosing
a REAL chair, you get to learn about a 50-year history of developing medical
devices with high function, safety, quality and flexibility. We manufacture all our
different medical chairs under our own management in Sweden.
Mercado Medic is certified to ISO 13485, ISO 9001 and ISO 14001, and complies with
applicable labour and environmental legislation.
We reserve the right to make changes to this manual and its contents.
Sufficient competence in the safe use of this device is achieved by carefully reading through
these instructions for use before using the device for the first time.
PDF versions of our instructions for use with zoom options are always
available in their most current version on our website www.mercado.se.

5
Instruction manual for the use of medical bariatric work chairs Introduction
21-08861-UK-01
1.2. Warranty
All components of Mercado Medic's devices
are covered by warranty, under the time
periods and general terms and conditions
set out below, unless other specific periods
and conditions are agreed in writing between
Mercado Medic and the contracting customer
in connection with major procurements.
As a user, you should contact your prescriber,
assistive technology centre or distributor if
you experience problems with the device.
Distributors in turn should contact Mercado
Medic using the contact details available
under Section 1.1. Contact details.
Warranty periods
• Metal structures: 3 years.
• Lifting mechanisms (electric and gas
spring driven): 2 years.
• Other components (e.g. wheels, batteries,
padded parts): 1 year.
General terms and conditions
The warranty does not cover:
• Damage or condition considered to be
normal wear and tear.
• Damage caused by negligence or misuse.
• Spare parts, components or accessories
not sold by Mercado Medic.
• Adjustments to the device made by
unauthorised service technicians.
• Components previously fitted to devices
other than the item in question.
• Bleaching or natural variations in the
colours of fabrics, synthetic leather and
natural leather.
1.1. Contact details
Manufacturer
Street address: Mercado Medic AB,
Tryffelslingan 14, SE-181 57 Lidingö, Sweden
Postal address: Mercado Medic AB,
Box 1074, SE-181 22 Lidingö, Sweden
Tel: [phone]
Email: [e-mail]
Website: www.mercado.se
Servicing and technical support
Telephone: [phone]
Email: [e-mail]
To report warranty claims, adverse events
and incidents or other feedback please use
the form at www.mercado.se/en/support.
Distributor
Responsible person: Henrik Sellberg
Mercado UK Ltd
Repton House, Bretby Business Park,
AshbyRoad
DE15 0YZ Burton on Trent
United kingdom
[phone]
[email protected].uk
www.mercado-medic.co.uk
Space for additional distributor contact
details:

6
Instruction manual for the use of medical bariatric work chairs Getting started
21-08861-UK-01
2. Getting started
This section is primarily aimed at you as a user of the device. It describes how to prepare
the device for use, adjust the seat height, charge electric models, and how to create good
conditions when moving. For care instructions, see 3. Caring for the device.
If you have any questions about your device or if something unexpected has happened, please
first contact your prescriber or dealer. You can find up-to-date contact details in Section 1.1.
Contact details. You are also welcome to contact us at Mercado Medic.
2.1. Before use
The device is always supplied with a seat,
backrest, armrest and brake. When delivered
from Mercado Medic, the backrest and brake
lever are not yet fitted. These should always
be fitted before the device is first used.
Brake lever
Insert the brake lever into the brake lever
bracket (A), see Figure 2.1. The brake lever
can be placed on the right or left side.
Backrest mechanism
Place the backrest support posts in the
backrest mechanism (B) and set the desired
height level, see Figure 2.1. Tighten all
controls (B).
Armrests
Loosen the armrest controls (C) and set the
desired height and width levels, see Figure
2.1. Tighten all controls (C).
Neck support
If the device is supplied with a neck support,
insert the neck support mechanism into the
backrest bracket (D) and set the desired
height level, see Figure 2.1. Tighten all
controls (D).
Battery
Before first use, the battery in electric
models must be activated and charged. This
is done by connecting the battery charger
to the device's charging socket and to a
wall outlet (E), see Figure 2.1. The charging
socket can be placed in different places
on the device. The most common is that
the device comes with the charging socket
mounted at the rear edge of the left armrest.
Wait until the battery is fully charged before
using the device. This normally takes 2 to 5
hours. When the battery is fully charged, the
LED on the charger lights up green. For other
charging instructions, see 2.3. Charging.

7
Instruction manual for the use of medical bariatric work chairs Getting started
21-08861-UK-01

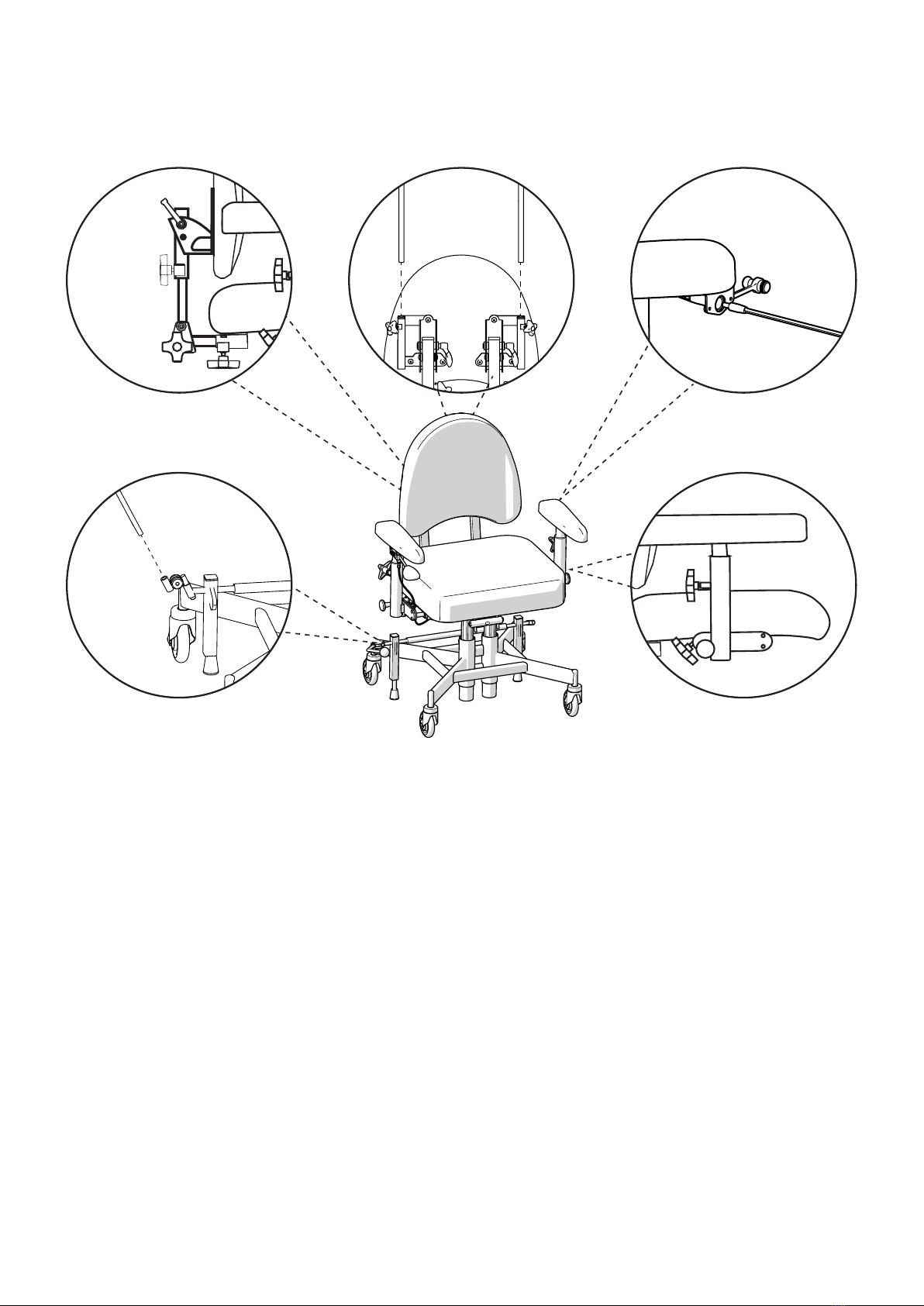

Figure 2.1. Preparations before the device is put into use.
Armrests
Neck support Battery
Brake lever
Backrest mechanism
A
B
C
DE
Consider the following before and during
use of the device
• All settings controls should be tightened
before using the device.
• The device must not be used without
fitting the backrest.
• The device must not be used without
fitting the armrests.
• The device’s brake must always be applied
when sitting down and getting up.
• The braking capacity of the device may be
impaired on heavily sloping floors.
• The braking capacity of the device may be
impaired on uneven floors.
• The device must be operated with care.
Always be aware of your surroundings
before moving. Pets or children on the
floor could be easily hit.
• The optional foot support ring is designed
to rest your feet on, not to stand on.
For models with electrical functions,
• Charge the device according to these
instructions for use, see Charging.
• The electrical functions cannot be used
when the device is charging.
• The seat must never be set to a height
where you are unable to get out of the
device safely.

8
Instruction manual for the use of medical bariatric work chairs Getting started
21-08861-UK-01
• The device must not be moved when the
seat is in the raised position.

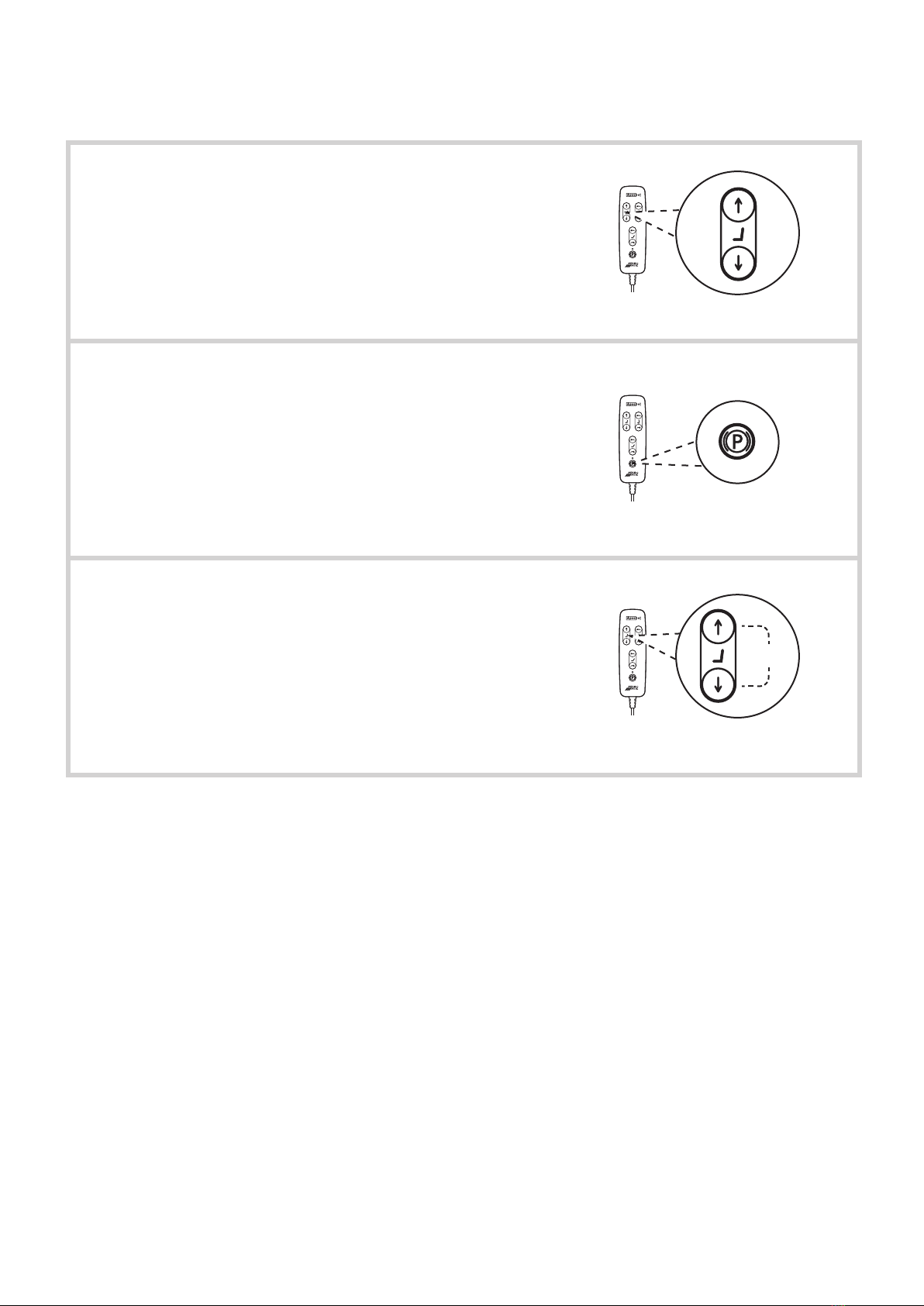

• Emergency stop for control buttons:
If, for whatever reason, the system
does not interrupt a movement after
the corresponding control button has
been released, the movement can be
interrupted by pressing the button for
movement in another direction.
• Emergency stop for hand-held controller:
If, for whatever reason, the system
does not interrupt a movement after
the corresponding control button has
been released, the movement can be
interrupted by pressing any of the other
buttons on the hand-held controller.
• Button lock on hand-held controller:
To enable or disable the button lock
for a function, press and hold both of
the directional buttons of the relevant
function for at least three seconds.
The button lock locks only the current
function. To lock multiple functions, each
function must be locked separately.
Warning! As a user, you should
contact your prescriber, technical
aids centre or distributor if the
device shows reduced or altered
performance. A device showing a
loss of or change in performance
must immediately be taken out of
use in order to avoid an accident.
The device must not be used again
until an authorised technician has
examined the device.
Warning! To maintain safety, the
device should only be used by the
person and purpose for which it is
intended. The device is set up for a
single user. Changing settings may
affect the user's seating position,
which may result in damage or injury.
Warning! You are not permitted to
modify the device yourself. If you
would like individual customisation,
contact your prescriber or distributor.
If the device is modified, the CE
marking no longer applies and
Mercado Medic may no longer have
full device liability. Modifications
may affect the safety of the device
and lead to accidents.
Warning! The device may be
equipped with long cables or
wires that cannot be secured in
order for the device to function
properly. Cables and wires can pose
strangulation risks to small children,
for example. Do not leave the device
unattended with small children
nearby.
Warning! The device is equipped
with small parts such as screws that
can come loose. Small parts that
have come loose can pose choking
hazards for children and pets.
Warning! Metal surfaces may
become very hot if they are exposed
to direct sunlight. Skin contact with
hot surfaces can lead to burns. Avoid
exposing metal surfaces to direct
sunlight.
Warning! Always ensure that the
device’s brake is applied when
sitting down and getting up. If the
device is not braked, it risks rolling
away when you get up or sit down,
which can lead to fall injuries.

9
Instruction manual for the use of medical bariatric work chairs Getting started
21-08861-UK-01
2.2. Electrical and manual height
adjustment
Depending on the model, the device has
electric or manual height adjustment.
Electric height adjustment is controlled by
the hand-held controller or by the control
button located under the right armrest,
see Figure 2.2. Manual height adjustment
is controlled by controls placed under the
seat or under the right armrest, see Figure
2.3. See 5. Configurations and settings for
detailed information about all the features
and controls of the device.
2.3. Charging
For electric models, the battery should
be charged once a day. Fully charging the
battery on a daily basis will take 2 to 5 hours.
It is important that the battery is never
completely discharged, as this helps to
prolong the life of the battery. Daily charging
of the battery is especially important on the
configurations that have an electric brake, to
ensure that, as a user, you can always get in
and out of the device safely. The device emits
a low battery level warning sound, for both
low and critical. Low battery is indicated by a
short signal. Critical battery level is indicated
by a short signal that ends with a loud beep.
If the device is equipped with a hand-held
controller, the battery level can also be
determined by checking the indicator lights,
see Figure 2.4.
The device must be charged in a safe manner.
The electrical functions cannot be used
when the device is charging. For this reason,
choose an easily accessible wall socket to
plug the charger into. The charger cable to the
wall socket is 1 metre long and must not be
extended. In case of emergency, disconnect
the device from the mains by unplugging the
charger from the wall socket.

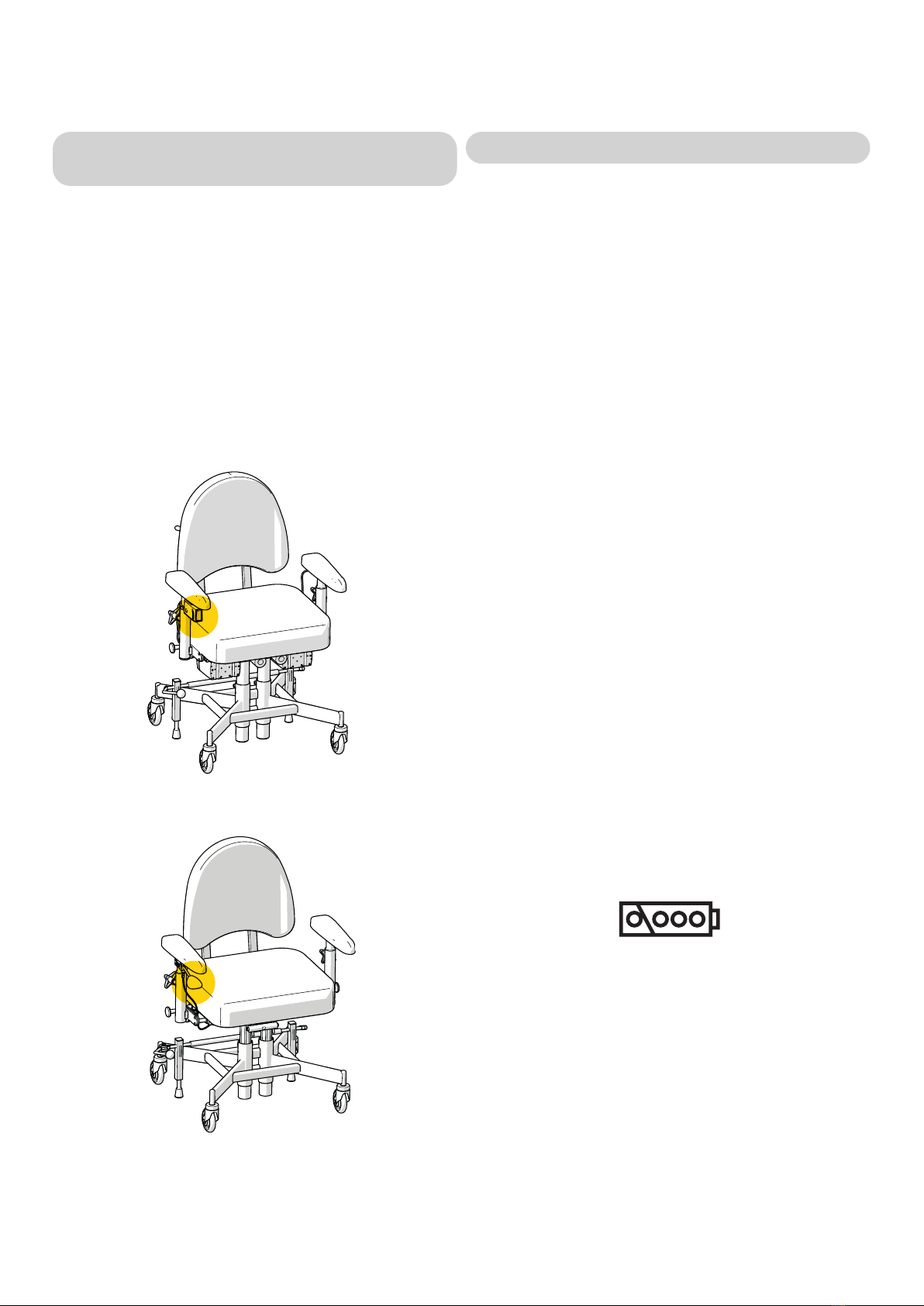

Figure 2.3. Controls on the manual model.
Figure 2.2. Controls on the electric model.
Figure 2.4. Battery level indicator on hand-held controller.

10
Instruction manual for the use of medical bariatric work chairs Getting started
21-08861-UK-01
How to charge the device
1. Connect the charger plug into the charging
socket, see Figure 2.5. The charging
socket is normally located at the rear
edge of the left armrest, but can also be
located under the seat, for example.
2. Connect the charger plug into the wall
socket. The LED on the charger will
indicate that charging is underway.
3. The battery is fully charged when the
LED on the charger changes colour from
red to green. If you are using the hand-
held controller, this will also be indicated
by the three green battery LEDs on the
controller, which will start to flash at the
same time.
If the electrical functions have not been
used for 7 days, the battery switches off
automatically. To reconnect the battery,
connect the battery charger to the charging
socket and the wall outlet and wait at least
5 seconds before unplugging the charger. It
is recommended to charge the battery fully
after the battery has been disconnected.
If no electrical functions are working, try
charging the battery. If electrical functions
still do not work, contact your prescriber or
distributor, see 1.1. Contact details.
2.4. Transfers
When moving around while sitting in the
device, it is important to make good contact
with the floor. For example, rubber-soled
indoor shoes can provide better grip and thus
facilitate movement. Rugs and carpets make
the movement more difficult. It is therefore
recommended to remove rugs or carpets if
you want to move while sitting.
Do not sit on the product when crossing
thresholds, mouldings and gaps.
Warning! Always ensure that the
device’s brake is applied when
sitting down and getting up. If the
device is not braked, it risks rolling
away when you get up or sit down,
which can lead to fall injuries.
Figure 2.5. Connecting the plug to the charging
socket under the armrest.

3. Caring for the device
Clean the device in accordance with the instructions in this section in order to maintain
functions and service life. If you still have issues that cannot be resolved using available home
resources, please contact your prescriber or distributor for reconditioning.
PLEASE NOTE! Do not wash the device with water or other liquids and chemicals.
3.1. Padded parts
To maintain good device hygiene, the device’s
padded parts should be cleaned regularly.
Ifpadded parts are not regularly cleaned, the
device may require reconditioning.
Plush padded parts
Use a foam cleaner to clean plush padded
parts. Start by removing any loose debris.
Then use a cloth to distribute a thin layer of
foam. Wipe with a clean, damp cloth. Finish by
vacuuming the upholstery after it has dried.
Synthetic leather padded parts
Use soap and water or surface disinfectant
to clean synthetic leather padded parts.
Start by removing any loose debris. Then
use a cloth to clean the upholstery with soap
and water or surface disinfectant. If the
upholstery is cleaned using soap and water,
finish by wiping with a clean, damp cloth.
Leather padded parts
Use water to clean leather padded parts.
Start by removing any loose debris. Then
clean the upholstery with a clean, damp
cloth. For best effect, padded parts should
be cleaned immediately after something
is spilled on it. To extend the service life
of padded parts, avoid direct contact with
chemicals or prolonged sunlight.
3.2. Castors and brake feet
Regular cleaning of castors and brake feet
is required to maintain the operation of the
device. Wipe castors and brake feet with
a damp cloth. Remove any hair from the
castors using a thin crochet needle or similar
implement.
3.3. Other parts
Do not clean lifting devices and actuators on
any electric brake installed on the device, see
Figure 3.1. This is because there is a risk that
the grease required for these mechanisms
to function as intended might be removed
during cleaning.
If necessary, a dry cloth can be used to
remove dust from any electronic parts of
the device. Clean the other non-electronic
parts of the device once a week or when
11
Instruction manual for the use of medical bariatric work chairs Caring for the device
21-08861-UK-01

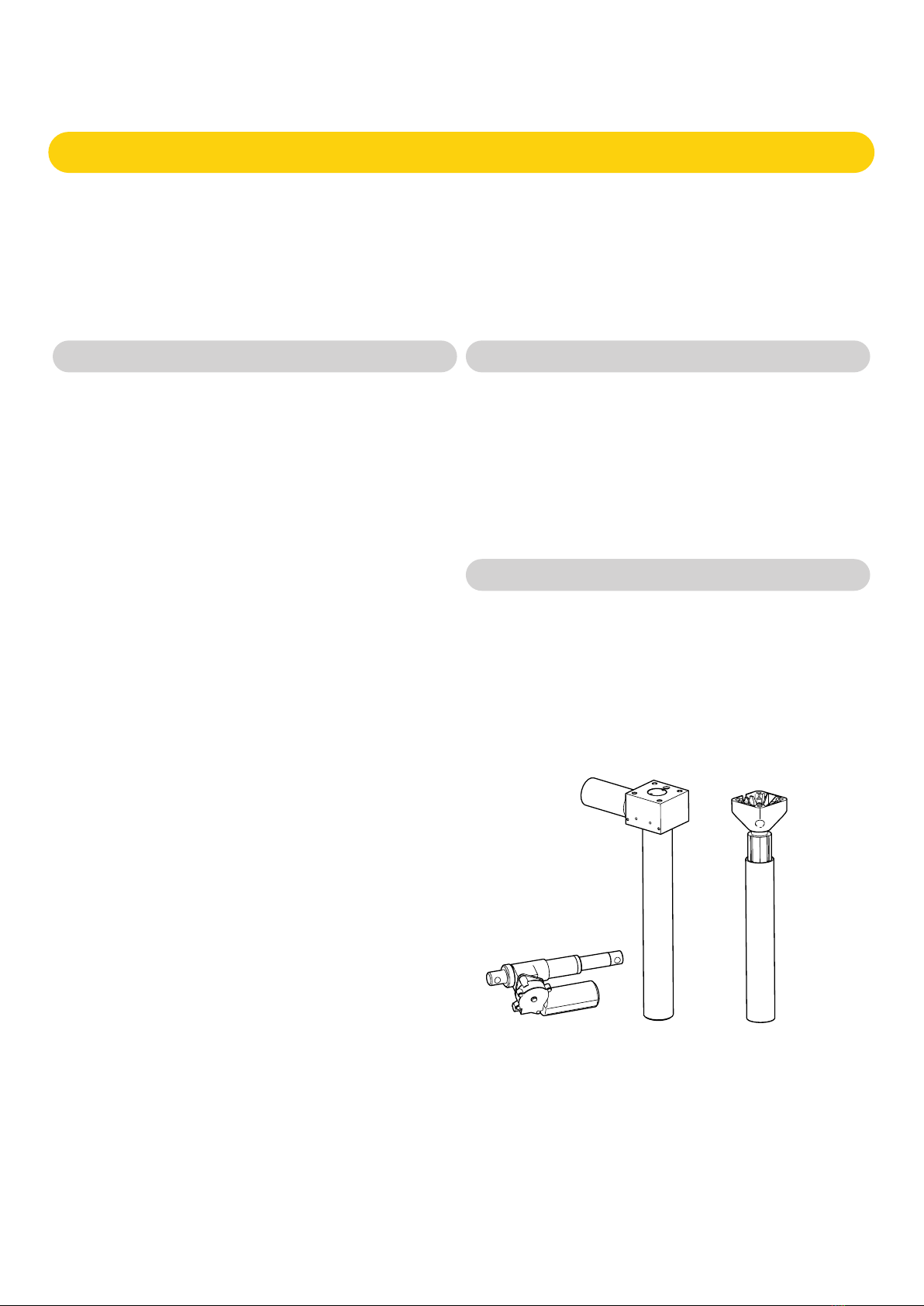

Figure 3.1. The device’s lifting mechanisms and other actuators.

12
Instruction manual for the use of medical bariatric work chairs Caring for the device
21-08861-UK-01
necessary. Use a clean, damp cloth with mild
detergent (pH 7-12), surface disinfectant or
use a steam cleaner (max. 8 bar).
3.4. Transport and storage
When transporting and storing the device,
keep the following in mind:
• The device moves by rolling on a flat
surface.
• The device should be lifted by two people.
Suitable grip points are at the front,
rear, right and left sides of the seat, see
Figure3.2.
• The device is intended to be transported
and stored at between -25°C to +60°C
and up to 90% non-condensing relative
humidity.
• The device must be transported in the
intended cardboard box on a pallet. If the
device is transported by car, it must be
strapped in place using straps over both
the base and the seat, and it should be
set to the lowest possible seat height.
To reduce the size of the device during
transport, the backrest can be removed
and the armrests lowered. Besure to
select the settings so that they can
be easily reset. Tape or similar easily
removable marking is recommended.
• The device must not be used as a seat
when transported in a car or aircraft,
forexample.
• In the case of air transport, the device
must be stored in the hold. Original
Mercado Medic batteries are approved for
air transport. For information on battery
type, see 7. Technical information.
Figure 3.2. Suitable grips when lifting.

The REAL 9200 TWIN device consists
of modular work chairs intended for use
indoors by people suffering from obesity
who need aids in order to perform dynamic
seated activities, move by their own power
or stand up from a seated position. The
REAL9200TWIN is designed to harness
the physical capabilities of the user and can
therefore be individually customised in a
number of different designs. The device is
designed to relieve muscles, joints, bones
and relieve pains linked to passivity.
The REAL 9200 TWIN is designed and
recommended for one or more of the
following indications:
• Difficulty or inability to walk.
• Difficulty or inability to stand up from
sitting.
• Pain or exhaustion as a result of everyday
tasks at home or at work.
• Where use of a wheelchair is not suitable
as a result of activities of daily living.
Contraindications
There are no known contraindications
for using REAL 9200 TWIN. If the device
is purchased without prescription from
qualified healthcare professionals, the user
should consult their doctor whether there are
any contraindications.
4.1. Operating environment
• The device is intended for indoor use only
and must not be used outdoors.
• The device is intended to be used at
between -5°C to +40°C and 15-90% non-
condensing relative humidity. Ifthe device
is stored in an environment outside these
limits, the device must be acclimatised
for up to 4 hours to achieve an approved
temperature before use.
• The device must not be used at altitudes
greater than 2000 m above sea level.
• The device must not be exposed to
extreme cold or heat, prolonged sunlight
or other radiation.
• The device must not be exposed to water,
liquids or chemicals to any extent other
than that specified in the care information
in Section 3. Caring for the device.
4. intended use
13
Instruction manual for the use of medical bariatric work chairs intended use
21-08861-UK-01

5. Configurations and settings
This section is primarily aimed at you as a
prescriber of the device. It describes the
device's models, options when configuring
the device, and information about setting
and adjusting the device's functions.
Fordimensions and performance, see 7.
Technical information.
The device is available in several configurable
models. The basic design of each model
is described below, see 5.2. Basic design.
In addition to the basic design, there are
a large number of options to personalise
the device. For available options, see the
description for each function in this section.
It is also possible to further customise
the models both within and outside CE
marking, see 5.12. Individual adaptation.
For information about accessories and
current combination agreements please
visit our website www.mercado.se. For an
overview of accessories, we recommend
you read the document "Accessories for
REAL9200TWIN".
The device is compatible with the TWIN
seating system. The seating system includes
seats and backrests. See 5.8 for compatible
armrests. Armrest panel. The padded parts
can be combined as needed for support,
relief and stability when sitting. In the
event of specific needs, a seat with anti-slip
material can be installed for use of third-
party seat cushions, see 5.12. Individual
adaptation. For more information about the
seating systems and other padded parts,
please visit our website www.mercado.se.
For an overview of available upholstered
details, read the document 'Seat systems'.
On www.mercado.se there are various forms
of prescription support such as information
sheets, order forms and a digital chair
configurator. There are also instructions for
use and device information for all Mercado
Medic devices.
5.1. Required level of competence for
setting and adjusting
The functions and accessories for positioning
and relief sitting should only be set by the
prescriber of the device unless otherwise
agreed, as this requires knowledge of good
sitting positions. For example, these features
and accessories include headrests and
armrest width adjustment.
Where appropriate, daily functions such as
the adjustment of seat height, brake and
possible armrest height, can be personally
adjusted by the user if this can be done
safely.
14
Instruction manual for the use of medical bariatric work chairs Configurations and settings
21-08861-UK-01

5.2. Basic design
The device is always supplied with a seat, backrest, armrest, stand with four castors (100 mm
as standard) and manual brake with brake lever (350 mm as standard). Configurations with a
seat width of 620 mm and above are also supplied with an adapter that allows the brake lever
to be angled out outside the seat. Depending on the model, the device has either electric or
manual height adjustment.
PLEASE NOTE! The basic design of the device may vary between regions and contracting entities.

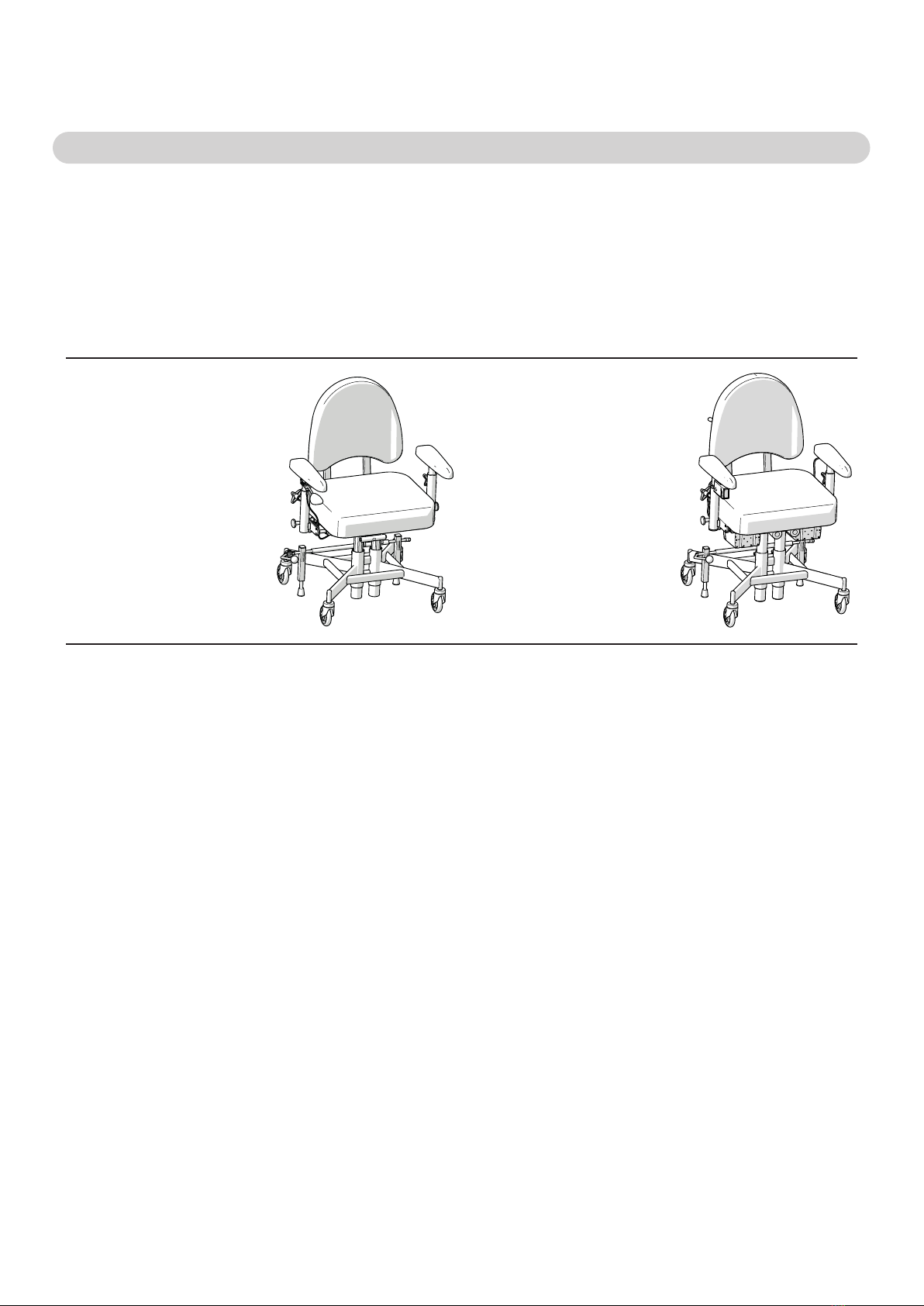

REAL 9200 TWIN
Adult model with manual
height adjustment.
REAL 9200 TWIN EL 24V
Adult model with electric
height adjustment.
15
Instruction manual for the use of medical bariatric work chairs Configurations and settings
21-08861-UK-01

5.3. Electrical functions
Electric models can be equipped with up to two electrical functions, electric height adjustment
and optional electric brake. These can be adjusted in two ways; either using the control button
located under the armrest or with the hand-held controller.
Control button
The control button is a three-position electric control (off, up and down), which can be used
to adjust seat height. If the device is equipped with an electric brake, there is a special control
button with two positions (sleep mode and switch between activated and deactivated) for this.

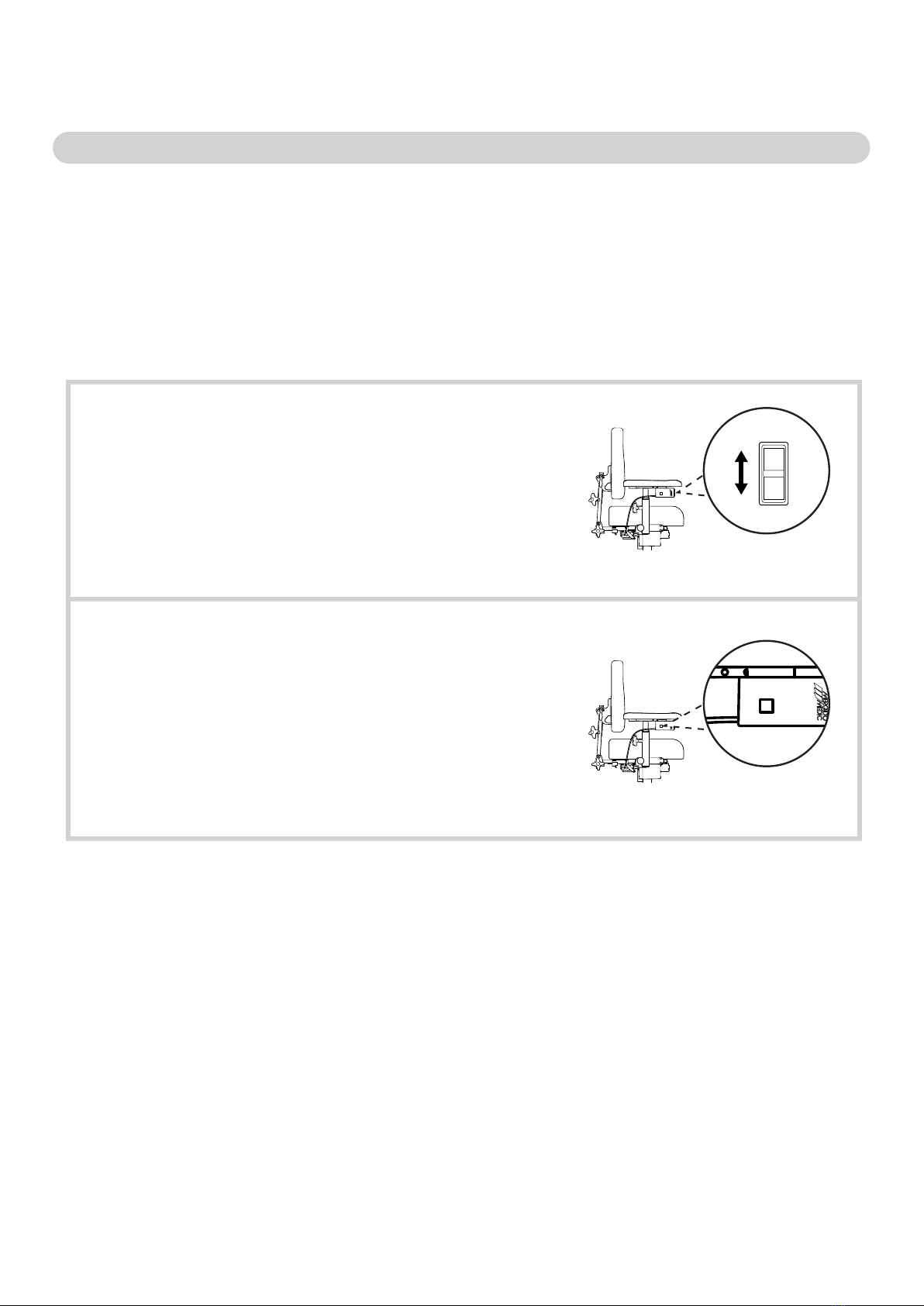

Seat height
The seat height control button is located under the
frontedge of the right armrest, see Figure 5.1.
Adjustment:
1. Press up for upward movement.
2. Press down for downward movement. Figure 5.1. Control button for adjusting seat
height.
Brake
The brake control button is located on the outside
underthe right armrest, see Figure 5.2.
Activation and deactivation of brake:
1. A short press activates the brake.
2. A short press on the same button deactivates
thebrake. Figure 5.2. Control button for activation and
deactivation of brake.
Hand-held controller
The hand-held controller (optional) is available in two versions, wired controller and wireless
remote control. These are available in models with 1 function or 4 functions. The 1-function
is intended to only control raising and lowering. The 4-function model can control all four
functions. The hand-held controller also has a button lock function, see Figure 5.5.
PLEASE NOTE! The device can only be equipped with two electrical functions. Electric backrest
mechanism and seat tilt are not compatible with this device.
16
Instruction manual for the use of medical bariatric work chairs Configurations and settings
21-08861-UK-01

Seat height
Buttons on the upper keypad on the left, see Figure 5.3.
Adjustment:
1. Press up for upward movement.
2. Press down for downward movement. Figure 5.3. Button for adjusting seat height.
Brake
Button in the middle at the bottom, see Figure 5.4.
Activation and deactivation of brake:
1. A short press activates the brake.
2. A short press on the same button deactivates the
brake. Figure 5.4. Button for activation and
deactivation of brake.
Button lock
Activating and deactivating the button lock, see Figure 5.5.
1. To activate the button lock, press and hold both
buttons for at least 3 seconds to adjust the seat
height.
2. To de activate the button lock, press and hold both
buttons again for at least 3 seconds. Figure 5.5. Activation and deactivation of
button lock.
17
Instruction manual for the use of medical bariatric work chairs Configurations and settings
21-08861-UK-01
3s

5.4. Seat
Seats are available in the TWIN model.
Seat upholstery is available in four materials: plush, synthetic leather (optional), patterned
fabric (optional) and hygiene fabric (optional). Upholstery in hygiene fabric is used to protect
the seat from moisture. Plush and hygiene fabric covers (optional) are also available for all
seat designs and sizes. Hygienic fabric covers have a plush exterior and a plasticised interior.
For more information about upholstery, covers and available colours, please visit our website
www.mercado.se. For an overview of available upholstery and covers, read the document
'Seatsystems'.
TWIN

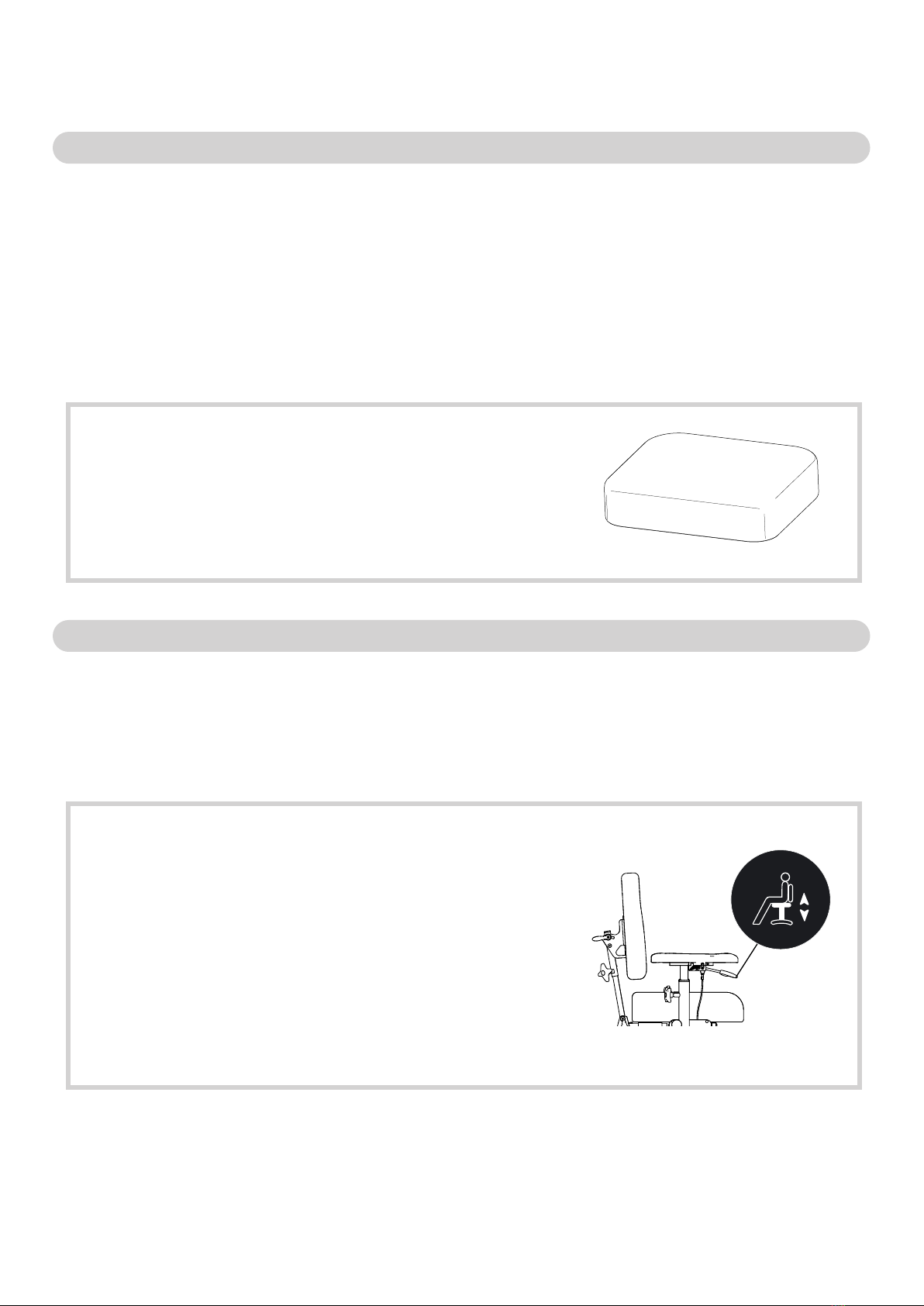

TWIN is a flat seat with extra padding that provides good
relief in the event of heavier loads, see Figure 5.6. The
seat is available in sizes ranging from 520 x 400 mm to
720 x 500 mm.
Figure 5.6. TWIN seat.
5.5. Manual height adjustment
Manual height adjustment is available in two ranges, standard seat height and low seat height.
To allow for a user weight up to 180 kg, the device is equipped with two gas spring-operated
lifting mechanisms each with a user weight range of 55 - 90 kg. Manual height adjustment
uses a gas spring lever. Height adjustment is also available as an electrical function, see 5.3.
Electrical functions.
Gas spring lever
A height adjustment lever is located under an armrest.
Thelever can be placed on the right or left side, see
Figure5.7.
Adjustment:
1. Pull the lever upwards to disengage the gas spring-
operated lifting mechanism, then select the desired
height with both feet on the floor.
2. Lock the height by releasing the lever. Figure 5.7. Gas spring lever for height
adjustment.
18
Instruction manual for the use of medical bariatric work chairs Configurations and settings
21-08861-UK-01

5.6. Backrest
backrests are available on the TWIN model.
Backrest upholstery is available in four materials: plush, synthetic leather (optional), patterned
fabric (optional) and hygiene fabric (optional). Plush and hygienic fabric covers (optional) are
also available for all back designs and sizes. Hygienic fabric covers have a plush exterior and
a plasticised interior. For more information about upholstery, covers and available colours,
please visit our website www.mercado.se. For an overview of available upholstery and covers,
read the document 'Seat systems'.
TWIN

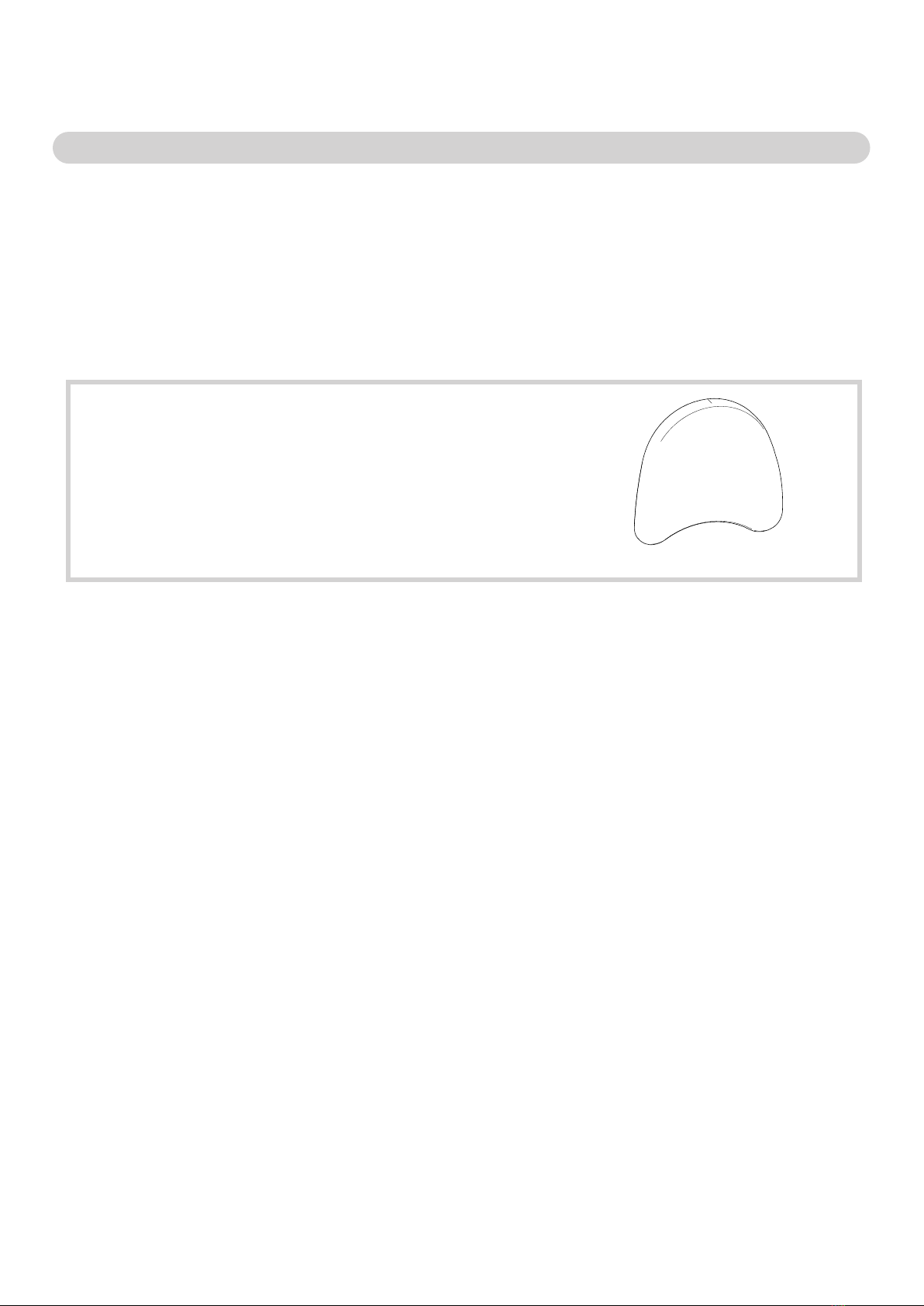

TWIN is a lightly cupped backrest, see Figure 5.8. The seat
is available in sizes from 460 x 430 mm to 660 x 430 mm.
Figure 5.8. TWIN backrest.
19
Instruction manual for the use of medical bariatric work chairs Configurations and settings
21-08861-UK-01

5.7. Backrest mechanism
A manual back mechanism is available in the Medic TWIN model.
Medic TWIN

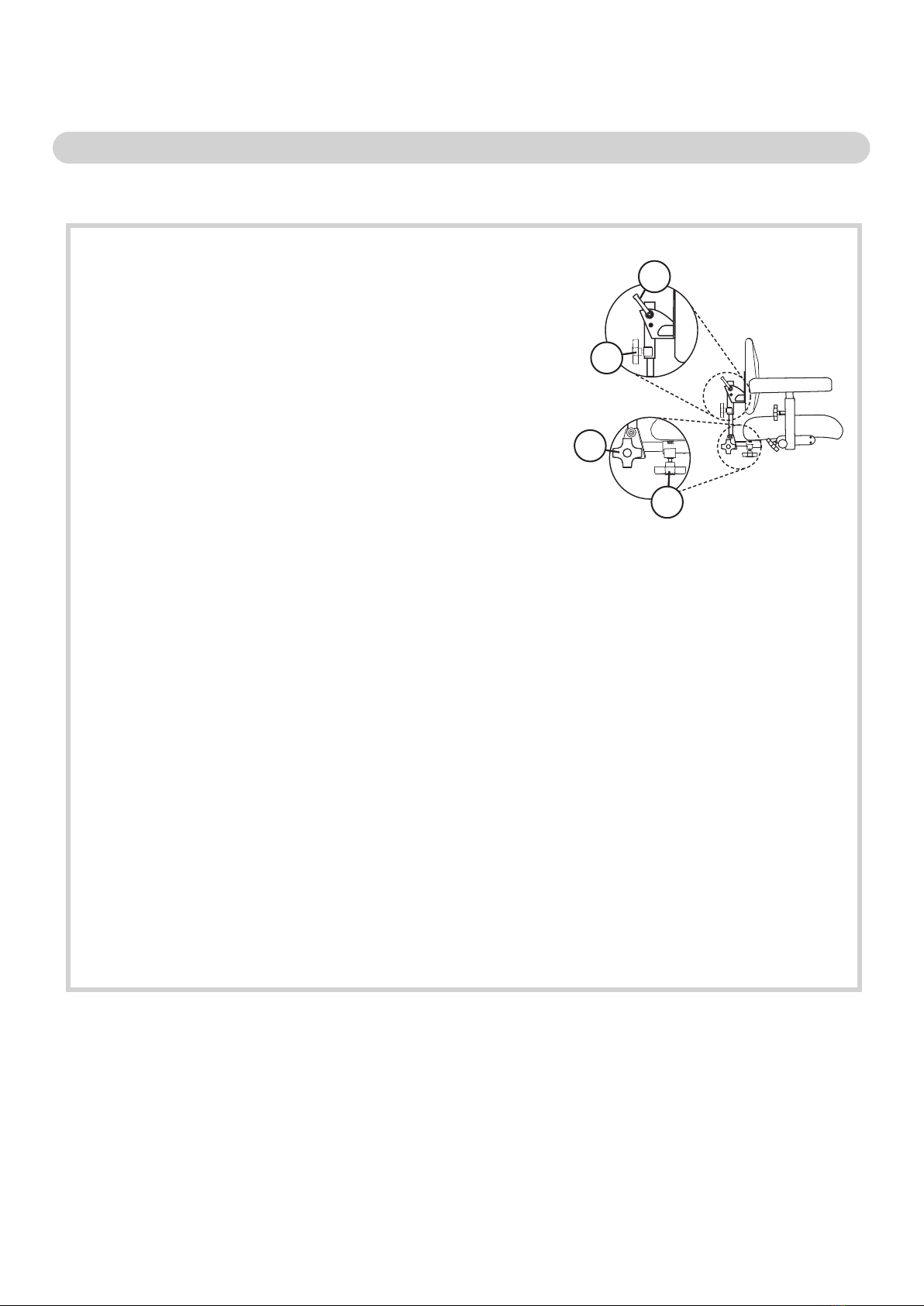

Medic TWIN can be adjusted in height (A), angle of
backrest (B), angle of back rest mechanism (C) and depth
(D), see Figure 5.9. The back recliner can be adjusted in
the range of 15° forward to 45° backwards.
Height setting:
1. Loosen the knob and select the desired height for
theback.
2. Tighten the knob.
Setting the angle of the backrest:
1. Loosen the handle and adjust to the desired angle.
2. Tighten the handle.
Setting the angle of the back recliner:
1. Loosen the knob and adjust to the desired angle.
2. Tighten the knob securely.
Depth setting:
1. Loosen the knob and adjust to the desired depth.
2. Tighten the knob securely.
PLEASE NOTE! Make sure that the back adjustment
mechanism is adjusted in the bracket so the spring button
clips lock and the back adjustment mechanism cannot be
pulled out.
Figure 5.9. Medic TWIN back adjustment
mechanism.
20
Instruction manual for the use of medical bariatric work chairs Configurations and settings
21-08861-UK-01
A
B
C
D
