03DTSHPN0806FGD1TW-V1
DIP TREATED SHIPLAP PENT 8FT X 6FT FULLY GLAZED DOUBLE 1 TALL WINDOW
2mm Drill bit
x2 Winter = High Moisture = Expansion
Summer = Low Moisture = Contraction
All buildings should be
erected by two adults
For ease of assembly, you
MUST pilot drill all screw
holes and ensure all screw
heads are countersunk.
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
CAUTION
Every eort has been made during the
manufacturing process to eliminate the
prospect of splinters on rough surfaces of the
timber. You are strongly advised to wear gloves
when working with or handling rough sawn
timber.
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied) including a Phillips screw-
driver, Stanley knife, Wood saw, Step ladder, Hammer and a Drill with 2mm bit.
- Ensure there is plenty of space and a clean dry area for assembly.
LOCATION FOR YOUR GARDEN BUILDING
A minimum of 60cm should be left around the perimeter of your garden building to allow access for maintenance,
annual treatment and to allow air ow around the building.
Where possible you should avoid placing your garden building underneath large trees to prevent the tree causing
damage to the building.
TIMBER
As with all natural materials, timber can be aected during various weather conditions. For the duration of heavy
or extended periods of rain, swelling of the wood panels may occur. Warping of the wood may also occur during
excessive dry spells due to an interior moisture loss. Unfortunately, these processes cannot be avoided but can be
helped. It is suggested that the outdoor building is sprayed with water during extended periods of warm sunshine
and sheltered as much as possible during rain or snow.
Once your garden building has been installed it will need to be treated as soon as possible and annually to prevent
the timber from deteriorating and to waterproof it. This is required to maintain the anti-rot guarantee.
Dip Treated buildings - Require a preservative treatment to protect against rot and decay and a waterproof treat-
ment to prevent water ingress
Pressure Treated buildings - Require a waterproof treatment to prevent water ingress
Log Cabins - Are supplied untreated and require a preservative and waterproong treatment.
BUILDING A BASE
When thinking about where the building and base is going to be constructed:
Ensure that there will be access to all sides for maintenance work and annual treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to diagrams for the base
dimensions, The base should be slightly smaller than the external measurement of the building, i.e. The cladding
should overlap the base, creating a run o for water. It is also recommended that the oor be at least 25mm above
the surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in the case of childrens
products independently tested to EN71 level, we cannot accept responsibility for your safety whilst erecting or
using this product.
For ease of assembly, you
will need a tape measure to
check dimensions of
components.
P 1
Please retain product label and instructions for future reference
General Instructions

1 2 3 4
567
Door Panel
AI-03S11SHDD1180X2075-V1
Single Window Panel
AI-03S11SH1TFWC1180X2075-V1
Right Panel
AI-03S11SHPGR1707X2119-V1
Left Panel
AI-03S11SHPGL1707X2119-V1
Back Panel QTY 2
AI-S11SHPP1180X2015-V1
Floor QTY 2
AI-R11MBF1175X1753-V1
Roof QTY 2
AI-S21MBPR1222X2305-V1
Contents
P 2
03DTSHPN0806FGD1TW-V1
Overall Dimensions:
Width = 2468mm
Depth = 2331mm
Height = 2170mm
Base Dimensions:
Width = 2350mm
Depth = 1753mm
Please retain product label and instructions for future reference
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN
8
9 10 11
12
13
17
22
Butt Hinge QTY 6
PI-07-0066
Door Handle QTY 2
PI-07-0081
Turn Button QTY 2
PI-07-0034
18
19
20
21
24
23
Press Lock
PI-07-0162
Barrel Bolt QTY 2
PI-07-0114
Window Beading Block
QTY 8
PI-07-0011
Fitted Window QTY 1
AI-FW653X1582-V1
Felt
Cover Trim - 12 x 40 x 2070mm QTY 3
S1240-2070mm
Cover Trim - 12 x 40 x 2035mm QTY 3
S1240-2035mm
Fascia - 12 x 95 x 2306mm QTY 2
S1295-2306mm
Fascia - 12 x 95 x 2468mm QTY 2
S1295-2468mm
Under Roof Panel
AI-S11MBURF2440X484-V1
Master Door
AI-STDFGMD475X1715-V1
Secondary Door
AI-STDFGSD475X1715-V1
14
15
16
Rain Guard - 28 x 44 x 680mm QTY 1
RG2844-680mm
Rain Guard - 28 x 44 x 990mm QTY 1
RG2844-990mm
Door Frame Strip - 12 x 40 x 1740mm QTY 2
S1240-1740MM
Door Frame Strip - 12 x 40 x 996mm QTY 1
S1240-996MM
Eaves Frame - 28 x 28 x 1222mm QTY 2
FS2828-1222mm
25
26
27

P 3
Please retain product label and instructions for future reference
Nail Bag
There may be extra screws present in the nail bag
40mm Screw QTY 18
Felt Tacks QTY 110
25mm Screw QTY 22
30mm Screw QTY 95
50mm Screw QTY 86
35mm Bolt QTY 4
10mm Screw QTY 12
Pre Assembly
Before assembling remove the transportation
blocks from the bottom of each panel.
Take care removing the blocks as to not damage
the panels. Tap with a at headed screwdriver
and hammer.
Dispose of the blocks once removed.
Step 1
Parts needed - No. 1 QTY 1
- No. 9 QTY 1
- No. 10 QTY 1
- No. 21 QTY 2
- No. 23 QTY 6
Fix the hinges to the master (No. 9) and
secondary (No. 10) doors and to the door
panel (No. 1) using 3x butt hinges (No. 23)
per door. Ensure to predrill holes.
* Fix to the door using 3x25mm screws &
3x30mm screws to the Door Panel per
hinge, ensure the doors open freely.
Fix the door handles (No. 21) to the outside
of the master and secondary door using
the 35mm bolts provided.
4x35mm Bolts
18x25mm Screws
18x30mm Screws
Pre drill
hole
25mm
screw
30mm
screw
35mm
bolt
23
21
19
10

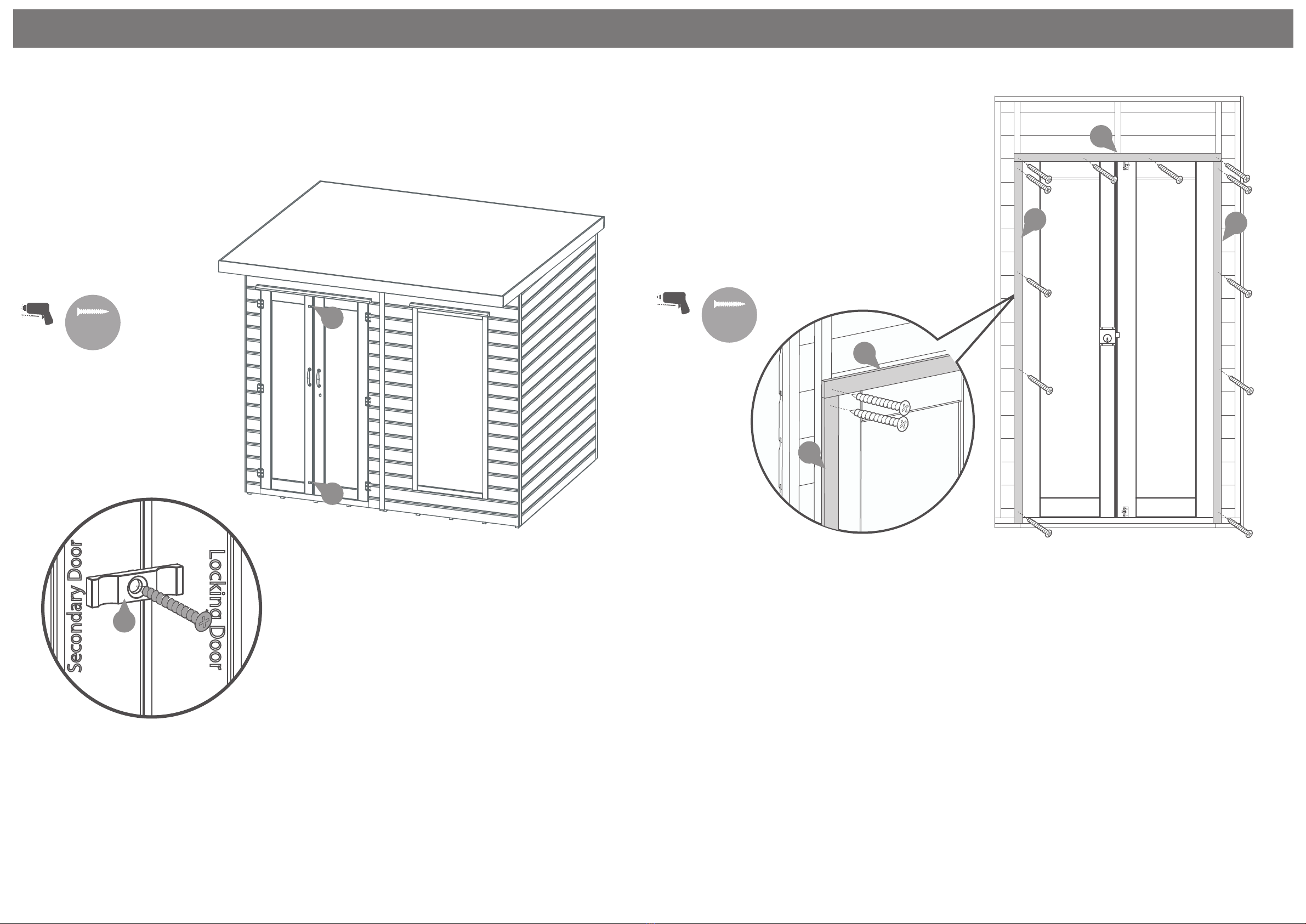

Step 2
Parts needed - No. 22 QTY 1
- No. 27 QTY 2
Secure the barrel bolts (No. 27) to the
top & bottom of the secondary door using
6x10mm screws. Pre-drill the holes
beforehand. Drill a hole in the framing
above and below the door for the barrel
bolt to x into.
Attach the press lock (No. 22) to the
master door with 4x25mm screws, aligning
the barrel with the key hole.
*Ensure the key turns and locks properly
before xing to the door.
12x10mm Screws
4x25mm Screws
Pre drill
hole
10mm
screw
25mm
screw
10
9
27
1
22

P 4
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied) including a Phillips screw-
driver, Stanley knife, Wood saw, Step ladder, Hammer and a Drill with 2mm bit.
- Ensure there is plenty of space and a clean dry area for assembly.
LOCATION FOR YOUR GARDEN BUILDING
A minimum of 60cm should be left around the perimeter of your garden building to allow access for maintenance,
annual treatment and to allow air ow around the building.
Where possible you should avoid placing your garden building underneath large trees to prevent the tree causing
damage to the building.
TIMBER
As with all natural materials, timber can be aected during various weather conditions. For the duration of heavy
or extended periods of rain, swelling of the wood panels may occur. Warping of the wood may also occur during
excessive dry spells due to an interior moisture loss. Unfortunately, these processes cannot be avoided but can be
helped. It is suggested that the outdoor building is sprayed with water during extended periods of warm sunshine
and sheltered as much as possible during rain or snow.
Once your garden building has been installed it will need to be treated as soon as possible and annually to prevent
the timber from deteriorating and to waterproof it. This is required to maintain the anti-rot guarantee.
Dip Treated buildings - Require a preservative treatment to protect against rot and decay and a waterproof treat-
ment to prevent water ingress
Pressure Treated buildings - Require a waterproof treatment to prevent water ingress
Log Cabins - Are supplied untreated and require a preservative and waterproong treatment.
BUILDING A BASE
When thinking about where the building and base is going to be constructed:
Ensure that there will be access to all sides for maintenance work and annual treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to diagrams for the base
dimensions, The base should be slightly smaller than the external measurement of the building, i.e. The cladding
should overlap the base, creating a run o for water. It is also recommended that the oor be at least 25mm above
the surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in the case of childrens
products independently tested to EN71 level, we cannot accept responsibility for your safety whilst erecting or
using this product.
Please retain product label and instructions for future reference
Pre drill
hole
50mm
screw
66

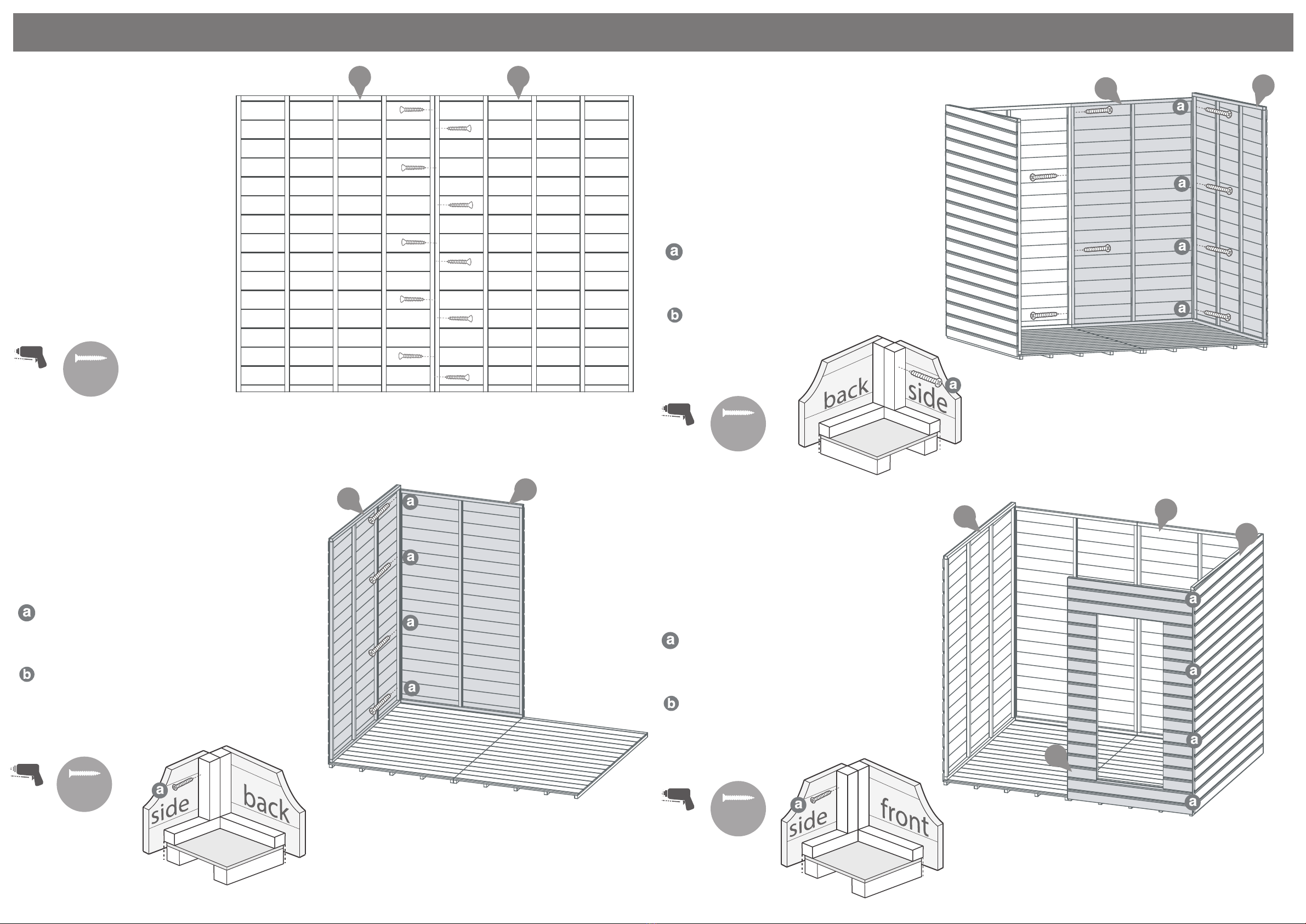

Place the assembled oor panels
(No. 6) upside down onto a rm and
level base. Ensure the base has
suitable drainage, free from areas
where standing water can collect.
Secure the oors together using
10x50mm screws through the oor
bearers in an alternating pattern.
Once xed together turn the oor
back the right way up.
10x50mm Screws
Step 3
Parts needed - No. 6 QTY 2
Fix the corners with 50mm
screws as shown in the
illustration.
Do not secure the building
to the oor until the roof
is tted.
4x50mm Screws
Pre drill
hole
50mm
screw
Step 4
Parts needed - No. 4 QTY 1
- No. 5 QTY 1
Join the Left Panel(No. 4) together with
Back Panel (No. 5) as shown in the illustration.
*Please note that the back panels are
shorter than the side panels
5
4
Step 5
Parts needed - No. 3 QTY 1
- No. 5 QTY 1
Connect the Back Panel (No. 5) to the
already standing Back Panel. Followed by
adding the Right Panel (No. 3).
*Please note that the back panel is
is shorter than the side panels.*
Fix the corners with 50mm
screws as shown in the
illustration.
Do not secure the building
to the oor until the roof
is tted.
8x50mm Screws
Pre drill
hole
50mm
screw
3
5
Step 6
Parts needed - No. 2 QTY 1
Connect the Single Window Panel (No. 2)
with the Right Panel (No. 3).
*Please note that the single window
panel is shorter than the side panels.*
Fix the corners with 50mm
screws as shown in the
illustration.
Do not secure the building
to the oor until the roof
is tted.
4x50mm Screws
Pre drill
hole
50mm
screw
45
3
2

P 5
Please retain product label and instructions for future reference
Step 7
Parts needed - No. 1 QTY 1
Fix the Door Panel (No. 1) between the
Single Window Panel (No. 2) and the
Left Panel (No. 4) using 50mm
screws in alternating directions.
*Please note that the Door panel is
shorter than the side panels.*
Fix the panels together with
50mm screws as shown in the
illustration.
Do not secure the building
to the oor until the roof
is tted.
8x50mm Screws
Pre drill
hole
50mm
screw
1
4
2

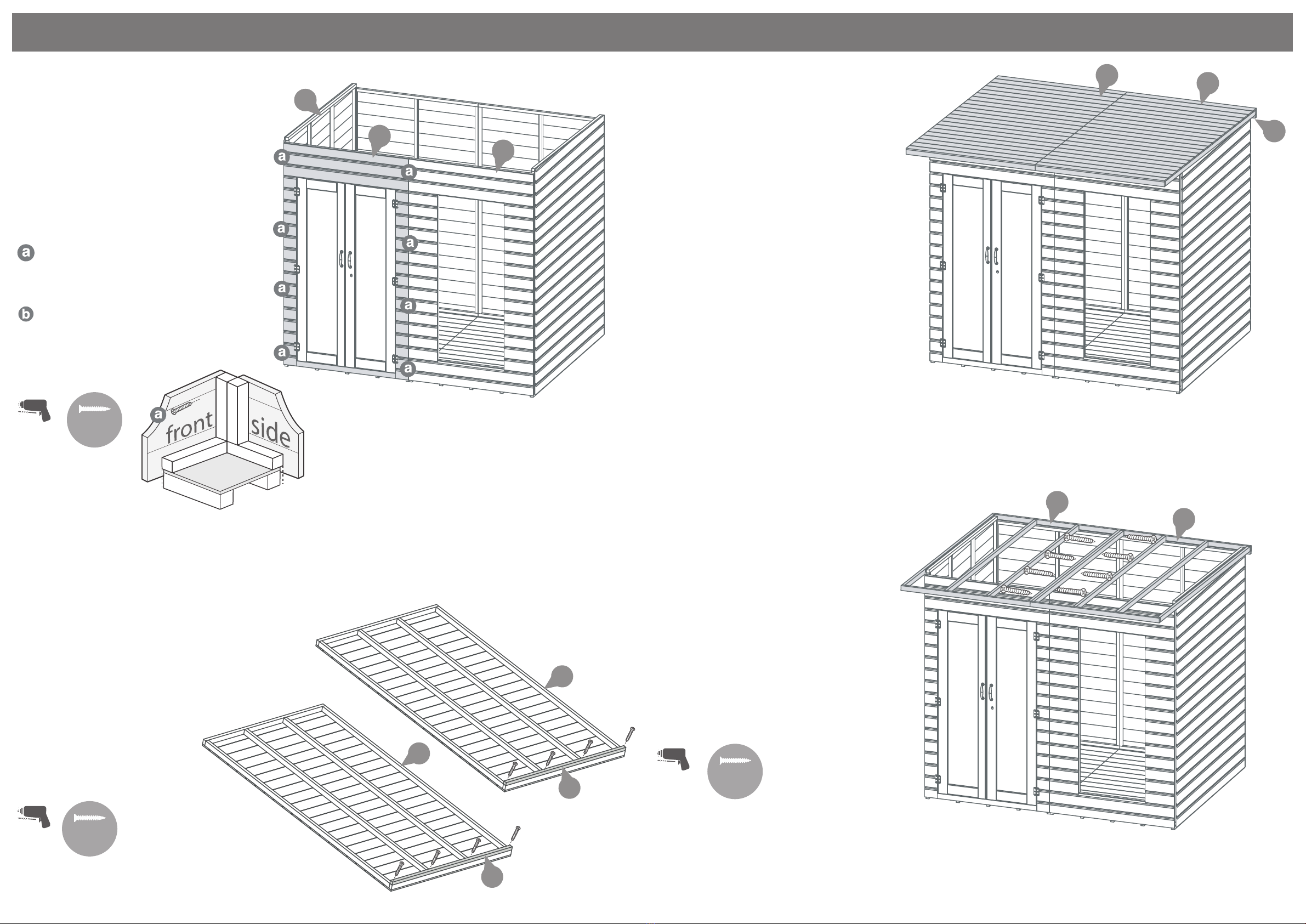

Step 8
Parts needed - No. 7 QTY 2
- No. 20 QTY 2
50mm
screw
Pre drill
hole
Fix the Eaves framing (No.20) to the
roof (No.7) using 4x50mm screws per
eaves framing, screwing through the
eaves framing and into the roof
framing.
Ensure the eaves framing is ush
to the edges of the roof framing
before securing.
8x50mm Screws
7
20
20
7
Step 9
Parts needed - No. 7 QTY 2
Place the Roof Panels (No. 7) onto the top
of the building. Align the two Roof Panels
so they sit square before xing into postion.
The roof eaves frames (No. 20) should sit at
the back of the building.
*The roof panels should sit on top of the
left and right panels, the roof panels
framing should sit on top of the back, door
and single window panels.*
Do not secure the building to the Floor
until the roof is tted.
77
20

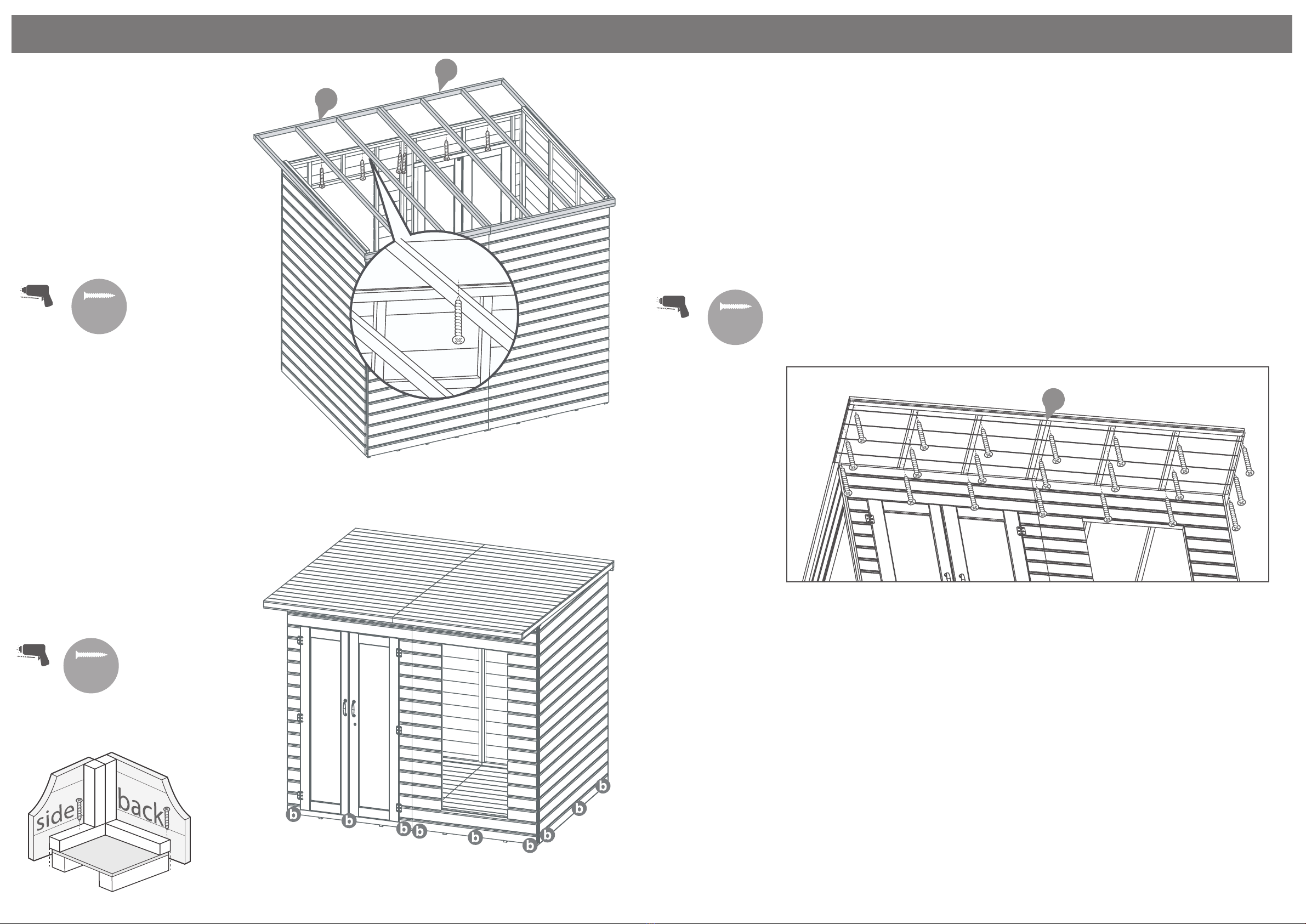

Step 10
Fix the two Roof panels (No. 7)
together using 50mm screws. Oset
the screws from each other as shown
in the diagram.
*Roof boards not shown for
illustration purposes.
Do not secure the building to
the Floor until the roof is
tted.
8x50mm Screws
Pre drill
hole
50mm
screw
7
7

P 6
Please retain product label and instructions for future reference
Step 12
Once the Roof (No. 6) is aligned and secure the
Floor can be xed into postion.
Fix the building into place by screwing
through the panel into the oor making
sure to screw into the oor bearers.
18x50mm Screws
Pre drill
hole
50mm
screw
Step 13
Parts needed - No. 8 QTY 1
Place the Under Roof Panel (No. 8) into
position, making sure it is ush to the front
of the building. Using a pencil mark on the
under roof panel where the roof panel framing
is to use as a guide for xing into place.
Fix in place making sure to screw through
in to the Roof framing. Pre-drill holes rst.
21x30mm Screws
Pre drill
hole
30mm
screw
8
Step 11
Screw internally with 6x50mm screws
securing the roof panels (No. 7) at
the front and back of the building.
*Roof boards not shown for
illustration purposes.
Do not secure the building to the
Floor until the roof is tted.
12x50mm Screws
Pre drill
hole
50mm
screw
7
7

P 7
Please retain product label and instructions for future reference
HANDLE
WITH CARE
12
3
4
Step 14
Parts needed - No. 25 QTY 1
Cut the Felt (No. 25) into 3 sheets at 2550mm
each and lay onto the roof. Starting at the
back and working towards the front.
*Ensure there is approximately 50mm of
overhang around the building.
Fix into place using 110x felt tacks at
100mm intervals.
110x Felt tacks Felt Length 2550mm
Felt
tacks
1.
2.
3.
25
Step 15
Parts needed - No. 16 QTY 2
- No. 17 QTY 2
Fix the fascias (No. 16 & 17) to
the front, back and sides of the
building using 18x40mm screws.
Ensure the fascia xed to the back
of the roof nishes ush with the
top to enable water to run o.
18x40mm Screws
Pre drill
hole
40mm
screw
16
16
17
17

Please retain product label and instructions for future reference
P 8
Pre drill
hole
30mm
screw

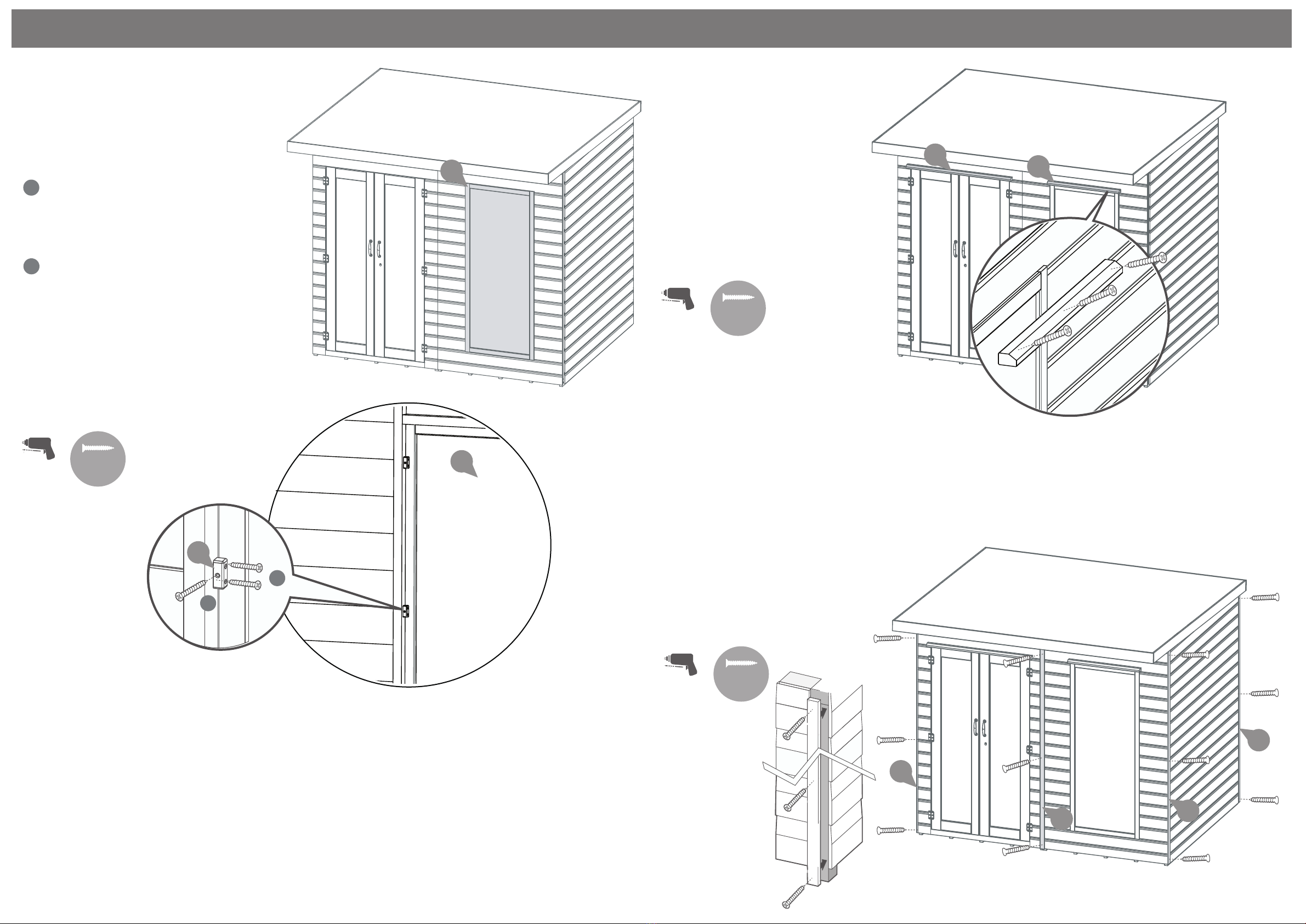

Step 16
Parts needed - No. 11 QTY 1
- No. 24 QTY 8
Position the Window (No. 11) central into
the window opening.
Fix eight Window Beading Blocks
(No. 24) to the Window (No. 11) , four
down each side and x with 1x30mm
screw.
Place the Window into the window panel
and x by screwing though the Window
Block (No. 24) with 2x30mm screws as
shown.
Fix the window beading blocks (No. 24) to
the window before tting the window into
the panel.
24x30mm screws.
11
c
d
11
d
c
24
Step 17
Parts needed - No. 12 QTY 1
- No. 13 QTY 1
Fix the rain guards (No. 12)
above the window and a rain
guard above the double doors
(No. 13.) Secure in place using
3x50mm screws per rain guard,
ensuring to screw through
the framing at an angle.
6x50mm Screws
Pre drill
hole
50mm
screw
13 12
15
14
14
Step 18
Parts needed - No. 14 QTY 3
- No. 15 QTY 3
Attach the cover trims (No. 14 at
the front) and (No. 15 at the rear)
to each corner of the building and
over panel joins. Use 3x30mm
screws per cover trim.
18x30mm Screws
Pre drill
hole
30mm
screw
14

P 9
Please retain product label and instructions for future reference
Step 19
Parts needed - No. 26 QTY 2
Attach the two turn buttons (No. 26) to
the secondary door at the top and bottom
using 2x30mm screws.
2x30mm Screws
*These turn buttons help to keep
your doors straight during high &
low levels of moisture content in
the air.
Pre drill
hole
26
26
26
30mm
screw
Step 20
Parts needed - No. 18 QTY 2
- No. 19 QTY 1
On the inside of the building x
the Door Frame Strips (No. 18
& 19), to the top and sides of
the doors frames. Make sure
that the edges are ush with
the edge of the framing. Fix
with 4x30mm screws per strip.
12x30mm Screws
Pre drill
hole
30mm
screw
19
18 18
19
18

Please retain product label and instructions for future reference
P 10

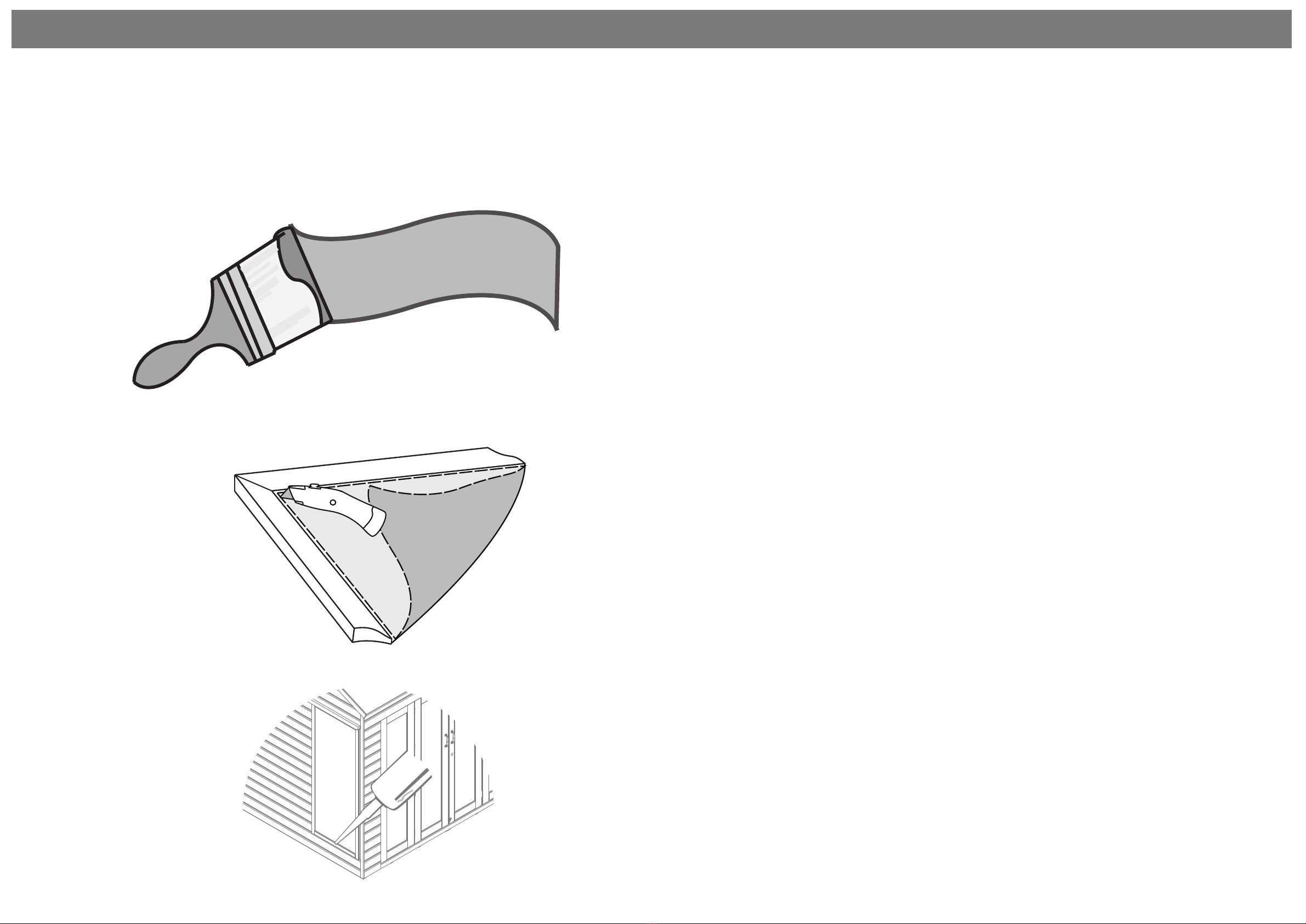

It is ESSENTIAL that you apply wood
treatment immediately after the building
has been assembled.
AFTER TREATMENT:
score around protective
cover on glazing and
carefully peel
covering back
SILICONE
SEALANT
Step 21
It is recommended that after the
construction, treatment and the
removal of the protective window
cover that sealant is used to
keep the building weather tight.
1. Treat the building
2. Remove lm from the windows
3. Add sealant around the windows.

P 7




















































2





1












3
4














REGISTER FOR YOUR
ANTI-ROT
GUARANTEE TODAY
PLEASE SCAN HERE:
P 8



















¡




1




2























¡



