Mercia Garden Products 03DTSHPN0407DSHSA-V1 Instruction manual

REGISTER FOR YOUR
ANTI-ROT
GUARANTEE TODAY
PLEASE SCAN HERE:
**Protim Aquatan T5 (621)**
Your building has been dip treated with Aquatan.
Aquatan is a water-based concentrate which is diluted with water, the building has been treated by the
correct application of Aquatan solution and then allowed to dry.
Aquatan is a decorative nish to colour the wood, which is applied industrially to timber fence panels and
garden buildings.
Aquatan undiluted contains: boric acid, sodium hydroxide 32% solution, aqueos mixture of sodium dioctyl
sulphosuccinat and alcohols: 2, 4, 6-trichlorophenol.
Measure
under the
head
Measure
overall
length
Screws & Nails Bolts To identify the
xings required
for each step use a
measuring tape.
03DTSHPN0407DSHSA-V1
DIP TREATED SHIPLAP PENT 4X7 DOUBLE SHED DOOR SHED AREA
2mm Drill bit
x2 Winter = High Moisture = Expansion
Summer = Low Moisture = Contraction
All buildings should be
erected by two adults
For ease of assembly, you
MUST pilot drill all screw
holes and ensure all screw
heads are countersunk.
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
CAUTION
Every eort has been made during the
manufacturing process to eliminate the
prospect of splinters on rough surfaces of the
timber. You are strongly advised to wear gloves
when working with or handling rough sawn
timber.
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied) including a Phillips screw-
driver, Stanley knife, Wood saw, Step ladder, Hammer and a Drill with 2mm bit.
- Ensure there is plenty of space and a clean dry area for assembly.
LOCATION FOR YOUR GARDEN BUILDING
A minimum of 60cm should be left around the perimeter of your garden building to allow access for maintenance,
annual treatment and to allow air ow around the building.
Where possible you should avoid placing your garden building underneath large trees to prevent the tree causing
damage to the building.
TIMBER
As with all natural materials, timber can be aected during various weather conditions. For the duration of heavy
or extended periods of rain, swelling of the wood panels may occur. Warping of the wood may also occur during
excessive dry spells due to an interior moisture loss. Unfortunately, these processes cannot be avoided but can be
helped. It is suggested that the outdoor building is sprayed with water during extended periods of warm sunshine
and sheltered as much as possible during rain or snow.
Once your garden building has been installed it will need to be treated as soon as possible and annually to prevent
the timber from deteriorating and to waterproof it. This is required to maintain the anti-rot guarantee.
Dip Treated buildings - Require a preservative treatment to protect against rot and decay and a waterproof treat-
ment to prevent water ingress
Pressure Treated buildings - Require a waterproof treatment to prevent water ingress
Log Cabins - Are supplied untreated and require a preservative and waterproong treatment.
BUILDING A BASE
When thinking about where the building and base is going to be constructed:
Ensure that there will be access to all sides for maintenance work and annual treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to diagrams for the base
dimensions, The base should be slightly smaller than the external measurement of the building, i.e. The cladding
should overlap the base, creating a run o for water. It is also recommended that the oor be at least 25mm above
the surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in the case of childrens
products independently tested to EN71 level, we cannot accept responsibility for your safety whilst erecting or
using this product.
For ease of assembly, you
will need a tape measure to
check dimensions of
components.
P 1
Please retain product label and instructions for future reference

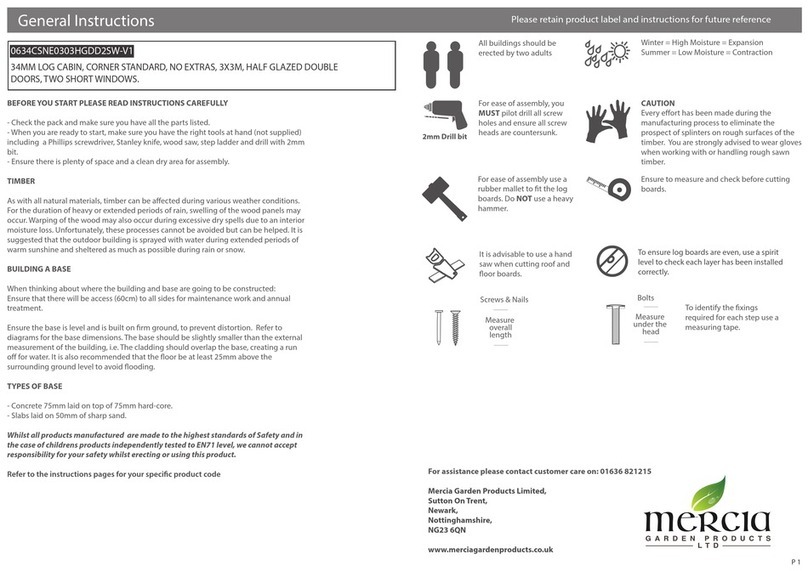

General Instructions

P 2
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied) including a Phillips screw-
driver, Stanley knife, Wood saw, Step ladder, Hammer and a Drill with 2mm bit.
- Ensure there is plenty of space and a clean dry area for assembly.
LOCATION FOR YOUR GARDEN BUILDING
A minimum of 60cm should be left around the perimeter of your garden building to allow access for maintenance,
annual treatment and to allow air ow around the building.
Where possible you should avoid placing your garden building underneath large trees to prevent the tree causing
damage to the building.
TIMBER
As with all natural materials, timber can be aected during various weather conditions. For the duration of heavy
or extended periods of rain, swelling of the wood panels may occur. Warping of the wood may also occur during
excessive dry spells due to an interior moisture loss. Unfortunately, these processes cannot be avoided but can be
helped. It is suggested that the outdoor building is sprayed with water during extended periods of warm sunshine
and sheltered as much as possible during rain or snow.
Once your garden building has been installed it will need to be treated as soon as possible and annually to prevent
the timber from deteriorating and to waterproof it. This is required to maintain the anti-rot guarantee.
Dip Treated buildings - Require a preservative treatment to protect against rot and decay and a waterproof treat-
ment to prevent water ingress
Pressure Treated buildings - Require a waterproof treatment to prevent water ingress
Log Cabins - Are supplied untreated and require a preservative and waterproong treatment.
BUILDING A BASE
When thinking about where the building and base is going to be constructed:
Ensure that there will be access to all sides for maintenance work and annual treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to diagrams for the base
dimensions, The base should be slightly smaller than the external measurement of the building, i.e. The cladding
should overlap the base, creating a run o for water. It is also recommended that the oor be at least 25mm above
the surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in the case of childrens
products independently tested to EN71 level, we cannot accept responsibility for your safety whilst erecting or
using this product.
03DTSHPN0407DSHSA-V1
Overall Dimensions:
Width = 1191mm
Depth = 2076mm
Height = 2011mm
Base Dimensions:
Width = 1133mm
Depth = 1960mm
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN
Nail Bag
There may be extra screws present in the nail bag
Please retain product label and instructions for future reference
Door Panel QTY 1
AI-01S11SHDD1135X1946-V1
Back Panel QTY 1
AI-S11SHPP1135X1827-V1
Side Panel QTY 1
AI-S11SHPP1905X1671-V1
Floor QTY 1
AI-R11MBF1133X1960-V1
Roof QTY 1
AI-S11MBPR1143X2050-V1
Door QTY 2
AI-S11FBMBZBD479X1680-V1
Gable Top QTY 1
AI-S21SHDBPGT1905X301-V1
8
Back Cover Trim - 12x40x1825mm QTY 1
S1240-1825mm
9
Front Cover Trim - 12x40x1918mm QTY 2
S1240-1918mm
10
Fascia Trim - 12x95x1143mm QTY 2
S1295-1143mm
11
Door Cover Trim - 12x60x780mm QTY 2
S1260-780mm
1 2 3 4
5 6 7
12
Roof Framing - 28x28x1142mm QTY 2
FS2828-1142mm
15 17
14
Door block - 28x28x150mm QTY 4
FS2828-150mm
16
13
Gable Framing - 28x28x1905mm QTY 1
FS2828-1905mm
Pad Bolt QTY 1
PI-07-0035
T-hinge QTY 6
PI-07-0021
Turn Button QTY 4
PI-07-0034
Felt
PI-01-0013
18
50mm Screw x 49
Felt Tacks x 50
30mm Screw x 52
60mm Screw x 12
40mm Screw x 15
20mm Screw x 6

P 3
Please retain product label and instructions for future reference
Pre Assembly
Before assembling remove the transportation
blocks from the bottom of each panel.
Take care removing the blocks as to not damage
the panels. Tap with a at headed screwdriver
and hammer.
Dispose of the blocks once removed.
1
66
15
11
Pre drill
hole
30mm
screw
20mm
screw
15
Step 1
Parts Needed - No.1 QTY 1
- No.6 QTY 2
- No.11 QTY 2
- No.15 QTY 4
Fix the T-hinges (No.15) to each of the Doors
(No.6) with 4x30mm screws per hinge making sure
to screw into the framing on the rear of the Doors.
Once the T-hinges are xed into position lay the
Door Panel (No.1) at on the ground x the door
in position using 3x30mm screws per hinge.
To create a Master and Secondary door x the
Door Trims (No.11) to one of the doors overlap-
ping with the other door as shown using 3x30mm
screws per trim.
6x20mm Screw
28x30mm Screws
11
Step 2
Parts Needed- No.4 QTY 1
Place the Floor (No.4) up against the
7x7 Corner Summerhouse on a at,
level surface. Fix into position using
4x60mm screws as shown.
**To position the side shed on the
left, position the oor on the left and
x in the same way shown.
4x60mm Screws
Pre drill
hole
60mm
screw
4
15
15
15
15
15
Pre Assembly
Follow the instructions for the 7x7 Corner
Summerhouse (03DTSHCR0707FGD2TW),
however DO NOT attach the Felt, Rear Cover
Trims or the Fascia Trims.
Not attaching these parts allows the exten-
sion to be xed in place.
Your building should look as shown.

P 4
Please retain product label and instructions for future reference
Step 3
Parts Needed - No.1 QTY 1
Fix the side of the Door Panel (No. 1)
against the side of the 7x7 Corner
Summerhouse Window Panel as
shown using 4x60mm screws.
Do not secure the building to the
Floor until the roof is tted.
4x60mm Screws
Pre drill
hole
60mm
screw
1
Pre drill
hole
60mm
screw
Step 4
Parts Needed- No.2 QTY 1
Fix the side of the Back Panel (No. 2)
against the side of the 7x7 Corner
Summerhouse Back Panel as shown
using 4x60mm screws.
Do not secure the building to the
Floor until the roof is tted.
4x60mm Screws
2
Pre drill
hole
50mm
screw
1
2
3
Step 5
Parts Needed- No. 3 QTY 1
Fix the Side panel (No.3) to the
Door (No.1) and back panel (No.2)
using 3x50mm screws at each
corner.
*7x7 Corner Summerhouse not
shown*
Do not secure the building to the
Floor until the roof is tted.
6x50mm Screws
Pre drill
hole
50mm
screw
7
Step 6
Parts Needed- No.7 QTY 1
Place the Gable Top (No. 7) on top of
the Side Panel (No. 3) slotting the
boarding of the gable over the top of
the boarding of the side panel as
shown.
Fix with 4x50mm screws per gable top
as shown in diagram.
4x50mm Screws
7
7
3
Internal Edge External Edge

P 5
Please retain product label and instructions for future reference
Pre drill
hole
50mm
screw
13
Step 7
Parts Needed- No.13 QTY 1
Place the the Gable frame (No.
13) to the top of the gable as
shown and x with 3x50mm
screws.
Fix with 3x50mm screws, as shown
in diagram.
3x50mm Screws
5
12
12
Pre drill
hole
50mm
screw
Step 8
Parts Needed- No.5 QTY 1
- No.12 QTY 2
Before placing the Roof (No. 5) on the
building, place the roof upside down
and attach the 2 Roof Trim pieces
(No.12) ush to the end perpendicular
to the roof bearers.
Fix in place as a shown with 5x50mm
screws per roof trim.
10x50mm Screws
50mm
screw
Pre drill
hole
Step 9
Parts Needed- No. 5 QTY 1
Place the Roof Panel (No.5) on top of the
building, ensure the Roof framing
(No.12) slots over each side.
Fix the roof panel onto the extension
using 8x50mm screws as shown.
Secure the roof to the Summerhouse
roof internally using 4x50mm screws
through the roof bearers, as shown in
the diagram.
12x50mm Screws
Pre drill
hole
50mm
screw
Step 10
Right Side Shed only
Parts Needed- No.23 QTY 1 (7x7 Corner
Summer house)
Fix the Rear Roof framing (No.23) to the
back of the Summer house roof. Secure
using 4x50mm screws. Ensure to go
through to the roof framing
4x50mm Screws
23

P 6
Please retain product label and instructions for future reference
50mm
screw
Pre drill
hole
Step 11
Once the Roof is in position the
extension can be xed in position.
Fix the building in place by using
14x50mm screws.
14x50mm Screws
1
2
34
3100mm
3200mm
1700mm
1000mm
1000mm
1000mm
1000mm
Felt
tacks
Step 12
Parts Needed- No.18 QTY 1
- No. 31 QTY 1 (7x7 Corner Summer House)
Cut four strips from the roll of felt (No.18 and No.31):
2 x 3200mm (L) x 1000mm (W) - Sheets 2 & 3
1 x 3100mm (L) x 1000mm (W) - Sheet 4
1 x 1700mm (L) x 1000mm (W) - Sheet 1
Place the felt on top of the roof and align as shown in the diagram, ensuring strip 4 overhangs the front of
the building by 50mm, with equal spacing at each corner.
*Ensure Strip 1 is the rst piece placed down, then lay sheet 2, then sheet 3 and then sheet 4. Make sure
each sheet overlaps the next by at least 100mm, creating a run-o.
Once laid, cut the sheets down to the correct angled shapes as shown by the dotted lines in the diagram.
Use a fascia or straight edge as a cutting guide. Ensure there is a 50mm overhang on each edge.
150 x Felt Tacks
HANDLE
WITH CARE
12
3
4

P 7
Please retain product label and instructions for future reference
8
9
9
Step 13
Parts Needed - No.8 QTY 1
- No.9 QTY 2
Fix the Cover Trims (No.8 and No.9)
plus the remaining cover trims from
the 7x7 Corner Summerhouse into
place using 3x40mm screws per Trim.
Fix the Rear Cover trim (No.25) from
the 7x7 Summer House using
3x20mm screws. Ensure it is equally
spaced across the back panels, and
covering the panel join
12x40mm Screws
40mm
screw
Pre drill
hole
10
10
Step 14
Parts Needed - No.10 QTY 2
Fix the Fascia Trims (No.10) plus the
remaining Fascia Trims from the 7x7
Corner Summerhouse into place
using 3x40mm screws per Trim.
21x40mm Screws
40mm
screw
Pre drill
hole
Step 15
Parts Needed- No.14 QTY 2
- No. 17 QTY 1
Fix two Door blocks (No.14) to the
back of the Doors (internally) with
2x30mm screws per block going
through the front of the door
boards and into the block behind.
Fix the Pad Bolt (No.17) to one of
the Doors (No.6) using 12x30mm
screws.
16x30mm Screws
30mm
screw
Pre drill
hole
17
14 14
16
14
Step 16
Parts Needed- No.14 QTY 2
- No.16 QTY 2
Fix the Door blocks (No.14) to the top
and bottom of the Doors (internally)
with 2x30mm screws per block going
through the front of the door boards
and into the block behind
Fix one Turn Button (No.16) to each of
the Door blocks (No.14) using
1x30mm screw per turn button.
6x30mm Screws
30mm
screw
Pre drill
hole
25

P 7
Please retain product label and instructions for future reference
P 8
Step 17
Parts Needed- No.16 QTY 2
Fix the Turn Buttons (No.16) above
each of the Doors using 1x30mm
screw per turn button.
2x30mm Screws
30mm
screw
Pre drill
hole It is ESSENTIAL that you apply wood
treatment immediately after the building
has been assembled.
AFTER TREATMENT:
score around protective
cover on glazing and
carefuly peel
covering back

P 8




















































2





1












3
4

































¡




1




2























¡



