Mercia Garden Products 01DTSHAX0806SDSEC-V2 User manual
2mm Drill bit
x2
¡
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN
Overall Dimensions:
Width = 1892mm
Depth = 2432mm
Height = 2056mm
Base Dimensions:
Width = 1753mm
Depth = 2350mm
2
134
567
24
18 19 20 21
22 23 25
Door Gable QTY 1
AI-01S11SHAGSD1707X1943-V1
Plain Gable QTY 1
AI-01S11SHAGP1707X1943-V1
Window Side QTY 1
AI-01S11SH2SECW1180X1567-V1
Door QTY 1
AI-S11FBMBZBD877X1660-V1
Plain Side QTY 3
AI-S11SHPP1180X1567-V1
Floor QTY 2
AI-R11MBF1175X1753-V1
Roof QTY 4
AI-S11MBOHAR1029X1192-V1
8Lock Block 28x18x100mm QTY 2
FS2828-100mm
9
Ridge Bar 27x44x1152mm QTY 2
F2744-1152mm
13 Internal Window Strips 12x28x220mm QTY 4
S1228-220mm
15 Door Beading Strips 12x28x1590mm QTY 2
S1228-1590mm
16 Cover Trims 12x45x1560mm QTY 6
S1245-1560mm
17
Fascias 12x70x1004mm QTY 4
S1270-1004mm
4M Capping Felt QTY 1
PI-01-0020
5M Green Felt QTY 1
PI-01-0013
Styrene Window QTY 2
PI-05-0227
Corner Brace QTY 2
PI-07-0012
T-Hinge QTY 3
PI-07-0021
Turn Button QTY 2
PI-07-0034
Window Cill QTY 1
PI-08-0013
Shed Diamond
Finial QTY 2
SHED DIAMOND FINIAL
Contents:
14
External Window Strips 12x40x220mm QTY 3
S1240-220mm
10
11
12
Roof Block 27x44x140mm QTY 2
F2744-G-160mm (1x66 degree cut, nished length 140mm)
Roof Support Bar 27x44x905mm QTY 2
F2744-G-925mm (1x66 degree cut, nished length 905mm)
Roof Support Brace 27x44x560mm QTY 1
F2744-G-600mm (2x24 degree cuts, nished length 560mm)
27
Padlock with Hasp and Staple QTY 1
ESDXL30ACC092
26
U-Channel QTY 1
PI-07-0013
¡
50mm Screw x 52
40mm Screw x 48
30mm Screw x 66
30mm Tamper Proof Screw x 30
Felt Tacks x 100
60mm Screw x 12
Nail Bag
There may be extra screws present in the nail bag
Pre Assembly
Before assembling remove the transportation blocks from
the bottom of each panel.
Take care removing the blocks as to not damage the panels.
Tap with a at headed screwdriver and hammer.
Dispose of the blocks once removed.
IMPORTANT: Pre-drill before xing screws.
1
4
22
30mm
screw
Pre drill
hole

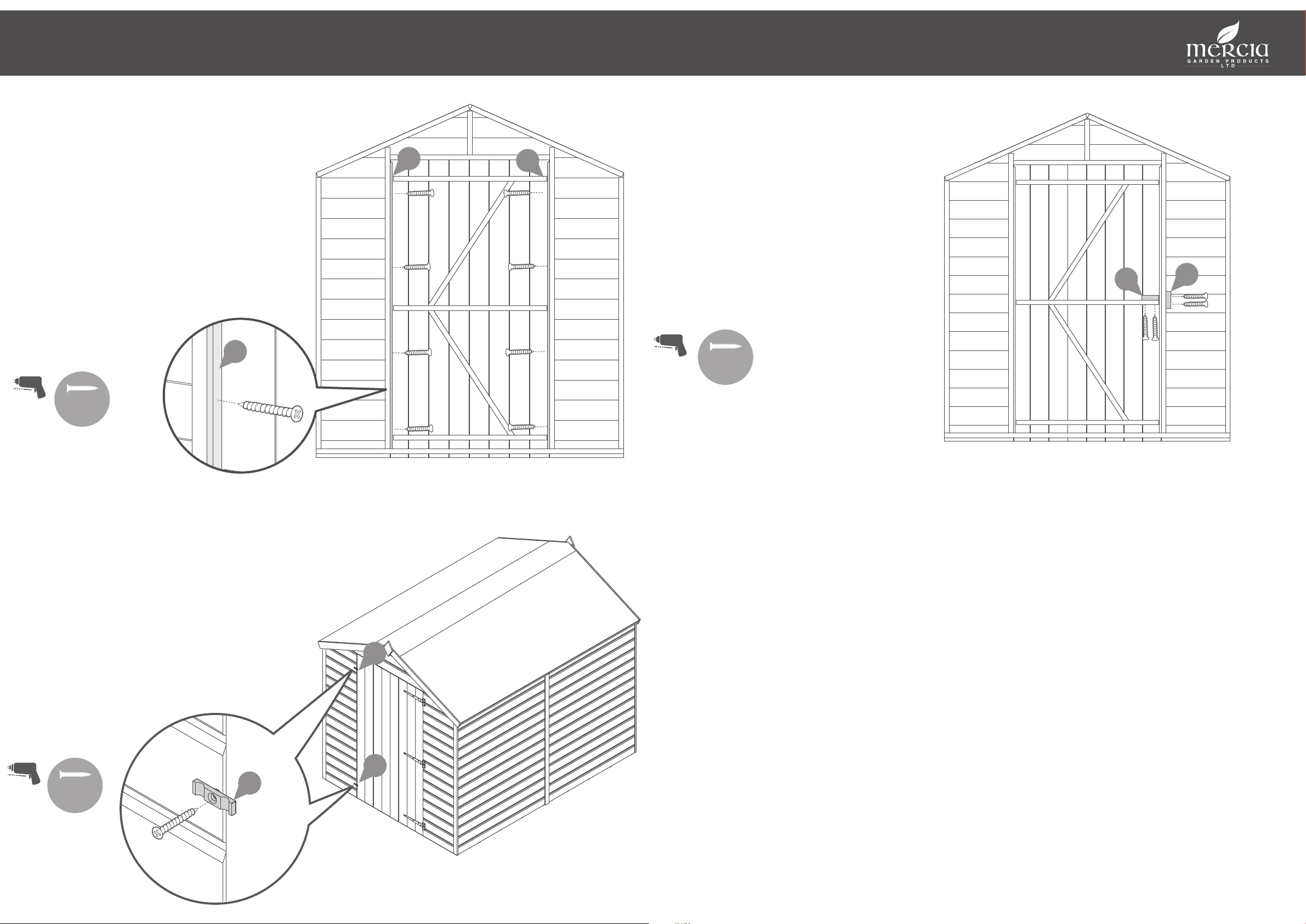

Step 1
Parts needed - No. 1 QTY 1
No. 4 QTY 1
No. 22 QTY 3
Place the Door Gable (No.1) on a at
and level surface and locate the Door
(No.4) into the door opening, ensuring
there is equal spacing around each side.
Fix the T-Hinges (No.22) onto the door
(No.4), and the Door Gable (No.1). Fix
in place using 7x30mm Tamper Proof
Screws per hinge.
Ensure that the screws go through the
cladding and into the framing behind.
21x30mm Tamper Proof Screws
6
Step 2
Parts needed - No. 6 QTY 2
Place the Floor panels (No.6) onto a
rm and level base. Ensure the base
has suitable drainage, free from areas
where standing water can collect.
Secure the oors together using
8x50mm screws through the oor
bearers in an alternating pattern.
8x50mm Screws
Pre drill
hole
50mm
screw
6
IMPORTANT: Pre-drill before xing screws.
5
2
50mm
screw
Pre drill
hole
Step 3
Parts needed - No. 2 QTY 1
No. 5 QTY 1
**Please note: the Window and Plain
Side panels (No.3&5) can be placed on
either side of your building. Decide
what works best before assembly.
Only one conguration is shown for
illustrative purposes.
Locate the Plain Gable (No.1) and Plain
Side (No.5) (or window side) on top of
the Floor. Fix the panels together at the
corners using 3x50mm screws.
Position the panels so there is equal
spacing between the oor and the clad-
ding on all side.
DO NOT secure the building to the
oor until the roof has been tted.
3x50mm Screws
(or No. 3 QTY1)
IMPORTANT: Pre-drill before xing screws.
a
a
a
a
Step 4
Parts needed - No. 3 QTY 1
No. 5 QTY 1
Locate the Window Side (No.3) (or Plain side)
next to the side panel on top of the oor. Fix
the panels together using 3x50mm screws.
Locate the Plain Side (No.5) (or window Side)
on top of the Floor next to the Plain Gable
(No.2). Fix the panels together at the corners
using 3x50mm screws.
Position the panels so there is equal spacing
between the oor and the cladding on all
sides.
DO NOT secure the building to the oor until
the roof has been tted.
6x50mm Screws
50mm
screw
Pre drill
hole
5
IMPORTANT: Pre-drill before xing screws.
3
5
2
(or No. 5 QTY1)
(or No. 3 QTY1)
a
a
a
a
a
a
a
Step 5
Parts needed - No. 1 QTY 1
No. 5 QTY 1
Locate the remaining Plain Side (No.5)
(or Window side) next to the side panel
on top of the oor. Fix the panels
together using 3x50mm screws.
Locate the assembled Door Gable
(No.1) on top of the Floor. Fix the
panels together at the corners using
3x50mm screws.
Position the panels so there is equal
spacing between the oor and the
cladding on all side.
DO NOT secure the building to the
oor until the roof has been tted.
9x50mm Screws
50mm
screw
Pre drill
hole
a
1
5
a
a
a
a
a
a
5
a
a
a
(or No. 3 QTY1)
IMPORTANT: Pre-drill before xing screws.
Step 6
Parts needed - No. 9 QTY 2
No. 21 QTY 2
No. 26 QTY 2
Connect the two Ridge Bars (No.9)
together with the metal U-channel (No.26)
using 10x30mm screws. Ensure the ridge
bar sits into the U-channel with equal
spacing on each side.
Attach the“L” shaped corner braces (No.21)
to each end of the ridge bar with 2x30mm
screws per bracket.
*Ensure the bracket are ush with the
ends of the ridge bar.
14x30mm Screws
IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
30mm
screw
9
21
26
9
21
Step 7
Parts needed - No. 9 QTY 1
No. 17 QTY 2
Place the assembled Ridge Bar
(No.9) in-between the door and
plain gable, aligned with the central
pieces of framing.
Ensure the top of the ridge bar is
ush with the top of the central
framing.
Secure the Ridge Bar to the central
uprights using the Corner Braces
(No.21). Fix using 2x30mm screws
per brace.
4x30mm Screws
9
21
21
9
21
Pre drill
hole
30mm
screw
IMPORTANT: Pre-drill before xing screws.
IMPORTANT: Pre-drill before xing screws.
60mm
screw
Pre drill
hole
7
7
Step 8
Parts needed - No. 7 QTY 4
Place the Roof Panels (No. 7) on top of the building, making sure the
framing in the roof panels sits rmly within the Gable Tops (No.1 and
No.2) and on top of the Ridge Bar (No. 9).
**Make sure that you have got the roof panels the correct way round
with the recess at the top of the apex as shown in the diagram.**
**The edges of the roof panels must be ush with the outer cladding
of the Gable Tops (No. 1 and No.2).**
From the top, x directly through the roof panels (No. 7) and into the
Ridge bar (No. 9) below using 3x60mm screws per roof panel .
It is essential that the ridge bar (No. 9) and roof panel (No.7) framing pull
together when xed with 60mm screws. You may require another
person pushing the ridge bar (No. 9) up from below to achieve this.
*HINT - Follow the nailing line of the framing on the roof panel so that
you are more likely to x into the ridge bar below.
12x60mm Screws
30mm
screw
Pre drill
hole
Step 9
Parts needed - No. 11 QTY 2
Position a Roof Support Bar (No.11),
centrally underneath the join of the two
Roof panels (No.7) internally. Ensure the
Roof Support Bar (No.11) sits ush to the
underside of the roof panels and ush at
the top as shown in the illustration.
Fix the Roof Support Bars (No.11) in
place using 6x30mm screws xing
through the roof panel (No.7) into the
Roof Support Bars (No.11) from the
outside of the building.
Repeat this process on the opposite side
of the building, so there are two Roof
Support Bars (No.11) tted.
*Alternate screwing through each
roof panel for a more secure hold.
12x30mm Screws
11
11
11 11
IMPORTANT: Pre-drill before xing screws.
Step 10
Parts needed - No. 10 QTY 2
Place the Roof Block (No.10) ush to the
Roof Support Bar (No.11). Ensure the
angled cut edge is facing upwards.
Fix the block in place using 2x50mm
screws.
Repeat this process on the opposite side
of the building.
4x50mm Screws
Pre drill
hole
50mm
screw
10
10
10
10
10
IMPORTANT: Pre-drill before xing screws.
11
11
12
Step 11
Parts needed - No. 12 QTY 1
Place the Roof Support Brace (No.12)
underneath the two Roof Support Bars
(No.11) ensuring they sit ush to one
another. The Roof Support Brace
(No.12) should sit horizontal - parallel
to the oor.
Once in position x the Roof Support
Brace (No.12) in place with 2x40mm
screws at each end of the brace.
4x40mm Screws
40mm
screw
Pre drill
hole
12
IMPORTANT: Pre-drill before xing screws.
IMPORTANT: Pre-drill before xing screws.
40mm
screw
Pre drill
hole
Step 12
Parts needed - No. 7 QTY 4
Fix the Roofs (No.7) to the building
using 20x40mm screws down the side
and the bottom of the roof, ensuring
that the screws go through to the
framing below.
Ensure there is no more than 300mm
between each screw.
24x40mm Screws
7
7
7
7
Pre drill
hole
50mm
screw
Step 13
Once the Roof is xed, secure the building
to the oor by screwing through the panel
framing internally using 50mm screws.
Ensure the screws go through the oor
into the oor bearers.
22x50mm Screws
IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws.
Step 14
Parts needed - No. 13 QTY 4
No. 14 QTY 3
No. 20 QTY 2
No. 24 QTY 1
Pre drill
hole
30mm
screw
a
b
c
d
Side View
Styrene
Window Cill
Cladding
Fix 4 x Inner Window Strips (No.13) to the
sides of the framing exposed in the
window gap of the Window Side (No.3)
using 2x30mm screws per Strip .
Place the Window Cill (No.24) into the
window cut out in the Window Side
(No.3) as shown in the illustration. Fix the
cill using 3x30mm tamper proof screws
through to the framing
Locate the Styrene Window (No.20) on
top of the window cill.
*For added weather protection t your
windows using silicone sealant around
the outside edges.
**When positioning the styrene sheets
ensure there is an equal distance on all
sides.
Locate the External Window Strips
(No.14) at either side of the styrene
(No.20) as shown in the illustration.
Secure in place using 2x30mm tamper
proof screws per strip. Make sure the
screws enter the framing in the window
side and not the styrene.
8x30mm Screws.
9x30mm Tamper Proof Screws.
13
13
13
13
a
d14
14
14
SILICONE
SEALANT
c
20 20
b
24
¢
Step 15
Parts needed - No. 18 QTY 1
No. 19 QTY 1
Cut the felt (No. 19) into 2 sheets measuring
2490mm(L) x 1000mm(W) and x onto the
roof using felt tacks in 100mm intervals as
shown in diagram.
Ensure there is 50mm overhang around the
sides.
Cut a strip from the capping felt (No.18)
measuring 2490mm(L) x 1000mm(W) and
x over the centre of the apex using felt
tacks as shown in the diagram, ensuring
there is 50mm overhang front to back.
100 x Felt Tacks
19
18
19
18
Felt
tacks
100mm
HANDLE
WITH CARE
1 2
3
4
Step 16
Parts needed - No. 16 QTY 6
Locate the Cover Trims (No.16) to
the front, back and sides of the
building ensuring to cover the
joining panels as shown in the
illustration. Fix in place using
3x30mm screws per cover trim.
18x30mm Screws
16
30mm
screw
Pre drill
hole
16
16
16
IMPORTANT: Pre-drill before xing screws.
16
16
IMPORTANT: Pre-drill before xing screws.
Step 17
Parts needed - No. 17 QTY 4
No. 25 QTY 2
Locate the fascias (No.17) to the
front and back of the roof. Ensure
the fascias (No.17) trap and cover
the felt. Fix in place using 3x40mm
screws per Fascia.
Locate the Finials (No.25) over the
fascias (No.17) as shown. Fix in place
using 2x40mm screws per Finial.
16x40mm Screws
40mm
screw
Pre drill
hole
25
17
17
17
17 25
Step 18
Parts needed - No. 15 QTY 2
Locate one Door Beading Strip
(No.15) either side of the internal
door framing, as shown in the
illustration.
Fix the Door Beading Strips
(No.15)onto the door gable (No.1)
using 4x30mm screws per strip.
Ensure that the screw is parallel with
the door frame when xing the strip
to the door gable as shown in the
close up view.
8x30mm Screws
30mm
screw
Pre drill
hole
IMPORTANT: Pre-drill before xing screws.
15
15
15
Step 19
Parts needed - No. 23 QTY 2
Locate two Turn Buttons (No. 23)
onto the door gable (No. 1), one at
the top and one at the bottom.
Fix in place using 1x30mm screw per
Turn Button.
*These turn buttons help to keep
your doors straight during high
and low levels of moisture content
in the air.*
2x30mm Screws
30mm
screw
Pre drill
hole
IMPORTANT: Pre-drill before xing screws.
23
23
23
* The instructions which shows you how to t the lock (No.27) is a
separate sheet with the lock *
Step 20
Parts needed - No. 8 QTY 2
Locate one lock block (No.8) to the
central frame of the door ush to the
edge of the frame. Fix in place using
2x40mm screws.
Locate the remaining lock block
(No.8) to the door gable framing,
central to the framing and lock block
xed to the door. Fix in place using
2x40mm screws.
4x40mm Screws
40mm
screw
Pre drill
hole
IMPORTANT: Pre-drill before xing screws.
8
8
It is ESSENTIAL that you apply wood
treatment immediately after the building
has been assembled.
AFTER TREATMENT:
score around protective
cover on glazing and
carefuly peel
covering back
¡
¡
¡
¡
¡
¢
¡
¡¡
¢
£
£
¤¥
¢
¤
1
2
3
4
5
6
7
8
9
¦
§
¥¡
2
1
¨
3
4
¦
¡
¡
§
¡
¡
¤
¨
¢
§
12
¡
¡
¡
¤
¨
¢
Table of contents
Other Mercia Garden Products Garden House manuals
Mercia Garden Products
Mercia Garden Products 02DTSHOPN0305-V1-PEFC Instruction manual
Mercia Garden Products
Mercia Garden Products 02CHY0404-V3 User manual
Mercia Garden Products
Mercia Garden Products 03WES1008-V3 Instruction manual
Mercia Garden Products
Mercia Garden Products 03WES0808-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 01DTOVPN0705SDFW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 01DTSHAX0306DDNW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 02DTSHOA08066WBF-V1-PEFC Instruction manual
Mercia Garden Products
Mercia Garden Products 01OSBA0406DDFW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 0634CSNE0404HGDD2SW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 03HEL1008DDFW-V2 User manual
Mercia Garden Products
Mercia Garden Products 01DTPRMSHPN1008DDOP-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 01SHPWOR1010DDOW-V2 Instruction manual
Mercia Garden Products
Mercia Garden Products 0619LOG015-V4 User manual
Mercia Garden Products
Mercia Garden Products Wessex 03WES1208-V3 Instruction manual
Mercia Garden Products
Mercia Garden Products 0634LOG209-V4 Instruction manual
Mercia Garden Products
Mercia Garden Products 01DTSHRAX0604SDNW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 0644RANE0504FGDD2TW1SW-V1 User manual
Mercia Garden Products
Mercia Garden Products 0619WKNE2633LBDD1SW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 0634RANE0504HGDD2SW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 01SHPWOR1610DDOW-V2 Instruction manual
Mercia Garden Products
Mercia Garden Products 01DTOVAX0406DDNW-V1 User manual
Mercia Garden Products
Mercia Garden Products 01OVLPA0808DDFW-V1 User manual
Mercia Garden Products
Mercia Garden Products 03HEL0808DDFW-V1 User manual
Mercia Garden Products
Mercia Garden Products 03VER0808-V2 Instruction manual
Popular Garden House manuals by other brands
Weka
Weka 820.2007.00.00 ASSEMBLY, USER AND MAINTENANCE INSTRUCTIONS
Keter
Keter DUOTECH OAKLAND 757 user manual
finnhaus
finnhaus 442 600 Assembly instructions
Karibu
Karibu MERSEBURG 4 manual
Rowlinson Garden Products
Rowlinson Garden Products 10’ x 8’ Double Door Shed Assembly instructions
Palmako
Palmako Irene 27.7 installation manual
Luoman
Luoman Lillevilla 93 Assembly and Maintenance
Palmako
Palmako Nova PAV-6040-1I-1 installation manual
Gartenpro
Gartenpro HP1007 3030 28 VIOLA F0R1B0 Assembly instruction
Palmako
Palmako FR28-4132-1 installation manual
Forest
Forest OPCSUM77 Assembly instructions
Palmako
Palmako PM44-6141 installation manual
Kwiktech
Kwiktech Darwin user manual
Keter
Keter MANOR 6x5SD user manual
Palmako
Palmako Playhouse EL16-2316 Assembly, installation and maintenance manual
Lemeks
Lemeks Palmako FR28-3025-5 Assembly, installation and maintenance manual
Pergola kits USA
Pergola kits USA WOOD PAVILION Assembly manual
STILLA
STILLA S3041 Assembly instructions
