Mercia Garden Products 02DTTWRS0605-V1-PEFC Instruction manual

02DTTWRS0605-V1-PEFC
Cherry Tower
In all instances for assistance with your product, please contact customer care on :
01636 821215 or [e-mail]
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
Please retain product label and instructions for future reference
General Instructions
CAUTION
Wood is a natural product and can change post manufacture. So despite every eort being
made to ensure the material used are cut and machined to a clean and smooth nish, care
must be taken when handling the product and preparing for use by your child.
Any areas of concern, in the play areas, can be rubbed over with sandpaper to achieve a
smoother nish. Alternatively, call the customer service department who will be happy to
arrange replacement panels/parts.
WARNING
•ONLY SUITABLE FOR DOMESTIC USE.
• TO BE USED UNDER DIRECT SUPERVISION OF AN ADULT.
•THIS PRODUCT SHOULD NOT BE MODIFIED IN ANY WAY. ANY MODIFICATIONS SHOULD BE
DETERMINED BY THE MANUFACTURER AND CARRIED OUT ACCORDING TO THE INSTRUCTIONS.
• DO NOT ALLOW YOUR CHILD TO PLAY WITH ANY COMPONENT PARTS PRIOR TO ASSEMBLY.
•MAX AGE OF 14 YEARS.
• THIS TOY IS FOR OUTDOOR USE ONLY.
• USE A WATER BASED TREATMENT THAT IS EN71 TESTED
!
Whilst all products manufactured are made to the highest standards of Safety and in the case of childrens products
independently tested to EN71, we cannot accept responsibility for your safety whilst erecting this product.
x2 Winter = High Moisture = Expansion
Summer = Low Moisture = Contraction
All buildings should be erected by
atleast two adults.
DO NOT ALLOW
CHILDREN TO ASSIST.
To prevent damage during
assembly, you MUST pilot
drill all screw holes and
ensure all screw heads are
countersunk.
For ease of assembly, you will
need a tape measure to check
dimensions of components.
WARNING: Only for domestic use
Not suitable for children under 36 months due to
small gaps and danger of falling from heights.
To be used under direct supervision of an adult
www.merciagardenproducts.co.uk P1
2mm Drill bit
12mm CSK
**Protim Aquatan T5 (621)**
Your building has been dip treated with Aquatan.
Aquatan is a water-based concentrate which is diluted with water, the building has been treated by the
correct application of Aquatan solution and then allowed to dry.
Aquatan is a decorative nish to colour the wood, which is applied industrially to timber fence panels and
garden buildings.
Aquatan undiluted contains: boric acid, sodium hydroxide 32% solution, aqueos mixture of sodium dioctyl
sulphosuccinat and alcohols: 2, 4, 6-trichlorophenol.
BEFORE YOU START PLEASE READ THE INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed in the parts list provided.
- When you are ready to start, make sure you have the right tools at hand (not supplied) including a Phillips screw-
driver, Flathead screwdriver, Stanley knife, Wood saw, Step ladder, Hammer, Spirit level and a Drill with 2mm bit.
- Ensure there is plenty of space and a clean dry area for assembly.
- Ensure you have enough time to build the product to ensure the building is water tight.
TIMBER
As with all natural materials, timber can be aected during various weather conditions. For the duration of heavy
or extended periods of rain, swelling of the wood panels may occur. Warping of the wood may also occur during
excessive dry spells due to natural processes. Unfortunately, these processes cannot be avoided but can be
helped. It is suggested that the outdoor building is sprayed with water during extended periods of hot weather
and sheltered as much as possible during rain or snow.
Our buildings are pre treated with a water based treatment**; this only helps to prevent discolouration
whilst in stock. To validate your guarantee and ensure longevity of the product, it is ESSENTIAL the
building is treated with a suitable preservative in accordance with the manufacturers recommendations.
Care must be taken to ensure the product is placed on a suitable base.
We recommended using a suitable protection for your playhouse. As the product is destined for use by
children, a water based treatment for childrens toys is ESSENTIAL.
We also recommend treating the building prior to construction.
POSITIONING YOUR PLAYHOUSE
When thinking about where the building and base is going to be constructed:
Ensure that there will be access to all sides for maintenance work and annual treatment.
We recommend a minimum space of 2m around a playhouse, away from any structure or obstructions such as
fences, garages, houses, overhanging branches, washing lines or electrical wires.
It is recommended that the position of the Playhouse is not in direct sunlight.
Activity toys such as swings and slides for towers shall not be installed over concrete, asphalt or any hard
surface.
BUILDING A BASE
Ensure the base is level and is built on rm ground, to prevent distortion, checking with a spirit level. Refer to
diagrams for the base dimensions. The base should be slightly smaller than the external measurement of the
building, i.e. The cladding should overlap the base, creating a run o for water. It is also recommended that the
oor be at least 25mm above the surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
- Wooden base.

Playhouse Options:
Take a look at the dierent playhouse options below which refers to the instruction
leaets required to build each option.
4x4 Playhouse With Tower
SI-002-001-0043
4x4 Playhouse With Tower & Slide
SI-002-001-0040
4x4 Playhouse With Tower, Slide & Swing
SI-002-001-0100
Model Build Instructions Required
02DTSHAX0404BDH1W-V1-PEFC (Playhouse)
02DTTWR0605-V1-PEFC (Tower)
02DTSHAX0404BDH1W-V1-PEFC (Playhouse)
02DTTWRS0605-V1-PEFC (Tower With Slide)
02PATINCSWA-V1-PEFC (Swing Set)
02DTSHAX0404BDH1W-V1-PEFC (Playhouse)
02DTTWRS0605-V1-PEFC (Tower With Slide)
4x4 Playhouse With Tower
4x4 Playhouse With Tower & Slide
4x4 Playhouse With Tower, Slide & Swing
Please retain product label and instructions for future reference
DO NOT ALLOW YOUR CHILD TO PLAY WITH ANY
COMPONENT PARTS PRIOR TO ASSEMBLY. www.merciagardenproducts.co.uk P2

02DTTWRS0605-V1-PEFC
Overall Dimensions:
Width = 1437mm
Depth = 1870mm
Height = 621mm
Base Dimensions:
Width = 1168mm
Depth = 1870mm
Please retain product label and instructions for future reference
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN
* Measurements do not
include slide & ladder *
9
10
11
12
Framing - 44x58x1870mm QTY 2
F4458-1870mm
3
4
5
6
7
8
Leg Brace - 27x58x400mm QTY 8
F2758-G-440mm ANGLED
Leg Post - 44x58x523mm QTY 4
F4458-523mm
Framing - 27x58x1044mm QTY 1
F2758-1044mm
Framing - 44x58x1080mm QTY 3
F4458-1080mm
Ladder Step - 27x95x476mm QTY 2
F2795-476mm
Ladder Side Right - 650mm QTY 1
PRO2795-650mm
Ladder Side Left - 650mm QTY 1
PRO2795-650mm
Shiplap Board - 12x92x1112mm QTY 2
WBRT92-1112mm
Shiplap Board - 12x92x1200mm QTY 1
WBRT92-1200mm
2
1
Outer Floor QTY 1
AI-S11STISF1168X758-V1
Slide QTY 1
PI-10-0005
50kg
Max
50kg
Max
Building Content:
Floor Framing - 28x28x1057mm QTY 2
FS2828-1057mm
Floor Framing - 28x28x1162mm QTY 2
FS2828-1162mm
13
14
30mm Screw x 10
50mm Screw x 28
Nail Bag
100mm Screw x 28
40mm Screw x 24
DO NOT ALLOW YOUR CHILD TO PLAY WITH ANY
COMPONENT PARTS PRIOR TO ASSEMBLY. www.merciagardenproducts.co.uk P3
1!
Look for the symbols and follow the safety guidlines below.
Ensure screw heads
are subush and
sand down any
splinters created.
Ensure the screws are
xed squarely and do
not protrude.
12mm gap
surrounding the
door.
2! 3!
4!
Not to be installed
over concrete,
asphalt or any hard
surface. 50kg
50kg per user
Please retain product label and instructions for future reference

Please retain product label and instructions for future reference
Pre Assembly
Before assembling remove the transportation
blocks from the bottom of each panel.
Take care removing the blocks as to not damage
the panels. Tap with a at headed screwdriver
and hammer.
Dispose of the blocks once removed.
REGISTER FOR YOUR
ANTI-ROT
GUARANTEE TODAY
PLEASE SCAN HERE:
Please retain product label and instructions for future reference
DO NOT ALLOW YOUR CHILD TO PLAY WITH ANY
COMPONENT PARTS PRIOR TO ASSEMBLY. www.merciagardenproducts.co.uk P4

Please retain product label and instructions for future reference

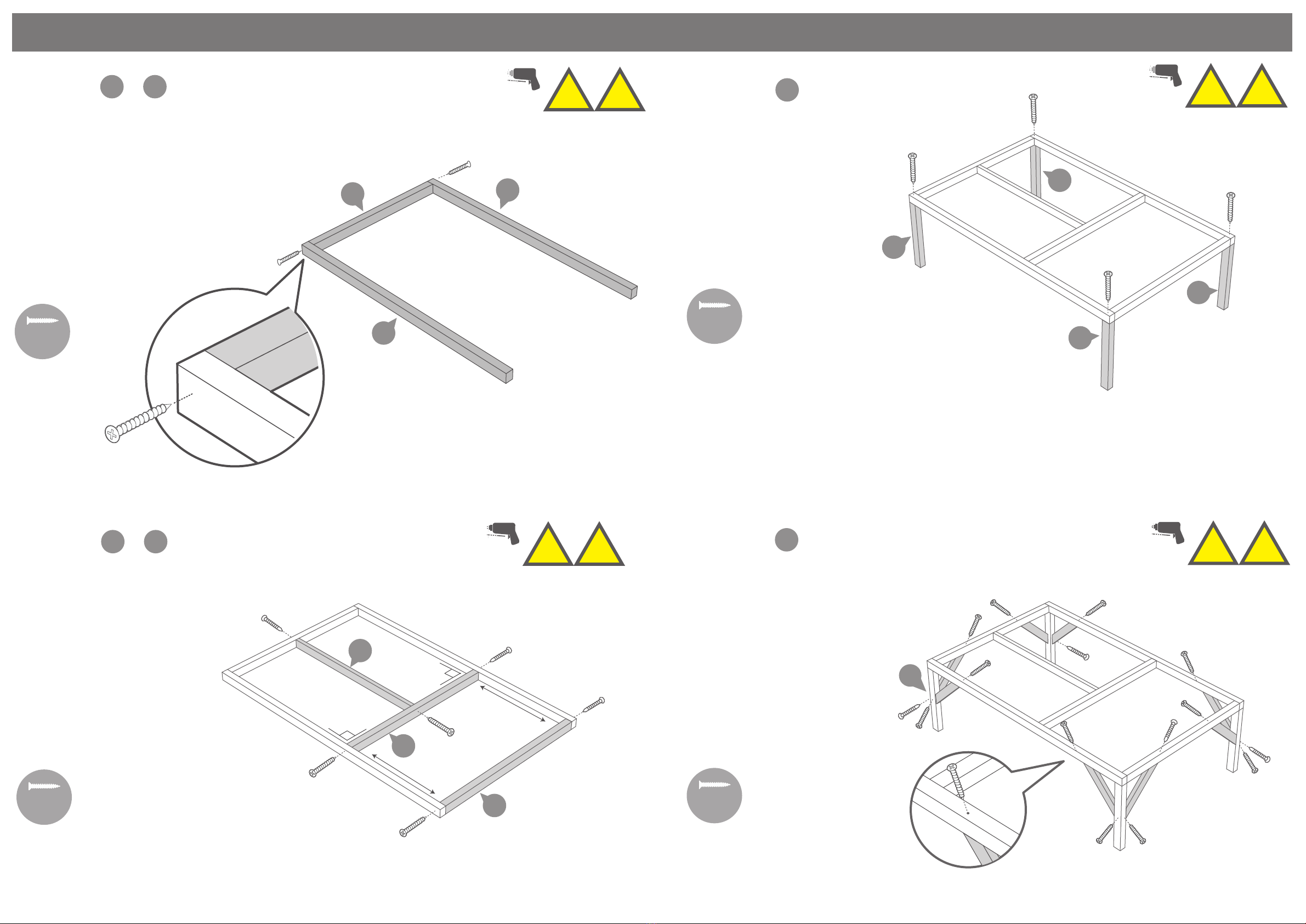

Step 1
Parts needed - &
Place the Framing (No. 3) and Framing
(No. 4) as shown, ensuring the ends are
ush.
Fix the framing together by screwing
through the side of the framing to the
end of the framing below using
1x100mm screw per end, as shown in the
illustration.
2x100mm screws
100mm
screw Bunk Rail
43
3
1! 2!
Pre drill
hole
3 4
Step 2
Parts needed - &
Place the Framing (No. 4) and
Framing (No. 5) inside the frame.
Make sure No. 5 is positioned in
the centre and use it as a guide
for positioning No. 4 in the
middle.
Fix together as shown with
1x100mm screw per end.
6x100mm screws
5
4
100mm
screw 4
694mm
694mm
1! 2!
Pre drill
hole
4 5
Step 3
Parts needed -
Lift the assembled frame up and
position the leg posts (No. 6)
underneath as shown.
Fix the leg posts to the frame by
screwing through the framing
into the leg post, using 1x100mm
screw per leg post.
4x100mm screws
100mm
screw
6
6
6
6
1! 2!
Pre drill
hole
6
7
Step 4
Parts needed -
Fix the Leg Braces (No. 7) to either
side of each leg post by screwing
through the framing into the leg
brace, and up through the leg post
into the leg brace, using 2x100mm
screws per brace.
Ensure the framing is level so that
the corners and legs are square
and ush.
16x100mm screws
100mm
screw
1! 2!
Pre drill
hole
7
Please retain product label and instructions for future reference
DO NOT ALLOW YOUR CHILD TO PLAY WITH ANY
COMPONENT PARTS PRIOR TO ASSEMBLY. www.merciagardenproducts.co.uk P5

1
Step 5
Parts needed -
Place the Outer Floor (No. 1) on
top of the framing and make sure
that the edge of the oor is ush
with the end of the platform. Fix
into position by screwing through
the oor into the framing below,
using 10x40mm screws.
10x40mm screws
40mm
screw
1! 2!
Pre drill
hole
50kg
1
30mm
screw
Step 6
Parts needed - Refer to playhouse
Take out the solid OSB oor sheet
that is supplied with the playhouse.
Place the oor sheet on top of the
framing platform and secure into
position using the 10x30mm screws.
10x30mm screws
1! 2!
Pre drill
hole
50kg
50mm
screw
8
9
8
9
Step 7
Parts needed - &
Place the Floor Framing (No. 8 &
No. 9) on top of the oor sheet
and locate around the edge as
shown, ensuring each piece is
ush to the edge of the oor
sheet.
Fix each piece into place with
3x50mm screws per frame.
12x50mm screws
**Check the ridigity of the parts and
tighten and adjust where necessary.
You can then proceed to building the
playhouse.
1! 2!
Pre drill
hole
50kg
89
Please retain product label and instructions for future reference
Please retain product label and instructions for future reference
DO NOT ALLOW YOUR CHILD TO PLAY WITH ANY
COMPONENT PARTS PRIOR TO ASSEMBLY. www.merciagardenproducts.co.uk P6

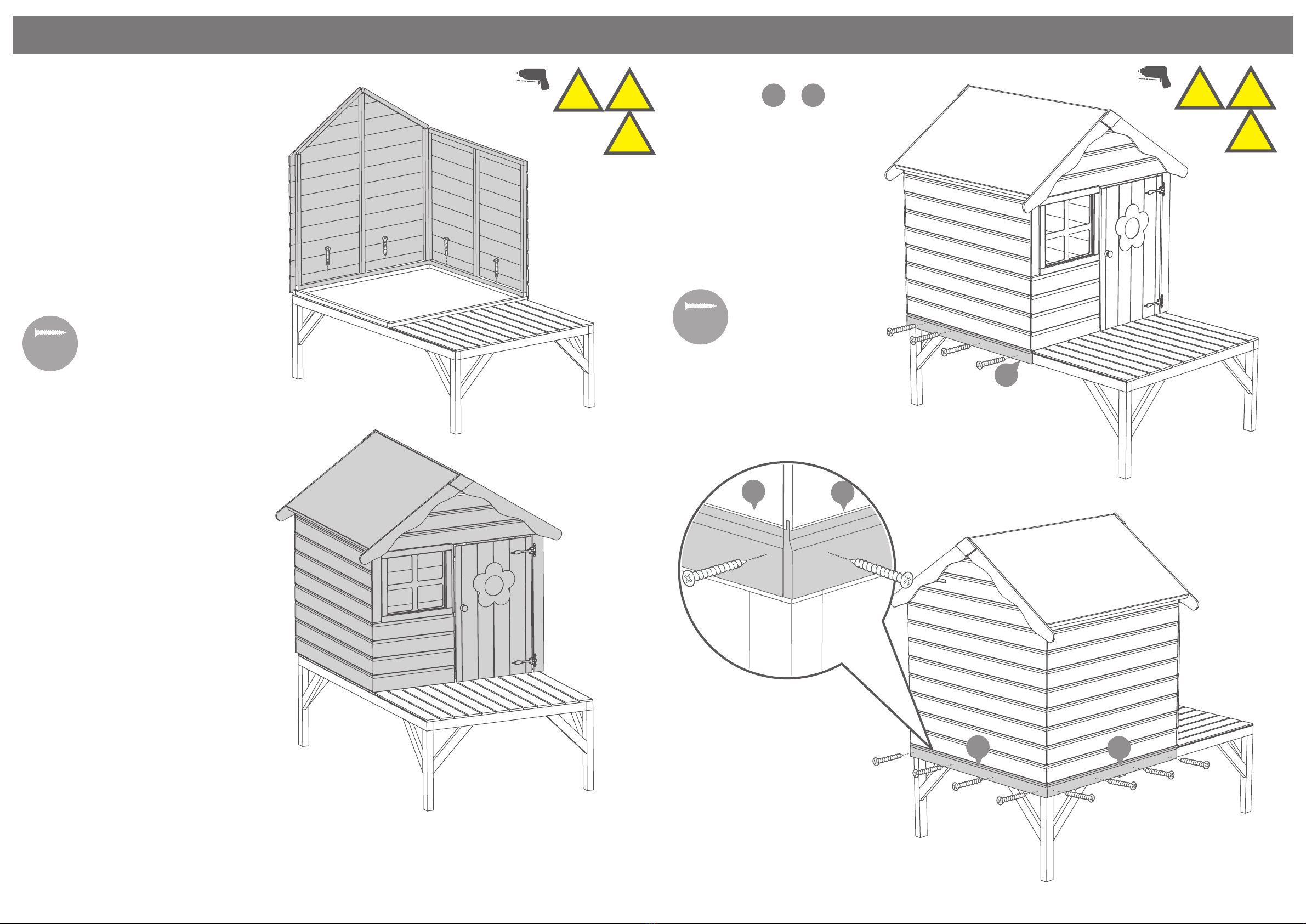

Step 8
The playhouse can now be assembled
on top of the framing.
Follow the instructions provided with
the playhouse to do this.
*Disregard the oor joists as these are not
needed when tting to the platform.
Secure the playhouse to the framing
with 8x50mm screws.
8x50mm screws
50mm
screw
1! 2!
Pre drill
hole
50kg
Step 9
Parts needed - &
Slot the Shiplap Boards (No. 10 &
11) into the bottom of the cladding
around the sides.
Fix them into position by screwing
through the face of the board into
the framing below using 4x40mm
screws per board.
12x40mm screws
11
40mm
screw
11 10
10
11
1! 2!
Pre drill
hole
50kg
10 11
P7
Please retain product label and instructions for future reference
DO NOT ALLOW YOUR CHILD TO PLAY WITH ANY
COMPONENT PARTS PRIOR TO ASSEMBLY.
Please retain product label and instructions for future reference

Step 10
Parts needed - & &
Slot the two Ladder Steps (No. 14)
between the Ladder Side Left (No. 12)
and the Ladder Side Right (No. 13).
Fix with 2x50mm screws per end, as
shown.
8x50mm screws
50mm
screw
12
14
13
**Check for any post manufacture
splits in the wood.
If present, do not use and contact
the customer service team for
replacement parts.
1! 2!
Pre drill
hole
12 13 14
2
2
2
Step 11
Parts needed -
Place the ladder against the
platform as shown. Fix into position
with 2x100mm screws. Ensure the
top of the ladder is ush with the
top of the platform.
Place the Slide (No. 2) into
position as shown. Fix into place with
2x40mm screws.
The position of the ladder and slide
can be reversed to create an
alternative set up if desired.
*Do not place either the ladder or
slide on the same side that the door
opens as this creates a potential
safety hazard. *
2x 40mm screws
100mm
screw 40mm
screw
1! 2!
Pre drill
hole
50kg
4!
2
P8
Please retain product label and instructions for future reference
DO NOT ALLOW YOUR CHILD TO PLAY WITH ANY
COMPONENT PARTS PRIOR TO ASSEMBLY.

It is ESSENTIAL that you apply wood
treatment immediately after the building
has been assembled.
AFTER TREATMENT:
score around protective
cover on glazing and
carefuly peel
covering back
Playhouse Maintenance:
It is recommended that the following checks and maintenance are carried out at the begin-
ning of each season as well as at regular intervals during the usage season.
- Check all nuts /bolts/ screws for tightness and tighten when required.
- Check for movement / opening of wood giving rise to protrusion of nail heads and tips.
- Check hinges.
- Replace defective parts in accordance with the manufacturers instructions.
- Check any crossbeams, suspensions and anchors.
- If a swing is included; check the swing seat, chains and ropes.
IF THESE CHECKS ARE NOT CARRIED OUT THE ACTIVITY TOY COULD BECOME A HAZARD
P9
Please retain product label and instructions for future reference
DO NOT ALLOW YOUR CHILD TO PLAY WITH ANY
COMPONENT PARTS PRIOR TO ASSEMBLY.





















































2





1












3
4














REGISTER FOR YOUR
ANTI-ROT
GUARANTEE TODAY
PLEASE SCAN HERE:



















¡




1




2























¡



