Mercia Garden Products 0628AXNE0503HGDD2MW-V1 User manual

P 1
0628AXNE0503HGDD2MW-V1
28MM LOG CABIN, APEX, NO EXTRAS, 5M X 3M, HALF GLAZED DOUBLE DOORS, TWO MEDIUM WINDOWS.
2mm Drill bit
Winter = High Moisture = Expansion
Summer = Low Moisture = Contraction
All buildings should be
erected by two adults
For ease of assembly, you
MUST pilot drill all screw
holes and ensure all screw
heads are countersunk.
CAUTION
Every eort has been made during the
manufacturing process to eliminate the
prospect of splinters on rough surfaces of the
timber. You are strongly advised to wear gloves
when working with or handling rough sawn
timber.
Please retain product label and instructions for future reference
General Instructions
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied)
including a Phillips screwdriver, Stanley knife, wood saw, step ladder and drill with 2mm
bit.
- Ensure there is plenty of space and a clean dry area for assembly.
TIMBER
As with all natural materials, timber can be aected during various weather conditions.
For the duration of heavy or extended periods of rain, swelling of the wood panels may
occur. Warping of the wood may also occur during excessive dry spells due to an interior
moisture loss. Unfortunately, these processes cannot be avoided but can be helped. It is
suggested that the outdoor building is sprayed with water during extended periods of
warm sunshine and sheltered as much as possible during rain or snow.
BUILDING A BASE
When thinking about where the building and base are going to be constructed:
Ensure that there will be access (60cm) to all sides for maintenance work and annual
treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to
diagrams for the base dimensions. The base should be slightly smaller than the external
measurement of the building, i.e. The cladding should overlap the base, creating a run
o for water. It is also recommended that the oor be at least 25mm above the
surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in
the case of childrens products independently tested to EN71 level, we cannot accept
responsibility for your safety whilst erecting or using this product.
Refer to the instructions pages for your specic product code
For ease of assembly use a
rubber mallet to t the log
boards. Do NOT use a heavy
hammer.
Ensure to measure and check before cutting
boards.
It is advisable to use a hand
saw when cutting roof and
oor boards.
To ensure log boards are even, use a spirit
level to check each layer has been installed
correctly.
Measure
under the
head
Measure
overall
length
Screws & Nails Bolts To identify the
xings required
for each step use a
measuring tape.
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk

P 2
Please retain product label and instructions for future reference
0628AXNE0503HGDD2MW-V1
Overall Dimensions:
Width = 5134mm
Depth = 3428mm
Height = 2873mm
Base Dimensions:
Width = 4808mm
Depth = 2804mm
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN

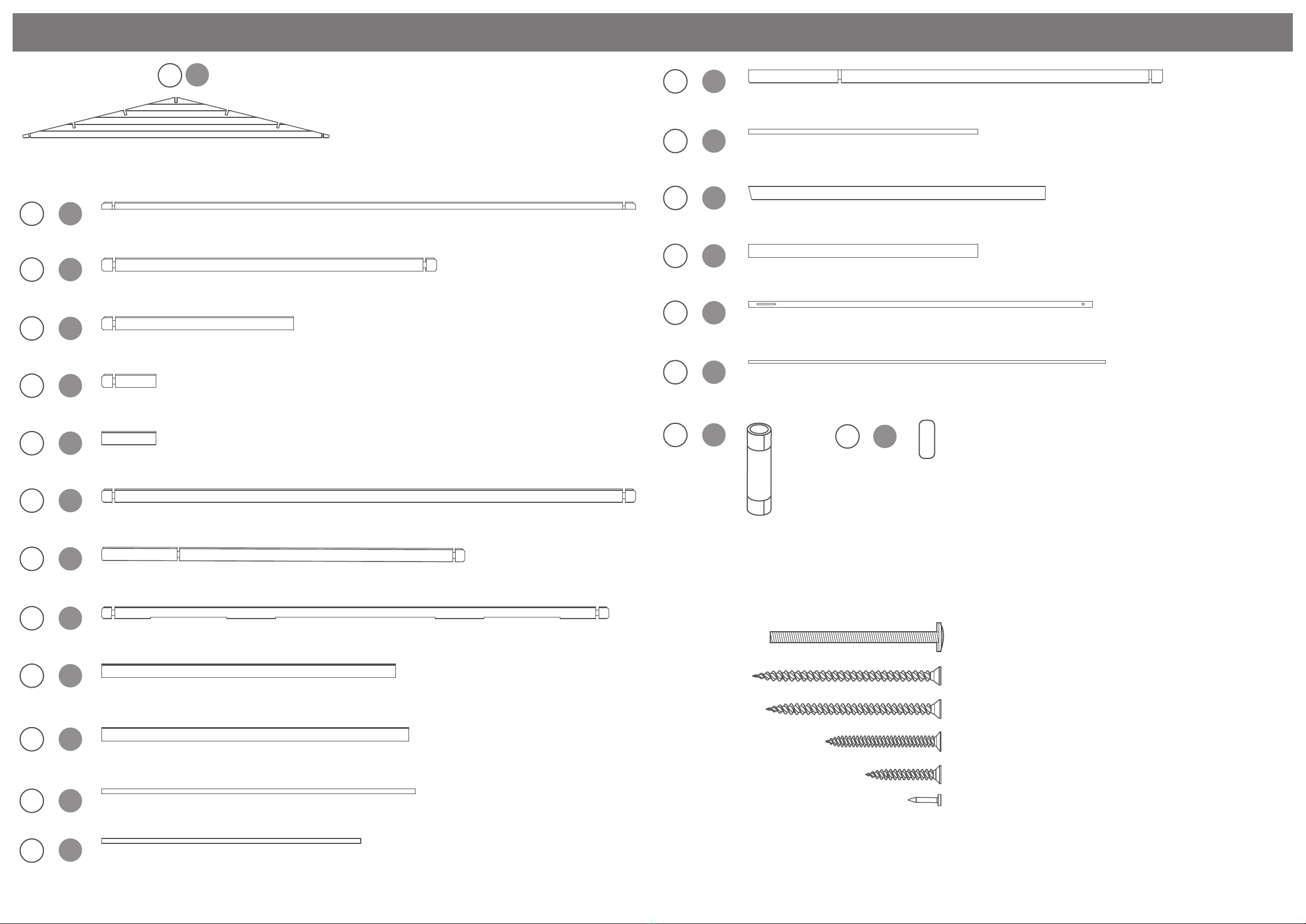

Window Contents
2
1
3
4
Window QTY 2
AI-06LOGDGMW684X1462-V3
5
Window Frame Left Upright - 71x70x1630mm QTY 2
AI-0628LOGMWUFL-V3
Window Frame Right Upright - 71x70x1630mm QTY 2
AI-0628LOGMWUFR-V3
Window Frame Top - 84x125x805mm QTY 2
AI-0628LOGWTF-V3
Window Frame Bottom - 71x70x805mm QTY 2
AI-0628LOGWBF-V3
6
Rain Guard QTY 2
RG2844-710 (28x44x710mm)
78
Casement Stay QTY 2
PI-07-0187
Flag Hinge QTY 4
PI-07-0211
Double Door Contents
10
9
11
12
Adjustable Hinge QTY 6 PI-07-0209
Master Door QTY 1
(Morticed for lock)
AI-06LOGDGMD750X1900-V3
13
14
15
17
17a 17c
18 19 20 21
Secondary Door QTY 1
AI-06LOGDGSD750X1900-V3
Door Frame Left Upright - 71x70x2065mm QTY 1
AI-0628LOGDUFL-V3
Door Frame Right Upright - 71x70x2065mm QTY 1
AI-0628LOGDUFR-V3
Door Frame Top - 84x125x1632mm QTY 1
AI-0628LOGDDTF-V3
Door Frame Bottom - 71x70x1508mm QTY 1
AI-0628LOGDDBF-V3
Door Strip - 16x60x1880mm QTY 1
S1660-1880mm
16
Rain Guard QTY 1
RG2844-1520 (28x44x1520mm)
17b
Mortice Lock
QTY 1
PI-07-0017
Key Plate
QTY 1
PI-07-0017
Handles (Pair)
QTY 1
PI-07-0188
Tower Bolt
QTY 2
PI-07-0114

P 3
Please retain product label and instructions for future reference
Gable QTY 2
AI-0628AXNE0503HGDD2MW-G-V1
Starter Board - 28x66x5000mm QTY 2
LB28RT66-A-5000
Log Board - 28x120x2996mm QTY 38
LB28-A-2996
Log Board - 28x120x1715mm QTY 8
LB28-B-1715
Log Board - 28x120x485mm QTY 28
LB28-B-485
Log Board - 28x120x485mm QTY 28
LB28-C-485
Log Board - 28x120x5000mm QTY 19
LB28-A-5000
Log Board - 28x120x3396mm QTY 2
LB28-AE-3396
Roof Board - 16x121x2628mm QTY 64
MB16-2628
Floor Board - 16x121x2746mm QTY 44
MB16-2746
Bearer - 44x44x2804mm QTY 4
F4444-2804-PT
Bearer - 44x44x2316mm QTY 20
F4444-2316-PT
Purlin - 45x120x3396mm QTY 5
F45120-AE-3396
Eaves Frame - 27x44x1698mm QTY 4
F2744-1698
Fascia - 16x120x2653mm QTY 4
S16120-G-2653
Fascia - 16x120x1713mm QTY 4
S16120-1713
Storm Brace - 27x44x2000mm QTY 8
F2744-2000
Log Board - 28x120x5000mm QTY 1
LB28-AD-5000
Closure Trim - 16x28x2400mm (approx length) QTY 15
S1628-2400
22
23
24
25
26
27
28
29
30
31
33
34
32
35
36
38
39
40
37
41
Felt Roof Spacers QTY 5
PI-07-0208 (20x100x2mm)
42
Nail Bag
70mm Bolt Set x 16
There may be extra screws present in the nail bag
Felt Tacks x 300
70mm Screw x 130
40mm Screw x 688
30mm Screw x 188
80mm Screw x 24

P 4
Please retain product label and instructions for future reference
Pre-assembly
*Please note:
Each board interlocks at either end in a staggered pattern.
Before securing ensure that the boards are tted properly in their respective
tongues and grooves.
Step 1
Parts Needed - No. 33 QTY 2
No. 34 QTY 2

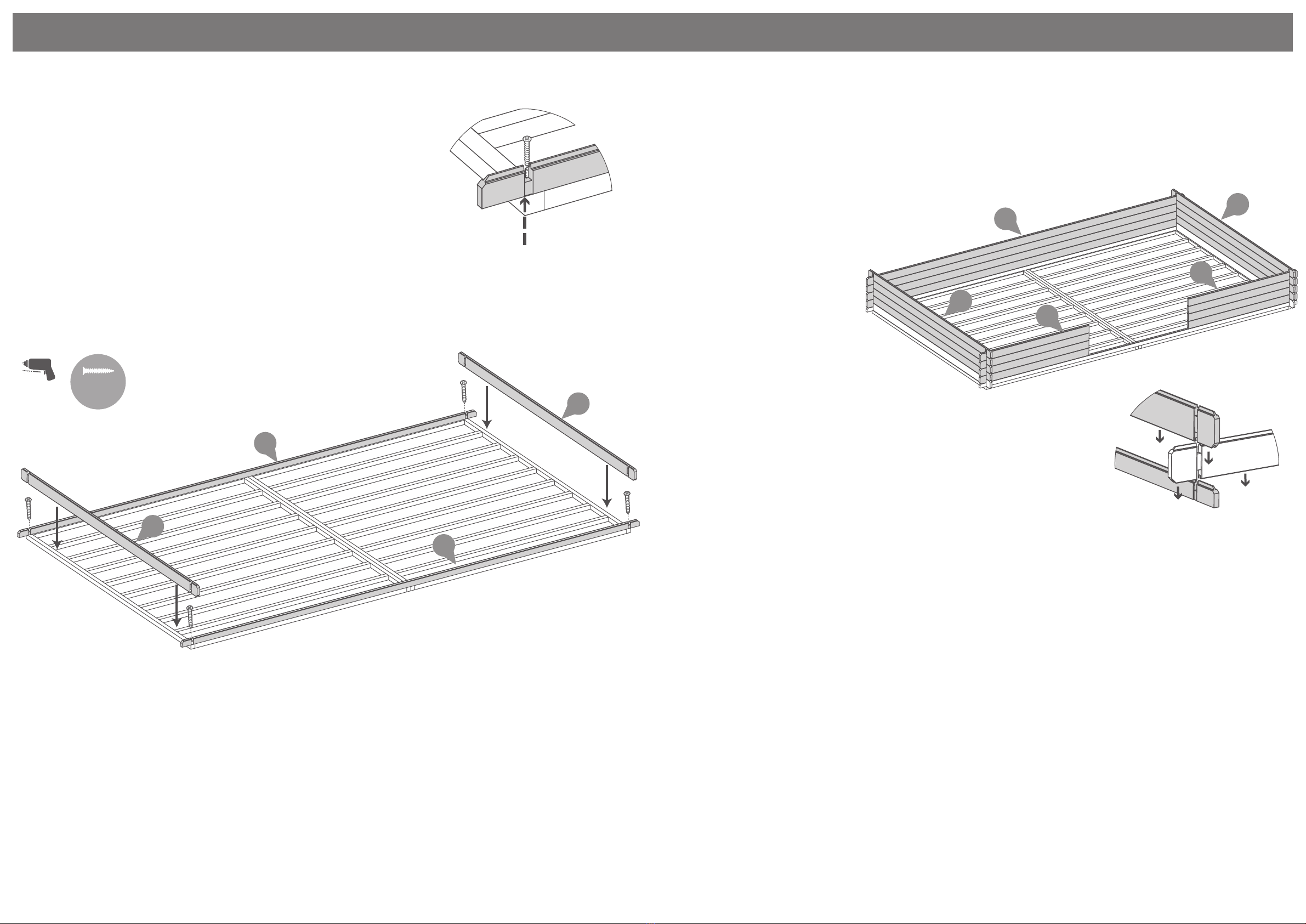

Lay the bearers (No’s. 33 & 34) onto a
rm and level surface
(free from areas where standing
water can collect) as shown in the
illustration.
Fix the bearers together at each
corner screwing 2 screws per corner
using 8x70mm screws,
ensuring the bearer is ush.
Once fully assembled, ensure the
bearers are square by measuring
from corner to corner as illustrated,
making sure the measurements are
equal.
If the bearers are not aligned equally,
unscrew, adjust and re-align
accordingly.
8x70mm Screws
Pre drill
hole
70mm
screw
34
34
33
33
IMPORTANT: Pre-drill before xing screws.
34
34
34
34
34
34
34
34
Pre drill
hole
70mm
screw
Step 2
Parts Needed - No. 34 QTY 8
Following the same method,
arrange the remaining bearers
(No. 34) inside the assembled
frame.
*Ensure there is an equal amount
of space between each frame.
Secure each of the frames in place
using 2x70mm screws for each side
of the bearer, ensuring the bearers
remain level.
32x70mm Screws
34
33
34
IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
70mm
screw
Step 3
Parts needed - No. 33 QTY 2
No. 34 QTY 10
Following the same method
outlined in Step 1 & 2, build
the other base section.
*Ensure there is an equal
amount of space between
each frame.
Secure the base sections
together using 9x70mm
screws, ensuring to x in an
alternating pattern so as not to
collide screws.
49x70mm Screws
33 34
IMPORTANT: Pre-drill before xing screws.
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk

P 5
Please retain product label and instructions for future reference
Pre drill
hole
70mm
screw
IMPORTANT: Pre-drill before xing screws.
24
23
23
24
Step 4
Parts Needed - No. 23 QTY 2
No. 24 QTY 2
Place the starter boards (No. 23) on to the assembled base frame along the
longest sides and place the rst two log boards (No. 24) in the notch as
shown.
Ensure the boards sit square on the base using the same method used in
Step 1. Measure corner to corner, making sure the measurements are equal.
Once the boards are square, lift up the log board (No. 24) and x the starter
boards in place.
Fix each of the starter boards to the frame by screwing through the notch
into the frame as shown in the illustration.
4x70mm Screws
24
24
25
25
28
Step 5
Parts needed - No. 24 QTY 8
No. 25 QTY 8
No. 28 QTY 4
Following the method shown in the
illustration, lay the rst 6 boards
(No’s. 24, 25 & 28)
Start by placing the front and back
boards, interlocking them with the
side boards. Then place the next side
boards, interlocking with the front
and back boards. Continue this
method until you have placed 6
boards o of the starter boards on
each side, as shown in the
illustration.
This will create your rst level.
*Ensure that the boards are level
and ush with each other as you lay
each one.

P 6
Please retain product label and instructions for future reference
Step 6
Parts Needed - No. 11 QTY 1
No. 12 QTY 1
No. 13 QTY 1
No. 14 QTY 1
Arrange the left, right, top & bottom door
frames (No’s. 11, 12, 13 & 14) onto a level
surface. Secure the top and bottom frames to
the uprights using 2x80mm screw per corner,
ensuring the screws do NOT protrude through
the front of the door framing.
8x80mm Screws
Pre drill
hole
80mm
screw
13
14
11
12
IMPORTANT : Pre-drill before xing screws.
The internal lip of the door
frame should be postioned on
the inside of the building.
14 12
Step 7
Parts Needed - No. 9 QTY 1
No. 10 QTY 1
No. 17 QTY 6
The Adjustable Door Hinge (No.17)
comes in three parts.
Fasten No. 17a into 17b as shown in the
illustration.
Place the master and secondary
doors (No’s 9 & 10) onto a at surface and x
the Adjustable door hinge (No.17c) to the
doors using 3x30mm screws per hinge.
Fix 3 x Adjustable Door Hinges (No. 17a &
b) into position onto the door frame using
4x30mm screws per hinge.
*Ensure the hinges are tted to the exter-
nal of the door frame so the doors open
outwards from the log cabin.
Locate the doors into the hinges ensuring
there is equal spacing on each side between
the doors and door frame, and that the
doors open & close freely without restric-
tion.
It is important to t the doors within the
frames at this stage so that you can establish
the position of the hinges. The hinges come
in three parts. Remove the doors from the
frame after tting.
**Ensure to screw into the framing and not
into the channel.
42x30mm Screws
17a
Pre drill
hole
30mm
screw
9
10
17
a
b
17b
a
b
IMPORTANT : Pre-drill before xing screws.
Secondary Door Master Door
17

Please retain product label and instructions for future reference
Step 9
Once you have laid 4 log boards (o of the starter)
up the door section, slide the assembled door
frame over the boards resting the frame on top of
the starter board (if you have not yet assembled
the door frame refer to step 6)
*Please note: This image is for illustrative purposes
and may dier from your choice in product
(regarding door position). Nevertheless the
process of tting the door frame is the same.
28
24
24
Step 10
Parts needed - No. 24 QTY 14
No. 26 QTY 14
No. 27 QTY 14
No. 28 QTY 7
Following the method shown
in the illustration, lay the next 7
boards (No’s. 24, 26, 27 & 28) onto
the log cabin to create your
second level.
*Ensure that the boards are level
and ush with each other as you
lay each one.
27
27
26
26
Step 8
To adjust and align your doors:
1. Lift up the doors to separate the two parts of
the hinge.
2. Turn the rotating barrel (No.17a) in / out to
move the postion of the doors either in or away
from each other.
3. You can then place the door(s) back on to the
hinge and check whether they require more /
less adjustments, if further adjustments are
required repeat number 2.
17a
P 7

Please retain product label and instructions for future reference
2
4
IMPORTANT : Pre-drill before xing screws.
Step 11
Parts Needed - No. 2 QTY 2
No. 3 QTY 2
No. 4 QTY 2
No. 5 QTY 2
Arrange the left, right, top & bottom window
frames (No’s. 2, 3, 4,& 5) onto a rm and level
surface. Secure the top and bottom frames to
the uprights using 2x80mm screw per corner,
ensuring the screws do NOT protrude through
the front of the window framing.
Repeat the instructions above to create two
window frames.
16x80mm Screws
Pre drill
hole
80mm
screw 5
3
53
The internal lip of the window
frame should be postioned on
the inside of the building.
Pre drill
hole
30mm
screw
IMPORTANT : Pre-drill before xing screws.
1
7
7
7
Step 12
Parts Needed - No. 1 QTY 2
No. 7 QTY 4
Position the window (No. 1) so that it
sits centrally within the window frame.
Fix the female part of the ag hinge
(No. 7) to the window using 4x30mm
screws, attach the male part of the ag
hinge (No. 7) to the window frame
using 4x30mm screws ensuring that
the window can open and close freely.
*Ensure to attach the hinge to the
horizontal frame of the window*
Repeat this method for both windows
**It is important to t the windows
within the frame at this stage so
that you can establish the position
of the hinges. The hinges come in
two parts. Remove the window from
the frame after tting.
32x30mm Screws
Step 13
Once you have laid the second level of
boards onto the log cabin slide the
windows between the smaller boards
and rest on to the longer board (if you
have not yet assembled the window
frames refer to step 11 & 12)
*Ensure the boards are level with
each end.
*Please note: This image is for
illustrative purposes and may dier
from your choice in product (regarding
window position). Nevertheless the
process of tting the window is the same
P 8

Please retain product label and instructions for future reference
Step 14
Parts needed - No. 24 QTY 14
No. 26 QTY 14
No. 27 QTY 14
No. 28 QTY 7
Following the method shown in
the illustration, lay the remaining
boards (No. 24, 26, 27, & 28)
onto the assembly to bring the
board level to the top of the
window and door frames.
*Ensure that the boards are
level and ush with each other
as you lay each one.
28
24
24
27
26
26
Rubber Mallet
may be required
to t parts.
27
28
29 30
Step 15
Parts needed - No. 28 QTY 1
No. 29 QTY 2
No. 30 QTY 1
Following the method shown in
the illustration, lay next boards
(No. 28 & 30)onto the front and
back of the log cabin. Once in
position place the last 2 log
boards (No.29) onto the plain
sides, xing into position by
screwing through the notches as
shown in the illustration.
*Ensure that the boards are level
and ush with each other as you
lay each one.
4x70mm Screws
Pre drill
hole
70mm
screw
29
IMPORTANT : Pre-drill before xing screws.
Rubber Mallet
may be required
to t parts.
22
22
Pre drill
hole
70mm
screw
IMPORTANT: Pre-drill before xing screws.
Step 16
Parts needed - No. 22 QTY 2
Place the gable tops (No. 22)
onto the log cabin. Fix into
position by screwing through
the notches as shown in the
illustration.
*Ensure that the boards are
level and ush with each other
as you lay each one.
4x70mm Screws
Rubber Mallet
may be required
to t parts.
P 9

P 10
Please retain product label and instructions for future reference
Pre drill
hole
Step 17
Parts needed - No. 35 QTY 5
Align the Roof Purlin(s) (No. 35)
into the cut out slots on each gable top
ensuring each purlin interlocks the
boards.
Secure the purlins at each end by
screwing through the bars into the
boards (ensure to pre-drill to avoid the
boards splitting) using 4x70mm screws
per purlin.
*Please note: The gable shown is for
illustrative purposes and may dier in
width from your choice in product.
Nevertheless, despite any dierences the
process of xing the purlins is the same.
20x70mm Screws
70mm
screw
35
35
a
b
a
IMPORTANT: Pre-drill before xing screws.
Rubber Mallet
may be required
to t parts.
35
b
35
35
35
35
Step 18
Parts needed - No. 31 QTY 64
Place the rst two roof board’s
(No. 31) onto the log cabin on each side,
making sure the boards are ush to the
end of the roof purlin. Once in position x
to each purlin using 4x40mm screws.
Ensure the roof boards are not laid too
close together, use the spacers (No. 42)
provided to create a 2mm gap. Adjusting
the spacing between the boards allows
the wood to swell in damp weather.
Continue adding the roof boards along
the roof, xing each one into position
using 4x40mm screws, making sure that
each board is interlocked, ush at the
bottom & meet at the top of the apex.
You have been provided with 64 roof boards
however, you may only need to use 62.
*Ensure the roof boards meet at the top
of the apex and leave an overhang at the
bottom.
The last board on each side will
overhang past the ends of the purlins;
Using a straight edge and a pencil mark
out a line as a guide.
Cut along the pencil mark and remove the
excess. Place the cut down board’s back
onto the roof and secure into place using
4x40mm screws per board.
*Please Note: This image is for illustrative
purposes and may dier from your choice in
product. Nevertheless the process of cutting
and tting the last roof boards is
the same.
256x40mm Screws
40mm
screw
Pre drill
hole
*Cut to t
a
b
23b 31
31
31
IMPORTANT: Pre-drill before xing screws.

P 11
Please retain product label and instructions for future reference
Step 19
Parts needed - No. 36 QTY 4
Ensuring the roof boards are ush at the
overhanging side and meet at the apex,
x the Eaves Frames (No. 36) to the
underside of the roof boards using
9x40mm screws as shown in the
illustration.
*Please Note: This image is for illustrative
purposes and may dier from your choice
in product. Nevertheless the process of
xing the eaves frames is the same.
36x40mm Screws
40mm
screw
Pre drill
hole 36
IMPORTANT: Pre-drill before xing screws. Step 20
Lift each window onto the already existing
hooks on the window frame, ensuring the
hook and bands connect.
*Some adjustment may be required to
align properly.
Pre drill
hole
Step 21
Parts Needed - No. 8 Qty 2
Fix the casement stay (No. 8) onto
the window (No. 1) and the casement
stay pins to the window framing using
6x30mm black screws.
*Ensure the casement stay is centralised
on the window and the pins are in line
with the pin recievers before xing in
place.
Repeat the above steps to attach a
casement stay to both windows.
12x30mm Screws
IMPORTANT : Pre-drill before xing screws.
30mm
screw
8
1
8

P 12
Please retain product label and instructions for future reference
Step 22
Lift each door onto the already existing
hooks on the door frame, ensuring the hook
and bands connect.
*Some adjustment may be required to
align properly.
IMPORTANT : Pre-drill before xing screws.
Pre drill
hole
Step 23
Parts Needed - No. 18 QTY 1
No. 19 QTY 1
No. 20 QTY 1
Fit the Mortice lock (No. 19) into the
recess in the master door (No. 9) and secure
using the screws provided. Attach the Key
plate (No. 20) to the secondary door (No. 10)
with 4x30mm screws.
Fit the door handles (No.18) and
connect with the metalbar to the mortice lock
using 8x30mm screws. Ensure the lock
mechanism closes correctly. If not, remove the
lock and turn the catch around using the small
grub screw.
*Please note: This image is for illustrative
purposes and may dier from your choice in
product (regarding ironmongery).
Nevertheless the process of xing is the same.
Once components have been tted, try closing
doors to ensure the doors can be closed and the
lock works.
If your doors do need adjusting please look at
step 8.
12x30mm Screws
a
b
30mm
screw
The Mortice Lock is Reversible
a
b
20 19
10 9
18

P 13
Please retain product label and instructions for future reference
Step 23
Parts Needed - No. 15 QTY 1
No. 21 QTY 2
Attach the Door Strip (No. 15) to the
back of the secondary door using
4x40mm screws as shown.
Once xed, place the Tower
Bolts (No. 21) roughly into position
and with a pencil mark around the
bolt.
After marking the bolt onto
the frame, drill a hole for the barrel
bolt to locate into.
Following the hole being
drilled, place the tower bolts into
position and secure using the screws
provided.
12x40mm Screws
a
b
c
c
Pre drill
hole
40mm
screw
21
IMPORTANT : Pre-drill before xing screws.
15
b
a
32
Front
Side
Step 25
Parts neeeded - No. 32 QTY 44
Place the rst oor board (No. 32) inside
the building ush to the log board on one
side. Continue adding the oor boards
(internally) making sure to interlock each
individual board.
You have been provided with 44 oor boards
however, you may only need to use 43.
*Do NOT secure the boards until the last
board has been measured and cut.
Following the same method as before
measure the gap between the bottom of
the tongue (on the last board placed) and
the log board.
Using a straight edge mark out the
measurement onto the last oor board (No.
32) and cut along the length removing the
excess.
**Please note: Mark the nal board 2mm
under the measurement; This will allow the
timber to expand and contract correctly.
Once all the oor boards are in position
secure each board into position using
8x40mm screws.
***Please Note: Ensure to screw through
each of the oor boards into the oor bearers.
352x40mm Screws
40mm
screw
Pre drill
hole
*Cut to t
IMPORTANT: Pre-drill before xing screws.

Please retain product label and instructions for future reference
P 14
Roof
Closure Trim
Internal
23
*Measure and cut the
closure trims to
t the internal space.
Closure Trim
Internal
40
*Measure and cut the
closure trims to
t the internal space.
Pre drill
hole
30mm
screw
*trim to t
Step 26
Parts needed - No. 40 QTY 8
Inside the building place the closure
trim (No. 40) against the boarding
and align with the roof as shown in
the illustration.
*Measure and cut the closure trims
to t the internal space.
Once in position x each trim
into place by pre drilling a pilot hole
and using 6x30mm screws per trim,
equally spacing them along the face
of the board.
48x30mm Screws
IMPORTANT: Pre-drill before xing screws.
23
23
40
40
30mm
screw
Pre drill
hole
*Cut to t
Step 27
Parts needed - No. 40 QTY 7
Once the oor has been laid arrange the
closure trim (No. 40) around the outside
edge of oor (internally), measure and cut
down accordingly to best match the
internal space.
Secure each trim section into place using
6x30mm spaced equally along the board
as shown in the illustration.
*Do NOT x the closure trim to the oor
boards.
42x30mm Screws
IMPORTANT: Pre-drill before xing screws.
HANDLE
WITH CARE
12
3
4
1. 2.
3. 4.
5. 6.
Felt
tacks
Step 28
Parts needed - No. 41

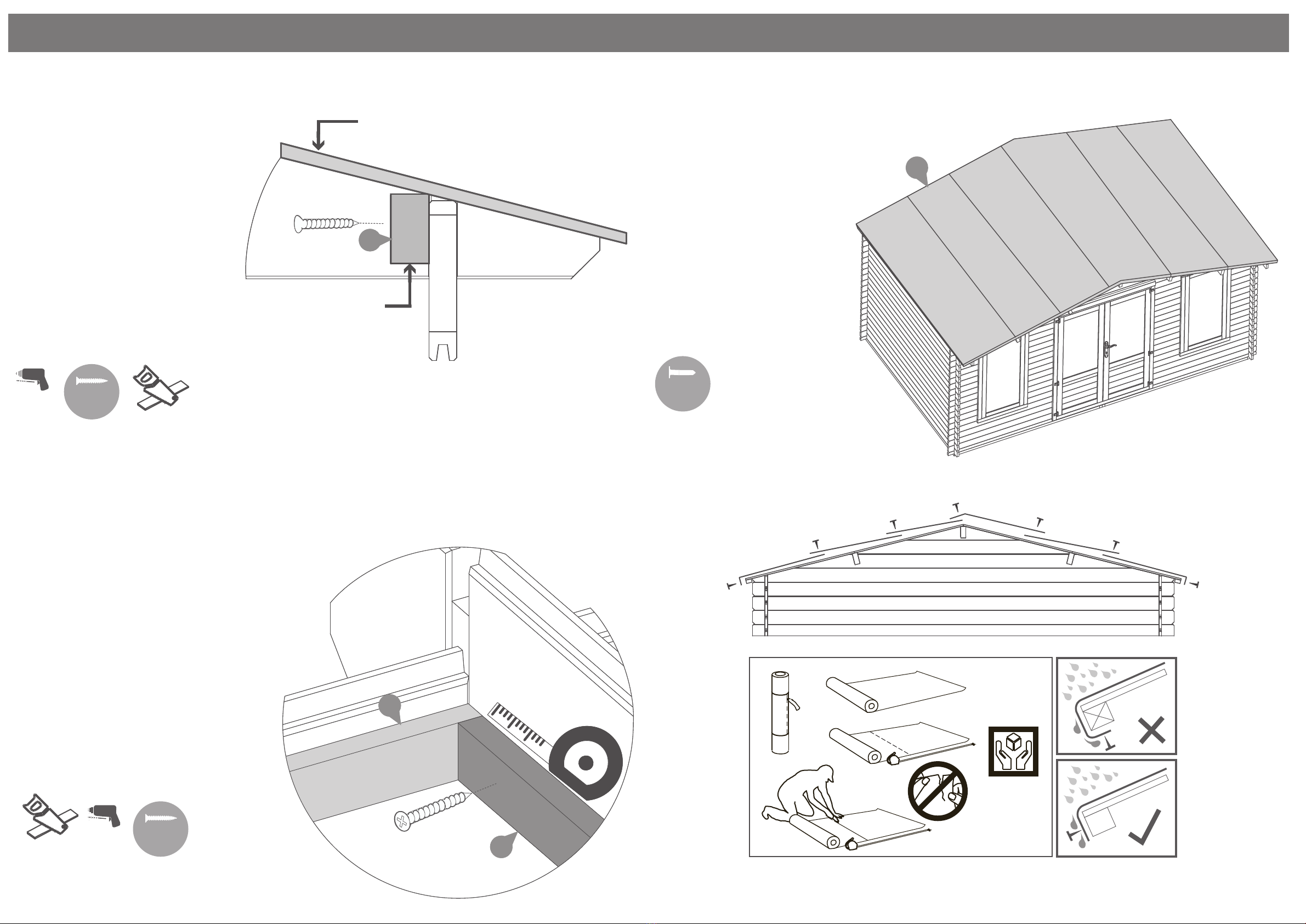

Cut the felt into six strips and lay
onto the roof in the order shown
in the illustration.
*Ensure there is approximately
50mm of overhanging felt each
side.
Once the felt is laid out x to the
roof using felt tacks at 100mm
intervals.
*Felt size: 3500mm
300x Felt Tacks
41

P 15
Please retain product label and instructions for future reference
Step 29
Parts needed - No. 37 QTY 4
No. 38 QTY 4
Align the fascia’s (No’s. 37 & 38)
with the roof and x into place
using 4x40mm screws per fascia,
making sure to screw through the
fascia into the roof purlins and
eaves frames.
32x40mm Screws
Pre drill
hole
40mm
screw
38
38
37
37
37
37
38
38
IMPORTANT : Pre-drill before xing screws.
38
IMPORTANT : Pre-drill before xing screws.
Pre drill
hole
70mm
bolt
39
39
Step 30
Parts needed - No. 39 QTY 8
Arrange the storm braces (No.39)
around the building (internally),
Placing two storm braces per side,
xing into place using 2x 70mm bolts
per brace ,making sure the washer &
nut are tightened from the outside of
the building.
*Ensure the storm braces are secured
at the highest point possible on each
side.
The storm braces will need to be
altered during the buildings life as the
moisture content within the log boards
changes. The boards will expand
during periods of high moisture
(Winter) and shrink during periods of
low moisture (Summer.)
**Storm braces will help your building
expand and contract properly.
***Important: Ensure each bolt is
tightened using a washer so as not to
damage the log boards.
16x70mm Bolt Sets

P 16
Please retain product label and instructions for future reference
IMPORTANT : Pre-drill before xing screws.
Step 31
Parts Needed: No. 6 QTY 2
No. 16 QTY 1

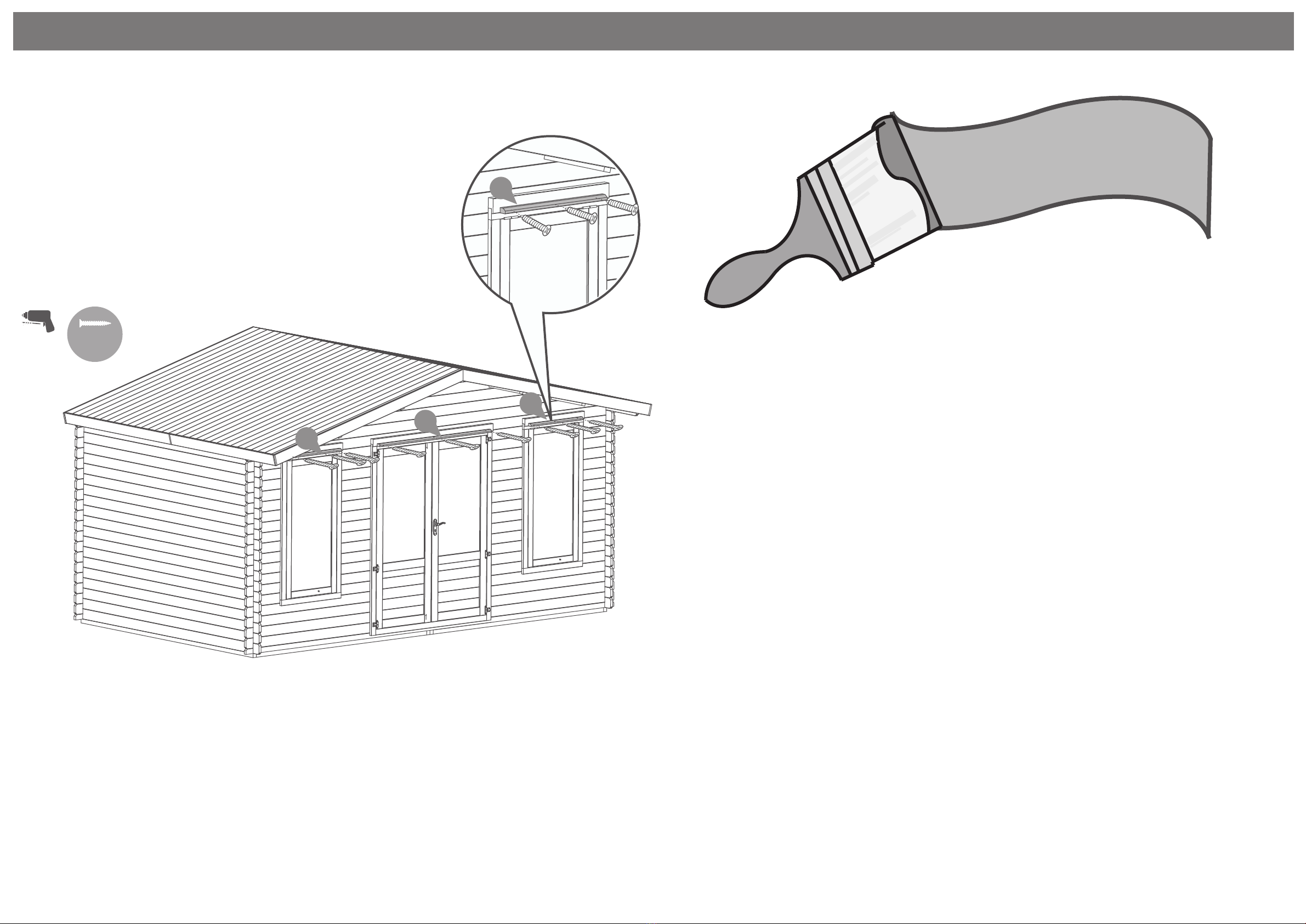

Attach the Rain Guards (No. 6) to the
window frame, xing in place onto the
framing above each window using
3x70mm screws per guard.
Attach the Rain Guard (No. 16) to the
door frame, xing in place onto the
framing above the Door using 3x70mm
screws.
9x70mm Screws.
70mm
screw
Pre drill
hole
6
6
6
16
It is ESSENTIAL that you apply wood
treatment immediately after the building
has been assembled.
