Mercia Garden Products 03PTMBPN0406STP-V1 Instruction manual

REGISTER FOR YOUR
ANTI-ROT
GUARANTEE TODAY
PLEASE SCAN HERE:
Measure
under the
head
Measure
overall
length
Screws & Nails Bolts To identify the
xings required
for each step use a
measuring tape.
03PTMBPN0406STP-V1
PRESSURE TREATED MATCHBOARD PENT 4X6 SHUTTER PACK
2mm Drill bit
x2 Winter = High Moisture = Expansion
Summer = Low Moisture = Contraction
All buildings should be
erected by two adults
For ease of assembly, you
MUST pilot drill all screw
holes and ensure all screw
heads are countersunk.
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
CAUTION
Every eort has been made during the
manufacturing process to eliminate the
prospect of splinters on rough surfaces of the
timber. You are strongly advised to wear gloves
when working with or handling rough sawn
timber.
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied) including a Phillips screw-
driver, Stanley knife, Wood saw, Step ladder, Hammer and a Drill with 2mm bit.
- Ensure there is plenty of space and a clean dry area for assembly.
LOCATION FOR YOUR GARDEN BUILDING
A minimum of 60cm should be left around the perimeter of your garden building to allow access for maintenance,
annual treatment and to allow air ow around the building.
Where possible you should avoid placing your garden building underneath large trees to prevent the tree causing
damage to the building.
TIMBER
As with all natural materials, timber can be aected during various weather conditions. For the duration of heavy
or extended periods of rain, swelling of the wood panels may occur. Warping of the wood may also occur during
excessive dry spells due to an interior moisture loss. Unfortunately, these processes cannot be avoided but can be
helped. It is suggested that the outdoor building is sprayed with water during extended periods of warm sunshine
and sheltered as much as possible during rain or snow.
Once your garden building has been installed it will need to be treated as soon as possible and annually to prevent
the timber from deteriorating and to waterproof it. This is required to maintain the anti-rot guarantee.
Dip Treated buildings - Require a preservative treatment to protect against rot and decay and a waterproof treat-
ment to prevent water ingress
Pressure Treated buildings - Require a waterproof treatment to prevent water ingress
Log Cabins - Are supplied untreated and require a preservative and waterproong treatment.
BUILDING A BASE
When thinking about where the building and base is going to be constructed:
Ensure that there will be access to all sides for maintenance work and annual
treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to diagrams for the base
dimensions, The base should be slightly smaller than the external measurement of the building, i.e. The cladding
should overlap the base, creating a run o for water. It is also recommended that the oor be at least 25mm above
the surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in the case of childrens
products independently tested to EN71 level, we cannot accept responsibility for your safety whilst erecting or
using this product.
For ease of assembly, you
will need a tape measure to
check dimensions of
components.
Pressure Treated Timber
Your building has been pressure treated.
Pressure treating is a chemical process which helps to protect wood against adverse weather which could
lead to rot or insect damage.
The most common chemicals used to pressure treat wood are Alkaline Copper Quaternary (ACQ),
Copper Azole (CA), and Micronized Copper Quaternary (MCQ).
Safety: Always wear gloves, eye protection and a dust mask when handling wood. Due to chemicals in
pressure treated wood, never burn its sawdust or scraps; instead dispose in a landll.
P 1
Please retain product label and instructions for future reference
General Instructions

P 2
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied) including a Phillips screw-
driver, Stanley knife, Wood saw, Step ladder, Hammer and a Drill with 2mm bit.
- Ensure there is plenty of space and a clean dry area for assembly.
LOCATION FOR YOUR GARDEN BUILDING
A minimum of 60cm should be left around the perimeter of your garden building to allow access for maintenance,
annual treatment and to allow air ow around the building.
Where possible you should avoid placing your garden building underneath large trees to prevent the tree causing
damage to the building.
TIMBER
As with all natural materials, timber can be aected during various weather conditions. For the duration of heavy
or extended periods of rain, swelling of the wood panels may occur. Warping of the wood may also occur during
excessive dry spells due to an interior moisture loss. Unfortunately, these processes cannot be avoided but can be
helped. It is suggested that the outdoor building is sprayed with water during extended periods of warm sunshine
and sheltered as much as possible during rain or snow.
Once your garden building has been installed it will need to be treated as soon as possible and annually to prevent
the timber from deteriorating and to waterproof it. This is required to maintain the anti-rot guarantee.
Dip Treated buildings - Require a preservative treatment to protect against rot and decay and a waterproof treat-
ment to prevent water ingress
Pressure Treated buildings - Require a waterproof treatment to prevent water ingress
Log Cabins - Are supplied untreated and require a preservative and waterproong treatment.
BUILDING A BASE
When thinking about where the building and base is going to be constructed:
Ensure that there will be access to all sides for maintenance work and annual
treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to diagrams for the base
dimensions, The base should be slightly smaller than the external measurement of the building, i.e. The cladding
should overlap the base, creating a run o for water. It is also recommended that the oor be at least 25mm above
the surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in the case of childrens
products independently tested to EN71 level, we cannot accept responsibility for your safety whilst erecting or
using this product.
03PTMBPN0406STP-V1
Please retain product label and instructions for future reference

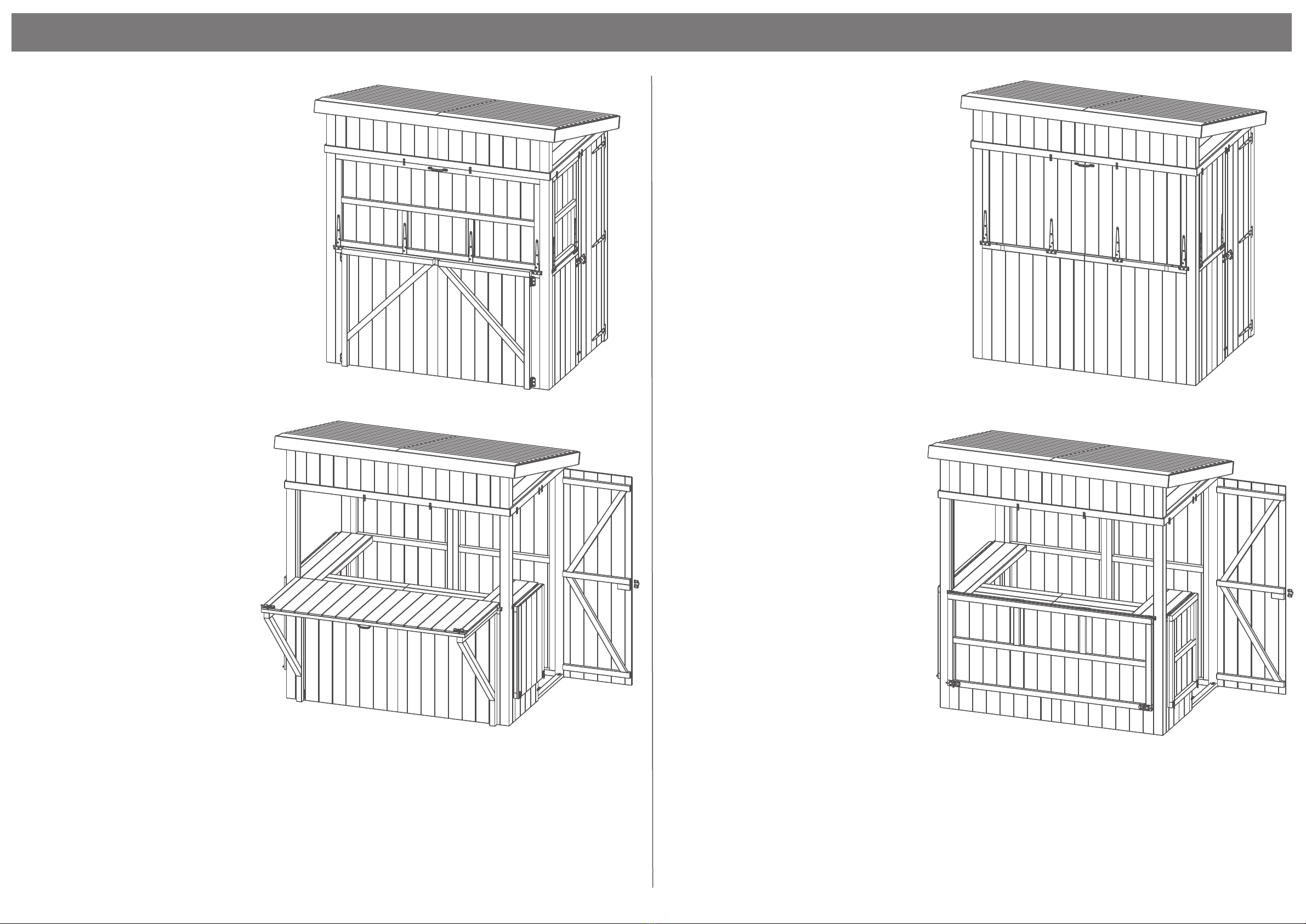

Open Shutters Dimensions:
Width = 1966mm
Depth = 2106mm
Height = 2140mm
Closed Shutters Dimensions:
Width = 1966mm
Depth = 1414mm
Height = 2140mm
Shutter with Support Legs
Shutter with Support Legs
Closed Shutters Dimensions:
Width = 1966mm
Depth = 1414mm
Height = 2140mm
Shutters only
Shutters only
Open Shutters Dimensions:
Width = 1966mm
Depth = 1414mm
Height = 2140mm
If Support legs are being added, please follow steps
labelled ‘Shutter with Support Legs’
If Support legs are not required, please follow steps
labelled ‘Shutters only’

12
18
12 13 14 15
16 17
40mm Screw x 34
70mm Screw x 18
19
P 3
Please retain product label and instructions for future reference
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN
Nail Bag
There may be extra screws present in the nail bag
Door QTY 1
AI-S21FBMBZBD556X1690-V1
Right Shutter QTY 1
AI-S21MBVCPP556X747-V1
5Window Beading Strips 12x28x746mm QTY 2
S1228-746mm
Corner Brace QTY 2
PI-07-0012
Pull Handle QTY 1
PI-07-0033
Turn Button QTY 8
PI-07-0034
Pad Bolt QTY 1
PI-07-0035
Butt Hinge QTY 4
PI-07-0066
Tee Hinge QTY 11
PI-07-0021 Small Tower Bolt QTY 4
PI-07-0114
Large Tower Bolt QTY 2
PI-07-0068
4
Front Shutter QTY 1
AI-S21MBVCPP1670X747-V1
6
Door Block 27x44x100mm QTY 1
F2744-100mm
3
Left Shutter QTY 1
AI-S21MBVCPP1110X747-V1 11
Panel Support Framing 44x44x994mm QTY 2
F4444-G-1034mm
Shutter Block 27x44x307mm QTY 3
F2744-307mm
7
Door Framing 27x44x562mm QTY 1
F2744-562mm
8
Panel Support Framing 44x44x747mm QTY 2
F4444-747mm
9
Panel Support Framing 44x44x910mm QTY 2
F4444-910mm
10
30mm Screw x 139

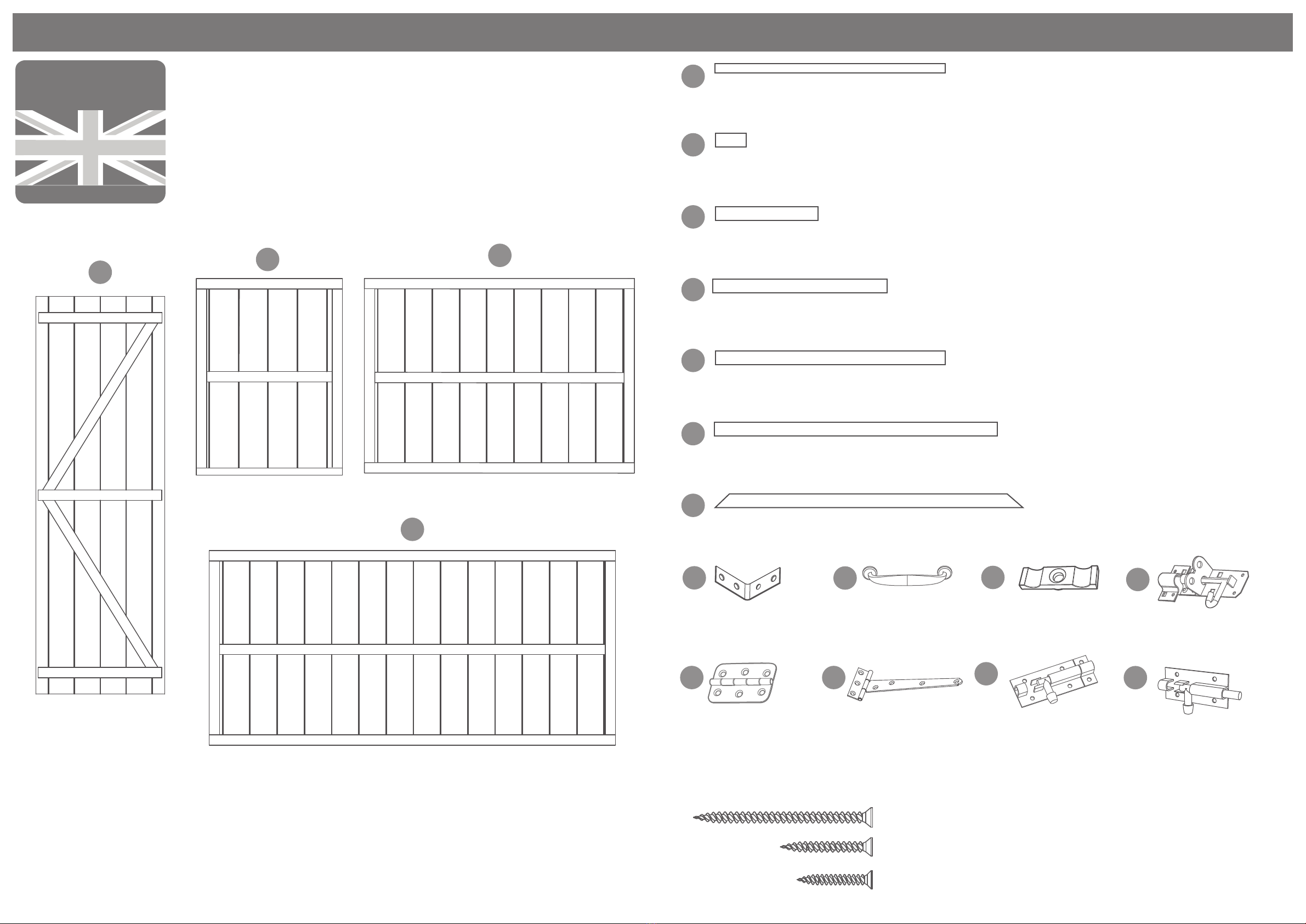

Contents:

Step 2A
Pre drill
hole
30mm
screw
Parts Needed- No.3 QTY 1
- No.17 QTY 2
Locate the Left Shutter (No.3) into the
opening with the framing facing out
and the cladding on the inside.
Fix the Tee hinges (No.17) to the left
shutter using 7x30mm screws per
hinge, ensuring to go into the left
shutter framing
14x30mm Screws
Step 2B
Pre drill
hole
30mm
screw
Parts Needed- No.3 QTY 1
- No.17 QTY 2
Locate the Left Shutter (No.3) into the
opening with the framing facing in
and the cladding on the outside.
Fix the Tee hinges (No.17) to the left
shutter using 7x30mm screws per
hinge, ensuring to go into the left
shutter cladding and into the framing
14x30mm Screws
P 4
Please retain product label and instructions for future reference
Shutter with Support Legs
Shutters only
17
3
17
17
17
3
17
17

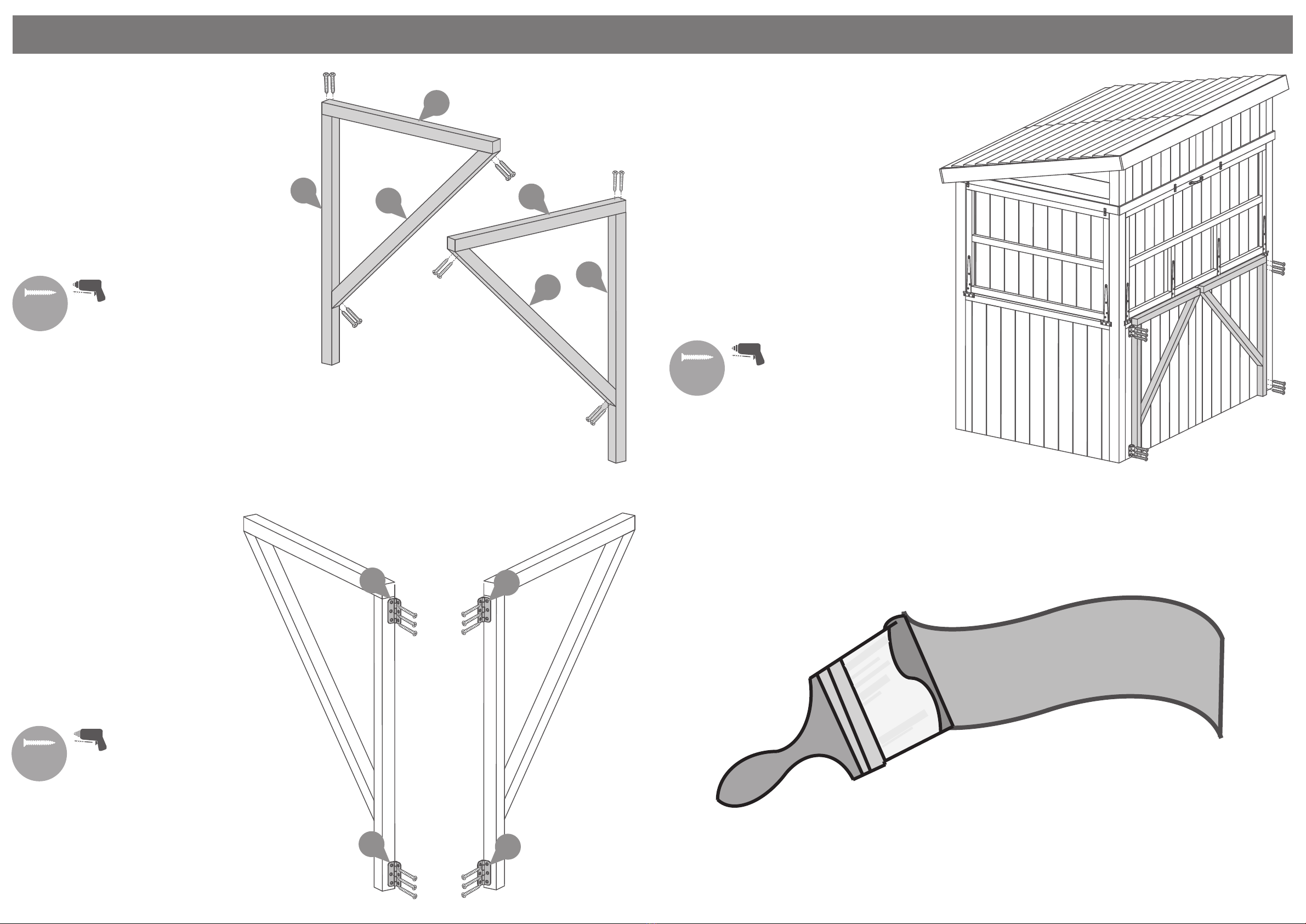

Step 1
Pre drill
hole
40mm
screw
Parts Needed- No.13 (Main Building) QTY 1
- No.14 (Main Building) QTY 2
Fix the Cover trims (No.13 and No.14)
to the top of the openings, ensuring
they sit ush to the bottom of the top
panels and gable tops.
Secure using 4x40mm screws for the
front Cover trim (No.13), 3x40mm
screws for the side cover trims (No.14).
10x40mm Screws

P 5
Please retain product label and instructions for future reference
18 18
18
Step 3
Pre drill
hole
30mm
screw
Parts Needed- No.18 QTY 2
Fix the Small tower bolts (No.18) to
the top of the Left shutter using
4x30mm screws per tower bolt,
ensuring to go through into the
shutter framing
Mark the position of the bolt & drill a
hole into the Post for the bolt to catch
in to.
8x30mm Screws
Step 5A
Pre drill
hole
30mm
screw
Parts Needed- No.4 QTY 1
- No.17 QTY 4
Locate the Front Shutter (No.4) into
the opening with the framing facing
out and the cladding on the inside.
Fix the Tee hinges (No.17) to the front
shutter using 7x30mm screws per
hinge, ensuring to go into the shutter
framing and shutter block
28x30mm Screws
Step 5B
Pre drill
hole
30mm
screw
Parts Needed- No.4 QTY 1
- No.17 QTY 4
Locate the Front Shutter (No.4) into
the opening with the framing facing
in and the cladding on the outside.
Fix the Tee hinges (No.17) to the front
shutter using 7x30mm screws per
hinge, ensuring to go through the
cladding and into the shutter framing
and shutter block
28x30mm Screws
Shutter with Support Legs
Shutters only
17
4
17
17
17 17
Step 4
Pre drill
hole
70mm
screw
Parts Needed- No.4 QTY 1
- No.7 QTY 2
Locate the Shutter blocks (No.7) into
the Front Shutter (No.4), ensuring
they are equally spaced between the
framing, secure using 2x30mm screws
per block, going through the front
shutter cladding and into the block
behind.
Secure the blocks to the framing
using 70mm screws going through
the shutter framing and into the block
from the top and bottom as shown in
the diagram
4x30mm Screws
4x70mm Screws
30mm
screw
7
7
4
7
17
4
17
17
17 17

P 6
Step 7
Pre drill
hole
30mm
screw
Parts Needed- No.19 QTY 2
Fix the Large tower bolts (No.19) to
the top of the Front shutter using
4x30mm screws per tower bolt,
ensuring to go through into the
shutter framing
Mark the position of the bolt & drill a
hole into the Post for the bolt to catch
in to.
8x30mm Screws
19
19
19
Step 8
Parts Needed- No.2 QTY 1
- No.7 QTY 2
Locate the Shutter blocks (No.7) into
the Right Shutter (No.2), sitting it
ush to the framing, secure using
2x30mm screws, going through the
right shutter cladding and into the
block behind.
Secure the block to the framing using
70mm screws going through the
shutter framing and into the block
from the top and bottom as shown in
the diagram
2x30mm Screws
2x70mm Screws
7
7
2
Step 6
Pre drill
hole
30mm
screw
Parts Needed- No.5 QTY 2
Locate the Window beading strips
(No.5) to the inside of the front Post,
ensuring it sits ush against the front
shutter when closed, secure using
3x30mm screws per strip.
6x30mm Screws
5
5
Pre drill
hole
70mm
screw
30mm
screw

Please retain product label and instructions for future reference
P 7
2
17
17
17
2
17
17
17
Step 9A
Pre drill
hole
30mm
screw
Parts Needed- No.2 QTY 1
- No.17 QTY 2
Locate the Right Shutter (No.2) into
the opening with the framing facing
out and the cladding on the inside.
Fix the Tee hinges (No.17) to the right
shutter using 7x30mm screws per
hinge, ensuring to go into the shutter
framing and shutter block
14x30mm Screws
Step 9B
Pre drill
hole
30mm
screw
Parts Needed- No.2 QTY 1
- No.17 QTY 2
Locate the Right Shutter (No.2) into
the opening with the framing facing
in and the cladding on the outside.
Fix the Tee hinges (No.17) to the right
shutter using 7x30mm screws per
hinge, ensuring to go through the
cladding and into the shutter framing
and shutter block
14x30mm Screws
Shutter with Support Legs
Shutters only Step 11
18 18
Step 10
Pre drill
hole
30mm
screw
Parts Needed- No.18 QTY 2
Fix the Small tower bolts (No.18) to
the top of the Left shutter using
4x30mm screws per tower bolt,
ensuring to through into the shutter
framing
Mark the position of the bolt & drill a
hole into the Gable top for the bolt to
catch in to.
8x30mm Screws
18
Parts Needed- No.8 QTY 1
- No.12 QTY 2
Locate the Door Framing
(No.8) into the door opening,
ensure it sits ush with the
framing of the right panel as
shown.
Secure to the Right panel and
the back post using Corner
braces (No.12). Fix using
4x30mm screws per corner
brace
8x30mm Screws
Pre drill
hole
30mm
screw
8
12 12
12
8

Step 12
Step 13
Step 14
Step 15
Parts Needed- No.6 QTY 1
66
Fix the Door block (No.6) to
the inside of the door using
2x30mm screws going
through the front of the door
cladding and into the Door
block as shown in the
diagram
2x30mm Screws
Pre drill
hole
30mm
screw
Parts Needed- No.14 QTY 4
14
14 14 14
Locate the Turn buttons
(No.14) to the top of the left
shutter on the left side of the
building, x onto the strips
using 1x30mm screw per turn
button
Locate the Turn buttons
(No.14) to the top of the right
shutter on the right side of the
building, x onto the strip
using 1x30mm screw per turn
button
4x30mm Screws
Pre drill
hole
30mm
screw
Left Side Right Side
14
Fix the Pad Bolt (No.15) to the door
using 6x30mm screws, ensuring to
go through the cladding and into
the door framing and door block
Locate the Turn button (No.14) to
the top of the door, x onto the
strip using 1x30mm screw per turn
button
Locate the Turn button (No.14) to
the bottom of the door, x onto the
right panel using 1x30mm screw
per turn button
8x30mm Screws
Pre drill
hole
30mm
screw
17
Parts Needed- No.14 QTY 2
- No.15 QTY 1
15
15
14
14
15
14
Parts Needed- No.1 QTY 1
- No.17 QTY 3
Fix the Tee Hinges (No.17) to
the door (No.1) using
4x30mm screws per hinge,
ensuring to go through the
cladding and into the framing.
Fix the door (No.1) to the Back
post using 3x30mm screws
per hinge
21x30mm Screws
Pre drill
hole
30mm
screw
17
17
1
17
17
Please retain product label and instructions for future reference
P8

Please retain product label and instructions for future reference
P 9
If Support legs are being added, please move
onto the next page and continue from Step 17
It is ESSENTIAL that you apply wood
treatment immediately after the building
has been assembled.
Step 16
Parts Needed- No.13 QTY 1
- No.14 QTY 4
14
Locate the Turn buttons
(No.14) to the front of the
building above the front
shutter, x onto the strips
using 1x30mm screw per turn
button
Fix the Pull Handle (No.13)
onto the top of the front
shutter using 2x30mm screws,
ensuring its central on the
shutter
4x30mm Screws
Pre drill
hole
30mm
screw
14
14
13
13

It is ESSENTIAL that you apply wood
treatment immediately after the building
has been assembled.
Please retain product label and instructions for future reference
P 10
Parts Needed- No.9 QTY 2
- No.10 QTY 2
- No.11 QTY 2
Lay out the Panel support
framing (No.9, No.10 and
No.11) as shown in the
diagram and x together using
6x70mm screws per Support
frame
12x70mm Screws
Pre drill
hole
70mm
screw
Step 17
Step 18
Parts Needed- No.16 QTY 4
Fix the Butt Hinges (No.16) to the
Panel Support framing using
3x40mm screws per hinge.
**Hint: the hinges for the Left
support framing should be xed
on the Left side and the hinges
for the Right support framing
should be xed on the Right side
12x40mm Screws
Pre drill
hole
40mm
screw
10
10
11
11
9
9
16 16
16 16
Right Side Left Side
Step 19
Parts Needed- No.16 QTY 4
Locate the Panel Support framing
to the front of the building,
ensuring the framing lines up with
the edge of the Front shutter when
open. Fix the Panel Support
framing using 3x40mm screws per
hinge.
**Hint: the support framing
should lay at to the building
when closed, as shown in the
diagram
12x40mm Screws
Pre drill
hole
40mm
screw
